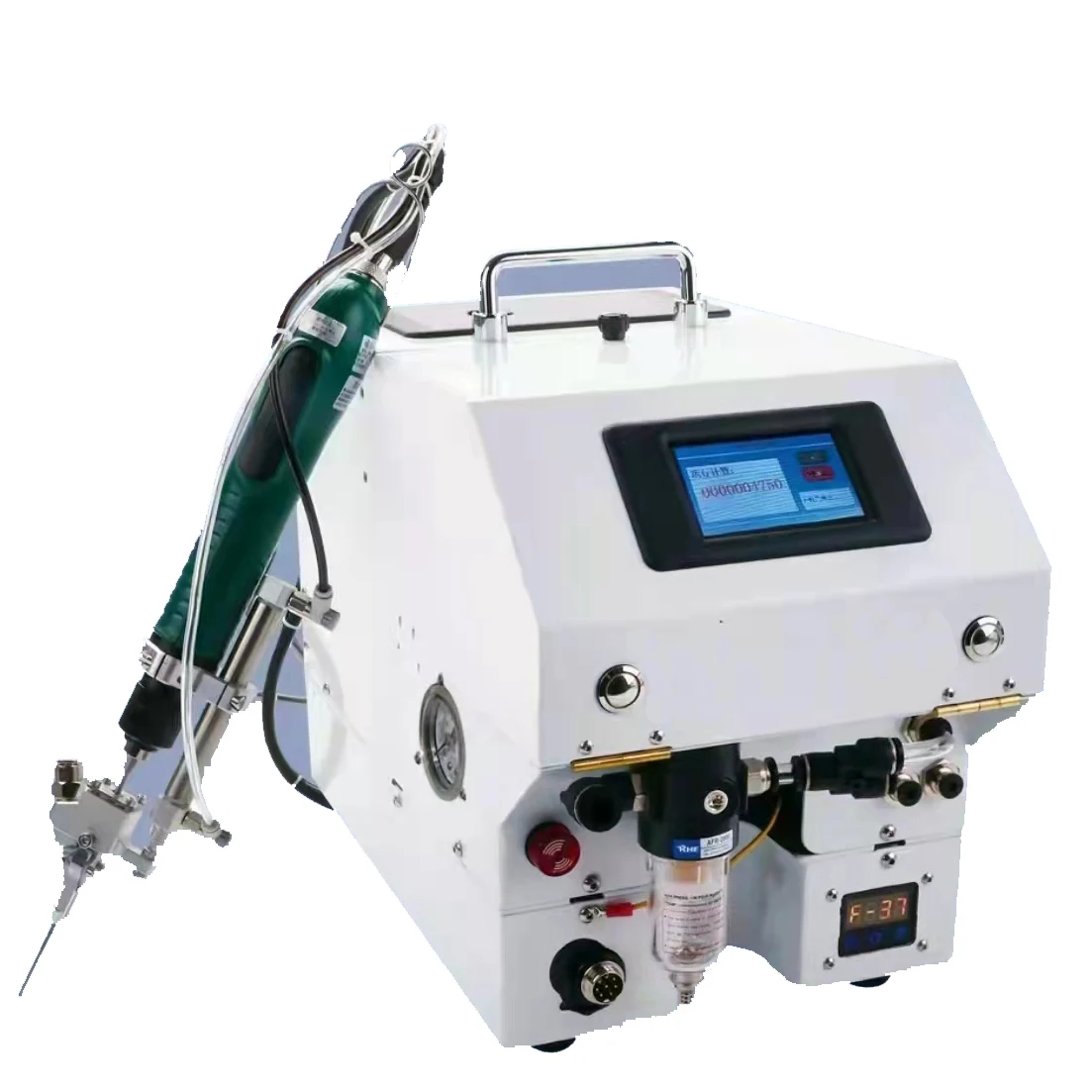

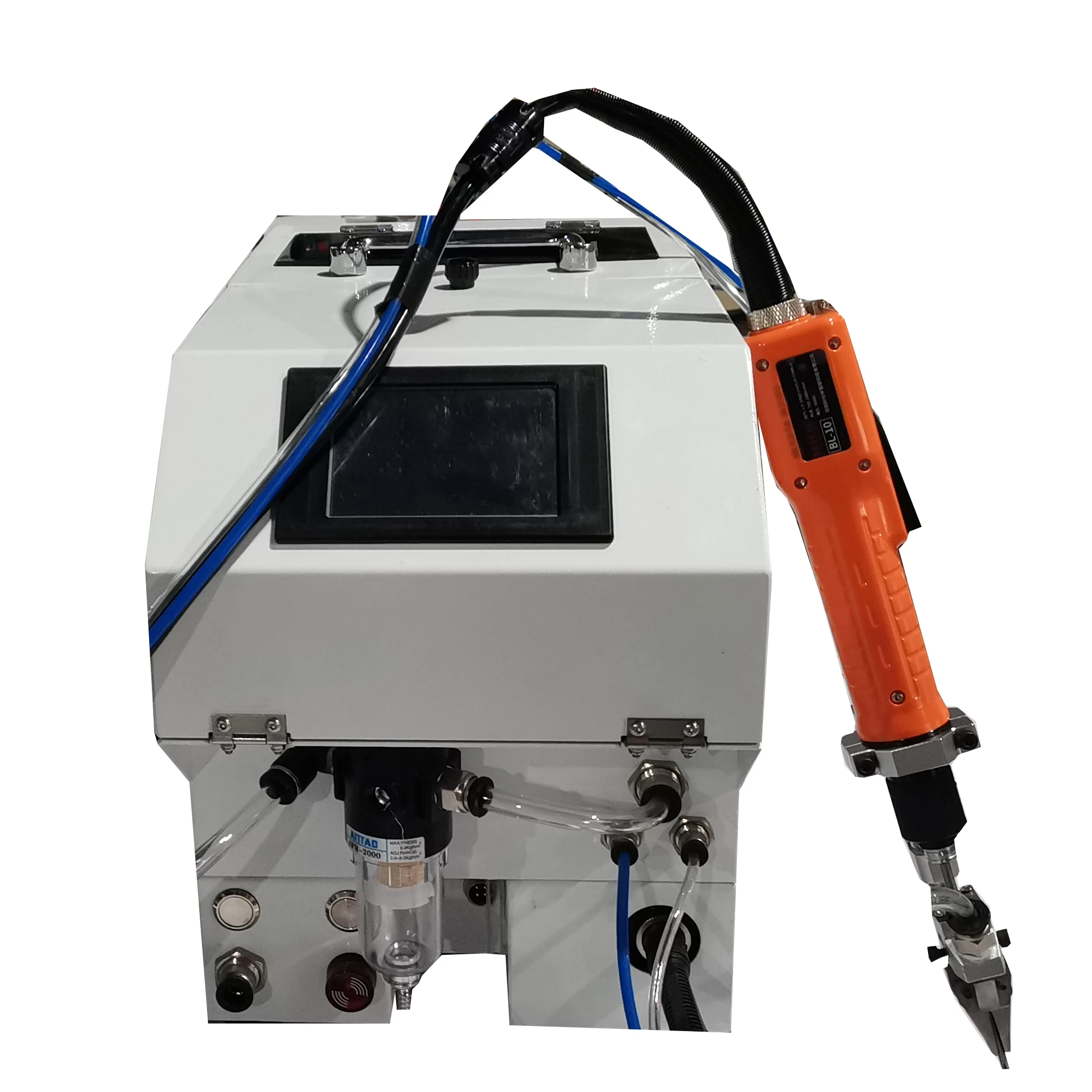

Handheld screwdriver to tighten glasses with automatic screw feeding system
- Category: >>>
- Supplier: Shenzhen United Creative Industry Ltd.
Share on (1600510249752):
Product Overview
Description
Product Description
 | Hand-held type automatic feeder screwdrivers.This machine is made of 3 main parts: 2. Screw sorting system. 3. Screw tightening system. |
Specifications
Note: Locking nozzle, distributor, feeding tube needs to be customized according to screw size
Model | TBS-SC-2 |
Dimension | 370mmX360mmX270mm |
Applicable screw size | M1-M5,Length>1.3 times of screw head diameter |
Applicable products | No obstruction around 10mm, hole depth less than 50mm |
Conveying distance | 1-4m |
Feeder volume | 500ML |
Screwdriver | KILEWS/HHB |
Torque range | 1-10kgf.cm |
Versatility | Allow 0.5mm tolerance between different screw |
Feeding type | Air blowing |
Net weight | 15kg |
Power | <150W |
Input voltage | 220V AC ,50Hz/60HZ |

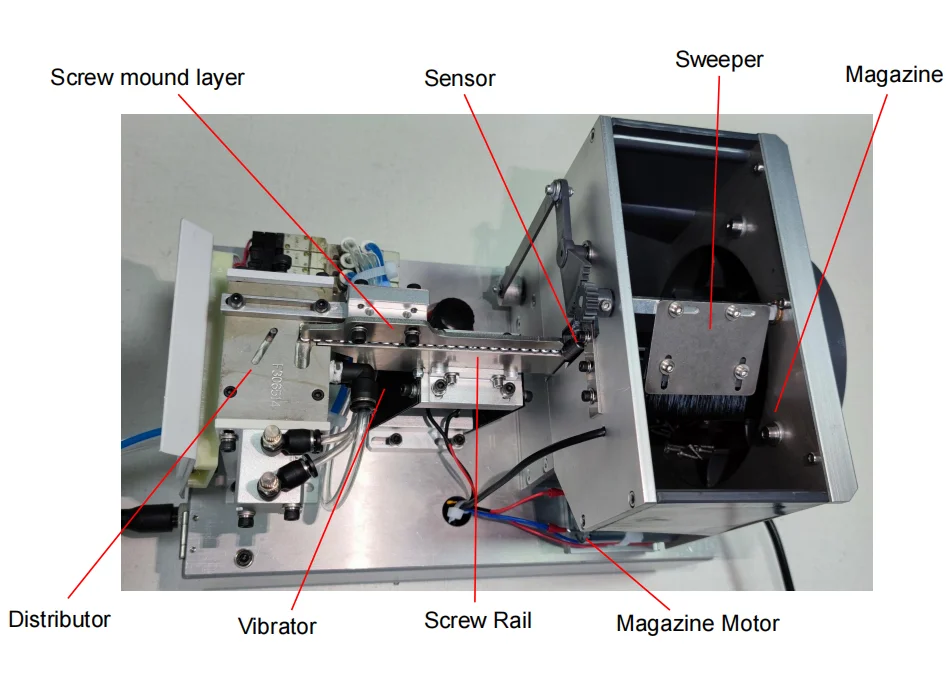

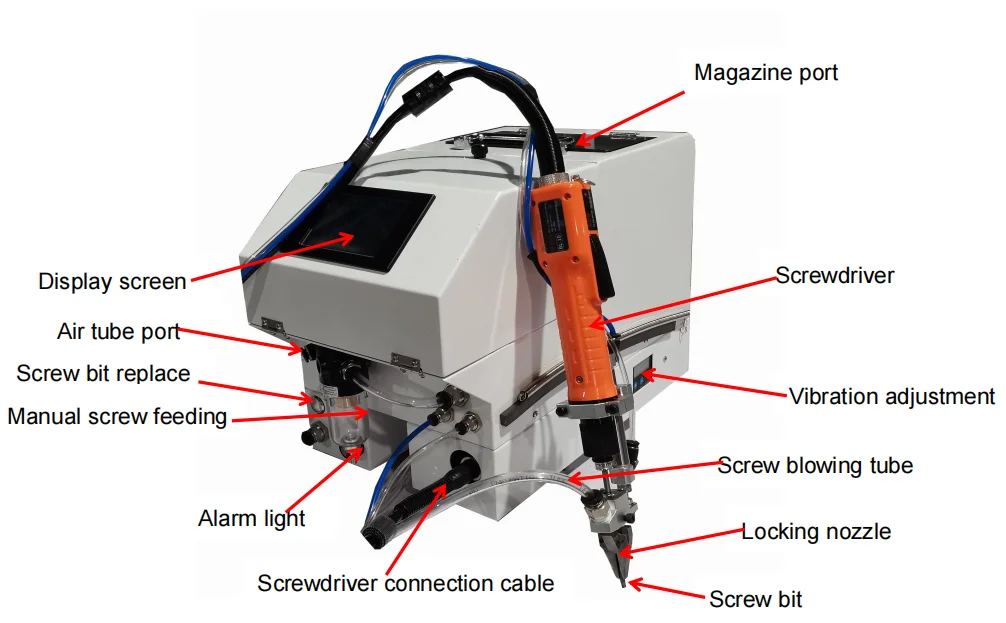

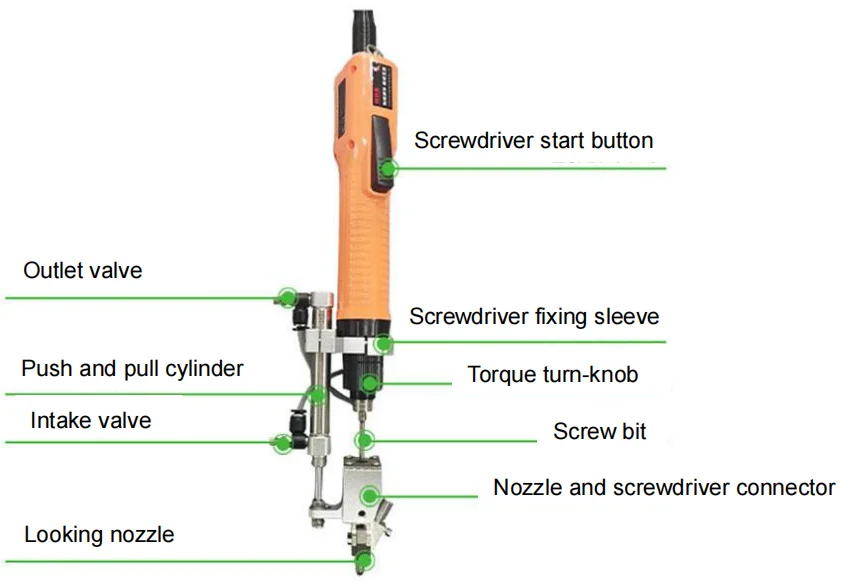

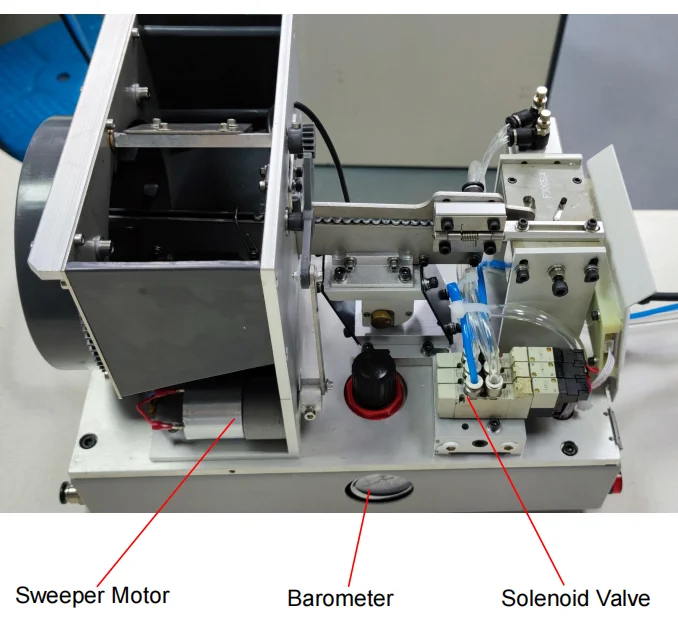

Equipment details
 |  |
 |  |

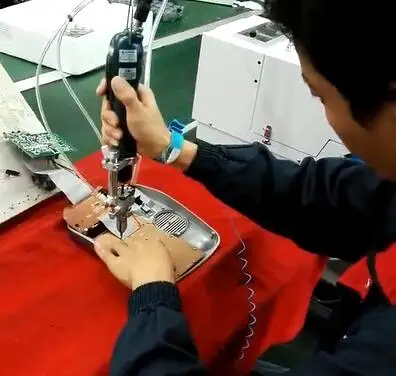

The application of our handheld auto feeder screwdriver machine.
1. Scope of applicative screws: M1.2- M6, the screw length should be over 1.3 times greater than the diameter of the screw head.
2. Scope of applicative screw heads: cross slot, triangle groove, trox, hexagonal slot, H head, etc.
3. Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, copper plating, etc.
4. Screw materials: iron, copper, stainless steel, etc.
5. Materials of products to be screwed: plastic, iron, aluminum, etc.
6. Applicative Industries: mobile photo, hard disk, keyboard, toy, LCD/LED modules, communication equipment, electrical appliances, auto parts,and so on.
Features&Advantages
1:Automatic screw feeding, sorting and fastenning for various shapes screws.One-hand operation.
2:Torsion precision and convenient adjustment, ensure the quality of screw fastening.
3:Turbine feeding, low volume and noise, convenient maintenance. Light weight and small, mobility and save space.
4:Warning function when lack of screws.(Acousto-optic alarm).
5:High efficiency. No need to pick up screws, move screws and put screws. Just need to lock the screws aimed at the screw hole.
6:Sensor controls screws feeding one by one to avoid feeding repetition.
7:Can fasten screws very fast, around 60 screws per minute.

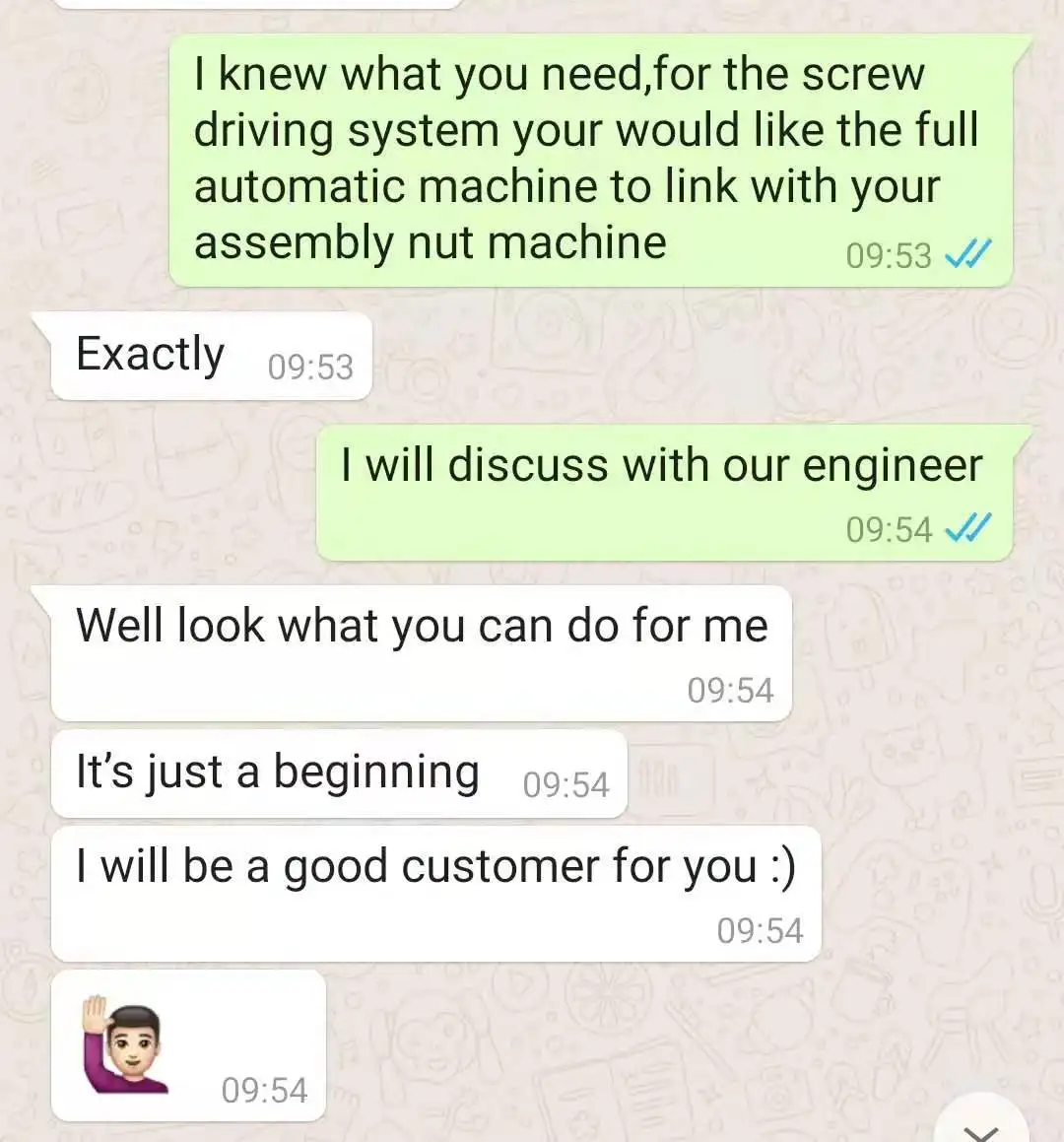

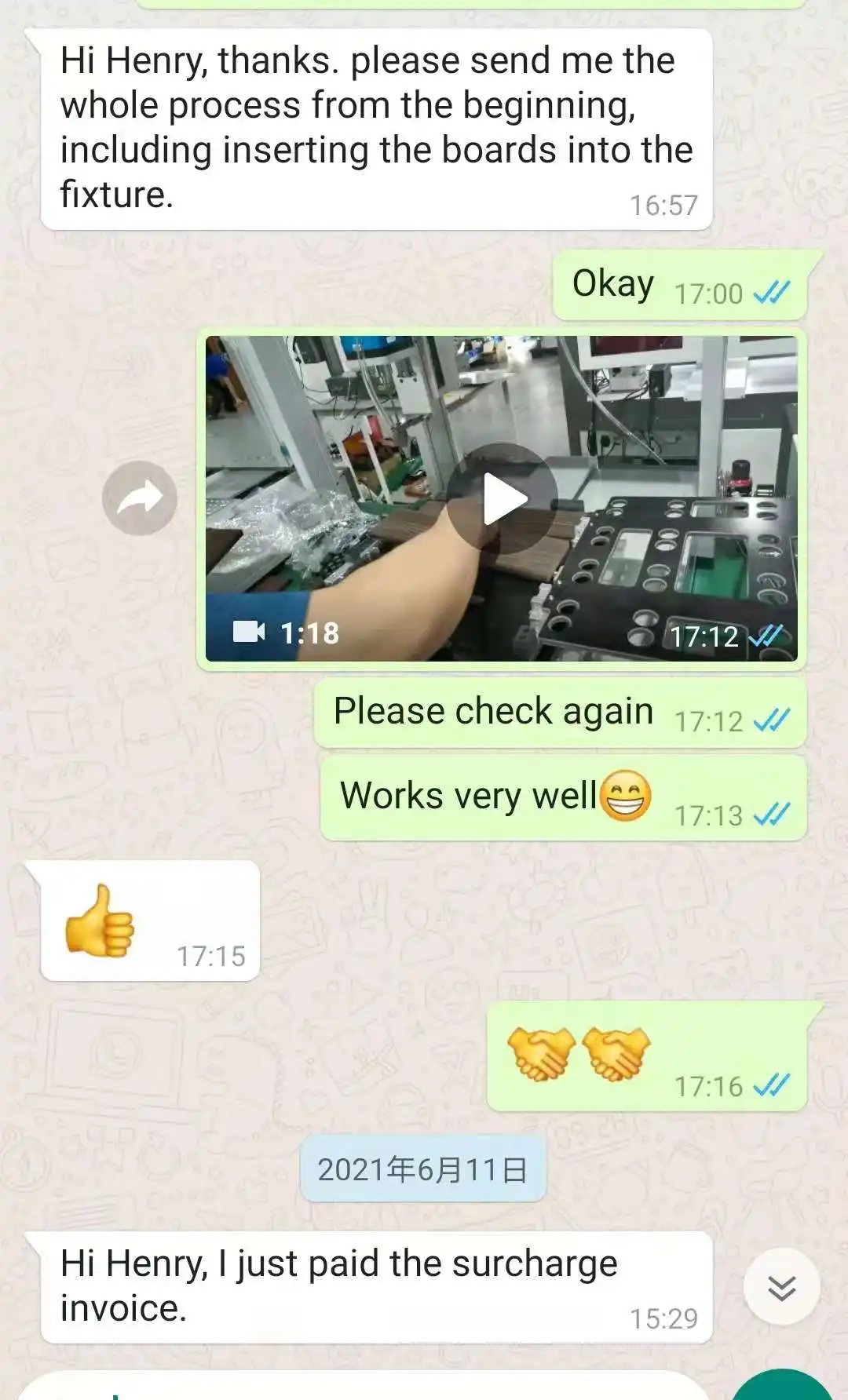

Customer reviews
 |  |  |

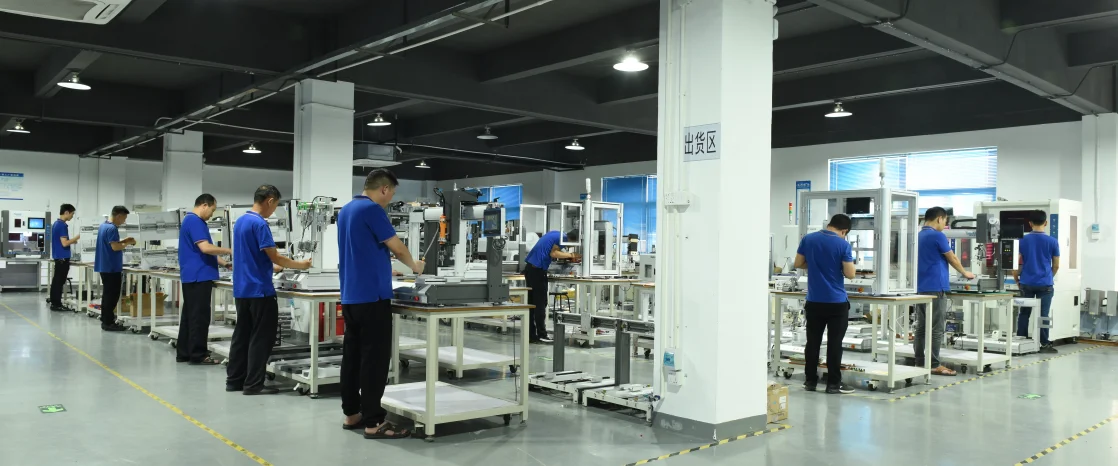

Customer Visit
| We have own factory and skilled workers,rich-experienced design team and good after service. We are a professional sales team with high efficiency, and endeavoring to provide satisfactory services to every of our customers as always. Nearly every day from customers and abroad come to our factory, we arrange technicians to show the machine operation. Free training is available. Warmly welcome you to visit our factory! |
About us
Company information
 |
|
Certificate Display
FAQ
Why us?
1.Q Are you manufacture or trading company?
We are factory, we have our own design team and own workshop.
2.Q What kind of payment terms do you accept?
We accept the payment terms: Bank transfer, WesterUnion, Moneygram, Paypal, etc.
3.Q How much is the transportation freight?
The freight depends on the quantity, weight and size ,also the destination port.
4.Q How about the working life of machine?
Our machine can be used for over 5 years.
5.Q How can I trust your company and ensure to get the goods if order from you?
We are Alibaba legitimate certification company(VIP).
6.Q How about the package? Is it safe during the delivery?
All machine is packed by standard strong wooden carton with foam inside.
7.Q What's your delivery time?
15-20 working days according to your quantity.
8.Q This machine is easy to use? If I have no experience, can i also operate it well?
Do you provide the user manual and operating videos to support us?
Yes, our machine is designed to use easy, Normally it will take you 2-3 hours to learn how to operate, if you are a technician, it will much faster to learn.We will provide the English user manual for free, and the operation video is available
if you still have problems, we will arrange our engineers go to your place for installation guiding.
9.Q If we come to your factory, will you provide the free training?
Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
