ezcap180 VHS Digi With display CVBS RCA AV Composite Video Capture Standalone Video Recorder

Product Overview

Description

ezcap180 VHS Digi With display CVBS RCA AV  Composite Video Capture Standalone Video Recorder



New Generation VHS Digitize with 4.3 Inch Display



Digitize VHS and Playback Directly
Connect your old VHS to ezcap180 VHSDigi, and just one click to digitize them to mp4 digital video format, and playback on it directly. It also can digitize your analog music to mp3 digital audio format.



Connections

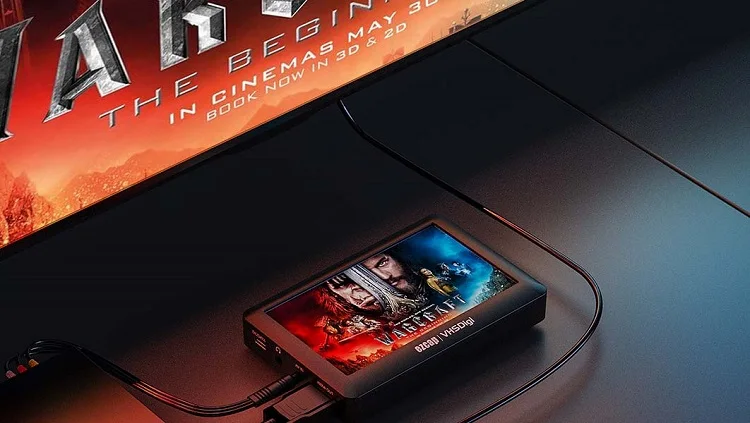

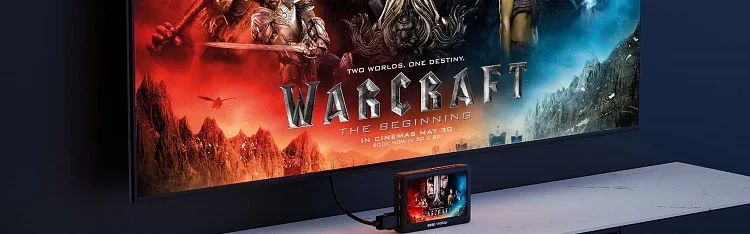

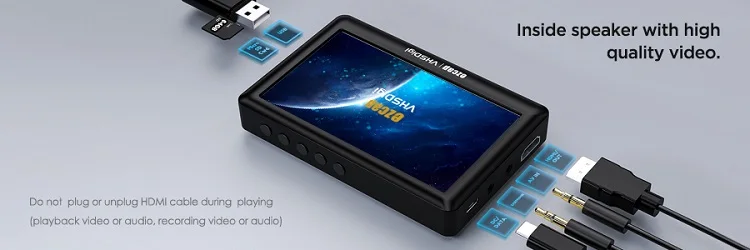

Supports both of USB drive and Micro SD card to save the recorded files. HDMI output to TV, and allow you watch video on big screen.



SPECIFICATIONS

- Host Interface: USB 2.0
- Video Input: Composite Video (3.5mm jack)
- Audio Input: Stereo L/R audio (3.5mm jack with video together)
- Video Output: HDMI
- Audio Output: HDMI, Line OUT (3.5mm stereo jack), Speaker inside
- User Interface: REC and other buttons, 4.3 inch display, 1500mAh lithium battery inside

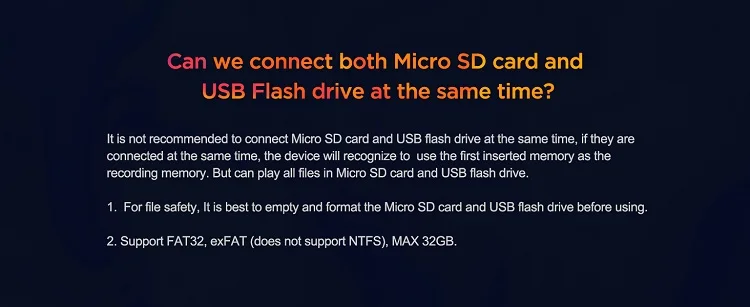

- Storage Media: USB drive, Micro SD card, Max 32GB, FAT32 and exFAT format. * Does not support NTFS format.
- Power Supply: 1500mAh lithium battery inside, working about 2 hours. DC 5V2A USB-C port.
- Record Info: .mp4 for video, .mp3 for audio. Max 480 13fps, NTSC / 720 x 480, PAL / 720 x 576. About 250MB per hour for video, 70MB per hour for audio.
- Playback: Supports most of video and audio format.

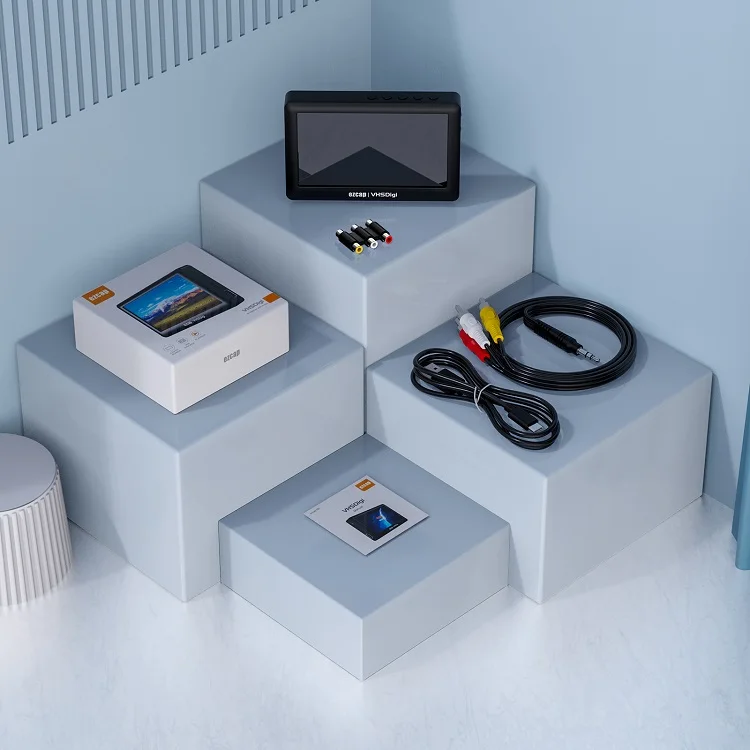

- Package Contents: ezcap180 VHSDigitizer, AV cable, USB-A to C power data cable, Manual
- Dimensions / Weight: 116(L) × 78(W) × 18(H) mm, 132g



Interface	USB 2.0
Video Input	Composite video by 3.5mm to 3RCAAV cable
Audio Input	Analog L/R audio by 3.5mm to 3RCA AV cable or 3.5 audio cable
Video Output	HDMI: 480p60
Audio Output	HDMI, 3.5mm earphone port, Speaker inside
User Interface	Button: OK/POWER, LEFT, RIGHT, ESC, REC, VOLUME. 4.3 inch TFT screen, Speaker inside, 1500mAh lithium battery inside.
Storage Media	Micro SD card and USB flash drive, supports FAT32 and exFAT, does not support NTFS format, Max 32GB.



Record Format	Video: .mp4, Audio: .mp3
Record Quality	480@30fps, NTSC: 720 x 480, PAL: 720 x 576
Record File	Video: about 4.2MB/Minute, 250MB/Hour. Audio: 1.2MB/Minute
Play Format	Video: avi, mov, mkv, webm, mp4, m4v, flv, 3gp, 3g2, 3gpp, dat, vob, evo, mpg, asf, trp, ts, m2ts, mts.   Audio: mp3, ogg, ape, flac, wav, amr, aiff, mpc
Working Time	About 2.5 hours to charge separately, about 2 hours for fully charged recording
Power Supply	1500mAh lithium battery inside, Type-C to USB power cable (Not include 5V2A power adapter)
Dimensions	116(L) × 78(W) × 18(H) mm
Weight	132g

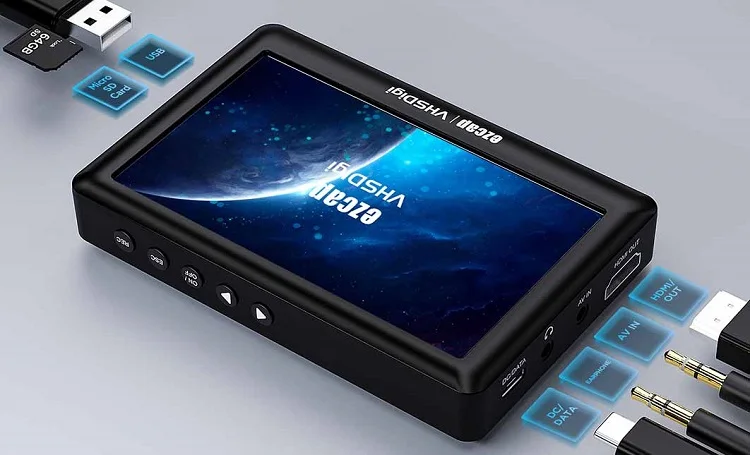

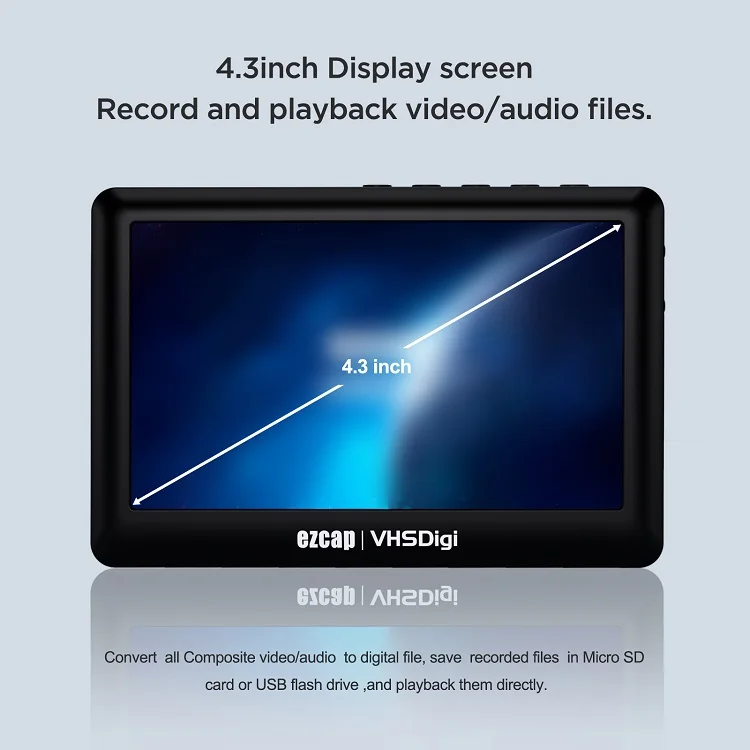

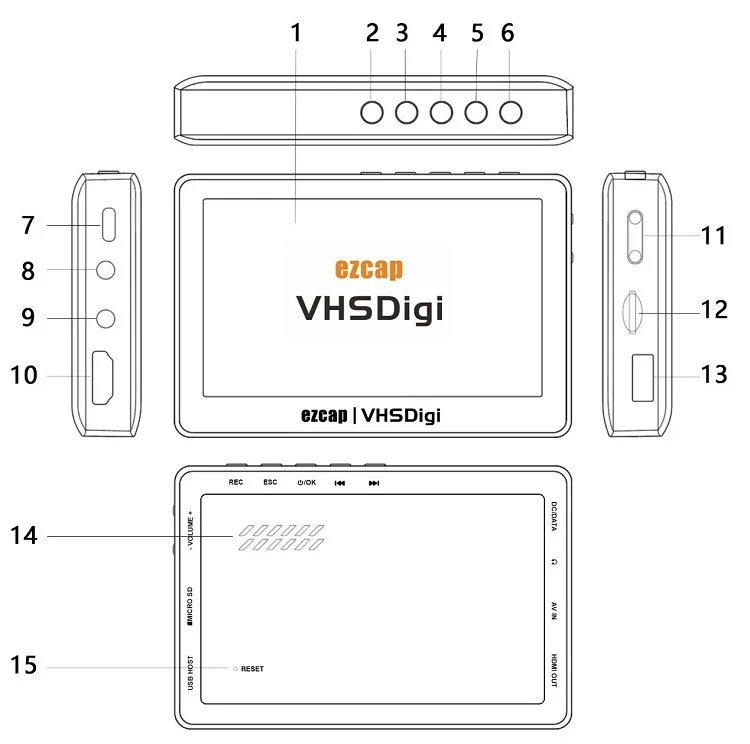

1,  4.3 inch TFT screen (480 x 270)

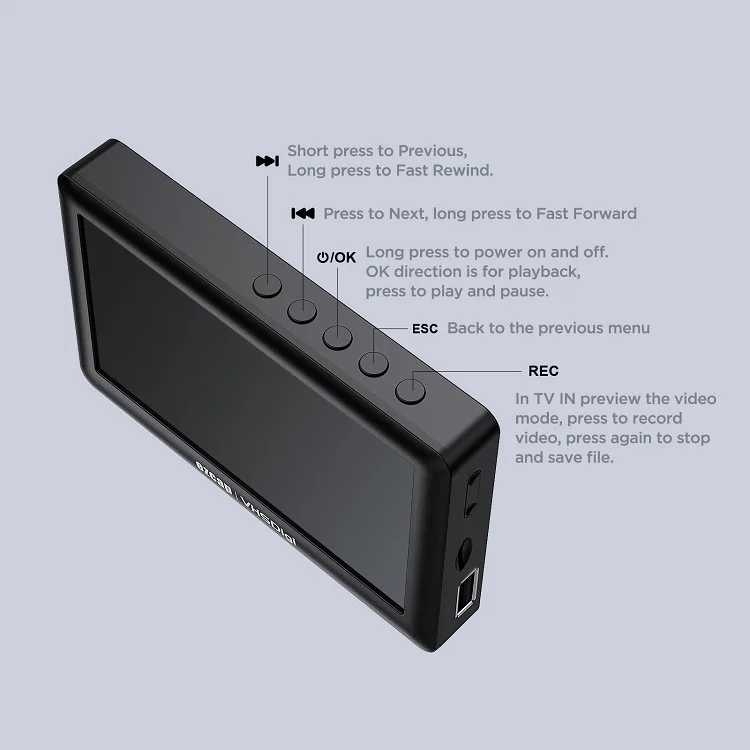

2,  –LEFT direction button to operate the menu. For playback, press to Previous, long press to Fast Rewind.

3, –RIGHT direction button to operate the menu. For playback, press to Next, long press to Fast Forward.

4,  – Long press to power on and off. OK direction button to operate the menu. For playback, press to play and pause.

5,ESC–Back to the previous menu.

6,REC– In TV IN preview the video mode, press to record video, press again to stop and save file.

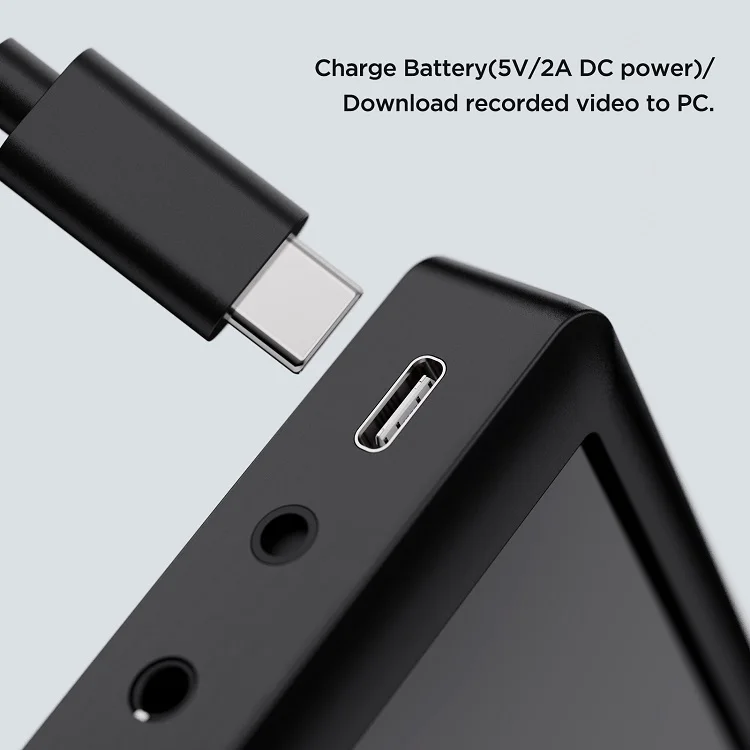

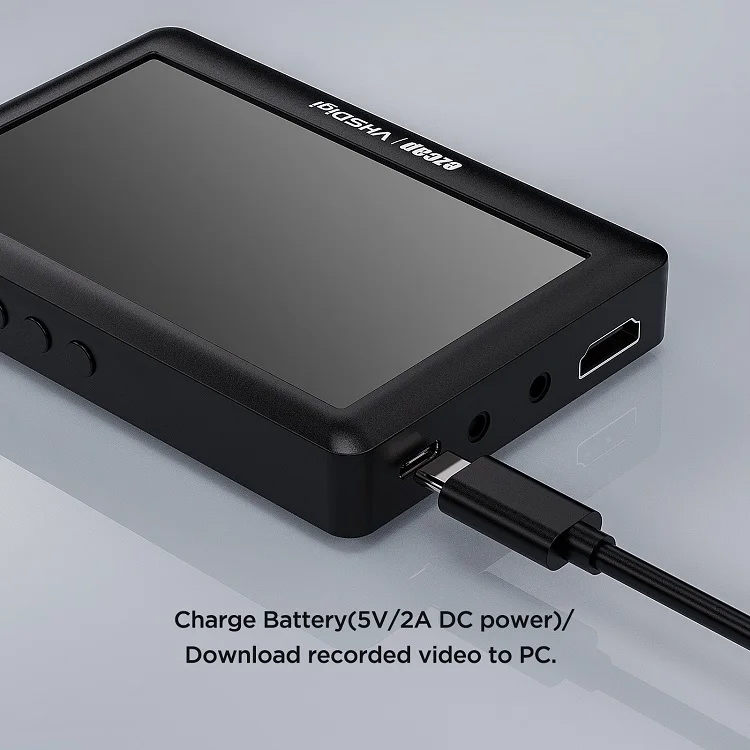

7,DC/DATA – Supply 5V/2A DC power with Type-C cable to charge battery, connect to computer to manager files.

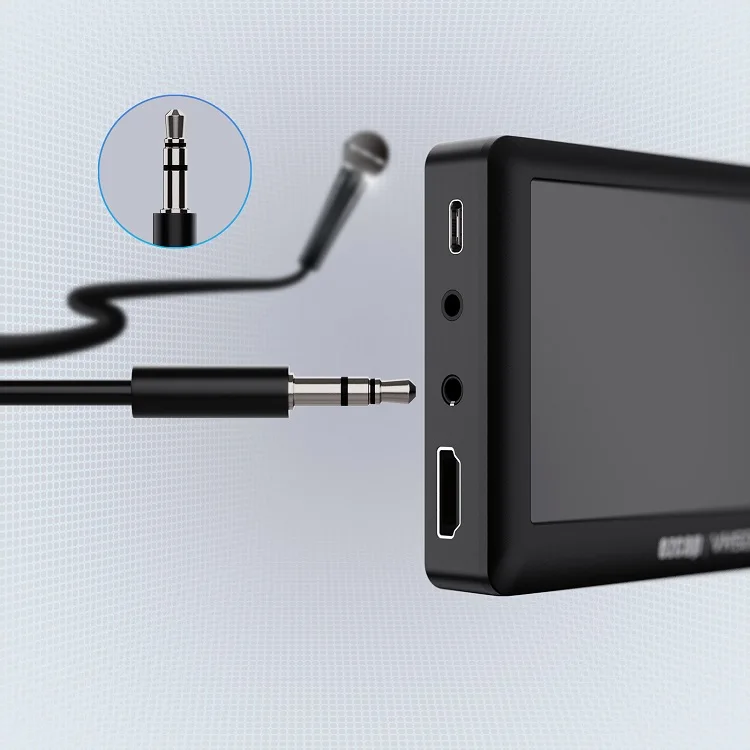

8,  – Connect earphone to listen the audio.

9,AV IN – AV input connection with AV Cable.

10, HDMI OUT – Connect to TV monitor displaying.

11,VOLUME–Press the upper button to increase the volume, and press the lower button to decrease the volume.

12, Micro SD – Plug Micro SD card to save recording file or play the file in card.

13, USB HOST– Plug USB flash drive to save recording file or play the file in it.

14, SPEAKER – With speaker inside, can listen to the sound directly.

15,RESET – Click to reset to factory default setting.

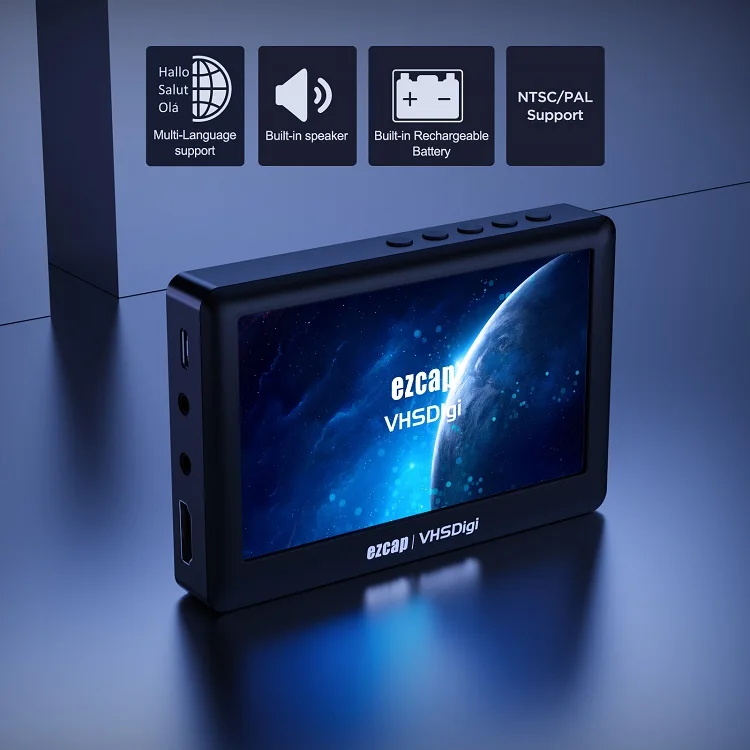

FEATURES

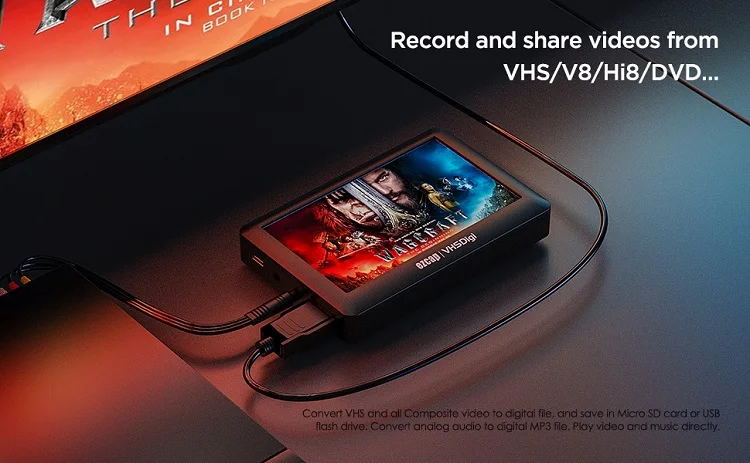

- Record and digitalize video from your VHS, Hi8, Camcorder, DVR and gaming system with one click, no PC required.
- Supports both of Mciro SD card and USB drive.

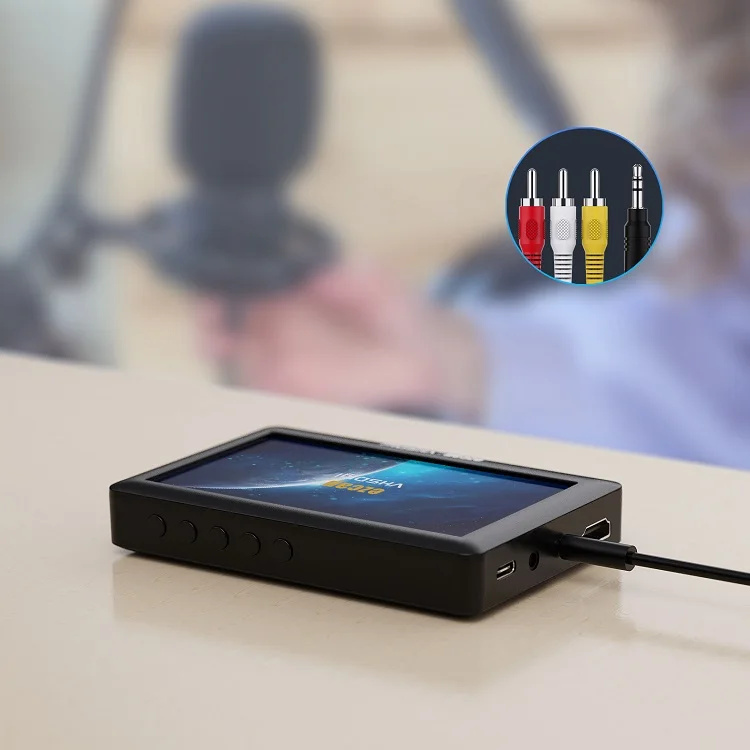

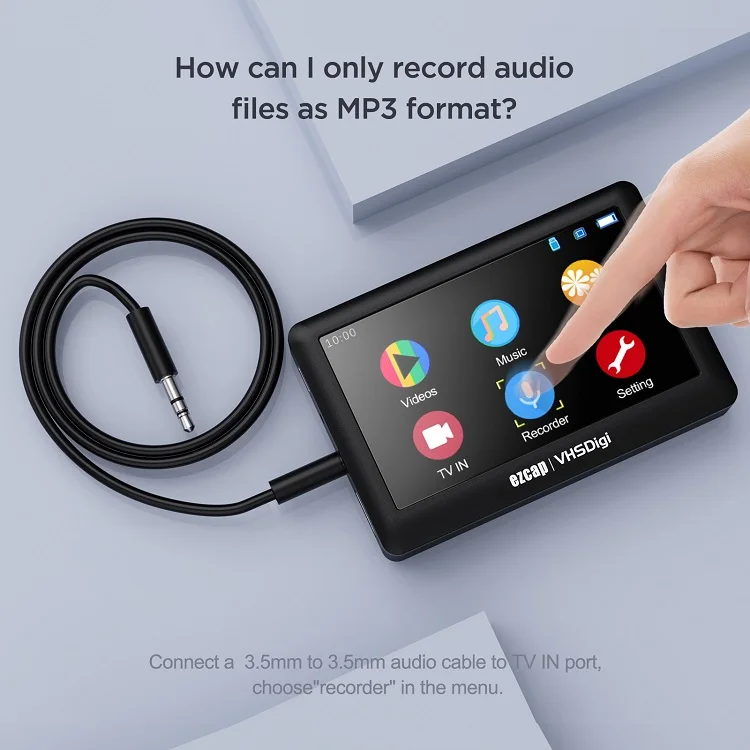

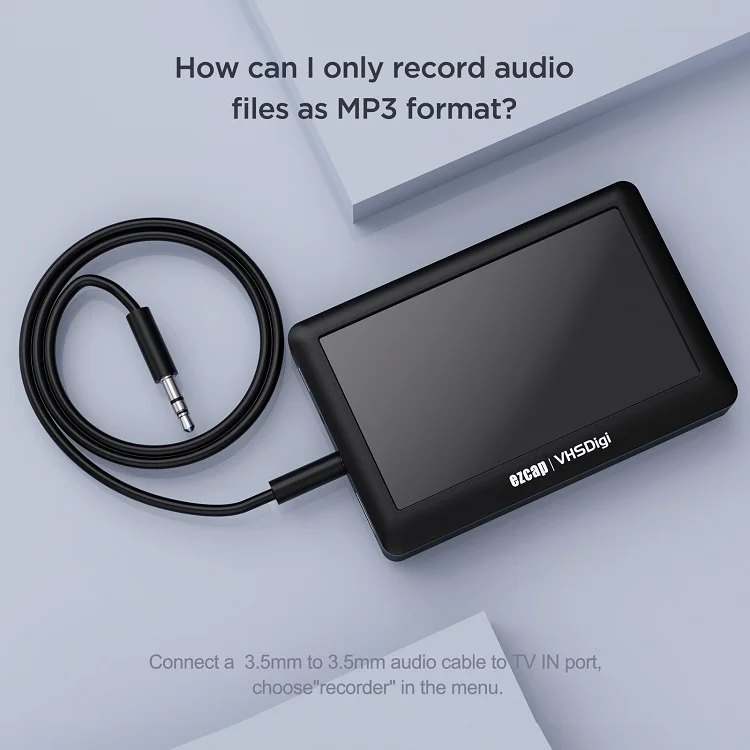

- Convert analog music to digital format alone.
- With 4.3 inch cystal display.
- Speaker and battery inside.
- Playback video, music and pictures directly.
