Factory price Addressable Fire Alarm System 2 Loop 400 linkage Wired Addressable Fire Alarm Control Panel
- Category: >>>
- Supplier: Ningbo Deling Electron Technology Company Limited
Share on (1600510287742):
Product Overview
Description
Recommend Products
Products Description

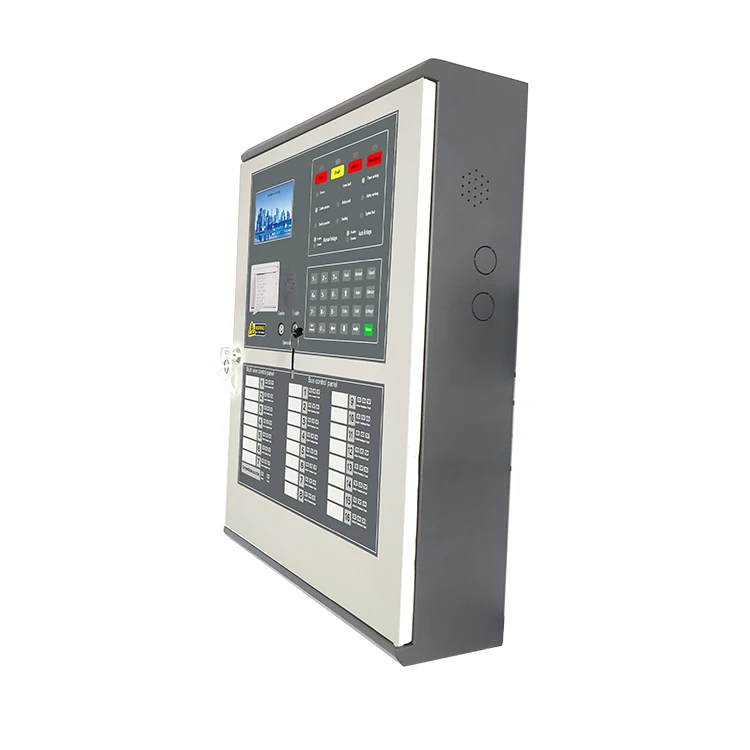

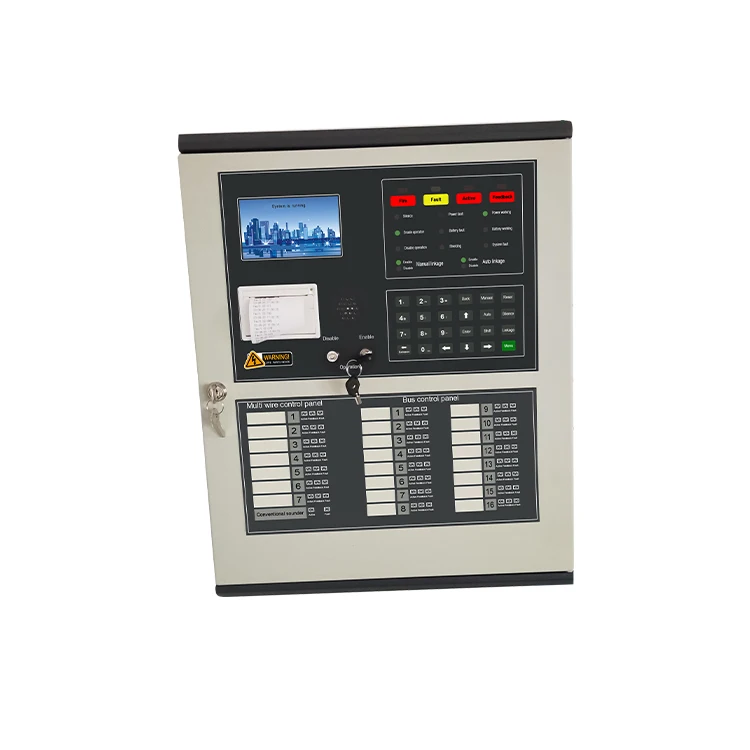

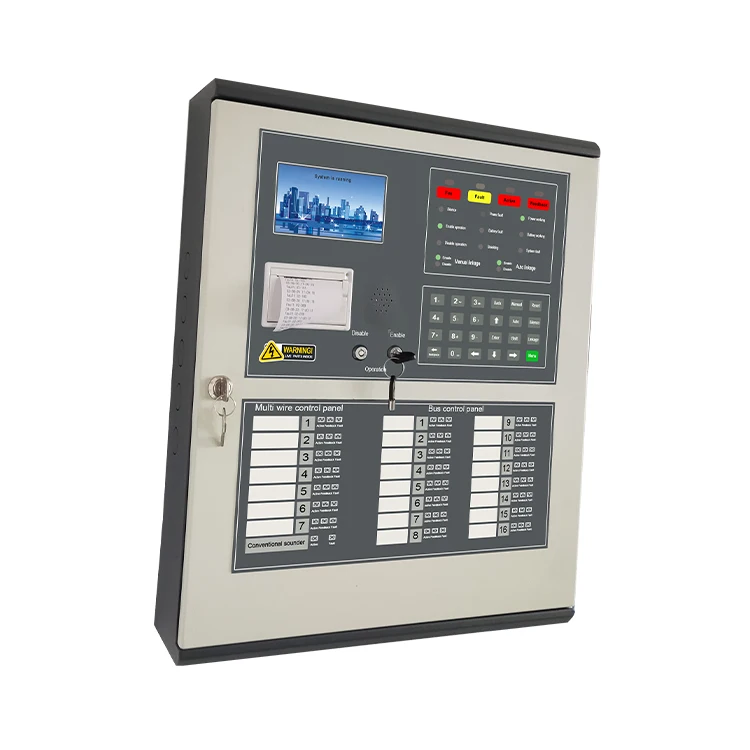

FEATURE NW6500 Addressable fire alarm control panel
* Using RISC embedded CPU technology based on ARM platform and real-time preemption multi-task embedded operating system, with low power consumption, fast processing speed, fast system response, reliable and stable operation.

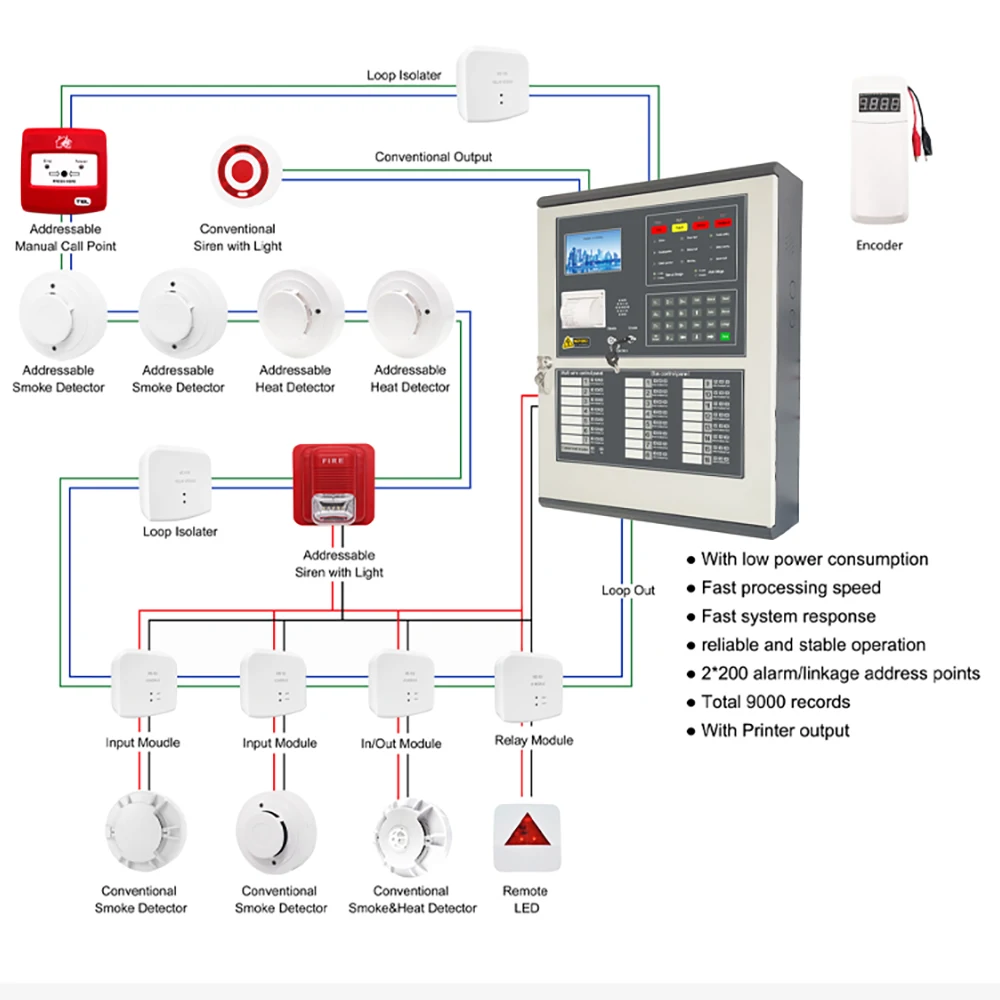

* 2 loop bus, Max. 2*200 alarm/linkage address points.
* 8 sets of programmable active control outputs.
* Using color English LCD display, display content is clear and intuitive, easy to operate.
* Have strong field programming ability, support the cross linkage between each circuit and equipment, all kinds of English information annotation, bus control equipment and multi-line control equipment mutual linkage can be set by field programming,can also use PC or notebook way for field programming.
* With black box function, it can store 3000 fire alarm history records, 3000 linkage history records, and 3000 other history records.
* Display smoke/temperature output curve and data, can intuitively observe the field parameter data.
* Using RISC embedded CPU technology based on ARM platform and real-time preemption multi-task embedded operating system, with low power consumption, fast processing speed, fast system response, reliable and stable operation.
* 2 loop bus, Max. 2*200 alarm/linkage address points.
* 8 sets of programmable active control outputs.
* Using color English LCD display, display content is clear and intuitive, easy to operate.
* Have strong field programming ability, support the cross linkage between each circuit and equipment, all kinds of English information annotation, bus control equipment and multi-line control equipment mutual linkage can be set by field programming,can also use PC or notebook way for field programming.
* With black box function, it can store 3000 fire alarm history records, 3000 linkage history records, and 3000 other history records.
* Display smoke/temperature output curve and data, can intuitively observe the field parameter data.
Product Name | Addressable Fire Alarm Control Panel | Supply Voltage | AC 220 V(187~ 242V)@50/60 Hz |
Model | NW-6500 | Backup battery | 7AH/12V, 2 pcs |
Capacity of main power supply | 27V/14A | Bus loop output voltage | DC21V modulating |
Linkage power output | 27V/3A | Equipment capacity | 2 loops, each with 200 address points |
Number of manual control disk | 1 | Number of manual direct control output | 8 sets |
Storage capacity | 3000 fire alarm records, 3000 linkage records, and 3000 other history records | Transmission distance | RVS wire 1² ≤1000m |
Operation Temperature | -10℃~+50℃ | Material | ABS |
Operation Humidity | 95% RH (no condensation) | Dimension | L400*W500*H115 mm |
Certifications
Our Company

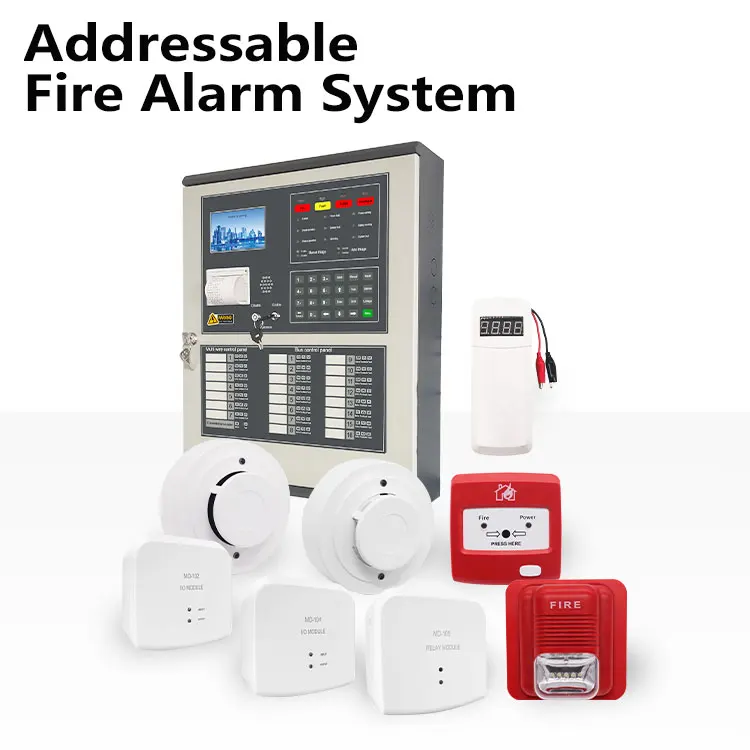

Ningbo Deling Electron Technology Company is one professional manufacturer for security system. Based on the quality oriented and customer first business philosophy, the company has focused on the industry for more than 10 years. Abundant resources and experience have been accumulated from development design to material selection; from manufacturing to quality control, the product has won the attention and recognition of the global customers. Our products are characterized by rich products and strong professionalism, including addressable fire alarm system, conventional fire alarm system, wireless fire alarm system, standalone smoke detector, gas leaking detector, carbon monoxide detector and other electronic security products.
The production environment of our company strictly implements ISO-9001:2008 quality certification system, all products are controlled strictly by kinds of testing equipments, UL standard smoke box, EN standard smoke box, high and low temperature controller, standard gas analyzer, aging test room and other necessary equipment, We have achieved several national security certification such as CCCF/CE/ROHS/SGS/TUV/FCC/EN54-7/EN14604/EN50291...
Ningbo Deling Electron would be a respectful technology-based enterprise with the attitude of focusing on specialty, accumulating innovation, developing and sharing.
Exhibition
FAQ
Q1: Are you manufacture or trading company?
A1: We are the professional manufacturer for more than 12 years.
Q2: Can you customize the product?
A2: Yes，we are manufacturer, accept ODM&OEM and packaging customization.
Q3: Can you provide the samples?
A3: Yes, we can provide the sample.
Q4: How about your delivery time?
A4: It is depand on your order,it will be about 7-30days.
Q5: What is your terms of delivery?
A5: EXW, FOB, CFR, CIF, DDU.
Q6. What is your terms of payment?
A6: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q7: What ceritificates do you have?
A7: We have ISO9001,CE,RoHS,FCC,CCC Etc Certificates approvaled for our products.
