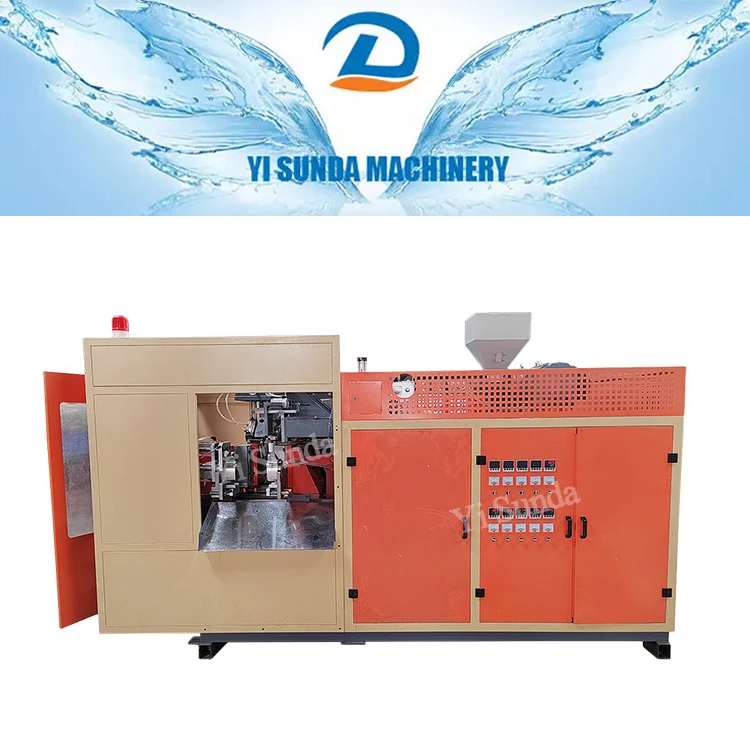

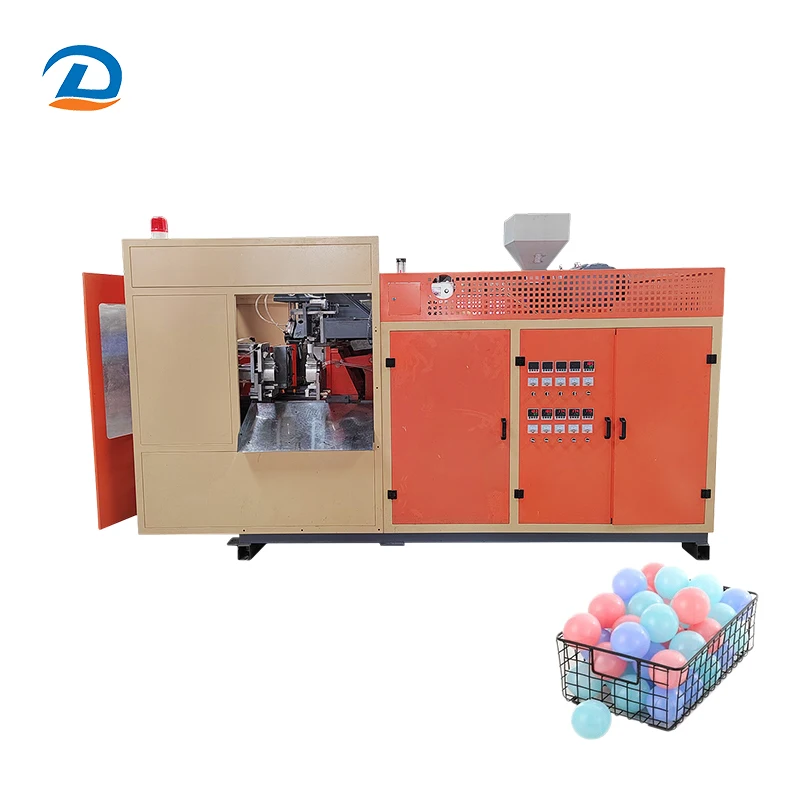

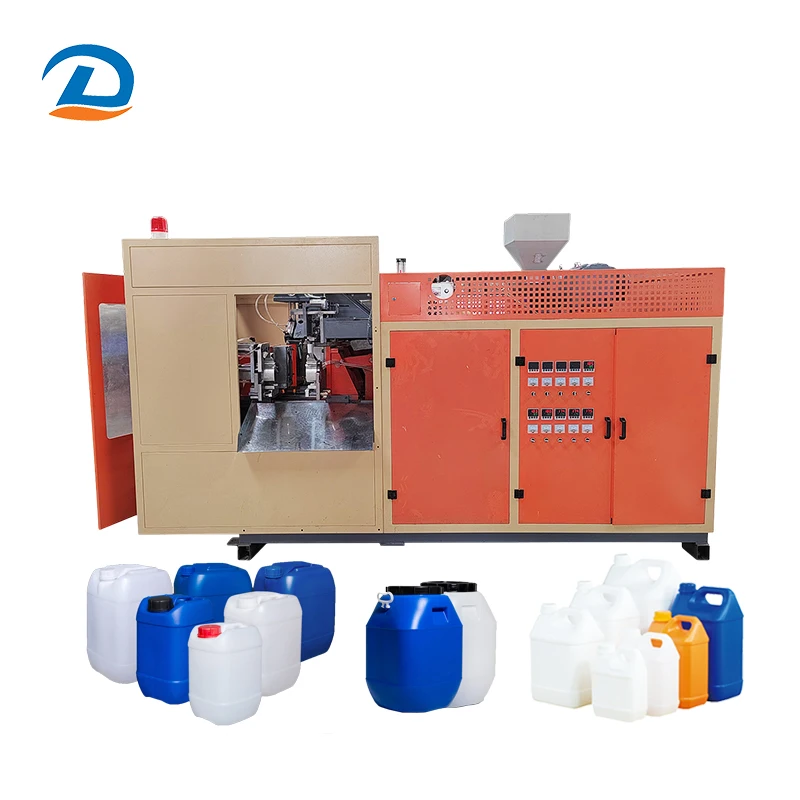

Low Price 10L 15L 20L Plastic bottle jerrycan making machine blow molding machine 5 liter
- Category: >>>
- Supplier: Cangzhou Yi Sunda Mechanical Technology Co. Ltd.
Share on (1600510291024):
Product Overview
Description
Model | YSD-80 | YSD-90 | YSD-100 | ||
Maximum product volume L | ≤10 | 20 | 30 | ||
Screw diameter mm | 80 | 90 | 100 | ||
Screw long diameter ratio | 1:26 | ||||
Extruder motor power KW | 18.5-22 | 30-35 | 37 | ||
Plasticization capacity kg/h | 85-100 | 120-150 | 170-200 | ||
Nose | 1-6 | ||||
Number of jobs | double station | ||||
Lock mode form | Servo hydraulic pressure | ||||
Wall thickness controller | 100 | 100 points | 100 points | ||
Storage tank L | 5 | 7.5 | 10 | ||
Heating section | 6-10 | 9-13 | 9-13 | ||
Heating power Kw | 15 | 20 | 42 | ||
Molding T | 8-13T | 20 | 43 | ||
Servo motor KW | 11 | 11 | 11-15 | ||
Template size(width * height) mm | 550*450 | 690*800 | Depends on product | ||
Template openg mm | 700 | 1200 | 500-1400 | ||
Maximum open and closed mode travel mm | 350 | 900 | 900 | ||
Squeeze exit die maximum diameter mm | 260 | 100-300 | Depends on product | ||
Gas source pressure Mpa | 0.8 | ||||
Cooling water usage Mpa | 0.6 | ||||
Size M | 3.4*1.9*2.0 | 3.9*2.5*2.6 | 4.2*2.5*2.6 | ||
Total installed power km | 34 | 55 | 80 | ||
Total weight of machine T | 5 | 6 | 8 | ||
FAQ:

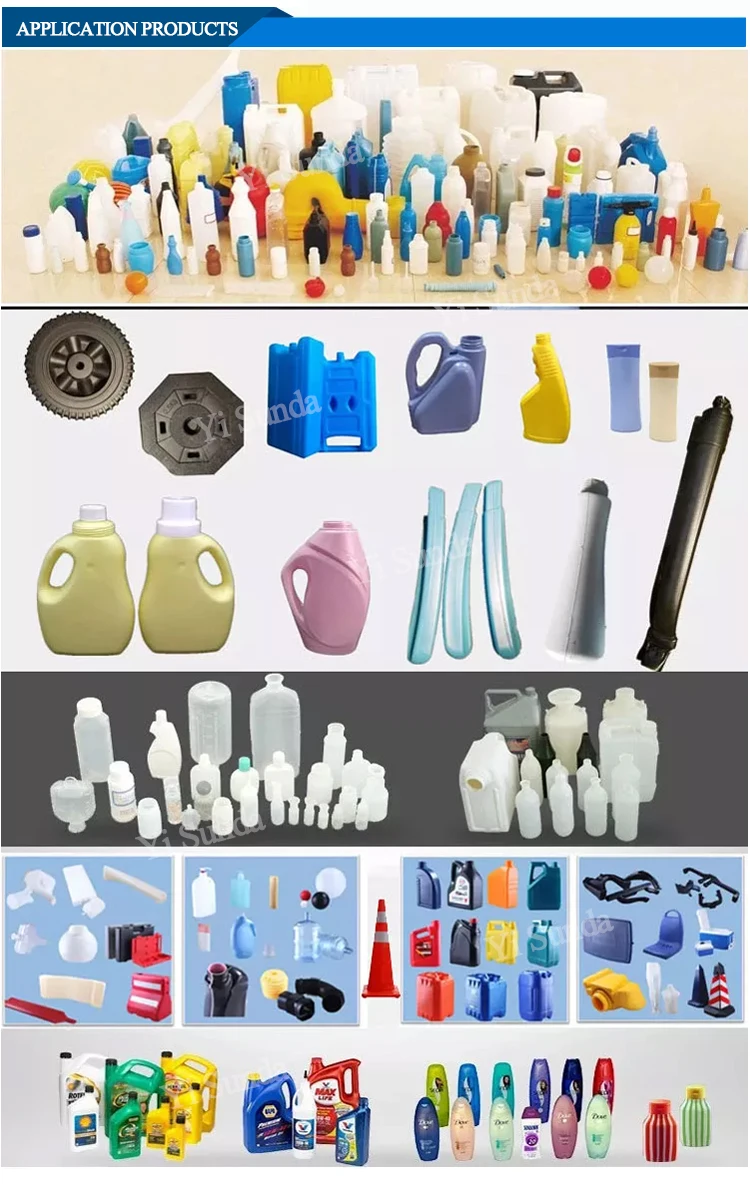

1. Can I make milk bottle on this machine
Yes, you can. Milk bottle, Medicine bottle,Pesticide bottle, detergent bottle,pattern pot are available on the machine.
2. What shall I provide to you for offer?
Please send us your bottle picture with width,length,weights etc and better to send samples.
3. What kinds of materials the blow machine make?
The blow molding machine can make HDPE,PP material bottles.
4. What is your delivery time?
30 days to 50days.
5. How can I trust your machine ?
- We have more than 10 years experience have own design team and experience
engineer.
- You can visit us to check.
- We give professional guidance service during enquiry period.
- We provide after sale install service to abroad clients.
