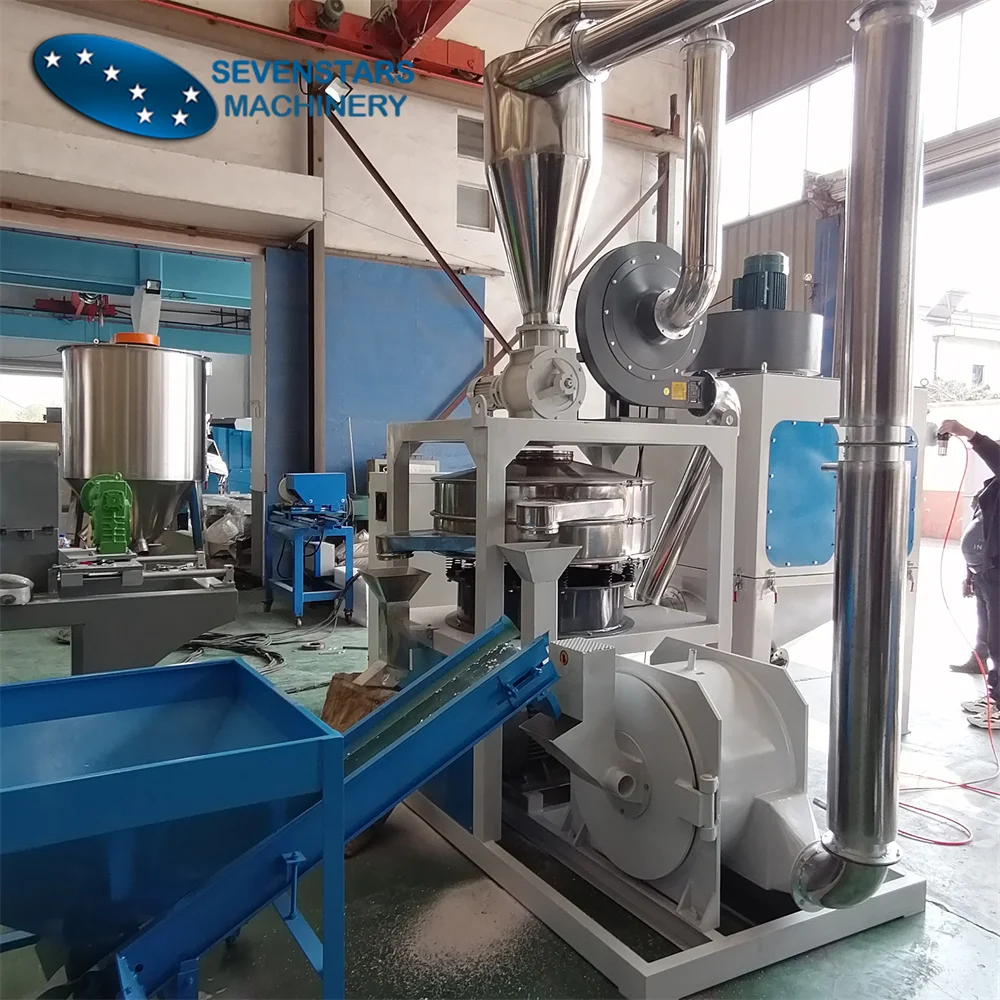

High capacity Rotor moulding LLDPE pulverizer plastic milling machine
- Category: >>>
- Supplier: Zhangjiagang Sevenstars Machinery Co. Ltd.
Share on (1600510291493):
Product Overview
Description
Plastic Pulverizer Machine
Our adopt material is PP PE PVC EVA PET and other plastics that the size not surpass than 12mm. The final size of powder is 30-60 mesh, also it is adjustable and can be customized, we also can give you suggest mesh according to your material and final application.
General Introduction
Overview
Our pulverizer is mainly used in plastic grinding process, and can be widely used in various soft and hard plastic materials,
such as pvc, pp, pe, eva, etc. Our mill equipment is simple in structure and easy to operate and maintain.

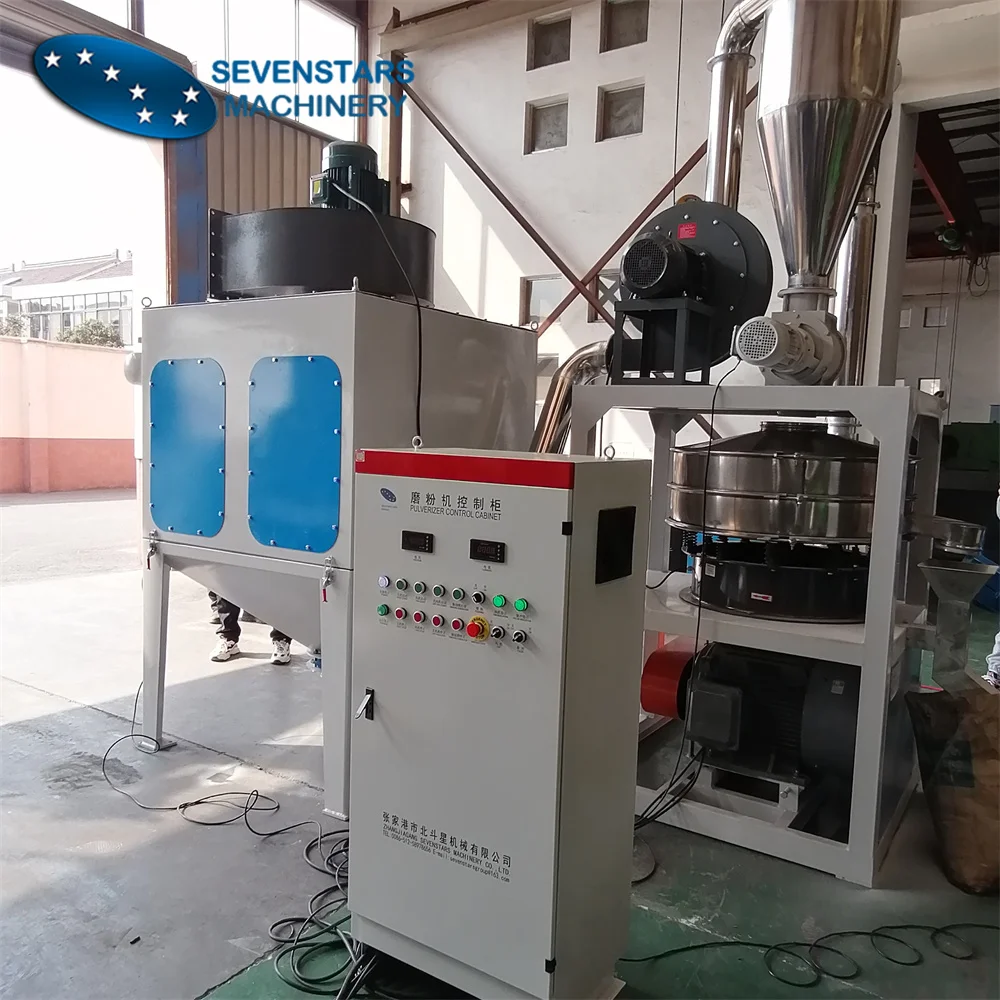

It is equipped with an independent control cabinet and water cooling system to effectively ensure the safe operation of the
equipment.
such as pvc, pp, pe, eva, etc. Our mill equipment is simple in structure and easy to operate and maintain.
It is equipped with an independent control cabinet and water cooling system to effectively ensure the safe operation of the
equipment.
Application Material
This pulverizer is high speed, precision grinders for the processing of medium hard, impact resistant and friable materials.
For example PE、PVC、 PP 、ABS、 PA、EVA、PET、 PS、PPS、EPS、 PC、Foam、 Cow leather and so on.
Type 1:Disc type for PE PET material
Disc type grinder can better process the raw materials, the powder obtained is more uniform and the particle size is finer, we use the disc type pulverizer to process those materials that are easy to grind.
Type 2:Disc type for PP EVA, soft PVC When milling the material ,the temperature of cavity is very high, for PP,EVA and soft PVC, it is easy to melt when progress, so we increase the centrifugal fan to reduce the residence time of the material in the cavity.
Disc type grinder can better process the raw materials, the powder obtained is more uniform and the particle size is finer, we use the disc type pulverizer to process those materials that are easy to grind.
Type 2:Disc type for PP EVA, soft PVC When milling the material ,the temperature of cavity is very high, for PP,EVA and soft PVC, it is easy to melt when progress, so we increase the centrifugal fan to reduce the residence time of the material in the cavity.
Main Paraeters
Model | Grind diameter | Motor power | Blade material | Output capacity |
SMF-400 | 400mm | 37kw | SKD-11/D2 | 100-150kg/h |
SMF-500 | 500mm | 55kw | SKD-11/D2 | 200-250kg/h |
SMF-600 | 600mm | 75kw | SKD-11/D2 | 300-350kg/h |
SMF-800 | 800mm | 90kw | SKD-11/D2 | 400-450kg/h |

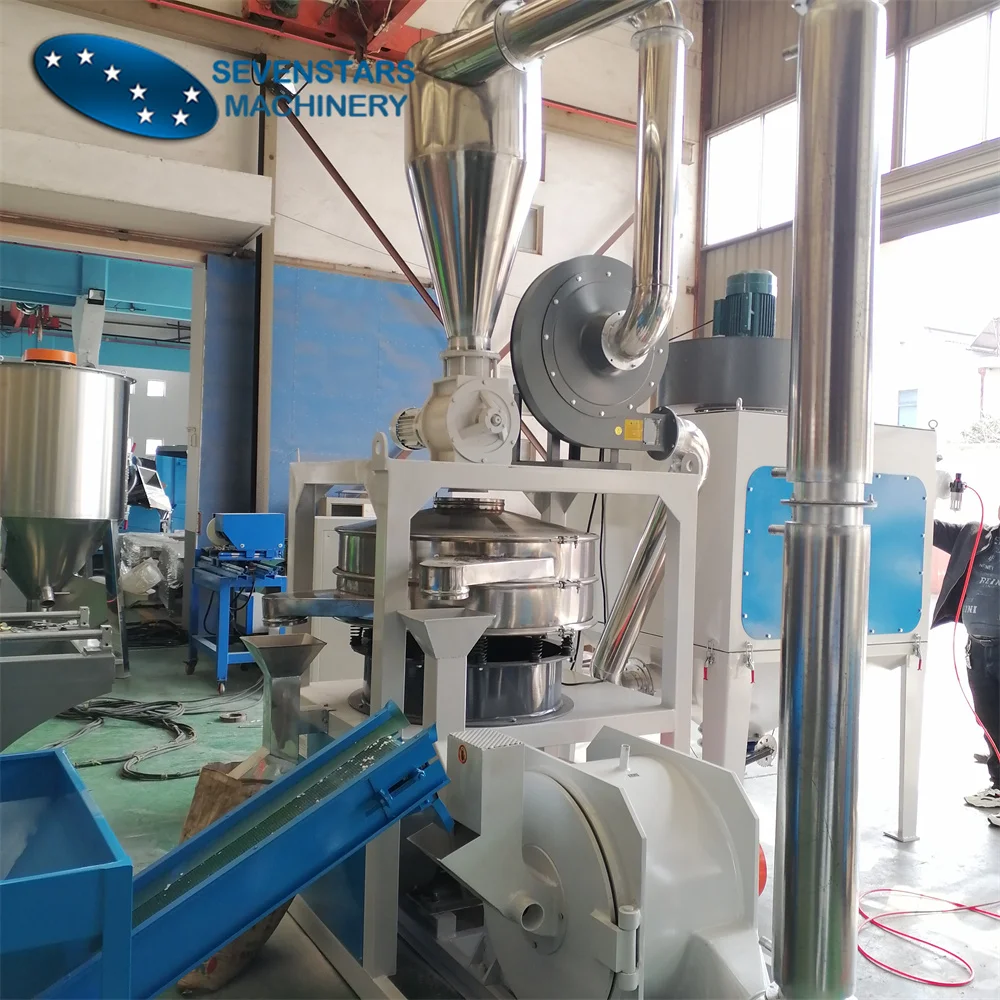

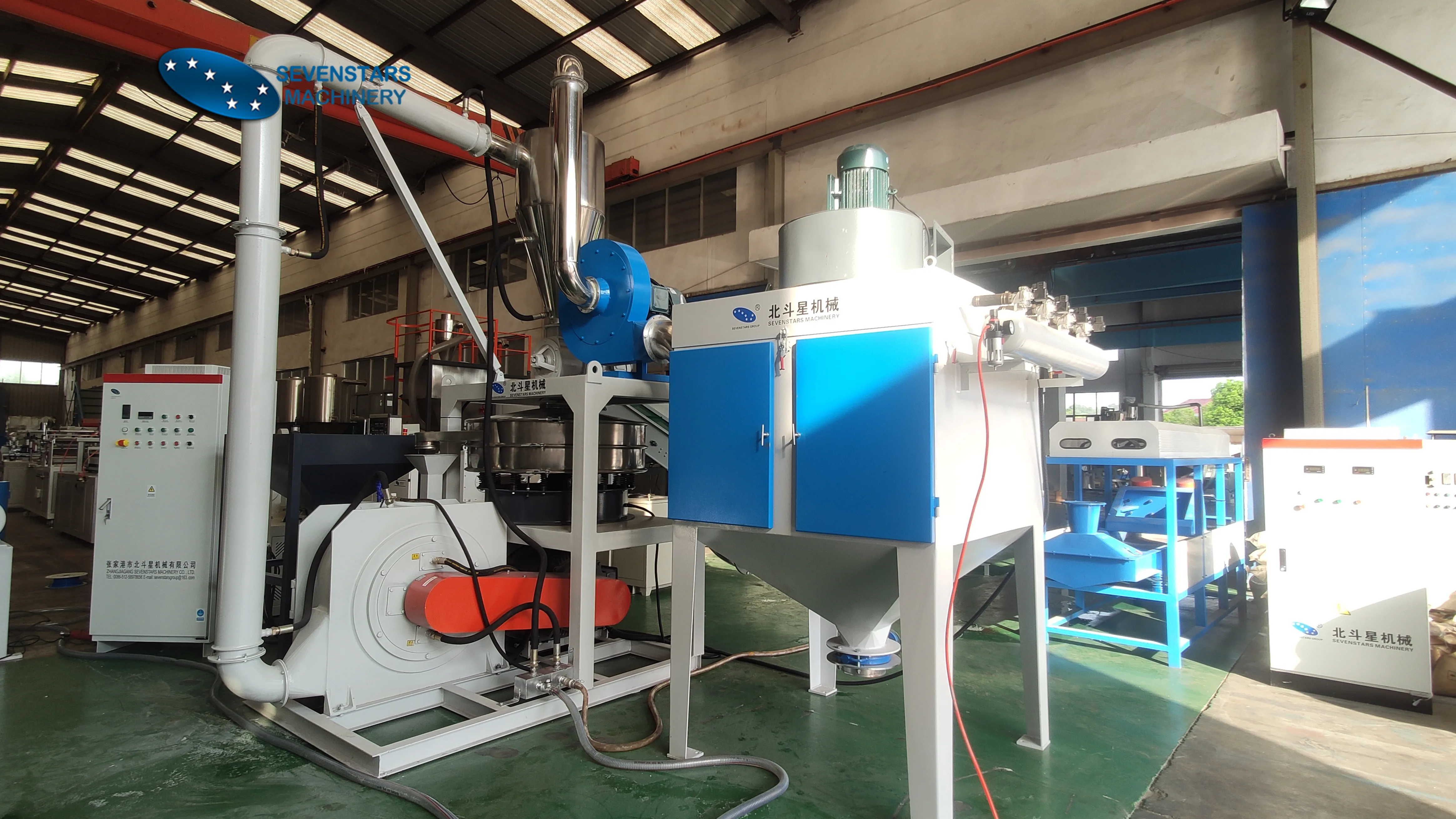

Machine Photos

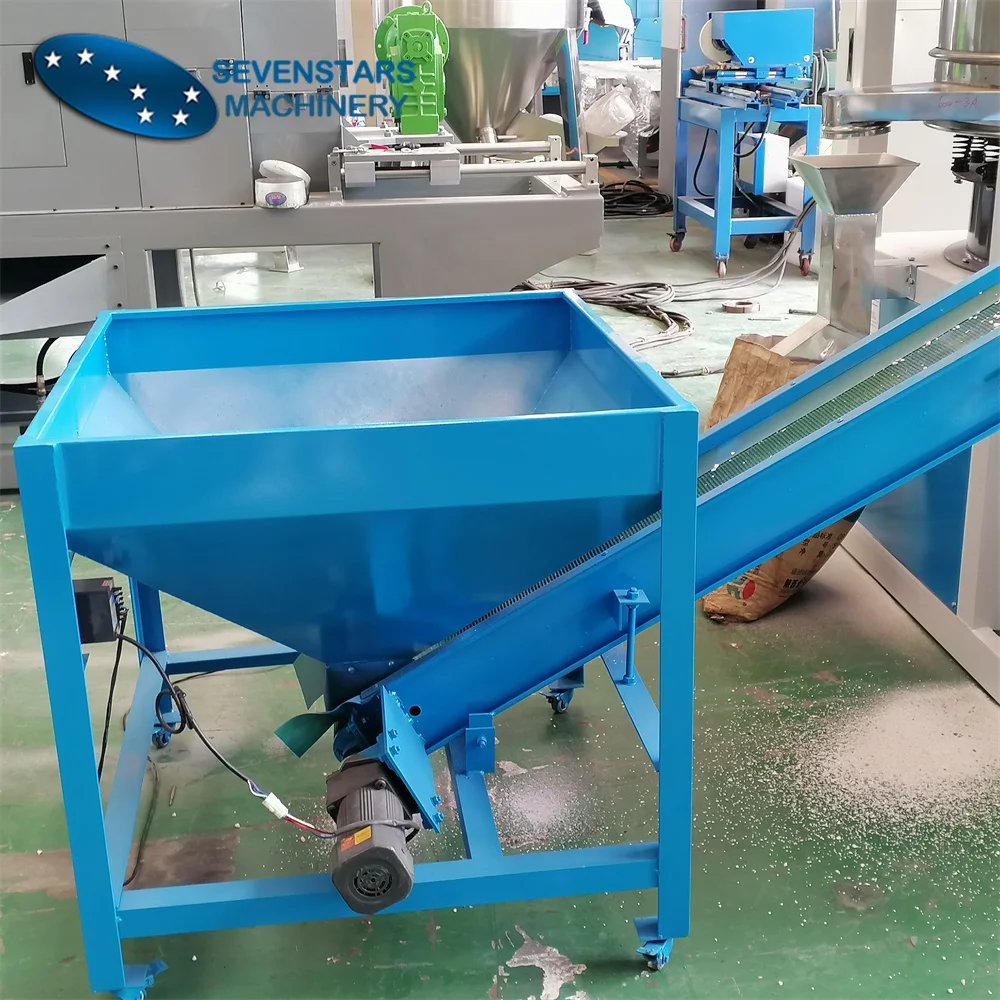

The device is mainly used to feed the material into milling chamber.

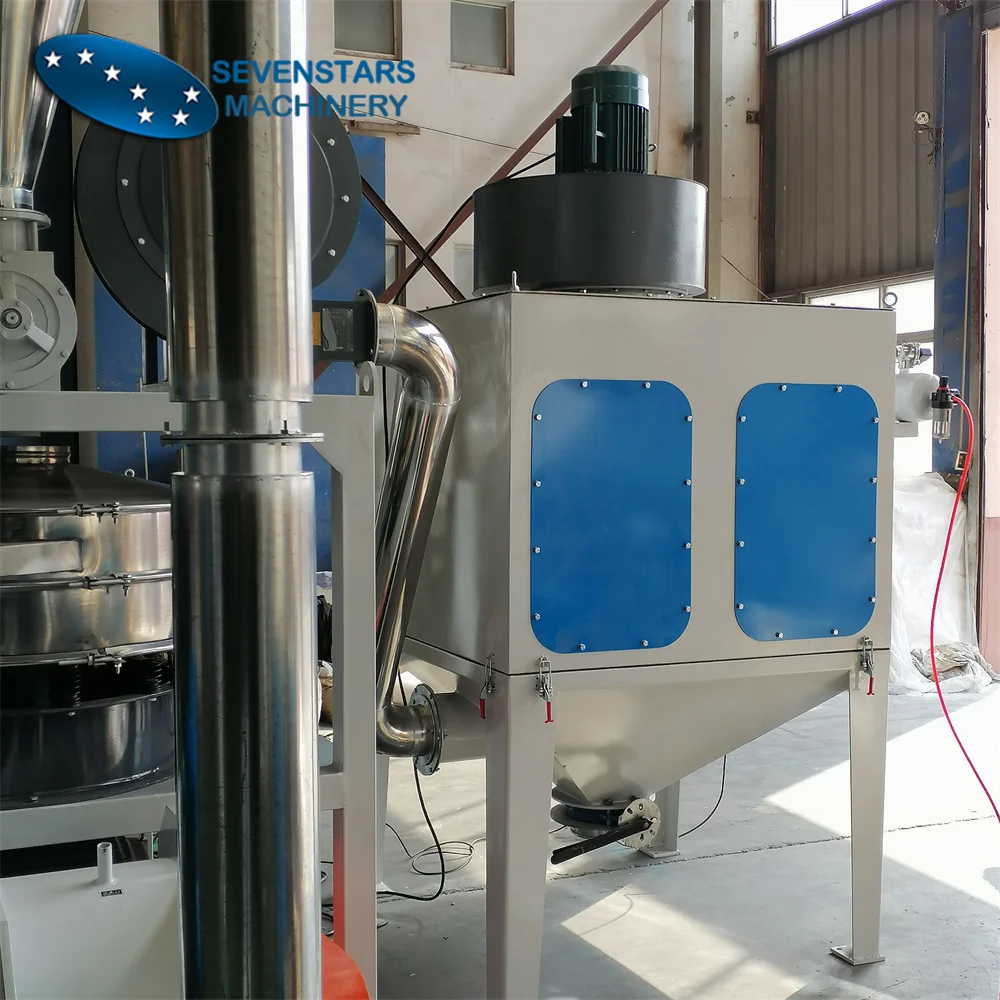

The device is mainly used for collecting dust automatically.

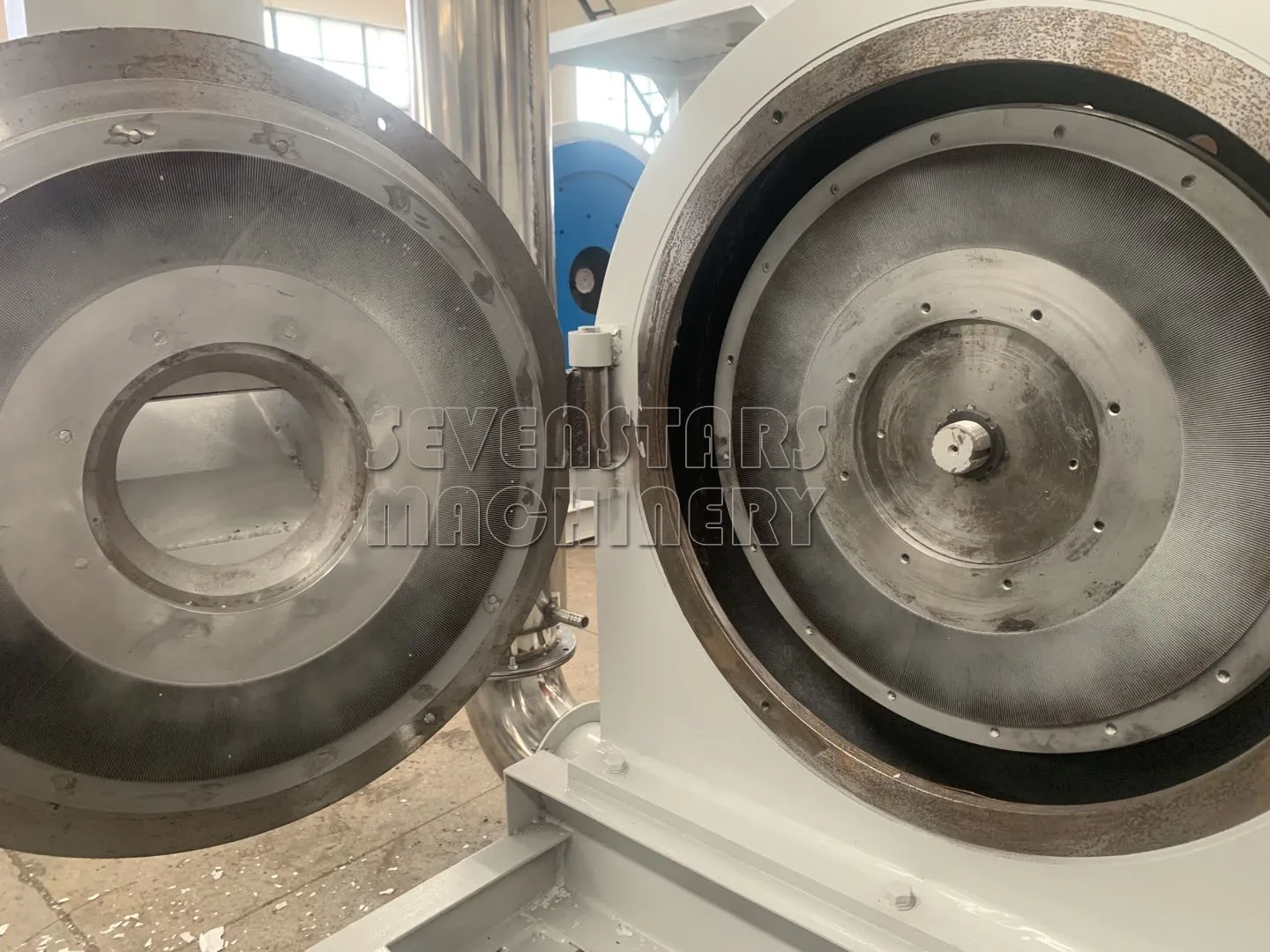

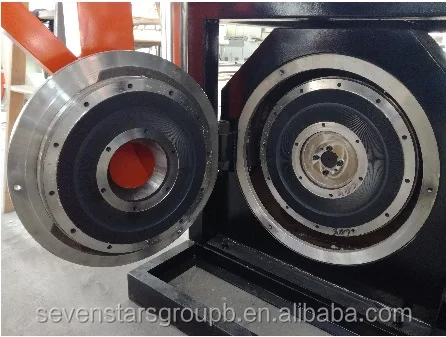

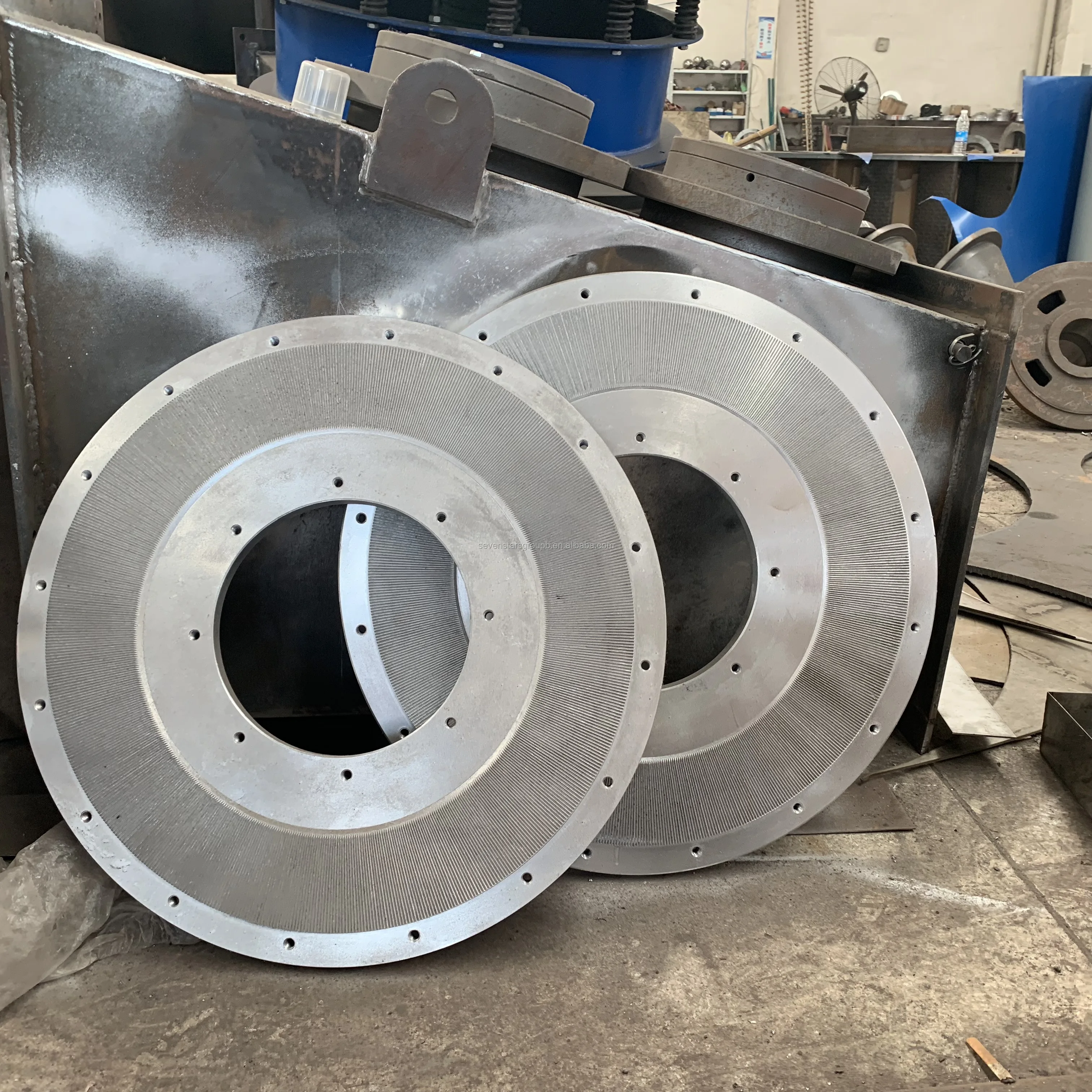

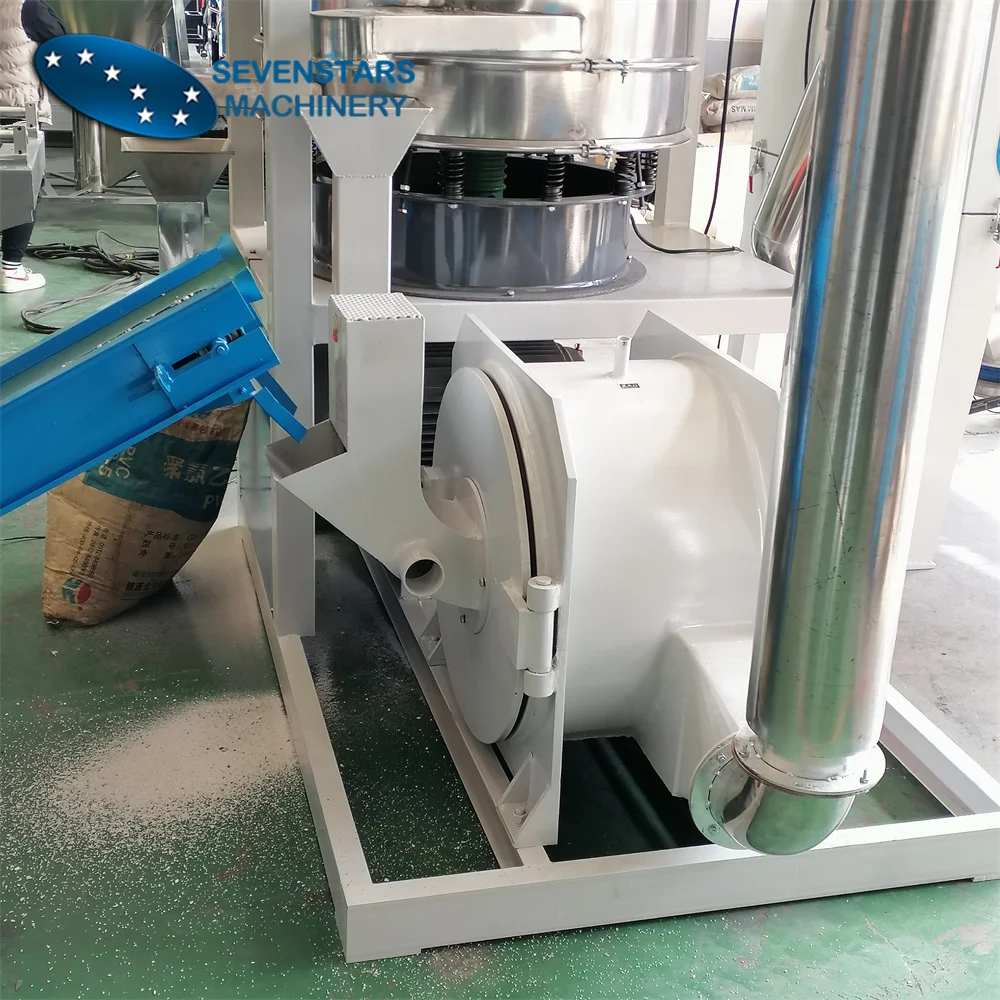

This device is mainly used for milling the material into powder.The cooling type is water cooling type.And the bearing test with dynamic balance.

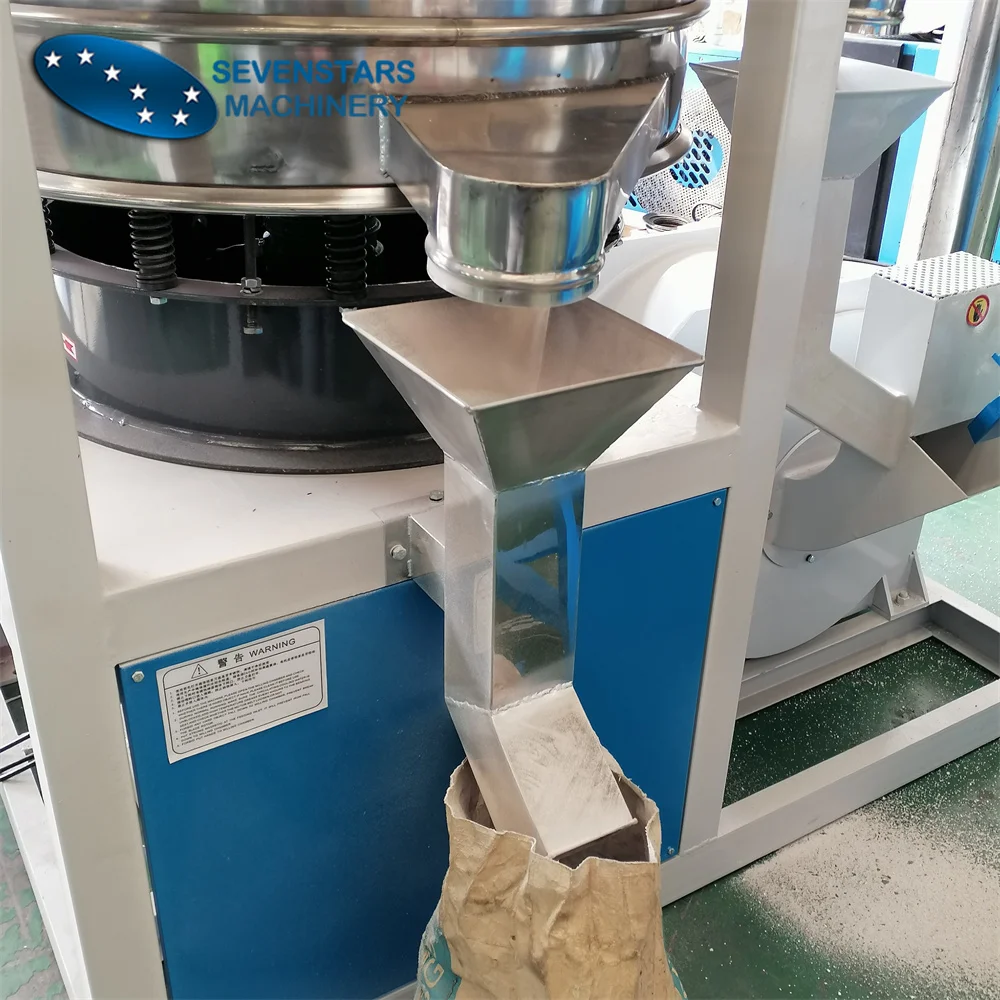

Vibrator Sieve
This device is mainly used for seperating the suitable size powder into silo and the nonsuitable return back to milling chamber again.
