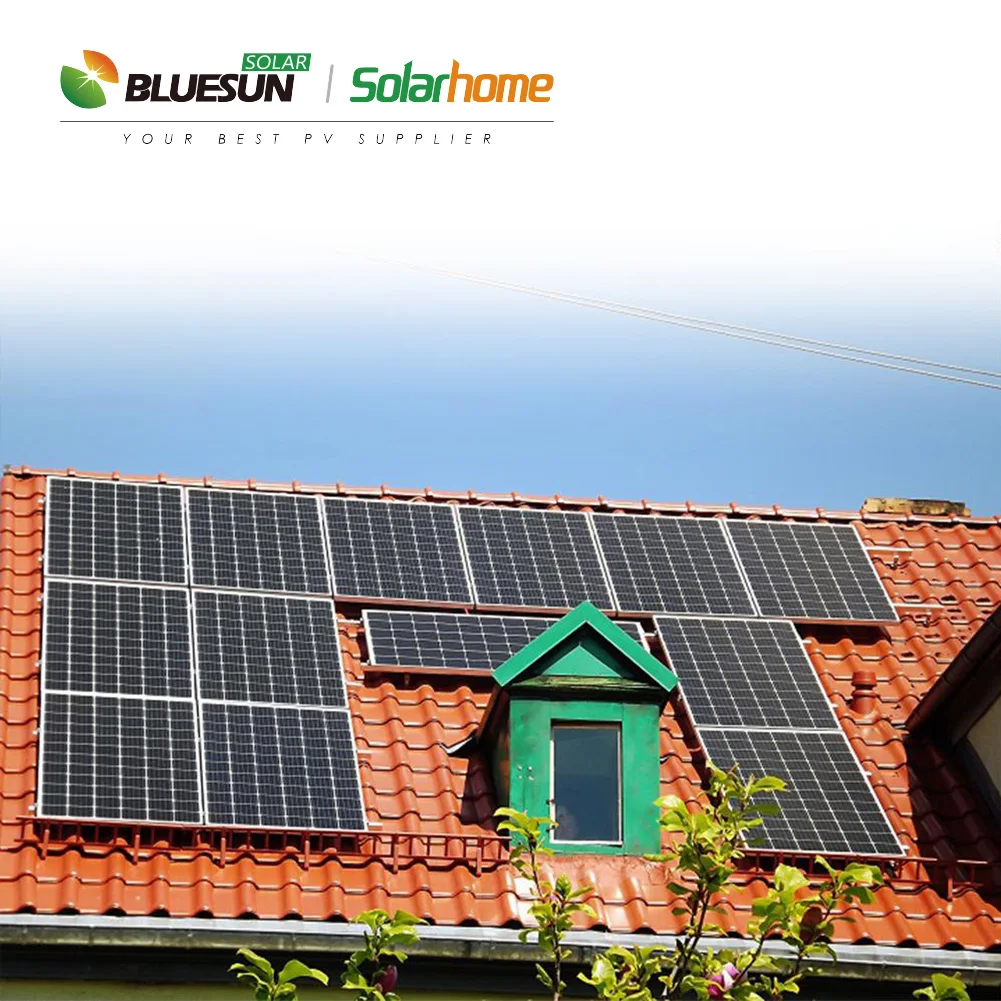

Green Keeper Solar System Hybrid Solar Power System for Home Use 10KW 12KW 15KW 20KW
- Category: >>>
- Supplier: Bluesun Solar Parts Co. Ltd.
Share on (1600510296314):
Product Overview
Description
Product Description

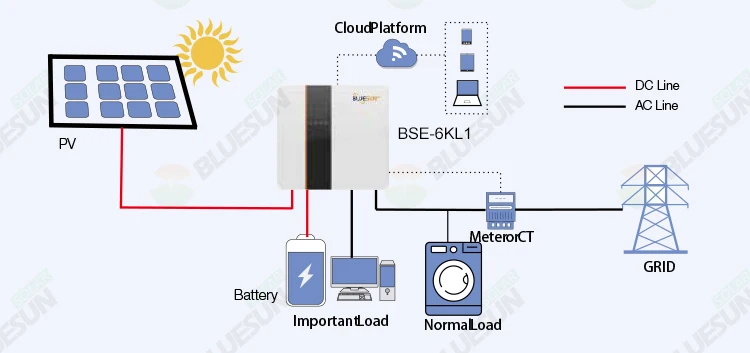

System Diagram
8KW Hybrid Solar Power System Components List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Half cut mono 455w solar panel | 18 pcs | |||
2 | Combiner Box | Optional | 1 pc | |||
3 | Lithium Battery or Lead Acid Battery | 16kwh | 1set | |||

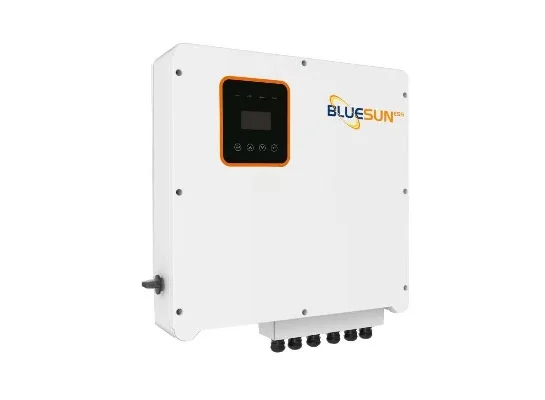

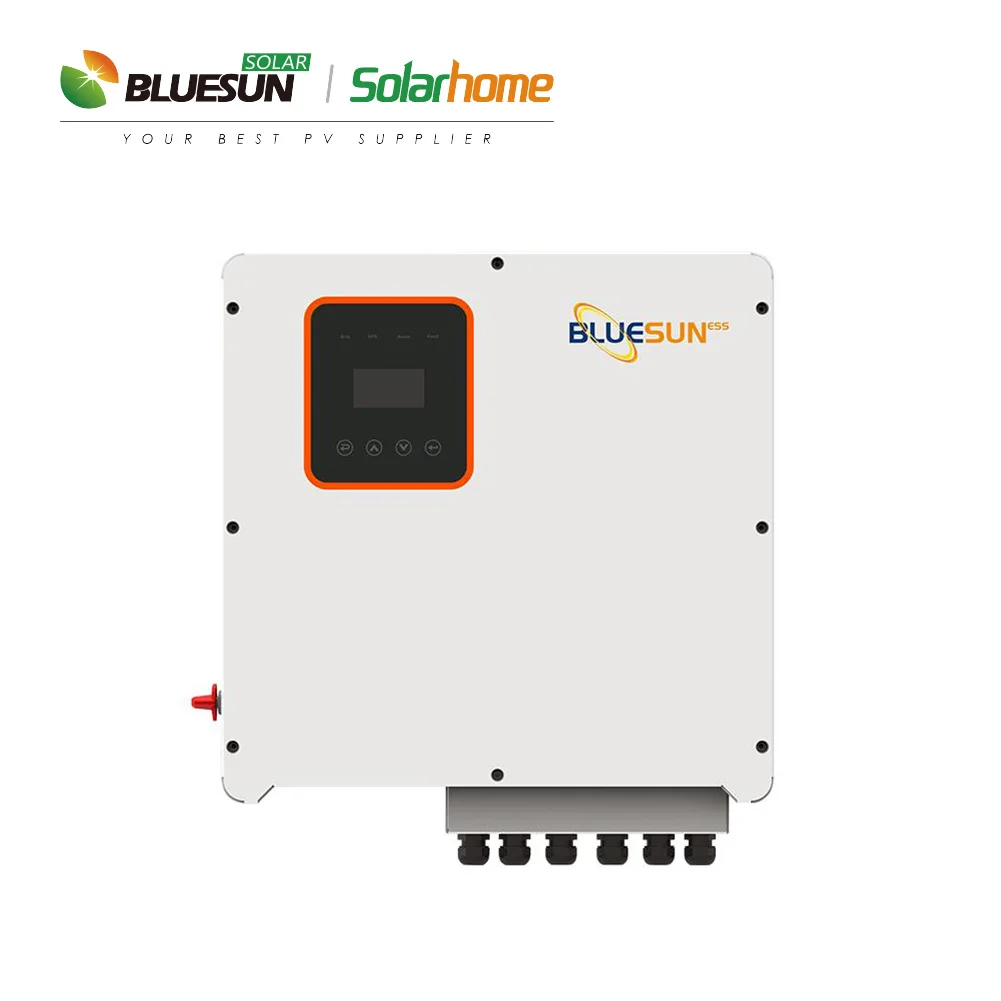

4 | Hybrid Inverter | 8kva | 1 pc | |||
5 | Mounting Support | Roof/Ground | 1 set | |||
6 | Cable | 4mm² PV cable | 100m | |||
7 | Connector | Solar Connector | 8 pairs | |||
8 | Tools Bag | Solar Installation tools | 1 set | |||
10KW Hybrid Solar Power System Components List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Half cut mono 455w solar panel | 22 pcs | |||
2 | Combiner Box | Optional | 1 pc | |||
3 | Lithium Battery or Lead Acid Battery | 20kwh | 1set | |||
4 | Hybrid Inverter | 10kva | 1 pc | |||
5 | Mounting Support | Roof/Ground | 1 set | |||
6 | Cable | 4mm² PV cable | 100m | |||
7 | Connector | Solar Connector | 12 pairs | |||
8 | Tools Bag | Solar Installation tools | 1 set | |||
12KW Hybrid Solar Power System Components List | ||||||
Item | Model | Description | Quantity | |||
1 | Solar Panel | Half cut mono 455w solar panel | 26 pcs | |||
2 | Combiner Box | Optional | 1 pc | |||
3 | Lithium Battery or Lead Acid Battery | 24kwh | 1set | |||
4 | Hybrid Inverter | 12kva | 1 pc | |||
5 | Mounting Support | Roof/Ground | 1 set | |||
6 | Cable | 4mm² PV cable | 200m | |||
7 | Connector | Solar Connector | 16 pairs | |||
8 | Tools Bag | Solar Installation tools | 1 set | |||
Configuration Details

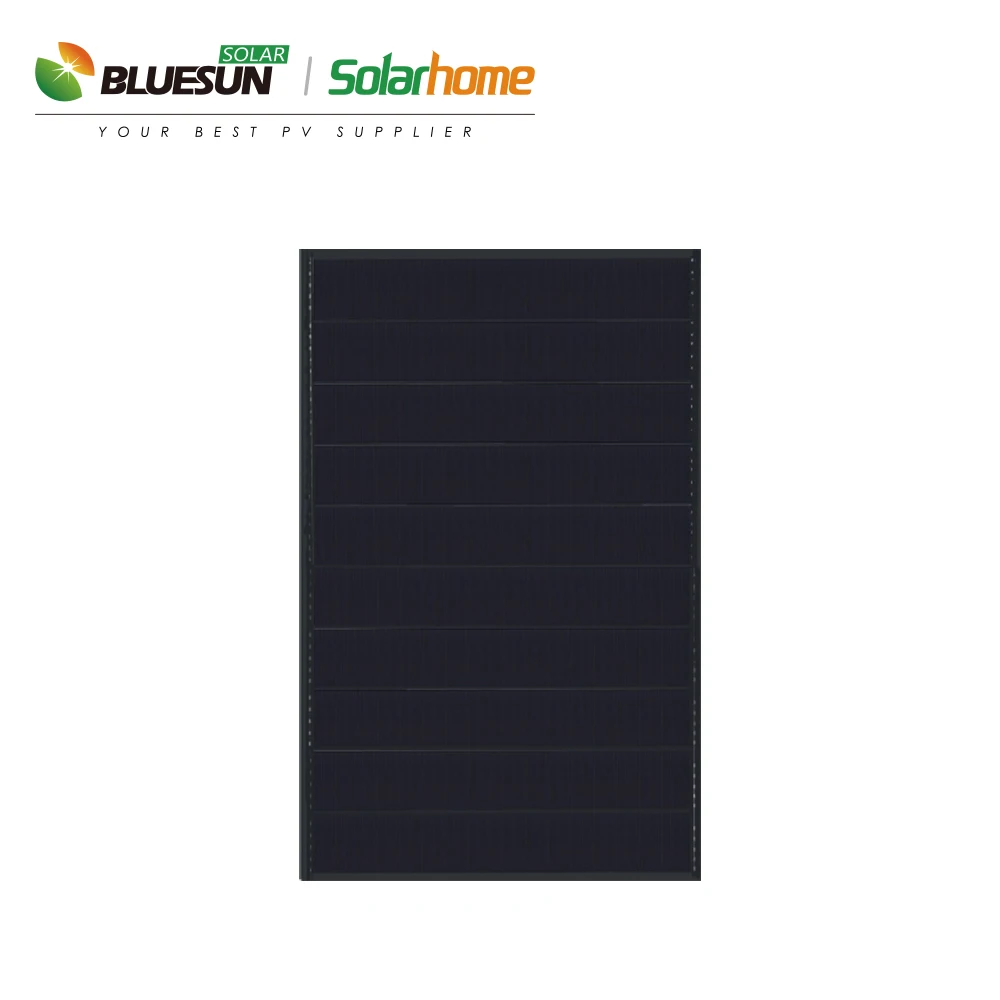

Solar Panels
> Perc/Bifacial/HJT solar panels are available
>25 years warranty
> Highest quality with full certificates
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance
>25 years warranty
> Highest quality with full certificates
> Excellent mechanical load resistance
> PID Resistant,High salt and ammonia resistance

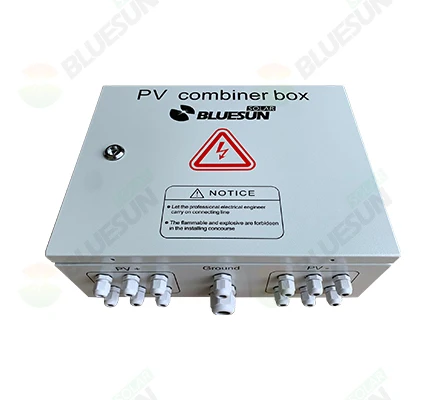

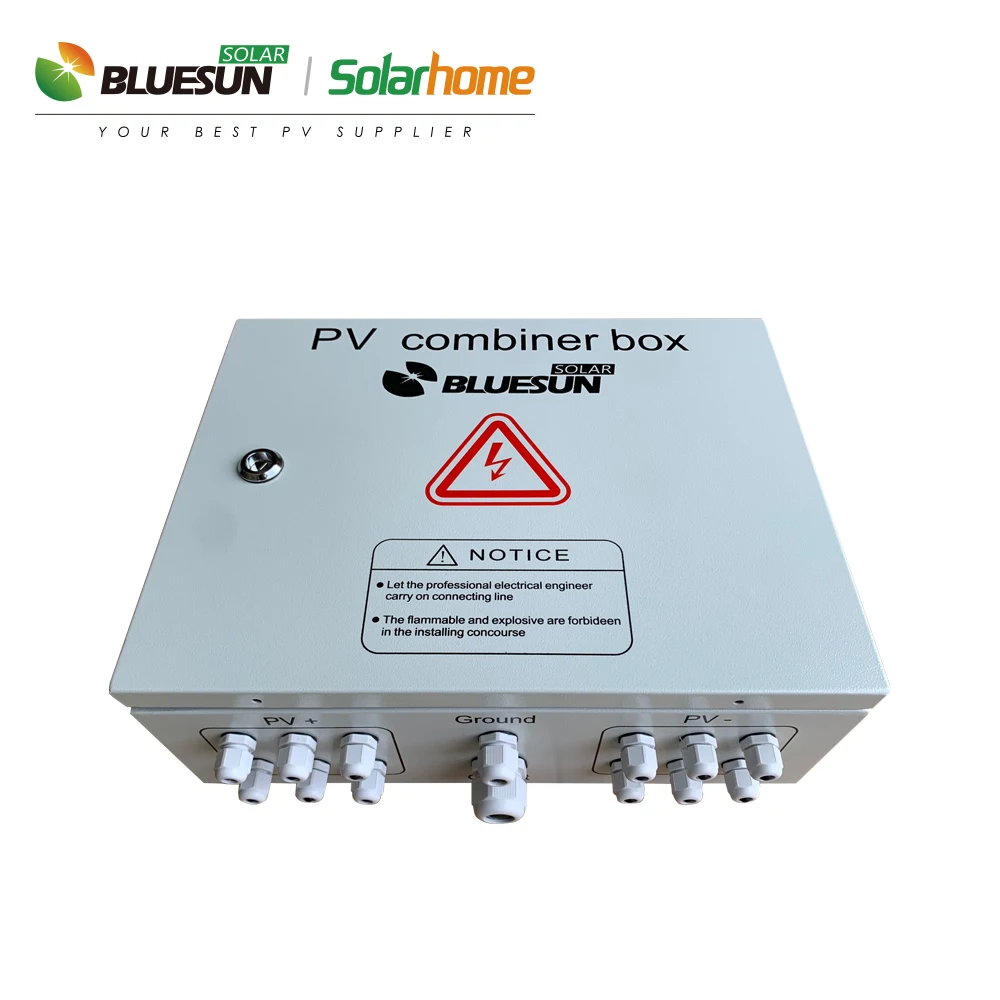

PV Combiner Box
>Cross Section: 4mm2, 6mm2 Optional
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional
>Rated Voltage:600VDC/1000VDC(TUV)
>Rated Current: 55A,70A
>Colors: Black For STD, Red Optional
> Modular & NREL certified PCS P-Q & V-F mode
>Built-in or external transformer offers option for 400Vac connection
>Design with highly integrated power distribution boxes
>Intermodal shipping container
>10ft/20ft/40ft standard ISO container
>Built-in or external transformer offers option for 400Vac connection
>Design with highly integrated power distribution boxes
>Intermodal shipping container
>10ft/20ft/40ft standard ISO container

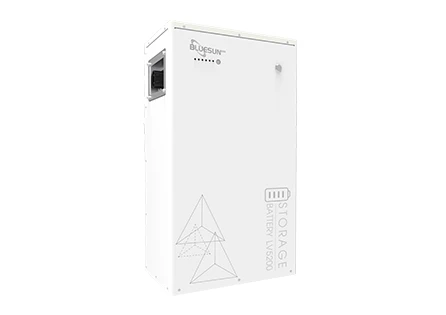

Solar Battery
> 2V,12V Agm Battery
> 2V,12V Gel Battery
> 48V Lithium Battery
Without a battery bank (or a generator) it well be lights out by sunset. A battery bank is essentially a group of batteries wired together
> 2V,12V Gel Battery
> 48V Lithium Battery
Without a battery bank (or a generator) it well be lights out by sunset. A battery bank is essentially a group of batteries wired together

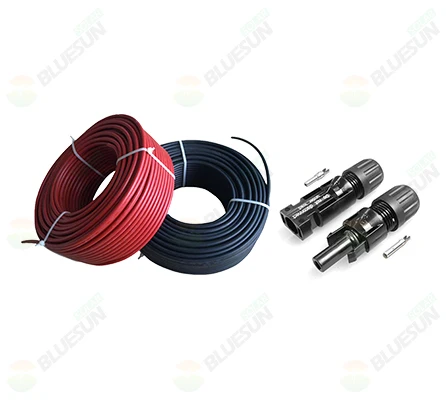

Accessories
> PV Cable 4mm2 6mm2
> AC Cable
> DC Switches
> AC Breaker
> AC Cable
> DC Switches
> AC Breaker
PV Mounting System

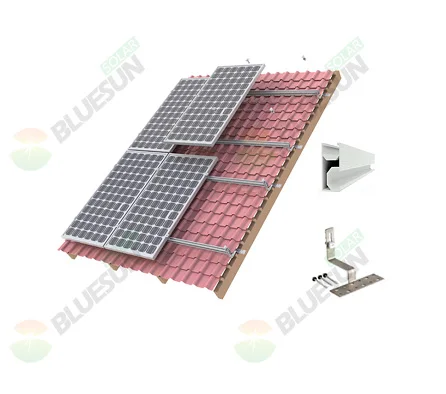

> Residential Roof(Pitched Roof)
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system

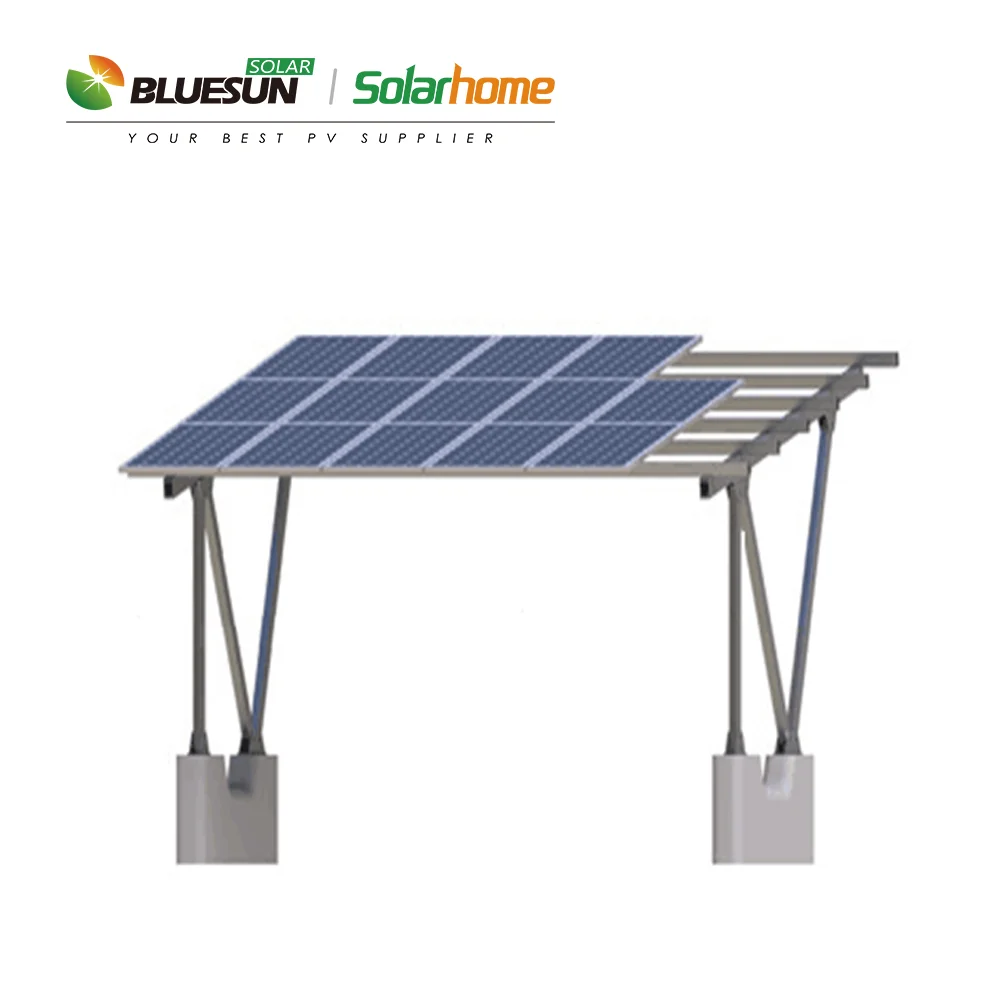

> Car parking solar mounting system
> Commercial Roof(Flat roof&workshop roof)
> Ground Solar Mounting system
> Vertical wall solar mounting system
> All aluminum structure solar mounting system
> Car parking solar mounting system
Packing & Delivery
By Sea | Delivery from Shanghai or Ningbo seaport |
By Air | Delivery from Shanghai or Ningbo seaport |
By Express | Delivery from Shanghai or Ningbo seaport |

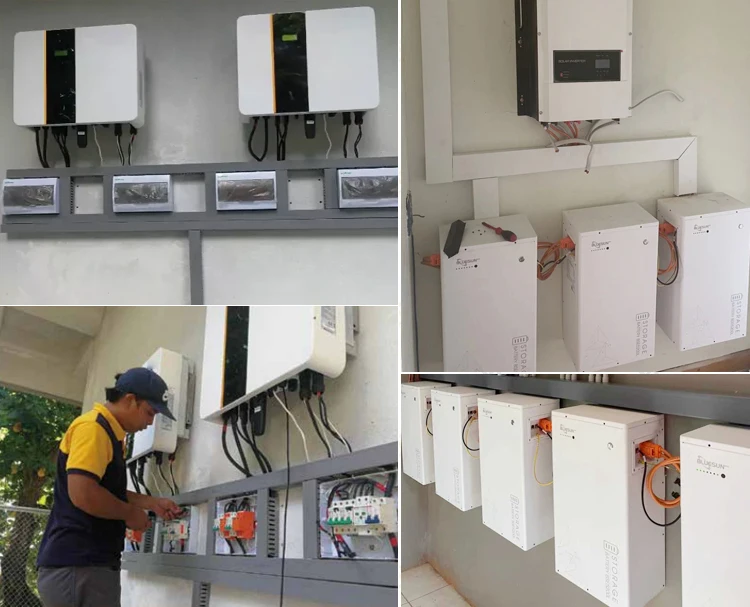

Global Projects
