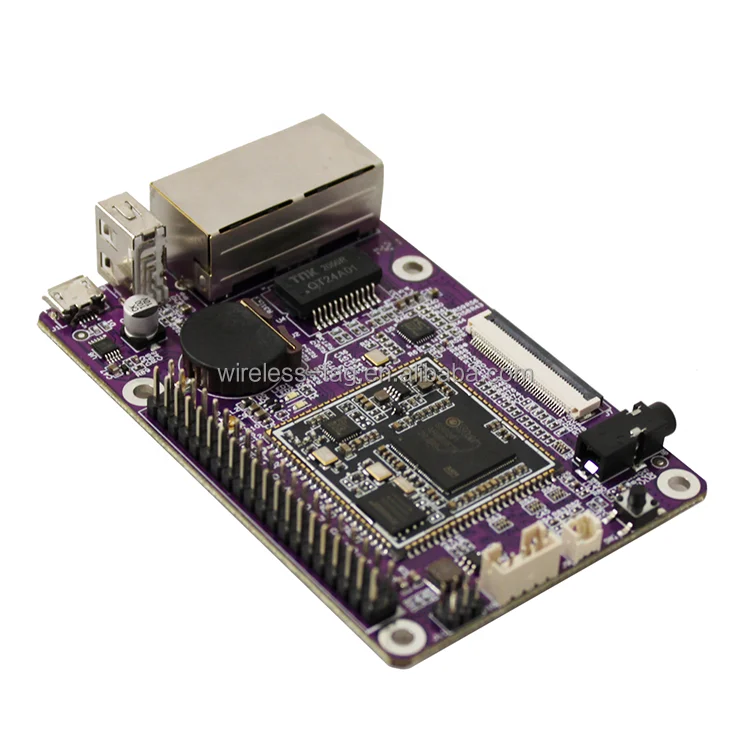

IDO SBC2D06 V2A 22W purple Nano SSD202 2Gb NAND Dual Ethernet Ports Development Board Compatible Raspberry Pi
- Category: >>>
- Supplier: Wireless-Tag Technology Co. Limited
Share on (1600510355626):
Product Overview
Description
IDO-SBC2D06-V1B-22W purple Nano SSD202 2Gb NAND Dual Ethernet Ports Development Board Compatible Raspberry Pi
Product Description
Brief introduction:
IDO-SBC2D06 is a SigmaStar SSD20x SOM based development board with dual Ethernet ports(we call it Purple Nano), which features a Dual-core A7 processor clocked at 1.2GHz, 256MB flash by default, WiFi, and compatible with Raspberry Pi.

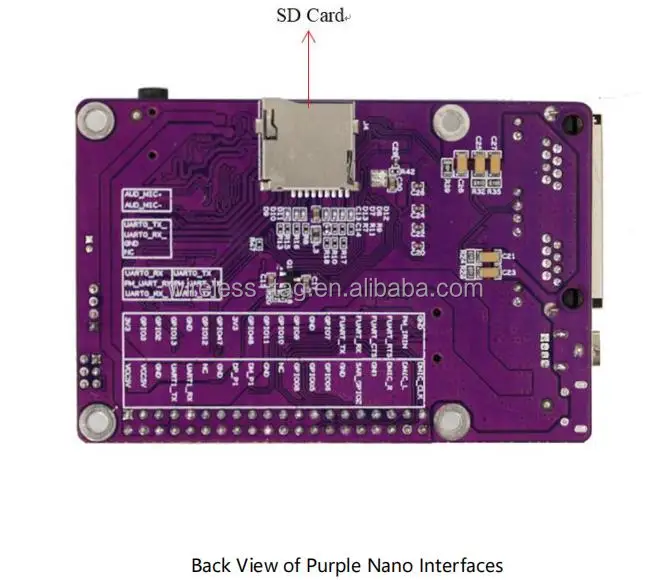

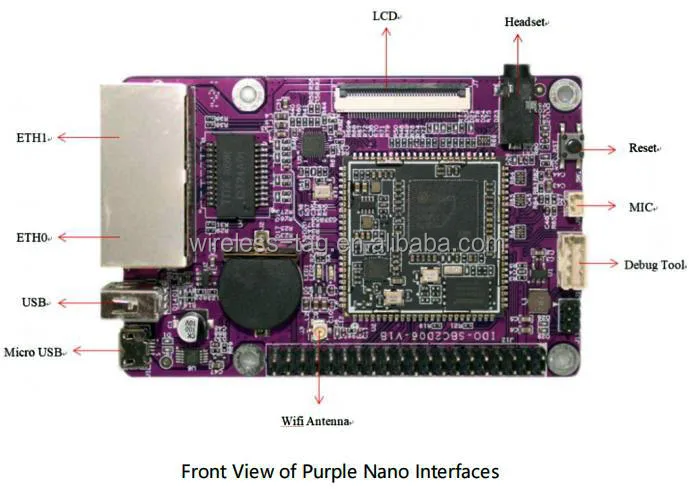

* Storage – MicroSD card slot
* Display – 4-lane MIPI DSI connector for 4-inch RGB565 display or 7-inch RGB888 display
* Audio – 2-pin Microphone connector
* Connectivity * Dual 10/100M Ethernet ports
* Sigmastart SSW101B 802.11b/g/n 2.4GHz 1T1R WiFi 4 module + u.FL antenna connector
* USB – 1x USB port, 1x Micro USB port
* Expansion * 40-pin expansion header with GPIO, UART, DMIC, USB, etc… as well as 5V, 3.3V and GND power signals
* 6-pin UART header
* Debugging – 4-pin UART console connector
* Storage – MicroSD card slot
* Display – 4-lane MIPI DSI connector for 4-inch RGB565 display or 7-inch RGB888 display
* Audio – 2-pin Microphone connector
* Connectivity * Dual 10/100M Ethernet ports
* Sigmastart SSW101B 802.11b/g/n 2.4GHz 1T1R WiFi 4 module + u.FL antenna connector
* USB – 1x USB port, 1x Micro USB port
* Expansion * 40-pin expansion header with GPIO, UART, DMIC, USB, etc… as well as 5V, 3.3V and GND power signals
* 6-pin UART header
* Debugging – 4-pin UART console connector
Why do so many embedded engineers choose our Purple NANO?
1. Cortex-A7 Dual Core 1.2GHz;
2. 2Gb NAND Flash, 64MBit DDR2/128Mbit DDR3;
3. Wireless network adapter -SSW101B;
4. Dual 100Mbps Ethernet ports;
5. Supports MIPI-4 Line, max. 1080P; It can also be configured as RGB565;
6. Raspberry Pi double-row pin interface;
2. 2Gb NAND Flash, 64MBit DDR2/128Mbit DDR3;
3. Wireless network adapter -SSW101B;
4. Dual 100Mbps Ethernet ports;
5. Supports MIPI-4 Line, max. 1080P; It can also be configured as RGB565;
6. Raspberry Pi double-row pin interface;
Specification
Item | Value |
Model Number | IDO-SBC2D06-V2A-22W |
Type | RF/Wireless Development Boards and Kits |
Place of Origin | Shenzhen, China |
Brand Name | Wireless-Tag |
Chipset | SigmaStar's dual-core Cortex-A7 processor |
Type | EVB with LCD |
Frequency | 1.2G |
DDR | 64MBit DDR2/128Mbit DDR3 |
SPI NAND flash | 2Gbit |
WIFI | Equipped with Singmaster wifi chip (SSW101B) |
System | OpenWrt |
Display | 4inch 7inch RGB display |
Ethernet | Dual 10/100M Ethernet ports |
Audio | Left and right channel speakers |
Dimensions | 86mm*55mm |
