CNKB PP material RPV 3 pressure reducing valve pressure limit valve for water purifying machine

Product Overview

Description

CNKB PP material RPV-3  pressure limit valve pressure reducing valve for water purifying machine





Characteristic :

1. Released pressure valve for water household appliace
2. Usual parts application for all kinds of water household appaliance

3. the reduced pressure vavle passed  CE CQC ROHS

4.water pressure range : 0~1.0Mpa

5.working life: ≥100,000times



The brief:

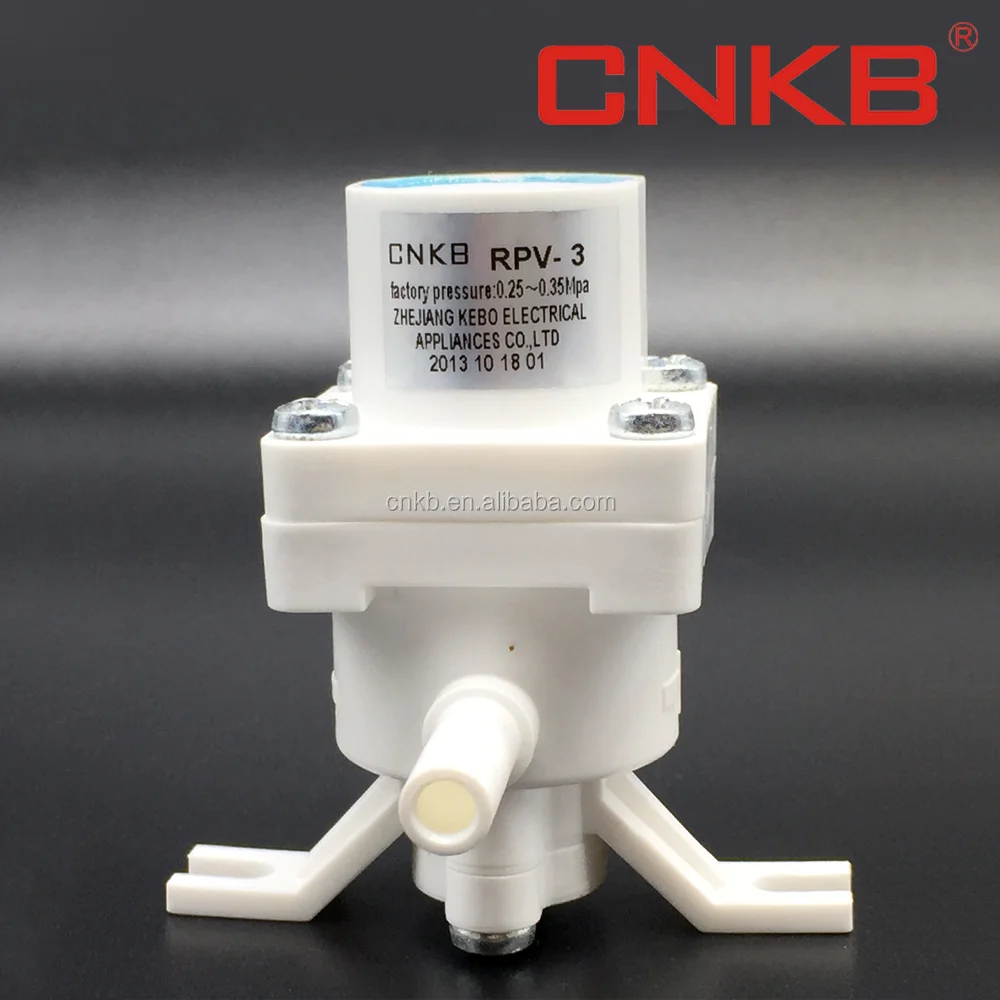

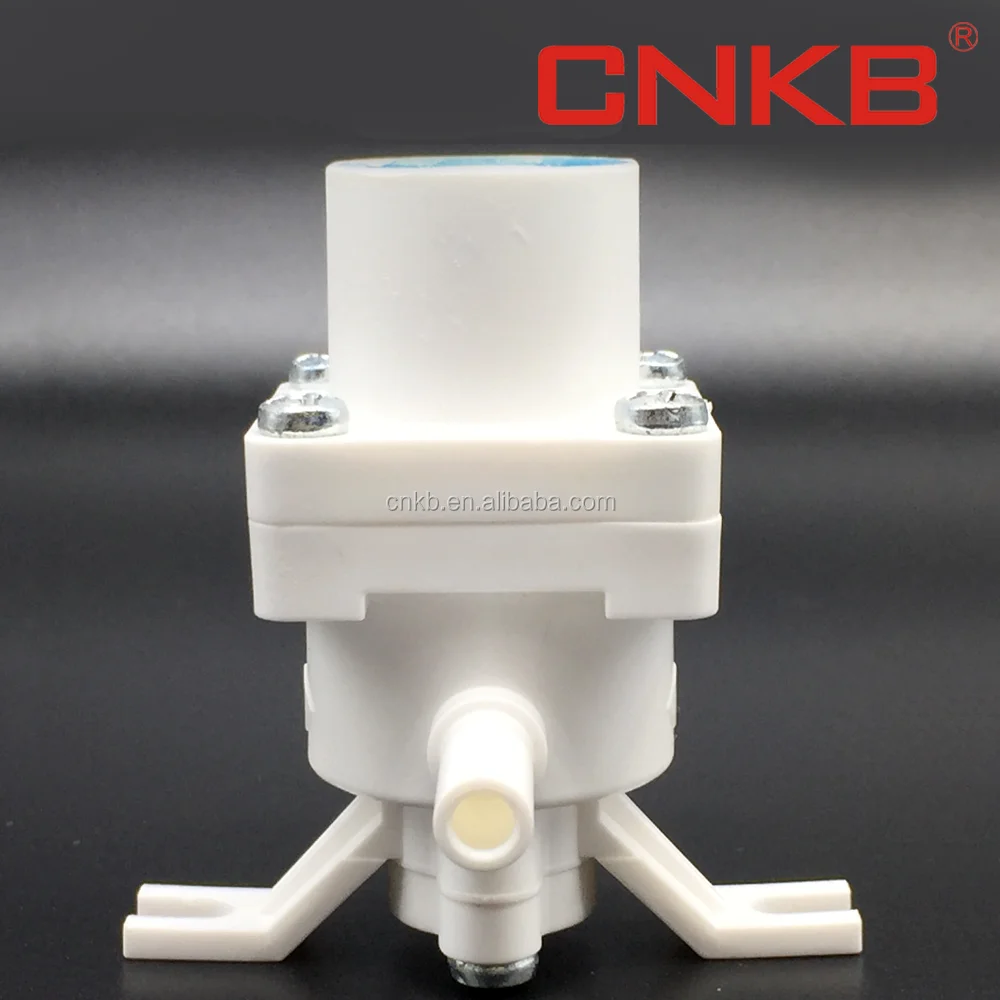

RPV-3 (Reducing Pressure Valve)
Series of inlet and outlet solenoid valve with  novel design, unique structure,also with  excellent anti-blocking, anti-leakage performance, and are widely used in various types of high-grade water dispenser, RO straight drinking machine , pipeline machine, water purifying machine , coffee machine and other home appliances.

main technical details

Water Pressure Range	0~1.0Mpa
medium temperature	0~100℃
Working life	≥100,000 times

Decompression Performance: When the inlet ponit's water pressure is 0.25~1.0Mpa,the Outlet's water pressure should be 0.25~0.35Mpa

Inlet:6.35mm Outlet: 6.35mm Mounting spacing: 45±0.5 mm Customer design and OEM service are provided
