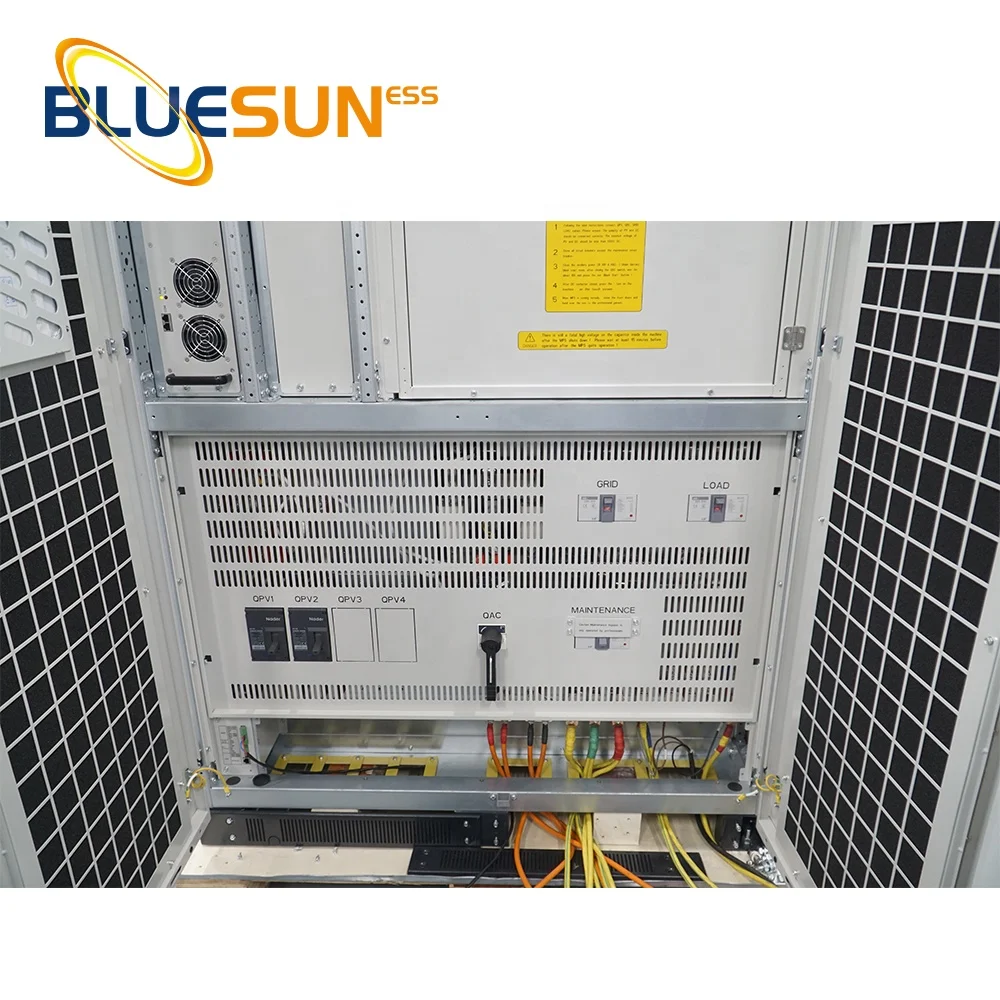

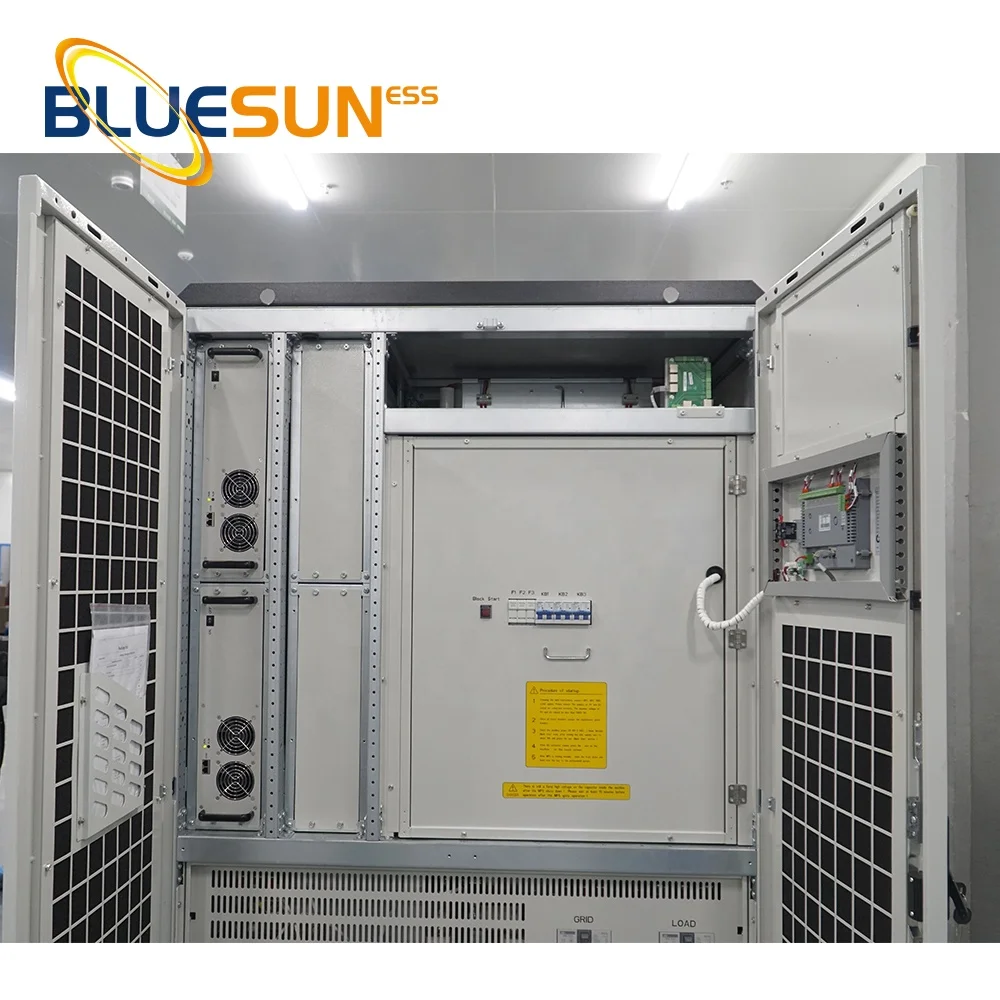

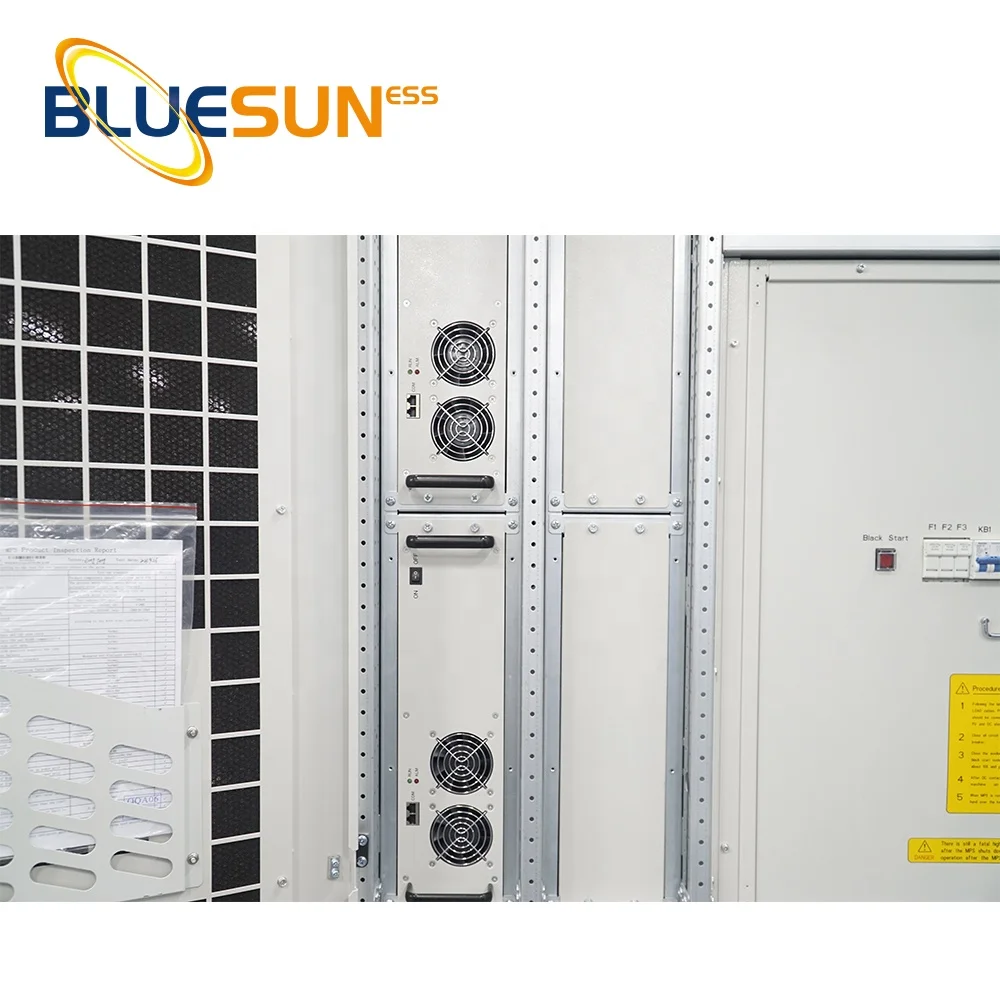

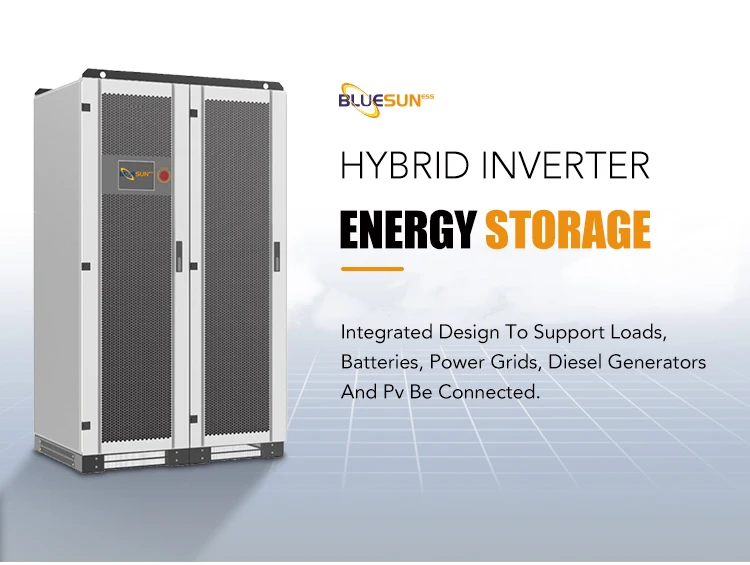

500kw 500kva solar hybrid inverter 400V three phase solar energy storage inverter

Share on (1600510363347):


Price:$62,927.00 - $66,927.00

Quantity:


Product Overview

Description



Product Description




Model
BMPS30
BMPS50
BMPS100
BMPS150
BMPS250
BMPS500
AC(grid-connected)
Apparent power
33kVA
55kVA
110kVA
165kVA
275kVA
550kVA
Rated power
30kW
50kW
100kW
150kW
250kW
500kW
Rated voltage
400V
Rated current
43A
72A
144A
217A
361A
722A
Voltage range
320V-460V
Rated frequency
50/60Hz
Frequency range
45-55/55-65Hz
THDI
<3%
PF
0.8lagging-0.8leading
AC connection
3W+N+PE
Transformer
Yes
AC(off-grid)
Apparent power
33kVA
55kVA
110kVA
165kVA
275kVA
550kVA
Rated power
30kW
50kW
100kW
150kW
250kW
500kW
Rated voltage
400V
Rated current
43A
72A
144A
217A
361A
720A
THDU
≤2% linear
Rated frequency
50/60Hz
Overload capability
110%-10min120%-1min
PV
Max. PV open-circuit voltage
1000VDC
MAX PV power
60/120KW
120/180/240KW
300/360KW
600/660/720KW
PV mppt voltage range
200V-850V
MPPT number
1/2
2/3/4
5/6
10/11/12
Battery
Battery voltage range
250V-850V
320V-850V
420V-850V
420V-850V
420V-850V
500V-850V
Battery full Load operating voltage range
250V-850V
320V-850V
420V-850V
420V-850V
420V-850V
500V-850V
Genera data
Dimension(WXDXH)
800X800X1900mm
1200X800X2050mm
1800X800X2050mm
2800X800X2050mm
Weight
440kg
620kg
900kg
1250kg
1700kg
3520kg
Environmental temperature
-25ºC~+55ºC
Relative humidity
0-95%non-condensing
Protection degree
IP20
Noise emission
75dB(A)@1m
Max.imum altitude
5000m(derate over 3000m)
Cooling
Forced-air
Communication
Display
Touch screen LCD
Communication interface
RS485/CAN

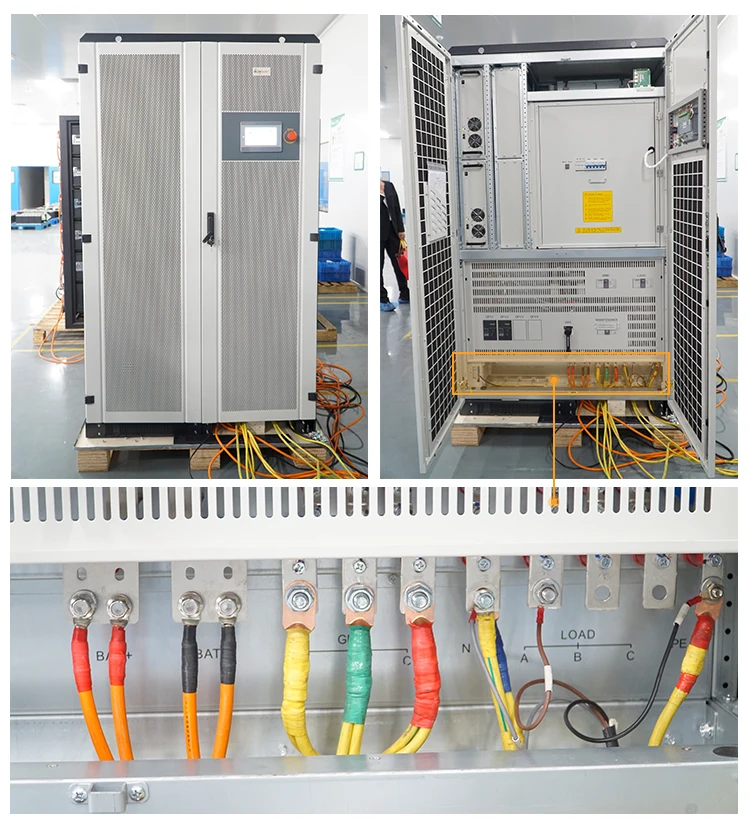

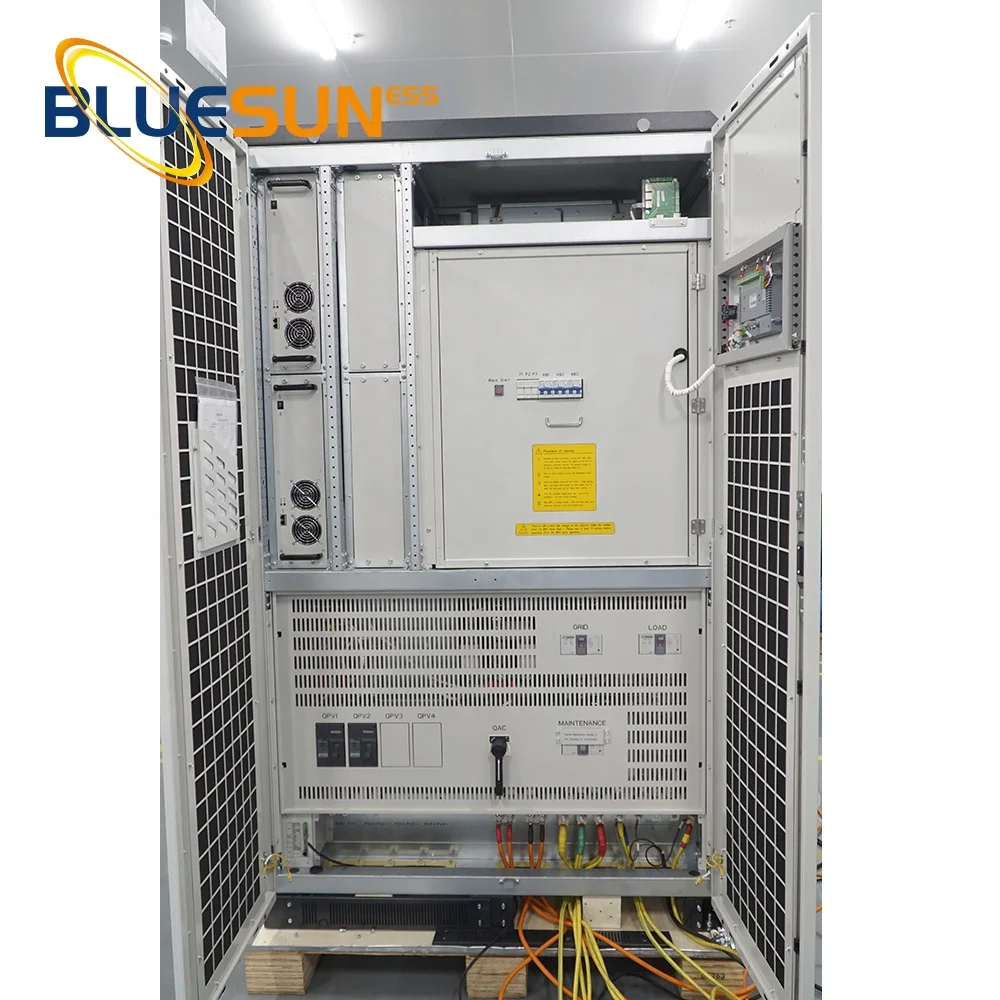

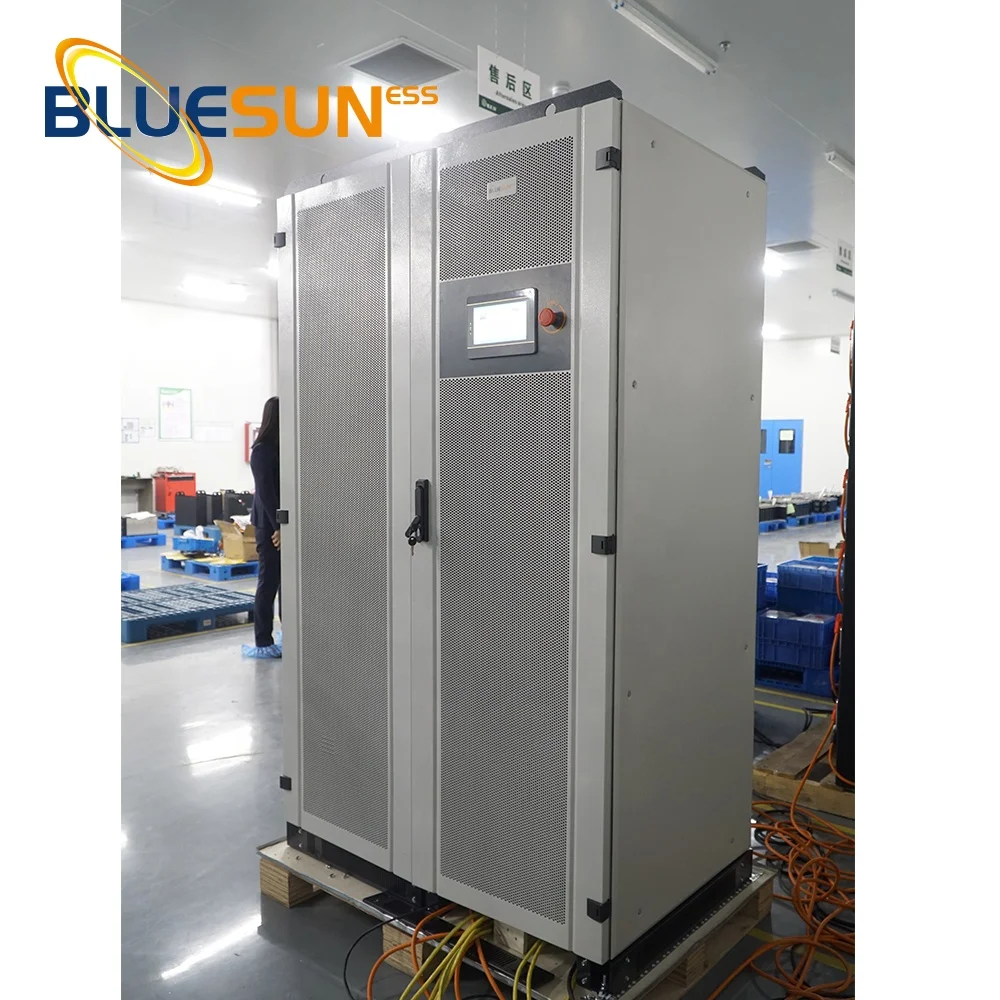

Detailed Images




Applications

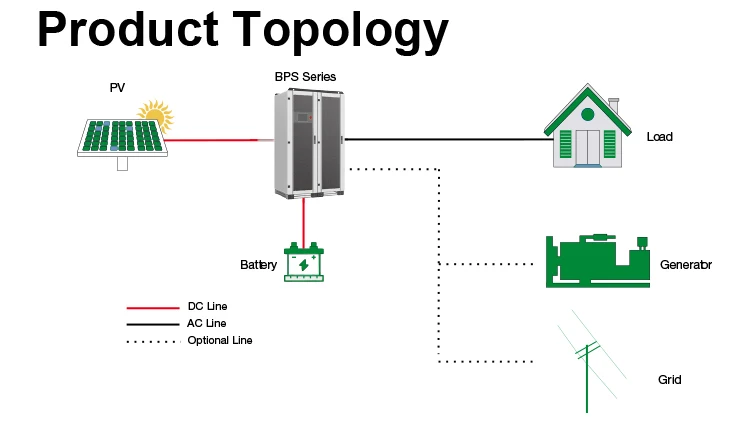

Product Topology

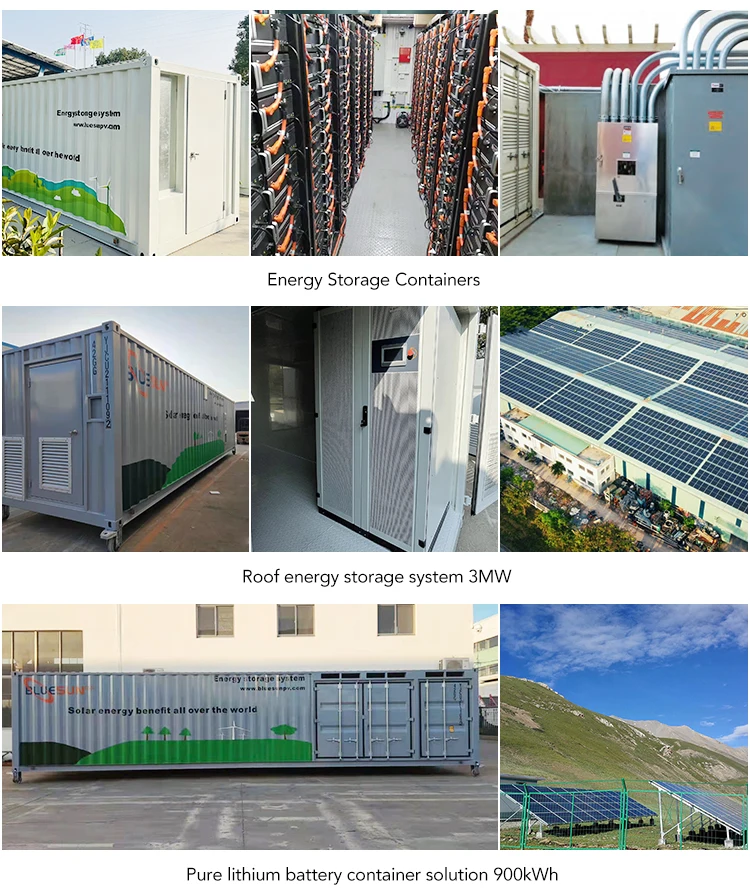

Global Projects
