Product Overview
Description
WELCOM TO GESTER
Product Description
Product Overviews
| Application |
Textile Fabric Lab Astm B117 Salt Spray Corrosion Resisting Testing Chamber: It aims at determining the product corrosion resistance after various kinds of materials surface suffering electroplating, anodizing, painting, rust-proof oil corrosion resistance treatment.
It is suitable for neutral salt spray test (NSS) and acidic corrosion experiment (AASS, CASS).
| Standards |
CNS3627, 3885, 4159, 7669, 8886,
JIS D-0201, H-8502, K-5400, Z-2371,
ISO 3768, 3769, 3770,
ASTM B-117, B-268,
GB-T2423
SS DIN 50021
| Feature |
1. The whole equipment adopts material of 5mm import gray PVC sheet, Internal adopts advanced band produced three-dimensional reinforcement technology, with strong structure, no deformation, acid and alkali resistance, high temperature resistance, and no aging. It is applied to all kinds of test specifications such as salt spray, copper acetate, etc.
2. Heating method: test room adopts steam direct heating method, temperature rise fast and uniform, reduce the standby time, the heating tube is made from titanium tube with high corrosion resistance.
3. Hopper: 2 built-in spray quantity collection cylinder (only one 60 type ), comparing to the traditional external type, it does not easily break down.
4. Laboratory commodity shelf uses plane dividing shelf, commodity shelf is the 10mm toughened glass rod with corrosion resistance. Plastic steel V type shelf and glass rod placing objects make sure the sample 30 degree bevel angle, the angle can be arbitrarily adjusted,the direction of spray falling around is the same as the direction of spay receiving, test piece is set with large quantity.
5. Machine body support: SECC U-bar with angle iron spray paint, four wheel slide and can be pushed for moving( limit use for 120 L type or more than 120 L).
6. Pressure barrel: 2.0MMSUS201 stainless steel seamless welding.
7. Heating delivery: titanium tube used, long service life, high degree corrosion resistance.
8. Equipment cover: made of 8MM import transparent acrylic sheets, exquisite workmanship, beautiful appearance.
9. Dual function of over-temperature protection attached, when over-temperature the warning display and cut off the heater power to make sure safe use.
10. Including automatic spray exhausting device. Can clear observe the sample in the test room.
11. Sample supplement jar adopts hidden and water level perspective window attached, it is easy to clean and not easy cracking.
| Key Specification |
Model | GT-F50BB-1 | GT-F50BB-2 | GT-F50BB-3 | GT-F50BB-4 | GT-F50BB-5 |
Inside Chamber Dimension (WxDxH cm) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x120x60 |
Outside Chamber Dimension (WxDxH cm) | 107x60x118 | 141x88x128 | 190x130x140 | 230x140x140 | 270x150x150 |
Test Chamber Volume | 108L | 270L | 600L | 800L | 1440L |
Brine Tank | 15L | 25L | 40L | 40L | 40L |
Control Method | Touch Screen | ||||
Plastic Plate Thickness | 8mm | ||||
Temperature of Test Chamber
| Brine test method(NSS ACSS)35℃±1℃ | ||||
Corrosion resistance test method (CASS)50℃±1℃ | |||||
Temperature of Pressure Barrel
| Brine test method(NSS ACSS)47℃±1℃ | ||||
Corrosion resistance test method (CASS)63℃±1℃ | |||||
Brine Temperature | 35℃~50℃ | ||||
Brine Concentration | 5% sodium chloride solution concentration or add copper chloride 0.26 grams per liter in the 5% sodium chloride solution concentration. (CuCl2 2H2O) | ||||
Compressed Air Pressure | 1.00±0.01kgf/cm2 | ||||
Spray Volume | 1.0~2.0ml/80cm2/h(gather at least 16 hours, take its average) | ||||
Relative Temperature of Test Chamber | Above 85% | ||||
PH-value | Neutral: 6.5~7.2; Acidic: 3.0~3.2 | ||||
Spray Method | continuous spray or intermittent spray | ||||
Power Supply | AC220V1Φ10A | AC220V1Φ15A | AC220V1Φ30A | ||
Temperature Range
| Laboratory temp. | 35℃- 50℃(can be arbitrarily set) | |||
Pressure barrel temp. | 47℃- 63℃(can be arbitrarily set) | ||||
Temperature Rising Speed
| Laboratory | Room temperature →35℃, about 35 minutes | |||
Pressure barrel | Room temperature →47℃, about 15 minutes | ||||
Temp.accuracy | ±1℃ | ||||
| Product Image |

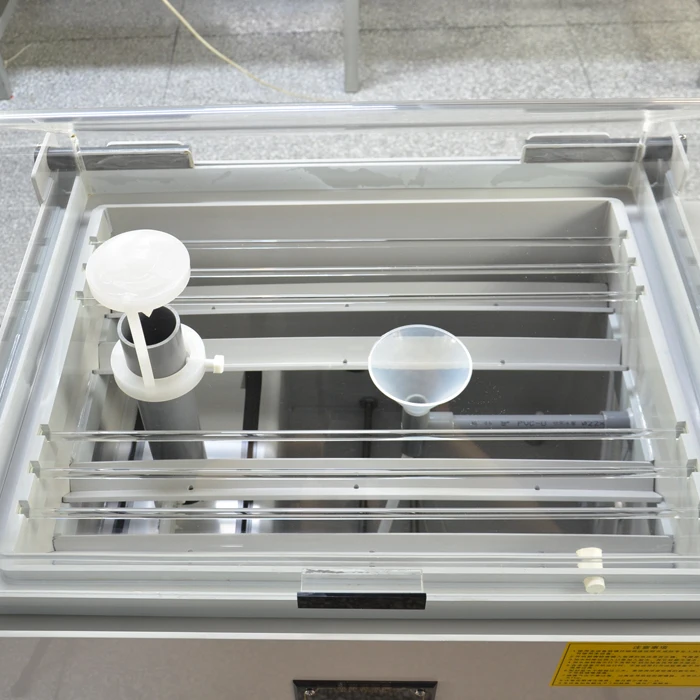

Mist Dispersion Tower | Fog Collector | ||
| To control spray volume by adjusting height | | Spray volume collected within specified collecting area and time conditions. |

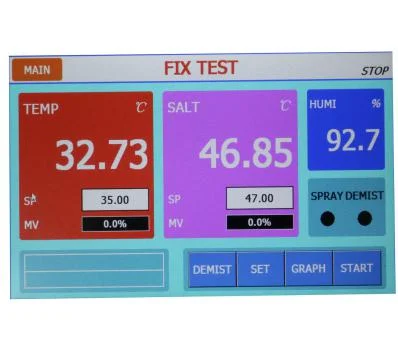

Control Panel | Pressure Gage & Regulating Valve | ||
| To control the test by touch screen. | | To set test parameter |
Dry/Wet Bulb Temp. | Metering Tube | ||
| To control test humidity by dry/wet bulb temp. | | l Display pressure l To adjust pressure of spray |
Back View | Front View | ||
| - Compressed air inlet - To manually add water on pressure tank - Automatic Water Entry - Drain valve | | Transparent acrylic cover can observe the interior of the chamber. |
