UF NF China Electrodeionization EDI Pure Water Purification System Treatment Plant for Chemistry lab/Medicine/Microelectronics
- Category: >>>
- Supplier: SiHYFLUX Co. Ltd.
Share on (1600510374257):
Product Overview
Description
Products Details

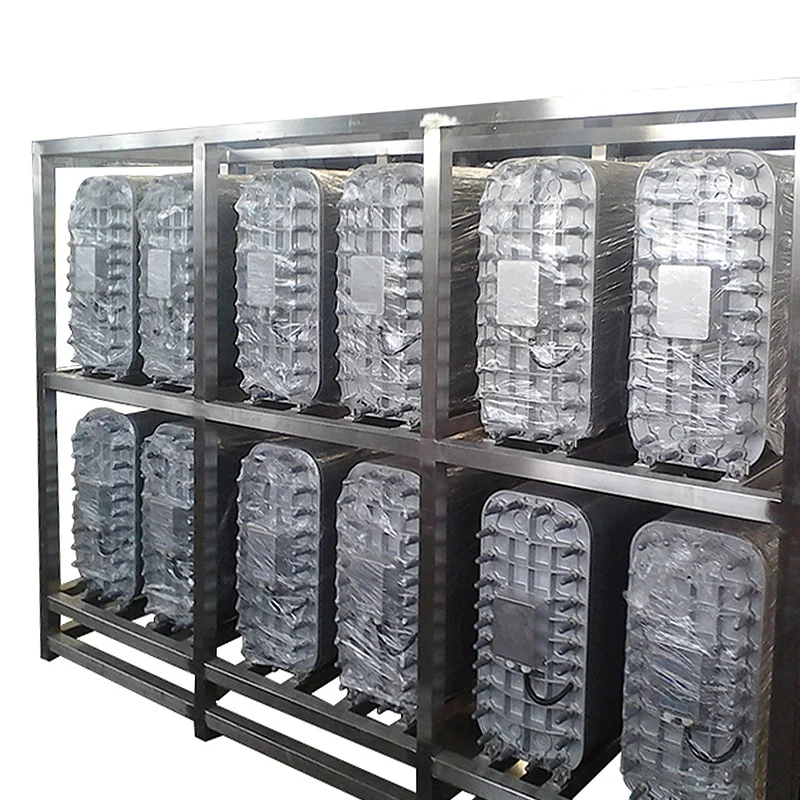

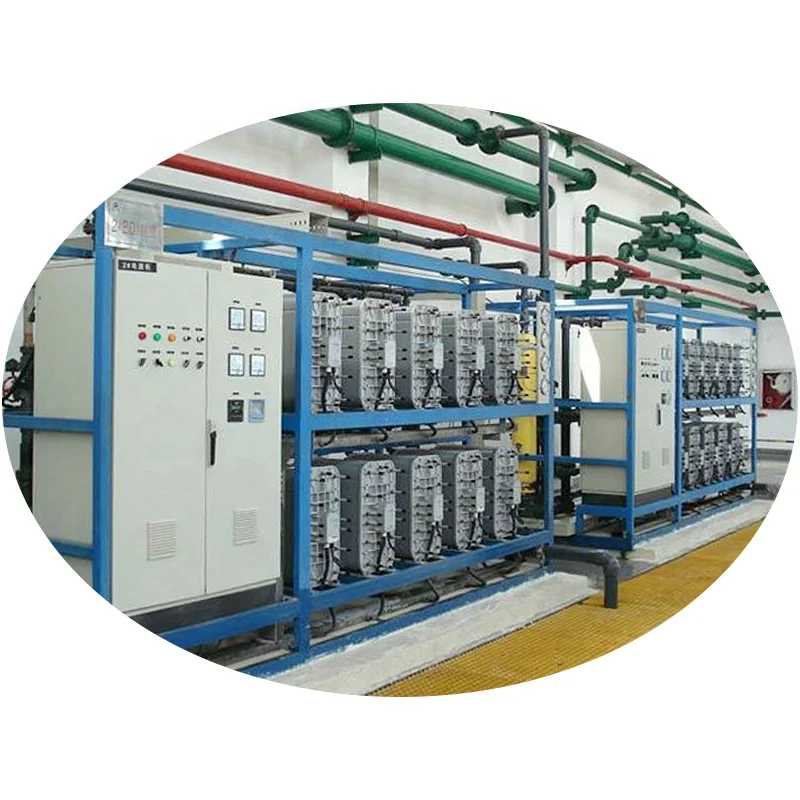

EDI is a kind of pure water manufacturing apparatus that applies to ion exchange technology, ion exchange membrane technology and ion eleyric migration technology.
It is wisely combined electro dialysis with ion exchange technology, by using of high-voltage electrodes at both ends to drive charged ion in the water to move, and with the ion exchange resin and selestive resin membrane to accellerate ions moving, so as to achieve the purpose of water purification.
Applies for super water in electrical, chemical, hospital water, medium-high pressure supplementing water, resistance 18MΩ·cm.
It is wisely combined electro dialysis with ion exchange technology, by using of high-voltage electrodes at both ends to drive charged ion in the water to move, and with the ion exchange resin and selestive resin membrane to accellerate ions moving, so as to achieve the purpose of water purification.
Applies for super water in electrical, chemical, hospital water, medium-high pressure supplementing water, resistance 18MΩ·cm.
EDI water conditions | ||
Water source: | RO water | |
Conductivity: | <=20μs/cm | |
Best conductivity: | 2-10μs/cm | |
Maximum conductivity: | <=50μs/cm | |
PH value: | 6-8 | |
Temperature: | 5-38 | |
Inlet pressure: | 0.2-0.6MPa | |
Hardness: | Less than 0.5ppm(by CaCO3) | |
Si: | Less than 0.5ppm(by SiO2) | |

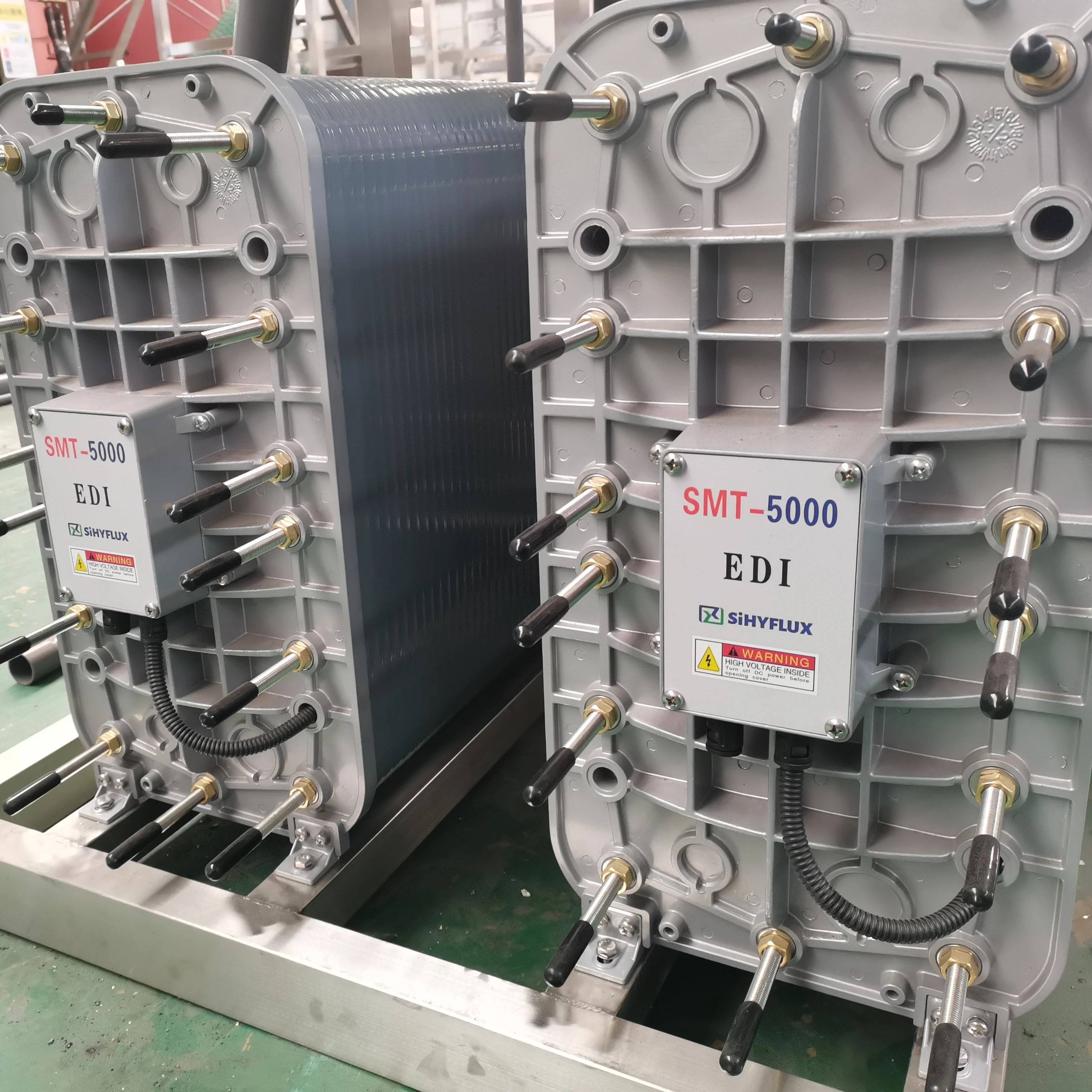

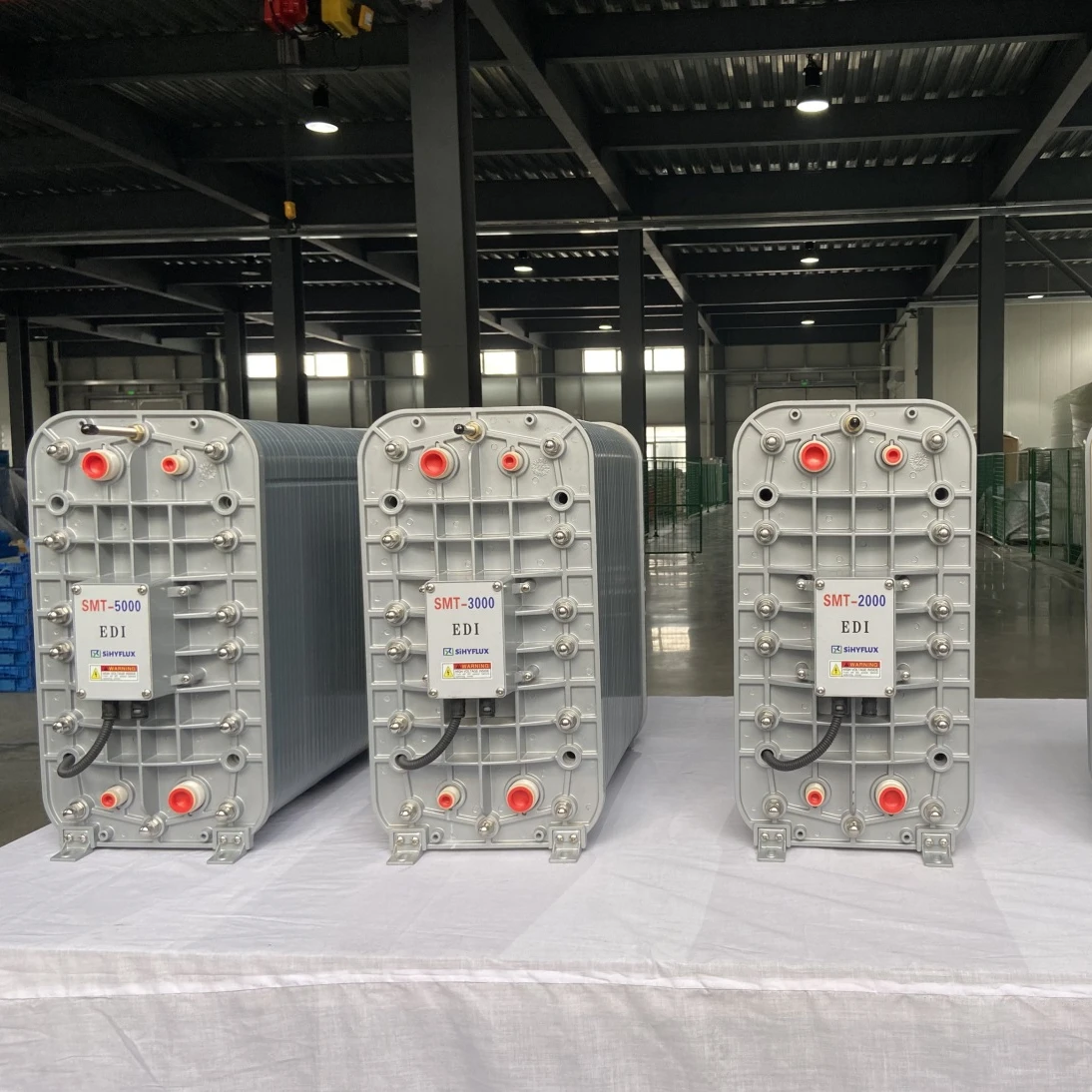

Type | SMT-500 | SMT-1000 | SMT-2000 | SMT-3000 | SMT-5000 |
Dimension L*W*H(mm) | 300*301*601 | 307*301*601 | 504*301*601 | 701*301*601 | 1000*301*601 |
Water production flow(T/H) | 0.5 | 1 | 2 | 3 | 5 |
Maximum flow of produced water(T/H) | 0.67 | 1.65 | 2.8 | 4.2 | 6.8 |
Recovery rate(%) | 90-95 | 90-95 | 90-95 | 90-95 | 90-95 |
Water production resistivity(MΩ.cm) | ≥15 | ≥15 | ≥15 | ≥15 | ≥15 |
Working voltage(DCV) | 0-55 | 0-135 | 0-240 | 0-320 | 0-400 |
Operating current(DCA) | 0-6 | 0-6 | 0-6 | 0-6 | 0-6 |
Inlet pressure(MPA) | 0.1-0.3 | 0.1-0.3 | 0.15-0.4 | 0.15-0.4 | 0.22-0.4 |
Maximum pressure(MPA) | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 |
Size of fresh water production pipe | DN32 | DN32 | DN32 | DN32 | DN32 |
Size of concentrated water inlet/outlet pipe | DN20 | DN20 | DN20 | DN20 | DN20 |
Why Choose Us
* More than 1700,000 ㎡ production base.
* Been serving fortune 500 companies for 10+ years.
* Well experienced and high quality construction team.
* Many outstanding EPC projects both at home and aboard.
* Powerful R&D engineer team with profound professional experience.
* Professional and advanced equipments produced and sold is highly praised by customers.
* Been serving fortune 500 companies for 10+ years.
* Well experienced and high quality construction team.
* Many outstanding EPC projects both at home and aboard.
* Powerful R&D engineer team with profound professional experience.
* Professional and advanced equipments produced and sold is highly praised by customers.
FAQ
Q: Are you a trading company or a manufacturer ?
A: We are both , we have more than ten years of experience as a professional manufacturer of water treatment equipment .we also provide the comprehensive solutions for wastewater of high COD .
Q: How do we trust you for the first transaction?
A: We have been doing this for more than 10 years , There are hundreds of Chinese and foreign enterprises that can endorse our credibility.And we have excellent projects in Singapore ,Vietnam ,Australia, USA, South America, East Asia ,Central and South Asia etc., if you are by any chance in one of these countries , please check it out, and if not ,you are welcome to visit our company any time.
Q: What kind of payment do you accept ?
A: T/T and L/C are preferred , other methods are also negotiable.
Q: What's the production capacity ?
A: Our factory covers an area of more than 1.75 million meter square, and produce various of water treatment equipment 10 to 50 sets per month.
