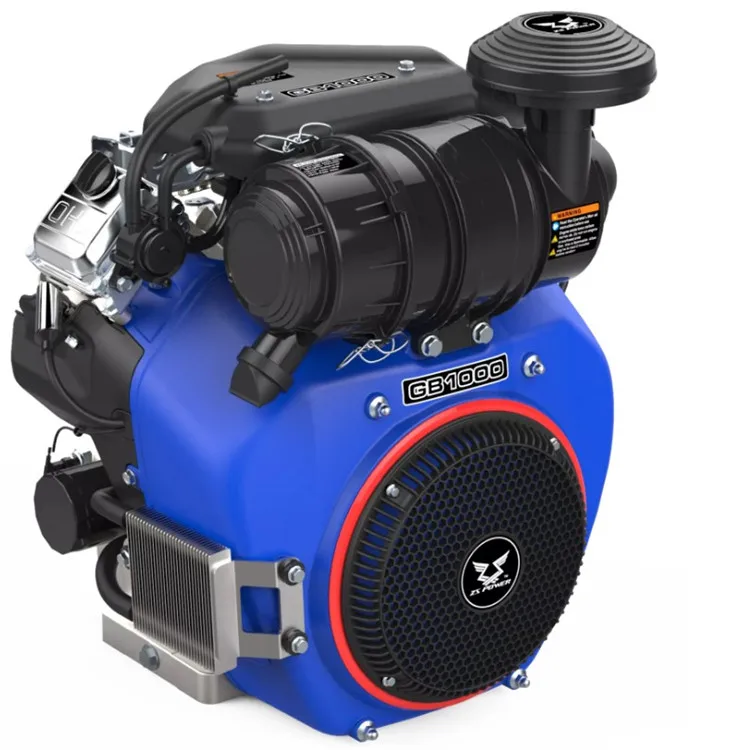

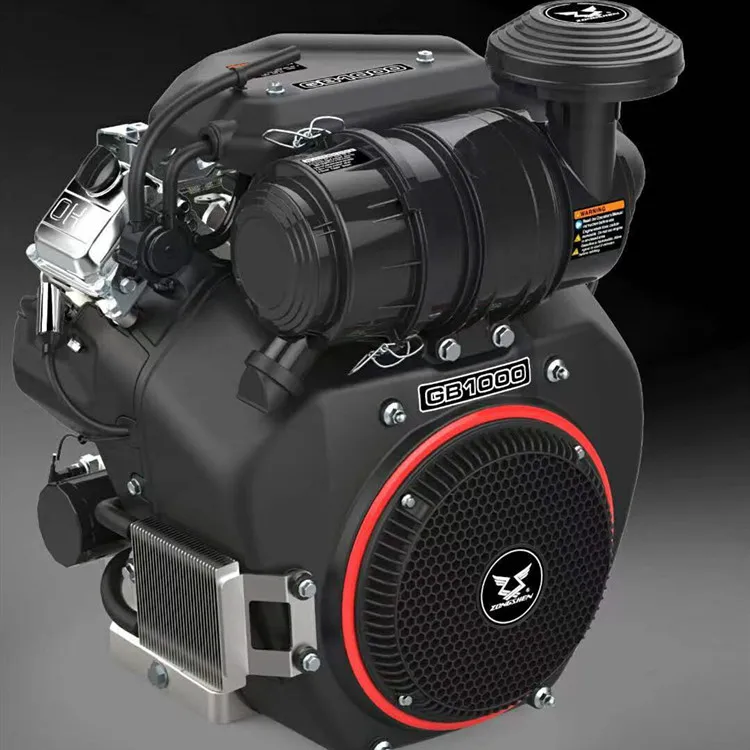

4 Stroke ZONGHESHEN 2V90F GB1000 2 Cylinder Gasoline Engine 2V90 Machinery Engine
- Category: >>>
- Supplier: Chongqing Fuwang General Machinery Equipment Co. Ltd.
Share on (1600510402078):
Product Overview
Description

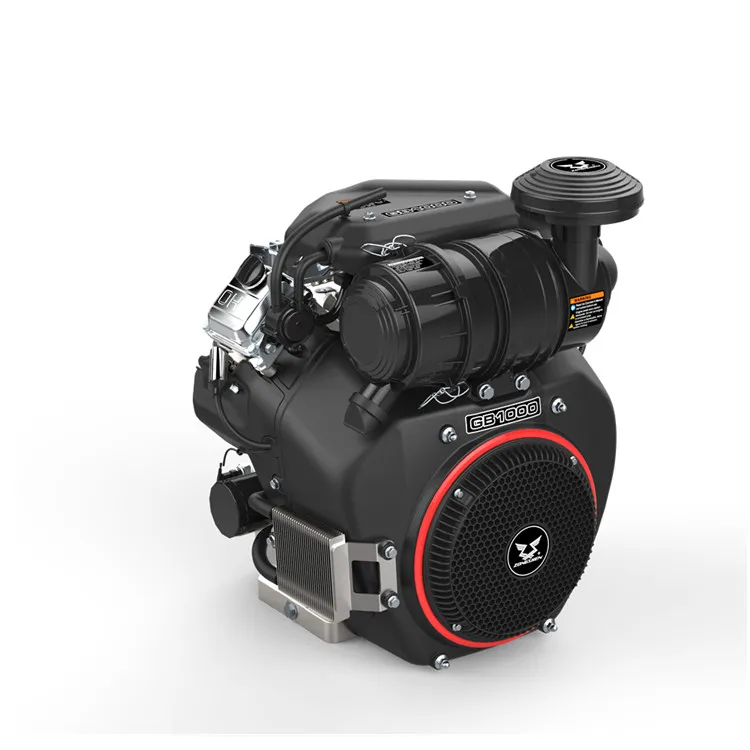

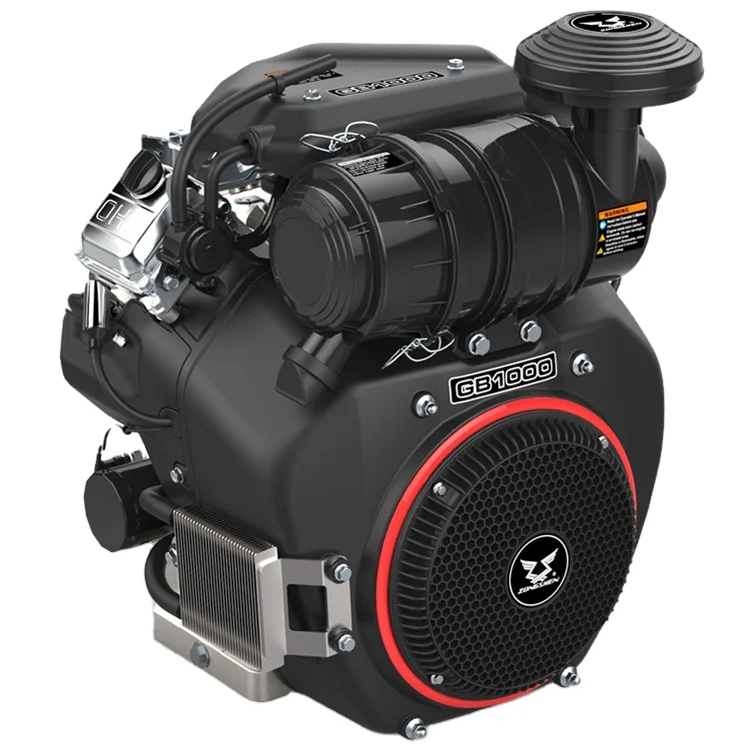

4-Stroke ZONGHESHEN 2V90F GB1000 2 Cylinder Gasoline Engine 2V90 Machinery Engine
Product Description
Model | ZS2V90F |
Type | 4-stroke V-TWIN-cylinder with air-cooled |
Bore×Stroke(mm) | 90*78.5 |
Start model | Electric start |
Displacement capacity(cc) | 999 |
Engine Speed(rpm) | 3600 |
Power(kw) | 33HP |
Net weight(kg) | 56 |
Details for Installation
Overall

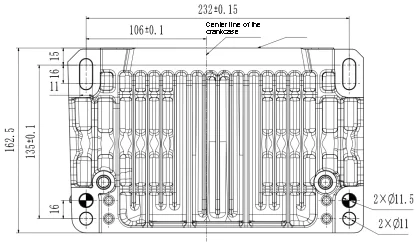

The details of the ten types of regular output shafts, installation measurements for side (right) end cover, pedestal and rear of this engine are displayed below.
Output Shaft
Regularly, we use 10 types of shafts, including GB1000 02/ GB1000 03, GB1000 04 and GB1000 07 flat key way shaft used for pump, boat, car and hovercraft, etc. respectively, and GB1000 01, GB1000 05, GB1000 08, GB1000 09, GB1000 10 V Tapered shaft for generator and etc.
The details of the ten types of regular output shafts, installation measurements for side (right) end cover, pedestal and rear of this engine are displayed below.
Output Shaft
Regularly, we use 10 types of shafts, including GB1000 02/ GB1000 03, GB1000 04 and GB1000 07 flat key way shaft used for pump, boat, car and hovercraft, etc. respectively, and GB1000 01, GB1000 05, GB1000 08, GB1000 09, GB1000 10 V Tapered shaft for generator and etc.

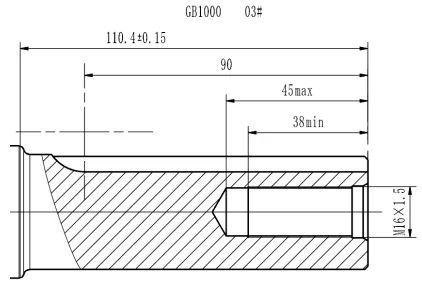

—————1. GB1000 02/ GB1000 03 Shaft
1 1/2’(36.5mm) flat way output shaft with 9.5mm key.

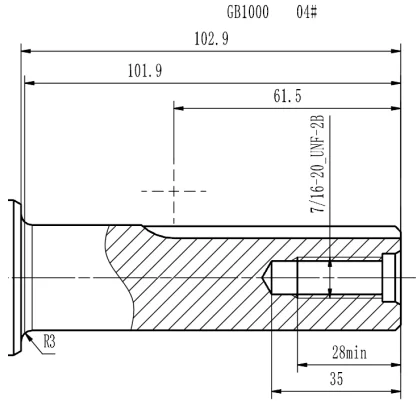

—————2. GB1000 04 Shaft
1 1/4''(28.575mm) flat way output shaft with 6.3mm key.
1 1/4''(28.575mm) flat way output shaft with 6.3mm key.

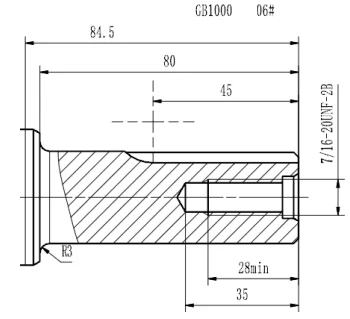

—————3. GB1000 06 Shaft
1 1/4''(28.575mm) flat way output shaft with 6.3mm key.
1 1/4''(28.575mm) flat way output shaft with 6.3mm key.

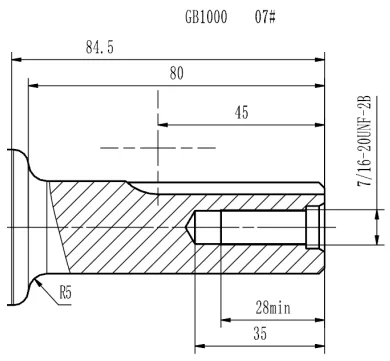

—————4. GB1000 07 Shaft
1''(25mm) flat way output shaft with 6.3mm key.
1''(25mm) flat way output shaft with 6.3mm key.

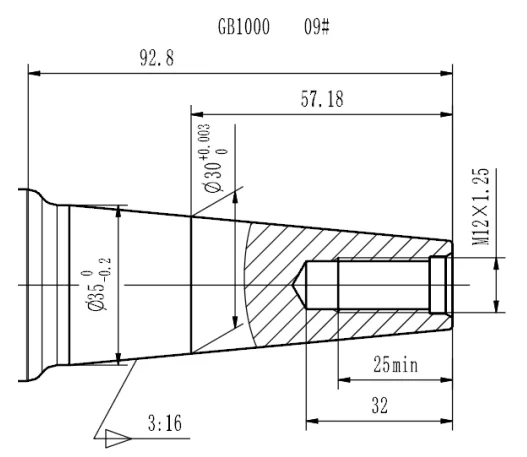

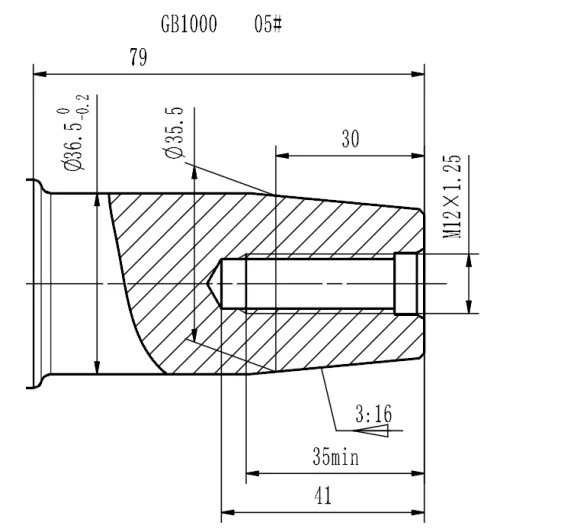

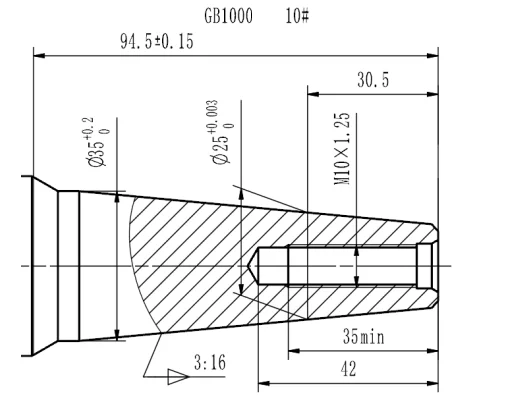

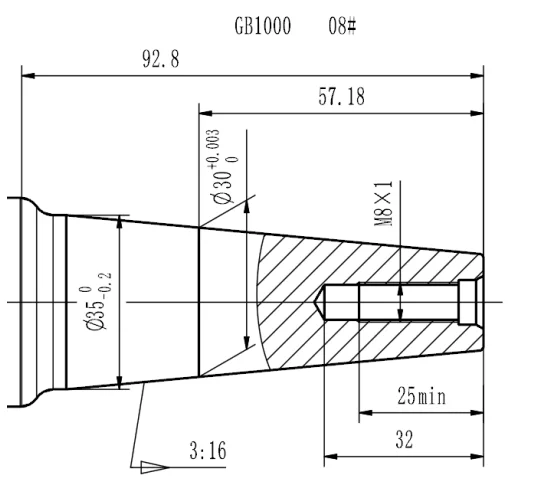

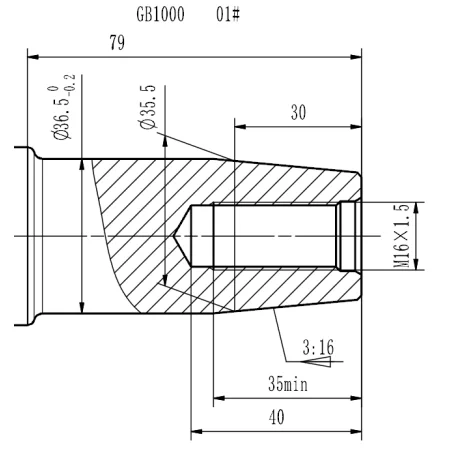

—————5. V Shaft Series
GB1000 01, GB1000 05, GB1000 08, GB1000 09 and GB1000 010 tapered shaft with 3:16 taper ratio.
GB1000 01, GB1000 05, GB1000 08, GB1000 09 and GB1000 010 tapered shaft with 3:16 taper ratio.

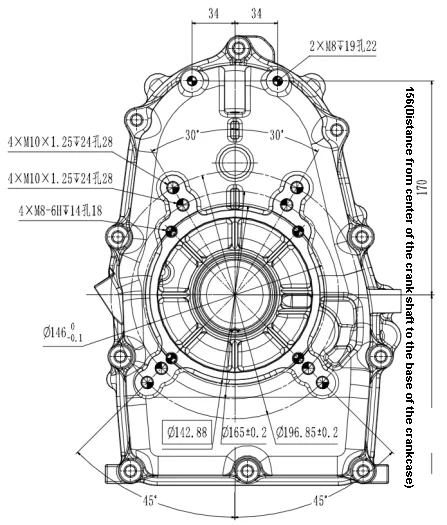

Installation Measurements for Side(Right) End Cover
