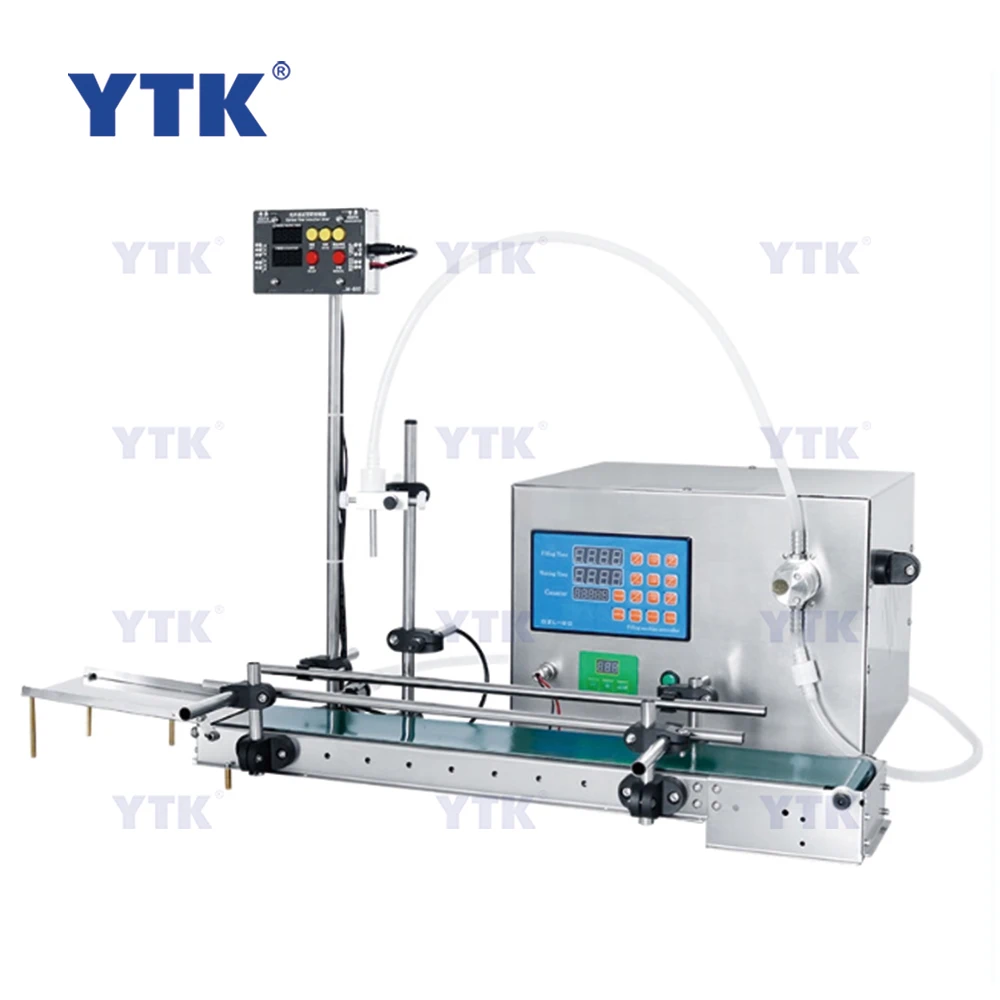

Semi Automatic Desktop Single Head Magnetic Pump Liquid Filling Machine With Conveyor Belt Pharmaceutical Liquid Filler
- Category: >>>
- Supplier: Shenzhen Yason General Machinery Co. Ltd.
Share on (1600510415148):
Product Overview
Description
Products Description
This machine is suitable for filling low viscosity and granule free liquid.
Such as eye drops, essential oil, makeup remover, toner, spray, beverage, milk and so on.This machine is suitable for filling low viscosity and granule free liquid.
Such as eye drops, essential oil, makeup remover, toner, spray, beverage, milk and so on.This machine is suitable for filling low viscosity and granule free liquid.
Product Paramenters
Liquid filling machine
Model | YTK-MP1S |
Voltage | 220V/110V 50-60Hz |
Power | 50W |
Recommended filling range | 2-100ml |
Liquid flow velocity | 4L/min （Depends on liquid） |
Pump | 316 stainless steel magnetic pump |
Filling Precision | Less than or equal to 0.5% |
Leak proof function | Have |
Power off memory | Have |
Outer diameter of filling head | 4mm & 6mm |
Net weight | 6.6kg |
Gross weight | 7.7kg |
Machine size | About 350*300*260mm |
Packaging size | About 400*400*280mm |
Transfer belt
Voltage | 220V/110V |
Power supply | DC 12-15V |
Power | 60W |
Conveying speed | 10cm/s |
Conveyor belt size | 600mm（L）*100mm（W） |
Receiving tray size | 200mm（L）*100mm（W） |
Support height | 400mm |
Net weight | 2.9kg |
Gross weight | 3.5kg |
Machine size | 800*100*400mm（L*W*H） |
Packaging size | 650*150*100mm（L*W*H） |
Application

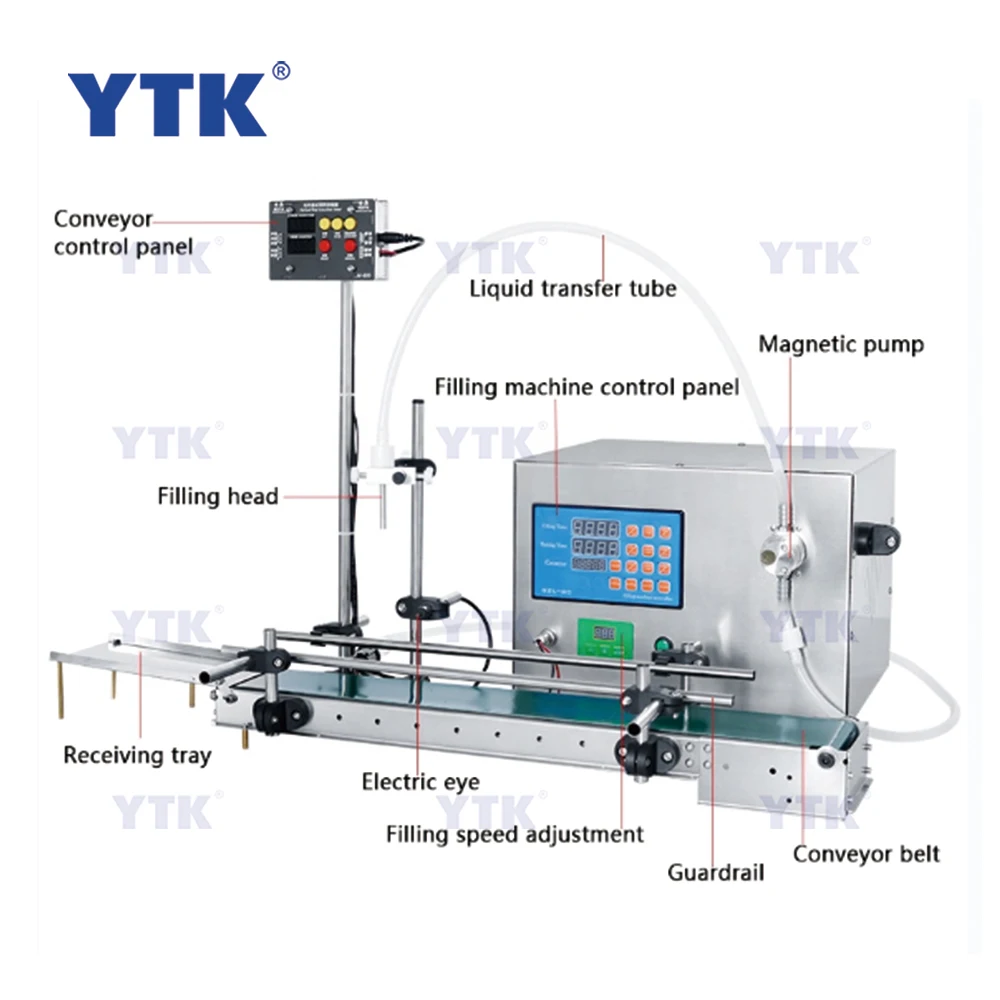

Details Display

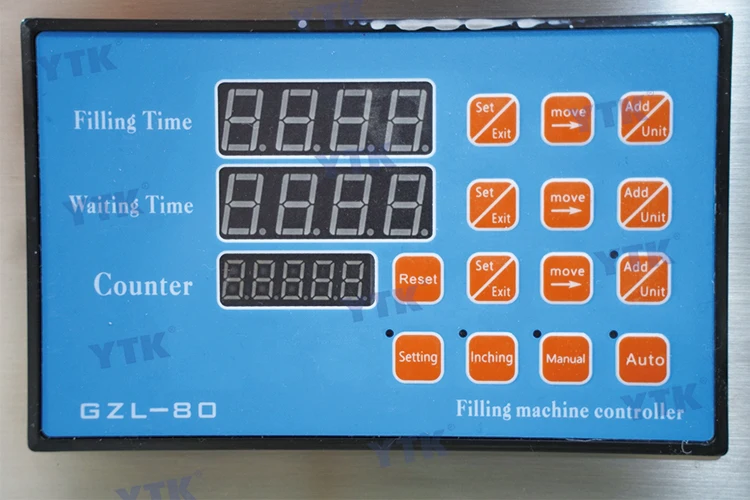

Control panel
It can set filling speed and filling time.Filling volume is accurate and visible, which is convenient and simple to operate. The
working mode can be set in the control panel.
working mode can be set in the control panel.

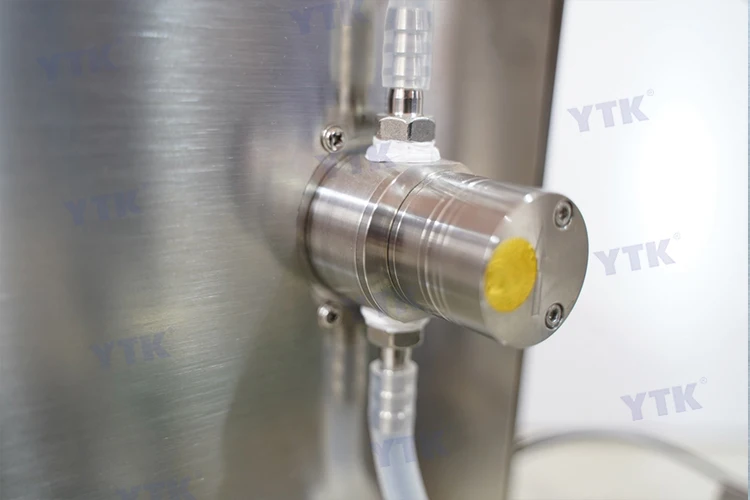

Magnetic pump
Equipped with 316 stainless steel magnetic pump，corrosion resistant and not easy to rust. Through its own screw hole, it is easy
to tighten the hose or change the hose.
to tighten the hose or change the hose.

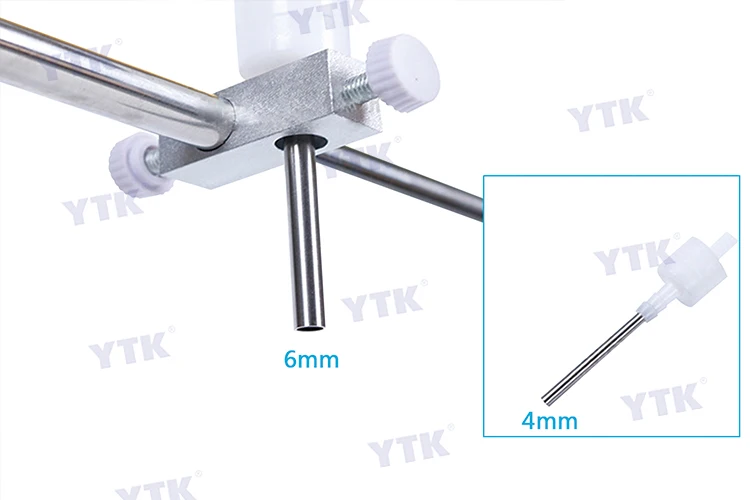

Filling head
Drip proof design, high filling precision.The height of the filling head can be adjusted according to the height of bottle， application range is wide.

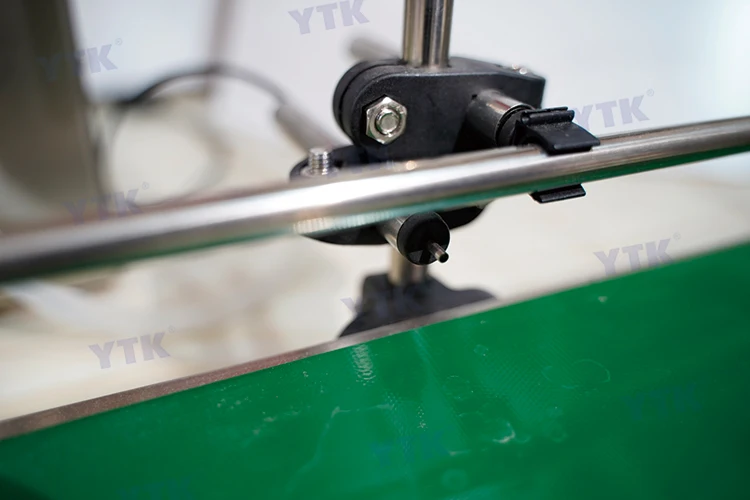

Electric eye
It is used to detect bottles and accurately locate filling, without bottles will not filling.

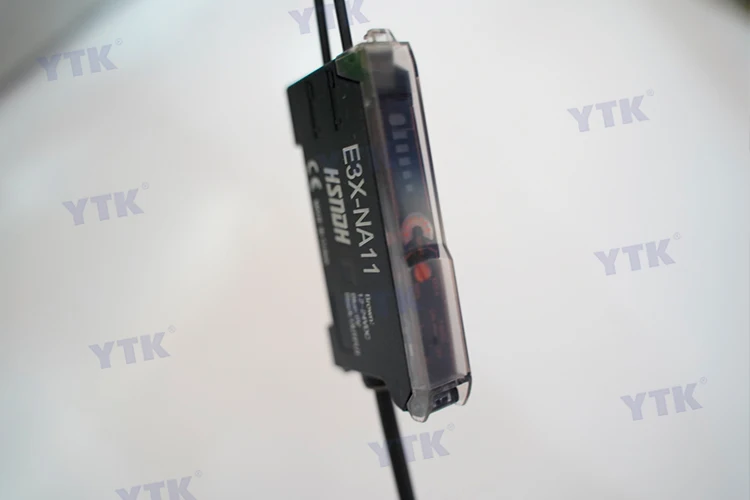

Sensitivity regulator
The sensitivity of the electric eye can be adjusted as needed.

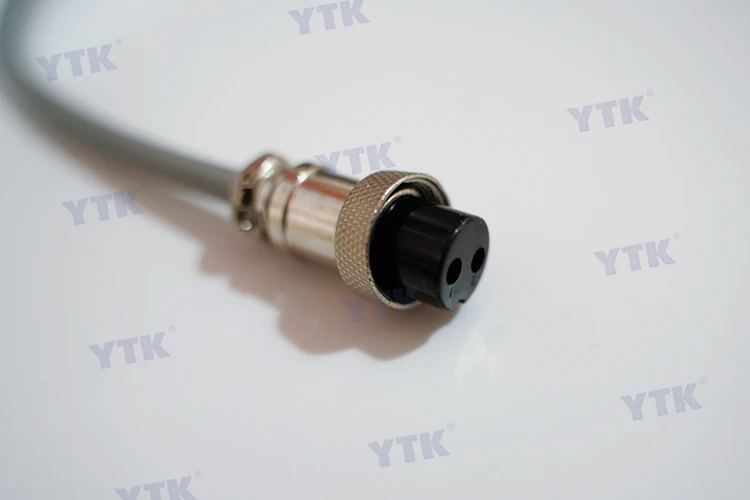

Conveyor belt connector
The conveyor belt is equipped with connector, which can be used to connect semi-automatic liquid filling machine. Realize automatic small liquid filling and improve production efficiency.

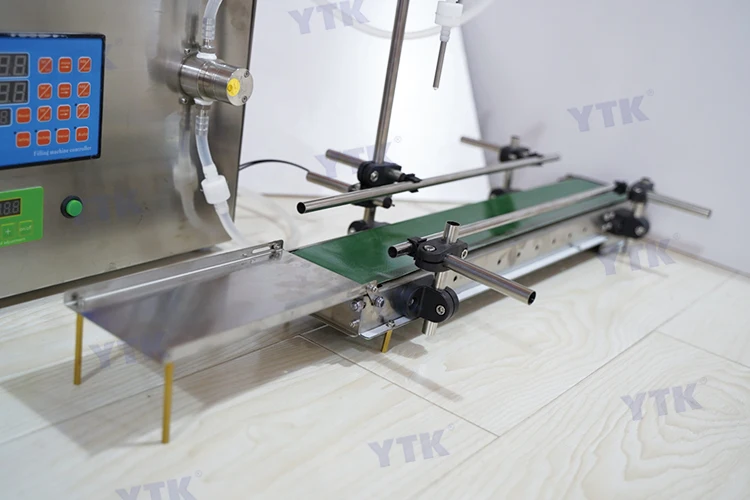

Conveyor belt
With waterproof function, the conveying bottle is efficient and stable.The conveying speed can be adjusted according to production
needs.
needs.
