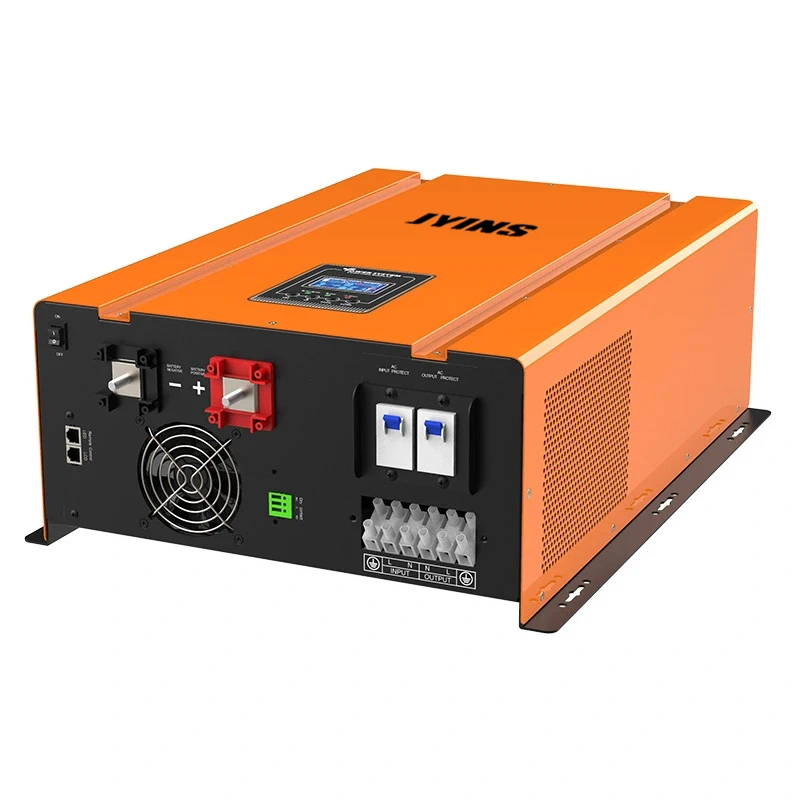

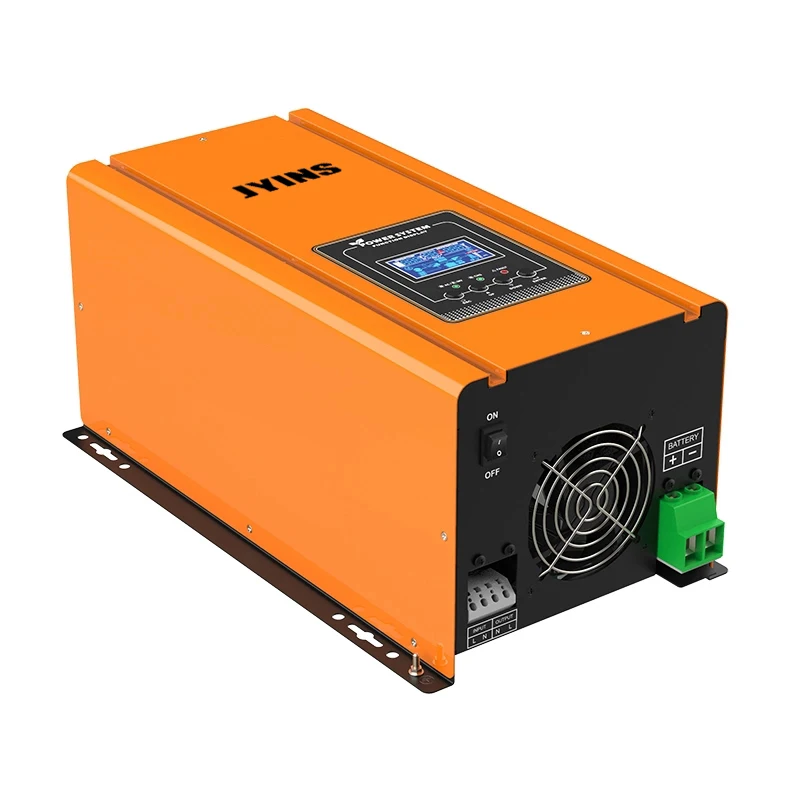

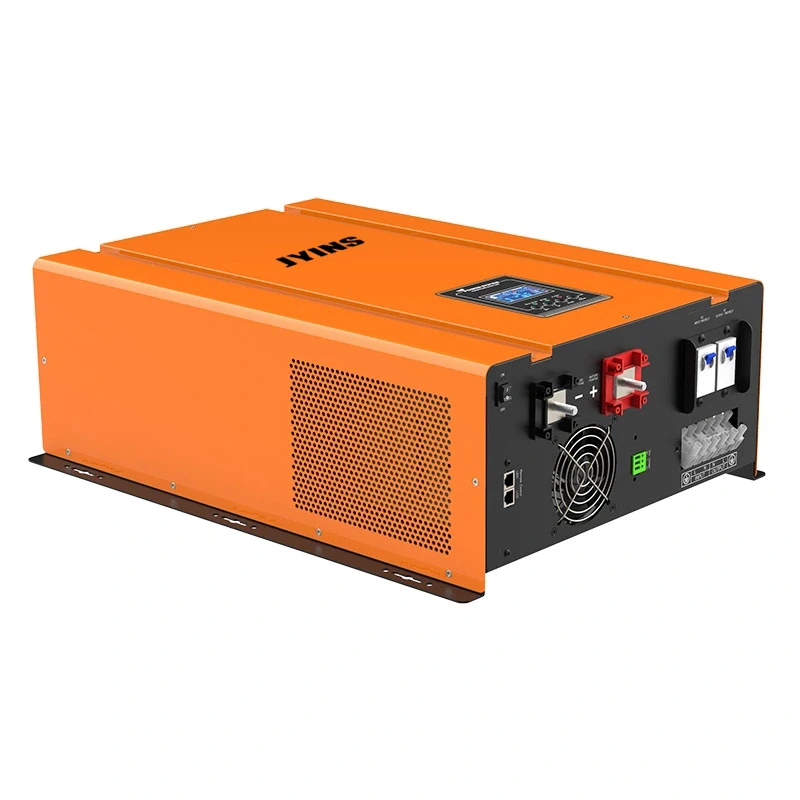

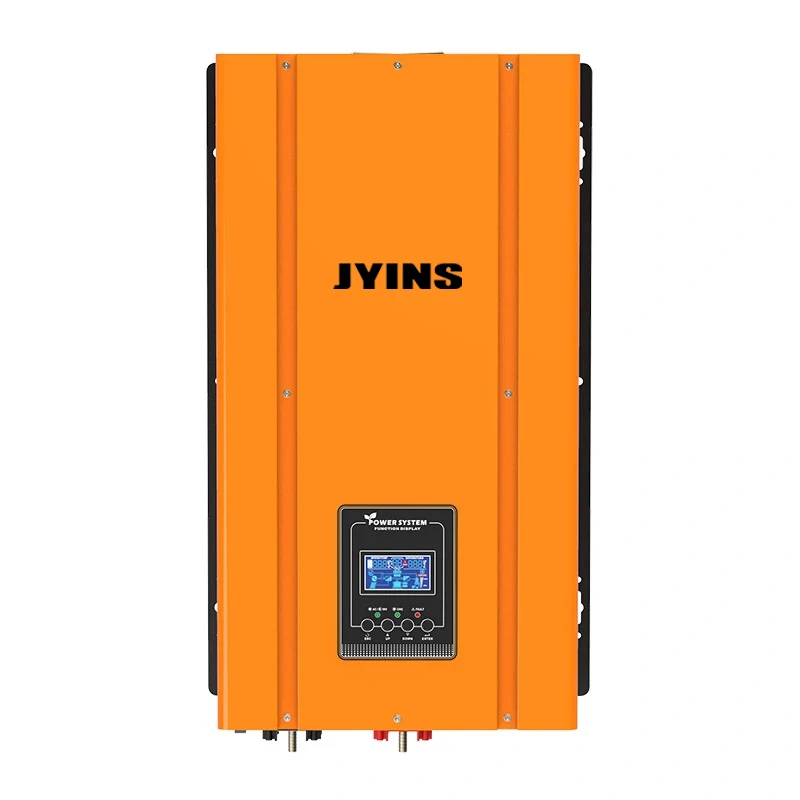

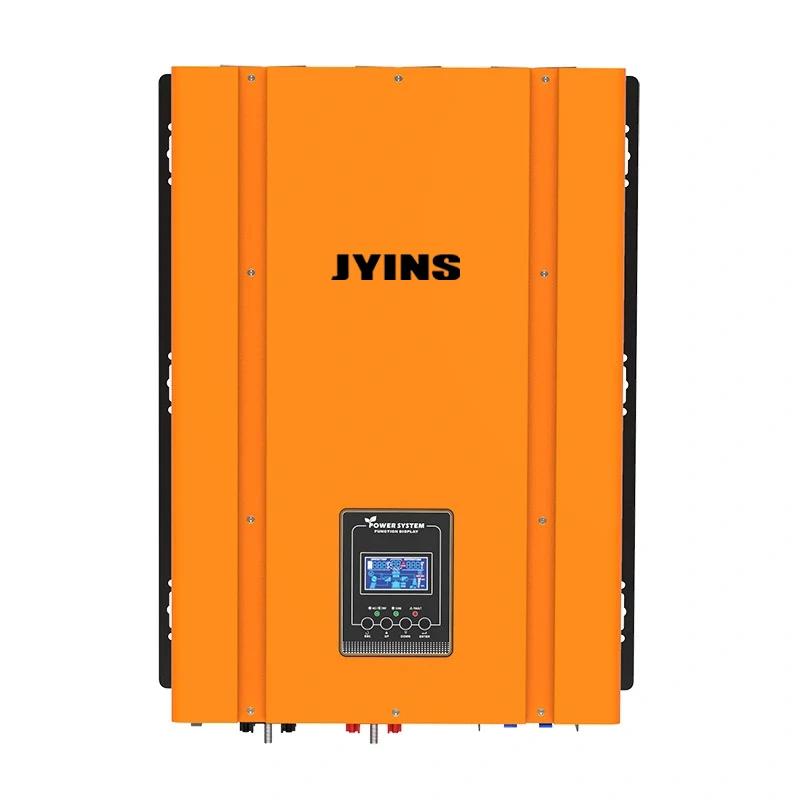

Low Frequency 1KVA 3KVA 5KVA hybrid solar inverter 1~6kw 8kw 10kw 12kw 3 phase Off Grid Pure Sine Wave Power Inverter
- Category: >>>
- Supplier: Yueqing Jyins Electric Technology Co. Ltd.
Share on (1600510557533):
Product Overview
Description
Low Frequency 1KVA 2000W 3000W 4000W 5000W 6000W 8000W 10000W 12000W Off Grid Pure Sine Wave Power Inverter With Battery Charger
Product Description
Product Paramenters
MODEL | LFP 1K | LFP 2K | ||
Rated Power | 1000VA/1000W | 2000VA/2000W | ||
INPUT | ||||
Voltage | 100/110/120VAC;220/230/240VAC | |||
Selectable Voltage Range | Wide Range :75VAC~138VAC;155VAC~275VAC (for home appliances) | |||
Narrow Range :82VAC~138VAC ;165VAC~275VAC (for personal computer) | ||||
Frequency | 40-70Hz (50Hz/60Hz) | |||
OUTPUT | ||||
AC Voltage Regulation (Batt Mode) | 100/110/120VAC (±5V)；220/230/240VAC (±10V) | |||
Surge Power | 2000VA | 4000VA | ||
Efficiency (Peak) | 88% | |||
Transfer Time | <20ms | |||
Wave form | Pure sine wave | |||
BATTERY | ||||
Battery Voltage | 12V | 24V | ||
Charge Current | 75A | 35A | ||
Fast Charge Voltage | 14.3VDC | 28.6VDC | ||
Float Charge Voltage | 13.7VDC | 27.4VDC | ||
Battery Low Voltage Alarm | 16.5VDC | 33.0VDC | ||
Over Voltage Protect | 10.5VDC | 21.0VDC | ||
Battery Low Voltage Shutdown | 10.0VDC | 20.0VDC | ||
Protection | over charging，over temp，over battery voltage，over load，short-circuit | |||
Operating Environment Temperature | 55℃ | |||
Cooling | Intelligent Fan | |||
Display | LCD | |||
Specification Setting | By LCD or position machine：Charging current，battery type，input voltage，output frequency，wide and narrow of AC input voltage，power-saver model，AC priority or battery priority | |||
PHYSICAL | ||||
Dimension，(D*W*H)mm | 390*222*178 | |||
Net Weight (kg) | 11.4 | 15 | ||
ENVIROMENT | ||||
Humidity | 5~95% Relative humidity (No-condensing) | |||
Operating Temperature | -10℃~50℃ | |||
MODEL | LFP3K | |||||
Rated Power | 3000W | |||||
INPUT | ||||||
Voltage | 100/110/120VAC;220/230/240VAC | |||||
Selectable Voltage Range | Wide Range :75VAC~138VAC;155VAC~275VAC (for home appliances) | |||||
Narrow Range :82VAC~138VAC ;165VAC~275VAC (for personal computer) | ||||||
Frequency | 40-70Hz (50Hz/60Hz) | |||||
OUTPUT | ||||||
AC Voltage Regulation (Batt Mode) | 100/110/120VAC (±5V)；220/230/240VAC (±10V) | |||||
Surge Power | 9000VA | |||||
Efficiency (Peak) | 91% | |||||
Transfer Time | ＜10ms | |||||
Wave form | Pure sine wave | |||||
BATTERY | ||||||
Battery Voltage | 12V | 24V | 48V | |||
Charge Current | 75A | 35A | 25A | |||
Fast Charge Voltage | 14.3VDC | 28.6VDC | 57.2VDC | |||
Float Charge Voltage | 13.7VDC | 27.4VDC | 54.8VDC | |||
Battery Low Voltage Alarm | 16.5VDC | 33.0VDC | 66.0VDC | |||
Over Voltage Protect | 10.5VDC | 21.0VDC | 42.0VDC | |||
Battery Low Voltage Shutdown | 10.0VDC | 20.0VDC | 40.0VDC | |||
Protection | over charging，over temp，over battery voltage，over load，short-circuit | |||||
Operating Environment Temperature | 55℃ | |||||
Cooling | Intelligent Fan | |||||
Display | LCD | |||||
Specification Setting | By LCD or position machine：Charging current，battery type，input voltage，output frequency，wide and narrow of AC input voltage，power-saver model，AC priority or battery priority | |||||
PHYSICAL | ||||||
Dimension，(D*W*H)mm | 500*258*190 | |||||
Net Weight (kg) | 25.2/24.6 | |||||
ENVIROMENT | ||||||
Humidity | 5~95% Relative humidity (No-condensing) | |||||
Operating Temperature | -10℃~50℃ | |||||
Storage Temperature | -10℃~60℃ | |||||
MODEL | LFP4K | LFP5K | LFP6K | |||||||||
Rated Power | 4000VA/4000W | 5000VA/5000W | 6000VA/6000W | |||||||||
INPUT | ||||||||||||
Voltage | 100/110/120VAC;220/230/240VAC | |||||||||||
Selectable Voltage Range | Wide Range :75VAC~138VAC;155VAC~275VAC (for home appliances) | |||||||||||
Narrow Range :82VAC~138VAC ;165VAC~275VAC (for personal computer) | ||||||||||||
Frequency | 40-70Hz (50Hz/60Hz) | |||||||||||
OUTPUT | ||||||||||||
AC Voltage Regulation (Batt Mode) | 100/110/120VAC (±5V)；220/230/240VAC (±10V) | |||||||||||
Surge Power | 12000VA | 15000VA | 18000VA | |||||||||
Efficiency (Peak) | 91% | |||||||||||
Transfer Time | ＜10ms | |||||||||||
Wave form | Pure sine wave | |||||||||||
BATTERY | ||||||||||||
Battery Voltage | 24V | 48V | 24V | 48V | 24V | 48V | ||||||
Charge Current | 70A | 35A | 75A | 45A | 75A | 50A | ||||||
Fast Charge Voltage | 28.6VDC | 57.2VDC | 28.6VDC | 57.2VDC | 28.6VDC | 57.2VDC | ||||||
Float Charge Voltage | 27.4VDC | 54.8VDC | 27.4VDC | 54.8VDC | 27.4VDC | 54.8VDC | ||||||
Battery Low Voltage Alarm | 33.0VDC | 66.0VDC | 33.0VDC | 66.0VDC | 33.0VDC | 66.0VDC | ||||||
Over Voltage Protect | 21.0VDC | 42.0VDC | 21.0VDC | 42.0VDC | 21.0VDC | 42.0VDC | ||||||
Battery Low Voltage Shutdown | 20.0VDC | 40.0VDC | 20.0VDC | 40.0VDC | 20.0VDC | 40.0VDC | ||||||
Protection | over charging，over temp，over battery voltage，over load，short-circuit | |||||||||||
Operating Environment Temperature | 55℃ | |||||||||||
Cooling | Intelligent Fan | |||||||||||
Display | LCD | |||||||||||
Specification Setting | By LCD or position machine：Charging current，battery type，input voltage，output frequency，wide and narrow of AC input voltage，power-saver model，AC priority or battery priority | |||||||||||
PHYSICAL | ||||||||||||
Dimension，(D*W*H)mm | 574*345*197 | |||||||||||
Net Weight (kg) | 34.4/33.8 | 37.9/38.2 | 41.6/40.5 | |||||||||
ENVIROMENT | ||||||||||||
Humidity | 5~95% Relative humidity (No-condensing) | |||||||||||
Operating Temperature | -10℃~50℃ | |||||||||||
Storage Temperature | -10℃~60℃ | |||||||||||
MODEL | LFP8K | LFP10K | LFP12K | |||||||||
Rated Power | 8000W | 10000W | 12000W | |||||||||
INPUT | ||||||||||||
Voltage | 100/110/120VAC；220/230/240VAC | |||||||||||
Selectable Voltage Range | Wide Range ：75VAC~138VAC；155VAC~275VAC（for home appliances） | |||||||||||
Narrow Range ：82VAC~138VAC ; 165VAC~275VAC （for personal computer） | ||||||||||||
Frequency | 40-70Hz (50Hz/60Hz) | |||||||||||
OUTPUT | ||||||||||||
AC Voltage Regulation (Batt Mode) | 220/230/240VAC (±10V) | |||||||||||
Surge Power | 24KVA | 30KVA | 36KVA | |||||||||
Efficiency (Peak) | 90% | |||||||||||
Transfer Time | ＜20ms | |||||||||||
Wave from | Pure sine wave | |||||||||||
BATTERY | ||||||||||||
Battery Voltage | 48V | 96V | 48V | 96V | 48V | 96V | ||||||
Charge Current. | 70A | 35A | 75A | 40A | 75A | 50A | ||||||
Fast Charge Voltage | 57.2VDC for 48V (*2 for 96V) | |||||||||||
Float Charge Voltage | 54.8VDC for 48V (*2 for 96V) | |||||||||||
Battery Low Voltage Alarm | 42.0VDC for 48V (*2 for 96V) | |||||||||||
Over Voltage Protect | 66.0VDCfor 48V (*2 for 96V) | |||||||||||
Battery Low Voltage Shutdown | 40.0VDC for 48V (*2 for96V) | |||||||||||
Protection | Overcharge，Overtemperature， | |||||||||||
over battery voltage，over load，short-circuit | ||||||||||||
Operating Environment Temperature | 55℃ | |||||||||||
Cooling | Intelligent Fan | |||||||||||
Display | LCD | |||||||||||
Specification Setting | By LCD or position machine：Charging current，battery type，input voltage，output frequency，wide and narrow of AC input voltage，power-saver model，AC priority or battery priority | |||||||||||
PHYSICAL | ||||||||||||
Dimension，(D*W*H)mm | 584*425*180 | |||||||||||
Net Weight (kg) | 58.7/59 | 67/66.5 | 71.8/72 | |||||||||
ENVIROMENT | ||||||||||||
Humidity | 5~95% Relative humidity (No-condensing) | |||||||||||
Operating Temperature | -10~50℃ | |||||||||||
Storage Temperature | -10~60℃ | |||||||||||
Certifications
Time-honored quality, Security guarantee.
We gain more and more recognition from users by high quality.
meanwhile our products have passed several testing Certifications and
have relevant certifications.
meanwhile our products have passed several testing Certifications and
have relevant certifications.
Company Introduction
Factory direct sales Support OEM/ODM
Our company have research and development center for new product, management department for strict quality control.we continuously launch new products which occupying the international and domestic markets. we deeply favored by customers because of the satisfied products and service. Our products are exported to Southeast Asia, Europe, North America, Australia, and countries from Middle East and other regions and gain a high reputation in international market.
For more information,Welcome to the field trip.
For more information,Welcome to the field trip.
Strict Factory Test, Two Years Warranty
Our Team and Philosophy Always Work with Passion
Welcome to contact us anytime!
FAQ
1,Q:Why your quotation is higher than other suppliers?
A:In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter!
..............................................................................................................................................................
2,Q:How many categories does it have according to the output waveform ?
A:Type one: JYM Modified Sine Wave inverter, which uses PWM pulse width modulation to generate modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube, it greatly reduces the power loss and increases the soft-start function, effectively ensuring the reliability of the inverter. If the power quality is not highly demanded, it is able to meet the needs of most electrical equipment. But it still exists 20% harmonic distortion problems when running sophisticated equipment, can also cause high-frequency interference to radio communications equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency, small noise, moderate price, and thus become the mainstream products in the market.
Type two: JYP Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the output waveform, high-frequency technology, small in size, suitable for all kinds of load, can be connected to any common electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz and TV noise). The output of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it does not exist grid tie electromagnetic pollution.
..............................................................................................................................................................
3,Q:Is the output voltage of our inverter stable ?
A:Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable. Here we need make a especial explanation : many customers found it is unstable when using conventional multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only test pure sine waveform and calculate datas.
..............................................................................................................................................................
4,Q:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
..............................................................................................................................................................
5,Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
..............................................................................................................................................................
6,Q:What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter.Rember to turn on the inverter before turn on the appliance.
A:In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter!
..............................................................................................................................................................
2,Q:How many categories does it have according to the output waveform ?
A:Type one: JYM Modified Sine Wave inverter, which uses PWM pulse width modulation to generate modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube, it greatly reduces the power loss and increases the soft-start function, effectively ensuring the reliability of the inverter. If the power quality is not highly demanded, it is able to meet the needs of most electrical equipment. But it still exists 20% harmonic distortion problems when running sophisticated equipment, can also cause high-frequency interference to radio communications equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency, small noise, moderate price, and thus become the mainstream products in the market.
Type two: JYP Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the output waveform, high-frequency technology, small in size, suitable for all kinds of load, can be connected to any common electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz and TV noise). The output of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it does not exist grid tie electromagnetic pollution.
..............................................................................................................................................................
3,Q:Is the output voltage of our inverter stable ?
A:Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable. Here we need make a especial explanation : many customers found it is unstable when using conventional multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only test pure sine waveform and calculate datas.
..............................................................................................................................................................
4,Q:What is a resistive load appliances?
A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully.
..............................................................................................................................................................
5,Q:What is the inductive load appliances?
A:It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them.
..............................................................................................................................................................
6,Q:What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter.Rember to turn on the inverter before turn on the appliance.
