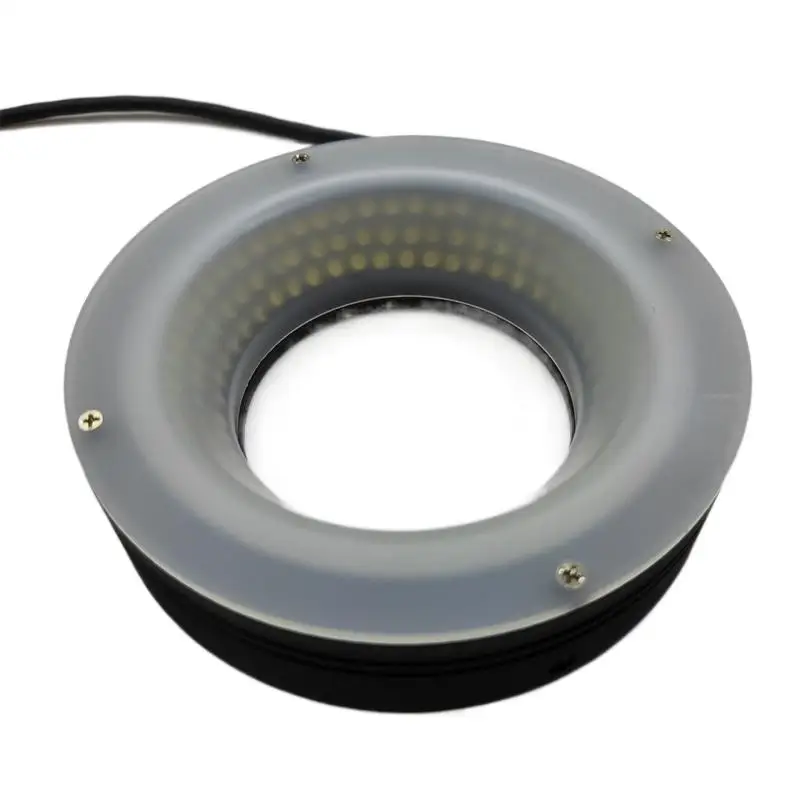

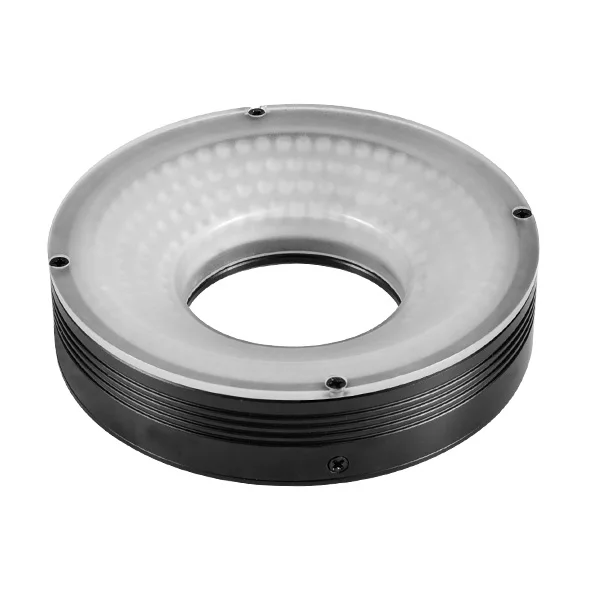

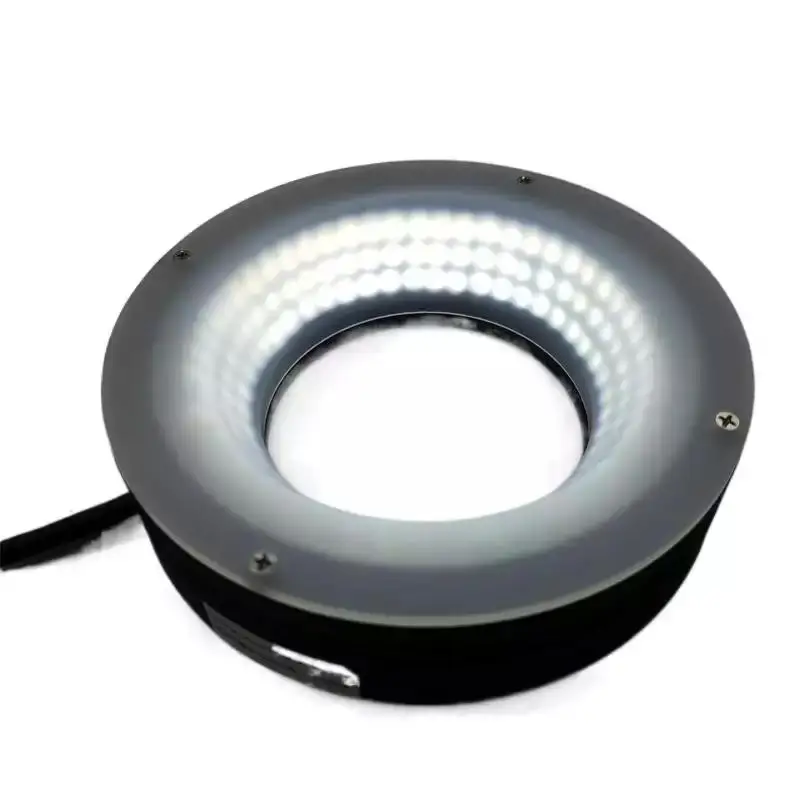

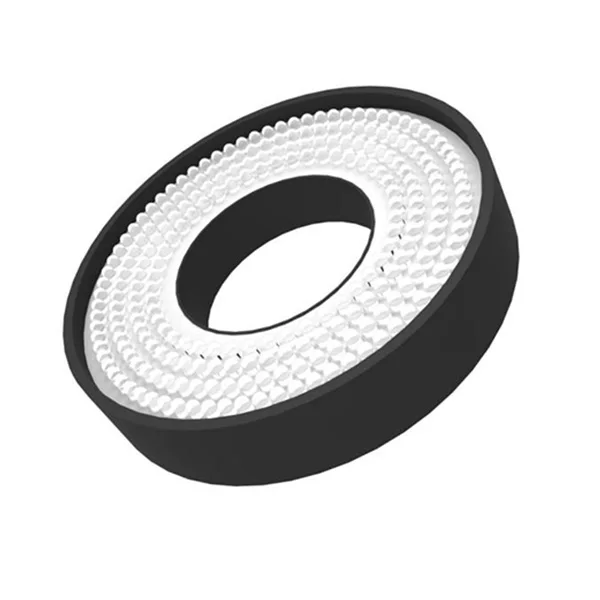

High Power Adjustable 107mm Inside Diameter LED Ring Shadowless Light Source for Machine Vision
- Category: >>>
- Supplier: Shenzhen Zhixiang Shijue Technology Co. Ltd.
Share on (1600510679906):
Product Overview
Description
Product Features
Eliminate reflective interference and provide high brightness and uniform diffuse lighting
Products Description
The LED particles of the ring-shaped shadowless light have a unique structure array. After the LED light passes through a special diffuser, a uniform lighting area is formed directly under the center of the light source, and has a similar lighting effect as a dome shadowless lamp. It is an application in the machine vision industry. One of the most widespread light sources.
Scope of application
1. Highly reflective but uneven surface defect detection
2. Aluminum foil packaging testing of medical drugs
3. Character detection of bright metal mobile phone shell panel
4. Screen printing inspection of high-brightness IC plastic package
2. Aluminum foil packaging testing of medical drugs
3. Character detection of bright metal mobile phone shell panel
4. Screen printing inspection of high-brightness IC plastic package
Details Images
Parameters Table
Parameters Table | Red: 620-630nm; Green: 525nm; Blue: 470nm; White: 5000K-8000K (color temperature) | ||||||
Use environment | The ambient temperature is about 25 degrees, and the operating temperature is within 35 degrees | ||||||
Expected service life | The red, white, blue and green light sources can be continuously lit for 30,000 hours, and the light decay is 40% (the light decay of conventional lighting is 5-10% for one year) | ||||||
Product advantages | All products are delivered with one-year standard free technical support, and can be customized according to customer requirements for the characteristics of the measured object, working distance, irradiation angle and field of view | ||||||
Specifications
Serial Number | Model | Size（Outer Diameter） | Size（Inside Diameter） | Power | Recommend ed Optional Controlle | ||||||
Blue | Green | White | Red | ||||||||
1 | ZX-RS75 | 75mm | 42mm | 4 | 3 | ZX-AC2424P ZX-DC2465D | |||||
2 | ZX-RS80 | 80mm | 36mm | 8 | 7 | ||||||
3 | ZX-RS88 | 88mm | 60mm | 5.5 | 5.5 | ||||||
4 | ZX-RS100 | 100mm | 66mm | 5 | 3 | ||||||
5 | ZX-RS136 | 136mm | 107mm | 10 | 9 | ||||||
6 | ZX-RS150 | 166mm | 116mm | 22 | 15 | ||||||
7 | ZX-RS180 | 196mm | 146mm | 30 | 20 | ||||||
8 | ZX-RS240 | 228mm | 164mm | 13 | 10 | ||||||
