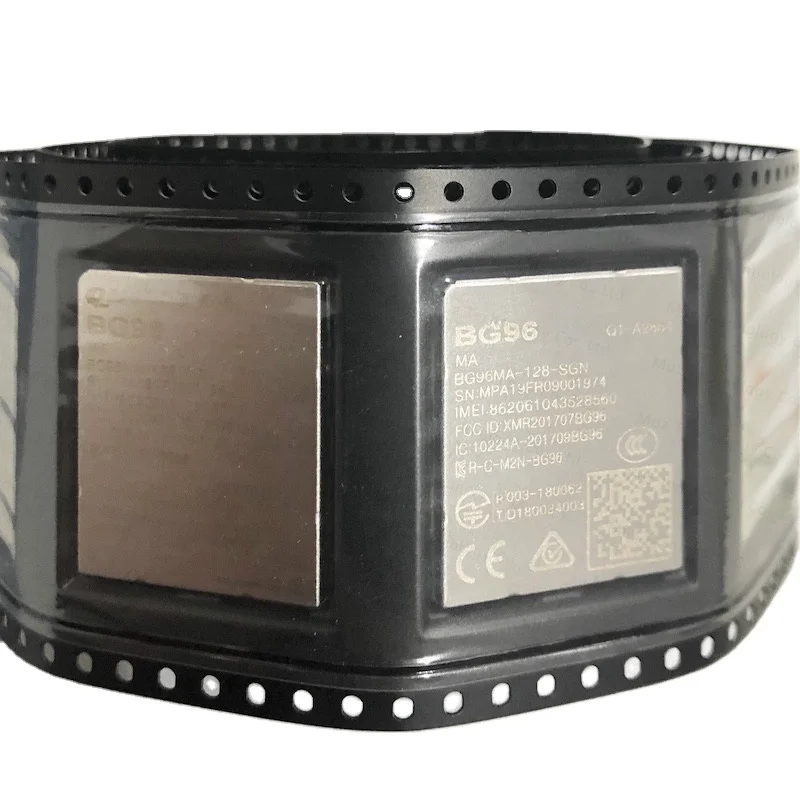

BG96 Wireless Nb iot Module CatM LGA GSM GPRS Module BG96 BG96MA 128 SGN MINIPCIE MINI PCIE
- Category: >>>
- Supplier: Muz,Tech,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
BG96 is a series of LTE Cat M1/Cat NB1/EGPRS module offering maximum data rates of 375Kbps downlink and 375Kbps uplink.
It features global frequency bands,
ultra-low power consumption, and provides pin-to-pin compatibility with QT LTE Standard module EG91/EG95, LPWA module
BC95-G/BG95,
UMTS/HSPA module UG95/UG96 and GSM/GPRS module M95.
Overview:
With a cost-effective SMT form factor of 26.5mm × 22.5mm × 2.3mm and high integration level, BG96 enables integrators and
developers to easily design their applications and take advantage from the module’s low power consumption and mechanical
intensity. Its advanced LGA package allows fully automated manufacturing for high-volume applications.
A rich set of Internet protocols, industry-standard interfaces (USB/UART/I2C/Status Indicator) and abundant functionalities (USB
drivers for Windows 7/8/8.1/10, Linux and Android) extend the applicability of the module to a wide range of M2M applications such
as wireless POS, smart metering, tracking, etc.
Key Benefits:
1. LTE Cat M1/Cat NB1/EGPRS module with ultra-low power consumption
2. Compact SMT form factor ideal for size-constrained applications with tight space
3. Easy migration from GSM/GPRS, UMTS/HSPA and LTE modules
4. Super slim profile in LGA package
5. Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and development
efforts
6. Robust mounting and interfaces
It features global frequency bands,
ultra-low power consumption, and provides pin-to-pin compatibility with QT LTE Standard module EG91/EG95, LPWA module
BC95-G/BG95,
UMTS/HSPA module UG95/UG96 and GSM/GPRS module M95.
Overview:
With a cost-effective SMT form factor of 26.5mm × 22.5mm × 2.3mm and high integration level, BG96 enables integrators and
developers to easily design their applications and take advantage from the module’s low power consumption and mechanical
intensity. Its advanced LGA package allows fully automated manufacturing for high-volume applications.
A rich set of Internet protocols, industry-standard interfaces (USB/UART/I2C/Status Indicator) and abundant functionalities (USB
drivers for Windows 7/8/8.1/10, Linux and Android) extend the applicability of the module to a wide range of M2M applications such
as wireless POS, smart metering, tracking, etc.
Key Benefits:
1. LTE Cat M1/Cat NB1/EGPRS module with ultra-low power consumption
2. Compact SMT form factor ideal for size-constrained applications with tight space
3. Easy migration from GSM/GPRS, UMTS/HSPA and LTE modules
4. Super slim profile in LGA package
5. Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design-in time and development
efforts
6. Robust mounting and interfaces
category | RF/IF, RF/IF and RFID |
Product name | RF Transceiver Modules and Modems |
manufacturer | QT |
Packaging | Tape and Reel (TR) Cut Tape (CT) |
Parts Status | Available |
RF Series | Standard |
Cell Phone Protocols | EDGE, GPRS, GSM, HSPA, LTE, UMTS |
Frequency | 850MHz, 900MHz, 1.8GHz, 1.9GHz |
Data rate | 375kbps |
Power | Output 23dBm |
Sensitivity | 117dBm |
Serial Interface | ADC, GPIO, I²C, PCM, UART, USB |
Antenna | type |
without antenna | 3.3V ~ 4.3V |
