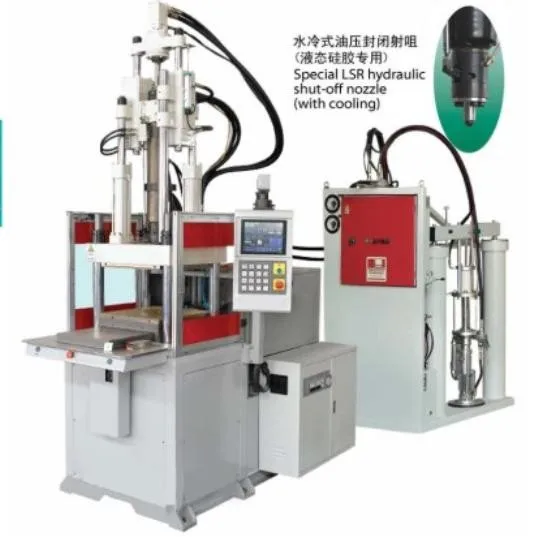

LSR liquid silicon rubber injection molding machine
- Category: >>>
- Supplier: Yuyao Huacheng Hydraulic Electromechanical Co. Ltd.
Share on (1600510694459):
Product Overview
Description
Product Overview

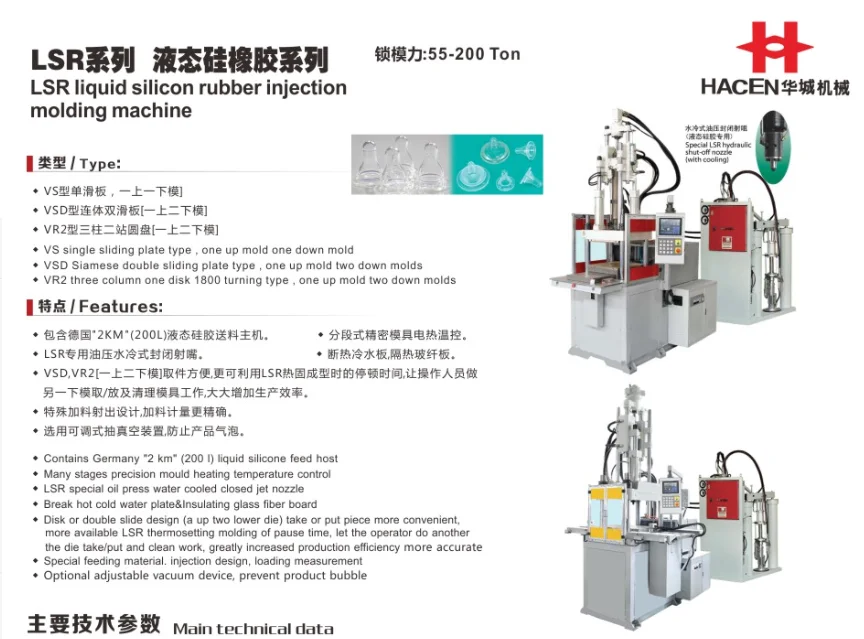

Silicon rubber injection molding machine
Type:
1.VS single sliding plate type, one up mold one down mold.
2.VSD Siamese double sliding plate type,one up mold two down molds.
3.VR2 three column one disk 1800 turning type,one up mold two down molds.
Features:
1.Contains Germany ''2km'' (200 L) liquid silicone feed host.
2.Many stages precision mould heating temperature control.
3.LSR special oil press water cooled closed jet nozzle.
4.Break hot cold water plate&insulating glass fiber board.
5.Disk or double slide design (a up two lower die) take or put piece more convenient,more available LSR thermosetting molding of
pause time,let the operator do another the die take/put and clean work,greatly increased production efficiency more accurate.
6.Special feeding material.injection design,loading measurement.
7.Optional adjustable vacuum device,prevent product bubble.
Mechanical system:
1. Using the finite element analysis, a design precision casting forming, high rigidity, long service life.
2. The deep hole processing, the hot plate drill by thickening and nitriding process, the use of high precision,, even the
temperature distribution.
3. Numerical control equipment, to ensure accurancy, precision design with key parts for processing.
4. High-end adjustment plane technology, highest can make fluctuation hot plate parallel degree of 0.02mm
Oil line system:
1. The oil line is integrated design concept, reduce oil route, modular inpact and noise.
2. The safe and energy-saving design, improve efficiency, reduce energy consumption.
3. Special design of high speed loop, and makes speed fast acting as smooth transition, and can make any speed adjustment
4. Indenpendent exhaust circuit design, make the exhaust of 100%.
5. Using high quality hydraulic components, stable and reliable.
Type:
1.VS single sliding plate type, one up mold one down mold.
2.VSD Siamese double sliding plate type,one up mold two down molds.
3.VR2 three column one disk 1800 turning type,one up mold two down molds.
Features:
1.Contains Germany ''2km'' (200 L) liquid silicone feed host.
2.Many stages precision mould heating temperature control.
3.LSR special oil press water cooled closed jet nozzle.
4.Break hot cold water plate&insulating glass fiber board.
5.Disk or double slide design (a up two lower die) take or put piece more convenient,more available LSR thermosetting molding of
pause time,let the operator do another the die take/put and clean work,greatly increased production efficiency more accurate.
6.Special feeding material.injection design,loading measurement.
7.Optional adjustable vacuum device,prevent product bubble.
Mechanical system:
1. Using the finite element analysis, a design precision casting forming, high rigidity, long service life.
2. The deep hole processing, the hot plate drill by thickening and nitriding process, the use of high precision,, even the
temperature distribution.
3. Numerical control equipment, to ensure accurancy, precision design with key parts for processing.
4. High-end adjustment plane technology, highest can make fluctuation hot plate parallel degree of 0.02mm
Oil line system:
1. The oil line is integrated design concept, reduce oil route, modular inpact and noise.
2. The safe and energy-saving design, improve efficiency, reduce energy consumption.
3. Special design of high speed loop, and makes speed fast acting as smooth transition, and can make any speed adjustment
4. Indenpendent exhaust circuit design, make the exhaust of 100%.
5. Using high quality hydraulic components, stable and reliable.

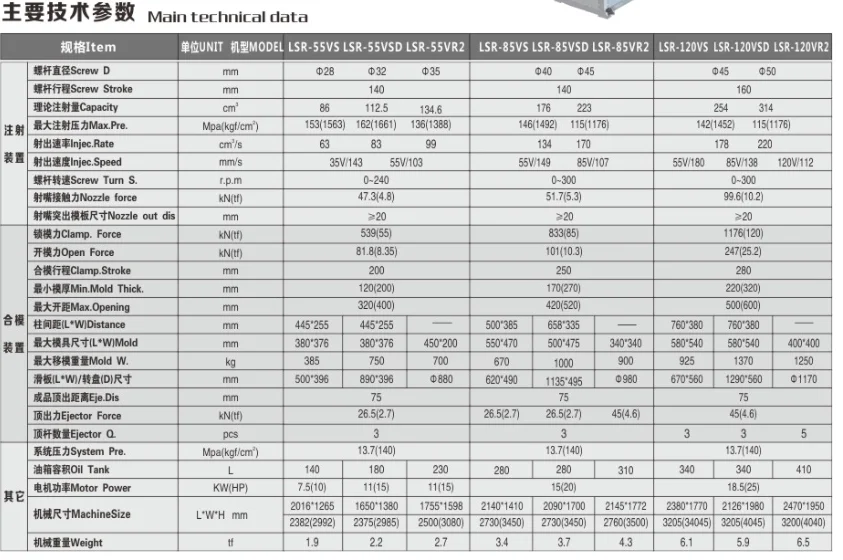

PRODUCT SPECIFICATIONS
PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
apllication
Successful Project
exibition
certification

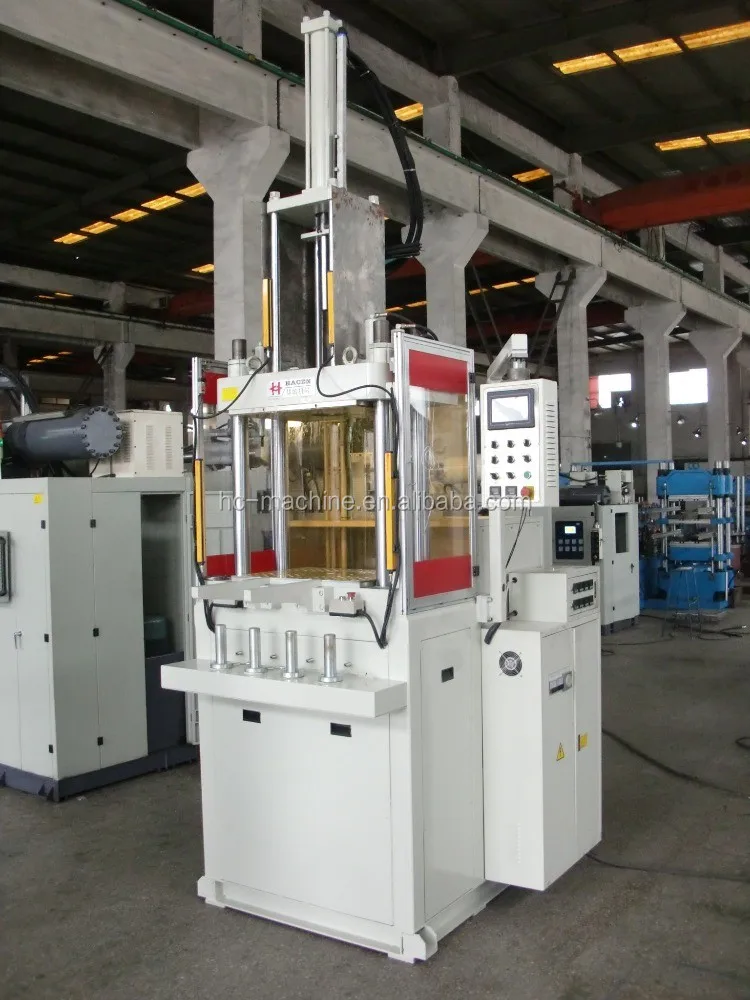

ZXB The Vacuum Heat Press Molding Machine Features:
The machine applies to production of all kinds of O-rings, rubber keyboards, medical rubber parts and automative rubber parts,
etc. As the most economic and readitional type, it features simple operation and rapid molding and can support 3-layer mold
release.
Structural Features:
1.Through computer pressure and strain analysis of machine structure ,this machine has a long service life;
2.Special heat plate design ensures even temperature distribution and one-step molding ;
3.heat plate 40 Cr nitrogen treatment ensures precisioni and long service life;
4.High-efficiency rapid vacuum system ensures no starved feeding and finished products contain no bubble .
5.Single machine and double machine for option;
6.2RT/3RT/4RT for option;
7. Double motors: Doble motor and double oil pump, control and maintain convenient
Hydraulic System:
Hydraulic unit integrated with machine is nicely designed and oil tight ,while proportional pressure and flow system is optional.
Electric System:
PLC combined with touch screen improves product quality stability.
1.This Machine Mainly Applies To Abgle Joining of Automobile Sealing Strip And Maching of Relevant Accessories.
2.This Machine Features Long Stability,Reliable Operation And Low Fault Rate.
3.The Working Table Adopting Reinforcing Design,WFeatures Deformation Small,Good Parallelism And Less Flash During Machining.
4.Unique Design of Mold Locking Cylinder ,Which Has Been Patented,Makes The Working Table And Locking Mold More Reliable And
Stable.
5.Both Mold Locking And Injection Position Are Controlled By Electric Ruler Which Ensures Accurate Positioning And Precise
Injection,Effectively Reducing Waste And Defect Rate.
6.This Machine Is Controlled By Mitsubisgi PLC And Touch Screen Which Ensure Reliable Control And Convenient Parameter Setting.
7.Variable Pump Controlled By Double-proportion(pressure-flow) Valve Is More Efficient And Power Saving Than Ordinary Pump By
35%~40%;Combined With Electric Ruler,It Can Achieve 3-Stage Control of Working Table And Injection Pressure-flow And Meet All
Kinds of Technological Conditions.
8.Temperatur Controlled By Temperature Controller Is Even And Stable.
9.Stressing Operation Safety,This Machine Uses Base Cover And Double-hand Start To Protect Personnel Safety.
The machine applies to production of all kinds of O-rings, rubber keyboards, medical rubber parts and automative rubber parts,
etc. As the most economic and readitional type, it features simple operation and rapid molding and can support 3-layer mold
release.
Structural Features:
1.Through computer pressure and strain analysis of machine structure ,this machine has a long service life;
2.Special heat plate design ensures even temperature distribution and one-step molding ;
3.heat plate 40 Cr nitrogen treatment ensures precisioni and long service life;
4.High-efficiency rapid vacuum system ensures no starved feeding and finished products contain no bubble .
5.Single machine and double machine for option;
6.2RT/3RT/4RT for option;
7. Double motors: Doble motor and double oil pump, control and maintain convenient
Hydraulic System:
Hydraulic unit integrated with machine is nicely designed and oil tight ,while proportional pressure and flow system is optional.
Electric System:
PLC combined with touch screen improves product quality stability.
1.This Machine Mainly Applies To Abgle Joining of Automobile Sealing Strip And Maching of Relevant Accessories.
2.This Machine Features Long Stability,Reliable Operation And Low Fault Rate.
3.The Working Table Adopting Reinforcing Design,WFeatures Deformation Small,Good Parallelism And Less Flash During Machining.
4.Unique Design of Mold Locking Cylinder ,Which Has Been Patented,Makes The Working Table And Locking Mold More Reliable And
Stable.
5.Both Mold Locking And Injection Position Are Controlled By Electric Ruler Which Ensures Accurate Positioning And Precise
Injection,Effectively Reducing Waste And Defect Rate.
6.This Machine Is Controlled By Mitsubisgi PLC And Touch Screen Which Ensure Reliable Control And Convenient Parameter Setting.
7.Variable Pump Controlled By Double-proportion(pressure-flow) Valve Is More Efficient And Power Saving Than Ordinary Pump By
35%~40%;Combined With Electric Ruler,It Can Achieve 3-Stage Control of Working Table And Injection Pressure-flow And Meet All
Kinds of Technological Conditions.
8.Temperatur Controlled By Temperature Controller Is Even And Stable.
9.Stressing Operation Safety,This Machine Uses Base Cover And Double-hand Start To Protect Personnel Safety.
FAQ
Q: What’s requipments do you have?A: Our company specialized in Thermosetting material molding, manufacture rubber silicone molding machine, injection molding
machine, vacuum press machine, transfer molding machyine, BMC injection molding machine, LSR injection molding machine.
Q: How long has your company been established?
A: Our company established in 1992.
Q: What’s the warranty of your machine?
A: About one year.
Q: What’s the delivery time of your machine?
A; 10-60 work days
Q: Which countries have you exported?
A: We have export to many ccountries, Russia, Ukraine, Turkey, Pakistan, South Afria, Egypt, Poland, Germany, Korea, USA, Brazil
,Peru, Mexico, Indonesia, India, Vietnam, Tailand...
Q: How about the after-sale service?
A: We provide them free training so that they can use and maintain the machine independently. We will answer customer’s questions
on technology in time. If needed, we will offer on-site guidance. We can provide free technical guidance if customers need new
equipment.
Service
Pre-sale service:
We can provide the good technology and experience, to help the customer manufacture the good products and give the good
suggestion.
In-sale service:
Detailed design of lay-out that is the position of procession.
Technological information of provided products.
Schedule about design, manufacturing and installation.
Working & producing progression
Training curse for the technician so that the installation is safe and standard.
After-sale service:
For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
machine, vacuum press machine, transfer molding machyine, BMC injection molding machine, LSR injection molding machine.
Q: How long has your company been established?
A: Our company established in 1992.
Q: What’s the warranty of your machine?
A: About one year.
Q: What’s the delivery time of your machine?
A; 10-60 work days
Q: Which countries have you exported?
A: We have export to many ccountries, Russia, Ukraine, Turkey, Pakistan, South Afria, Egypt, Poland, Germany, Korea, USA, Brazil
,Peru, Mexico, Indonesia, India, Vietnam, Tailand...
Q: How about the after-sale service?
A: We provide them free training so that they can use and maintain the machine independently. We will answer customer’s questions
on technology in time. If needed, we will offer on-site guidance. We can provide free technical guidance if customers need new
equipment.
Service
Pre-sale service:
We can provide the good technology and experience, to help the customer manufacture the good products and give the good
suggestion.
In-sale service:
Detailed design of lay-out that is the position of procession.
Technological information of provided products.
Schedule about design, manufacturing and installation.
Working & producing progression
Training curse for the technician so that the installation is safe and standard.
After-sale service:
For customers buying our products, we provide them free training so that they can use and maintain the machine independently.
