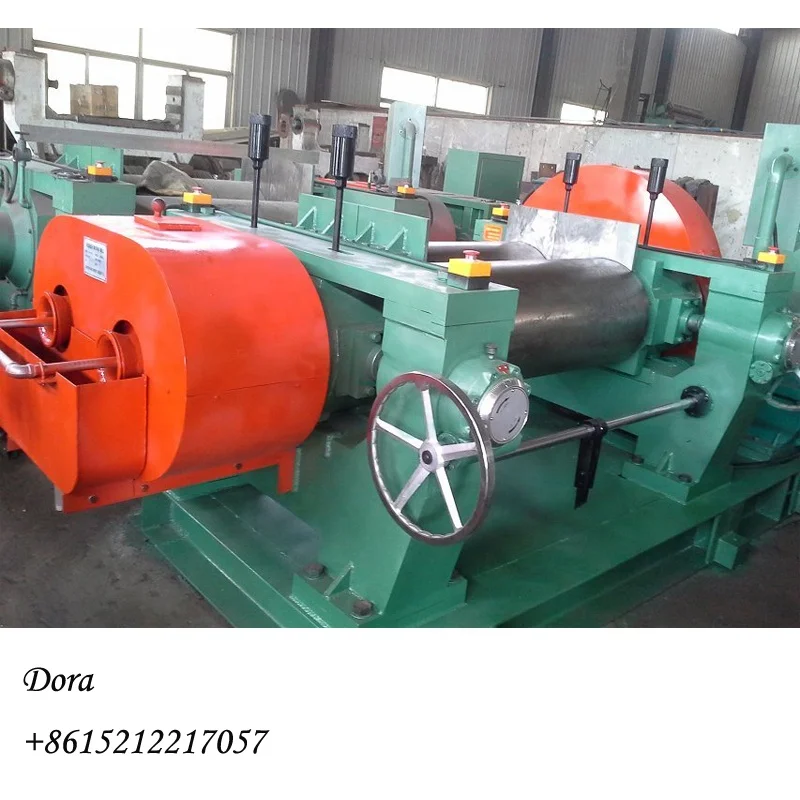

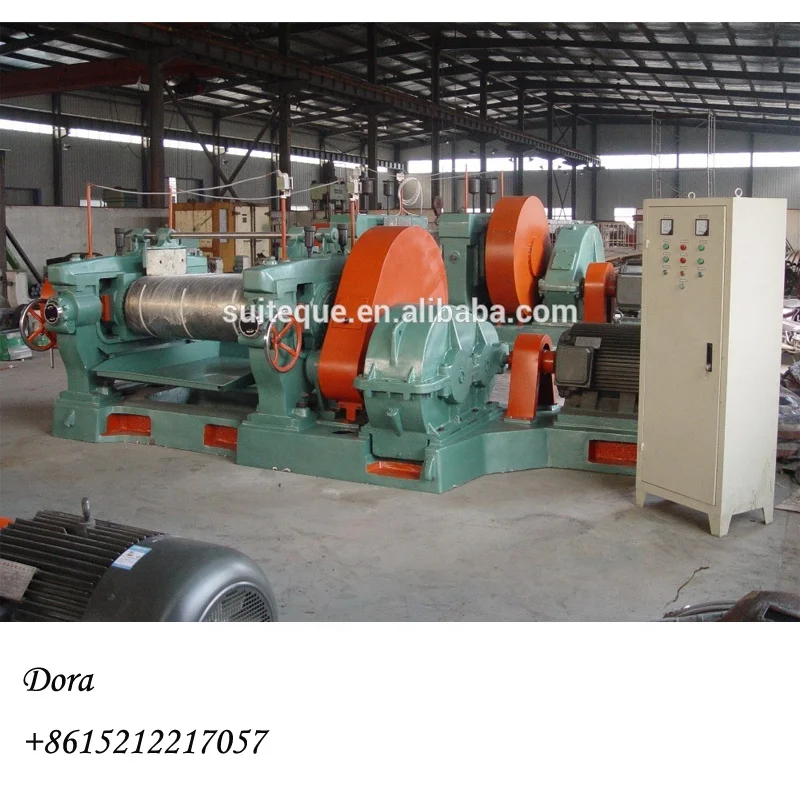

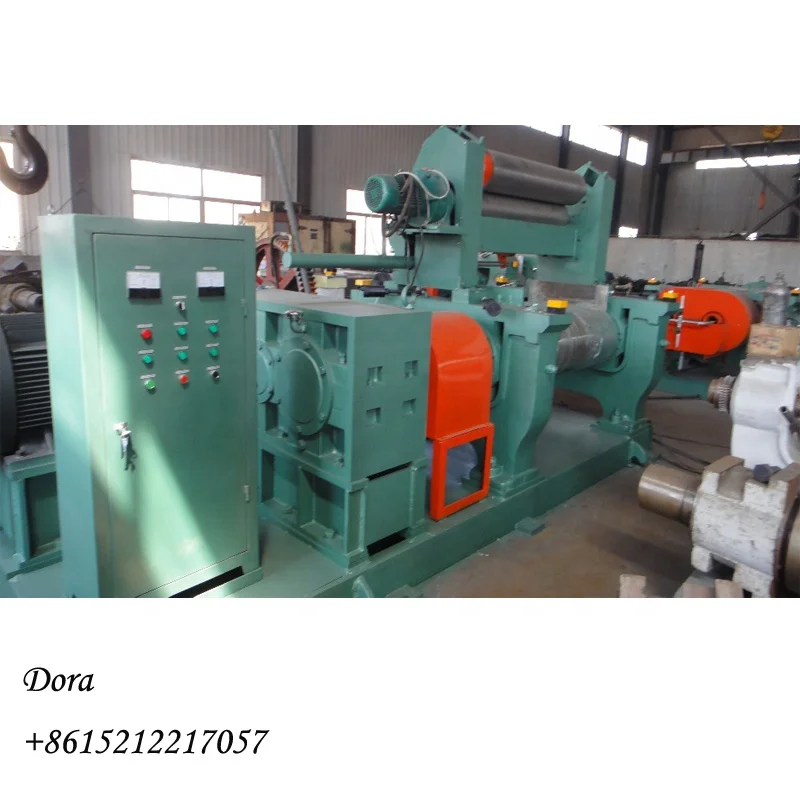

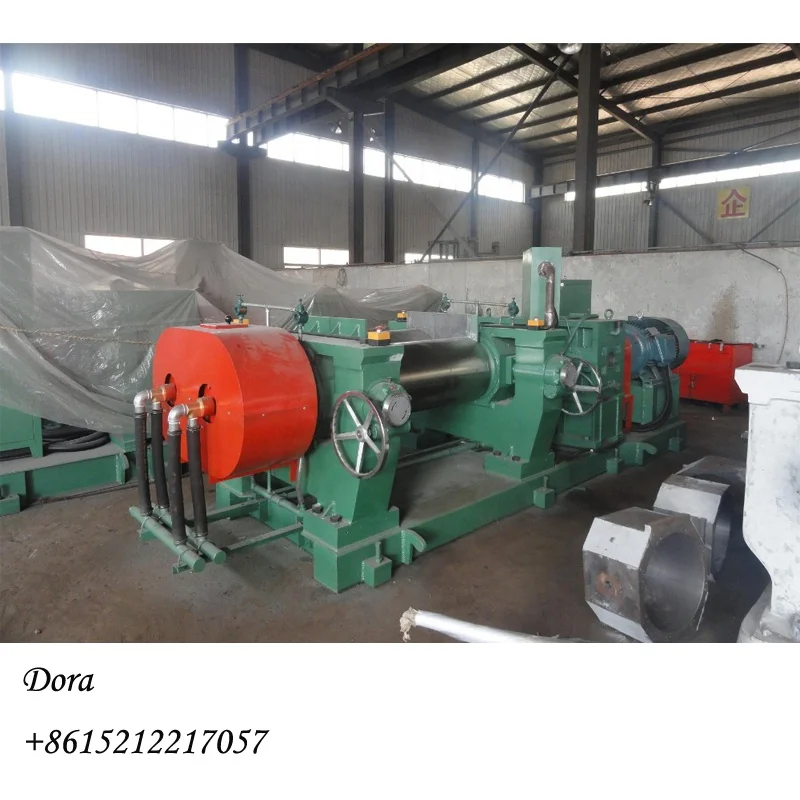

rice mill lining rubber roller 7inch aluminum Rubber Processing Machinery rubber mixing mill machine/two roll open
rice mill lining rubber roller 7inch aluminum Rubber Processing Machinery rubber mixing mill machine/two roll open
rice mill lining rubber roller 7inch aluminum Rubber Processing Machinery rubber mixing mill machine/two roll open
rice mill lining rubber roller 7inch aluminum Rubber Processing Machinery rubber mixing mill machine/two roll open
rice mill lining rubber roller 7inch aluminum Rubber Processing Machinery rubber mixing mill machine/two roll open
rice mill lining rubber roller 7inch aluminum Rubber Processing Machinery rubber mixing mill machine/two roll open
rice mill lining rubber roller 7inch aluminum Rubber Processing Machinery rubber mixing mill machine/two roll open

rice mill lining rubber roller 7inch aluminum Rubber Processing Machinery rubber mixing mill machine/two roll open

Share on (1600510740418):


Price:$1,688.00 - $1,888.00

Quantity:


Product Overview

Description





















Main Features

1. The roller is made of alloy chilled cast iron (including separation cast or integrated alloy type). Their surfaces are hard and
wear resistance

2.Rollers are divided into the hollow roll and drilled roll. The hollow roll(hollow roll inner cavity is bored , usually spraying
in bored cavity is adopted for heating and cooling ). The hollow roll surface can be machined into smooth roll , whole smooth roll
partial grooved roll, welded up alloy roll and so on . For high cooling or heating speed , circumferential drilled roll can be
selected

3.The roll is supported on both end by double row spherical bearings . Large machine adopts double bearing . so it has advantages
of running smoothly , energy saving , low noise and long service life

4.All series mill are equipped with safety device according to the new station stands , in order to protect the main parts from
damaged

5.The roll bearing lubrication : grease lubrication and oil lubrication for order

6.The driving part adopts nylon pin coupling to prevent main parts from being damaged due to overload of transmission part

7.The reducer adopts the hardened gear teeth surface reducer . It has low noise , high transmission efficiency and long service
life

8.The base is integral type, the transmission mode is closed transmission , so it is safe and easy for use

9.The user can select the stock blender according to the process


Model
ZL-3018-76
ZL-3018-120
Zl-3018-160
ZL-3018-200
Zl-3018-230
Zl-3018-300
ZL-3018-400
Diameter of roll
mm
76
120
160
200
230
300
400
Length of roller face
mm
300
350
350
500
650
650
900
Mixing Capacity
kg
0.002-0.6
0.002-2
0.002-2.8
0.002-5
0.005-10
1-15
5-30
Front roll surface speed
rpm
19
19
19
19
19
19
19
Friction ratio
1:1.30
1:1.35
1:1.35
1:1.35
1:1.27
1:1.27
1:1.27
Roll gap range
mm
0-3
0-6
0-6
0-8
0-12
0-12
0-15
Driving Power
KW
1
1.5
2.2
7.5
11
30
37
Heating Mode
Electricity heating , Oil Heating ( option)
Cooling Mode
Water Cooling ( option)
Roll Temperature
Room temperature -- 300℃
Roll Hardness
HRC 50 ~ 60
Temperature Accuracy
± 2 ℃ (we adopt the high accuracy PID micro computer controller)
Safety device
It have 6 safety buttons and safety guard is option
Machine weight
kg
160
460
660
860
1960
2960
3800
Overall dimension
mm
1100x400x1180
1100x550x1380
1200x650x1380
2200x750x1380
2200x950x1580
2600x950x1580
5295x1789
x170
Power
380V 3 phase 50-60hz


Product Description

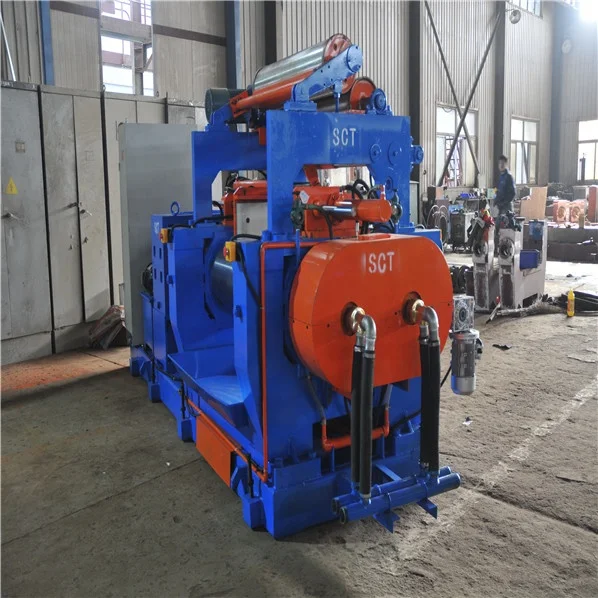

Open Rubber Mixing Mill Reclaimed Rubber Grinding Machine Rubber Processing mill

Features & Advantages of Our Rubber Open Mixing Mill :

1. Rollers: the roller adopts chilled cast iron alloy (LTG-H) with 75-80 HS, precisely machined by quenching, hard and wearable surface with long service life.

2. Emergency Stop Device: The machine is equipped with emergency stop buttons or emergency pull rod. When an emergency accident happens, just press the emergency button or pull the pull rod, the machine will stop immediately.

3.Motors: We always use OMRON, SIMENS and some other brand electric parts of high quality, made it high working efficiency, energy saving, low noise with slight vibration.

4. Overload Protect: This open mixing mill got overload protection devices, Machine will be stopped automatically if overloaded;

5. Gear Box: The transmission system adopts hardened reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life;

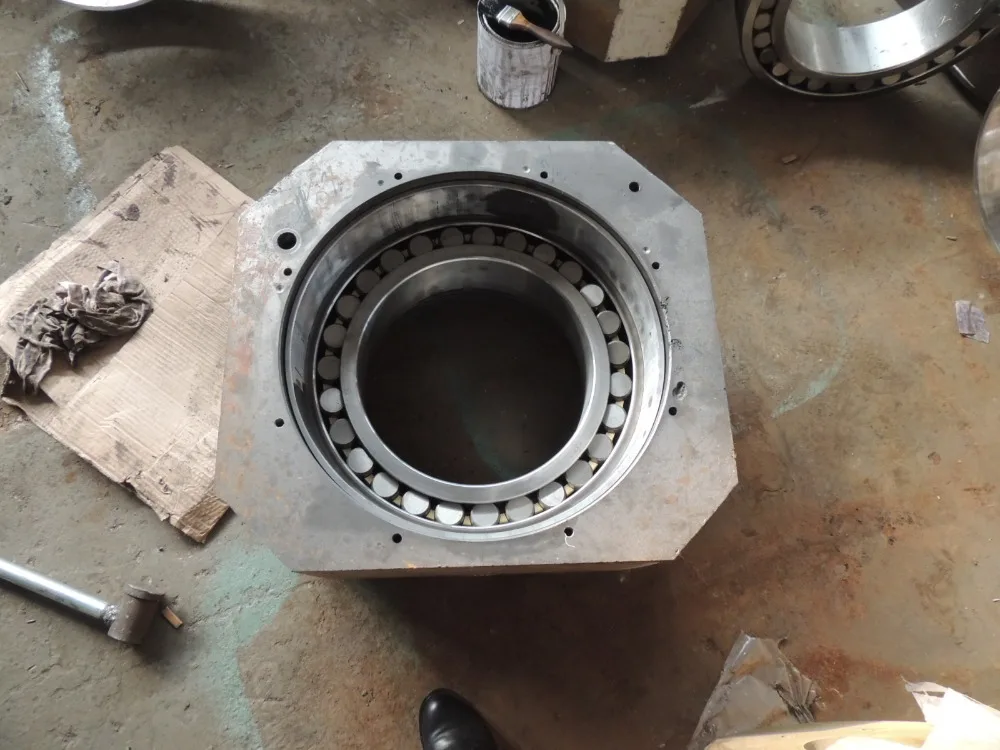

6. Bearing Bush: Double Row Spherical Roller Bearing can save energy by 20-30%;

7. Structure:The base and frame are welded and treated by annealing for stress relieving;

8. Sealing Device: The sealing structure with special design can eliminate lubricating oil leaking;

9.Cooling System: Circulation of steam and tap water through rollers to control the temperature

10.Safe Electrical Parts: All electrical connections are worked out by high professional specialists, make sure the machine to working in safe conditions.



Items
XK-160
XK-230
XK-250
XK-360
XK-400
XK-450
Roll Dia.(mm)
160
230
250
360
400
450
Rolling Length (mm)
320
600
620
900
1000
1200
Front Roll Speed (m/min)
9
10.21
16.3
16.7
18.65
21.8
Speed Ratio of Rolls
1:1.35
1:1.19
01:01.1
01:01.3
01:01.3
01:01.3
Max. Roll Gap(mm)
4.5
7
8
10
10
12
Motor Power(KW)
5.5
15
18.5
30
45
55
Feeding Capacity per batch(kgs)
1-2
6-10
8-15
20-25
18-35
50
L*W*H (mm)
1080*796
*1415
2800*1200
*1120
3400*1500
*1500
3580*1550
*1695
3780*1850
*1740
4350*1850
*1750
Gross Weight(Tons)
1.1
1.3
3.5
5.2
6.5
7.6


Items
XK-550
XK-560
XK-610
XK-660
XK-710
Roll Dia.(mm)
550
560-510
610
660
710
Rolling Length (mm)
1530
1530
1930
2130
2200
Front Roll Speed (m/min)
28
26.4
30.5
28
31.9
Speed Ratio of Rolls
01:01.2
01:01.2
01:01.1
01:01.2
01:01.5
Max. Roll Gap(mm)
16
15
15
15
15
Motor Power(KW)
110
90
160
185
280
Feeding Capacity per batch(kgs)
50-65
50-65
140
165
190
L*W*H (mm)
6646*2736
*2105
6120*2282
*2000
6575*2910
*1800
7280*3400
*2530
8185*3910
*2270
Gross Weight(Tons)
22
22.5
44
49
59

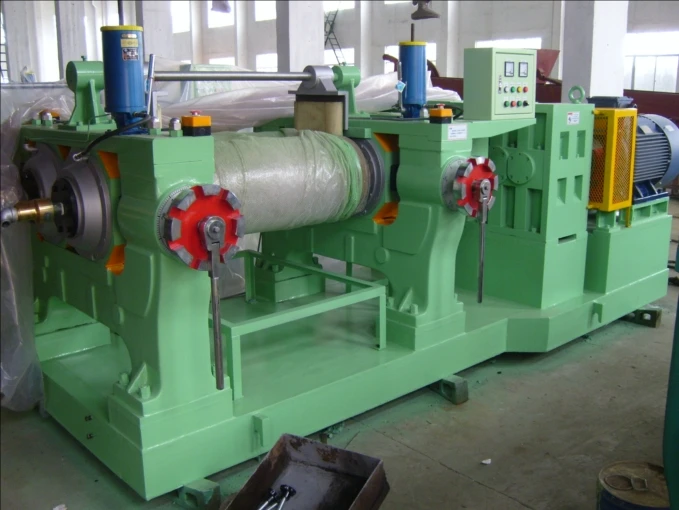

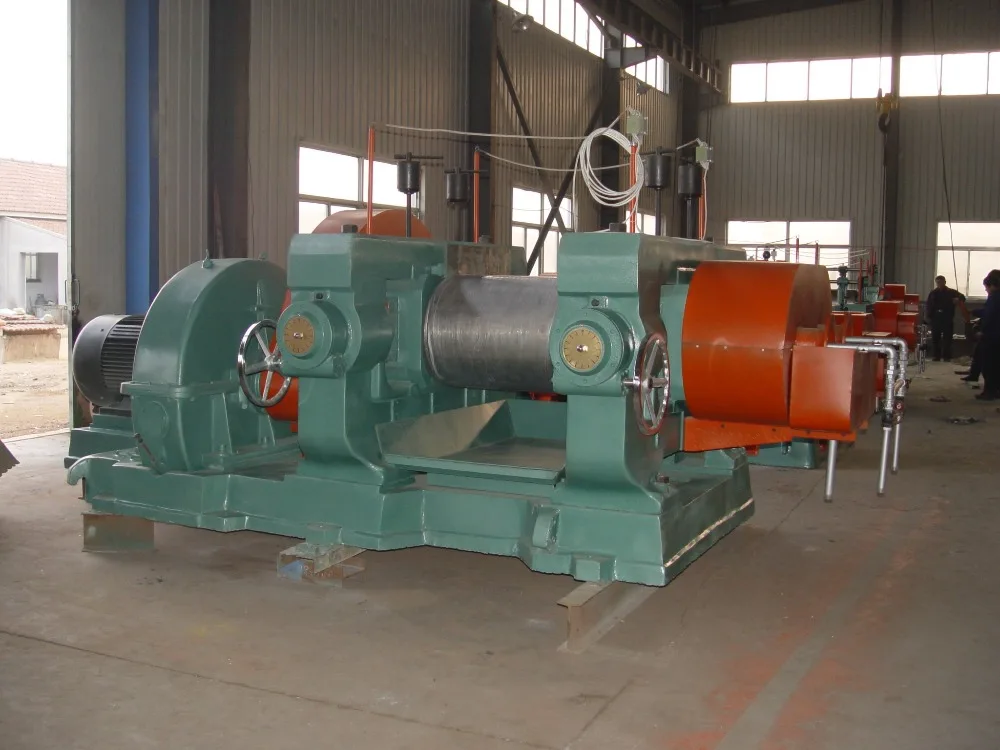

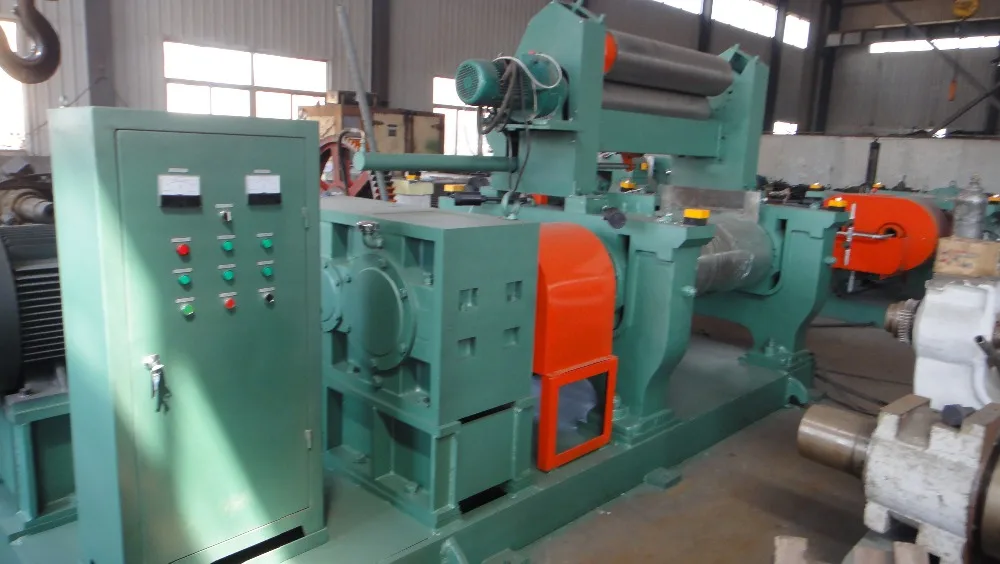

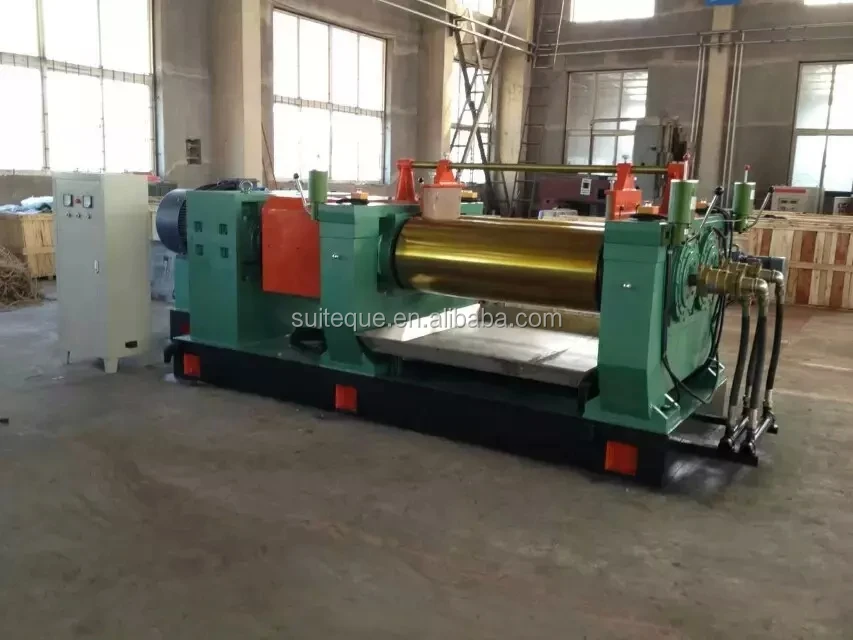

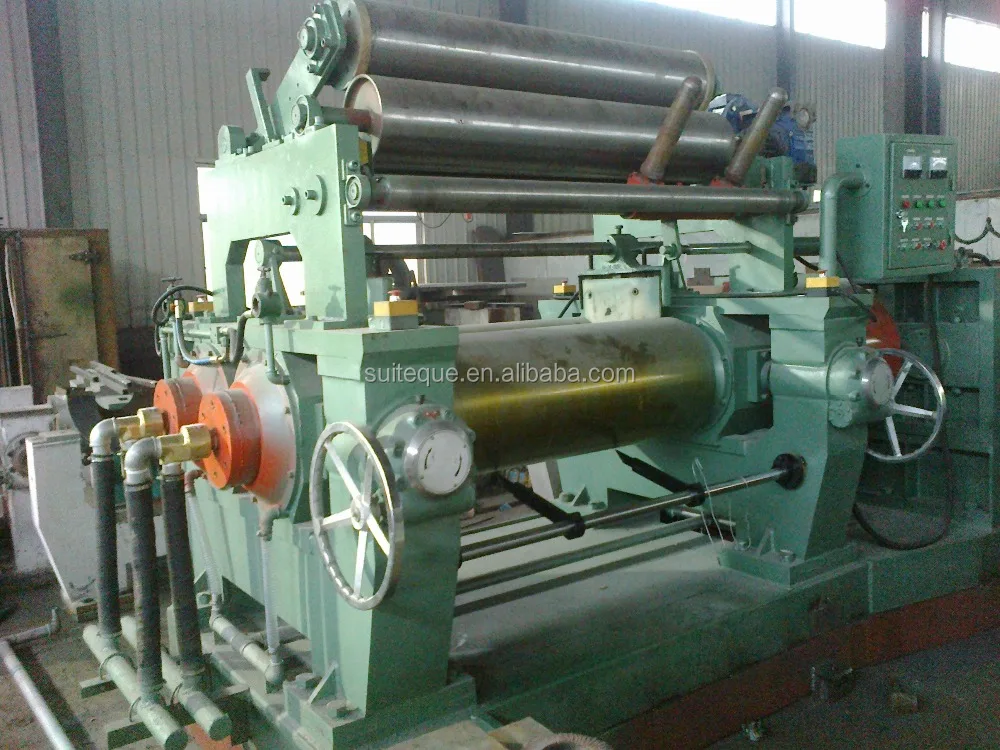

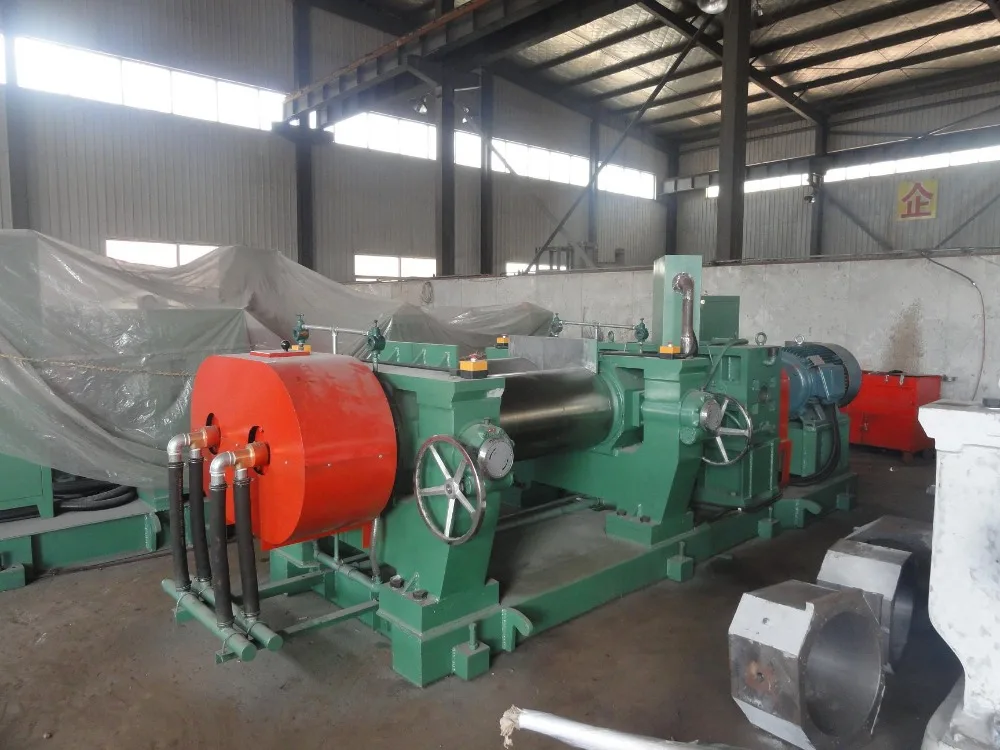

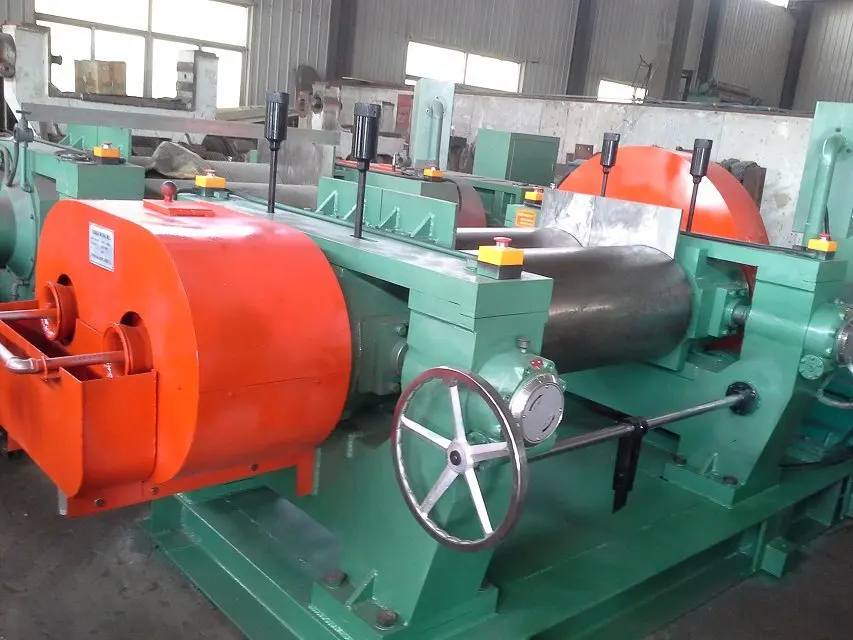

Detailed Images

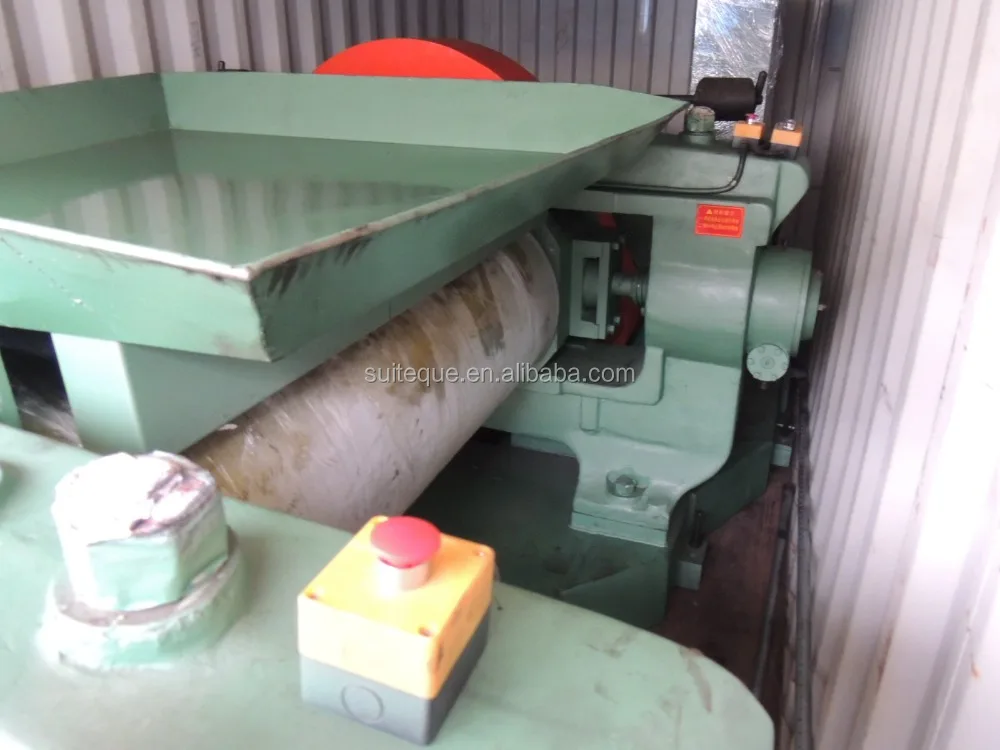

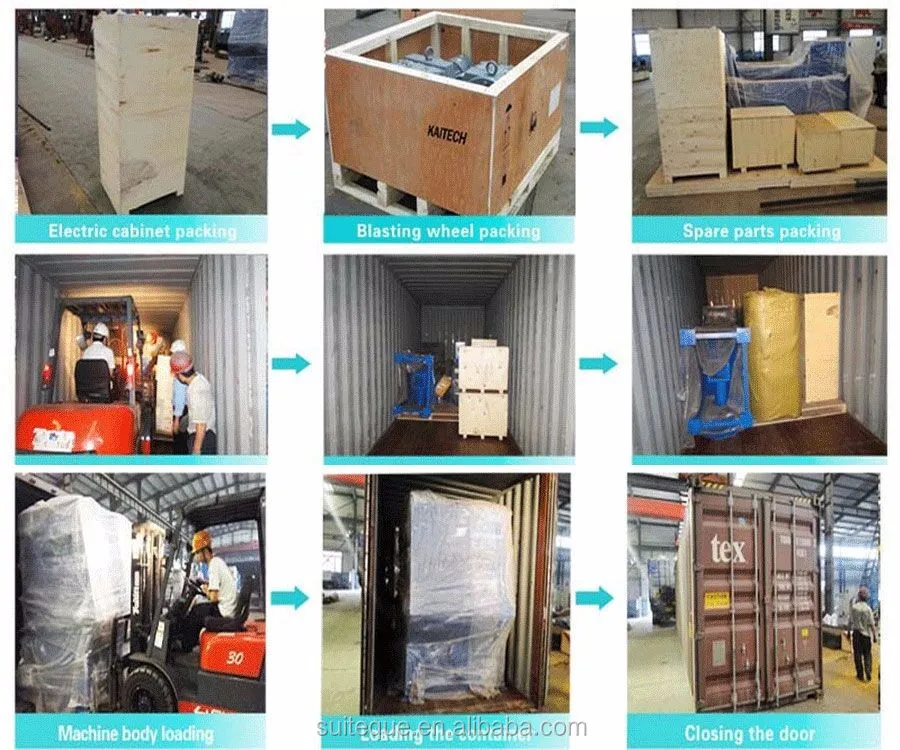

Packing & Delivery

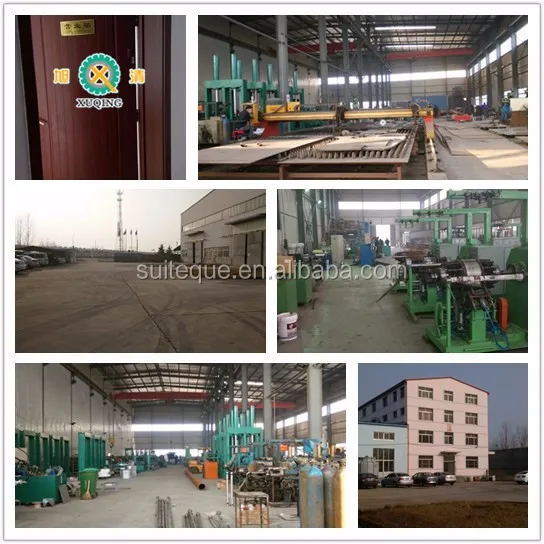

Our Company




Our Service


Offer related raw material constantly according to the buyer's requirements.

Adopt fine package suitable for long ocean transport.

Help and Teach you to operate the machine well.

Provide plant design and oversea maintenance service.

Offer professional technical support.


Quality and Service Reliable;

Installation and Maintenance Available

Our portfolio encompasses of the following listed products:
- Rubber open type mixing mill machine
- Rubber kneader mixer machine
- Rubber crushing machine
- Rubber sheet making line
- Rubber calender line
- Rubber plate vulcanizing press
- Rubber extruder machine
- Rubber refiner mill machine
- Batch off cooling line
- Rubber powder line
-Tyre retreading plant
-Convey belt making line
- Inner tube and Tyre line
-Rubber cutting machine
Pls send your valuable inquiry on our email on stephanie@eyeview.vip

238514767@qq.com
call on +8618669718510.
