China PD1000 Efficiency Solid Liquid Hanging Bag Filter juice centrifuge plate discharge centrifuges

Product Overview

Description

China PD1000 Efficiency Solid Liquid Hanging Bag Filter juice centrifuge plate discharge centrifuges





Product features:

Start with frequency converter for stepless speed regulation, with a PLC (programmable logic controller) to start the steady expansion of the scope that can be used, with the main control cabinet and field proof auxiliary control panel can operate both to improve safety sex, no basis for the installation, eliminating the conventional hanging machine feet, simplify the installation process. No base plate weight and the selection of isolator types of damping system that allows devices to be completely absorbing vibrations generated by change. On the basis of the ground and the surrounding non-interference.

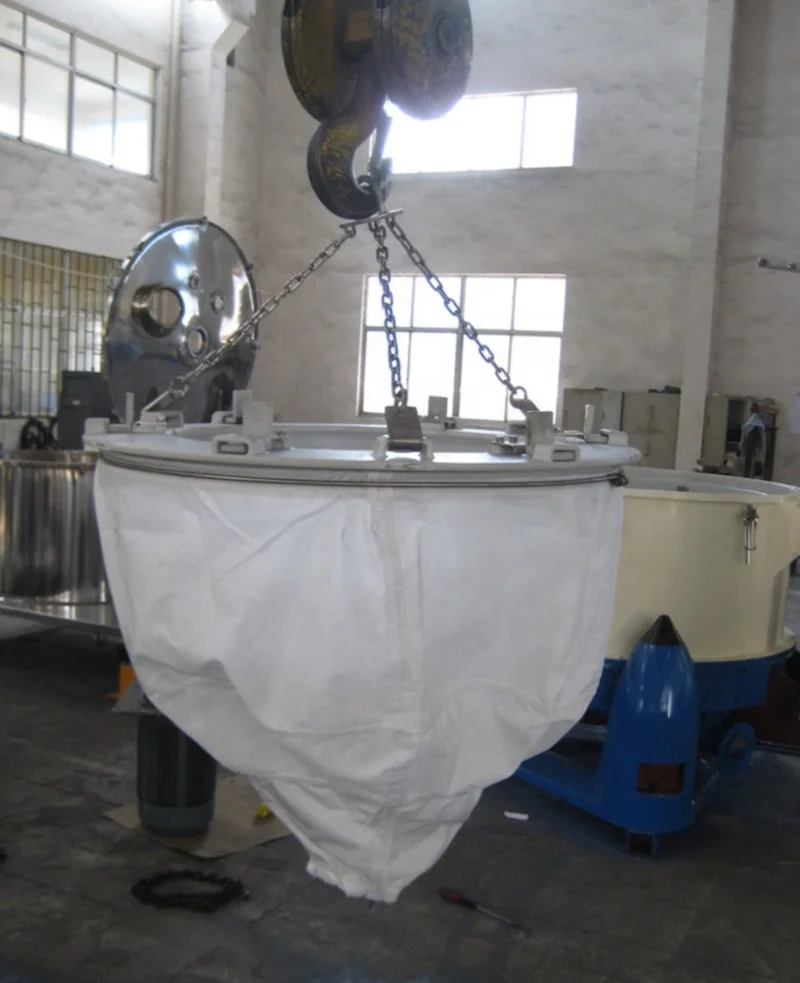

Shell structure for the flip, can be laminated on the centrifuge drum shell with space for thorough cleansing. Structural design is reasonable, more comprehensive cleaning and sterilization. Particularly difficult to adapt materials for the staff contact for high cleanliness, washing demanding proof high grade solid-liquid separation. Lift bag discharge, can be off-site discharge, improve efficiency, reduce labor intensity, environmental conditions fully comply with GMP standards.

main application:
Applies to both solid phase for the granular filtering, it can be used for dewatering fibrous material, particularly high viscosity, fine particle size, toxic and hazardous, flammable materials in the filter. For example: gypsum, thiamine, Glauber's salt, copper sulfate, nickel sulfate, a chloride, acetic acid, borax, soda, rubber additives, dye, plastic raw materials, fertilizer, oil, all kinds of resin, salt, MSG, food additives, starch sugar, vitamins, antibiotics herbicides, insect repellents, copper, zinc, aluminum ore dehydration, metal refining, volleyball acid plaster, water treatment.

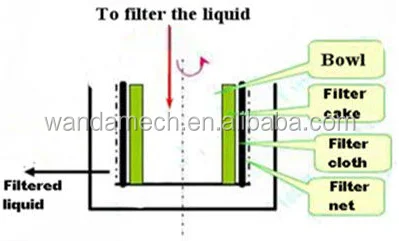

Working principle:



Frequency control by the main motor, a smooth start, through the narrow V belt antistatic flame retardant will force transmission to the bowl, so that high-speed rotating around its own axis, forming a centrifugal force field, the material from the upper part of the feeding tube into the bag with the basket from the will power to force material trapped in the bag, the shutdown, open the case and cover, hanging out outside the machine to discharge locations; with washing pipe materials can be washed.

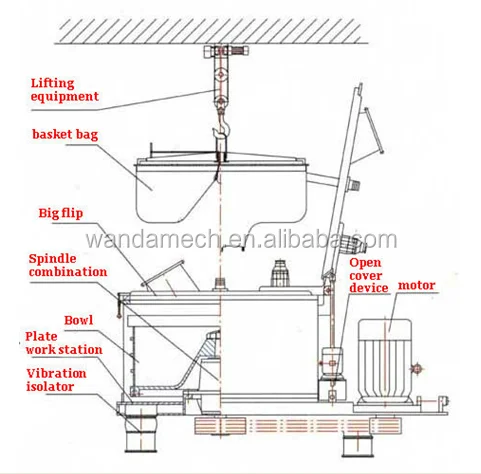

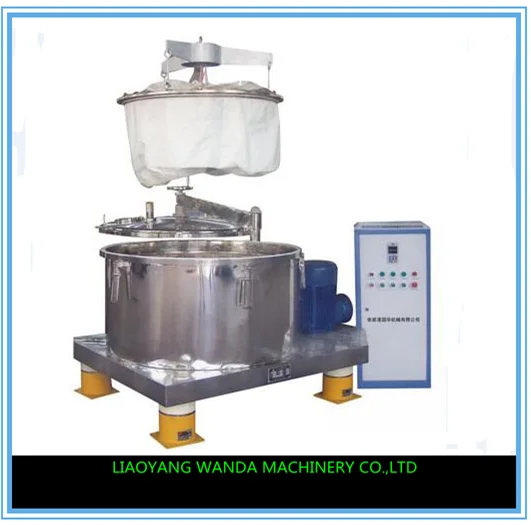

Drawing:

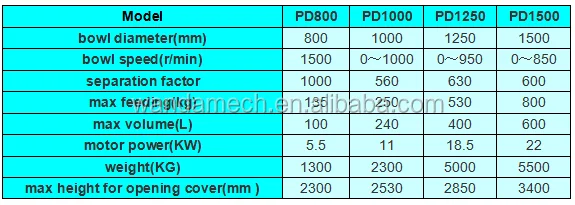

Product technical parameter:

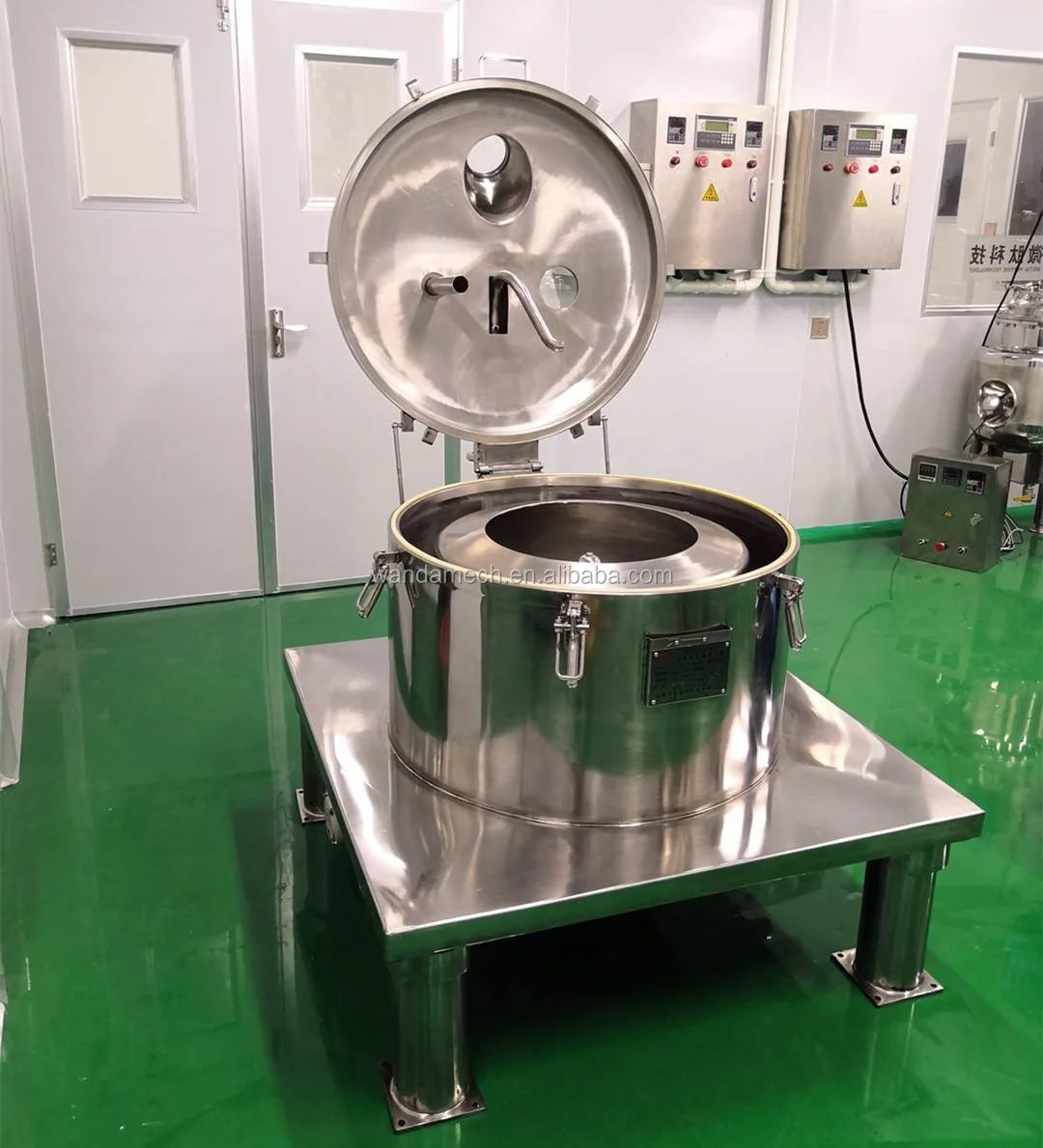

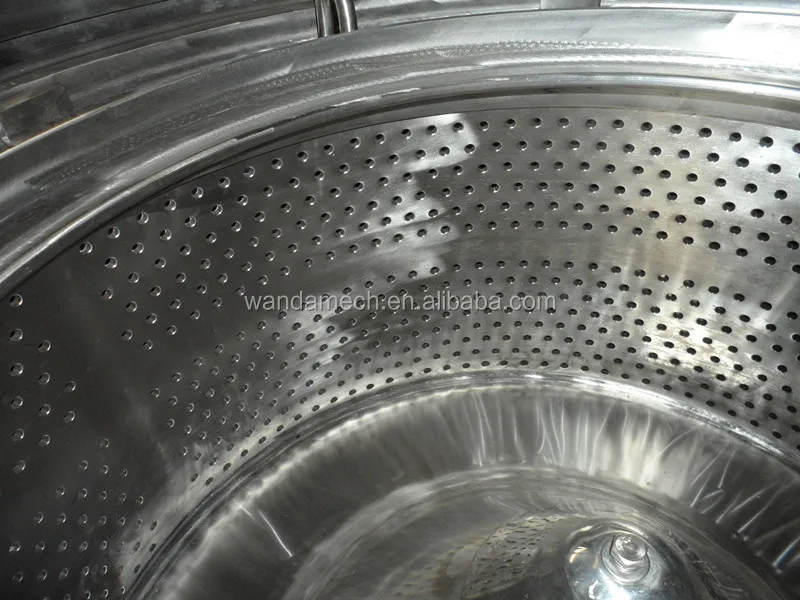

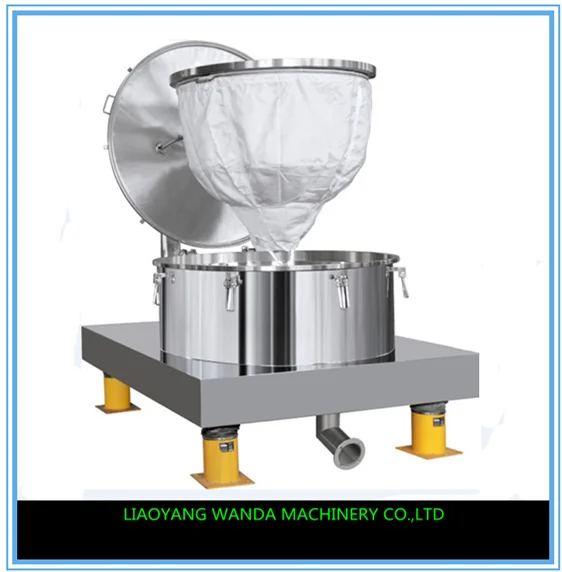

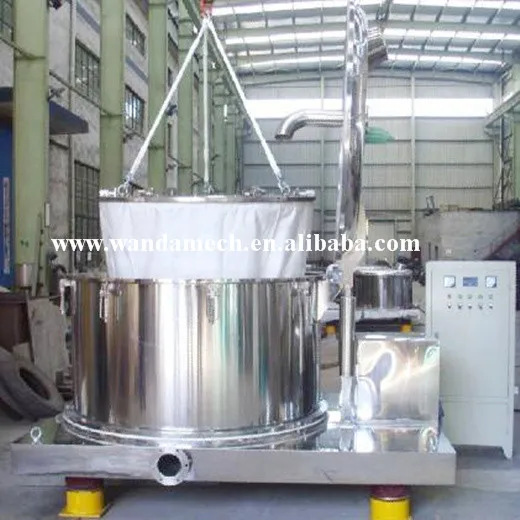

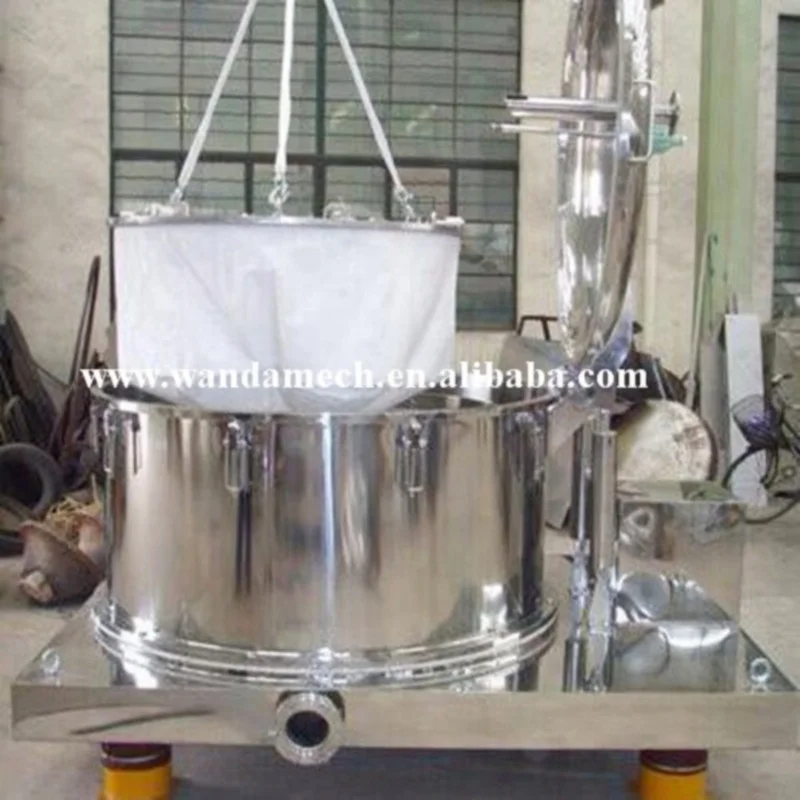

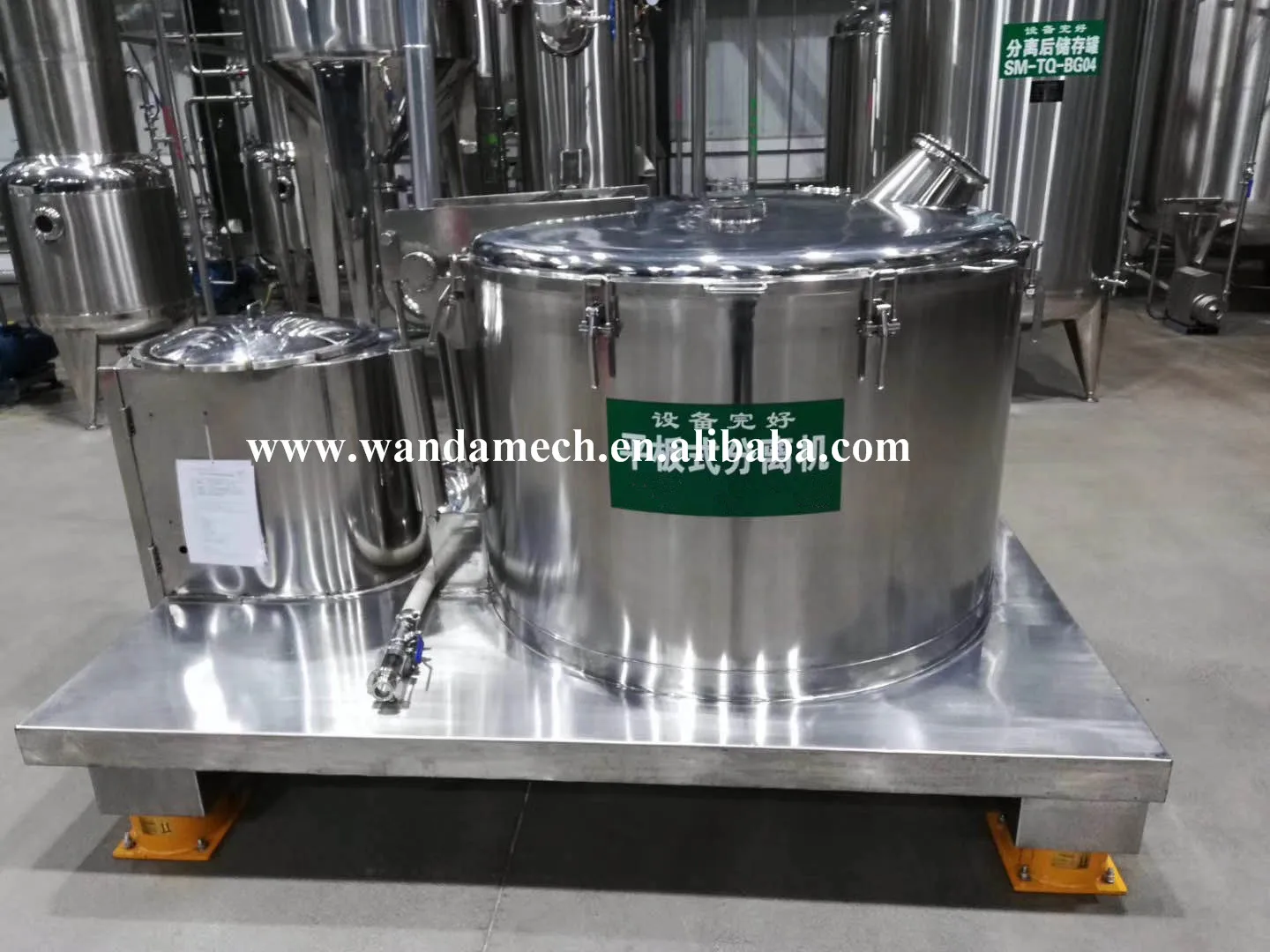

Product picture:





























1.We will provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
2. Consultant services for whole machine life, 24 hours technical support by email and telephone.
3.Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

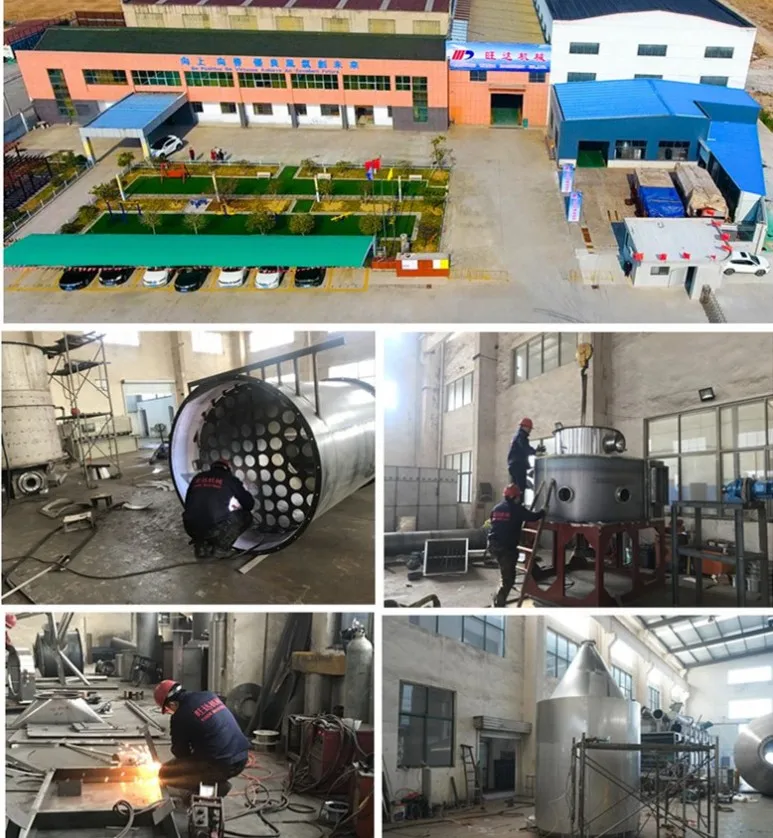

 LIAOYANG WANDA MACHINERY CO.,LTD is specialized in design, development, manufacture and sale of  chemical and packaging machinery.Our products include filter, centrifuge, mixer, granulator, dryer, packing machine, teabag packing machine, etc. Looking to the future with a commitment to design innovation and quality products, supported by an outstanding level of customer service. The unexcelled quality machinery can be easily obtained from us because we maintain the quality and standard of our products from incoming raw materials to the finished products. Our company follows strict quality controls and various systematic procedures. We take utmost care of quality at every stage of the manufacturing process. Our research and development wing is our asset that develops and incorporates innovative ideas and products. Our Team is full of experienced and qualified professionals, who have sound knowledge about the quality of our machinery. Our products are far sold to Europe, U.S.A., and the southeast Asia. They are well received by customers both at home and abroad.

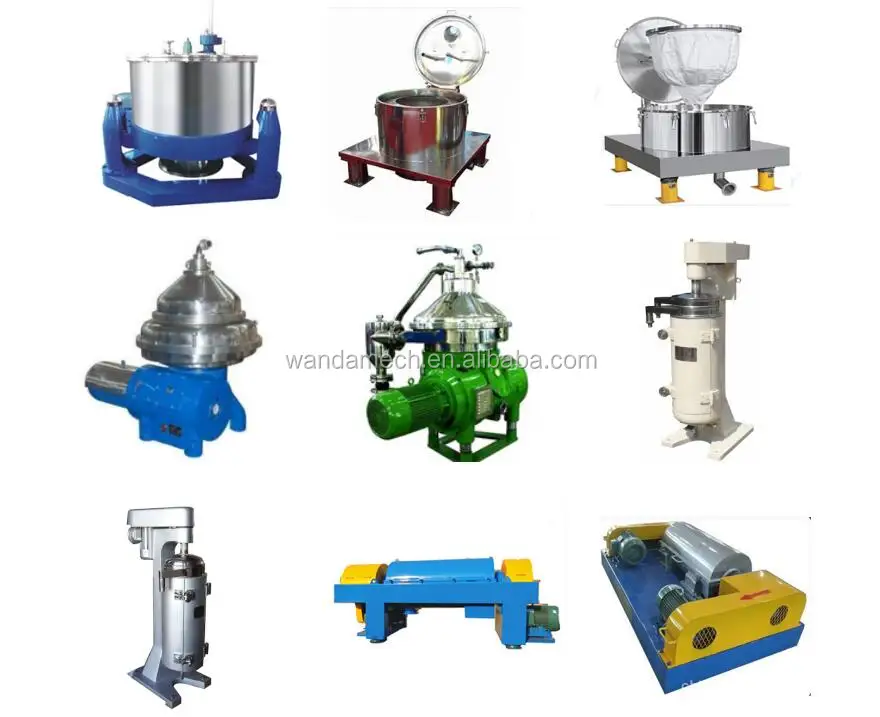

Other feature products:
