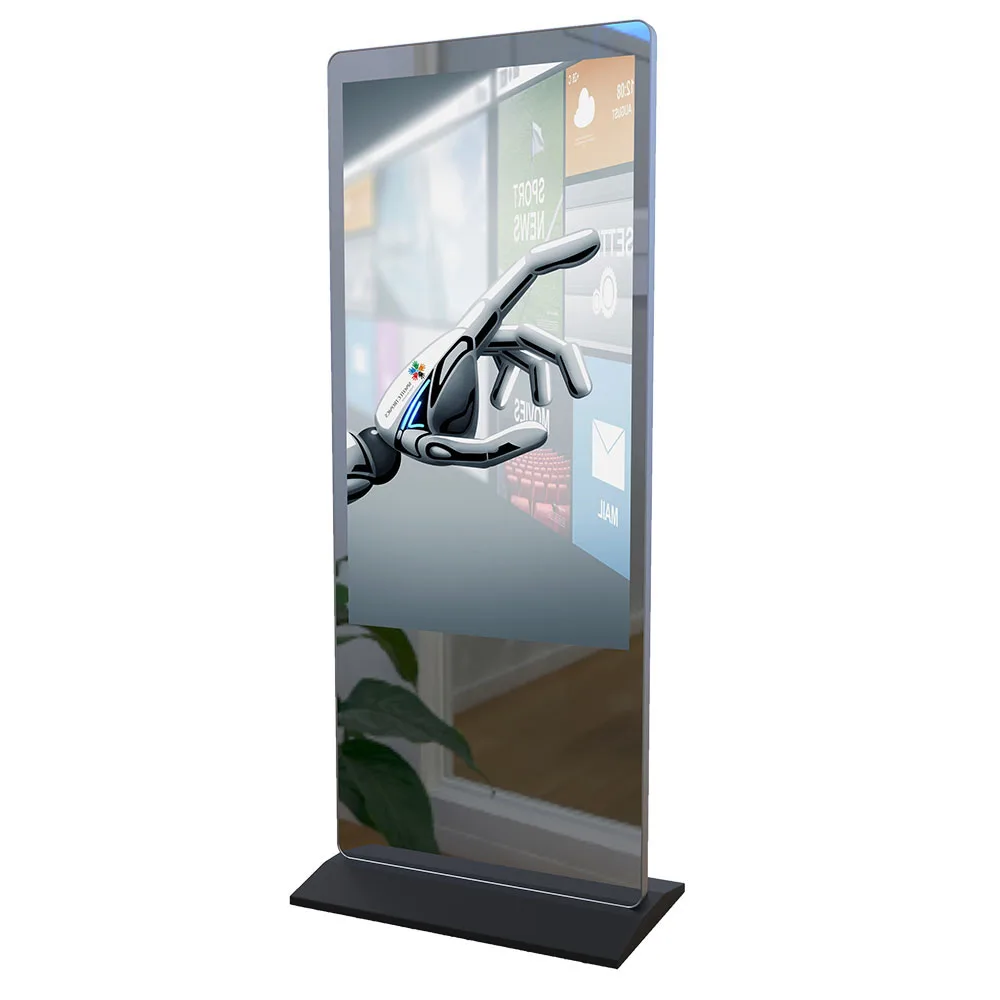

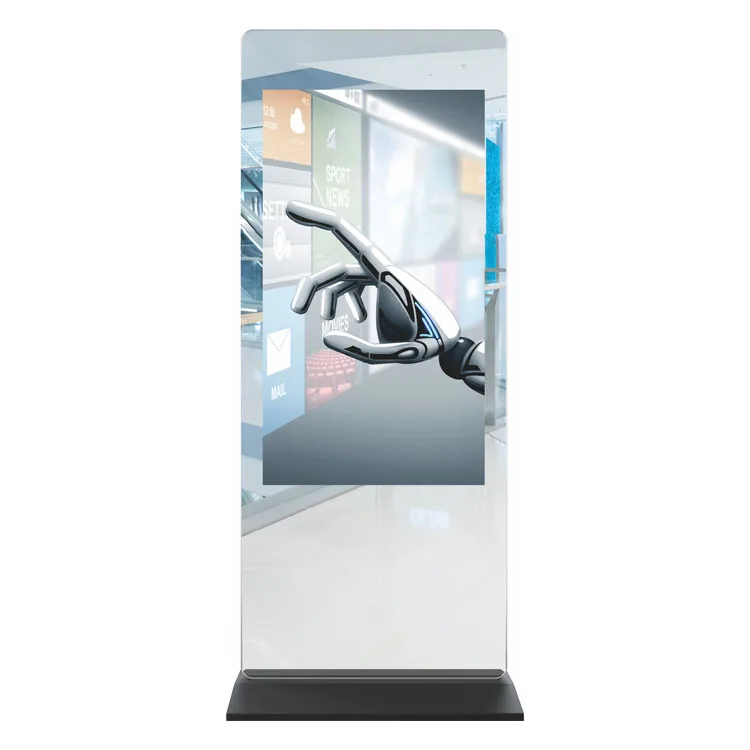

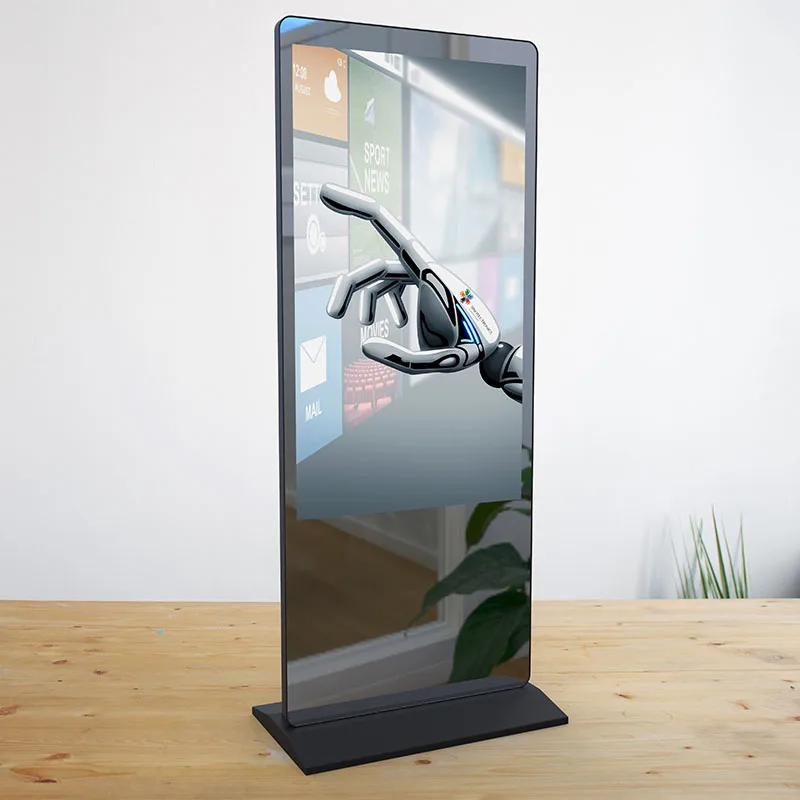

Kiosk Digital Signage Display Lcd Information Kiosk Video Player With Best Digital Signage Software
- Category: >>>
- Supplier: Markhub Smartech (Suzhou) Co. Ltd.
Share on (1600510744365):
Product Overview
Description
Product Description
Low power consumption, full-featured interfaces, high integration and stability are features why MIRROAWILLOV Kiosk series far transcends the other opponents.

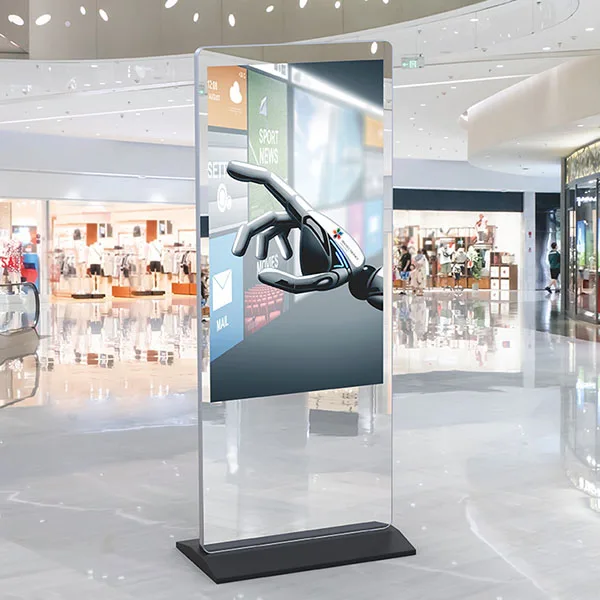

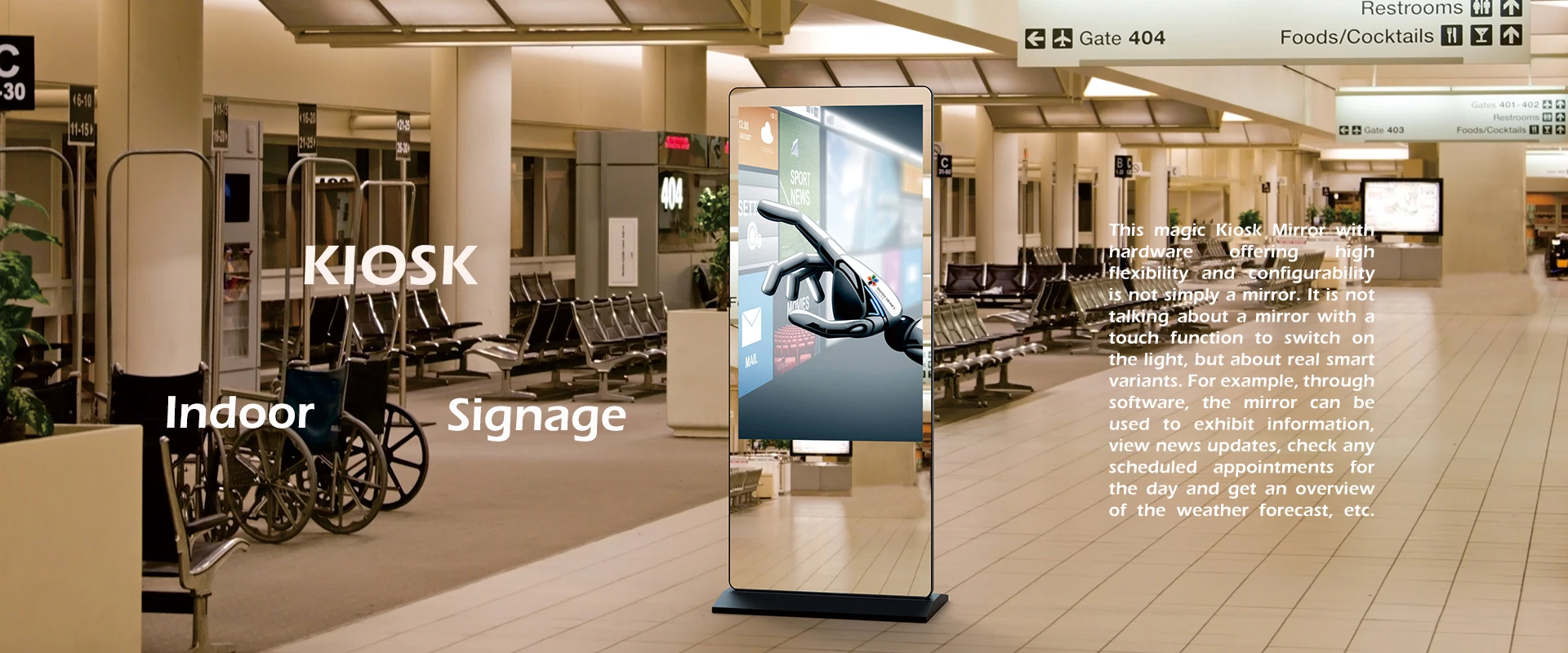

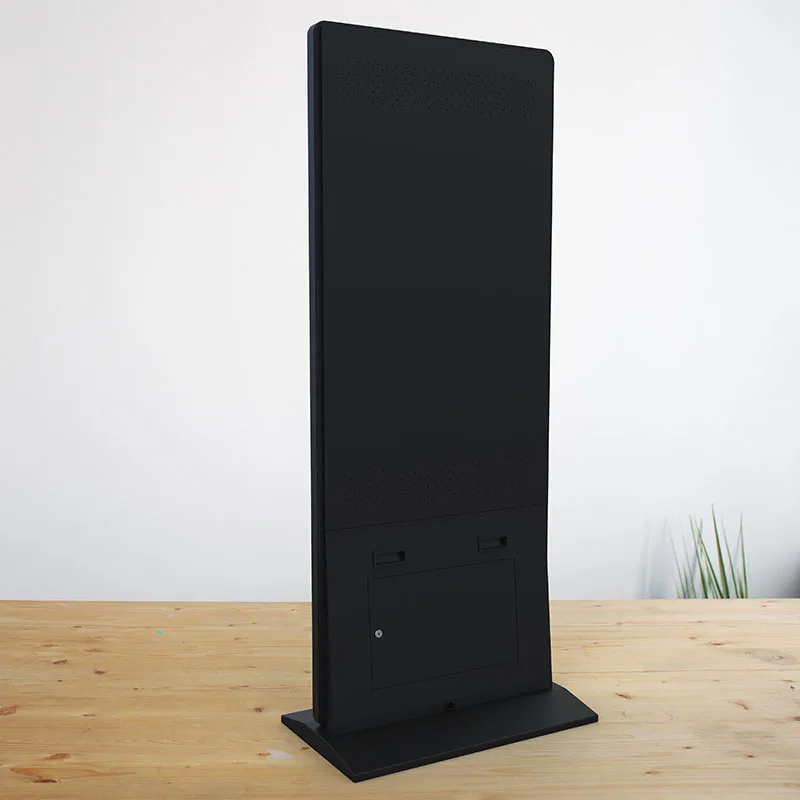

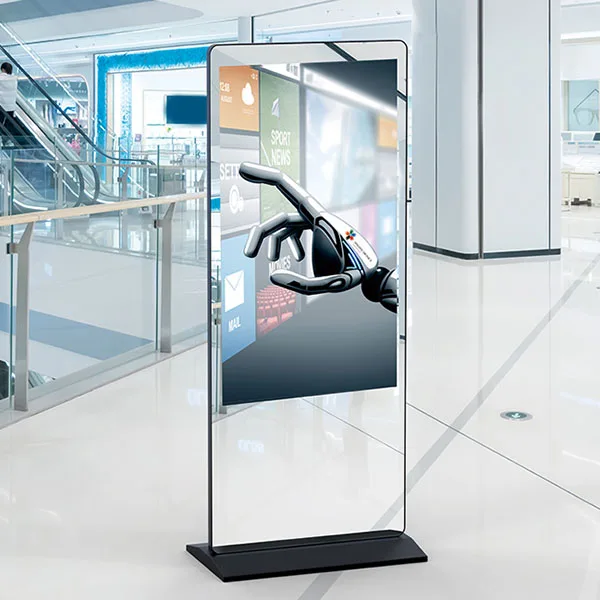

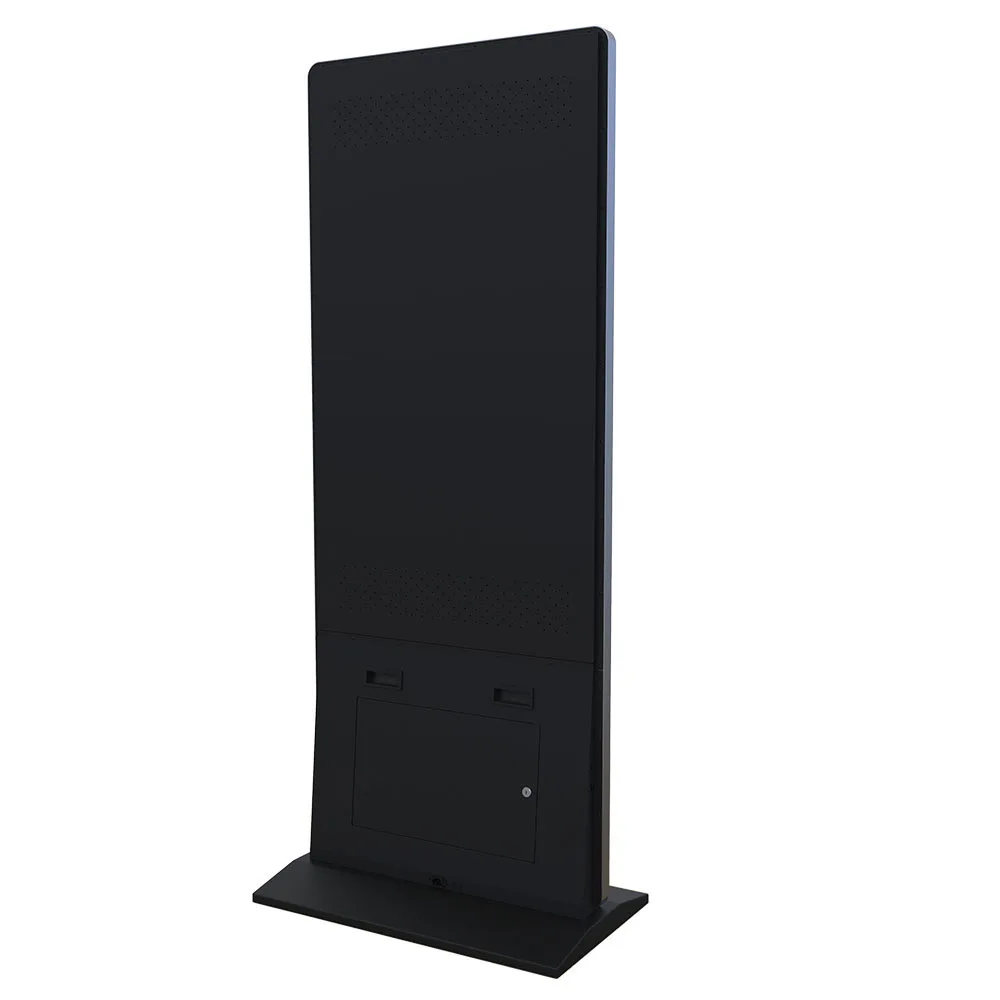

Furthermore, MIRROAWILLOV Kiosk takes on stylish appearance: classic black or modern silver aluminum alloy frame with durable and sturdy standing base both manifest unique calm and vogue. Now, it is optimized for shopping malls, check-in, hospitals, hotels, ticket sales and other fields.
Furthermore, MIRROAWILLOV Kiosk takes on stylish appearance: classic black or modern silver aluminum alloy frame with durable and sturdy standing base both manifest unique calm and vogue. Now, it is optimized for shopping malls, check-in, hospitals, hotels, ticket sales and other fields.
Technical Datasheet
Basic Information | Model No. | SNT-IPD-KM-55-W01 |
Outline Dimension | 1900mm*758mm*50mm including base height | |
Frame Processing | Alu Alloy Black | |
Edge Type | Curved | |
Installation Type | Standing Base | |
Net Weight: | 65kg | |
Display | LCD Module | 55inch LCD( BoE DV550QUM-N10) |
Display Area | 1209.6*680.4mm | |
Brightness | 800 cd/m² (Typ.) | |
Resolution | 3840(RGB)×2160 UHD 80PPI | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | |
Contrast | 1200:1 (Typ.) | |
Touch | Touch Surface | 4mm Mirror Cover Glass |
Touch Sensor Type | ITO Film (G+F+F Structure) | |
Controller IC | EETI | |
Touch Points | 10 | |
TP+LCM Bonding Type | Frame Bonding | |
PC Option I (Innoconn) | System | Windows 10 |
Config. | i7/8G/128G SSD | |
Input Power | 12V DC-in | |
Signal Output | Support 3840*2160 Resolution | |
Chipset | Intel H110 Chipset | |
PC Cost | USD 985.00 | |
PC Option II (Asus Tinker Board) | System | Android 9.0 |
Config. | Rockchip RK3399, A72@1.8GHz*2+A53@1.4GHz*2 | |
GPU | RM Hali-t860 mp4@800Hz | |
Memory | 4G for system+2G for NPU+16G EMMC | |
Power input | 12-19V DC-input | |
PC Cost | USD 286.00 | |
PC Option III (X86 Normal) | System | Windows 10 |
Config. | i5/4G/128G SSD | |
Input Power | 12V DC-in | |
Signal Output | Support 3840*2160 Resolution | |
PC Cost | USD 625.00 | |
PC Option IV (Android Normal) | System | Android 9.0 |
Config. | Rockchip RK3399 ARM-6 Core, 64bit Processor | |
GPU | 4G DDR3 | |
Memory | 32G EMMC | |
Power input | 12V DC-in | |
PC Cost | USD 215.00 |
Other Optional Functional Parts
Accessories
Power Cord*1
Wall Mount Rack*1
Wall Mount Screws*8
Other Accessories As per requested
Wall Mount Rack*1
Wall Mount Screws*8
Other Accessories As per requested
Company Profile
MARKHUB SMARTECH CO., LTD. is a branch of SINOTECTRONICS INC., concentrating on serving SNT-IPD product R+D and manufacturing.
With strong background of professional touch technologies and Display solutions, we are dedicating to offer to global market with our standard quality products as well as customized products. Markhub products are exported to more than 40 countries and regions globally via Sinotectronics, as the business grow steadily, we are happy to introduce our own branded products with unique design, like iTAYFT branded for our touch monitor series, and MIRROAWILLOV branded for our Mirror series products, moreover, our products are widely used in Retail, Signage, Gaming Machine, ATM/VTM, Education and Meeting, etc.
We would like to grow together with you and provide you more and more excellent products for serving the market, let’s join hand together, touch the world!

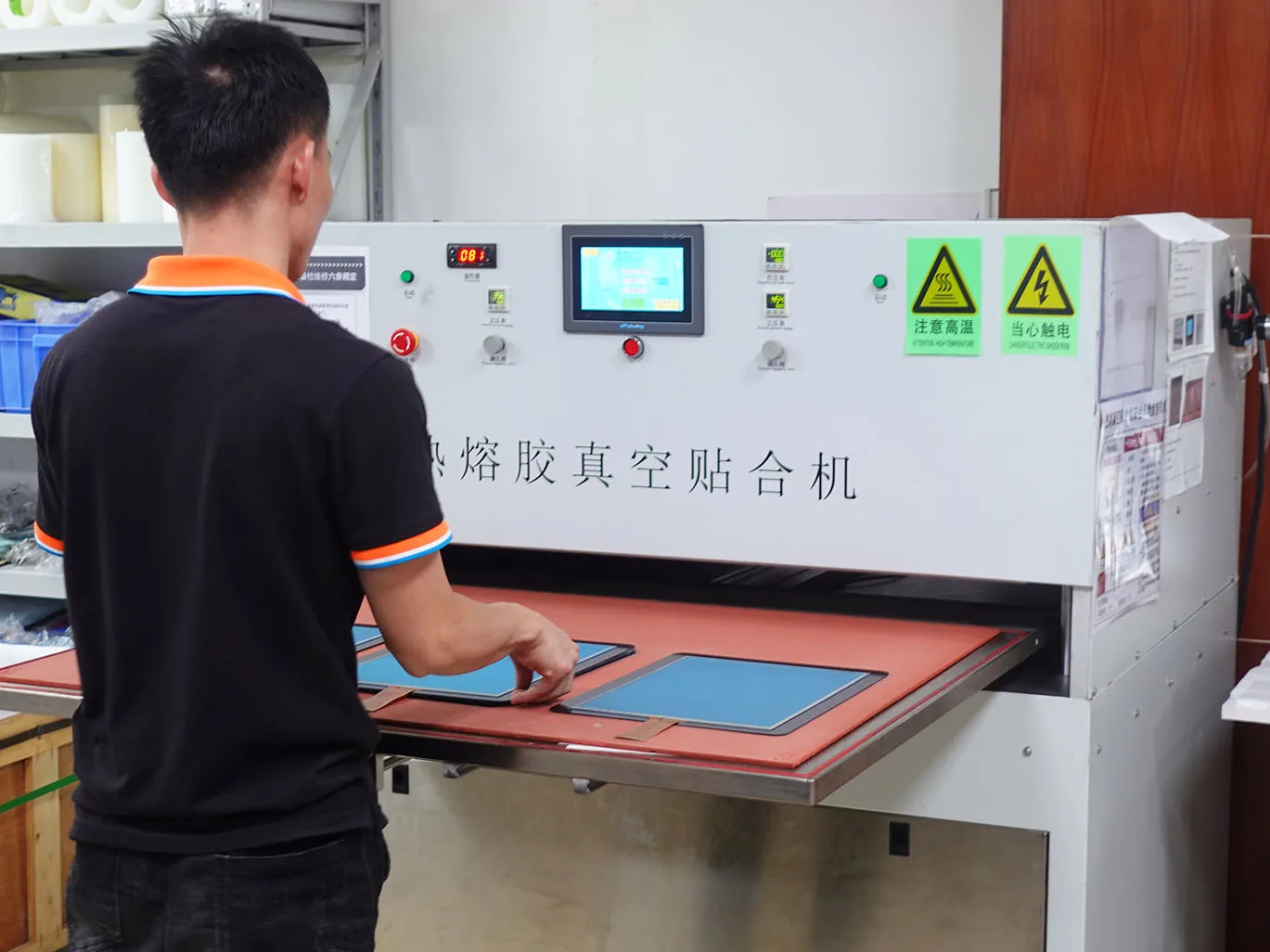

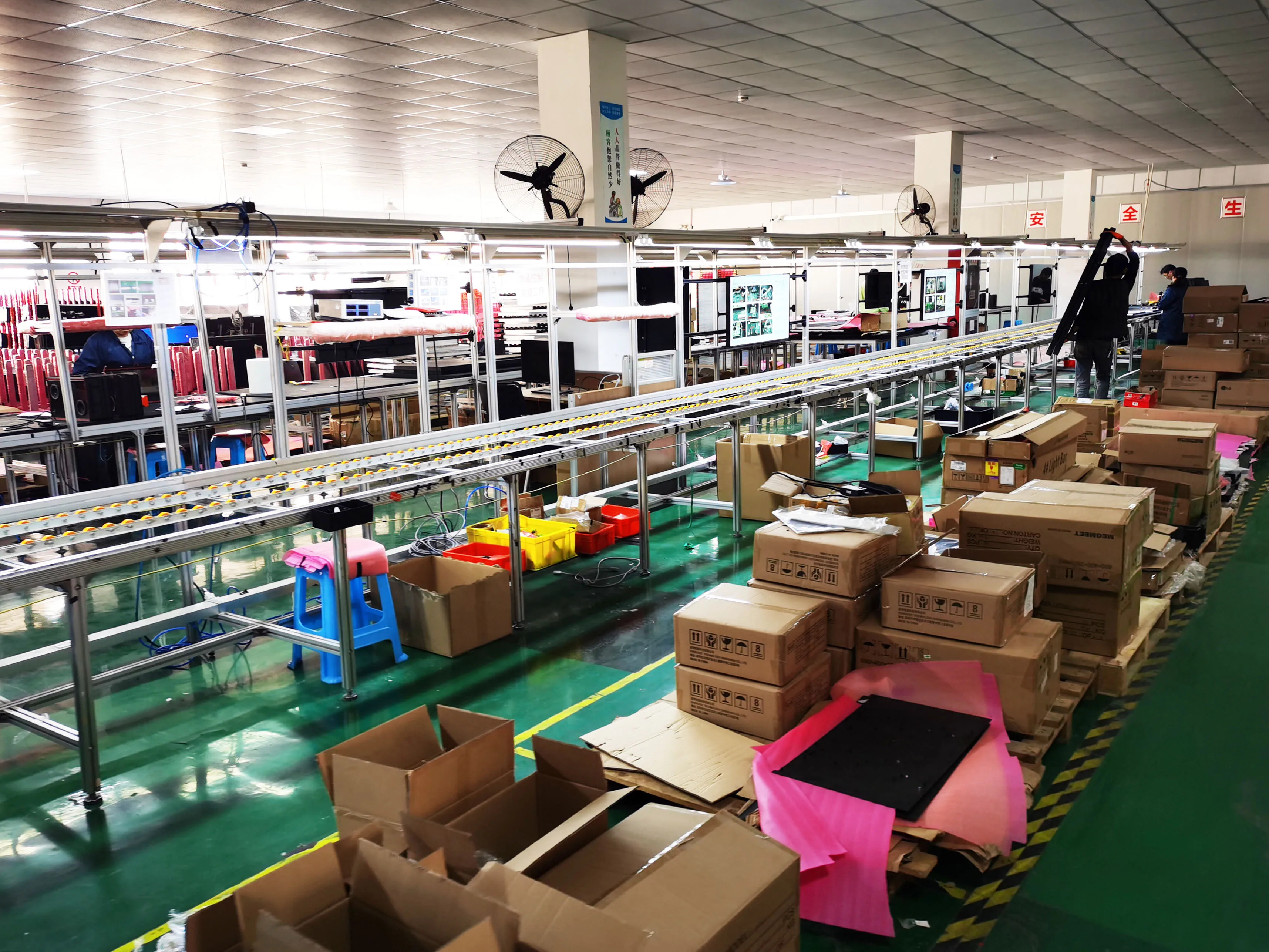

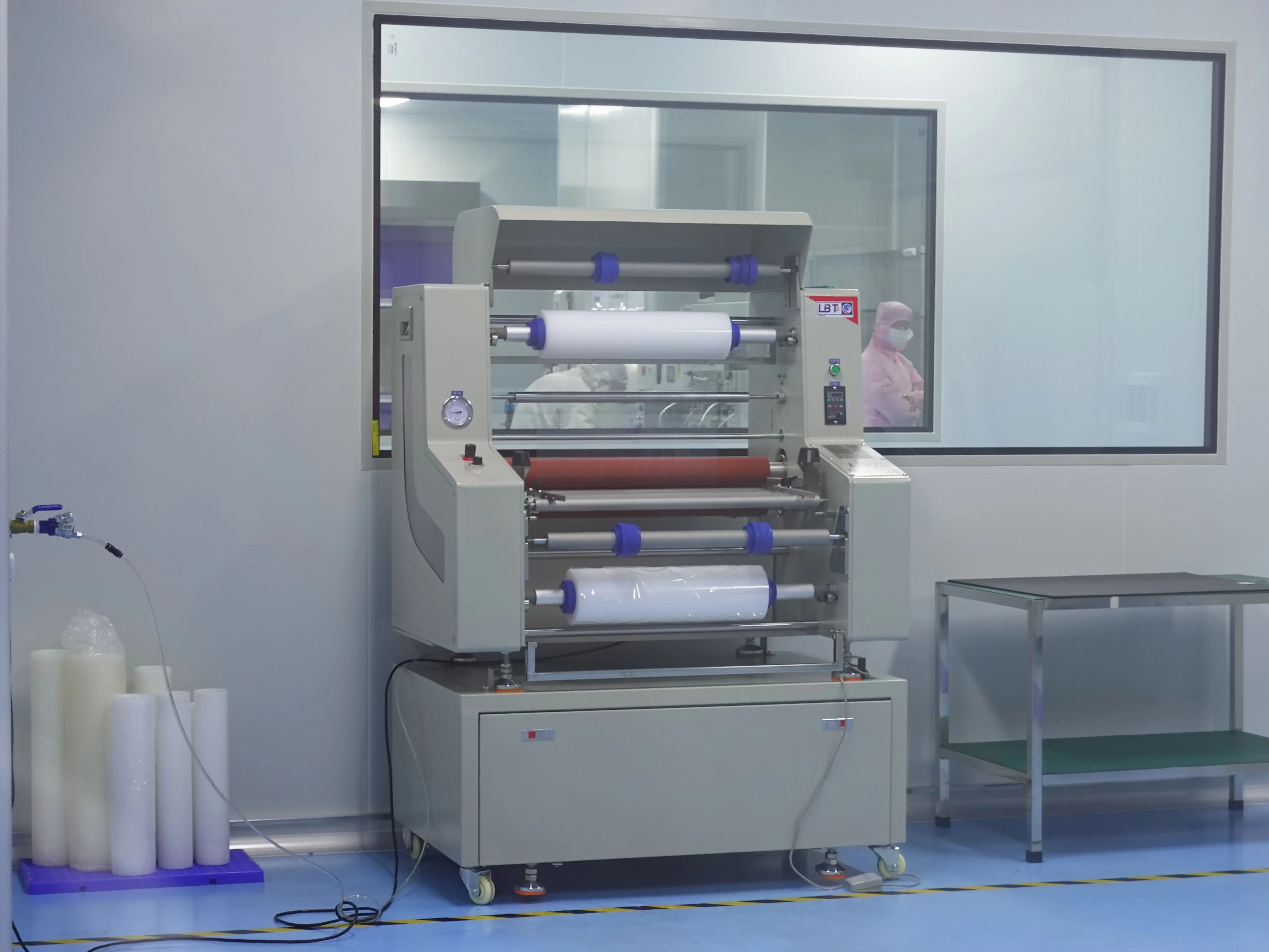

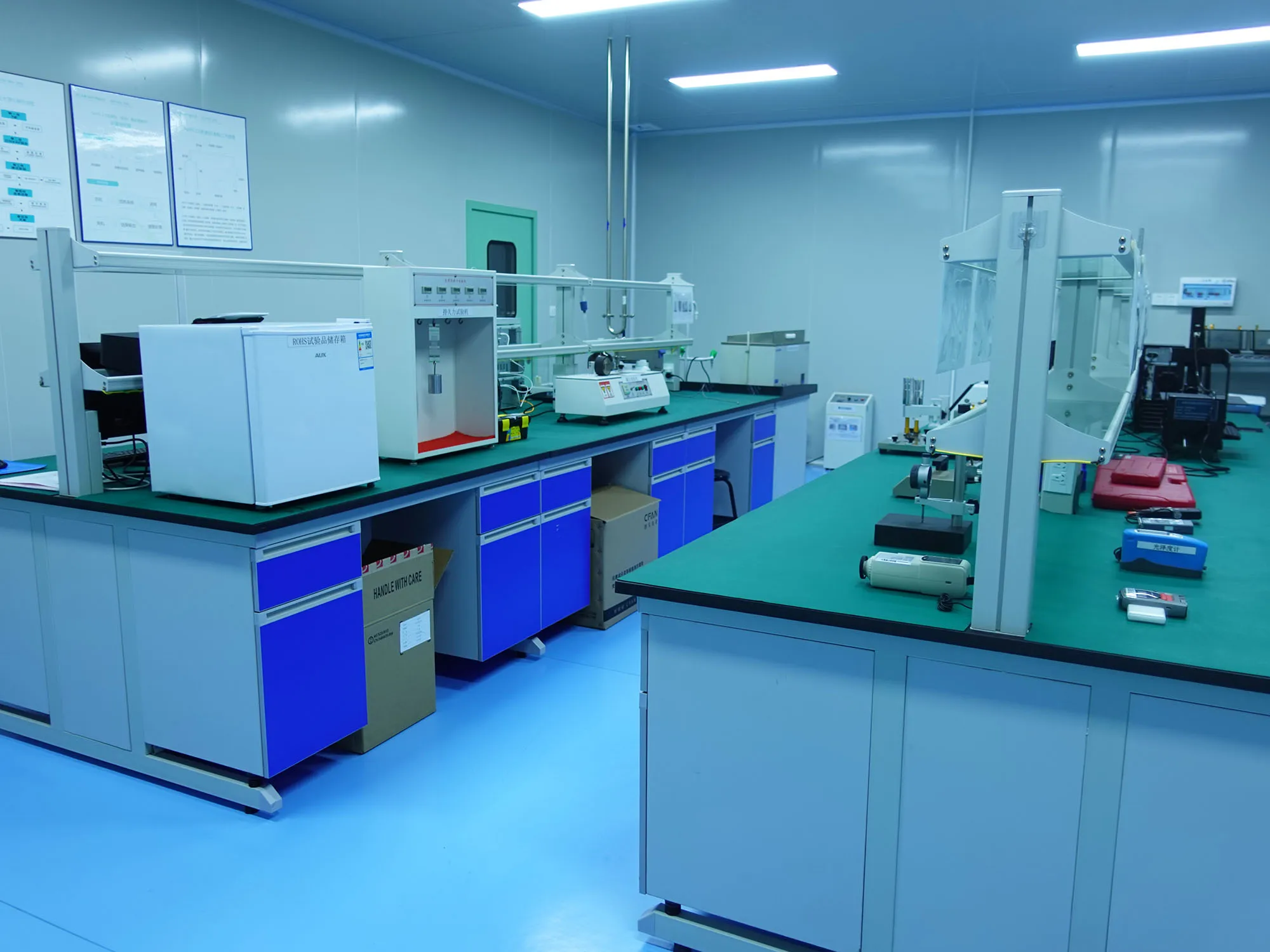

Our Workshop
Shipment

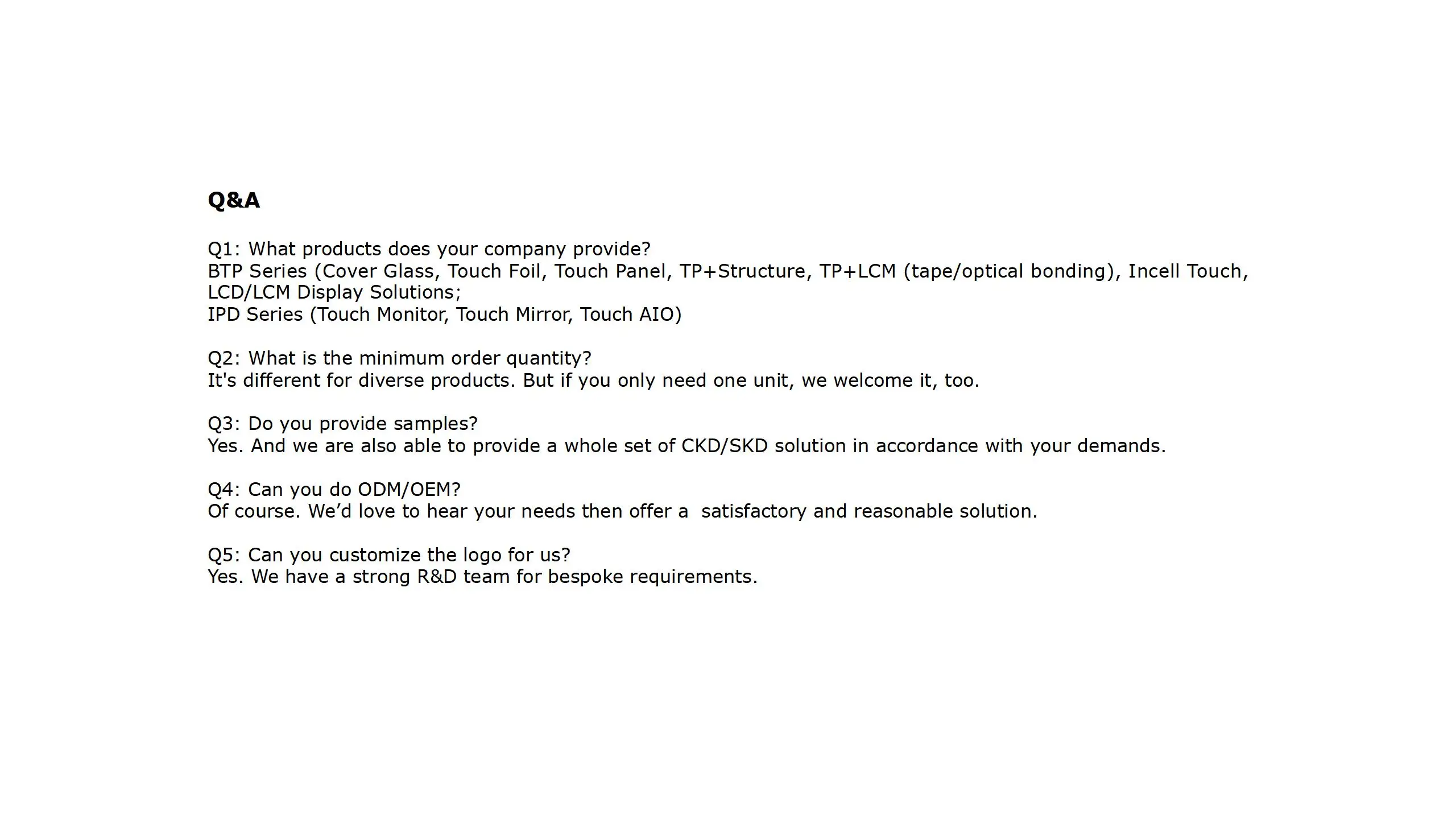

FAQ
