Product Overview

Description





YUK800-1

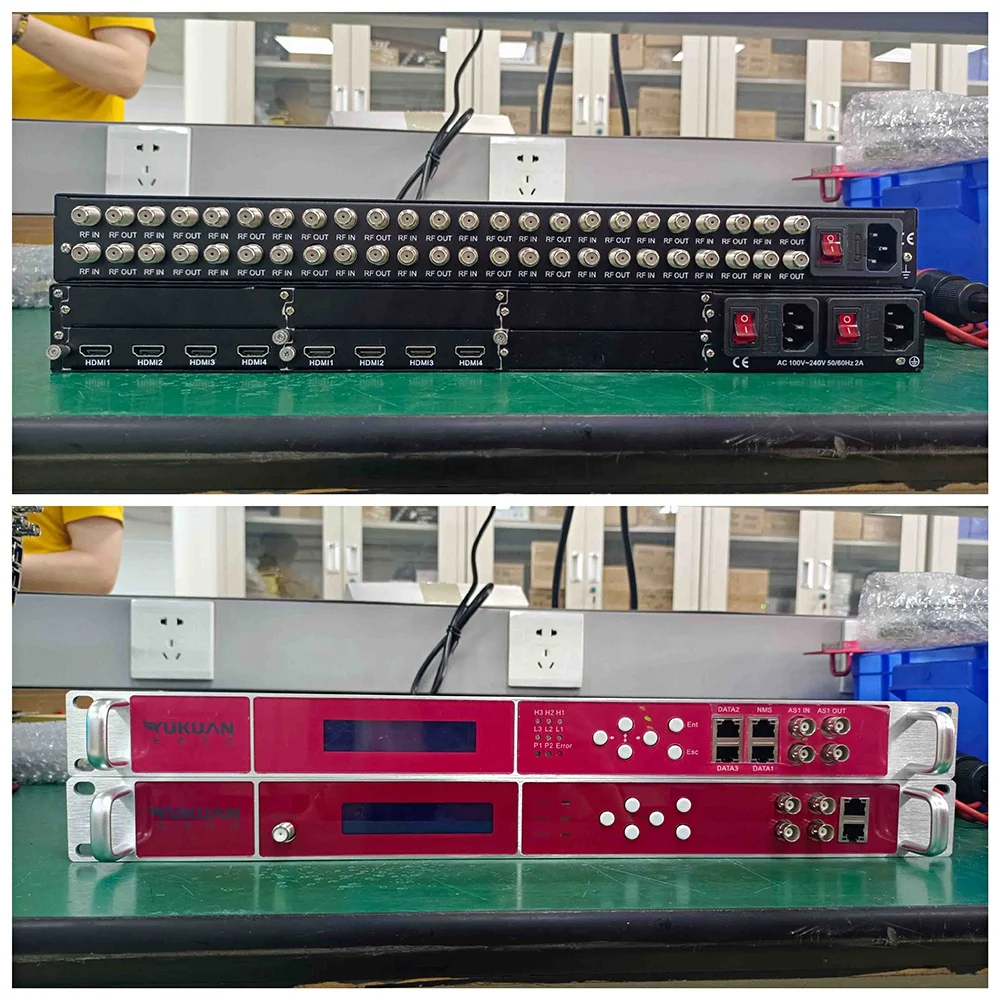

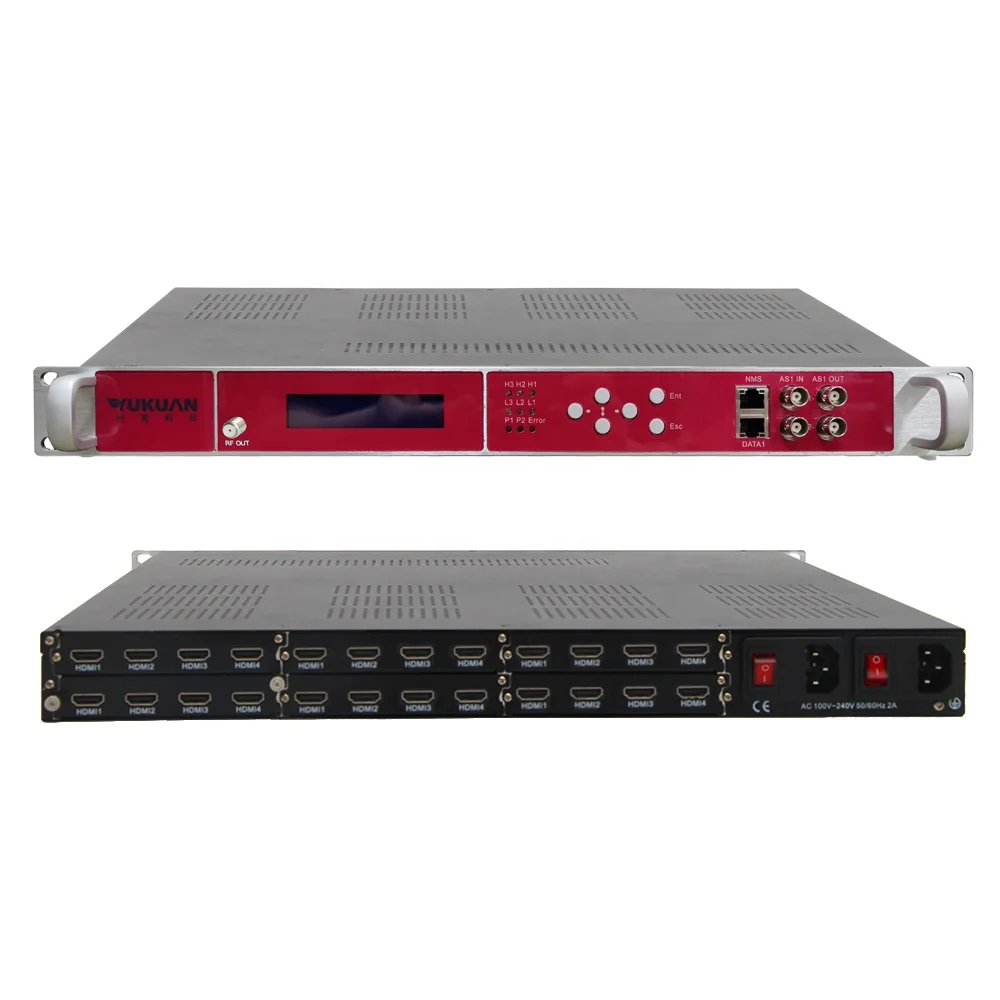

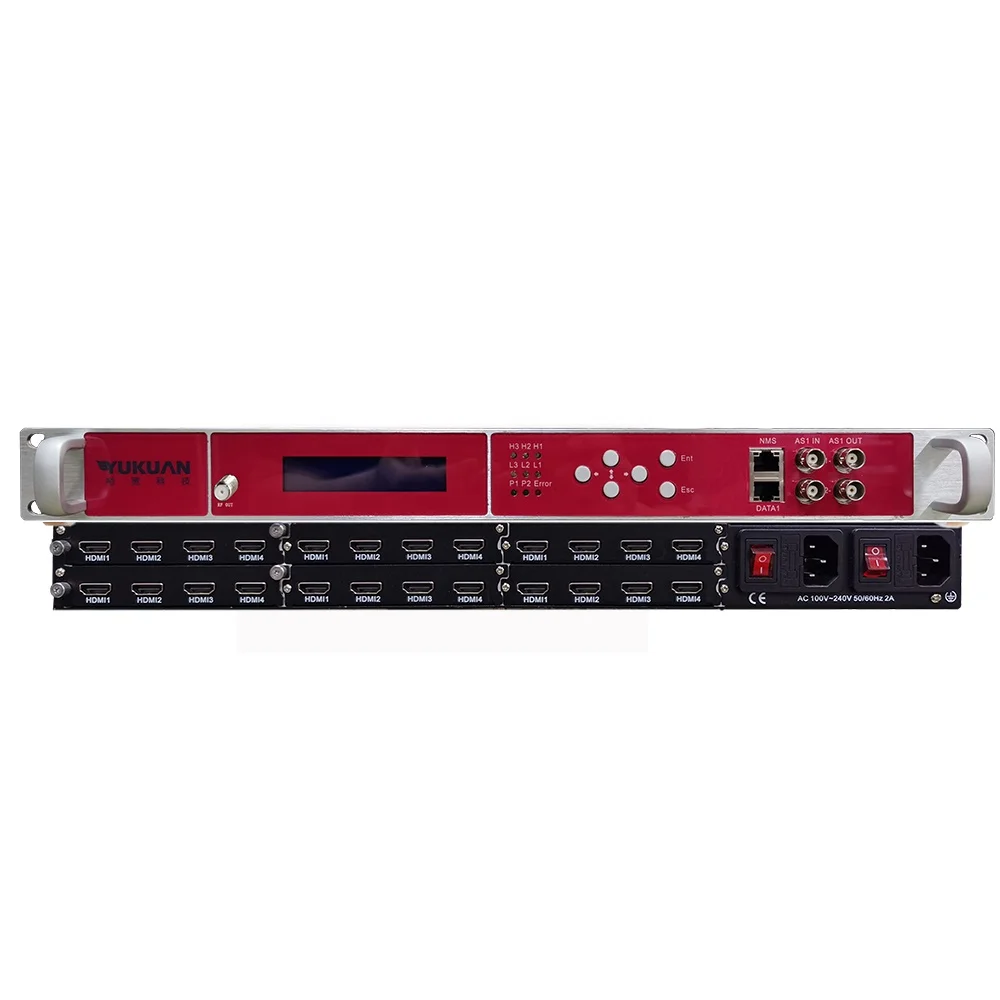

24 in 1 HD MPEG4 HD MI to Tuner ISDBT DVBT DVBC QAM IPTV Encoder Modulator




Product Overview

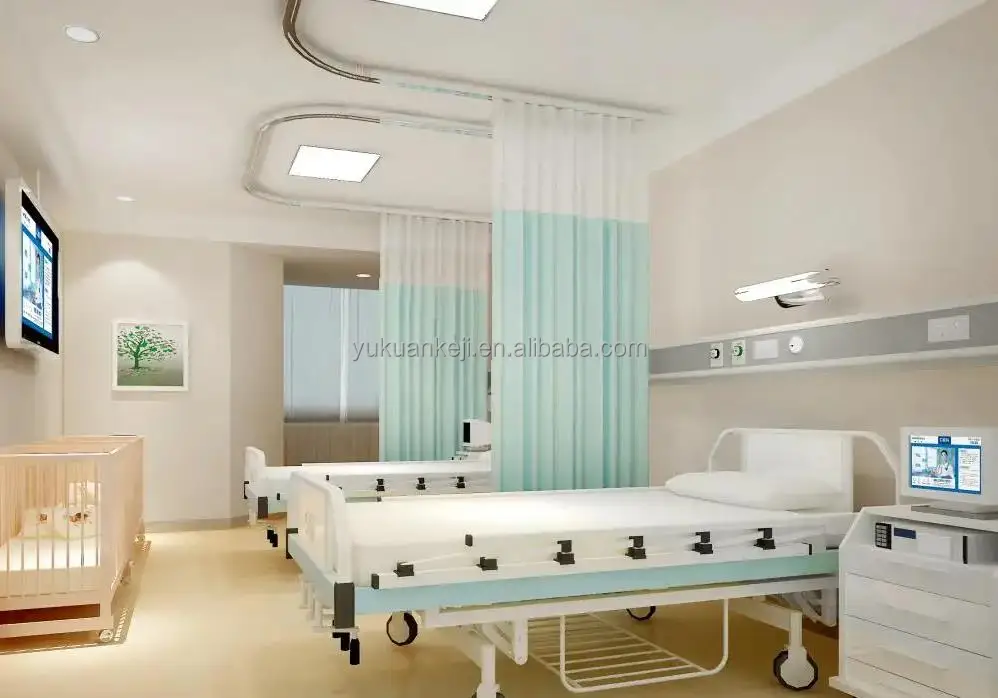

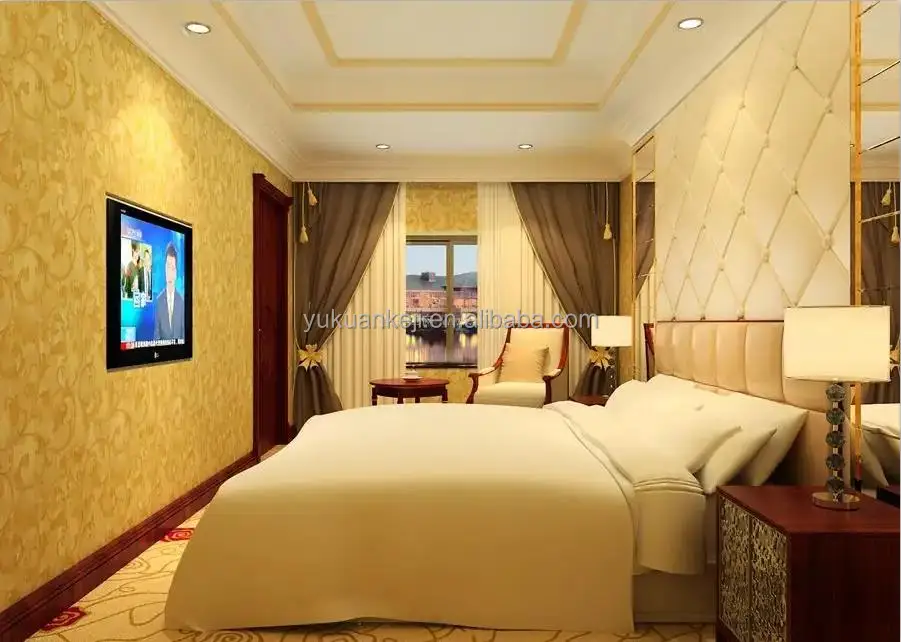

YUK800-1 is the latest cost-effective device integrating encoding multiplexing and modulation. It supports 4 / 8 / 12 / 16 / 20/24 channels HDMI input, 1 channel Gigabit IP input / output, 4 or 8 single carrier output (ATSC, ISDBT, DTMBT, DVB-C/-T),4 MPTS IP output, 128 SPTS IP output and 128 (MPTS & SPTS) IP input. With high integration, great performance and low cost, it integrated a complete headend system function. The device is widely used in digital TV transmission systems such as hotels, clubs, hospitals etc.


Product Feature


* Support 4 / 8 / 12 / 16 / 20 / 24 channels HD-MI input

* Support 1 Gigabit IP input/output, 4 MPTS 128 SPTS output, UDP/RTP protocol (multicast)

* Support 4 or 8 carrier different carrier modulation (ATSC,ISDBT,DTMBT,DVB-C,DVB-T) selection output

* Support 2 ASI input, 2 ASI output separately

* Support MPEG-4 AVC/H.264 encoding, support both CBR and VBR encoding

* Support LCD display and button operation

* Support web network management

* Support online upgrade

* Support OSD function

* Support subtitle scrolling, image and QR code overlay, add LOGO letters and symbols, etc.

* Support display anywhere on the TV screen, adjustable coordinates 720X576, font size, color resolution adjustable

* Support picture and text timing display function, multiple pictures can be displayed in turn


Specification


Input
4/8/12/16/20/24 channels HD-MI input
2 channels ASI input
1 Gigabit IP input, 128 SPTS & MPTS IP input
Output
RF output 4 or 8 frequency (DVB-C/DVB-T/ATSC/ISDBT/DMBT)
2 channels ASI output
1 Gigabit IP output, 4 MPTS 128 SPTS IP output, UDP RTP protocol
Video Encoding
Encode Format
MPEG-4 AVC/H.264
Rate Mode
VBR,CBR
Input
HD-MI
Input Resolution
1920×1080P/1920×1080i/1280×720P/720x576i/
720x480i@50/59.94Hz
Output Resolution
1920×1080_25P_30P_50P_60P
1280×720_25P_30P_50P_60P
720×576_25P,720x480_30P
Audio Encoding
Code Rate
1Mbps~13Mbps（each channel)
Rate Mode
CBR
Encode Format
MPEG1 Layer2, LC AAC, HE AAC, HE AAC+
Sample Rate
44.1KHz,48KHz
Bit Rate
32kbps, 48kbps,64kbps ,128Kbps,192kbps,256kbps,320kbps, 384kbps
QAM
Modulation Standard
EN300 429/ITU-T J.83A/B/C
Symbol Rate
5.0~7.0Msps, 1ksps step
Modulation Constellation
16, 32, 64, 128, 256QAM
External Code
RS(204,188)
ISDBT
Modulation Standard
ARIB STD-B31
Transmission Mode FFT
2K
Modulation Constellation
DQPSK, QPSK, 16QAM, 64QAM
FEC
1/2, 2/3, 3/4, 5/6, 7/8
Hierarchical Mode
A
Bandwidth
6M,7M,8M
DVB-T
Bandwidth
6M,7M,8M
Guard Interval
1/32, 1/16, 1/8, 1/4
Modulation Constellation
DQPSK, QPSK, 16QAM, 64QAM
FEC
1/2, 2/3, 3/4, 5/6, 7/8
MER
≥40dB
General
Power
AC100~240V，50/60Hz
Power Consumption
<90W
Temperature Range
0~45℃(operation), -20~80℃(storage)
Dimension
482mm×410mm×44mm
Weight
4-8kg(4-ch to 24-ch)

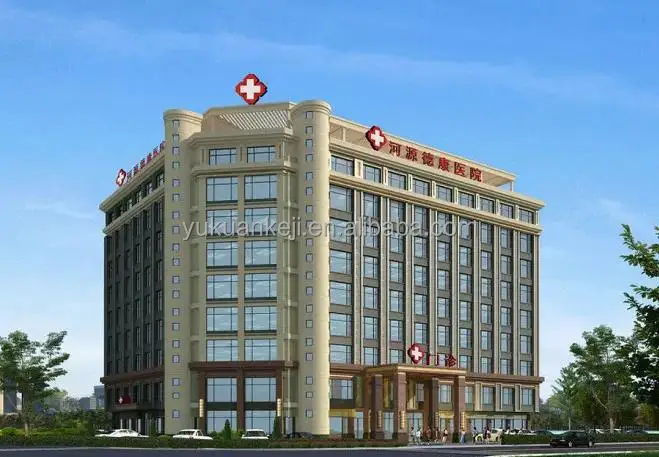

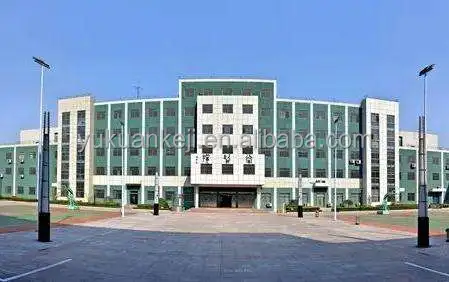

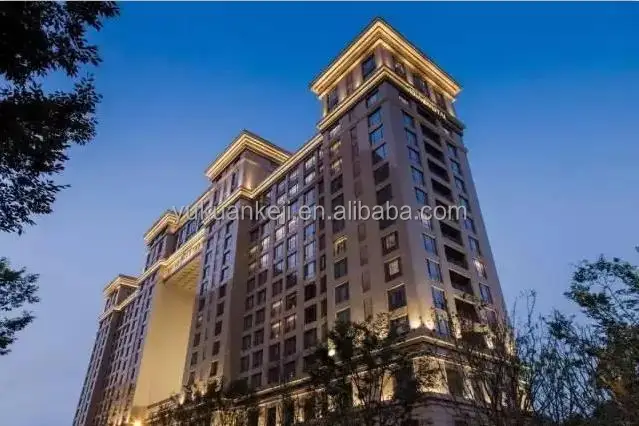

Project Case
























To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
