KT 618 Complete Ladies Plastic PVC Injection Shoe Making Machine
- Category: >>>
- Supplier: Dongguan Kingtour Technology Co. Ltd.
Share on (1600510754937):
Product Overview
Description
Product Overview

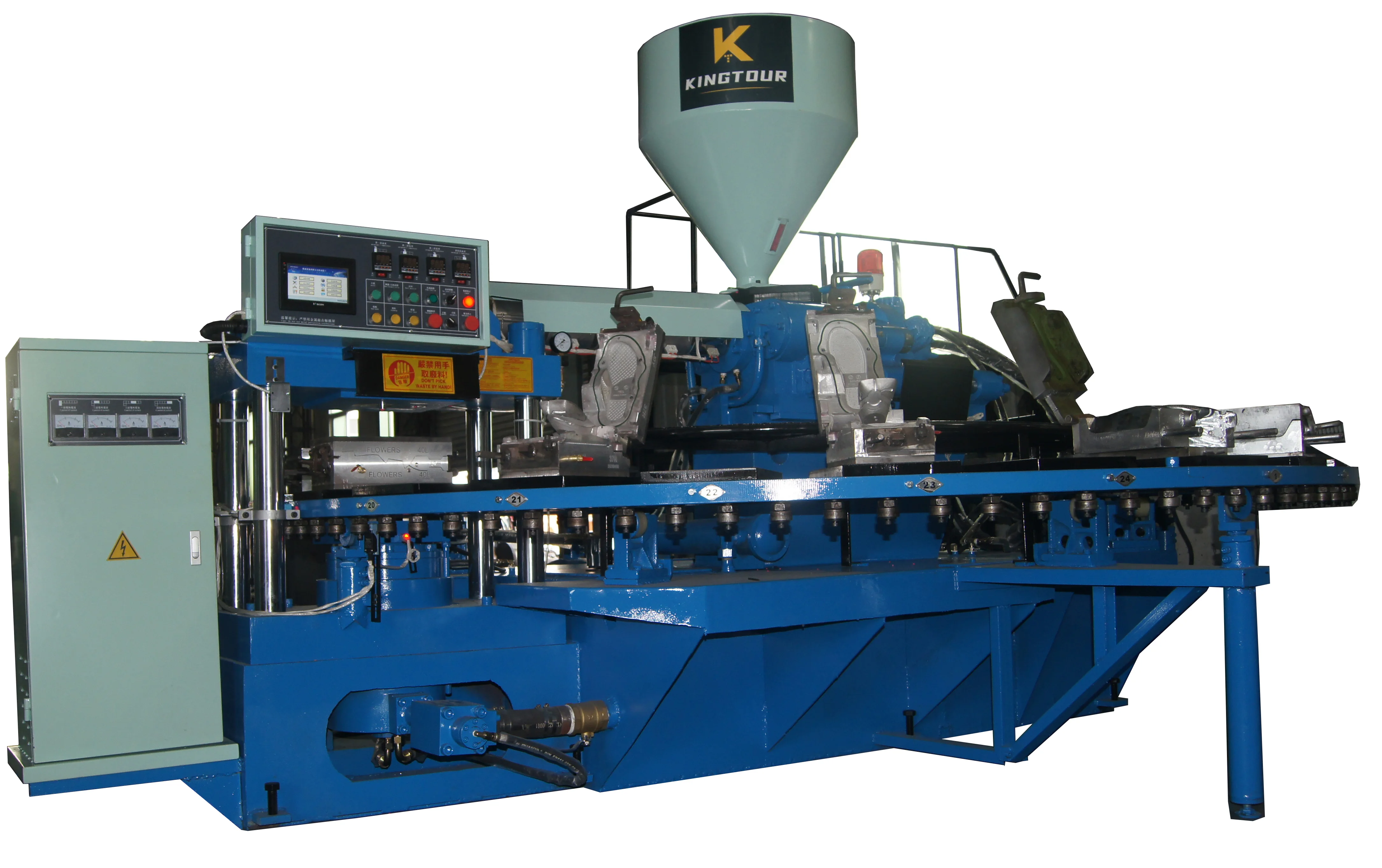

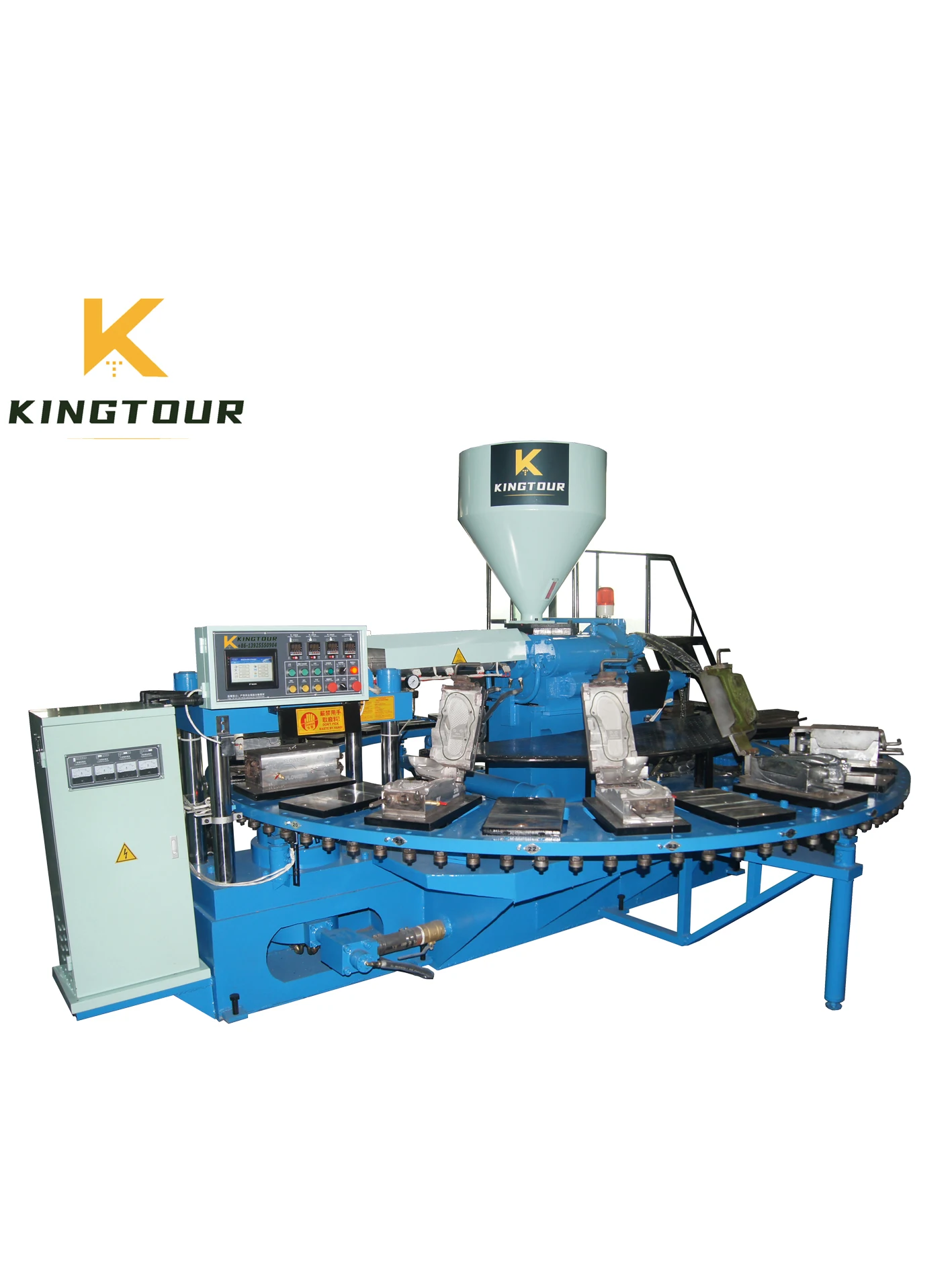

KT-618 Plastic Shoe Making Machine Production Line
It only need 100 square meters and 2 workers, then you can start to make slipper sandal flip flop and shoe.
Product: Specialized in the production of full plastic slipper sandal shoe flip flop and sole etc.
Applicable material: Compact and expanded thermoplastic material, such as PVC PCU and TPR.
Applicable material: Compact and expanded thermoplastic material, such as PVC PCU and TPR.
1. Computerization in analysis and design,the machine is well in stability.
2. The machine is controlled by PLC automatic control system and touch screen operation.Operation system has different language for different customer, such as English, Spanish, Portuguese and Vietnamese etc.
3. Conformed to human engineering in design, it features operational compatibility.
4. Number of various stations may be optionally chosen for small quantity but greater in variety, or mass production.
5. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.

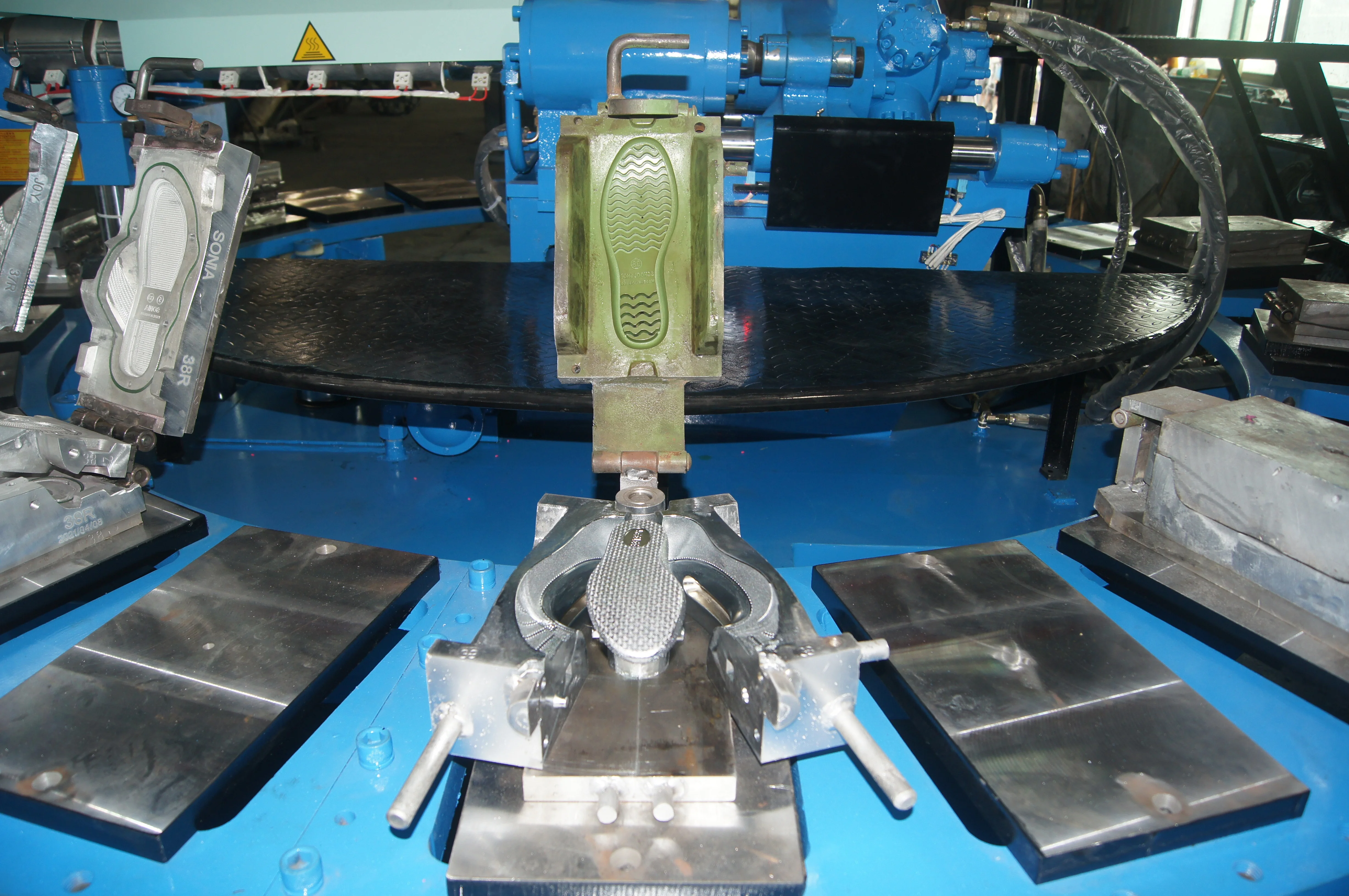

6. The multi-station mechanism is suitable for numerous molds to work in production line. It saves the time for the mold-change and extends the length of cooling time. The working efficiency is highly enhanced.
7. Specially designed, the oil pressure circuit board is simple in structure. The function description of various switches is clearly indicated.
8. It could be equipped with air blowing system and can produce light weight.
9. All new model,2 color machine only need one worker for operation.
10. Using different clamping force of 80T/100T/120T for different design and material, to achieve the best quality of product.
FEATURES AT A GLANCE
Specification of slipper making machine
Model: KT-618
Production: 300-440 Pcs/Hour
Work station: 24 Station
Clamping force: 80/100/120 Ton
Screw diameter: 65 mm
Max. Injection volume: 650-1000 cm3
Heating power: 7 kw
Motor: 18.5 kw
Servo motor:15.7 kw
Power consumption: 12-15 kw/h
Temperature control: 4 section
Machine dimension: 4500*3800*2350 mm
Machine weight: 5900 kgs
Loading into a 20 feet container
Down elevation
Left elevation
Front elevation
Machine Video
Finished samples
Flip flop sample produced by our machine
You can send me your ideal design to us, we can customized the mold with your logo and other requirements.
Slipper sample produced by our machine
We have more than 10,000 designs in our sample room, please contact me for more designs.
PRODUCT CONFIGURATION
PLC+Full-touch screen operation
Imported control valve
Power saving of servo system
CONTAINER LOADING
CONTAINER LOADING
We have shipped our machine to many many countries and cooperate with our customer all the time.
Certificate
SALES AND SERVICE NETWORK
