Product Description

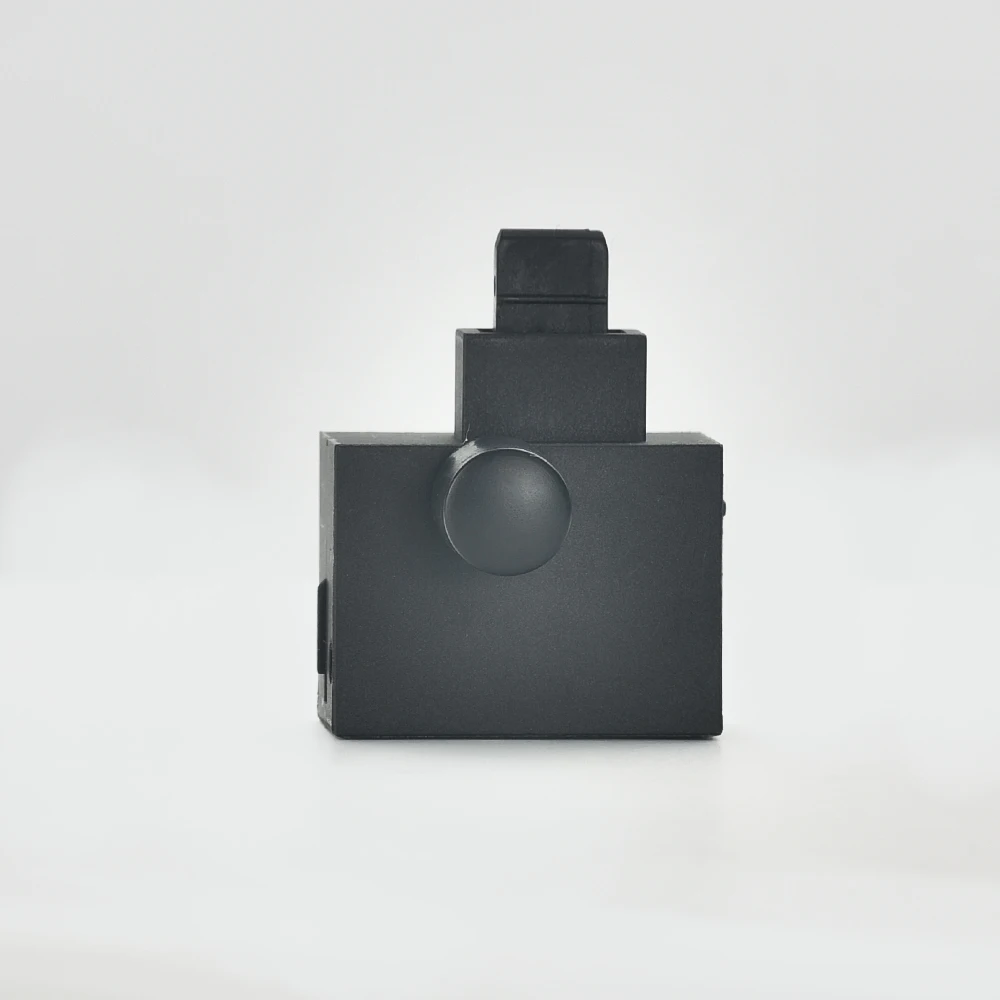

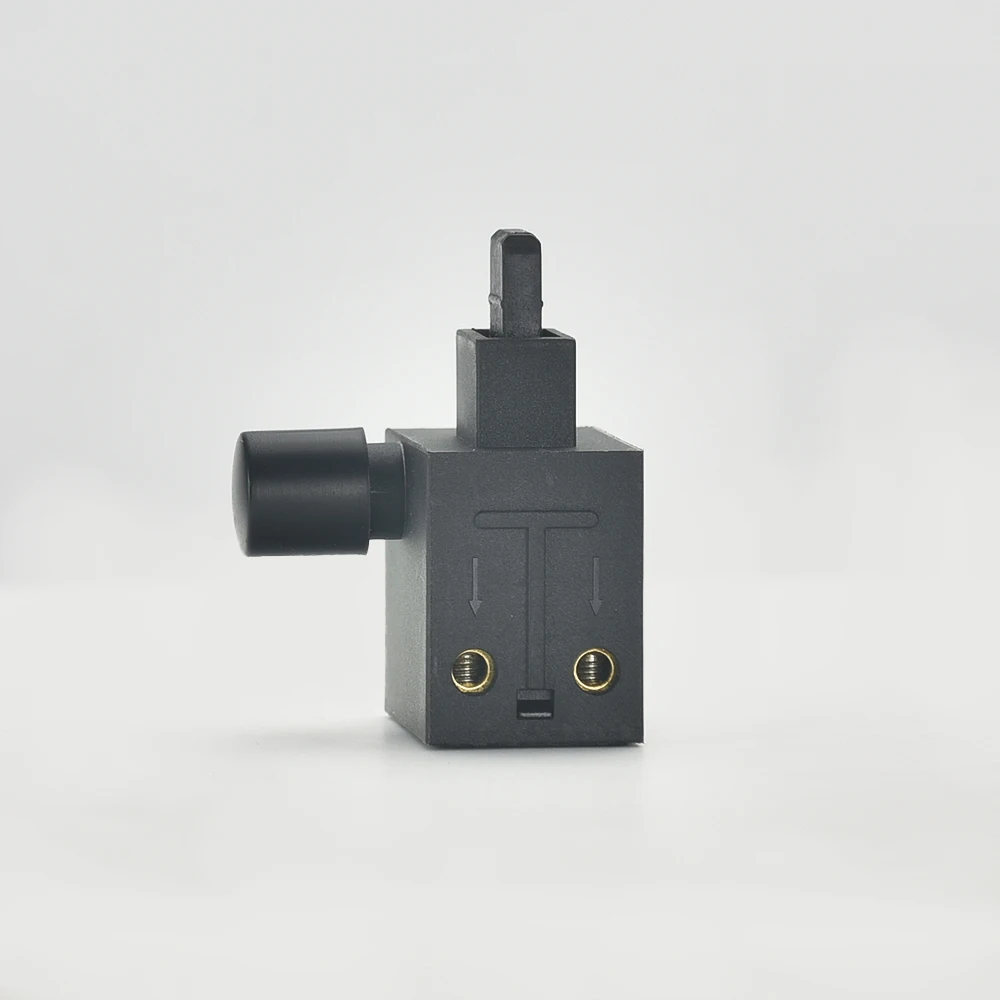

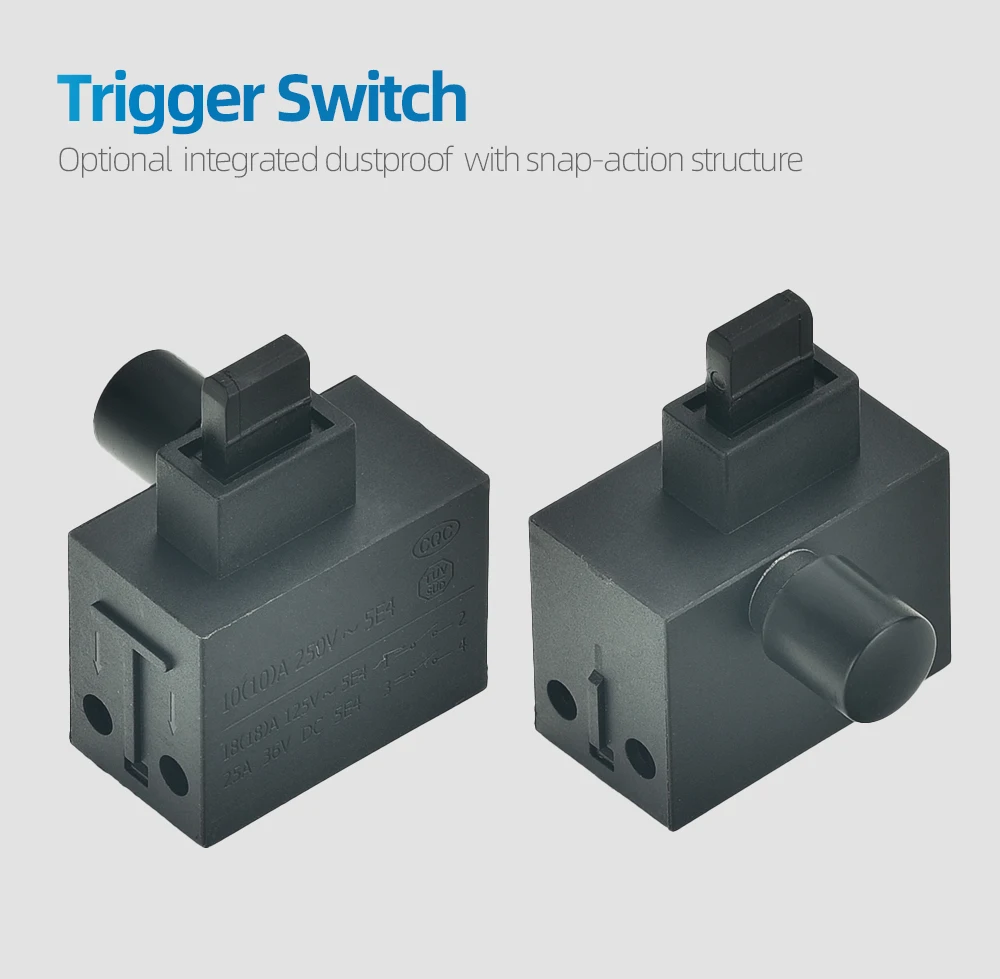

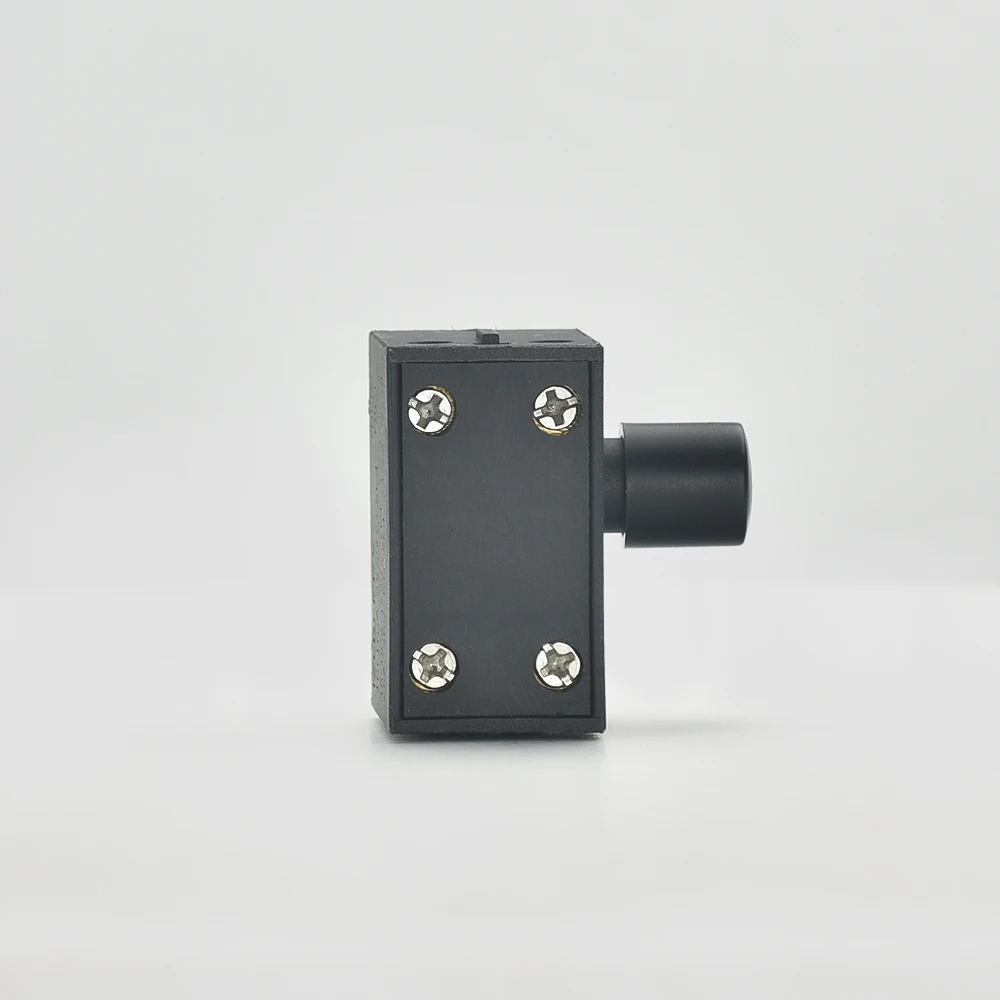

TS 07 series are one general type trigger switch, with snap-action structure,optional integrated dustproof, for used in power-tools and gardening tools such as Electric Mixers, Circular Saws,Jig Saws, Polishers Grinders, Electric Planers, Rotary Hammers,Demolition Hammers, Miter Saws,Cut-off Machines, ElectricChain Saws, Electric Lawnmowers, etc.
| Features | |

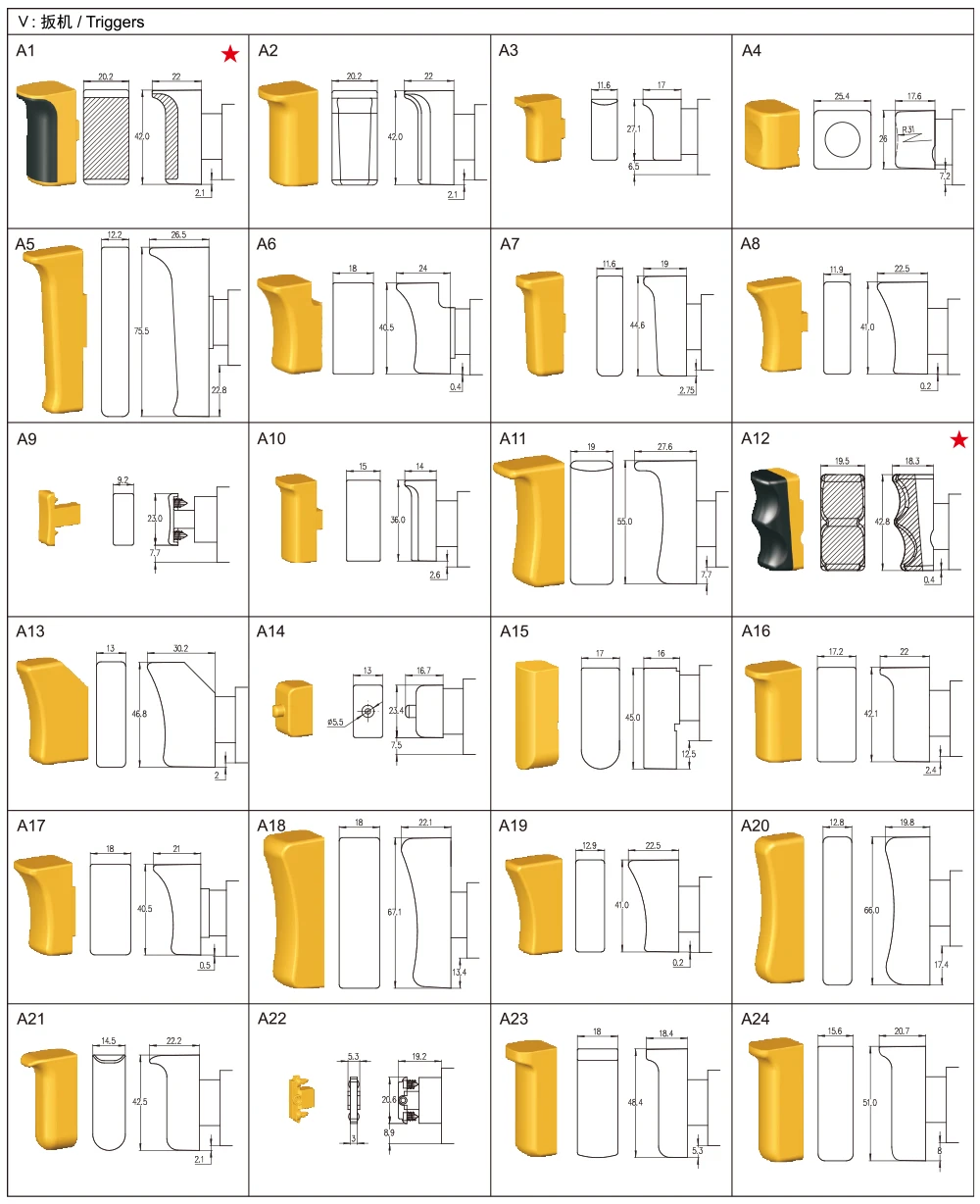

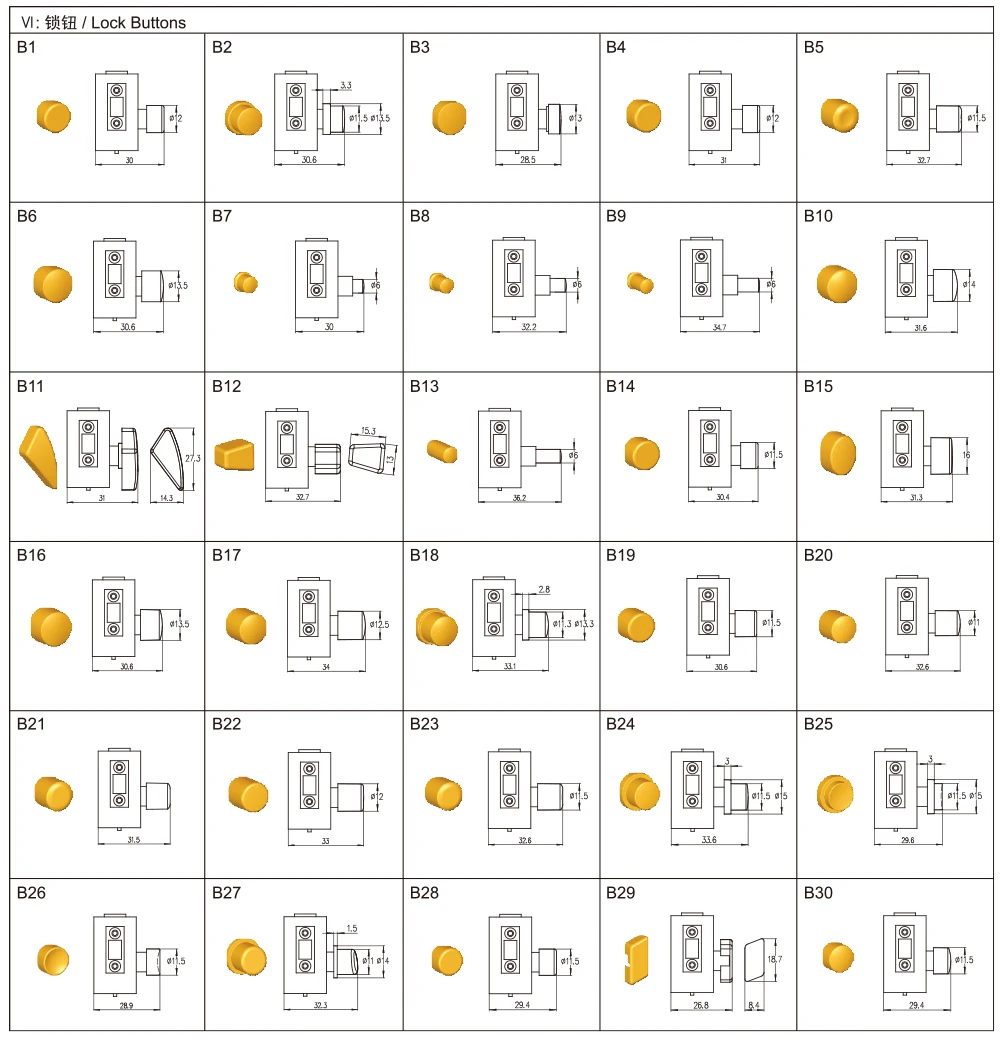

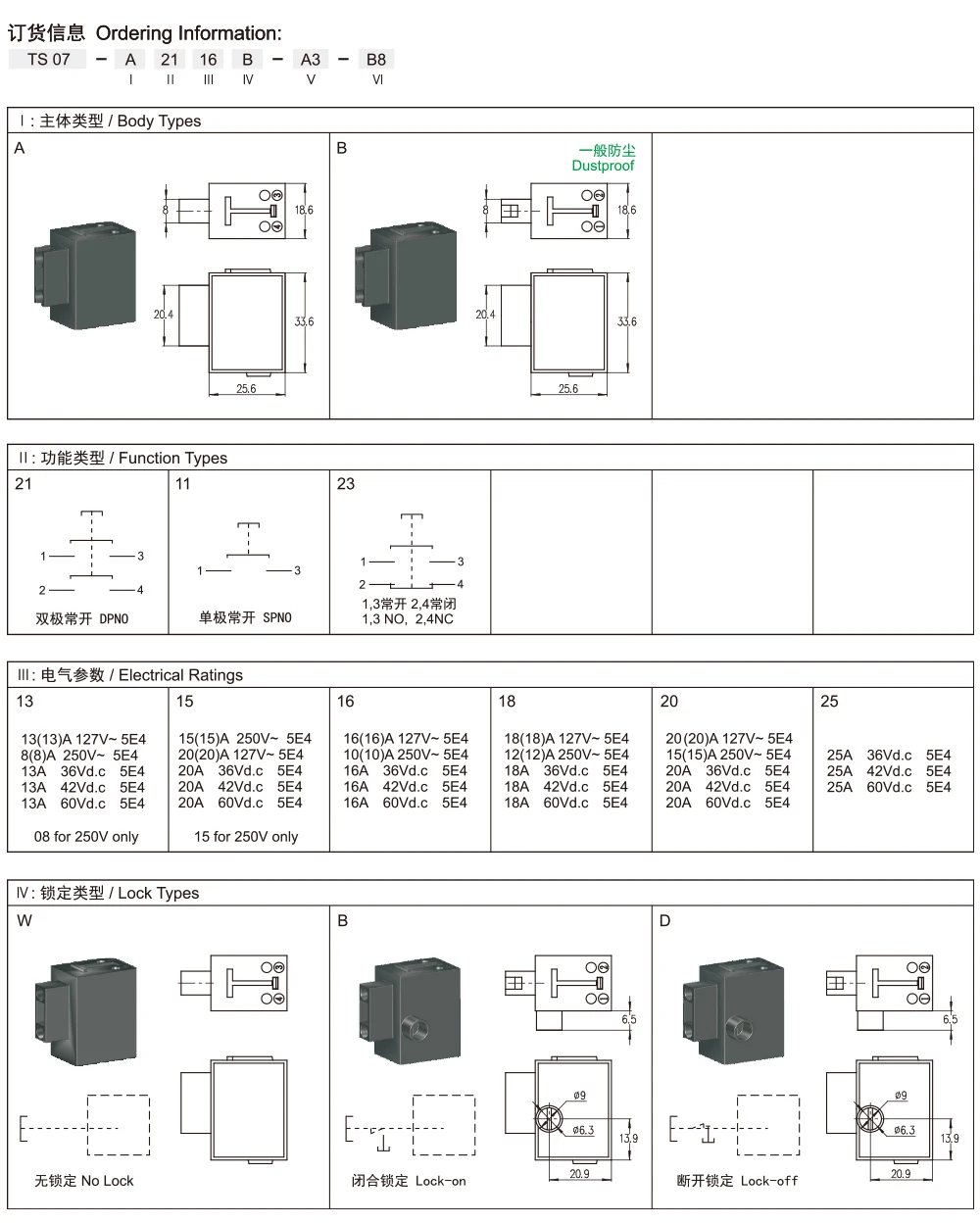

Optional with following lock types: | → No lock → Lock-on → Lock-off |
Optional with the accessories as follows: | DPNO SPNO |

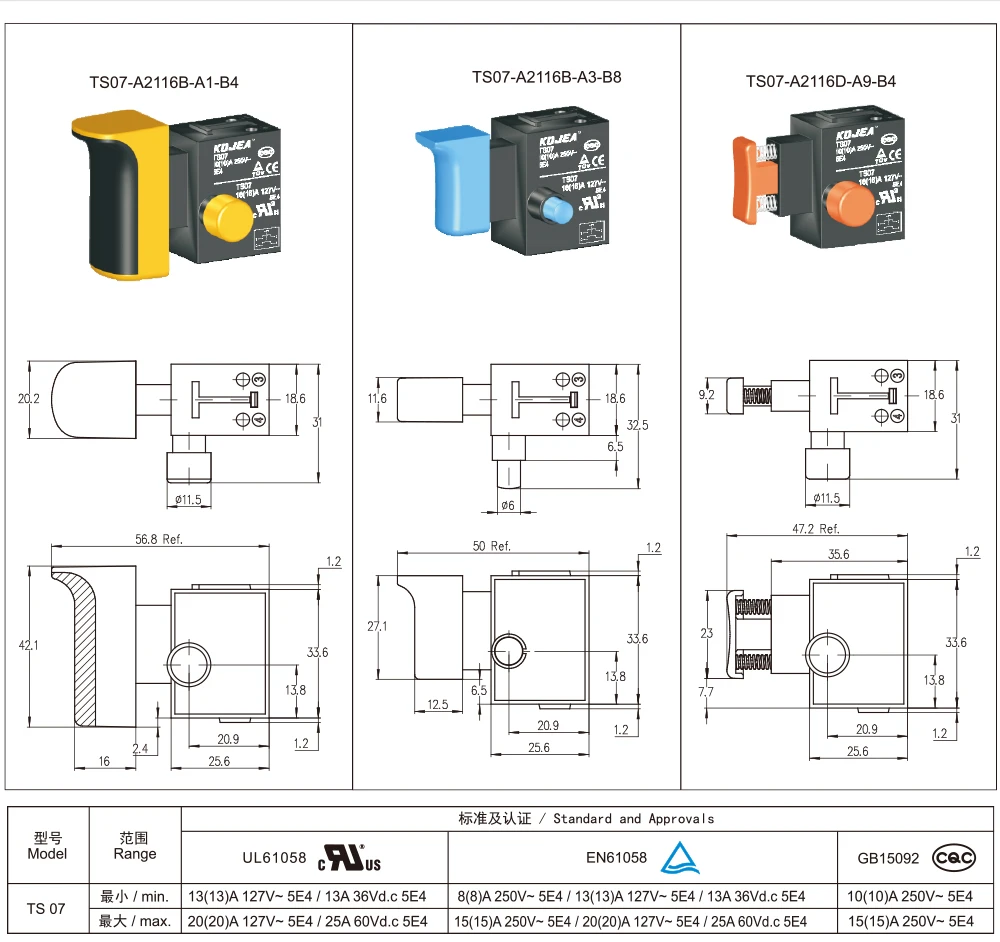

| Technical data | |||
Mechanical life endurance | ≥1E5 | Electrical life endurance | ≥5E4 |
Max.Inrush current at 250V | 90A | Max.Inrush current at 127V | 120A |
Contact resistance | ≤30m Ohm | Insulation resistance | ≥7M Ohm |
Dielectric strength of function | 1500V | Dielectric strength of reinforced | 3000V |
Ambient temperature | 0℃~55℃ | Flammability | UL 94V-0 |
Protection type | IP40 | Suitable for appliances of protection class II | |
| Terminals | |
Input side/Output side | Pillar terminals =3.5mm |
