China Supplier 90 Degree Wear Resistant Corrugated Cleated Sidewall Belt Conveyor
- Category: >>>
- Supplier: Henan Green Eco-Equipment Co. Ltd.
Share on (1600510773681):
Product Overview
Description

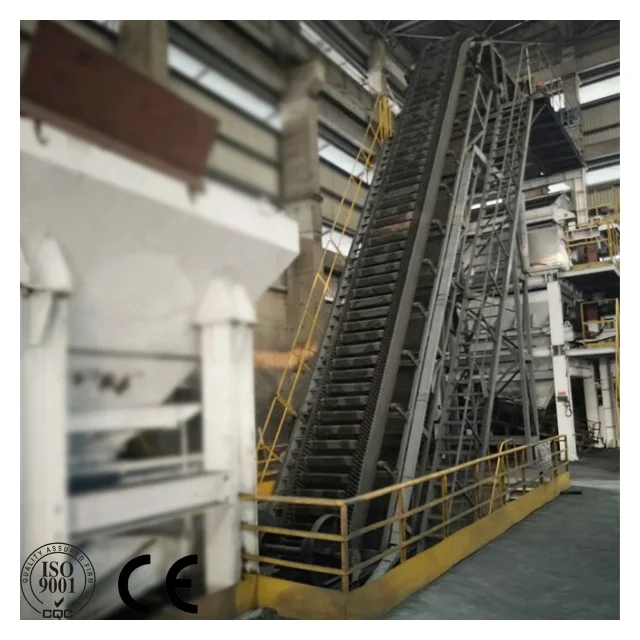

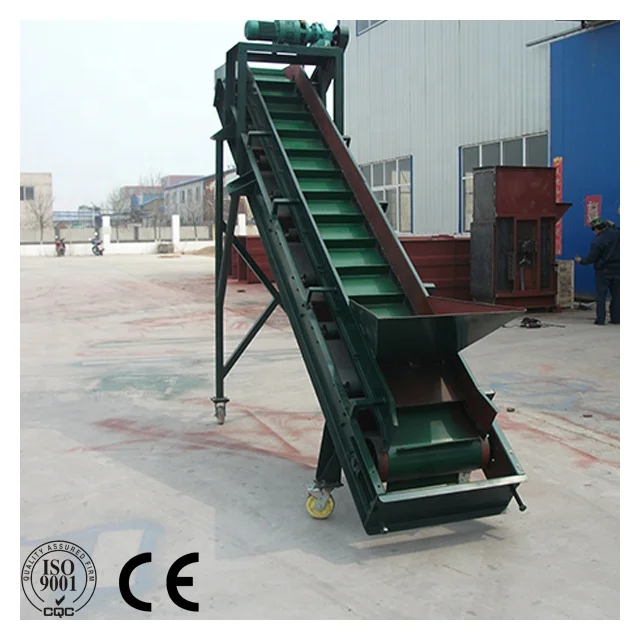

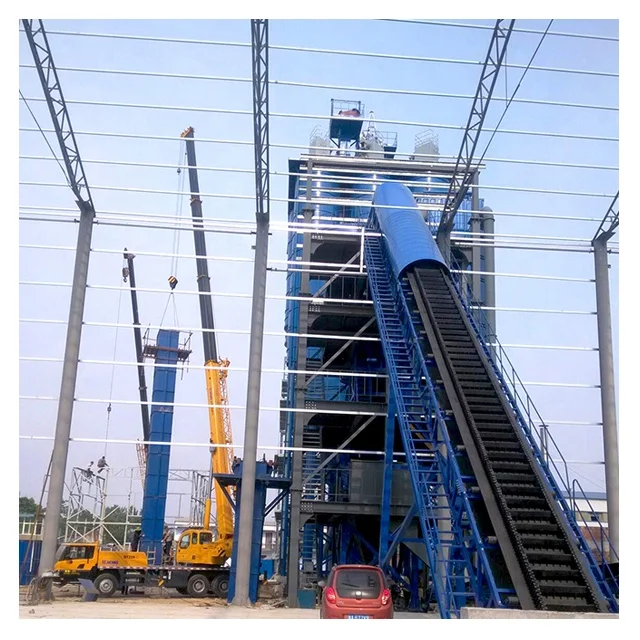

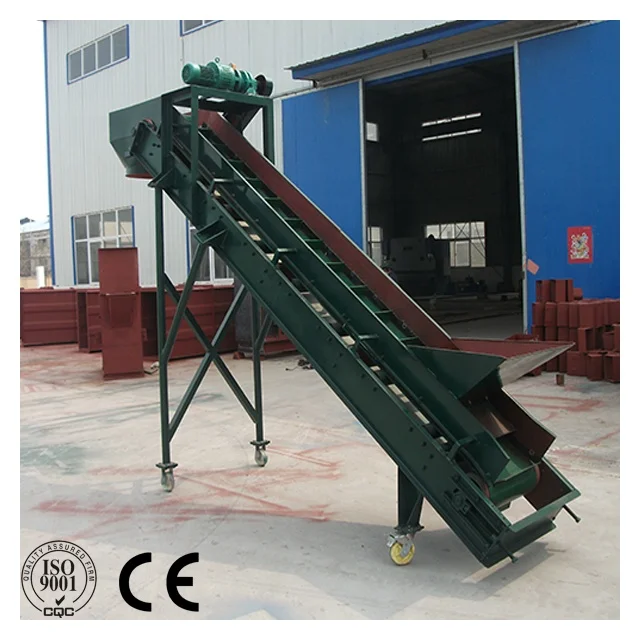

China Supplier 90 Degree Wear Resistant Corrugated Cleated Sidewall Belt Conveyor
Sidewall belt conveyor (also called large dip corrugated belt conveyor) with a large inclination (90 degrees vertical) transport. So that it is ideal equipment for achieving large angle conveying. Widely adopted in underground mining projects, open pit mining, large dump trucks and other parties.
Sidewall height | Cleat pitch | Slant angle | ||||||
30° | 40° | 50° | 60° | 70° | 90° | |||
mm | mm | mm | Capacity(m3/h) Speed of belt=1m/s | |||||
500 | 120 | 252 | 52 | 40 | 32 | 26 | 21 | - |
160 | 378 | 65 | 52 | 42 | 34 | 28 | 17 | |
650 | 120 | 252 | 78 | 60 | 48 | 39 | 32 | - |
160 | 378 | 73 | 56 | 45 | 36 | 30 | - | |
800 | 120 | 129 | 99 | 76 | 60 | 49 | 40 | - |
200 | 378 | 148 | 114 | 91 | 74 | 61 | 37 | |
1000 | 160 | 378 | 129 | 99 | 79 | 64 | 52 | - |
240 | 504 | 229 | 176 | 141 | - | - | - | |
1200 | 160 | 252 | 223 | 180 | 144 | 117 | 96 | 59 |
240 | 378 | 342 | 280 | 224 | 183 | 149 | 91 | |
1400 | 200 | 252 | 299 | 231 | 185 | 151 | 123 | 75 |
240 | 378 | 422 | 345 | 276 | 225 | 184 | 113 | |
Sidewall Belt Conveyor is always used to avoid material spilling. This system can work at a large slope from 0 to 90 degrees, and allow heavy load material conveying. It can be widely used in harbor, mining, food industry and cement works, etc.
We have a group of professional research, engineering, production, sales and after sales service team serve all around the world clients. Companies to provide a full range of screening, crushing and conveying equipment, which involves vibrating screen, belt conveyor, bucket elevator, screw conveyor, scraper conveyor and related spare parts. What's more, We always work with world-class suppliers to ensure the quality of our products, including ABB, SEW, SIEMENS, etc.
1. Are you factory or trading company?
We are 15+ years manufacturing experience conveyor factory
2. Do you provide design for us?
Yes, we will provide engineer design service before order
3. What's the delivery time?
15-25 days
4. Do you provide installation service?
Yes, we will send our engineer go to your working site to guide installation and commissioning.
5. Payment terms?
TT, LC
