19 liter 5 gallons mineral pure water bottle filling machine bottling equipment line
- Category: >>>
- Supplier: Zhangjiagang,City,Xinmao,Drink,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Xinmao Drink Machinery
Zhangjiagang Xinmao Beverage Machinery Co., Ltd. is a professional manufacturer integrating research, development, and production of various water, juice, soda, and can beverage machinery. The company has more than 15 years of production practice experience and absorbs advanced technology at home and abroad. Improve its own products and enjoy a high reputation among users.
Products Description

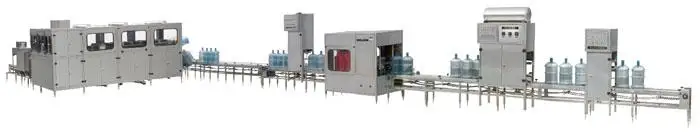

5 gallon PET bottle water filling machine

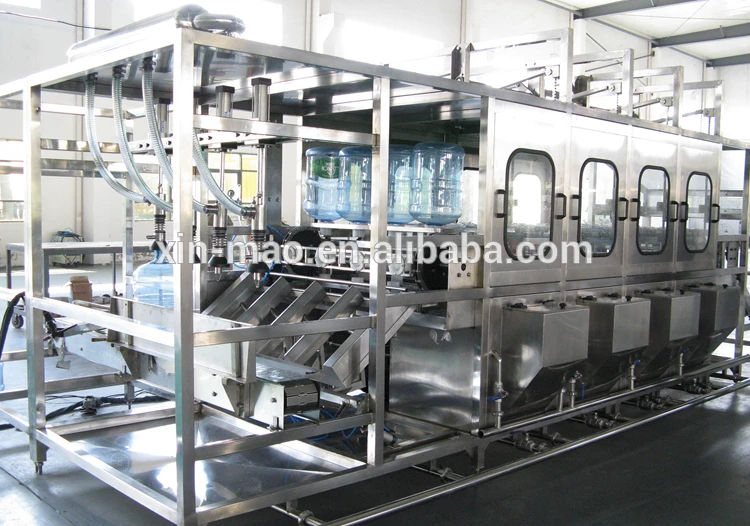

The main equipment of the five gallon bucket water filling machine is composed of frame, water tank, pipeline, water pump, cylinder, transmission, electrical appliances, etc., which can complete empty barrel flushing, filling and capping. Through multiple washing processes, quantitative filling, automatic capping, all actions of the production line of the five gallon bucket water filling machine are controlled by computer to achieve stable flushing effect, accurate filling capacity and density Sealing effect.
Details Images

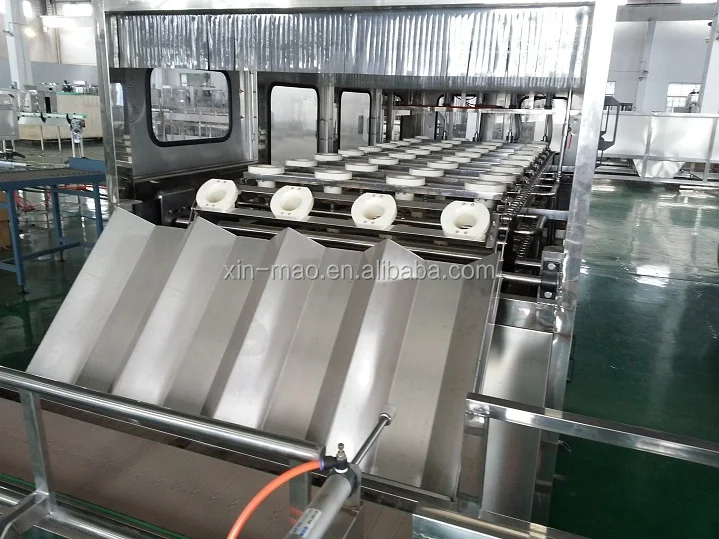

Bottle Washing Part
1. Uploading and dropping barrels changed from 45 degree to translatory which is more stable.
2. Washing nozzles can insert into 10-15 cm of the barrel in order to rinse impurities down. Rinsing pump is separately controlled by PLC.
2. Washing nozzles can insert into 10-15 cm of the barrel in order to rinse impurities down. Rinsing pump is separately controlled by PLC.
Bottle Filling Part
1. Liquid level difference is controlled within 1cm.
2. Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component, etc.
2. Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component, etc.
Bottle Capping Part
This device consists of cap sorter, cap falling channel, and cap pressing belt with motor. The belt adopts stainless steel 304, durable and wear-resistant, it can press caps tightly to bottle mouth.
Belt Conveyor For Full Barrel

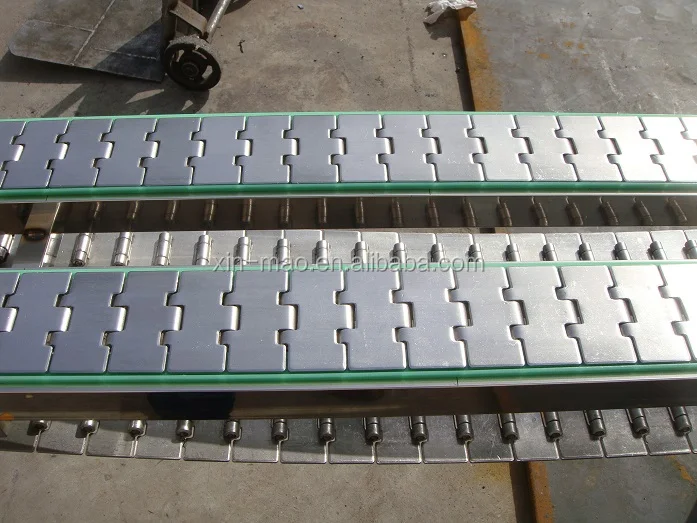

The chain plate on conveyor adopts stainless steel 304, which is specially suitable for full-filled 3-5 gallon bottle. The appearance of foot stand is perfect, and the height can be adjusted.
Product Paramenters
Model | QGF-100 | QGF-200 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | ||||||
Capacity | 100-150BPH | 200BPH | 300BPH | 450BPH | 600BPH | 900BPH | 1200BPH | ||||||
Washer Rows | 1 Row | 2 Rows | 2 Rows | 3 Rows | 4 Rows | 6 Rows | 9 Rows | ||||||
Filler Heads | 1 | 2 | 2 | 3 | 4 | 6 | 12 (Rotary) | ||||||
Capper Part | 1 Head | 2 Heads | SUS304 Belt Type Press Capping | 4 | 4 | 6 | 8 | ||||||
Container | PET / PC / PP Bottles (3- 5 Gallon) | ||||||||||||
Power | 1.38KW | 1.75KW | 3.8KW | 3.8KW | 7.5KW | 9.75KW | 13.5KW | ||||||
Voltage | 220V / 380V, 50Hz (Customizable) | ||||||||||||
Weight | 650KG | 800KG | 1500KG | 2100KG | 3000KG | 3500KG | 4500KG | ||||||
Recommend Products
Bottle labeling machine
PE film shrink wrapping packaging machine
Why Choose Us
Zhangjiagang City Xinmao Drink Machinery Co., Ltd.
Zhangjiagang City Xinmao Drink Machinery Co., Ltd. is located in Zhangjiagang City which is at the side of Yangtze River. Our company enjoys pleasant scenery and convenient transportation of land and water.Our company specializes in manufacturing various kinds of drinking machines. Recently, our company has imported the 90' advanced equipment from Germany. We have professional technicians for the research, design, development and manufacture.
XINMAO Workhouse
With advanced technology, superior quality products and perfect and efficient after-sales service, we offer consulting service of factory construction, installment and testing, technical training and technical reform of equipment.We regard "product quality" as the life of enterprise development.
Certificates
We have set up a strict quality inspection system. Our quality aim is "quality first, consumer supreme". We welcome customers both at home and abroad to cooperate with us.
Exhibitions
Our main products have: Water filling production line, juice filling production line, carbonated drinks production line, and also aerosol filling machine, 5 Gallon bottle filling production line, and all other auxiliary equipment.
