Пневматический штамповочный молоток TY17738, односторонний инструмент для маркировки удара для заготовки металла делает проверку быстрой и простой.

Product Overview

Description

MODEL	TY17738
MODEL NUMBERING DESIGNATION	1: Drilling Tools 7: Punchers 7: Stamping Tools 38: Character Size (Max 3/8”)
CURRENT	Pneumatic
CAPACITY	4mm,5mm,6mm,7mm,8mm,10mm(3/8")  Numbers and Letters Stamp
STAMP DIAMETER	12mm (1/2”)
AIR CONSUMPTION	6 CFM @ 90PSI
WEIGHT	2.5 kg (5.5 lb)
LENGTH	230mm (9 in.)
PUNCH FORCE	10 KN
APPLICATION	Steel, Aluminium, Brass, etc.
AIR INLET	1/4 in.
REC AIR HOSE	3/8 in.
SKU	358897

. .

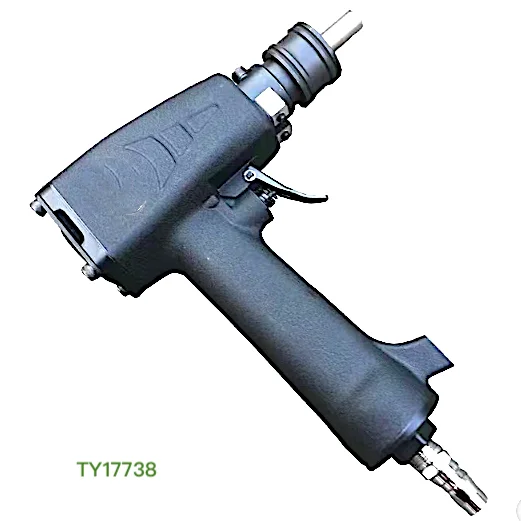

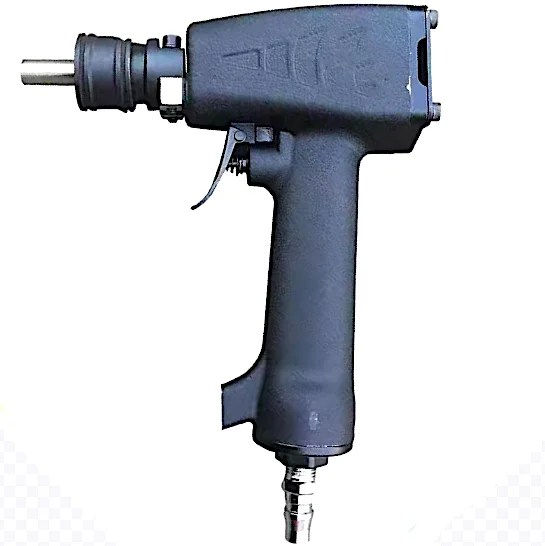

TY17738 Hand Held Single-Character Pneumatic Marking Tool Makes inspection marking quick and easy. This pneumatic stamping hammer is ideal for Stamping in billets or other cast metals. Easily installed and operated, it is built to withstand years of continuous use in mill environments.

• Clear, legible marking on hot or cold metals.

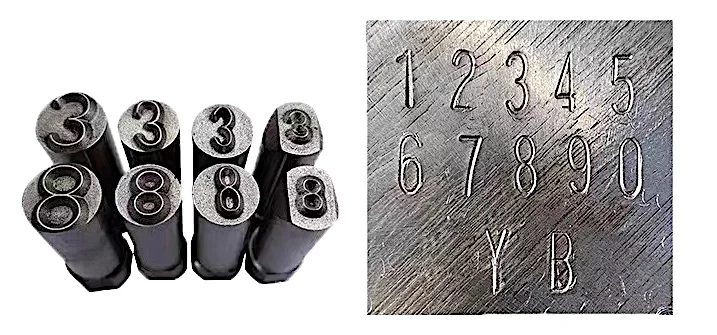

• Available in 1/2“ Diameter Stamp for stamping 3/8“ standard characters


• Suitable for steel, aluminium, brass, etc.


• Low noise and low recoil


• Quick, tool-free change of stamps

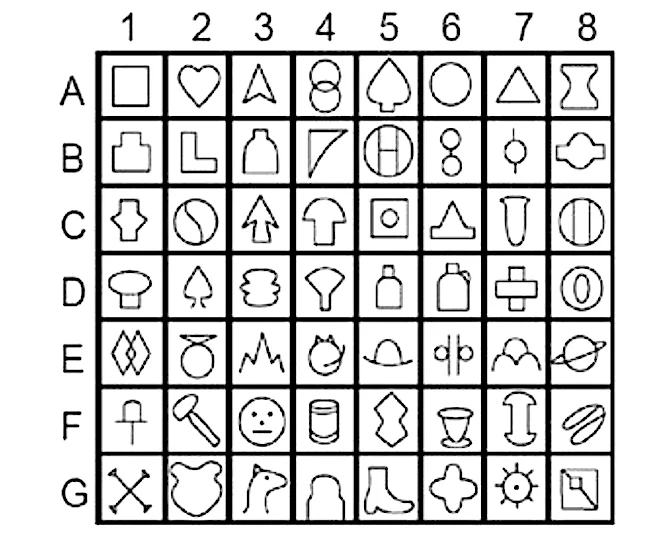

• Stamp, Letter A thru Z and Numbers #1 thru 9 is available, if you need other Welder & Inspector Symbols (Illustration as follows, please drop us a line)

Tarboya Catalog could be downloaded from www.tarboya.com

At Tarboya, we bring you only two things: great products and exceptional service. Whenever you are using your pneumatic tools , we make sure you have the technology you need to be safe and efficient. Tarboya supplies both Russia pneumatics and ordinary air tools. Our team, capable of designing, developing, CNC modification and production, supports multiple industries with innovative, high quality air tools and accessories for the most demanding applications. Tarboya’s export starts in Mid 2018, our Alibaba shop was incepted in 2019 but we   a-r-e   d-i-f-f-e-r-e-n-t !

Wait.. Are you kidding me? What the f**k Tarboya, you are only 2 years old and even do not know the ABCs of air tools.

Before 2018, we are doing inland sales. That is the point. Our production and marketing team have been in air tools line for more than 10 years. These backbones have in-depth knowledge and knows air tools very well.

You will find Tarboya owner’s manual, here in Tarboya we name it Passport, is not the simply exploded view or general safety rules translated by Google, but the detailed technical description and operating instructions accurately written.

We assure you only the best designs, materials and production methods are used to make the tools that carry the Tarboya Name.

Quality tool, favorable price, professional papers, swift after-sale service. These are the very four Tarboya wanna to put in your hand.

Tarboya warrants TY17738 Pneumatic Stamping Hammer will not have any material or manufacturing defects for the period of 6 months from the date of delivery. The warranty for flawless function of the goods and the materials used is granted for the period of 6 months from the date of delivery of the goods.

Tarboya undertakes to remove any possible defects covered by the warranty free of charge and without undue delay, so that the buyer of the goods can use the product properly. Should the buyer exercise rights arising form the liability for the defects which are not covered by the warranty, he/she shall pay all related costs.

Tarboya’s  warranty shall be deemed void in the event of:

• Improper use of the machine,


• Use contrary to national or international standards,


• Incorrect installation,


• Faulty supply of compressed air or its poor quality


• Serious deficiencies in maintenance,


• Unauthorized modifications and/or interventions,


• Total or partial non-compliance with the instructions included in the manual


• Exceptional events, natural disasters and others.
