Edible oil Sauce Peanut Butter Sauce Salad dressing Tomato sauce Honey Liquid packaging machine
- Category: >>>
- Supplier: Shenzhen Yason General Machinery Co. Ltd.
Share on (1600510812288):
Product Overview
Description
Product description
Automatic liquid packaging machine.
Main Features：
* The equipment is equipped with safety protection, in line with the requirements of enterprise safety management, All contact materials are 304 stainless steel or ABS food grade plastic;
* The equipment is equipped with safety protection, in line with the requirements of enterprise safety management, All contact materials are 304 stainless steel or ABS food grade plastic;
* The equipment can automatically complete the whole packing process of feeding, measuring, filling and bag making, date printing, air filling (exhaust), finished product transportation. And automatically complete the counting with high measurement accuracy and high efficiency;
* The equipment is controlled by PLC, man-machine interface, and touch screen operation is simple and intuitive;
* The packing machine adopts PLC control servo motor double film pulling, the sealing and cutting position adopts motor automatic correction device and color code tracking, accurate positioning, beautiful packaging, which maximizes the control precision, reliability and intelligence of the whole machine;
*Perfect automatic alarm protection function, reduce the loss to minimum and help to troubleshoot in time; * The filling and feeding adopts professional drip leakage prevention and throttling mode, which can effectively avoid the phenomenon of unfirm sealing;
* Diversified packaging styles: back sealing bag, gusseted bag, chained bag, punching bag, etc;
* Scope of application:edible oil, milk, sauce, seasoning, distilled water, tomato sauce, ice bag, etc.
Technical Parameters
Type | YTK-LS420 | YTK-LS520 | YTK-LS620 | YTK-LS730 | |||
Packing speed | 5-70bag/min | 5-65bag/min | 5-50bag/min | 5-45bag/min | |||
Film width range | 120mm-420mm | 160mm-520mm | 260mm-620mm | 260mm-730mm | |||
Bag size | (L)60-300mm (W)50-200mm | (L)80-350mm (W)70-250mm | (L)80-400mm (W)120-350mm | (L)80-470mm (W)120-350mm | |||
Bag type | Pillow bag, gusseted bags, perforated bags | ||||||
Film thickness | 0.04-0.09mm | ||||||
Air consumption | 0.8Mps 0.5m³/min | ||||||
Voltage | 3kW、220V、50Hz | 3.5kW、220V、50Hz | |||||
Machine size（L×W×H） | 1460×1050×1410mm | 1480×1130×1450mm | 1600×1300×1790mm | 1630×1400×1960mm | |||
Machine weight | 400kg | 480kg | 600kg | 700kg | |||
Packing capacity | 2.5L | 4.3L | 7L | 10L | |||
Application
* It is widely used in packing sweetened bean paste, lotus seed filling,fruit jam, Chinese watermelon jam, cheese, jam,
sauce,salad, lotion,semi liquid, and liquid.
* Equipped with input pump, the machine could automatically pack the products in high temperature that will improve the
productivity, decrease the cost, and avoid making the twice packing.
sauce,salad, lotion,semi liquid, and liquid.
* Equipped with input pump, the machine could automatically pack the products in high temperature that will improve the
productivity, decrease the cost, and avoid making the twice packing.

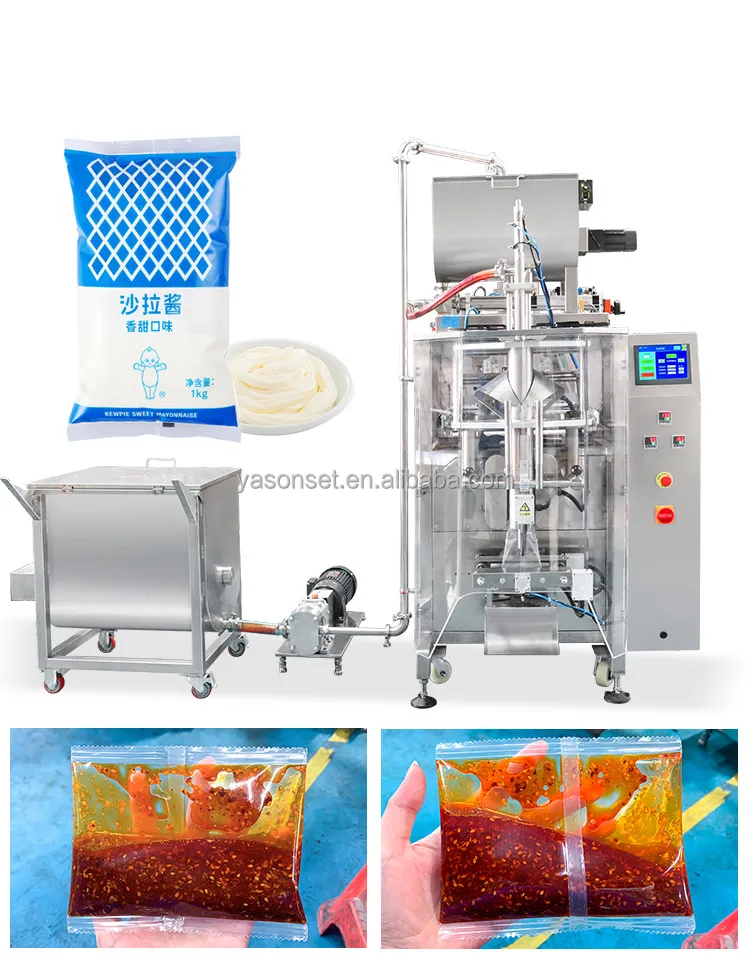

Machine Pictures
Product Detail
Touch screen controls.
Human-machine interface, multi-language switching, control of the whole machine through an intelligent system Parameters and adjustment of machine operation

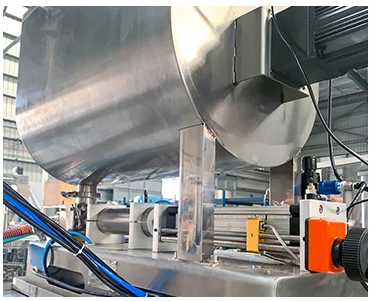

Dosing heads.
High filling accuracy, automatic dosing grams, automatic discharging

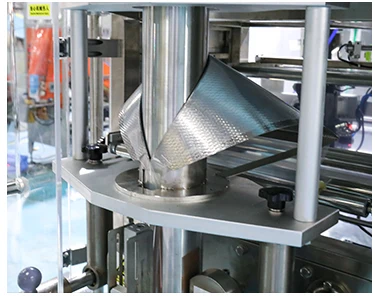

Custom formers.
Precision closure of the back seal by folding the collar into the bag shape

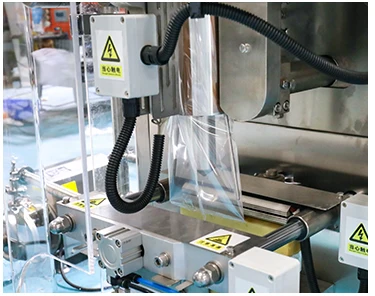

Longitudinal sealing device.
Bag sealing by thermostatic control Sealing by longitudinal sealing
Company Profile
Shipping Methods
FAQ
Q: Are you trading company or factory ?
A:Yes, We are manufacturer,so we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shipment.
Q:Can we send samples to test the machine?
A:Welcome to send samples for testing. No charge for non-customized products, 30% deposit is required for customized products.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
A:Yes, We are manufacturer,so we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 3-7 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shipment.
Q:Can we send samples to test the machine?
A:Welcome to send samples for testing. No charge for non-customized products, 30% deposit is required for customized products.
Q: Is there any installation direction after we received the machine?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
