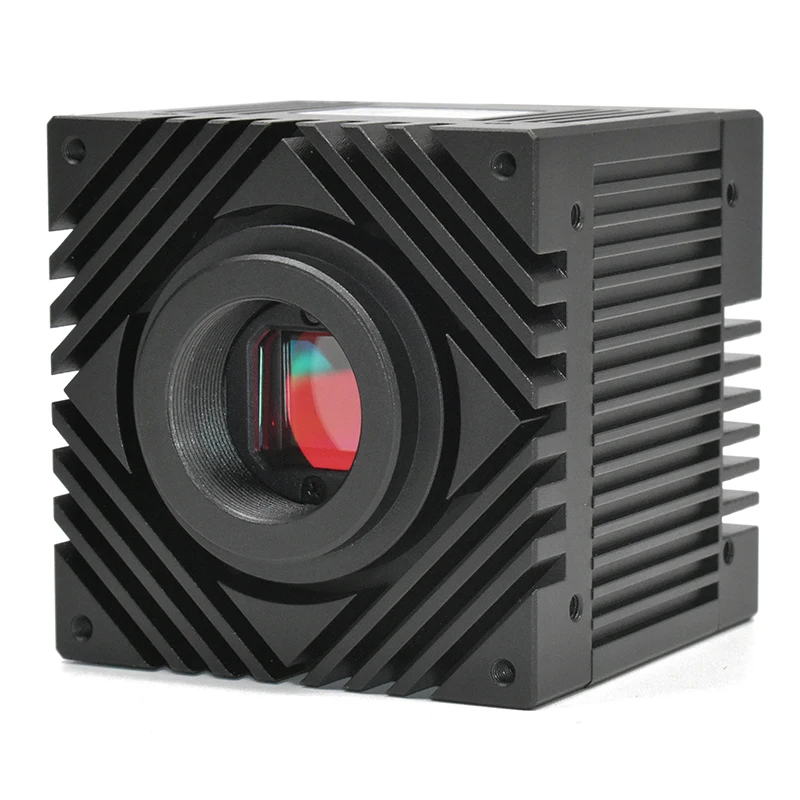

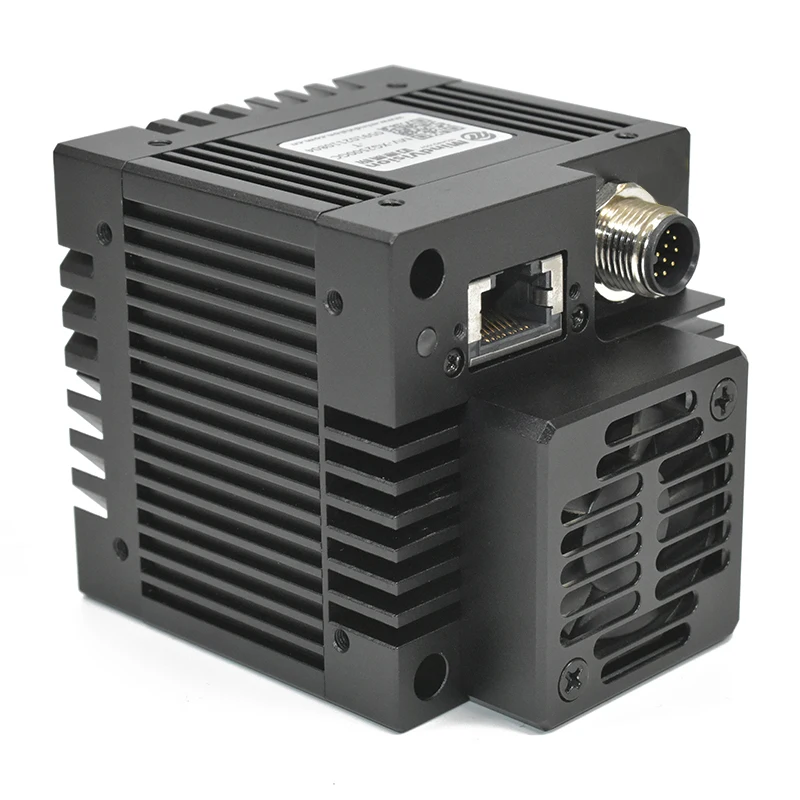

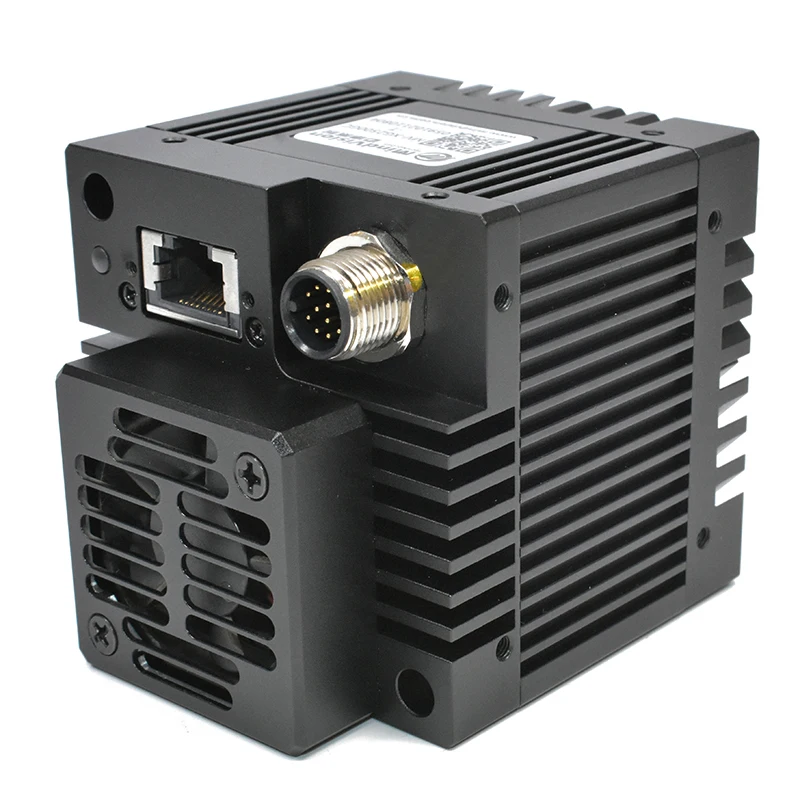

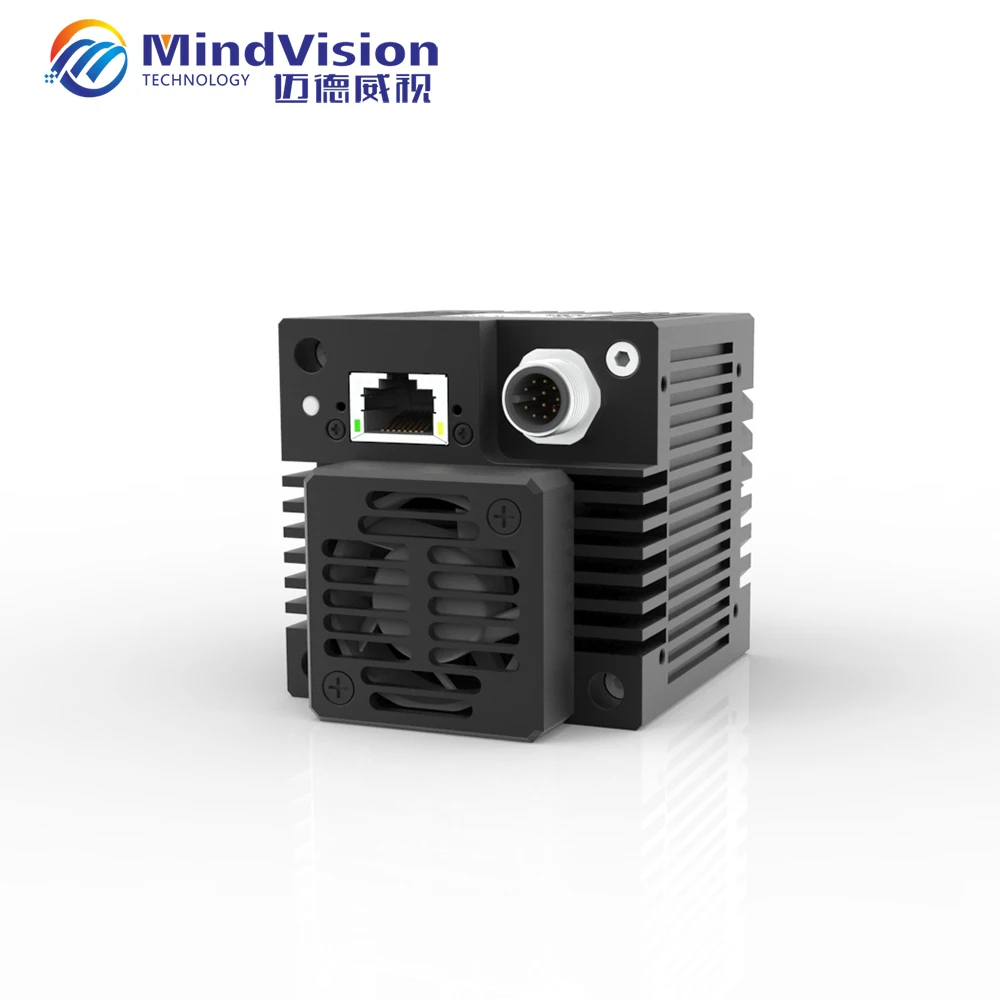

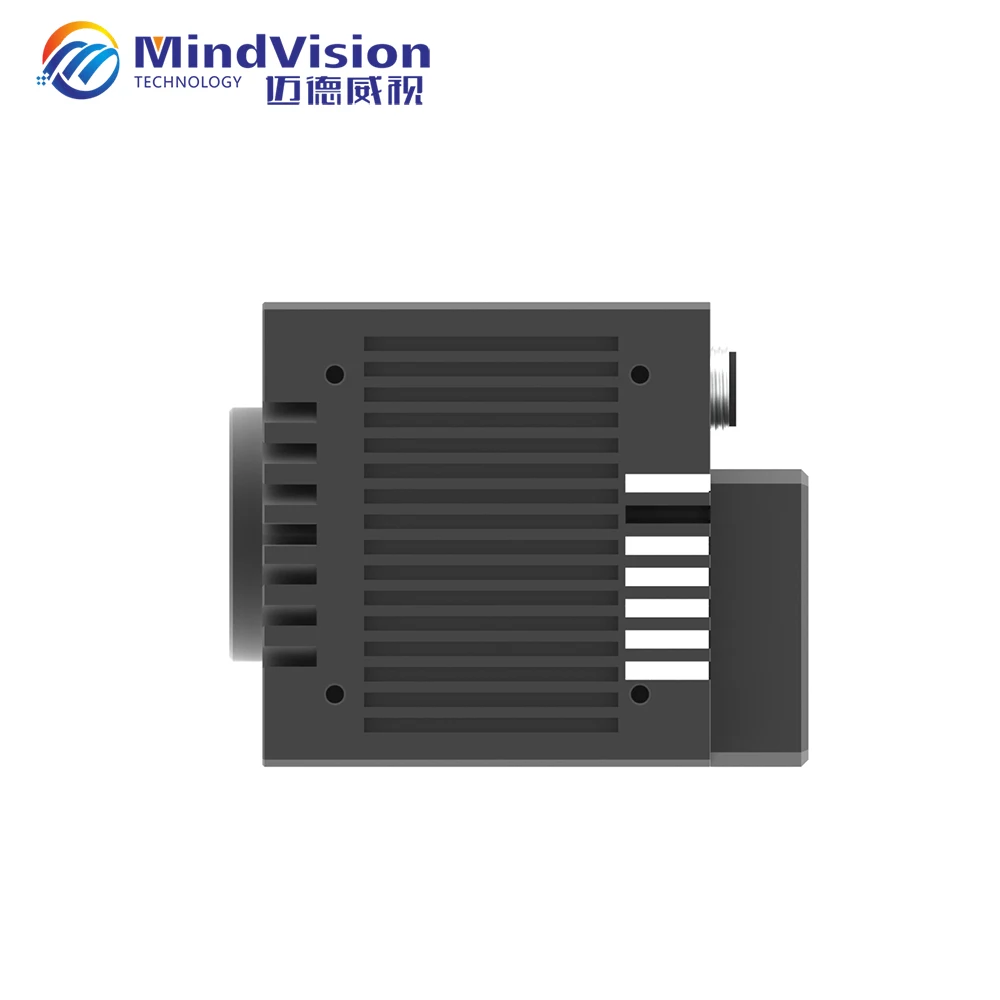

MindVision 1594fps 0.5MP 10 Gigabit IP Cmos Sensor Vision Camera High Speed Industrial Camera
- Category: >>>
- Supplier: Shenzhen MindVision Technology Co. Ltd.
Share on (1600510815004):
Product Overview
Description
10 GigE Series Features:
✔️Reserve a fan interface to control the temperature of camera.
✔️Support 100 meters transmission or POE (available), Compatible with Gigabit Ethernet.
✔️ Bandwidth : 1200M Byet,Faster image transfer time then Gigabit network.
✔️Support GigEVision, GenICamstandard ,same SDK as Gigabit Ethernet camera.
✔️ Bandwidth : 1200M Byet,Faster image transfer time then Gigabit network.
✔️Support GigEVision, GenICamstandard ,same SDK as Gigabit Ethernet camera.
✔️Using the standard 10 Gigabit network interface , stable communication.
✔️It is suitable for multiple color cameras to save RAW image data at high speed and convert it to bmp or jpg format images offline at the same time.
✔️It is suitable for multiple color cameras to save RAW image data at high speed and convert it to bmp or jpg format images offline at the same time.
Product Paramenters
Model Optional(Global Shutter& CMOS) | ||||||||||
Model | Pixel | Resolution | Frame Rate | Pixel Size | Sensor Size | |||||
MV-XG51GC/M | 0.5MP | 816*624 | 1594fps | 9.0μm | 1/1.7" | |||||
MV-XG170GC/M | 1.7MP | 1600*1100 | 662fps | 9.0μm | 1.1" | |||||
MV-XG280GC/M | 2.8MP | 1936*1464 | 409fps | 4.5μm | 2/3" | |||||
MV-XG402GC/M | 4.0MP | 2048*2048 | 176fps | 5.5μm | 1.0" | |||||
MV-XG503GC/M | 5.0MP | 2592*2160 | 121fps | 2.5μm | 1/2" | |||||
MV-XG903GC/M | 9.0MP | 4208*2160 | 121fps | 2.5μm | 2/3" | |||||
MV-XG1205GC/M | 12MP | 4096*3072 | 90fps | 3.2μm | 1.0" | |||||
MV-XG1803GC/M | 18MP | 4512*4096 | 64fps | 2.5μm | 1.0" | |||||
MV-XG2500GC/M | 25MP | 5120*5120 | 42fps | 2.5μm | 1.1" | |||||
Product Item | MindVision 1594fps 0.5MP 10 Gigabit IP Cmos Sensor Vision Camera High Speed Industrial Camera |
Model Number | MV-XG51GC/M |
Color | Monochrome/Color |
Shutter | Global Shutter |
Sensor | CMOS |
Depth | 12bit |
Exposure Time | 0.0008~838ms |
Lens Mount | Mount-C |
GPIO | 两输入两输出，一路可配置输入输出,支持触发和闪光灯同步模式 |
Data interface | 10 Gigabit |
Frame Buffer | 256M Bytes |
User-defined data area | 2K Bytes |
Power Requirements | 12V |
Dimensions | 64x64x61.7mm |
weight | <550g |
Operating temperature | 0~50℃ |
Programming Language | C/C+ +/C #/VB6/VB.NET/Delphi/BCB/Python |
Operating System | WINXP, WIN7 / 8/10 32 & 64-bit systems, Linux and ARM Linux drivers and Android platform drivers (customizable) |
Driver | DirectShow components Halcon special components Labview dedicated drive OCX components TWAIN components |
Other Functions | Support Image size (ROI), camera, exposure time, GAMMA, contrast, brightness, custom LUT, mirror flip, RGB color gain, saturation, sharpness, color to mono, color temperature correction, anti-color, Color,trigger mode, frame rate control |

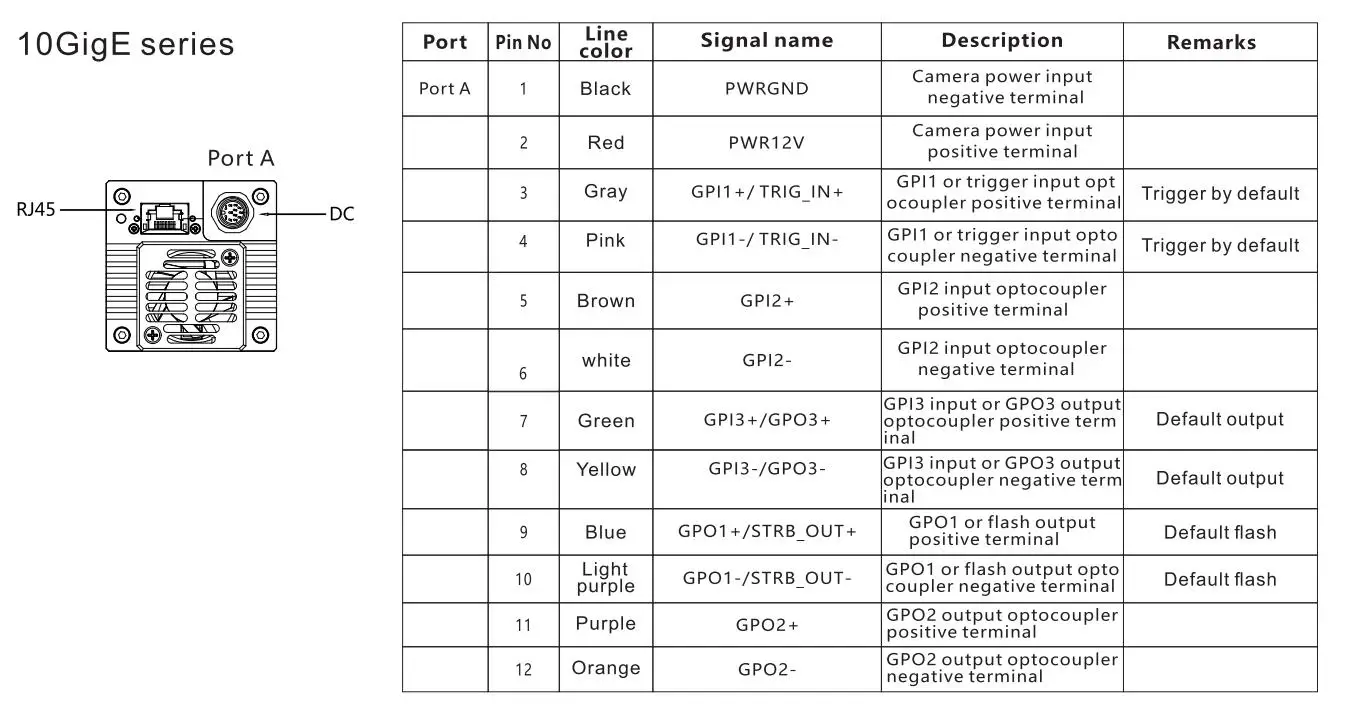

Line Sequence Definition

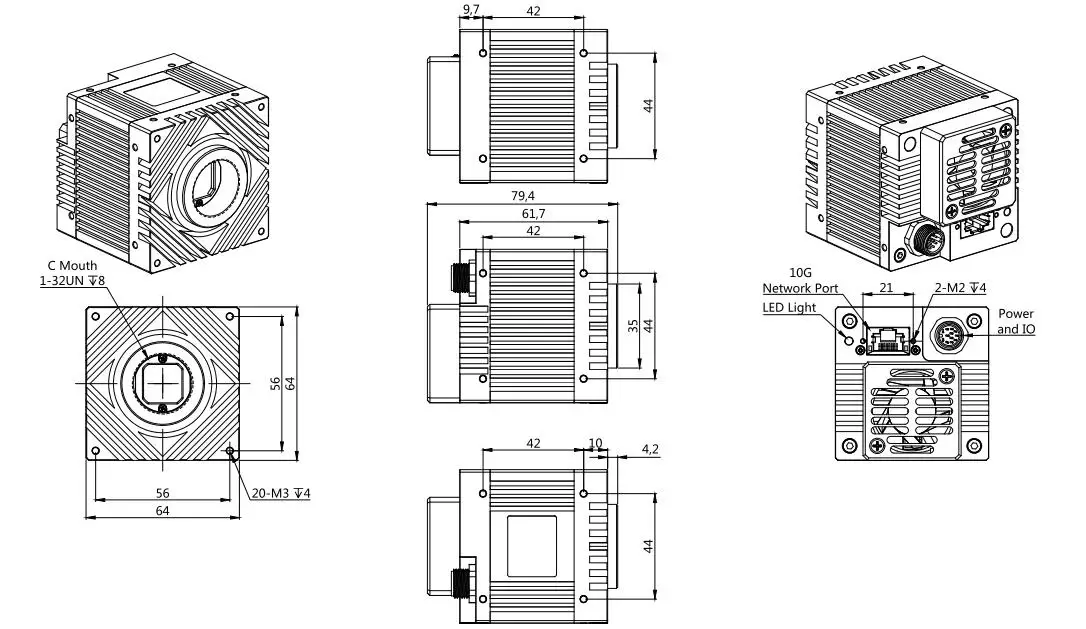

Camera Size
Product Packaging
Case Show
About US
ShenZhen MindVision Teconogy Co,Ltd is an intelligent enterprise providing products and solutions in the field of machine vision, incorporates research, manufacturing.sales and service with professional technologies and excellent manufacturing process.
With strong technical power , exquisite process , good corporate reputation , excellent product quality , continuous research and develop new and high technology products with a number of independent patent , we provide customers with quality products and technical services in the field of industrial camera. MindVision establishes long-term relations with various enterprises.
Our Partners
FAQ
1. How about the quality of your products?
We are a professional manufacturer, each production process has strict quality inspection .
2.OEM/ODM is available?
Yes, You can tell us your specific informations, our engineers will provide solutions for you.
3.How about the quality of your products?
We are a professional manufacturer, each production process has strict quality inspection .
4.Driver and SDK problems??
Our company can provide sdk for free, When you meet any using questions about industrial camera ,feel free to contact us on Alibaba.
5. When will you ship my order?
We have our own factory and warehouse, once we get the confirmation of payment, we will ship the goods within 7-10 days.
