Automatic Aerosol Gas Filling Machine With Spray Cans , Butane Filling Machine Aerosols Deodorizer Filling Machine
- Category: >>>
- Supplier: Yangzhou Meida Filling Machinery Co. Ltd.
Share on (1600510818608):
Product Overview
Description
Product Description
Automatic Aerosol Gas Filling Machine With Spray Cans , Butane Filling Machine Aerosols Deodorizer Filling Machine

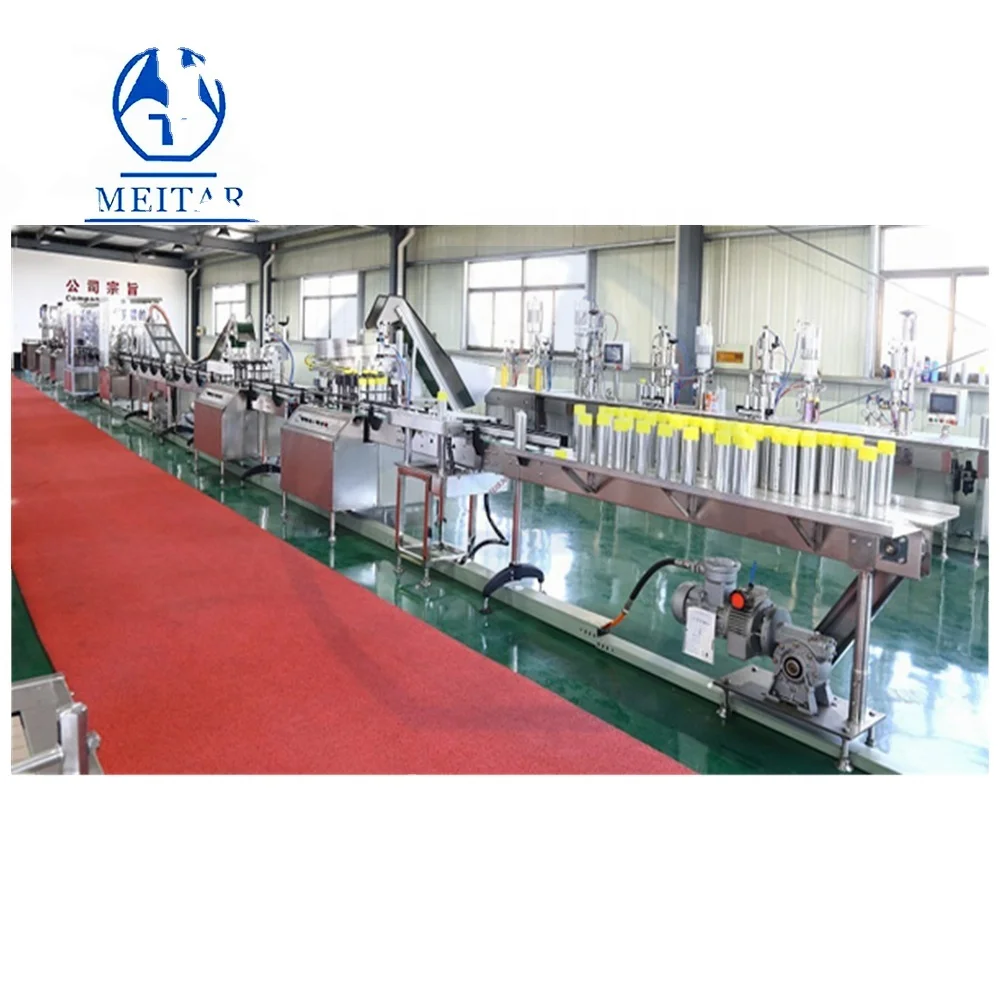

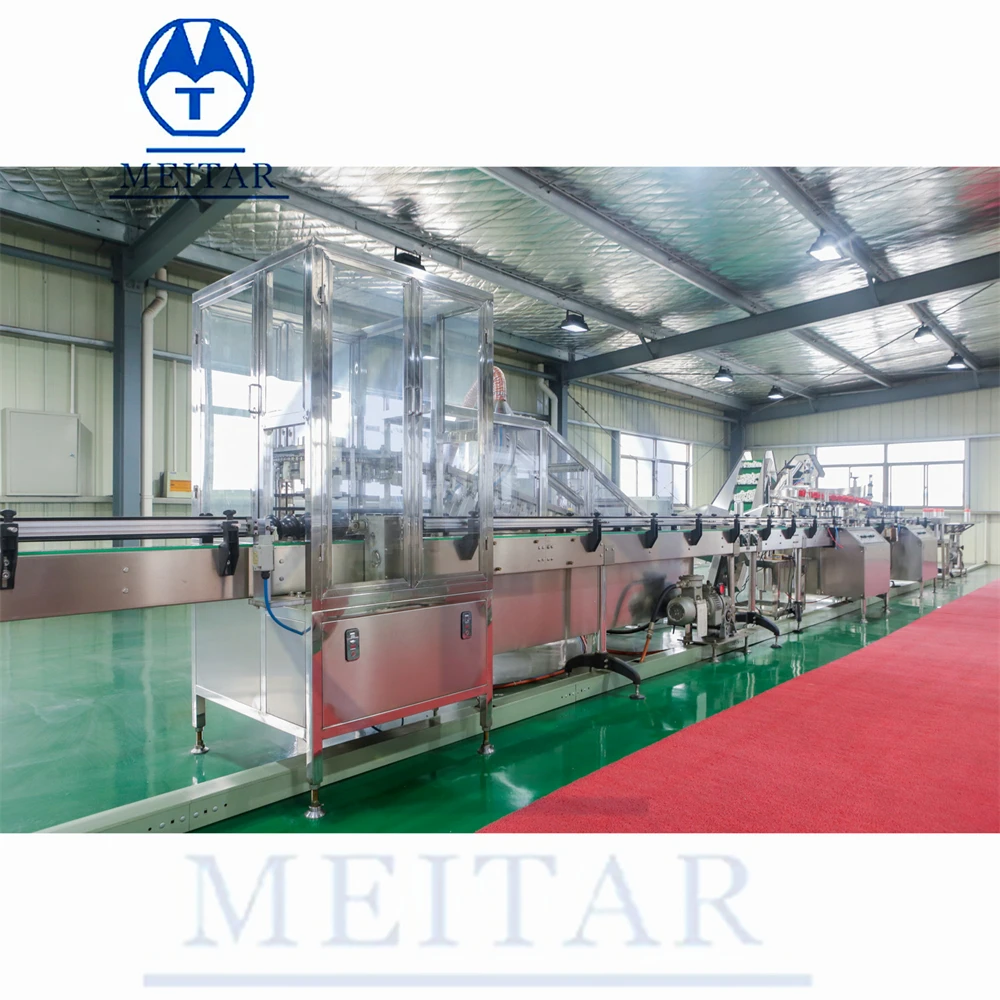

consist of 1cans arranging machine, 2 liquid filling machine, 3 valve sorting & inserting machine, 4 valve crimping and gas filling machine, 5 automatic weighing machine, 6 water bath leakage tester, 7 actuator presser, 8 capping machine, 9 ink jet printer, 10 packing table, etc. Propellants could be LPG, DME, CO2, N2, compressed air, etc, widely applied in spray paint, air freshener, insecticide, body spray, cosmetics, food aerosols.
Technical Parameter
Production capacity: 2400-3600cans/h
Liquid filling capacity: 30-750ml Gas filling capacity: 30-750ml
Filling accuracy≤±1% Sealing accuracy≤0.3%
Air pressure: 0.8-1Mpa Max. Air Consumption 3-5m3/min
Applicable can Diameter 35-71mm Applicable can Height 85-330mm
Details Images
With 2-4 liquid filling heads. Each station is equipped with an entry sensor. no can no fill. Liquid filler can fill water, solvents and medium viscosity material by self-suction.
Consists of a valve sorting, valve inserting, valve correcting. saves labor and improves production efficiency. It can insert the aerosol valve with or without tubes.

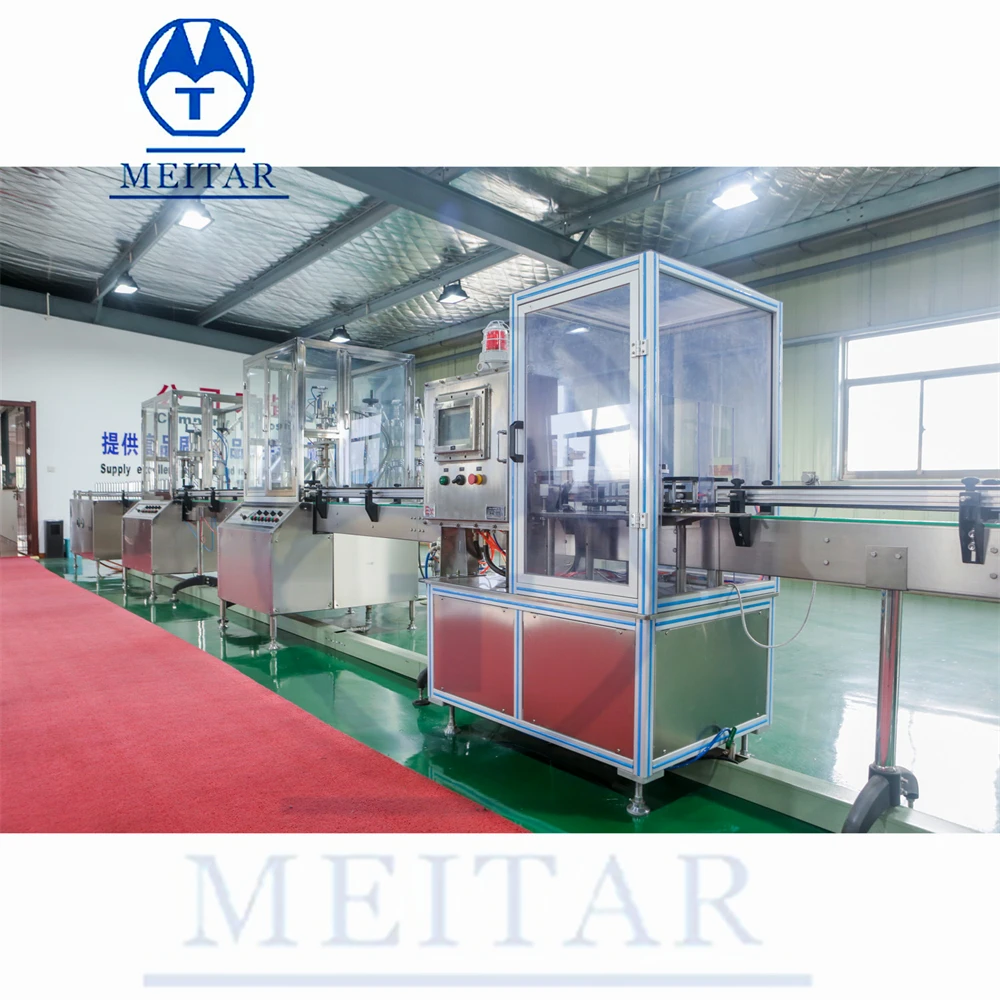

Valve crimping & Gas filling machine
Crimping machine is used to seal the valve with internal expanding mode. Gas fillers is applicable to fill Propane, Butane, Freon, DME, Carbon Dioxide, Nitrogen, Oxygen, compressed air and R134a, etc. No can no filling.
the whole machine is fully explosion-proof, it could detect the weight of each finished can, and reject the unqualified can automatically. It has advantage of easy operation, fast speed, high accuracy and good stability
use to test aerosols’ leakage. putting aerosol products into water tanks automatically and control the temperature in tanks at 55℃ (by electrical heating or steam heating) checking the inner pressure and leakages of valve or cans.
consists of a vibration hopper and an indexing table, it can automatically arrange and convey caps, and automatically press caps onto aerosol cans.
House Care
HOUSE CARE: air freshener, insecticide, furniture spray, pesticide, leather spray, toilet spray, glass spray.
Personal Care
PERSONAL CARE: perfume, deodorant, hair spray, shaving gel/foam, mouth spray, cosmetic spray, self-defence spray, police spray.
Car Care
CAR CARE: tyre repair spray, car windows spray, upholstery spray, engine cleaner spray.
Industries
OTHER INDUSTRIES: spray painting, PU foam, LPG cartridge, refrigerant gas, butane gas, fire extinguisher, anti-rust spray, mould release spray.
Our Service
1.One year warranty
2.Engineers available to service machinery overseas;
3.Professional sellers are always at your service;
4.We can provide customer factory plan,layout, installation,training and so on.
2.Engineers available to service machinery overseas;
3.Professional sellers are always at your service;
4.We can provide customer factory plan,layout, installation,training and so on.
