Outdoor monitoring system PM2.5 CO2 O2 customize air quality monitor station

Share on (1600510828223):


Price:

Quantity:


Product Overview

Description

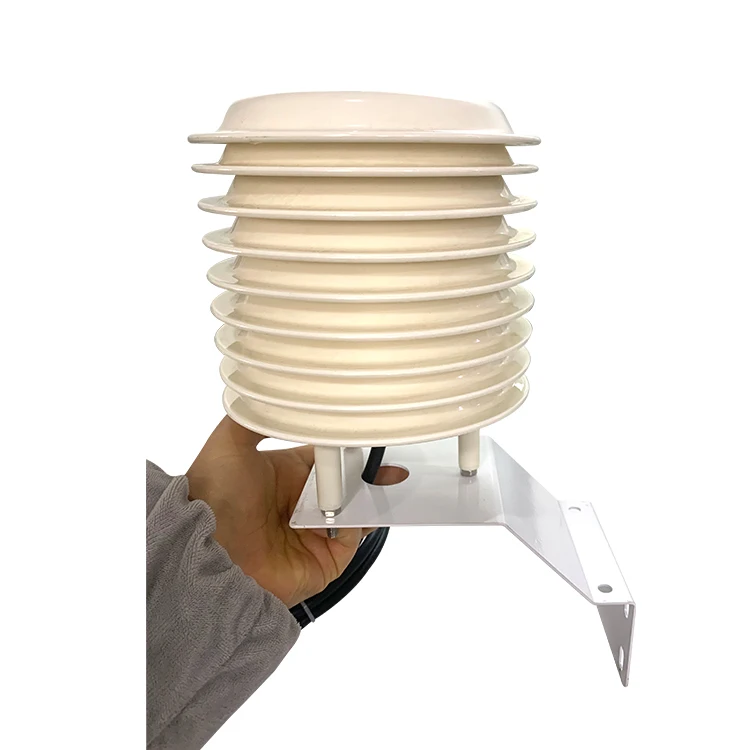

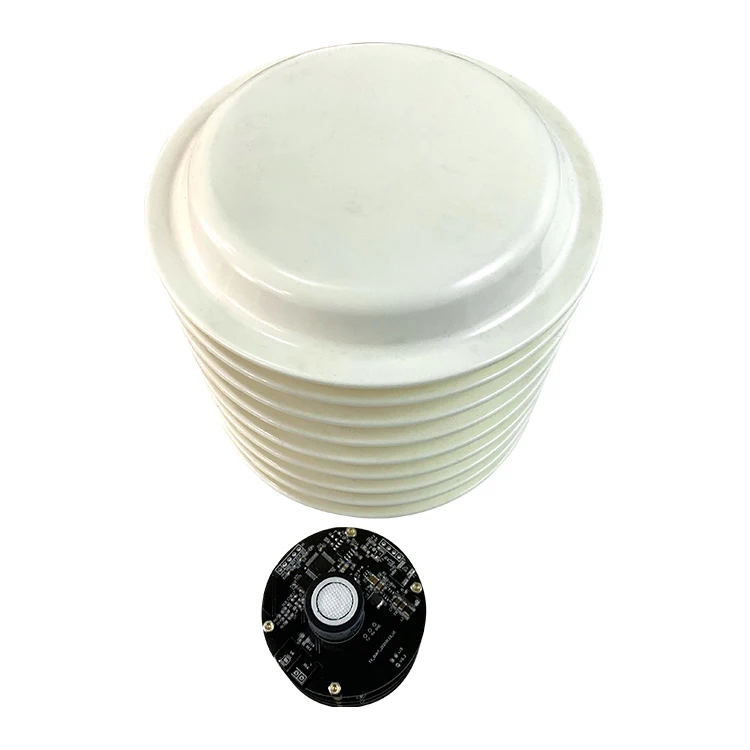

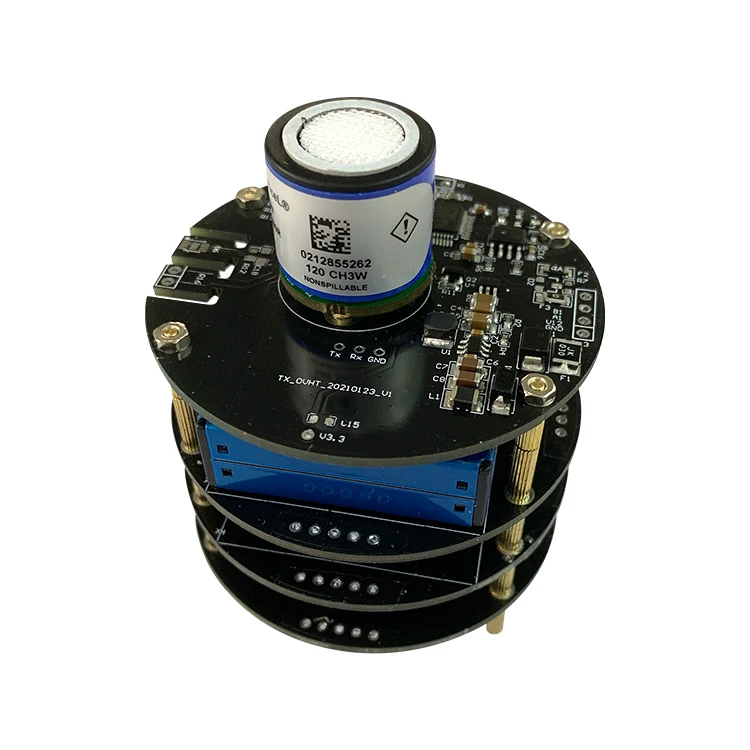

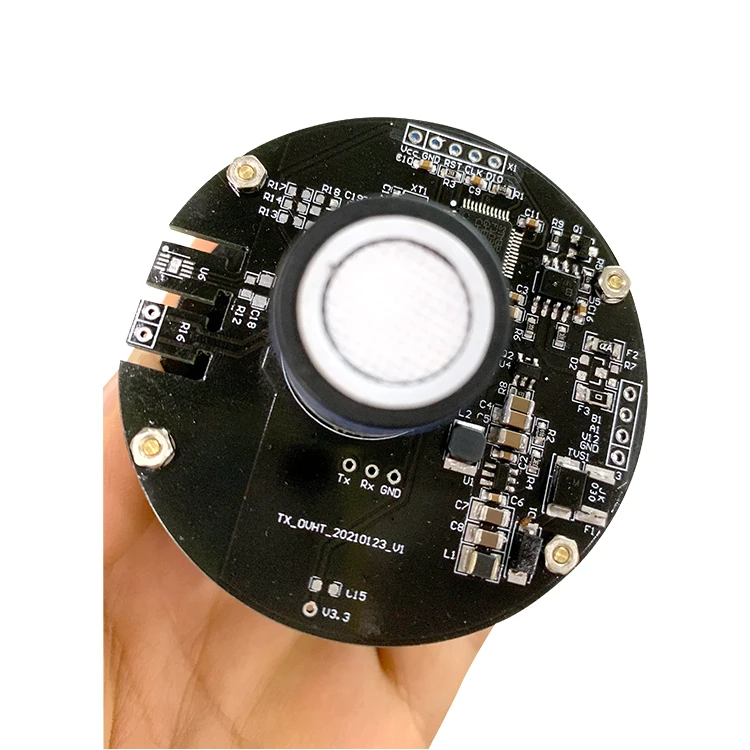

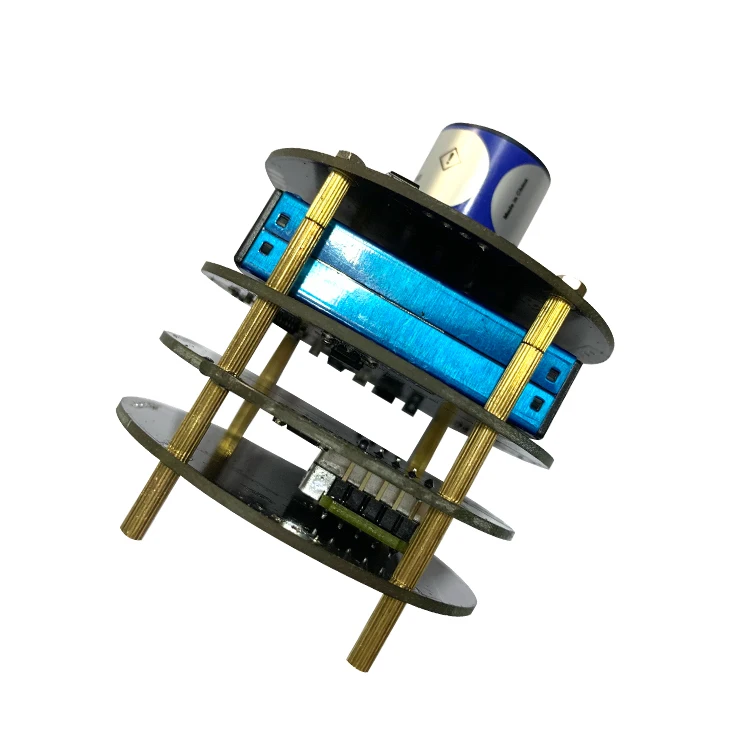

Outdoor monitoring system PM2.5 CO2 O2 customize air quality monitor station


3(2)


Welcome to Air Bath



Product Description

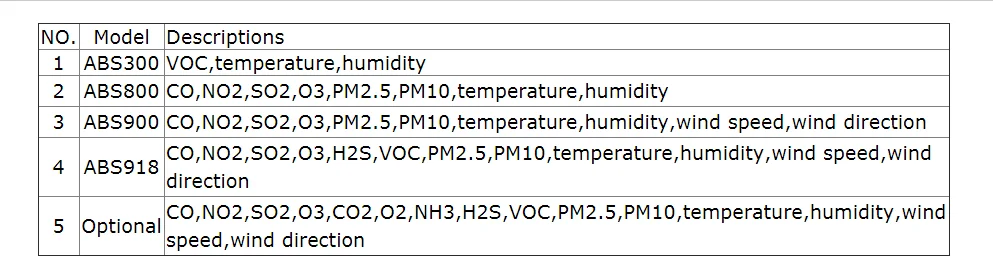

1628477235(1)Welcome to "Contact us" for customization


Feature:


uUltra-low power consumption (0.3W),especially suitable for higher power consumption requirements battery powered systems.


uThe 9 ~ 35V wide supply input power range.


u The measurement data storage function (1~12Month) can ensure the integrity of measurement data


u The High-precision clock calendar function.


uThe industrial level protective casing can ensure the long-term field life for more than 10 years


uThe industrial level electrical interface protection.


uThe standard data output protocol.






























































































































Parameter



index



Remark



Particulate matter consistency (PM2.5 standard value)



± 10% @ 100~500ug / m3







Particle measurement range



0.3~10um







Particle content



0~500ug/m3







Particle resolution



1ug/m3







Particle measurement method



Laser measurement







Temperature measurement range



0~60 degrees Celsius







Temperature resolution



0.1 degrees Celsius(take an integer)







Humidity measurement range



10%~95%RH







Humidity resolution



1%







Carbon dioxide measuring range



400~2000ppm optional



optional



Carbon dioxide measurement resolution



1ppm



TVOV measuring range



0~1000ppb optional



optional



TVOV measurement resolution



1ppb



CH2O measuring range



0~400ppb optional



optional



CH2O measurement resolution



1ppb



O2 Measurement Range



1-25% vol. O2







Working temperature



-10~50 degrees Celsius







Working humidity (non-condensing)



5%~80%RH







Mean time between failures



≥3.0 years







Response time



≤10 seconds







Data output



RS485/UART/WIFI







DC power supply voltage



7VDC~28VDC recommended DC15V



Suggest DC15V



Strength



≤0.5~0.87W depending on the number of optional sensors



Depending on the number of optional sensors
