Product Overview

Description



Product Description

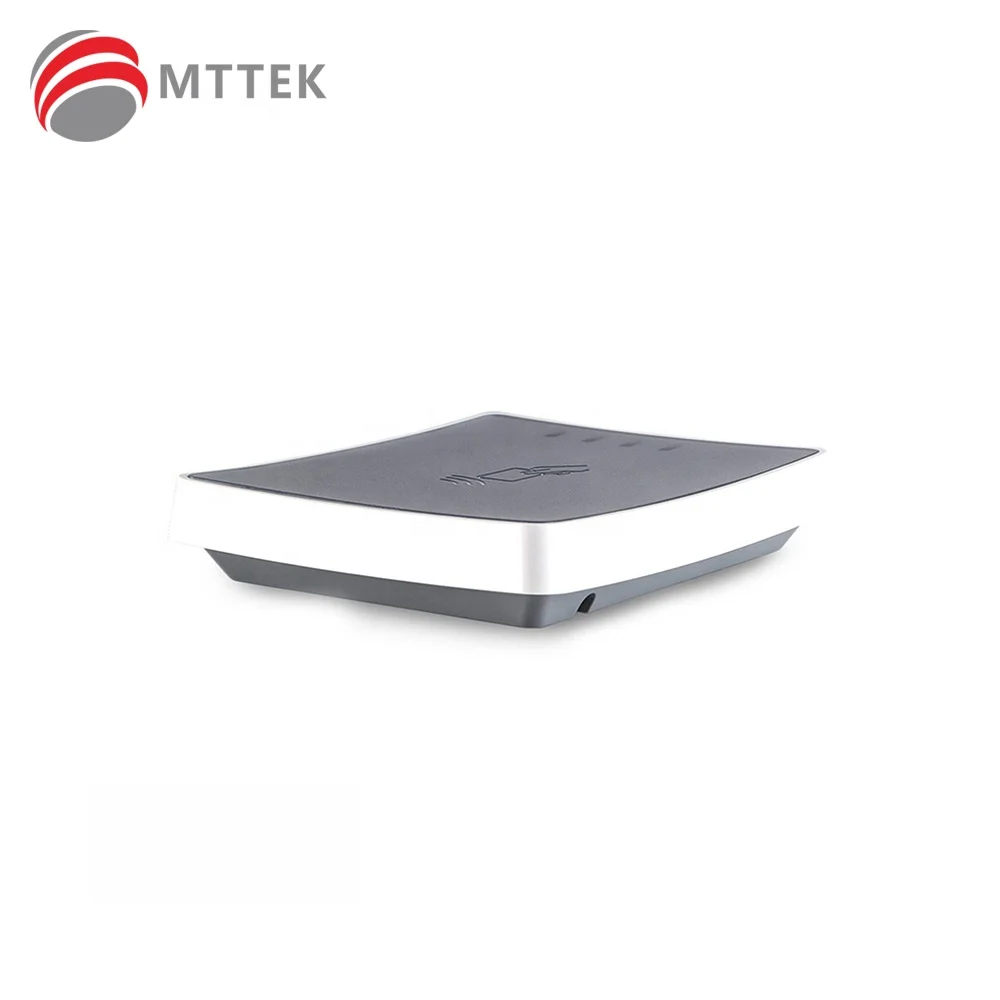

uTrust 4701 F Dual Interface Smart Card Reader



• USER CONVENIENCE
Modern housing design optimized for easy and ergonomic operation even in limited space environments
• CONVERGENT
Features contact, contactless, Lascom, and NFC technologies for use with mixed credential populations
• INTEROPERABLE
Supports major card ICs standards and technologies in just one device
• FAST
Transaction time optimized with support of 848 kbps in ISO/IEC 14443 and 600 kbps in ISO/IEC 7816 for maximum end‐user acceptance



Identiv’s uTrust 4701 F is the ideal combination of contact, contactless, and NFC technologies in just one single device. Supporting ISO/IEC 7816 contact cards, 13.56 MHz contactless technology, and NFC, this PC-linked dual interface reader features end-user environments where virtually all kinds of credentials are being used, even in mixed populations.

With its all-in-one concept, the uTrust 4701 F enables a smooth transition from well-established traditional technologies into emerging NFC applications, pushing new business. It represents the perfect mix between modern, stylish design and the ergonomic use of any credential form factor, like ID-1 cards, tokens, or NFC-enabled smart phones. The end user experiences convenience, transaction-time efficiency, security, flexibility, and full NFC capability for use applications such as network log-on, secure web-based transactions,governmental use applications like online tax declarations, or even NFC-based customer loyalty programs.

Advisory note: Identiv is rebranding the CLOUD products under the uTrust brand name.


Specification


PARAMETER
uTrust 4701 F Dual Interface Smart Card Reader
Host Interface
USB 2.0 CCID (USB 1.1/3.0 compliant)
Communication Speed
12 Mbps (USB 2.0 full speed)
Contact card Supported Standards
Supported Tag ICs
All major ISO/IEC 7816 compliant Smart Card IC support
Smart Card Protocols
T=0, T=1
Smart Card Interface Speed
• Up to 600 kbps (depending on card)
• TA1=97
Smart Card Clock Frequency
ISO/IEC 7816 compliant up to 5 MHz; Operates up to 12 MHz
Supported Smart Card Types
5V, 3V and 1.8V, ISO/IEC 7816 Class A/B/C
Power to Smart Card
60mA in Class A; 55mA in Class B; 35mA in Class C
Smart Card Detection
• Card present switch
• Automatic power on/off
• Short circuit protection
Card Size
ID-1
Smart Contact Type
Sliding Contact Socket (8 pin)
Contactless Supported Standards
Contactless Supported Standards

• ISO 14443 Part 1 to 4
• ISO 18092
Protocols
T=CL
Supported Card Chips
• Lascom Cards
• MIFARE™ (Classic, Ultralight, Ultralight C, MIFARE PLUS, DESFire, DESFire EV1 2/4/8k) FeliCa™, Calypso, CD21
• NFC Forum Tag types 1/2/3/4
Data Transfer Rate
106/212/424/848 kbits/s, depending on card IC
Antenna
Integrated
Driver and Software
PC/SC Driver
PC/SC Specification Ver. 2.01.14 for:
• Windows® 7/8/ 8.1/10 (32 and 64 Bit)
• Windows® Server 2003/2008/2012
• MacOS 10.10.x,10.11.x, 10.12.x
• Linux 2.6.x (32 and 64bit)
• Android 4.0 and higher
Software
• PC/SC API
• CT-API (through wrapper on top of PC/SC)
• M-Card API (through wrapper on top of PC/SC)
Operating Conditions
Power Supply

Bus-powered USB
Power Consumption

<220mA, excluding smart card;<400mA, with smart card;<600μA in Standby Mode
Dimensions

126 x 93 x 21 mm
Weight

117g ± 5%
Operating Temperature Range

‐10° to 70°C
Storage Temperature Range

‐25° to 85 C
Operating Humidity Range

Up to 95% RH non-condensing
Connector

1.5 m USB cable with USB type A connector
Status Indicator

Dual color LED
Firmware

SmartOS™
Firmware In-Field Upgradeable
Yes
Systems/Standards
ISO/IEC 7816, USB 2.0 Full Speed, CCID, Microsoft® WHQL
Regulatory/Environmental
RED 2014/53/EU, FCC, CE, UL94, UL60950, VCCI, RFLJ, RoHS2, REACH, WEEE
