Omni directional Helipad/Heliport White LED Flashing Identification Beacon Light
- Category: >>>
- Supplier: Hunan Chendong Technology Co. Ltd.Hunan Ltd.
Share on (1600510858062):
Product Overview
Description
Product Description

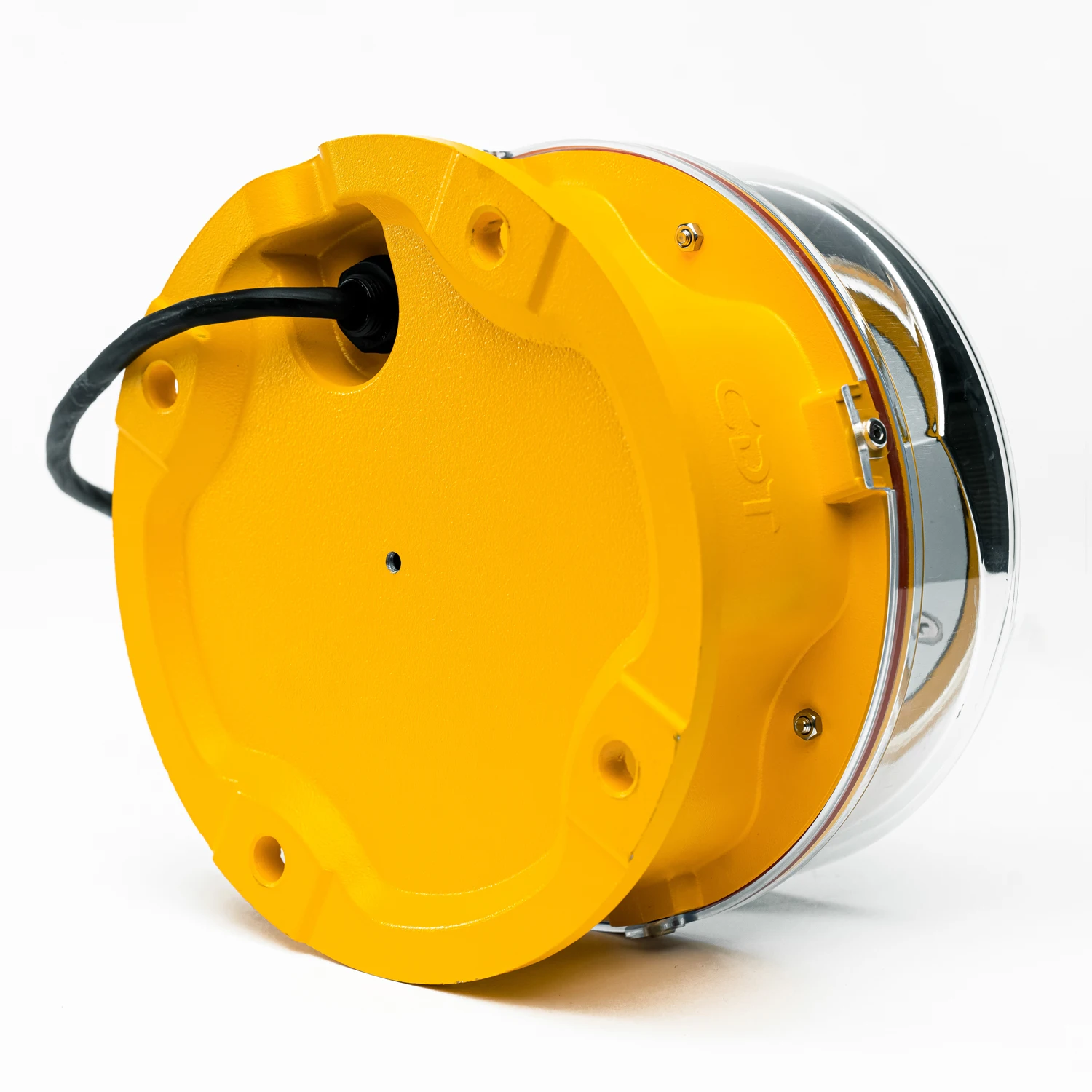

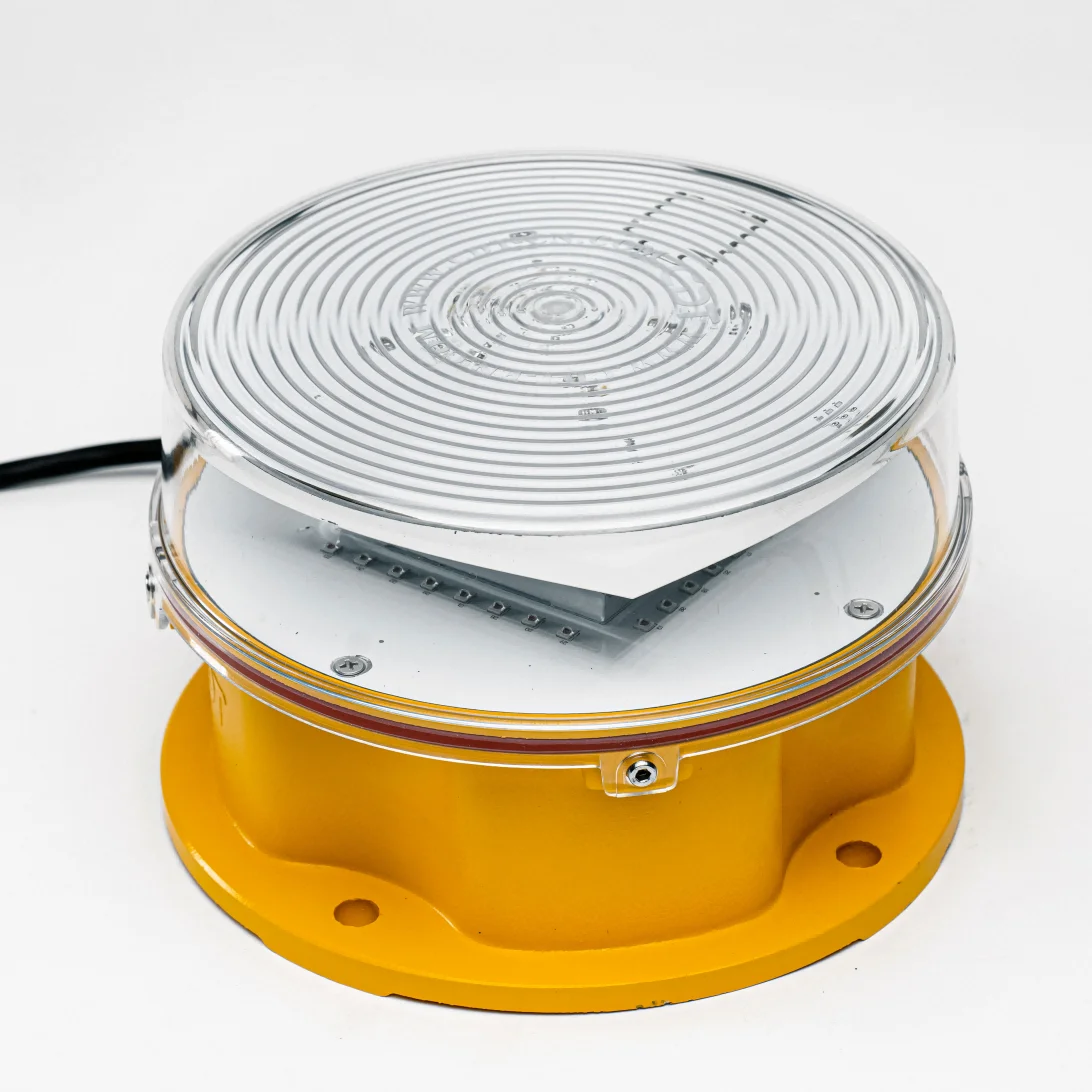

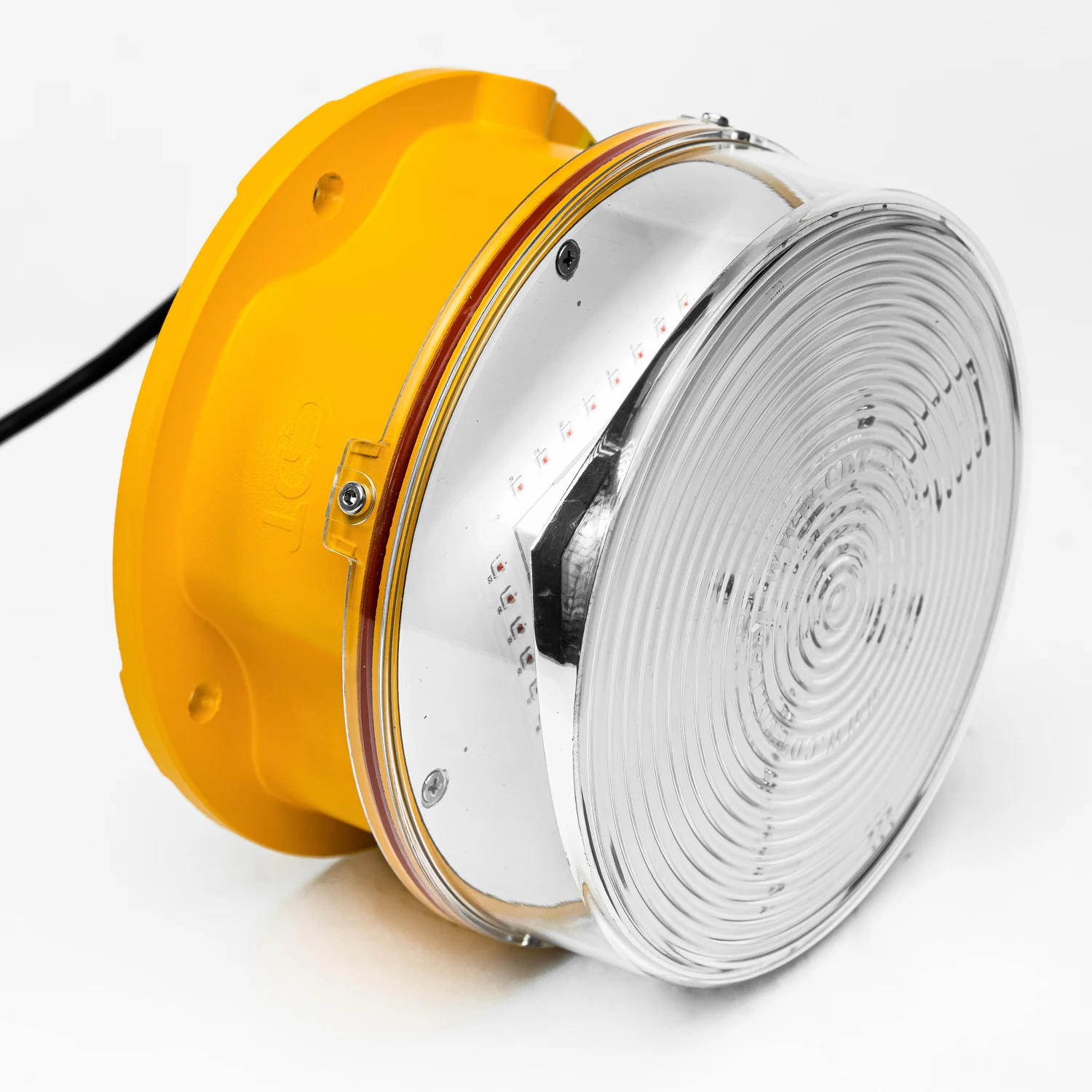

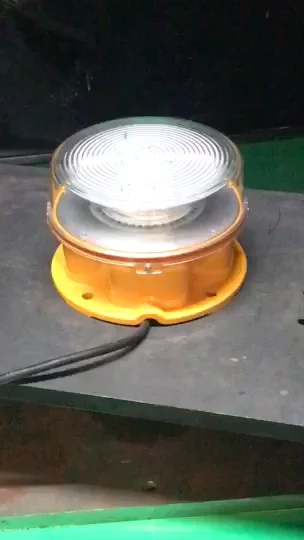

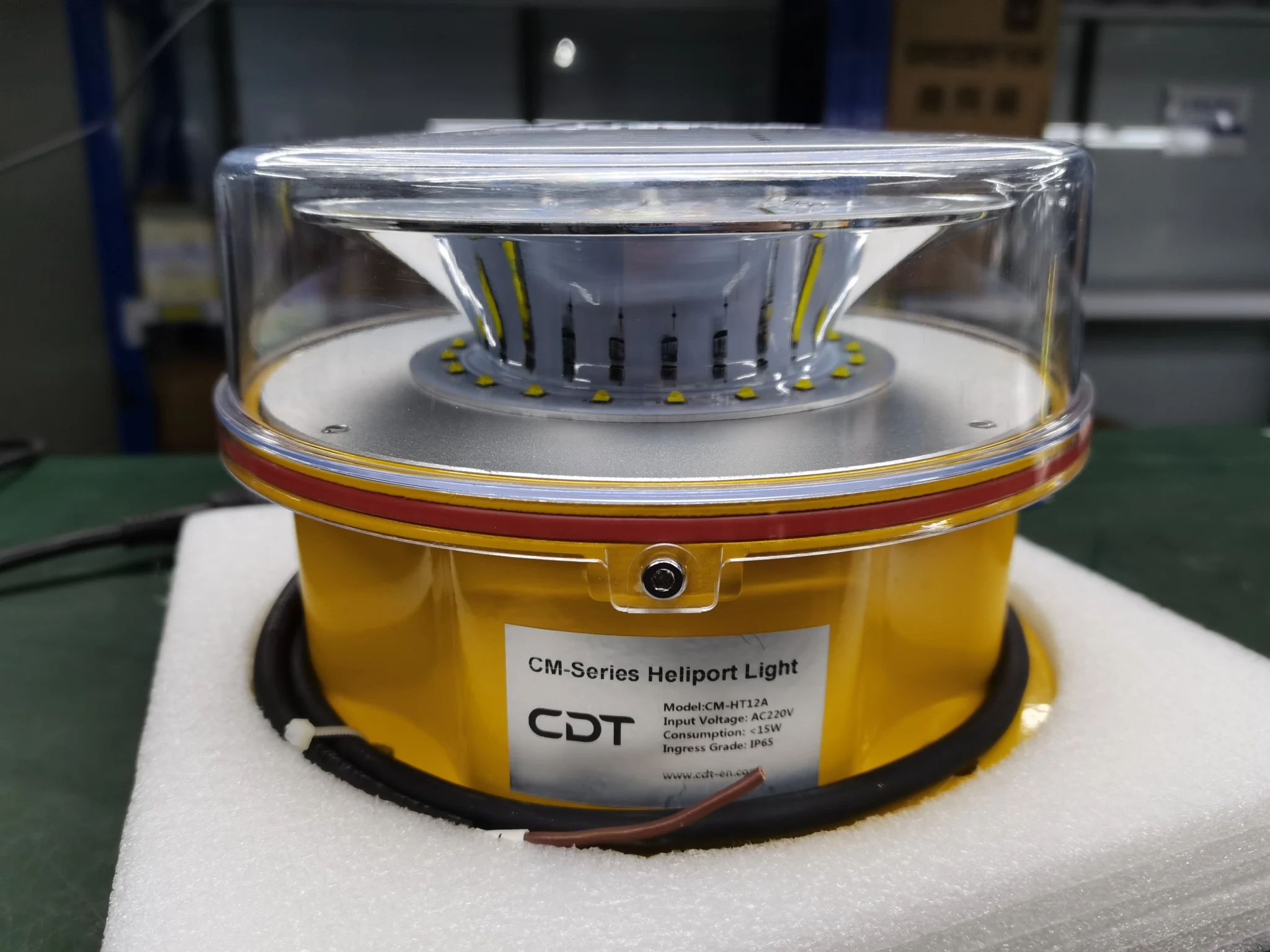

Omni-directional Helipad/Heliport White LED Flashing Identification Beacon Light
A heliport beacon should be provided at a heliport where:
a) long-range visual guidance is considered necessary and is not provided by other visual means; or
b) identification of the heliport is difficult due to surrounding lights.
The heliport beacon shall be located on or adjacent to the heliport preferably at an elevated
position and so that it does not dazzle a pilot at short range.
Where a heliport beacon is likely to dazzle pilots at short range, it may be switched off during
the final stages of the approach and landing.
The heliport beacon shall emit repeated series of equispaced short duration white flashes 0.8 sec – 1.2 sec – 0.8 sec, flash duration 0.5 -2.0 milliseconds
The light from the beacon shall show at all angles of azimuth.
For more details ,
emma@chendongtech.com
what'sapp :0086-13342512879
what'sapp :0086-13342512879
Skype: chendongtech1
Product Presentation
Key Feature
Application Environment
Above 2,500 meters above sea level; Outdoor: -40°C--+55°C; Relative air humidity: 95%; (+24.5 ° C), the maximum humidity can be greater than 100%; Between rain, snow, and ice; Corrosive salt spray.
Above 2,500 meters above sea level; Outdoor: -40°C--+55°C; Relative air humidity: 95%; (+24.5 ° C), the maximum humidity can be greater than 100%; Between rain, snow, and ice; Corrosive salt spray.
Technical Index
4 LED lights Lamp life: ≥50000 hours White, green, two-color lamp Lamp angle adjustable
12 rpm, 24 flashes per minute
Steel cabinet with powder layer
Voltage AC220V (DC optional)
Item | Parameter | |||
Input Power | AC220V | |||
Power consumption | ≤15W | |||
Flashing Frequency | 4times/2seconds | |||
Light Intensity | 2500cd | |||
Light Source | LED | |||
Lifespan | >100000 hours | |||
Emitting color | White | |||
Ingress Protection | IP65 | |||
Operating temperature | -40℃～55℃ | |||
Wind Load | 240km/h | |||
Weight | 2.1kg | |||
Overall Dimension (mm) | φ210mm*140mm | |||
Installation Dimension (mm) | 126mm*126mm*4-M10 | |||
Operating temperature | -40℃～55℃ | |||
Wind load | 80m/sec. |

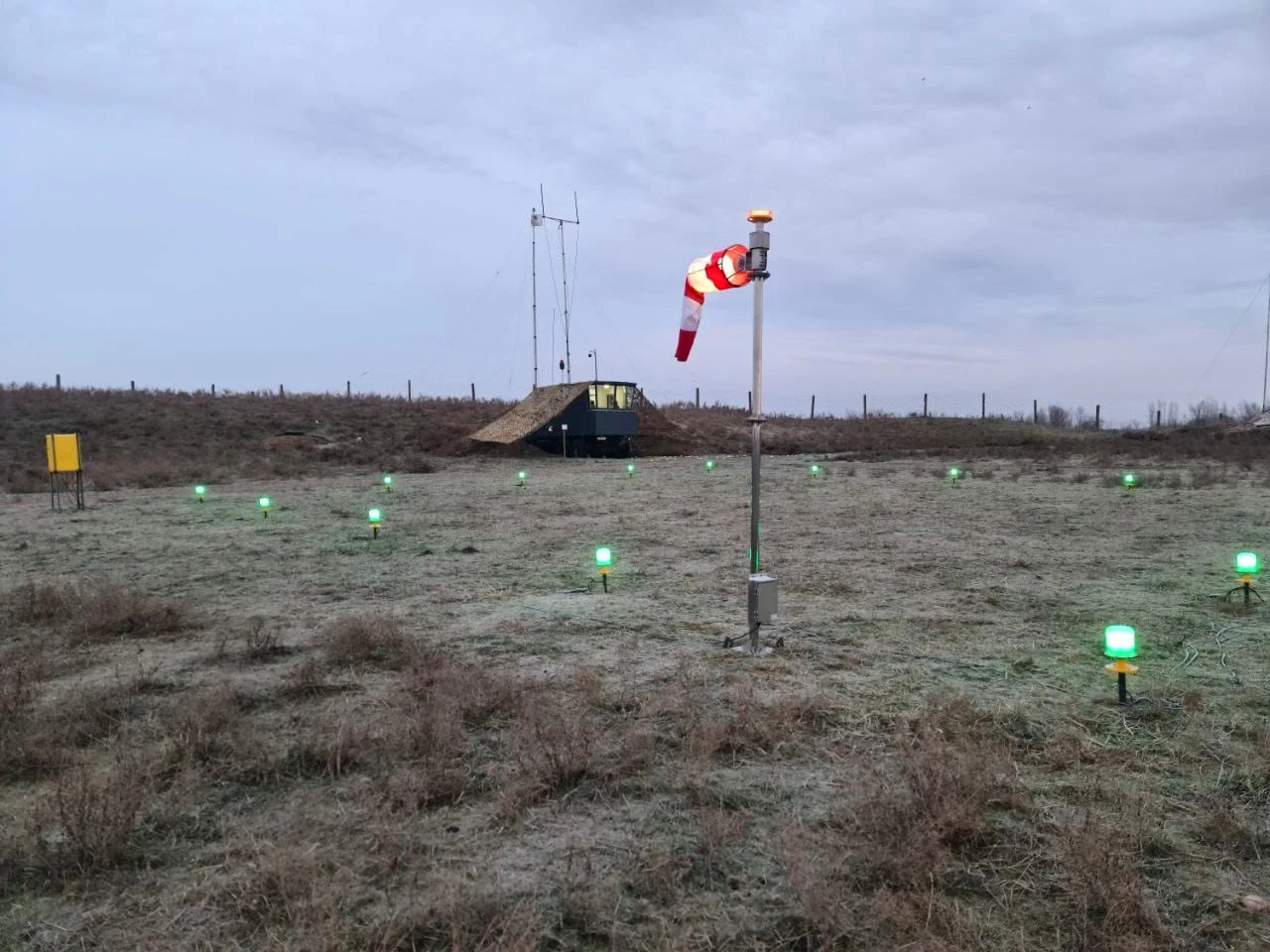

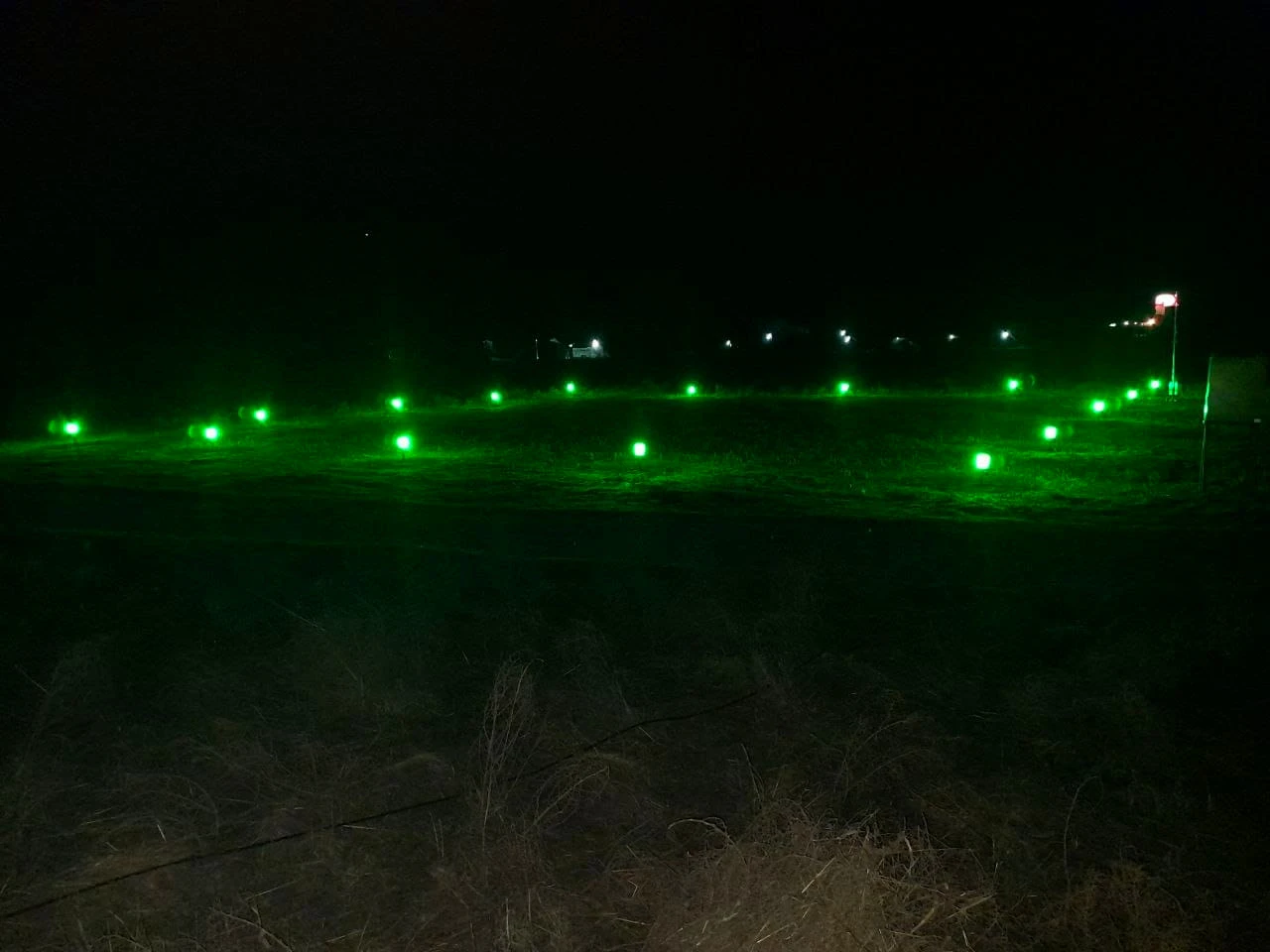

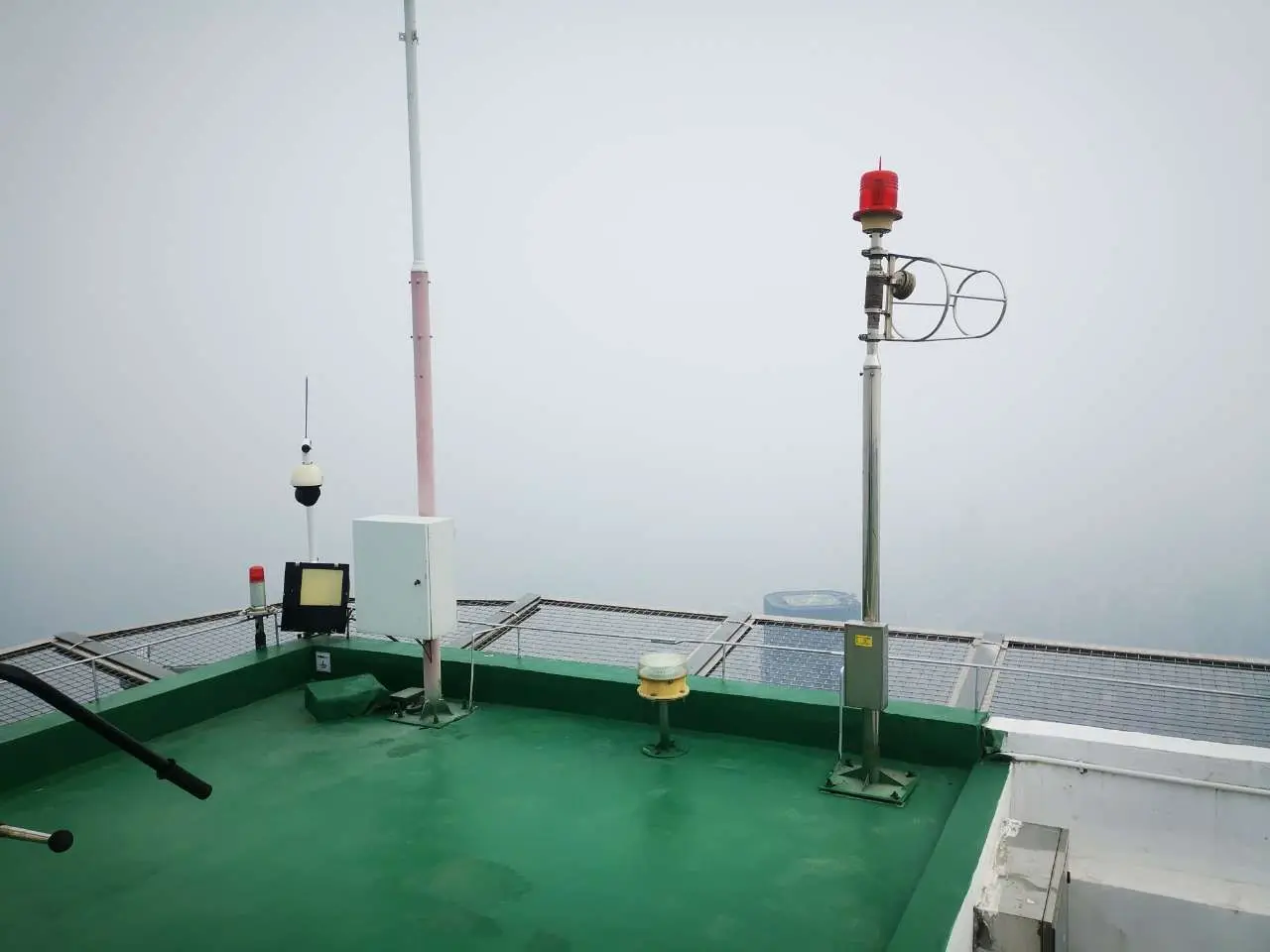

Installation Project
