High quality RS485,WIFI co2 meter monitor gas sensor methane
- Category: >>>
- Supplier: Air Bath International Trade (chengdu) Co. Ltd.
Share on (1600510872055):
Product Overview
Description
High quality RS485,WIFI co2 meter monitor gas sensor methane

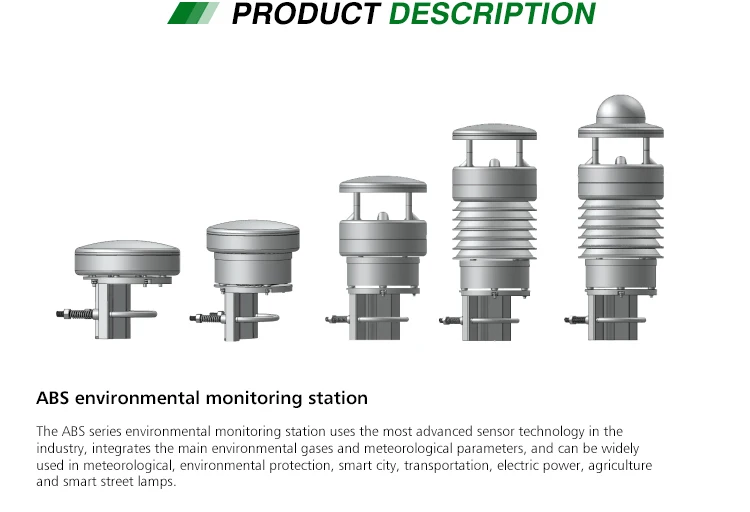

Product Description
| NO. | Model | Descriptions |
| 1 | ABS300 | VOC,temperature,humidity |
| 2 | ABS800 | CO,NO2,SO2,O3,PM2.5,PM10,temperature,humidity |
| 3 | ABS900 | CO,NO2,SO2,O3,PM2.5,PM10,temperature,humidity,wind speed,wind direction |
| 4 | ABS918 | CO,NO2,SO2,O3,H2S,VOC,PM2.5,PM10,temperature,humidity,wind speed,wind direction |
| 5 | Optional | CO,NO2,SO2,O3,CO2,O2,NH3,H2S,VOC,PM2.5,PM10,temperature,humidity,wind speed,wind direction |
Welcome to "Contact us" for customization
Feature:
uUltra-low power consumption (0.3W),especially suitable for higher power consumption requirements battery powered systems.
uThe 9 ~ 35V wide supply input power range.
u The measurement data storage function (1~12Month) can ensure the integrity of measurement data
u The High-precision clock calendar function.
uThe industrial level protective casing can ensure the long-term field life for more than 10 years
uThe industrial level electrical interface protection.
uThe standard data output protocol.
Parameter | index | Remark |
Particulate matter consistency (PM2.5 standard value) | ± 10% @ 100~500ug / m3 |
|
Particle measurement range | 0.3~10um |
|
Particle content | 0~500ug/m3 |
|
Particle resolution | 1ug/m3 |
|
Particle measurement method | Laser measurement |
|
Temperature measurement range | 0~60 degrees Celsius |
|
Temperature resolution | 0.1 degrees Celsius(take an integer) |
|
Humidity measurement range | 10%~95%RH |
|
Humidity resolution | 1% |
|
Carbon dioxide measuring range | 400~2000ppm optional | optional |
Carbon dioxide measurement resolution | 1ppm | |
TVOV measuring range | 0~1000ppb optional | optional |
TVOV measurement resolution | 1ppb | |
CH2O measuring range | 0~400ppb optional | optional |
CH2O measurement resolution | 1ppb | |
O2 Measurement Range | 1-25% vol. O2 |
|
Working temperature | -10~50 degrees Celsius |
|
Working humidity (non-condensing) | 5%~80%RH |
|
Mean time between failures | ≥3.0 years |
|
Response time | ≤10 seconds |
|
Data output | RS485/UART/WIFI |
|
DC power supply voltage | 7VDC~28VDC recommended DC15V | Suggest DC15V |
Strength | ≤0.5~0.87W depending on the number of optional sensors | Depending on the number of optional sensors |
Pls Click Here to Get More Details

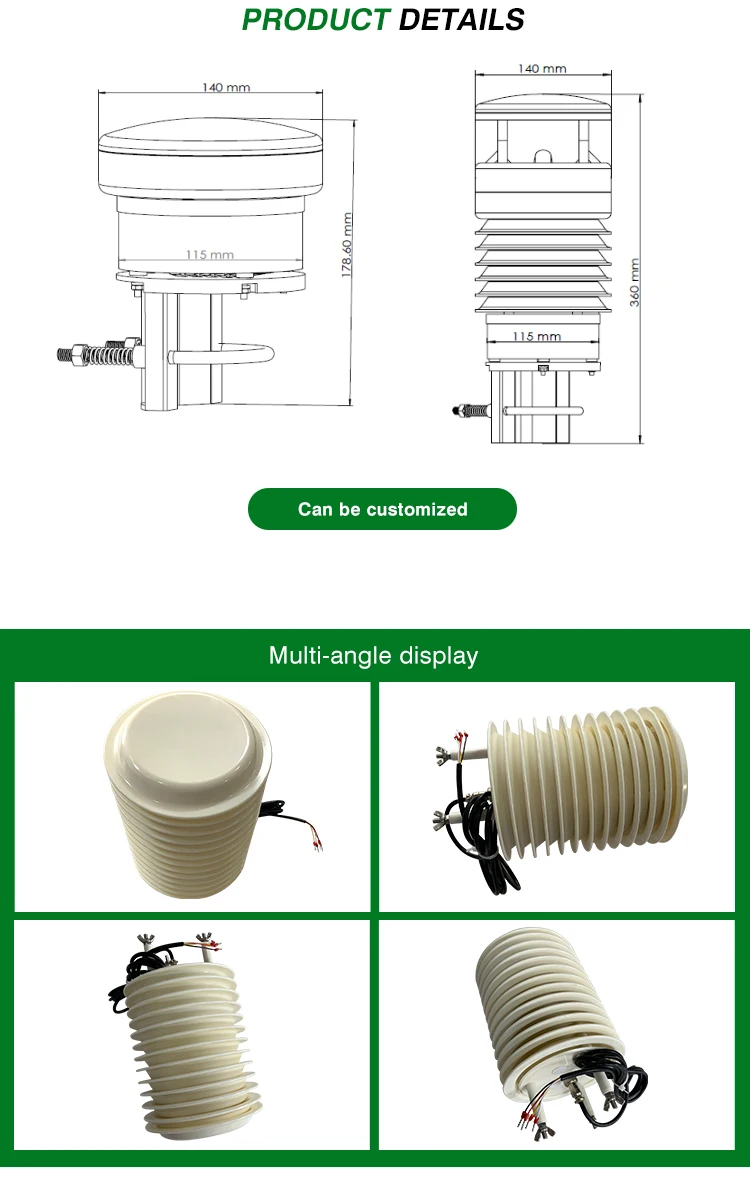

product details

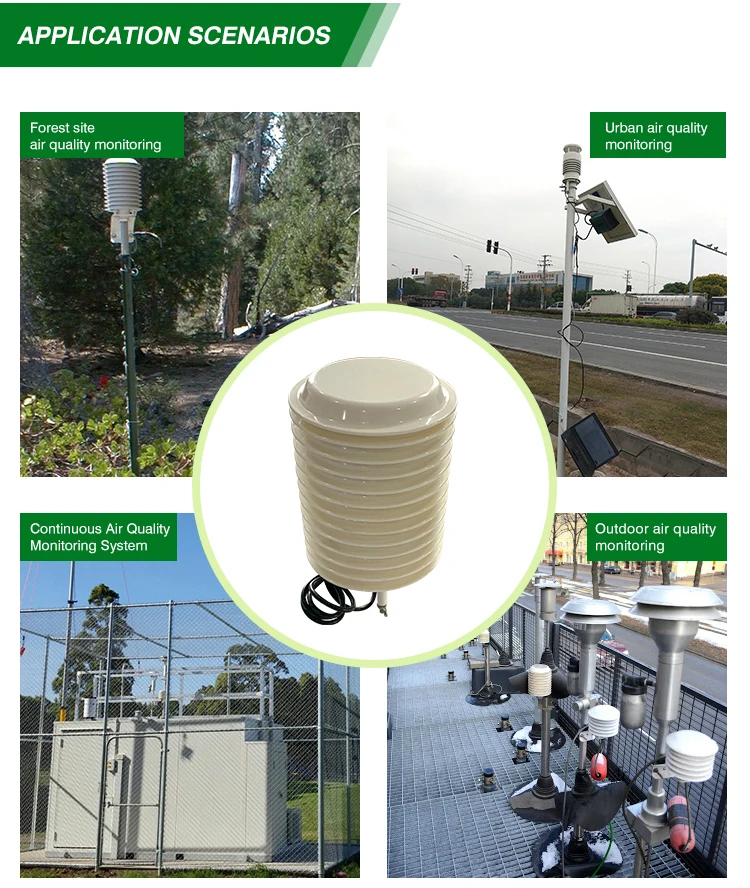

Application
