12vdc xhq pt 24vdc with wire steel cover diesel engine stop electromagnetic valve solenoid valve magnetic valve xhq pt 12v
- Category: >>>
- Supplier: FUJIAN KAIYUE ELECTRONICS CO. LTD
Share on (1600510873474):
Product Overview
Description
Product Description

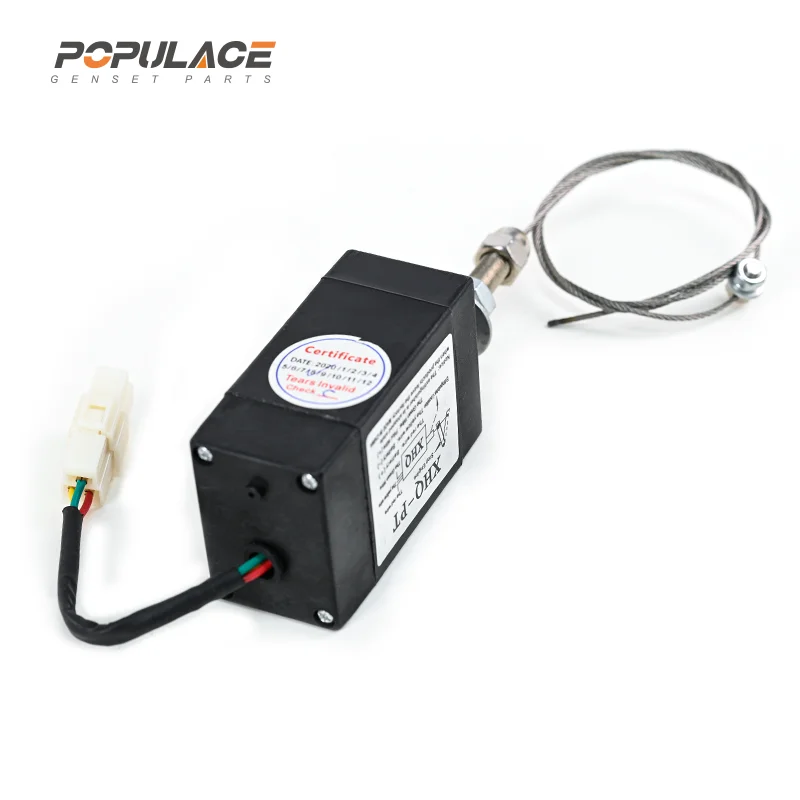

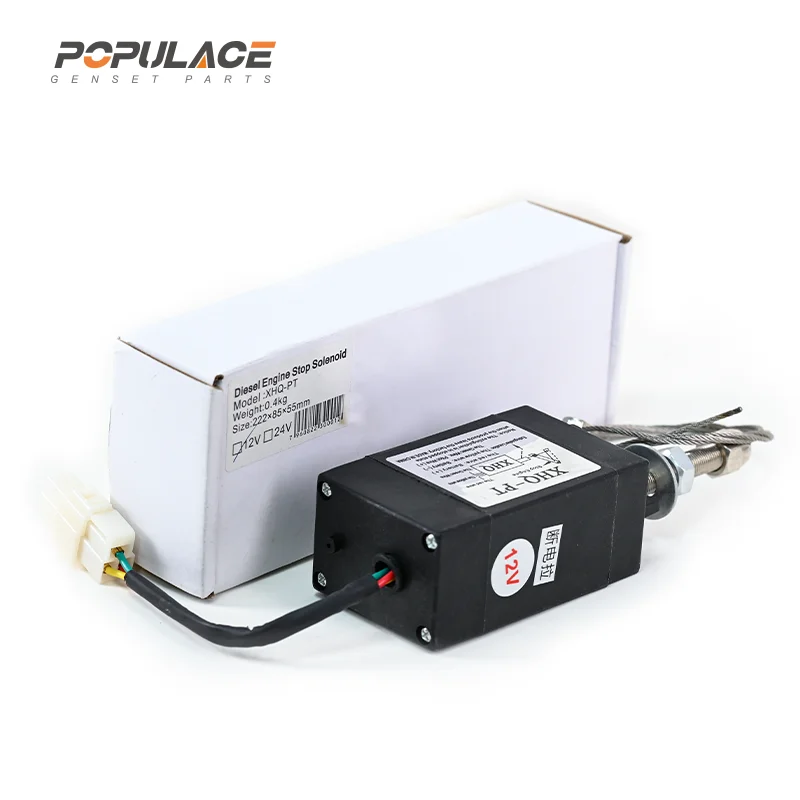

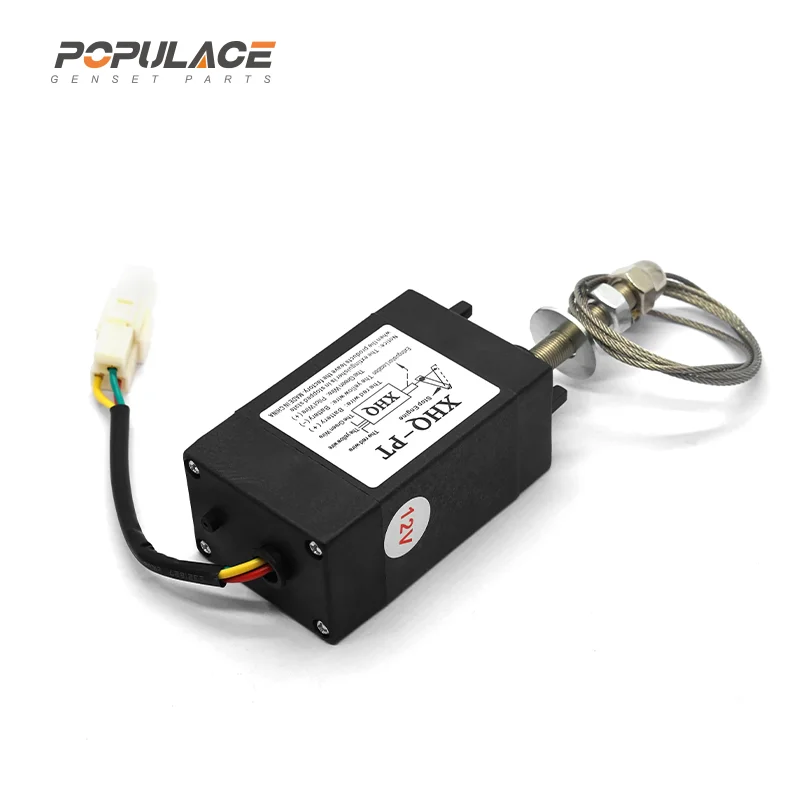

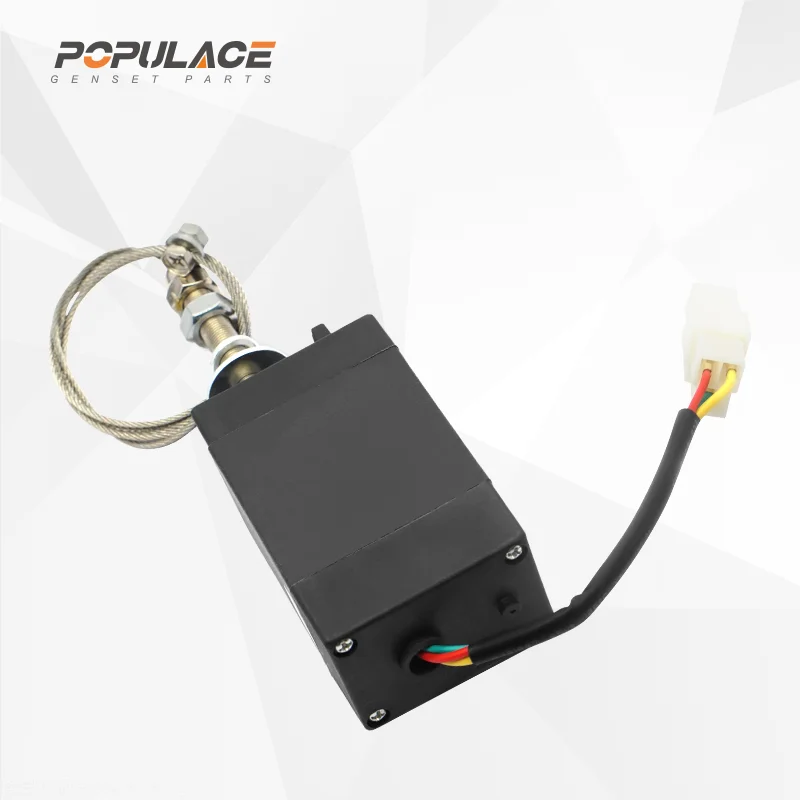

XHQ-PT
Solenoid XHQ-PT is used for diesel engine shutdown control, which can be applied to different types of diesel engines. Through the wire rope to apply force to the throttle lever of the diesel engine to make the engine shut down and automatically return to the position. It has the advantages of small working current, no heat, stable work and long service life.

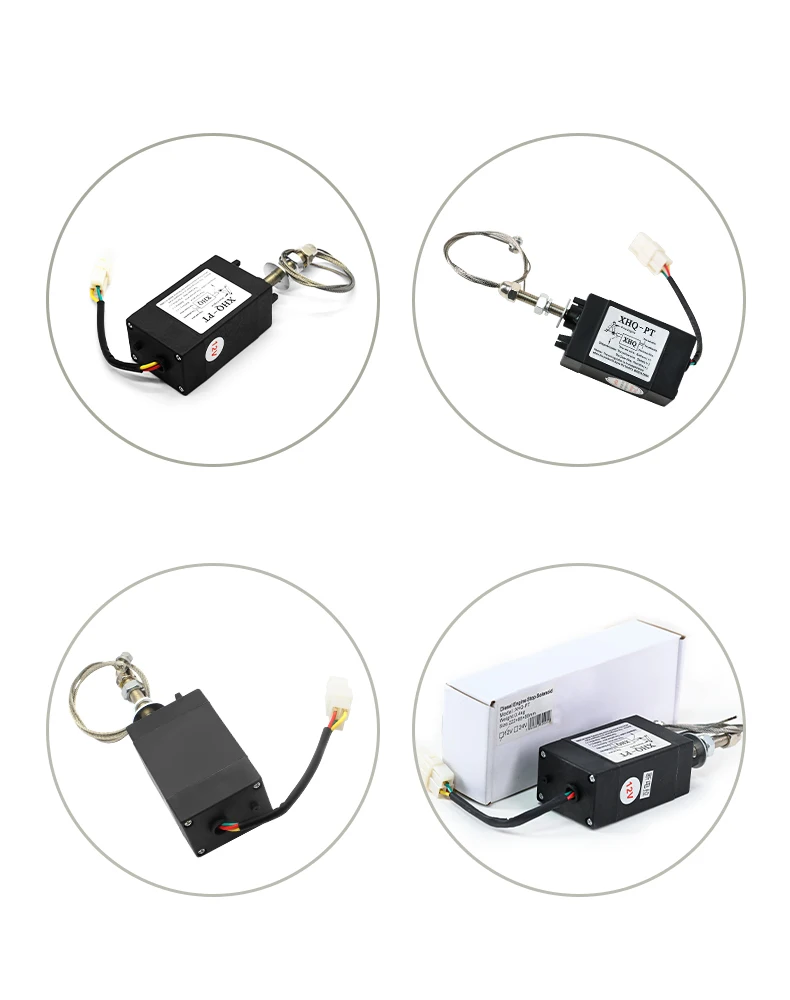

Product Display
Specification
12V 24V Diesel Engine Fuel Stop Solenoid Valve XHQ-PT Fuel Shutoff Solenoid | ||
Operating voltage | 12V(9-15V DC) 24V(18-30V DC) | |
Full-load current | 12V-2.0A 24V-1.0A(Automatic shut down the power when finish, operating current <15mA) | |
Control line operating current | <15mA | |
Operating stroke | 53±1mm | |
Max.tension | 90N | |
Environmental temperature | -30℃～60℃ | |
Reaction time： | ≤2 sec | |

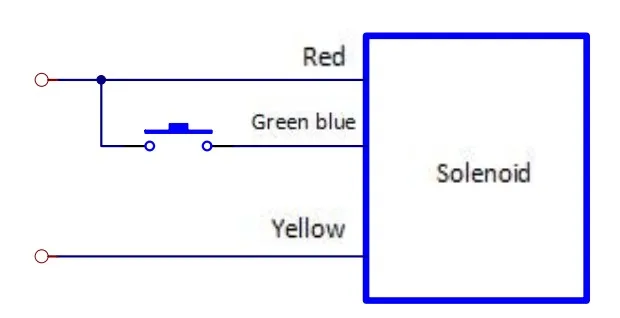

Connection Diagram
