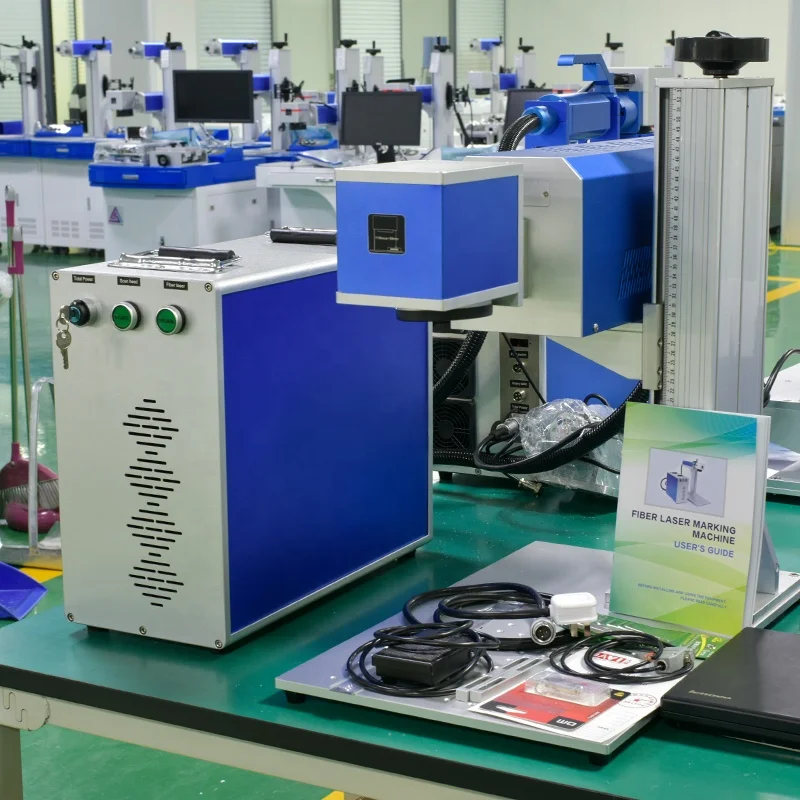

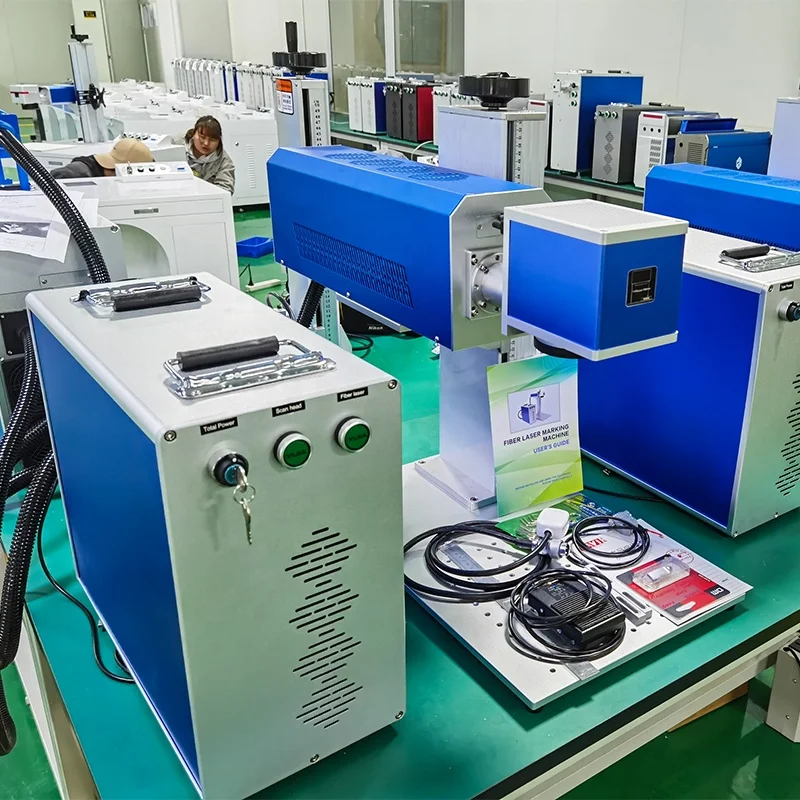

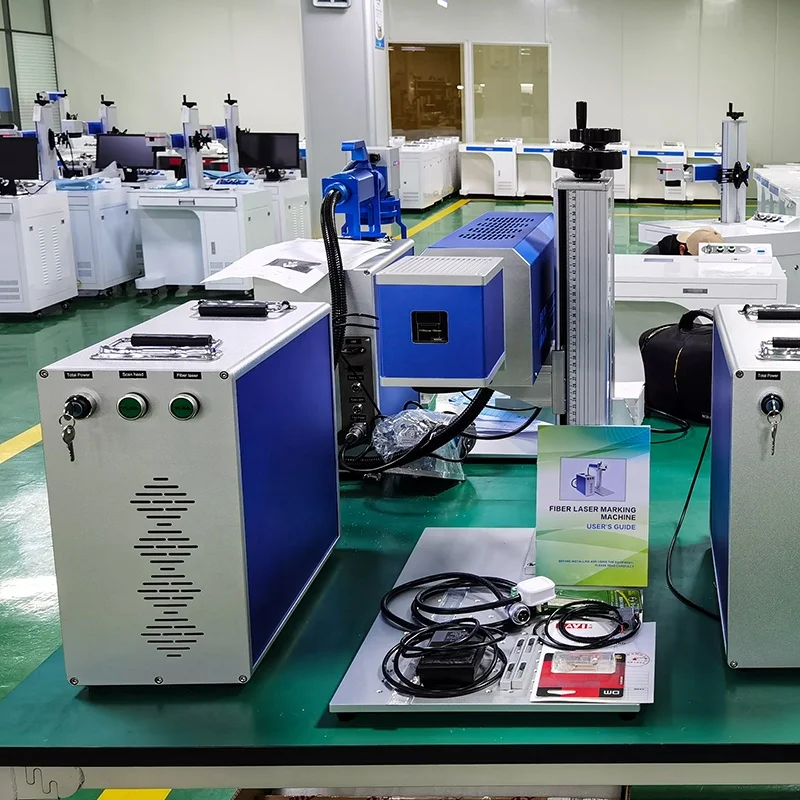

JN QUALITY CNC Split Desk Portable Type 30w 50w 100W Fiber CO2 Laser Marking Machine
- Category: >>>
- Supplier: Jinan Quality CNC Machinery & Equipment Co. Ltd.
Share on (1600510877632):
Product Overview
Description
JN QUALITY CNC Split Desk Portable Type 30w 50w 100W Fiber CO2 Laser Marking Machine
Co2 laser marking machine is also called co2 laser marker machine, co2 laser engraving machine, co2 laser engraver machine, laser engraving machine, leser engraving machine, co2 plastic laser engraving machines, logo printer laser, flying paper printing laser, laser writing machine, logo maker machine, plastic package engraver machine, etc, and logo marking machine is more and more popular in the market, because of its obvious and irreplaceable advantages:
Compared with ink jet printer, laser marking machine has functions of no consumption, no pollution, no noise, energy saving and environmental protection.
Product Advantages:
Co2 Laser Printers: We is using high energy density aggregation in carved the underlying surface, within a very short period of time make the surface of biomass gasification by controlling the effective displacement of the laser beam,
precisely burning and carving out exquisite patterns or characters. Reduce production costs, no consumption, high efficiency, permanent mark to ensure that the product can be traced back. Enhance the additional value and brand effect. Performance is more stable, work continuously for 24 hours and the maintenance time of the laser is more than 100,000 hours. Environmentally friendly non-toxic and no noise pollution.
Co2 Laser Printers: We is using high energy density aggregation in carved the underlying surface, within a very short period of time make the surface of biomass gasification by controlling the effective displacement of the laser beam,
precisely burning and carving out exquisite patterns or characters. Reduce production costs, no consumption, high efficiency, permanent mark to ensure that the product can be traced back. Enhance the additional value and brand effect. Performance is more stable, work continuously for 24 hours and the maintenance time of the laser is more than 100,000 hours. Environmentally friendly non-toxic and no noise pollution.

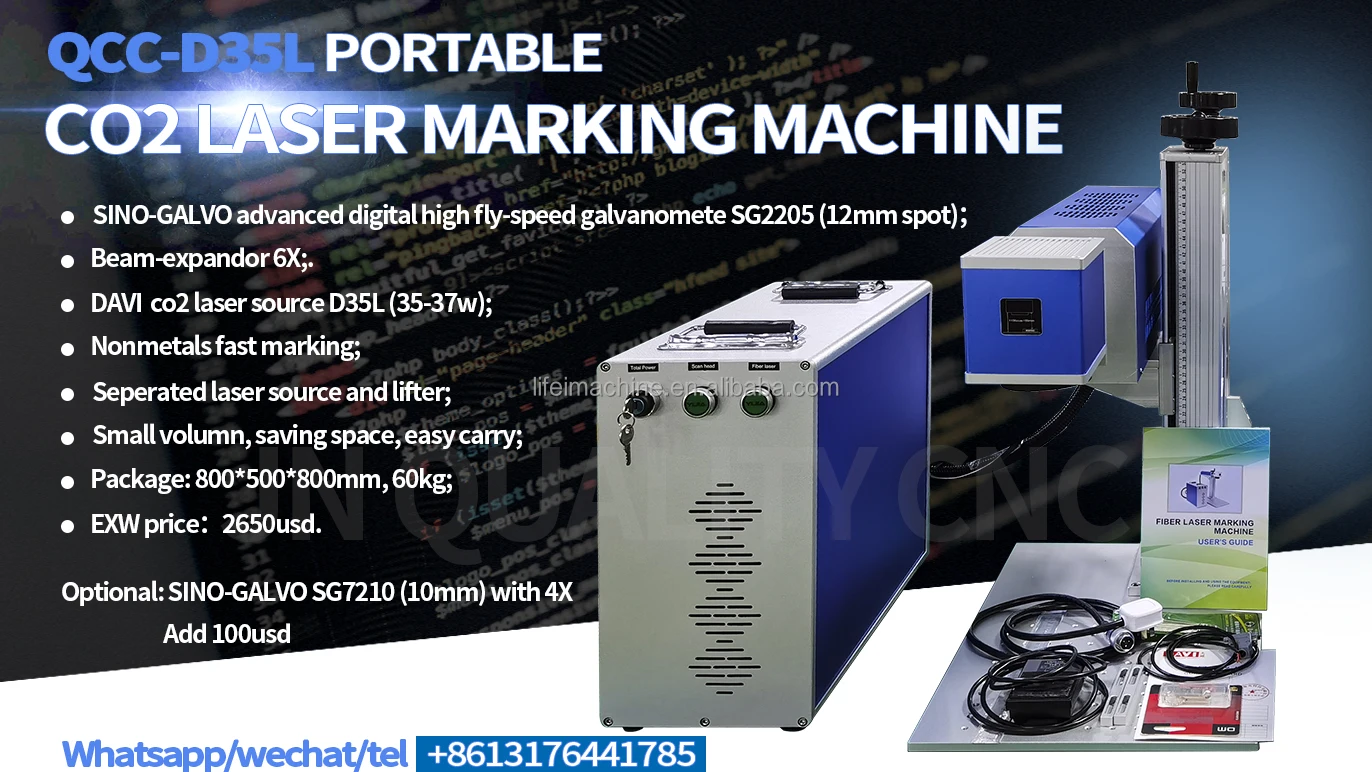

FEATURES AT A GLANCE
# Portable split model;
# Chinese DAVI D35L laser source 35-37W ;
# Chinese DAVI D35L laser source 35-37W ;
# Sino-Galvo Galvanometer scanner SG2205 with beam-expandor 6X;
# Opex Field lens;
# Marking field: 110*110mm;
# Beijing EZCAD control;
# Aluminum alloy machine frame;
# Red pointor for laser beam;
# Manual lifting column 500mm.
# Opex Field lens;
# Marking field: 110*110mm;
# Beijing EZCAD control;
# Aluminum alloy machine frame;
# Red pointor for laser beam;
# Manual lifting column 500mm.
PRODUCT SPECIFICATIONS
No | Product name | High speed co2 laser marking machine |
1 | Laser source and power | Davi RF D35L laser source (35-37W) |
2 | Wavelength | 10.6um |
3 | Beam Quality | M² ≤ 1.2 |
4 | Beam Diameter | 1.8±0.2mm |
5 | Galvanometer scanner | Sino-Galvo high speed digital scanner SG2205 with 12mm spot |
6 | Field lens | Opex or CARMEN HAAS |
7 | Controlling system | Beijing EZCAD |
8 | Marking size | 110 *110mm (150*150, 175*175 mm, 250*250mm, 300*300mm for optional) |
9 | Repetitive accuracy | 0.005mm |
10 | Min linear width | 0.01mm |
11 | Max marking /engraving speed | 7000mm/s |
12 | Marking Depth | Depend on materials |
13 | Cooling device | Build-in air-cooling |
14 | Other devices | Standard devices: Sensor, Encoder Optional device: Conveyor |
15 | Marking Format | Graphics, text, bar codes, QRcode, automatically date, batch number, serial number,etc. |
16 | Graphic format supported | Ai, plt, dxf, dst, svg, nc, bmp, jpg, jpeg, gif, tga, png, tiff, tif |
17 | Laser lifetime | more than 100,000 hours |
18 | Warranty | 2 years for DAVI laser source |
19 | Consumed power | <800W |
20 | Working Condition Humidity | 5%-75%, 0-40 degree, free of condensed water |
21 | Working Environment | Clean and dust free or dust less |
22 | Working Voltage | 220V±10%/50Hz or 110V±10%/60Hz or customized |
23 | Net weight | 61kg (with exporting wooden box) |
24 | Packing Size | 800*600*800mm (L*W*H) |
PRODUCT CONFIGURATION
Davi laser RF co2 source 35W
Davi D35L test report
Sino-Galvo Galvanometer scanner

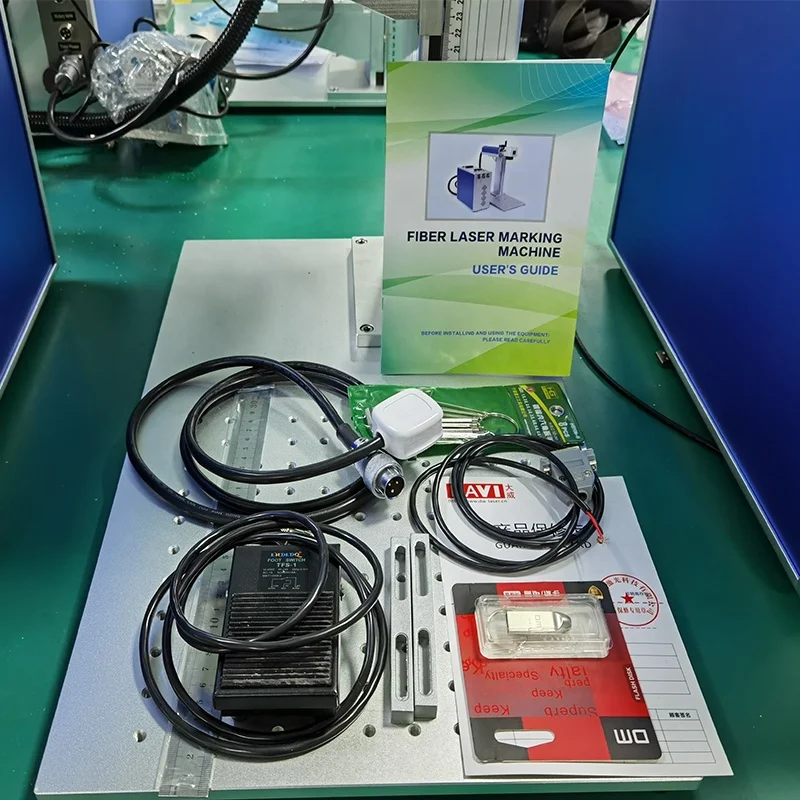

Parts with delivery
Main power Scan and Co2 laser switch
Laptop with EZCAD

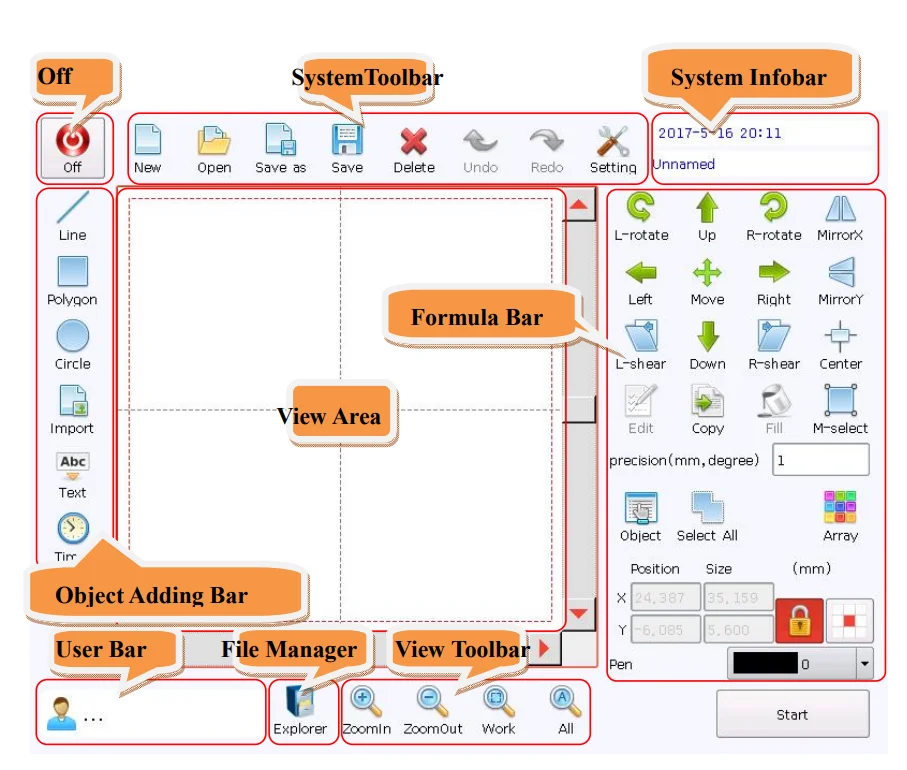

1. Special control system for laser marking with high performance, high stability and high speed.
2. Based on embedded operating system, dedicated for special plane, natural immunity to various computer viruses.
3. Touch design, friendly interface and easy to operate.
4. Support PLT format vector file import.
5. Support direct input of text, serial number, date, time, random code and read text from file, etc.
6. It supports saving text objects to files for easy traceability.
7. The inkjet font supports SHX and TTF fonts, as well as CSF fonts and bitmap fonts independently developed by our company.
8. Support static coding, analog speed coding, and encoder speed measurement coding.
9. Support power control of other components such as lasers, and realize one-key power on and off.
10. Support automatic backlight adjustment and screen protection.
10. Support automatic backlight adjustment and screen protection.
11. Support 8 trigger memories.
12. Support multi-user and authority management.
13. For newest informations, please go through: www.clefine.com
MARKING ZAMPLES
Applicable fields:
1. Mechanical parts:
medical equipment, plumbing equipment, hard alloys, measuring tools, machine parts, instrumentation, kitchen utensils, gear bearings, valve signs, vehicle parts, stainless steel products, copper and aluminum products, , vacuum flasks, automobile and motorcycle parts, stainless steel, copper, aluminum alloy, synthetic materials, rubber, leather, hard alloy,pistons, bearings, gears, shafts, clutch, motors, etc.
2. Electronic components: resistance, capacitance, chips, printed circuit boards, computer keyboard,capacitors, inductors, printed circuit boards, integrated circuits, electrical connector cards, various instruments and control surfaces,etc.
3. Hardware tools: knives, tools, measuring tools, cutting tools etc.
4. Apparatus and meter: panel board, nameplates, panel signs, precision equipment and other instrumentations.
5. Digital electronic: keys,computer, laptop, digital camera, mobile phone and accessories etc.
6. Medical devices: surgical instruments, medical packaging etc.
7. Packing: food, beverages, smoking and alcohol plastic packing bag etc.
8. Daily necessities: pens,cosmetics, labels, zipper, key holder, sanitary ware, eyewear, LED light,clothing industry,food &
beverage factories, stationery, nameplates, display panels, various paint products, handicrafts,rings, necklace, earrings,
bracelets,gold, silver ornaments etc.
Applicable materials:
1. Metals: gold, silver, brass, sluminium, steel, stainless steel, carbon steel, iron, Iitanium, carbon steel, mild steel, spring
steel, copper, magnesium, zinc, galvanized sheet, rare metal and alloy steel, special surface treatment (aluminum anodized,
plating surface, surface oxygen breaking of aluminum and magnesium alloy) etc.
2. Nonmetals: rubber, resin, nylon, plastics(PET,HDPE,PP, ABS,PC,PPS,PVC) makrolon etc
1. Mechanical parts:
medical equipment, plumbing equipment, hard alloys, measuring tools, machine parts, instrumentation, kitchen utensils, gear bearings, valve signs, vehicle parts, stainless steel products, copper and aluminum products, , vacuum flasks, automobile and motorcycle parts, stainless steel, copper, aluminum alloy, synthetic materials, rubber, leather, hard alloy,pistons, bearings, gears, shafts, clutch, motors, etc.
2. Electronic components: resistance, capacitance, chips, printed circuit boards, computer keyboard,capacitors, inductors, printed circuit boards, integrated circuits, electrical connector cards, various instruments and control surfaces,etc.
3. Hardware tools: knives, tools, measuring tools, cutting tools etc.
4. Apparatus and meter: panel board, nameplates, panel signs, precision equipment and other instrumentations.
5. Digital electronic: keys,computer, laptop, digital camera, mobile phone and accessories etc.
6. Medical devices: surgical instruments, medical packaging etc.
7. Packing: food, beverages, smoking and alcohol plastic packing bag etc.
8. Daily necessities: pens,cosmetics, labels, zipper, key holder, sanitary ware, eyewear, LED light,clothing industry,food &
beverage factories, stationery, nameplates, display panels, various paint products, handicrafts,rings, necklace, earrings,
bracelets,gold, silver ornaments etc.
Applicable materials:
1. Metals: gold, silver, brass, sluminium, steel, stainless steel, carbon steel, iron, Iitanium, carbon steel, mild steel, spring
steel, copper, magnesium, zinc, galvanized sheet, rare metal and alloy steel, special surface treatment (aluminum anodized,
plating surface, surface oxygen breaking of aluminum and magnesium alloy) etc.
2. Nonmetals: rubber, resin, nylon, plastics(PET,HDPE,PP, ABS,PC,PPS,PVC) makrolon etc
SIMILAR PRODUCTS
Desktop fiber laser
Desktop fiber laser
Desktop fiber laser
Desktop fiber laser
Desktop Mopa fiber laser
Desktop co2 laser
Portable split fiber laser
Portable split fiber laser
(stainless steel cover)
Portable split co2 laser
Portable fiber laser
Portable + handhelder fiber laser
Desktop integrated fiber laser
Semi-enclosed fiber laser
Semi-enclosed fiber laser
Semi-enclosed fiber laser
Enclosed fiber laser
Enclosed fiber laser
Enclosed fiber laser
FAQ
Q1. How to get the most suitable machine and best price？
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2. If we don't know how to use the machine,can you teach us?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3.How about your after-sales service?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2. If we don't know how to use the machine,can you teach us?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3.How about your after-sales service?
24/7 service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone Skype or Whatsapp or by face-to-face communication online.
We could send free parts to you in warranty period if machines have any problem under "normal use".
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models, such as separate portable, table type, enclosed type, mini portable, fly type etc.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according to your requirement!
Yes, we can supply many models, such as separate portable, table type, enclosed type, mini portable, fly type etc.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according to your requirement!
Q5. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q6:What's the guarantee, in case the machine breaks down?
The machine has two years' guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q7. How we pay you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
The machine has two years' guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q7. How we pay you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F. Send your order by air or by sea according to your need.
F. Send your order by air or by sea according to your need.

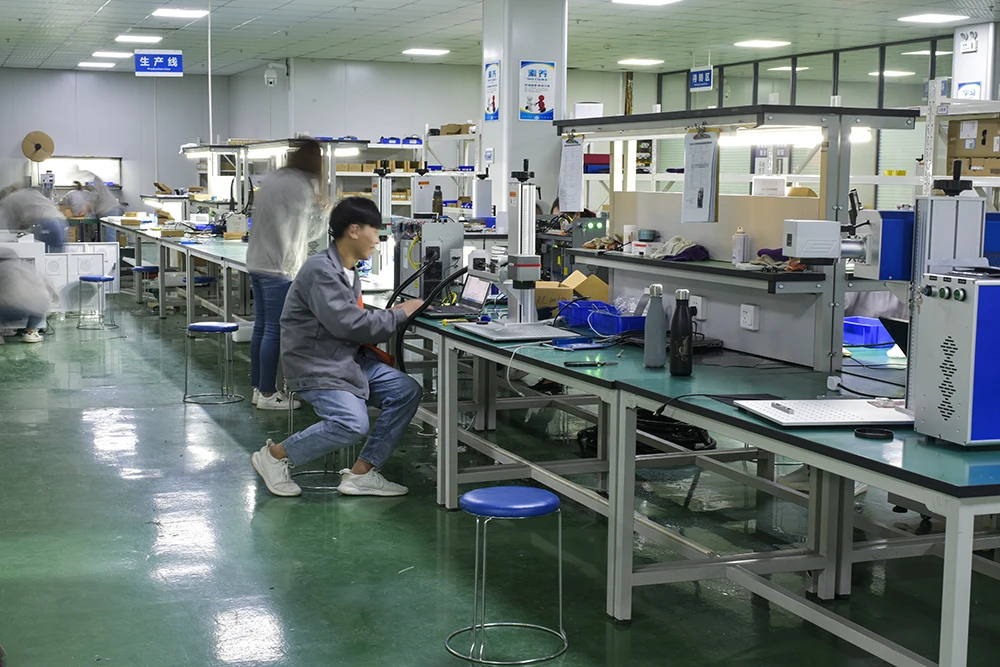

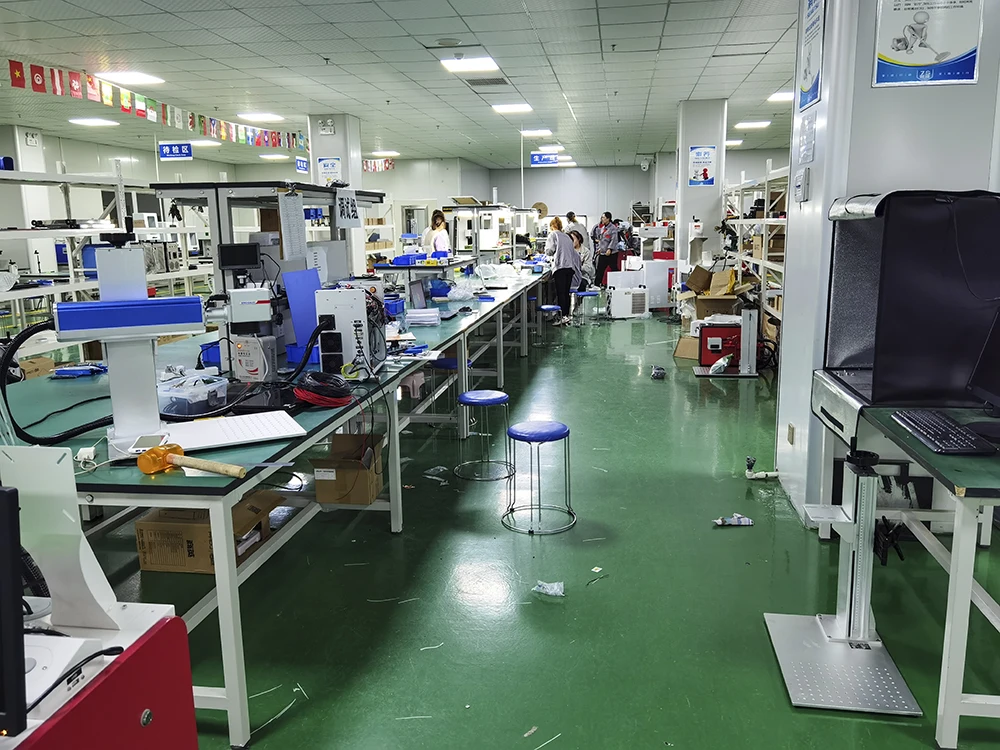

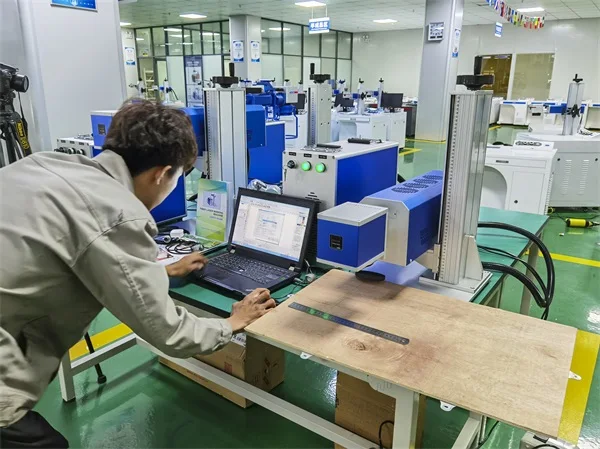

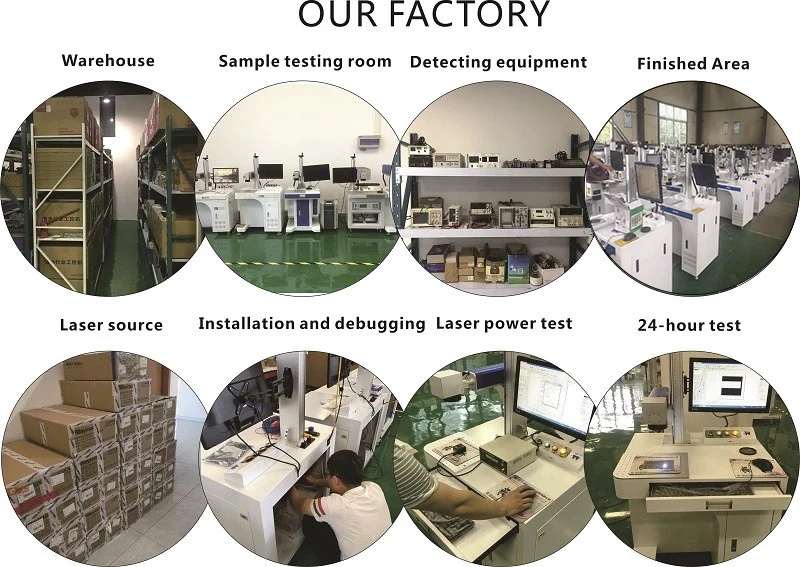

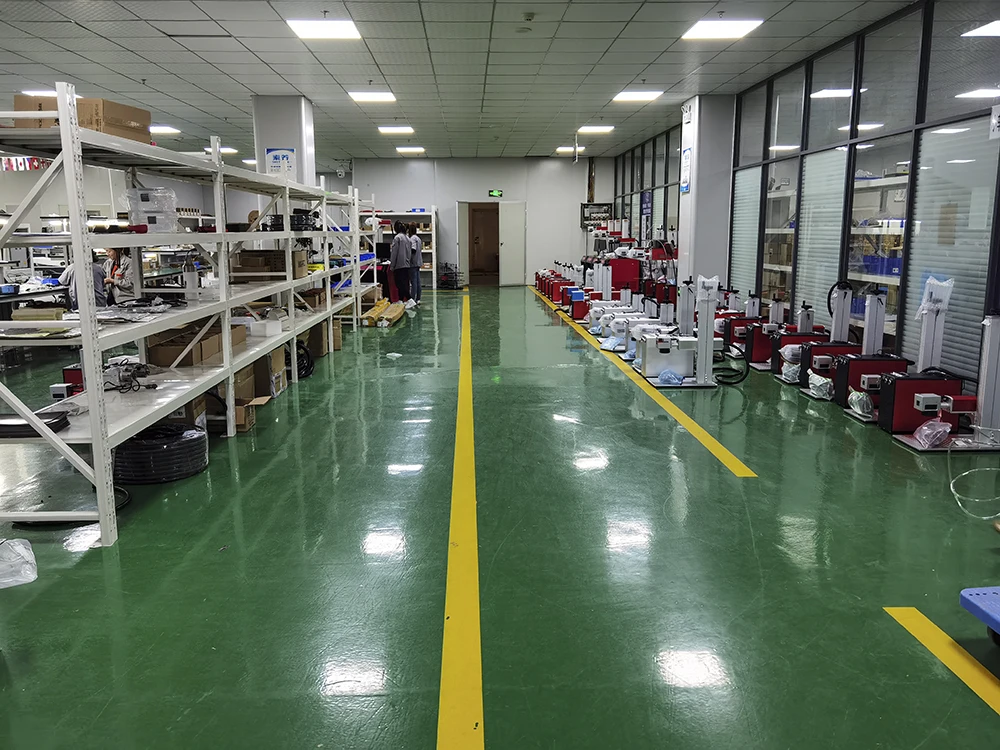

FACTORY VIEWS
