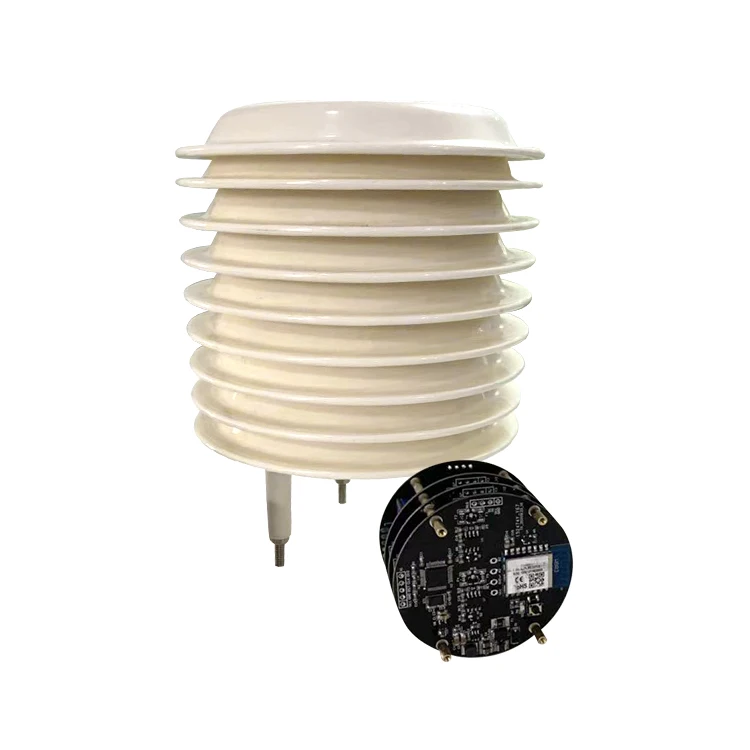

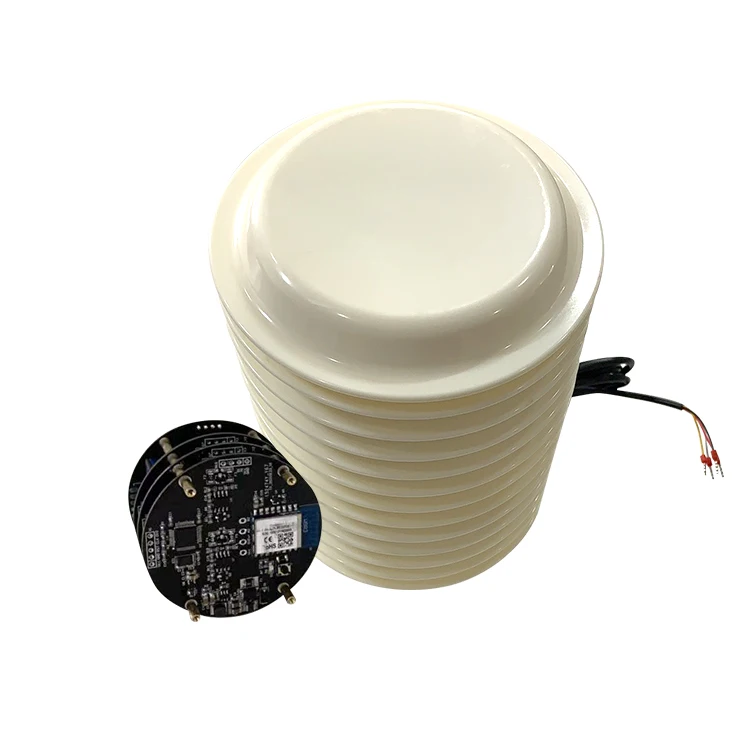

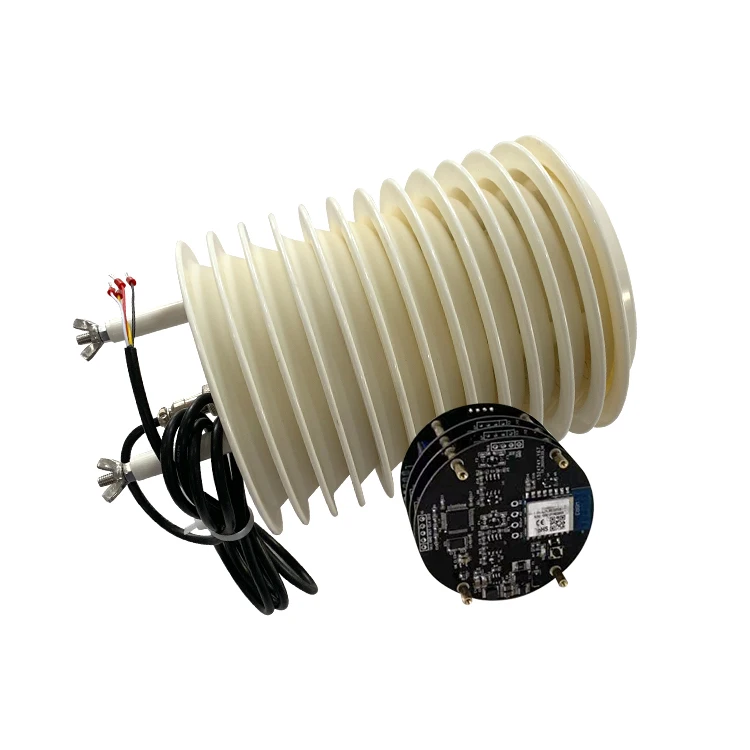

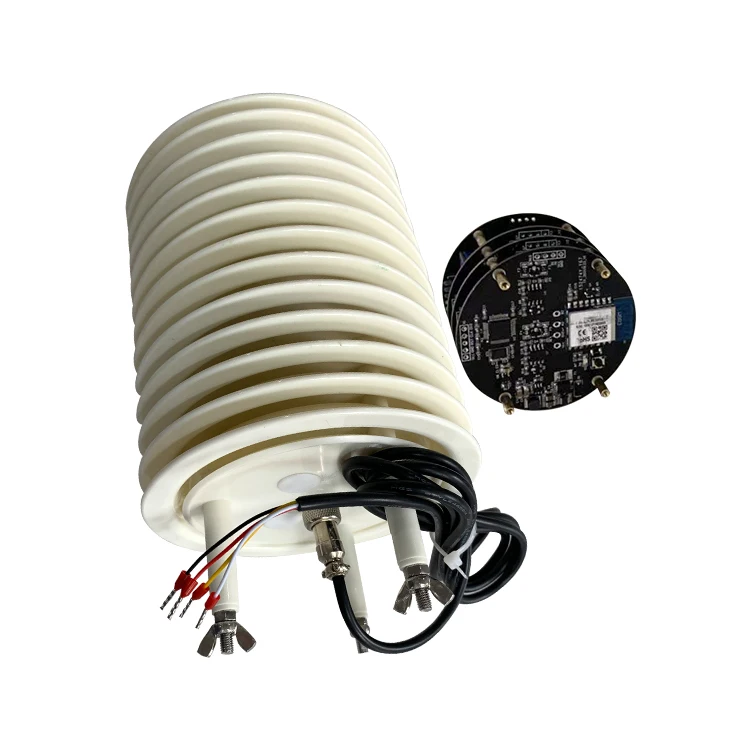

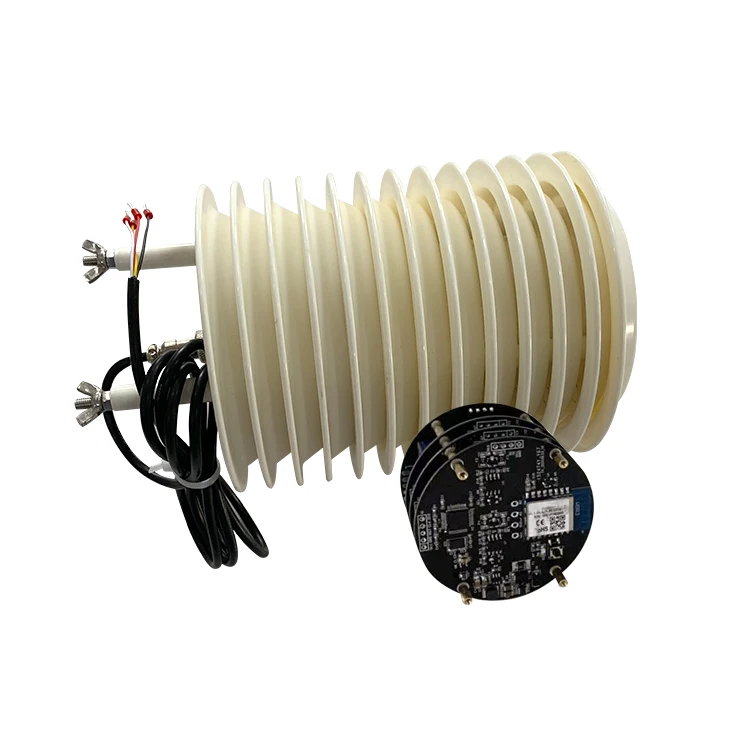

PM2.5 NO2 weather station outdoor detector methane o3 sensor de gas
Product Description
| NO. | Model | Descriptions |
| 1 | ABS300 | VOC,temperature,humidity |
| 2 | ABS800 | CO,NO2,SO2,O3,PM2.5,PM10,temperature,humidity |
| 3 | ABS900 | CO,NO2,SO2,O3,PM2.5,PM10,temperature,humidity,wind speed,wind direction |
| 4 | ABS918 | CO,NO2,SO2,O3,H2S,VOC,PM2.5,PM10,temperature,humidity,wind speed,wind direction |
| 5 | Optional | CO,NO2,SO2,O3,CO2,O2,NH3,H2S,VOC,PM2.5,PM10,temperature,humidity,wind speed,wind direction |
Welcome to "Contact us" for customization
Feature:
uUltra-low power consumption (0.3W),especially suitable for higher power consumption requirements battery powered systems.
uThe 9 ~ 35V wide supply input power range.
u The measurement data storage function (1~12Month) can ensure the integrity of measurement data
u The High-precision clock calendar function.
uThe industrial level protective casing can ensure the long-term field life for more than 10 years
uThe industrial level electrical interface protection.
uThe standard data output protocol.
Parameter | index | Remark |
Particle measurement range | 0.3~10um |
|
Particle content | 0~800ug/m3 |
|
Particle resolution | 1ug/m3 |
|
Particle measurement method | Laser measurement |
|
Temperature measurement range | 0~60 degrees Celsius |
|
Temperature resolution | 0.1 degrees Celsius(take an integer) |
|
Humidity measurement range | 0%~100%RH |
|
Humidity resolution | 1% |
|
NO2 measuring range | 0-340ug/m3 |
|
NO2 Detection Limit | 5ppm |
|
Measuring principle | Electrochemistry |
|
O3 measuring range | 0-300ug/m3 |
|
O3 Detection Limit | 5ppm |
|
Measuring principle | Electrochemistry |
|
C6H6 measuring range | 0-20ug/m3 |
|
C6H6 Detection Limit | 5ppm |
|
Measuring principle | PID |
|
Working temperature | -40~60 degrees Celsius |
|
Working humidity (non-condensing) | -40°C ~+60°C |
|
Mean time between failures | Mean time between failures (MTBF), design value 85000h |
|
Response time | ≤10 seconds |
|
Data output | RS485/UART/WIFI |
|
DC power supply voltage | Solar power supply and 220V switchable | Suggest DC15V |
Strength | ≤0.5~0.87W depending on the number of optional sensors | Depending on the number of optional sensors |
Pls Click Here to Get More Details

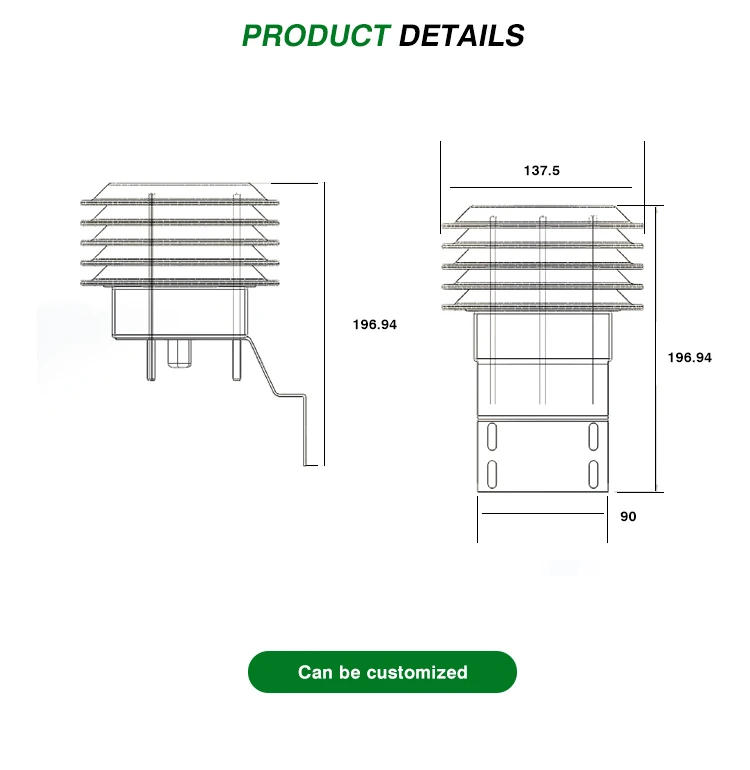

product details
