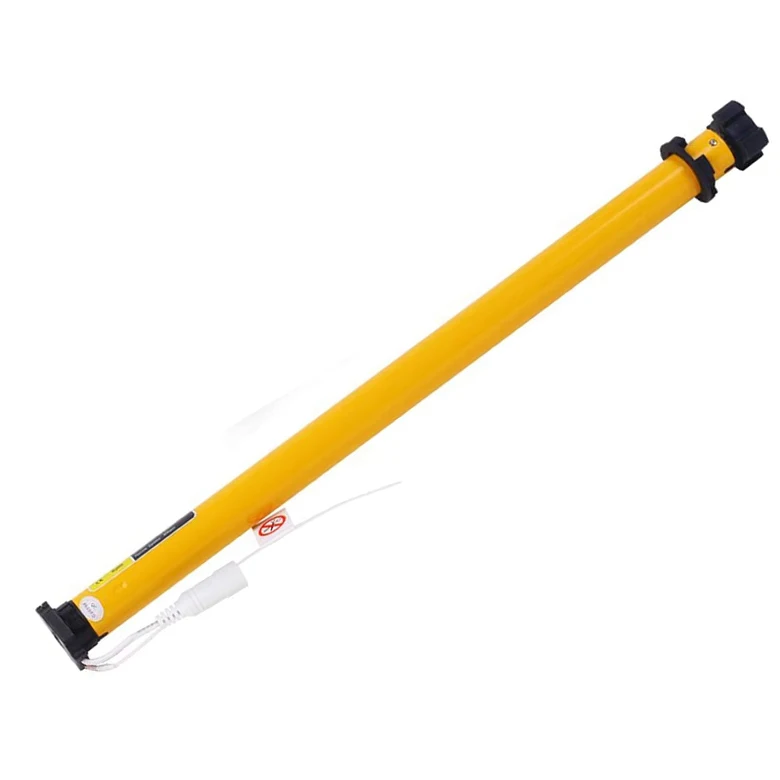

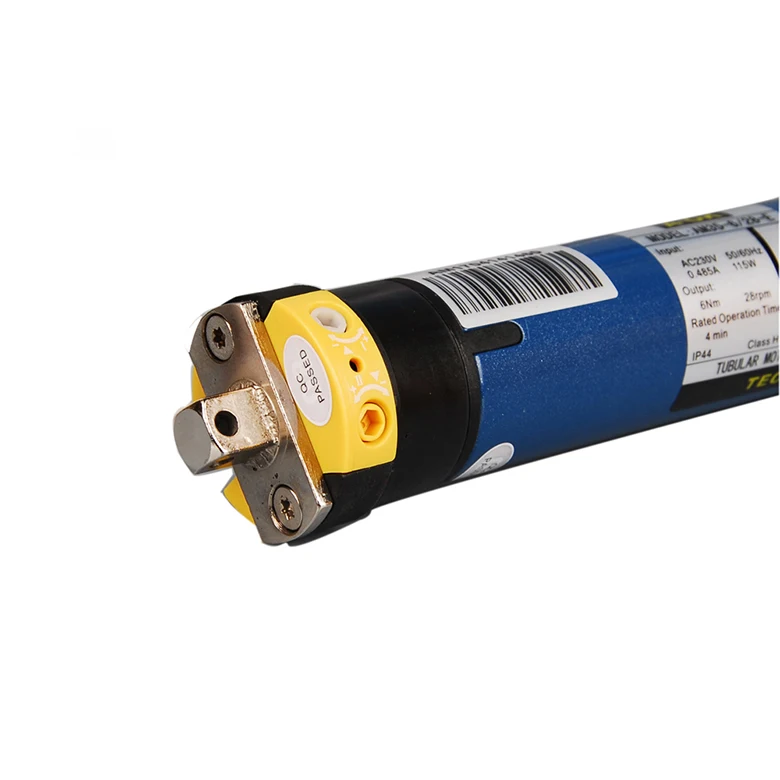

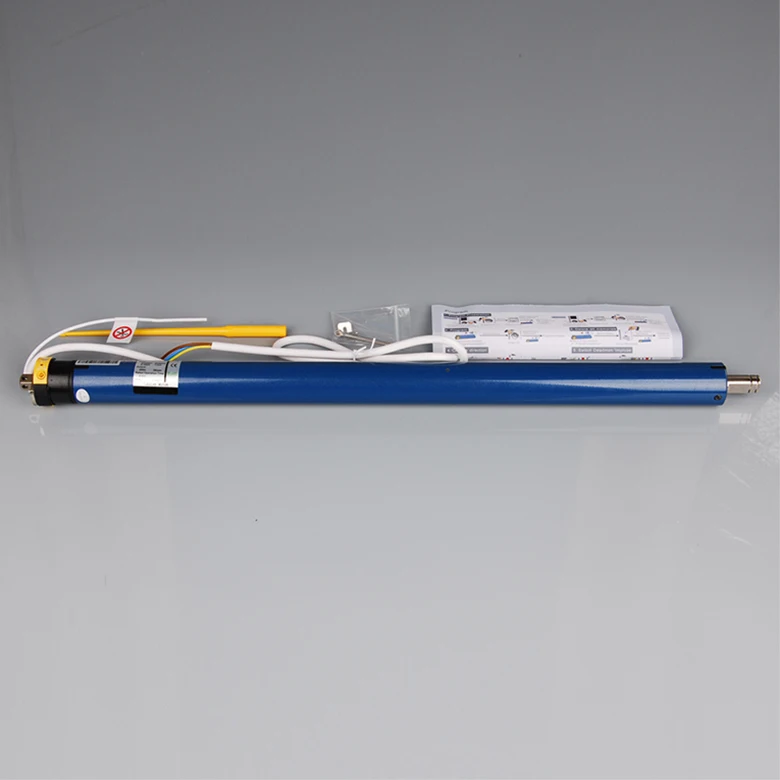

AC 100 240V Electric Roller Shade Tubular Roller Blind Motor with Remote Control Compatible 38/42/48MM Shade Tube
- Category: >>>
- Supplier: Shenzhen Starz Technology Co. Ltd
Share on (1600510890169):
Product Overview
Description

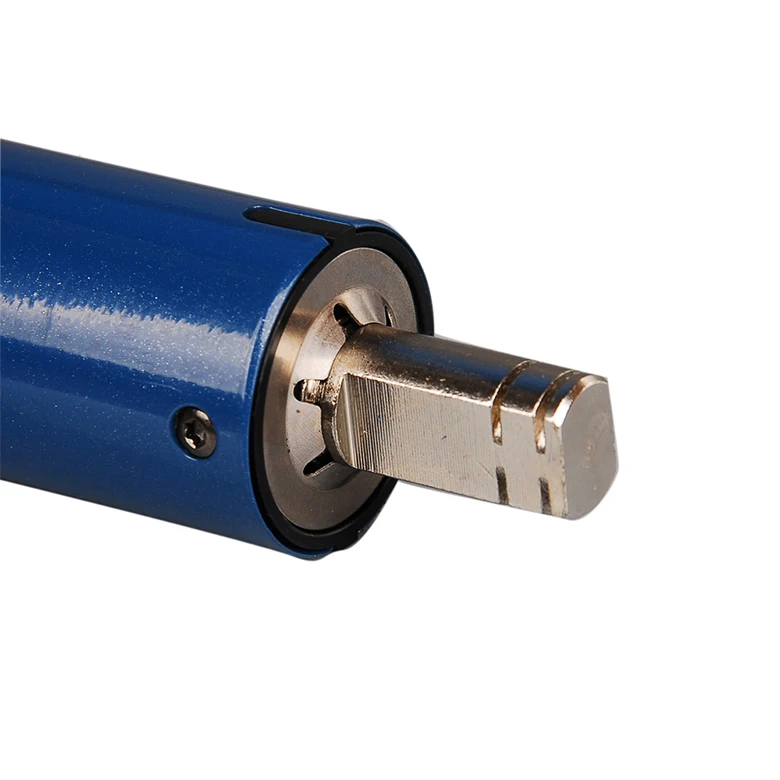

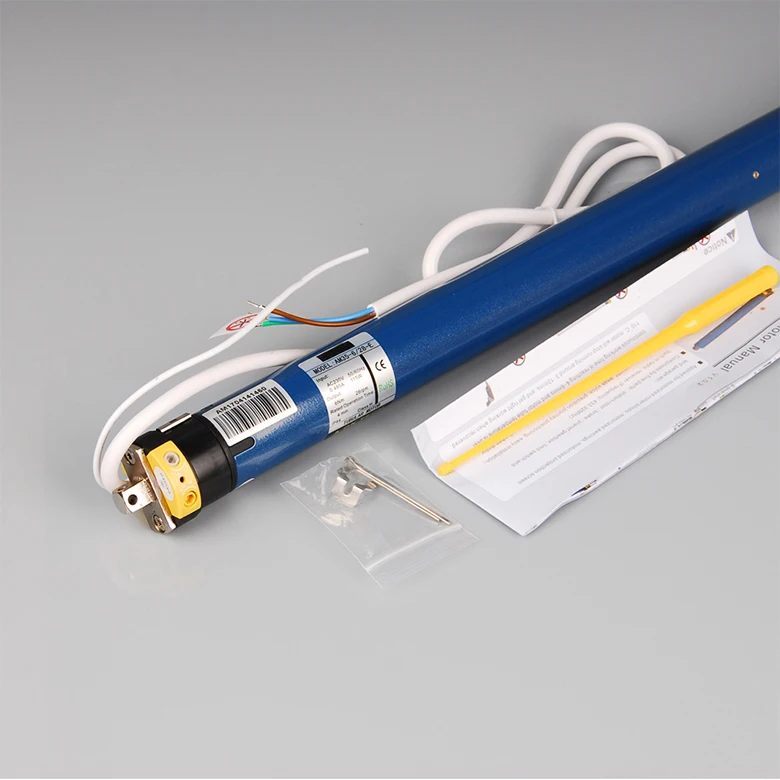

AC 100-240V Electric Roller Shade Tubular Roller Blind Motor with Remote Control Compatible 38/42/48MM Shade Tube
Product Description

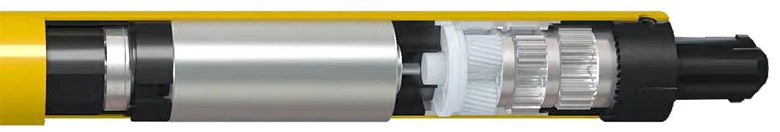

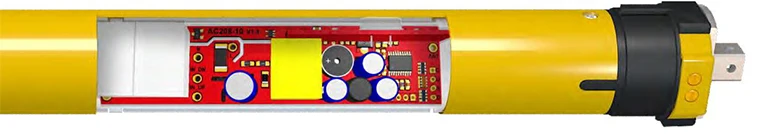

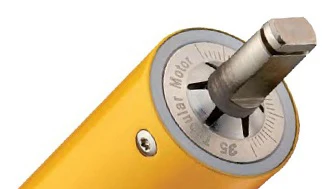

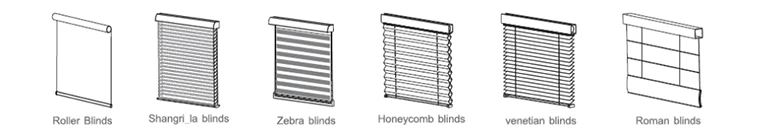

Our Electronic Limit Tubular Motor has the characteristics of low noise, strong concealment, small size and convenient installation. Tubular motors are mainly used for electric roller blinds, electric projection screens, automatic driving devices, etc. It has been widely used in garage door offices, residences, hotels, exhibition halls, villas and other places.

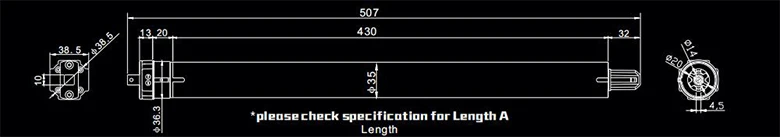

| Model No. | Rated Torque | Rated RPM | Motor Diameter | Rated Voltage | Rated Power | Rated Current | IP Class |
| Tubular roller shutter motor BD35-3/25-MEL-P | 3N.m | 25rpm | 35mm | 100V~240VAC | 24W | 2A | IP44 |
| Tubular roller shutter motor BD35-6/18-MEL-P | 6N.m | 18rpm | 35mm | 100V~240VAC | 36W | 3A | IP44 |
| 230V AC 50/60Hz | |||||||
| Tubular roller shutter motor BD35-6/28-MEL-PZ | 6N.m | 28rpm 35mm 230V | 115W | 0.485A | IP44 | ||
| Tubular roller shutter motor BD35-8/19-MEL-PZ | 8N.m | 19rpm | 35mm | 230V | 115W | 0.485A | IP44 |
| 120V AC 60Hz | |||||||
| Tubular roller shutter motor BD35-6/28-MEL-PZ | 6N.m | 28rpm | 35mm | 120V | 115W | 1.1A | IP44 |
| Tubular roller shutter motor BD35-8/19-MEL-PZ | 8N.m | 19rpm | 35mm | 120V | 115W | 1.1A | IP44 |
Application:

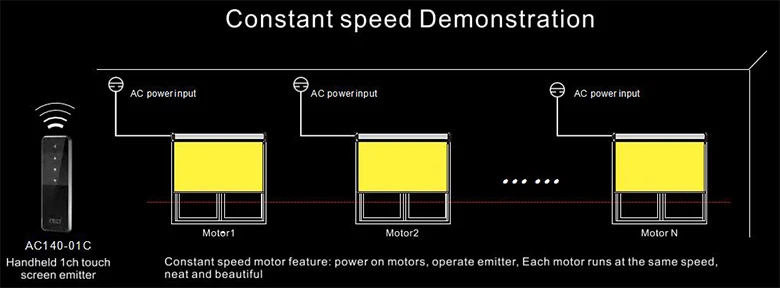

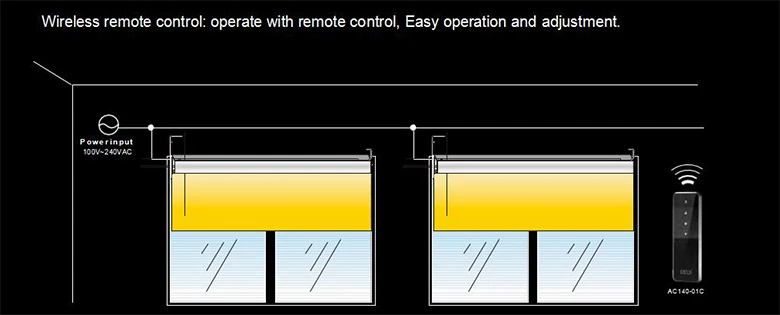

Wireless remote control: operate with remote control, Easy operation and adjustment.
Features:
* Able to set 6 limits, Power-off limit memory;
* Support external dry contact pulse switch control;
* Simple operation to switch dot/ continuous move mode and running direction;
* Hall sensor for High precise limits;
* Position sensor open circuit short circuit protection function, Stop by block to avoid any damage;
* RS485 set dot move angle, dot/ continuous move mode running direction and Baud rate;
* We can also manufacture all other styles of tubular motors according to customer requirements;

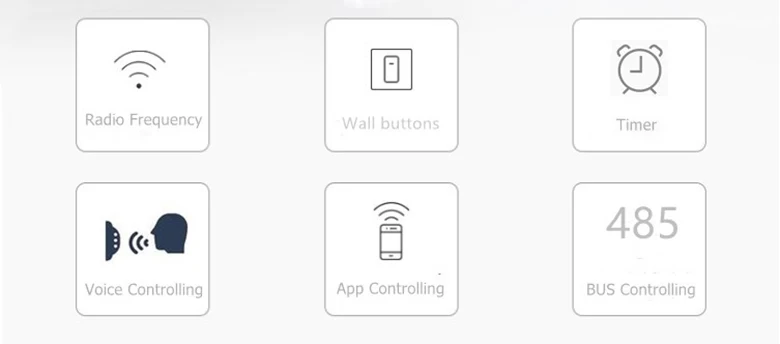

Controling:
Wireless remote control: operate with remote control, Easy operation and adjustment
| Control ways (optional): |
| 1. Tuya Smart Life App |
| 2. Zigbee Hub + Tuya Smart Life App |
| 3. Remote Control |
Our Services
| 1). Well-trained and experienced staffs for smart home system to contact with you in fluent English. |
| 2). Your email will be replied within 5 hours. |
| 3). Providing the OEM & ODM service under your requirements about smart switch, smart socket and networking products. |
| 4). Shipping service can be provided, cooperating with more than 10 forwarder companies. |
| 5). Package design service for your OEM order. |
Company Information
Our Shows
FAQ
1. How can you control the quality?
Starz: We have IQC, OAC, QA to control the quality, which make sure every step are running well.
2. Can you make OEM package for my order?
Starz: Yes, we have rich experience for OEM projects.
3. What colors can I choose?
Starz: The color is optional, you can tell us which color you perfer, then we will check if we can make it or not.
4. What is your main product?
Starz: we have three main product category: Smart Home & IOT Devices.
5. Do you offer the free samples?
Starz: Yes, but mostly for our old clients, for new clients, it depends on the company and need to apply with our management.
6. What's the MOQ?
Starz: Normally we don’t have strict requirement for MOQ, the quantity can be negotiated.
7. What's your production capacity per day?
Starz: It depends on the product line, actually it is about 5K-20K pieces per day, the monthly production capacity up to 100K PCS.
8. What's the sample delivery time?
Starz: About 2-5 days
9. Can you provide shipping to my country?
Starz: Yes, we can provide the shipping to your company, just please tell us your address.
