uTrust 3700 F Identiv SCM Microsystems NFC Card Reader CLOUD 3700 F
- Category: >>>
- Supplier: MARKLAND TECHNOLOGY LIMITED
Share on (1600510895493):
Product Overview
Description
Product Description

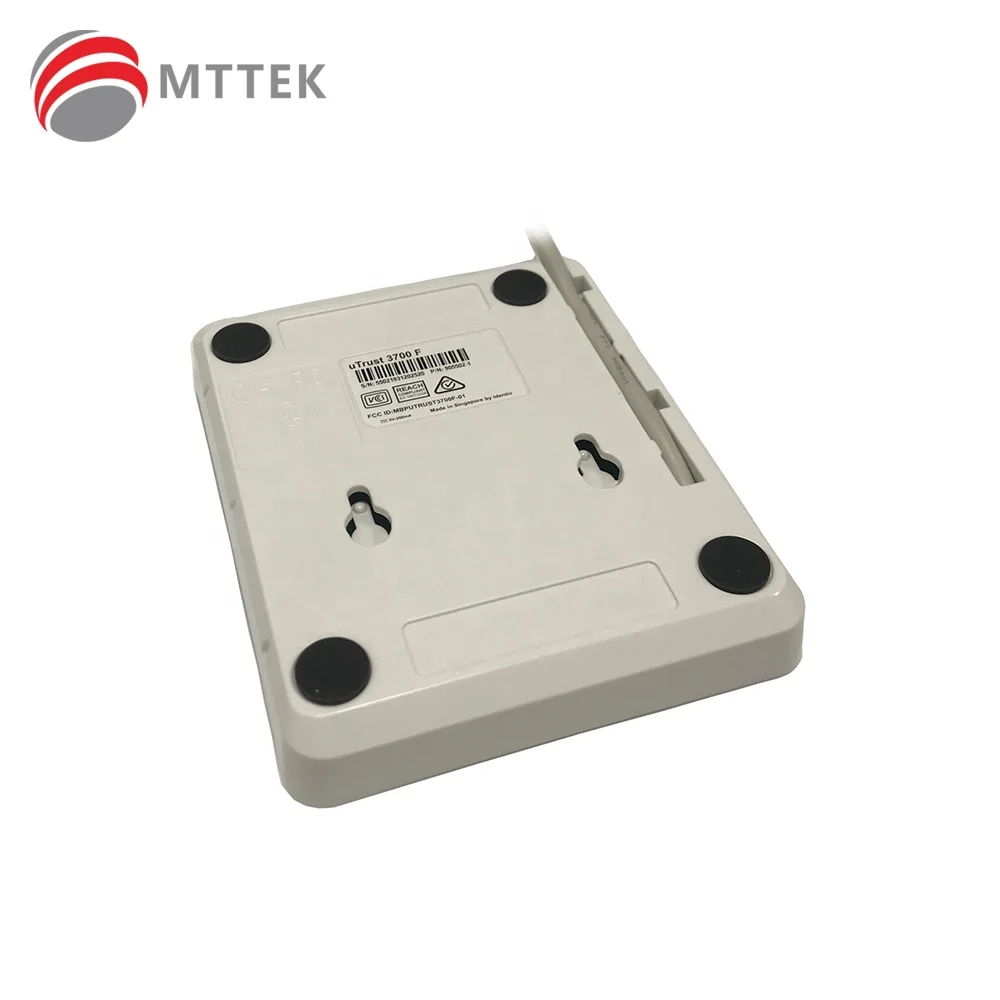

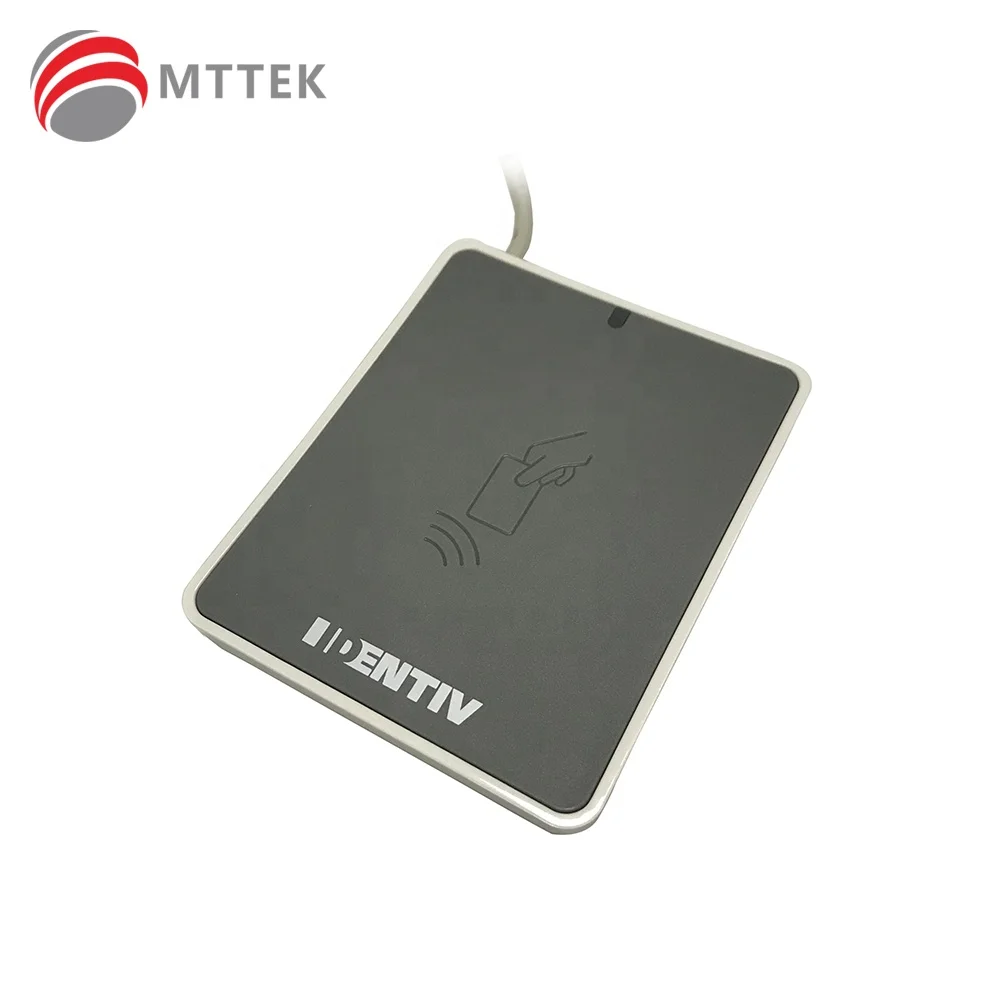

uTrust 3700 F Contactless Smart Card Reader
• CONVENIENT
Modern, compact casing design for easy and ergonomic operation in limited-space environments
• CONVERGENT
Features contactless and NFC technologies for use with mixed credential populations and form factors
• INTEROPERABLE
Supports major card ICs, standards and technologies in just one device
• FAST
Transaction time optimized with 848 kbs support in ISO/IEC 14443 for maximum end-user acceptance
Identiv’s uTrust 3700 F is the ideal combination of contactless and near field communication (NFC) technologies in just one single device. Featuring 13.56 MHz contactless technology and NFC, this PC-linked reader supports end-user environments where virtually all kinds of contactless credentials are being used, even in mixed populations.
With its all-in-one concept, the uTrust 3700 F enables a smooth transition from well-established traditional technologies into emerging NFC applications, supporting new business. It represents the perfect mix between modern, stylish design and the same ergonomic operation of any credential form factor, like ID-1 cards, tokens or NFC-enabled smart phones. The Identiv driver platform, as well as the Windows® Plug-and-Play driver support, allow seamless integration into any end-user environment with very little or no administration. The uTrust 3700 F can even be used on Android- based systems.
With uTrust 3700 F, the end user experiences convenience, transaction-time efficiency, security, flexibility and full NFC capability for applications such as network log-on, secure web-based transactions and even NFC-based customer loyalty programs. The product also has been designed for secure in-field firmware upgrades and great reliability, providing a perfect return on investment.
Advisory note: Identiv is rebranding the SCR and CLOUD products under the uTrust brand name.
With its all-in-one concept, the uTrust 3700 F enables a smooth transition from well-established traditional technologies into emerging NFC applications, supporting new business. It represents the perfect mix between modern, stylish design and the same ergonomic operation of any credential form factor, like ID-1 cards, tokens or NFC-enabled smart phones. The Identiv driver platform, as well as the Windows® Plug-and-Play driver support, allow seamless integration into any end-user environment with very little or no administration. The uTrust 3700 F can even be used on Android- based systems.
With uTrust 3700 F, the end user experiences convenience, transaction-time efficiency, security, flexibility and full NFC capability for applications such as network log-on, secure web-based transactions and even NFC-based customer loyalty programs. The product also has been designed for secure in-field firmware upgrades and great reliability, providing a perfect return on investment.
Advisory note: Identiv is rebranding the SCR and CLOUD products under the uTrust brand name.
Specification
PARAMETER | uTrust 3700 F Contactless Smart Card Reader | |||||||
Host Interface | USB 2.0 full speed (12 Mbps) | |||||||
Supported Card Chips | • Lascom cards • MIFARE™ (Classic, Ultralight, Ultralight C, MIFARE PLUS, DESFire, DESFire EV1 2/4/8k), FeliCa™, Calypso, CD21 • NFC Forum Tag types 1/2/3/4 | |||||||
Data Transfer Rate | 106, 212, 424, or 848 kpbs, depending on card IC | |||||||
Antenna | Integrated | |||||||
Driver and Software | ||||||||
PC/SC Driver | PC/SC Specification Ver. 2.01.14 for: • Windows® 7/8/ 8.1/10 (32 and 64 Bit) • Windows® Server 2003/2008/2012 • MacOS 10.10.x,10.11.x, 10.12.x • Linux 2.6.x (32 and 64bit) • Android 4.0 and higher | |||||||
Software | • PC/SC API • CT-API (through wrapper on top of PC/SC) • M-Card API (through wrapper on top of PC/SC) | |||||||
Operating Conditions | ||||||||
Power Supply | Bus-powered USB | |||||||
Power Consumption | 50mA, excluding card | |||||||
Dimensions | 91 x 75 x 12 mm | |||||||
Weight | 44g ± 5% | |||||||
Operating Temperature Range | 0° to 50° C (32° to 122° F) | |||||||
Storage Temperature Range | -25 to 85°C (-4 to 140°F) | |||||||
Operating Humidity Range | Up to 95% RH non-condensing | |||||||
Connector | 1.5 m USB cable with USB type A connector | |||||||
Status Indicator | LED | |||||||
Firmware | SmartOS™ | |||||||
Firmware In-Field Upgradeable | Yes | |||||||

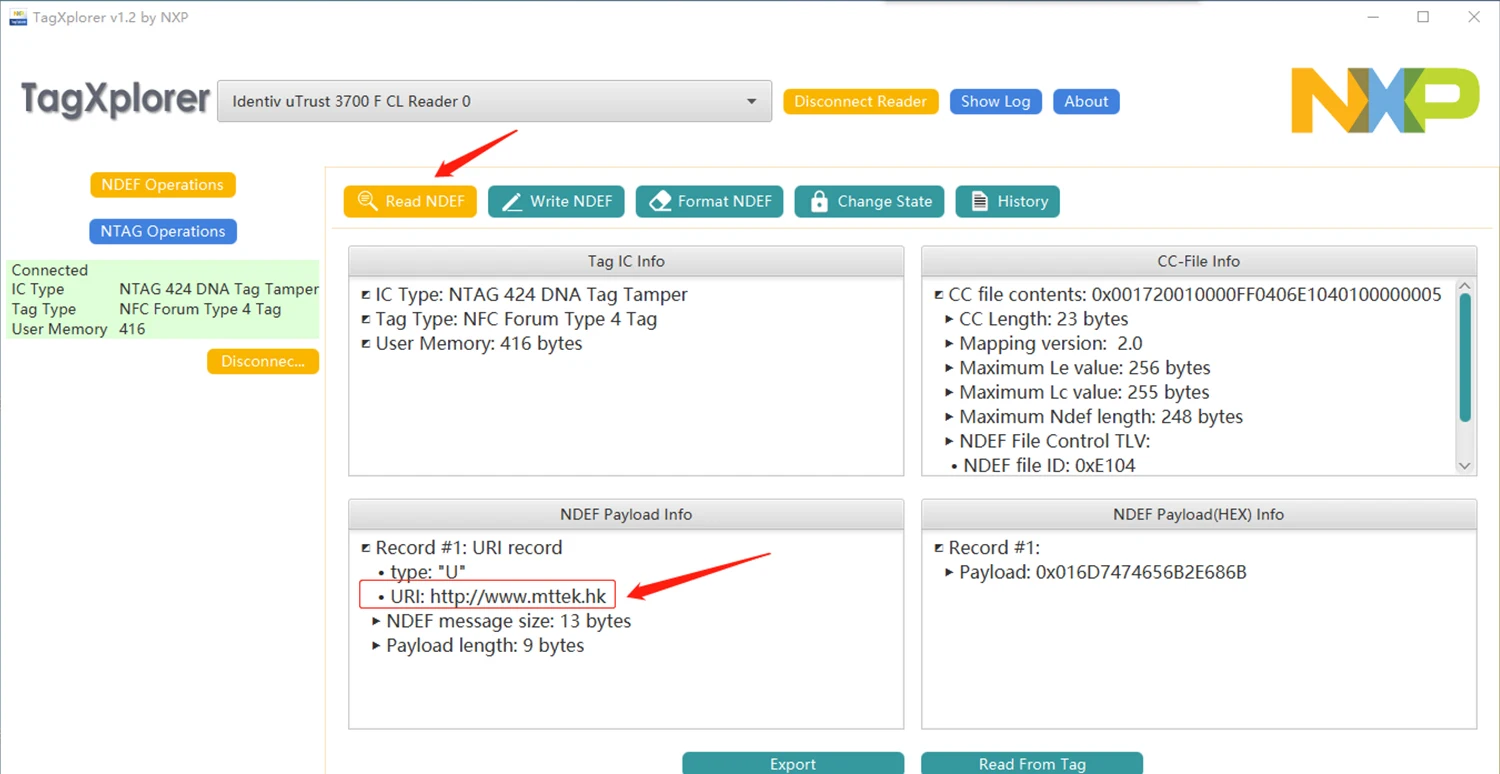

uTrust 3700 F is compatible with NXP's TagXplorer.
