Вращающаяся машина для выдувания малого экструдера ПЭ термоусадочной пленки
- Category: >>>
- Supplier: Ruian Yunbang Machine Co. Ltd.
Share on (1600510913090):
Product Overview
Description

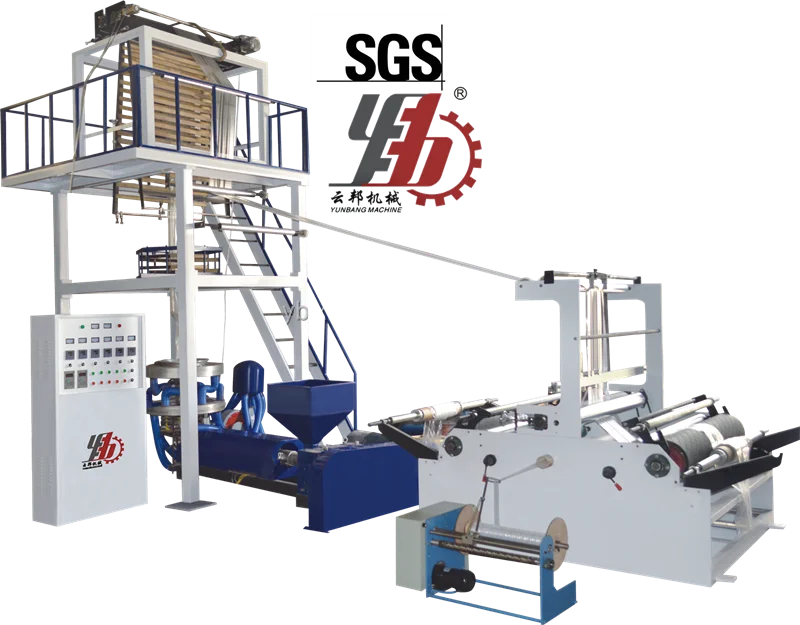

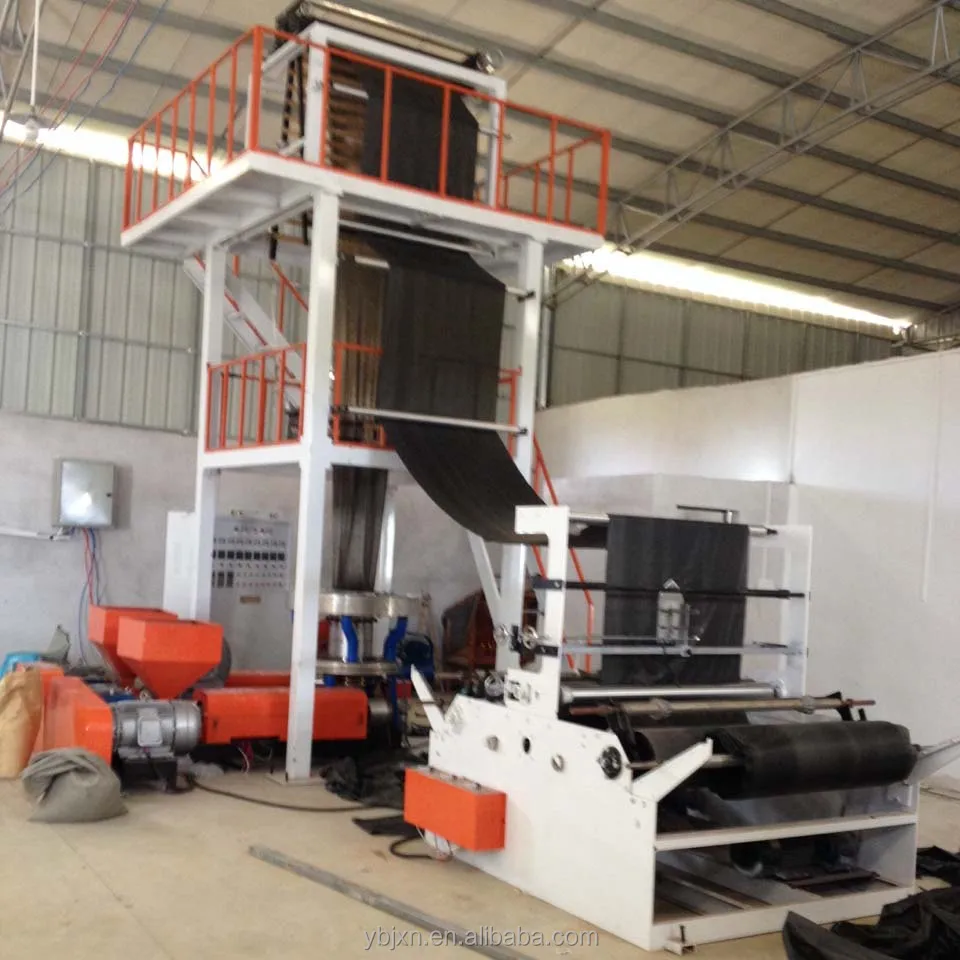

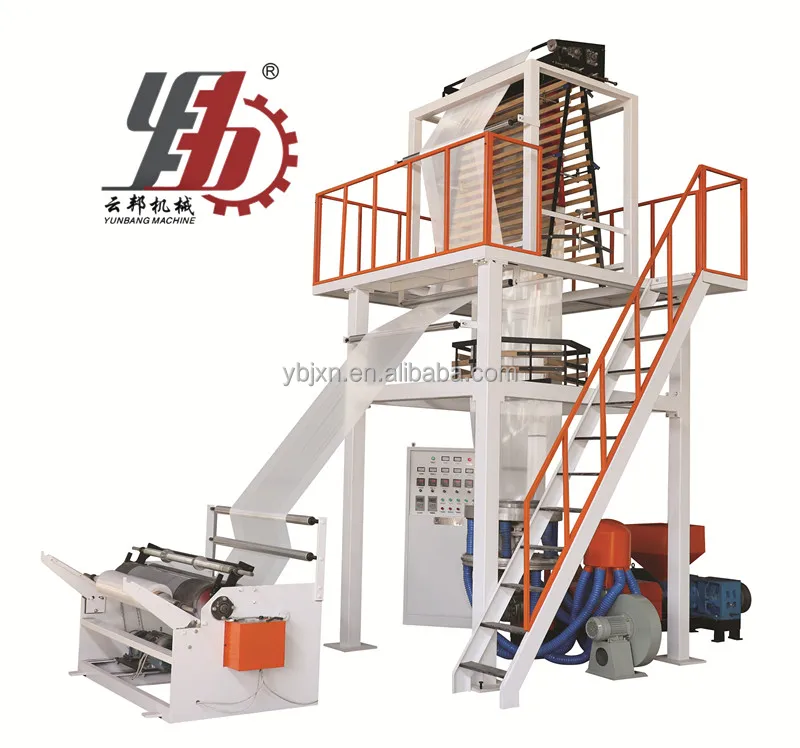

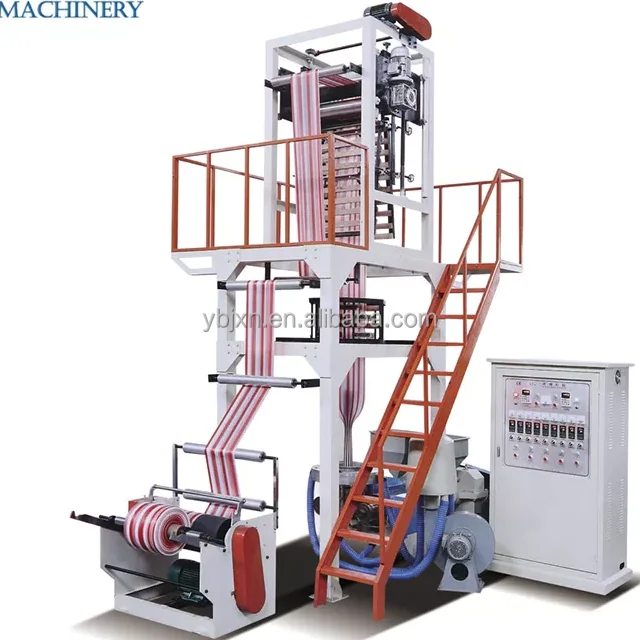

High&Low Rotary Film Blowing Machine (SJ-C120)

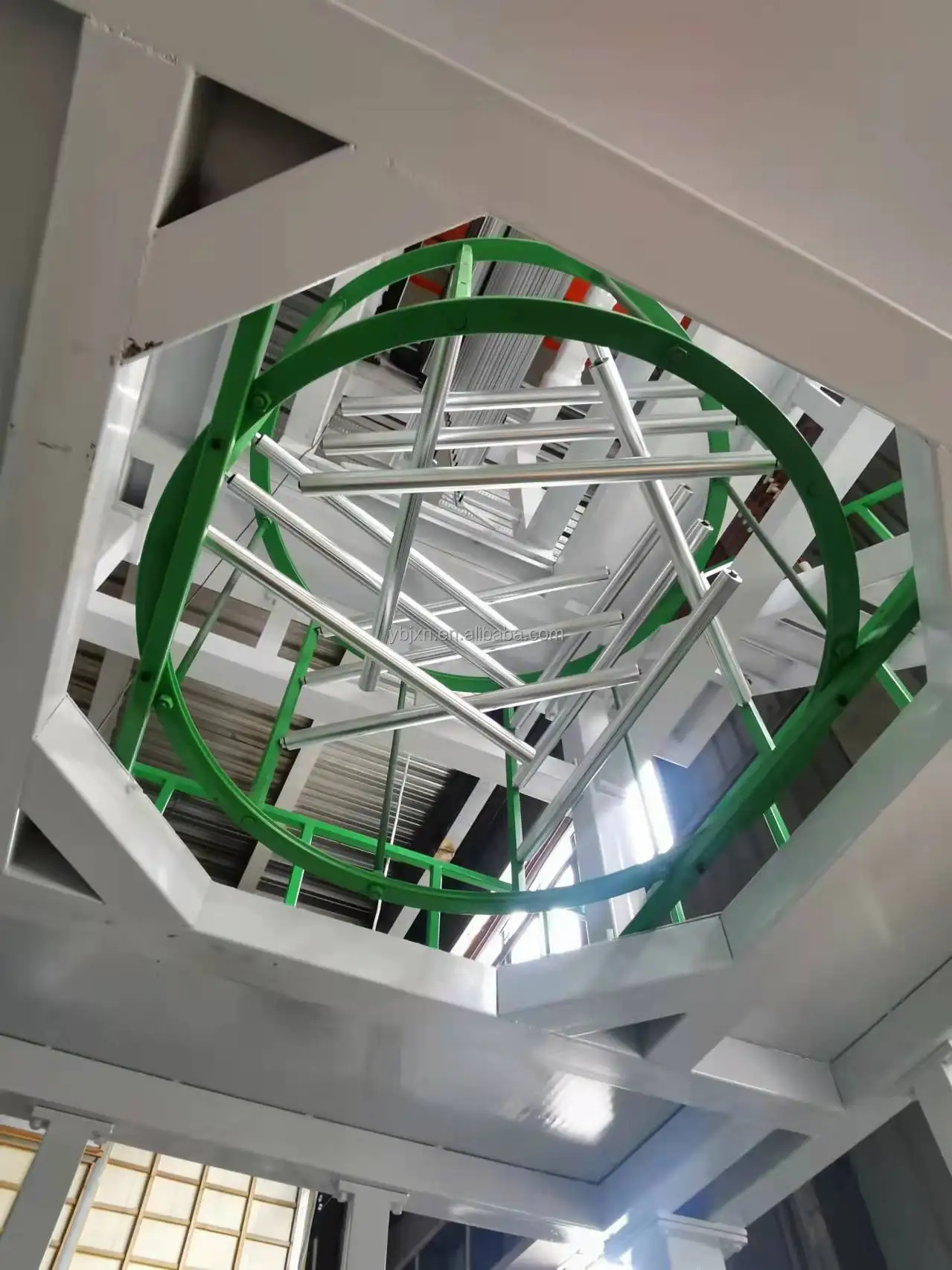

It is used for blowing high-low pressure polyethylene,which has been widely used for producing laminating film,packing film,agricultural covering film,bag for film for textile and clothing and other packing material.The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%.The screw and material barrel adopt 38 chrome-molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type .No matter what size the film is ,big or small,it can achieve the best effect of cooling .
Specification
Model | SJ-C75 | SJ-C90 | SJ-C105 | SJ-C120 | |||
Max.Layflat Width | 1600mm | 2000mm | 2200mm | 2500mm | |||
Film Thickness | 001-0.08mm | ||||||
Max.Output | 120kg/h | 150kg/h | 190kg/h | 220kg/h | |||
Raw Material | MLLDPE/LLDPE/LDPE/EVA | ||||||
Screw Diameter | 75mm | 90mm | 105mm | 120mm | |||
Screw L/D Ration L/D | 28/30:1 | ||||||
Screw Max.Rotation Speed | 120r/min | ||||||
Extruder Driving Power | 37kw | 45kw | 75kw | 95kw | |||
The way of screen changing of extruder | Hydraulic/pneumatic/manual twin-station changing screen qucikly | ||||||
Die Structure | With or without IBC(Internal Bibble Cooling System) | ||||||

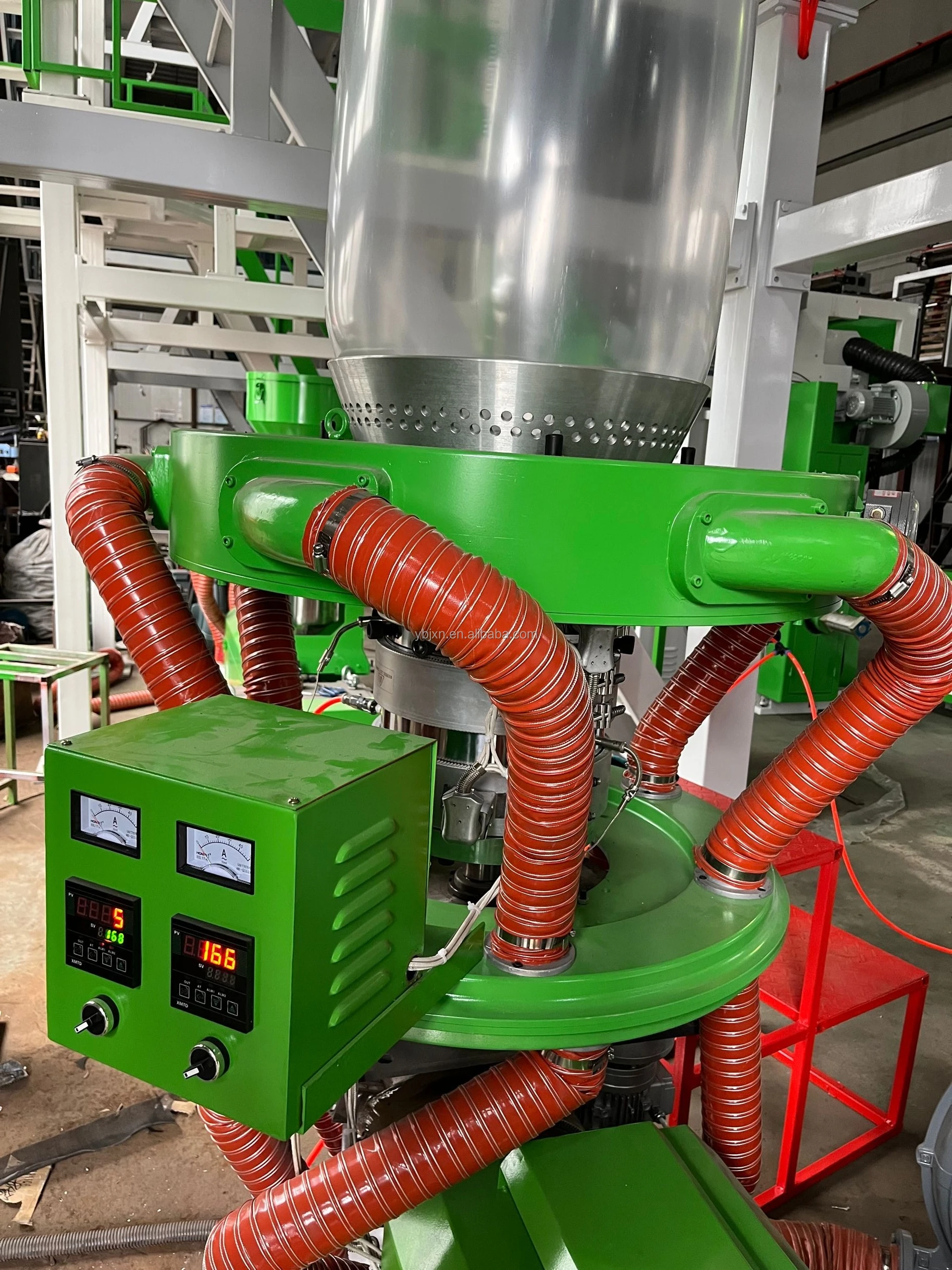

Air-ring Structure | Double Tuyere/Single Tuyere | ||||||
Rotation Method | Head Rotation/Up Rotation | ||||||
Heating Power | 65kw | 90kw | 125kw | 158kw | |||
Overal Dimension(L*W*H) | 7000*2700*7000mm | 11000*3400*10000mm | 11800*3600*12000mm | 12500*3900*13000 mm | |||
Weight | 5000kg | 8000kg | 9000kg | 10000kg | |||

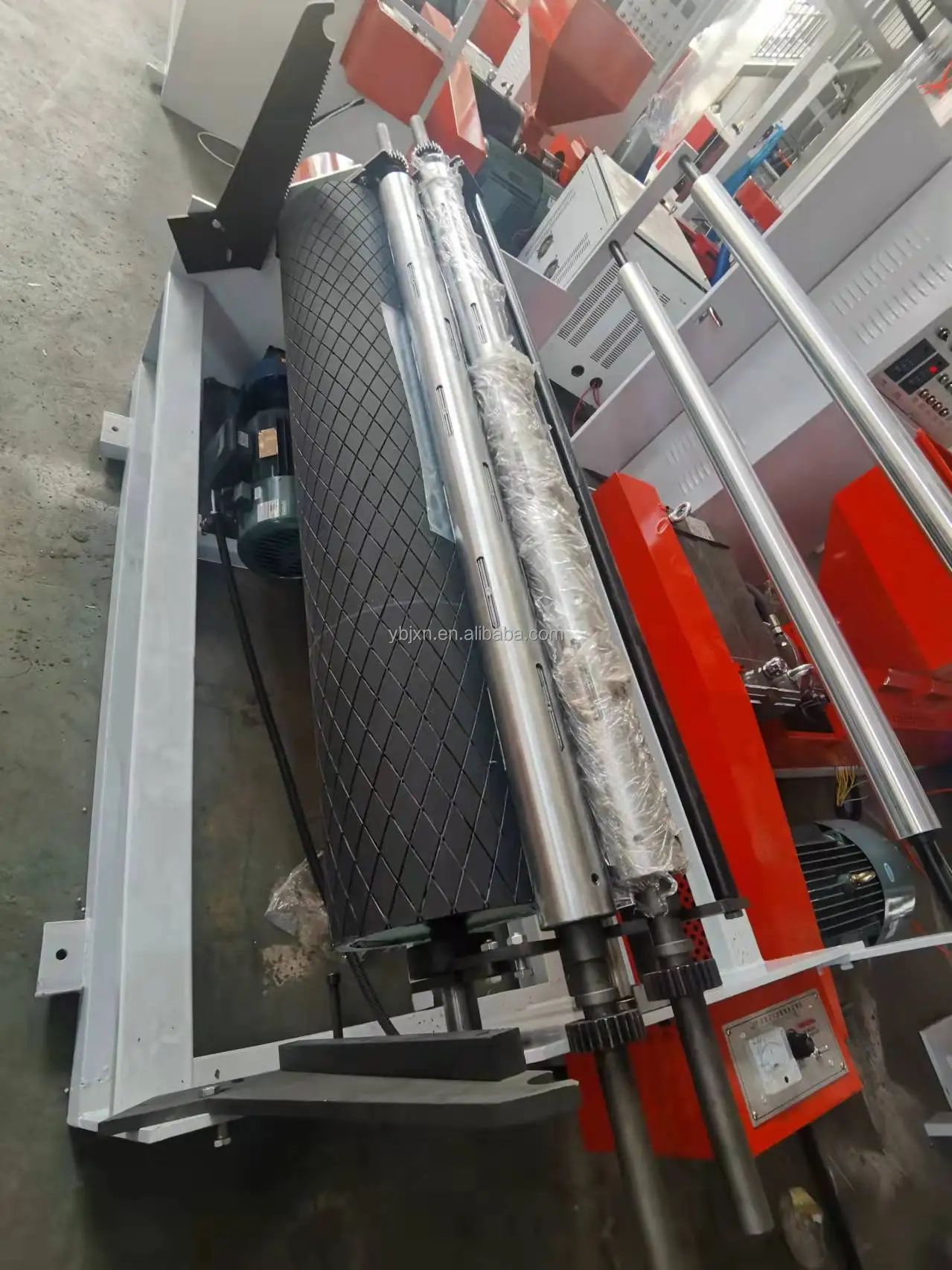

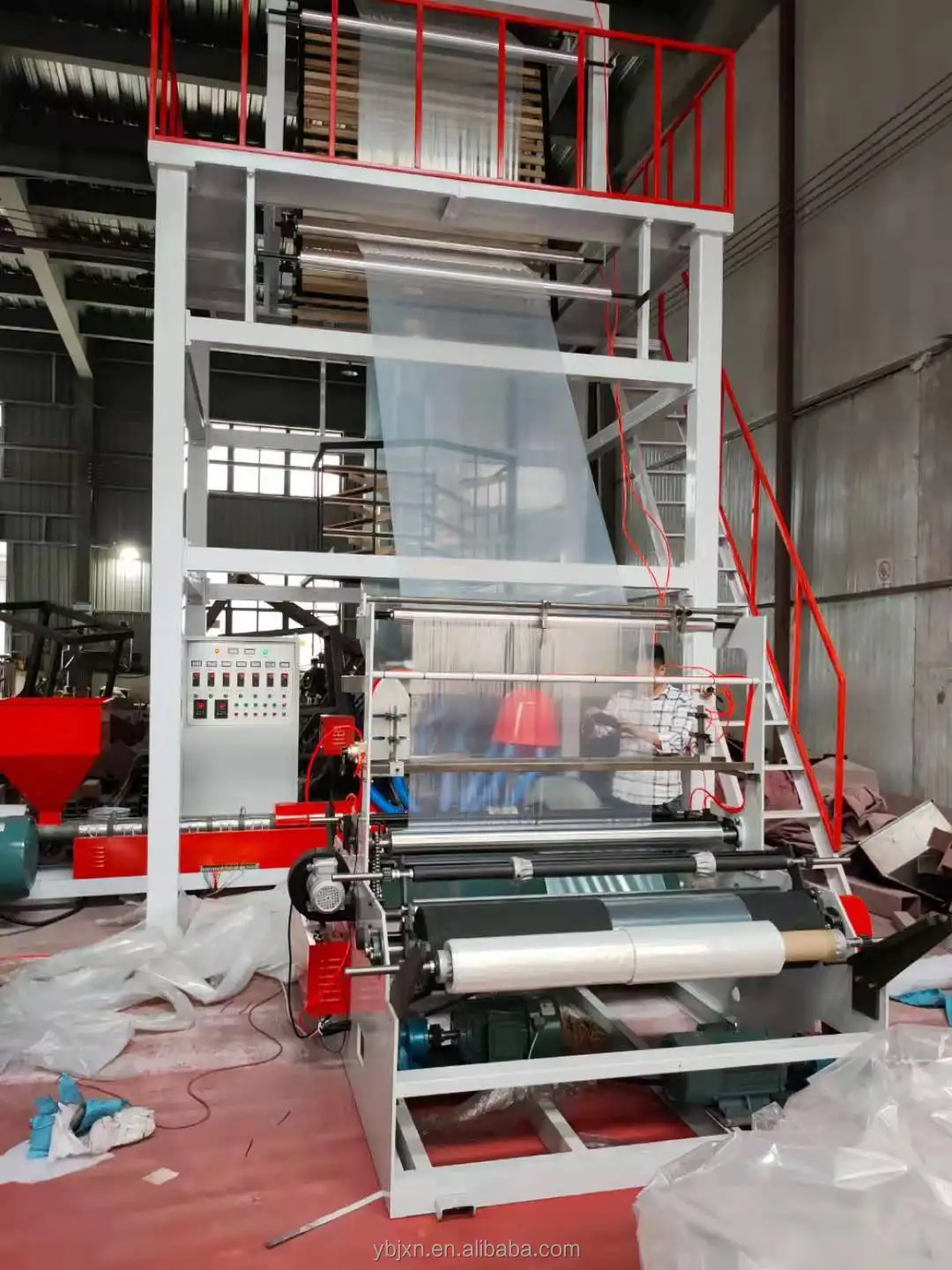

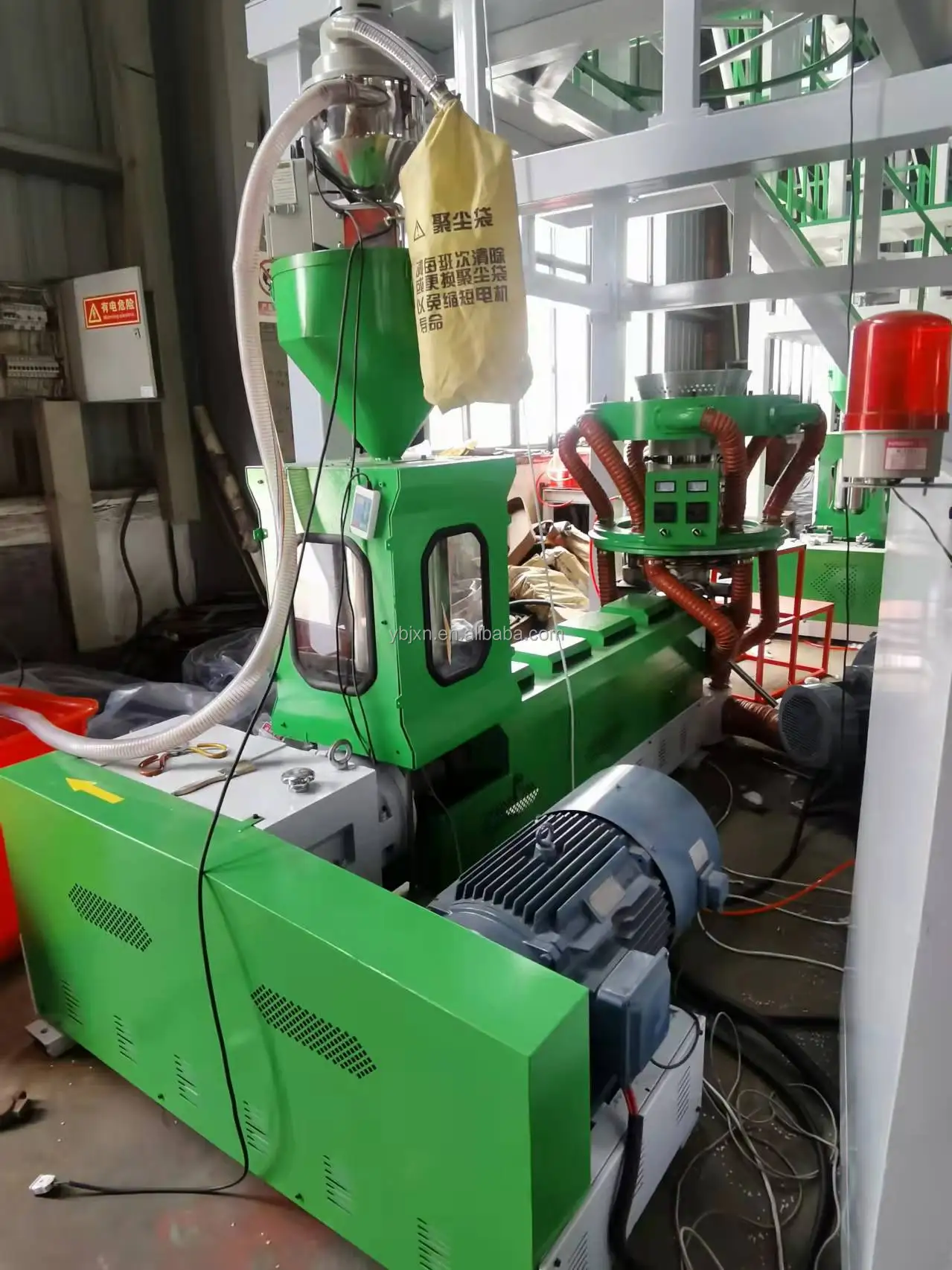

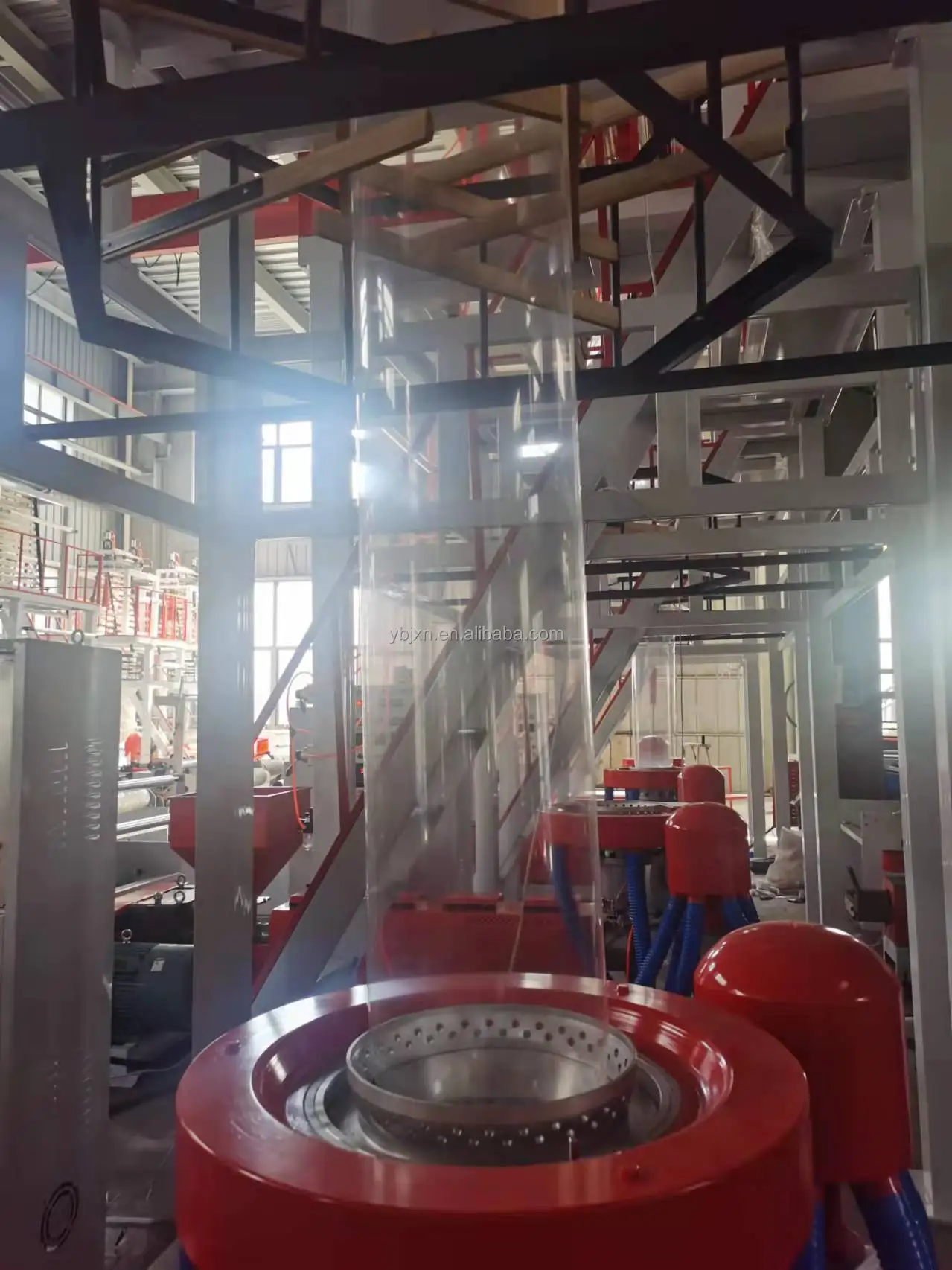

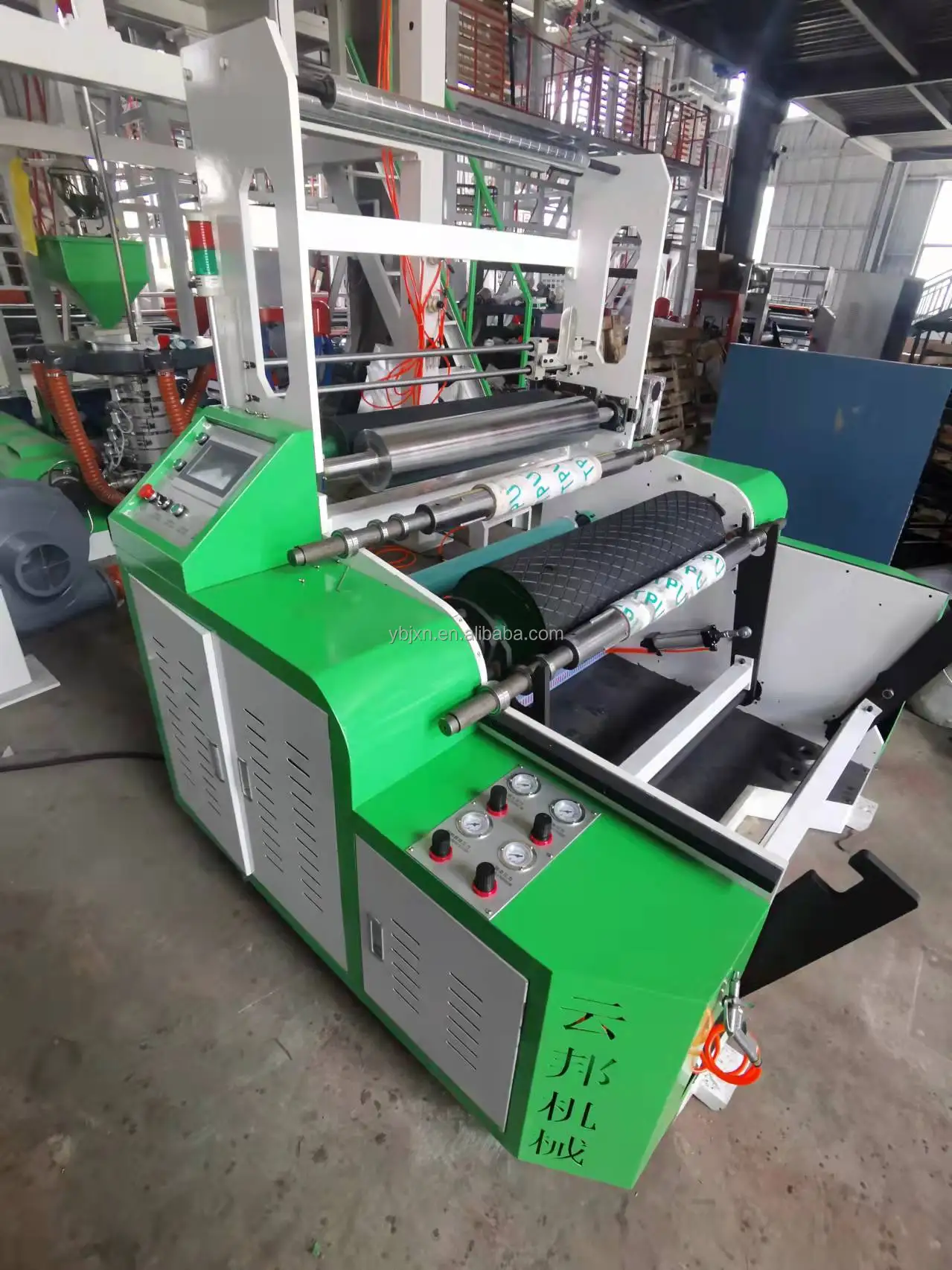

Details Images
Company Profile
Zhejiang Ruian Yunbang Machinery Co.,Ltd.is located in the scenic East China Sea-Ruian City,is a professional manufacturer of plastic packaging machinery main prodcuts are series of plastic film blowing machine,plastic film bag making machine ,embossing presses series,plastic granulator series full set of equipment.
Products sold throughout the country and exported to dozens of countries and regions in Southeast Asia,the Middle East,Central Asia,Russia,Europe,South America,North America,Africa,the market has responded favorably to legendary customer .
With the cooperation of a number of high-end technology,ranking domestic leading level,perfect product user prouction will improve the qualiy,efficiency ,and will create a better economic benefits.Provide timely and thoughtful pre-sale,sale,service,free onsite equipment installation and commissing,technical training,experenced technical instructors on standby,and the escirt if your equipment operating techniques,innovation,continous development,ans constantly improve efforts to "first-class mangament,first-class products,first-class service"dedicated to the community.
Products sold throughout the country and exported to dozens of countries and regions in Southeast Asia,the Middle East,Central Asia,Russia,Europe,South America,North America,Africa,the market has responded favorably to legendary customer .
With the cooperation of a number of high-end technology,ranking domestic leading level,perfect product user prouction will improve the qualiy,efficiency ,and will create a better economic benefits.Provide timely and thoughtful pre-sale,sale,service,free onsite equipment installation and commissing,technical training,experenced technical instructors on standby,and the escirt if your equipment operating techniques,innovation,continous development,ans constantly improve efforts to "first-class mangament,first-class products,first-class service"dedicated to the community.
Certifications
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory
A: We are a factory
2. Q:Does your machine with CE certificate?
A:Yes.
3. Q: How dose your factory do regarding quality control?
A: Strict quality control system, factory products for full inspection
4.Q: How long is the warranty period?
A: All of our products have one year warranty.
5.Q: What is your delivery time?
A: Normally, It needs about 20-30 days. The exact time depends on production management.
6.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem ASAP.
8.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
A:Yes.
3. Q: How dose your factory do regarding quality control?
A: Strict quality control system, factory products for full inspection
4.Q: How long is the warranty period?
A: All of our products have one year warranty.
5.Q: What is your delivery time?
A: Normally, It needs about 20-30 days. The exact time depends on production management.
6.Q:Can your company handle shipping for customers?
A:Yes.(Please provide us your requested seaport and we can check the shipping charge and arrange shipping for your order)
7.Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem ASAP.
8.Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
