Stair LED PIR Motion Sensor Controller Dimming Light Strip Automatic Indoor Stairway Ladder Night Light 12V 24V

Product Overview

Description

Motion Sensor Stair LED Light Strip Staircase Decorative Lamp



Installation Tips:

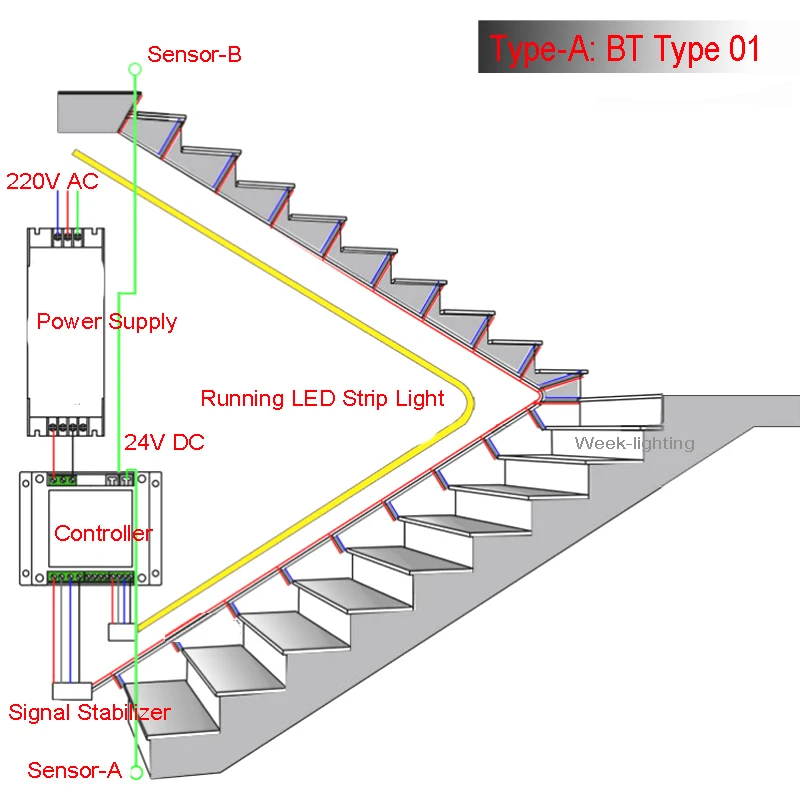

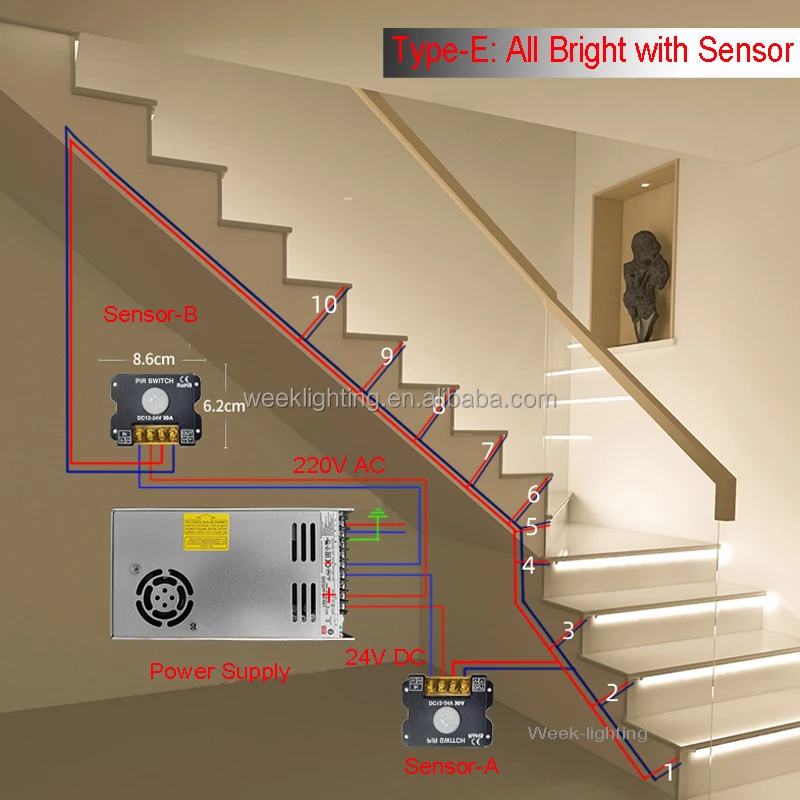

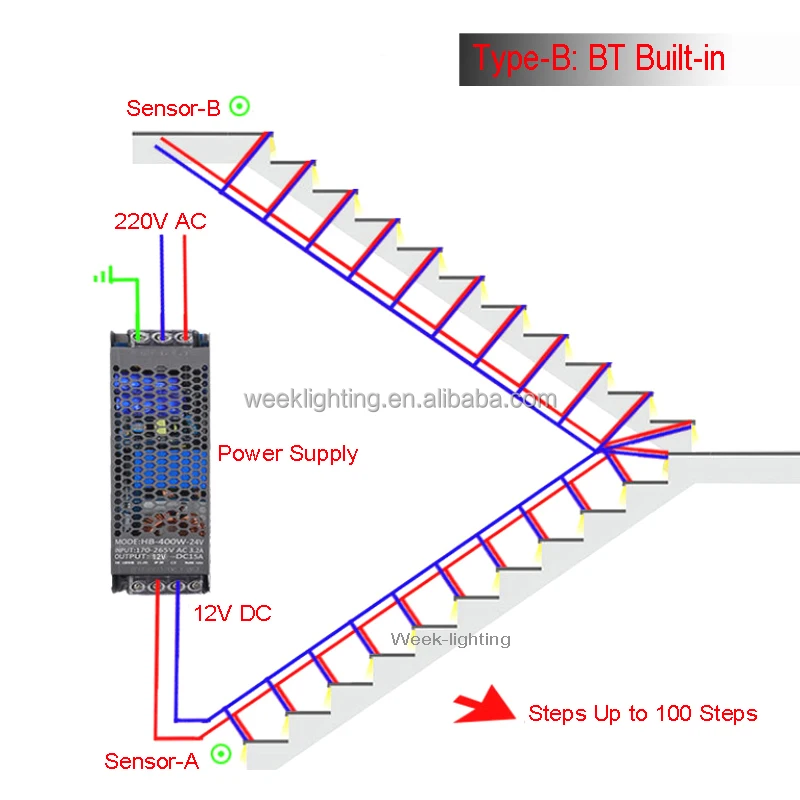

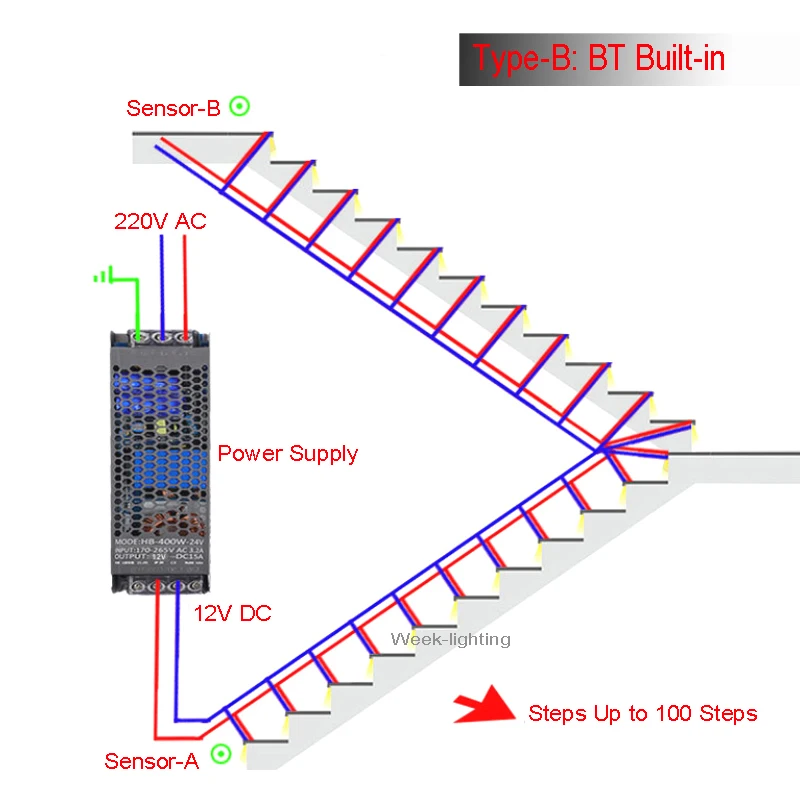

1. A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.

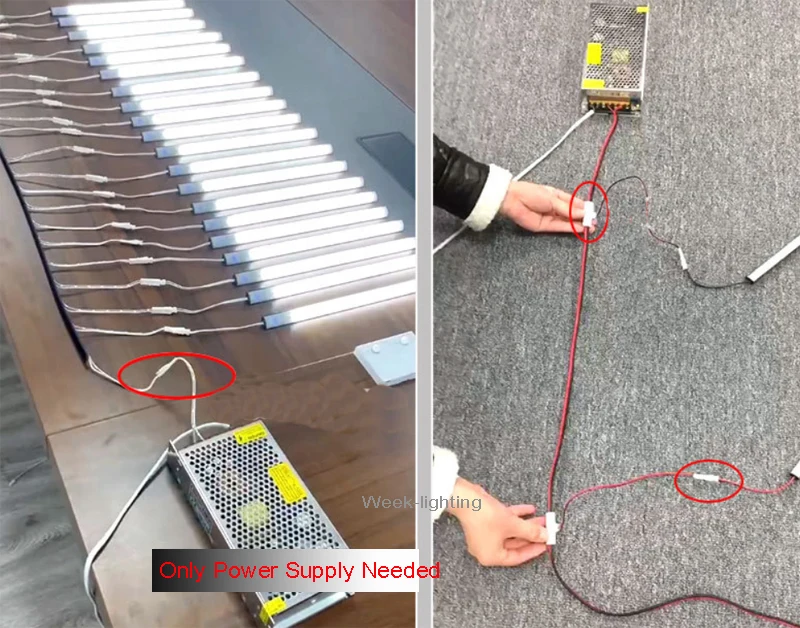

2. The product is low voltage 24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
3. The product is not waterproof.

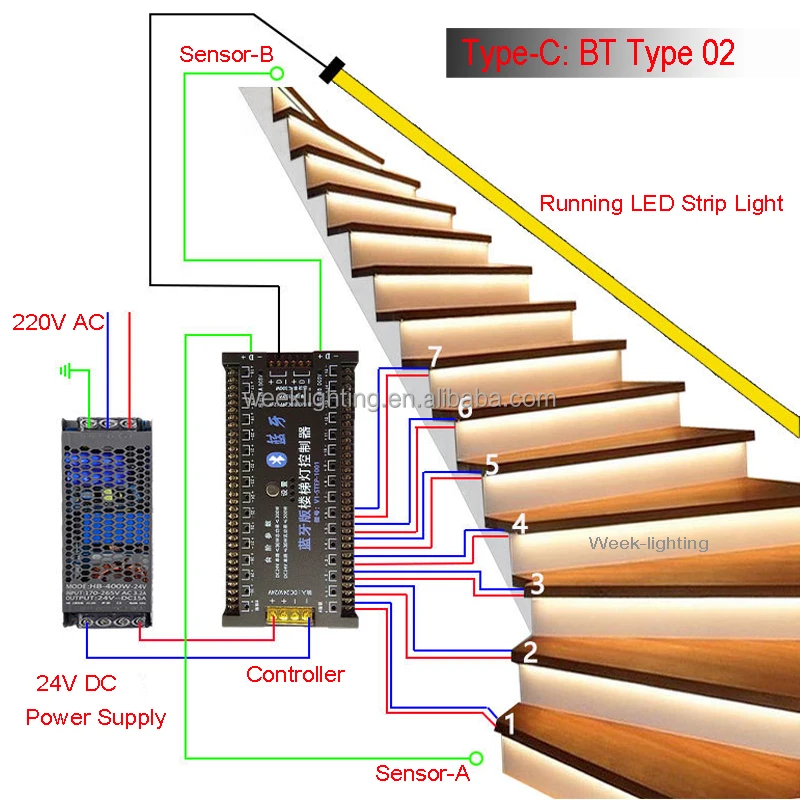

4. The positive and negative terminals of the power supply input of the controller cannot be reversed, the red wire V+ is connected to the positive electrode of the switching power supply, and the blue (or black wire) V- is connected to the negative electrode of the switching power supply.
5. It is recommended to bury the line in advance and install the lights when the stairs are decorated.
6. The wiring needs to be disconnected, and the wiring cannot be plugged in to avoid short circuit.

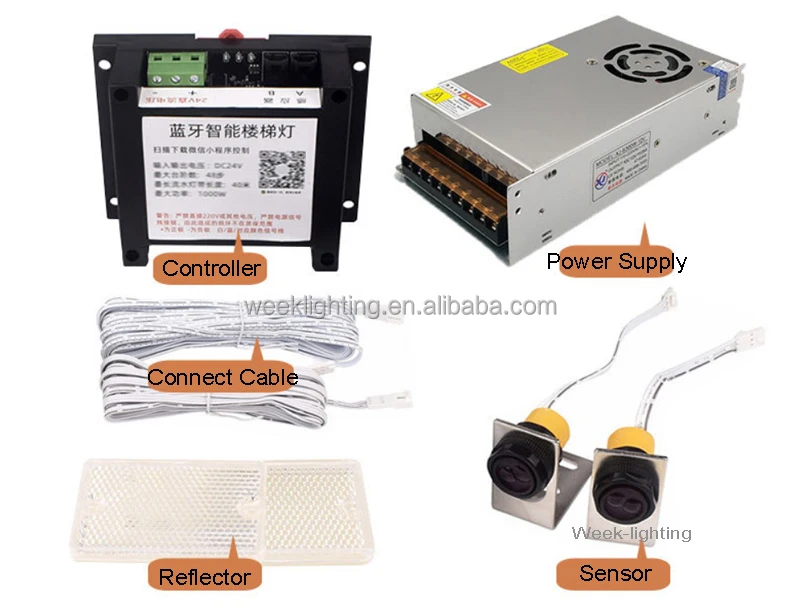

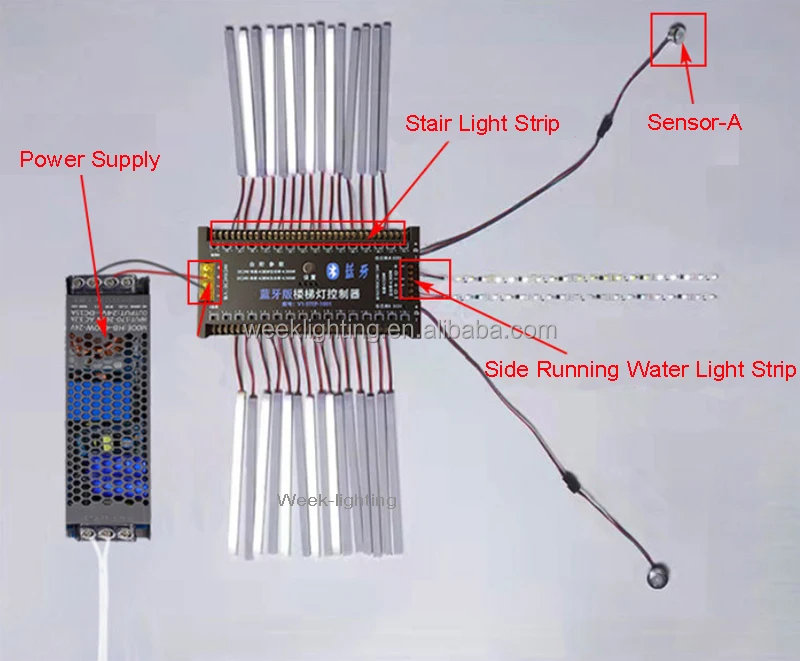

Product Package:
1. LED Power Adapter.
2. Controller.
3. LED Strip Lights.
4. Sensors.
5. Connect Cables.



This is a customized product, please tell us the step quantity and step length, we can make a design for you.



Specification:

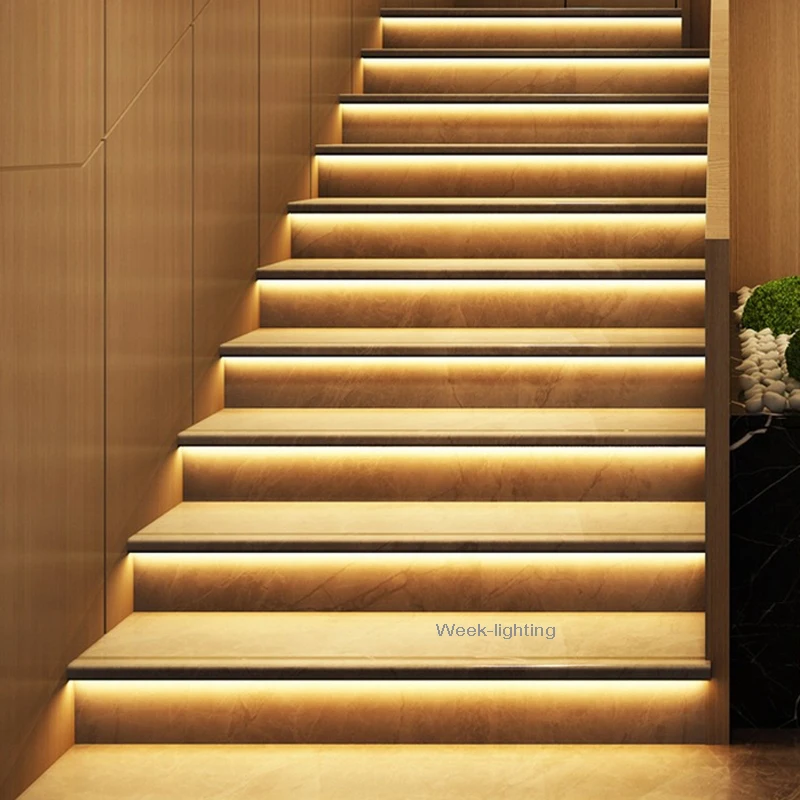

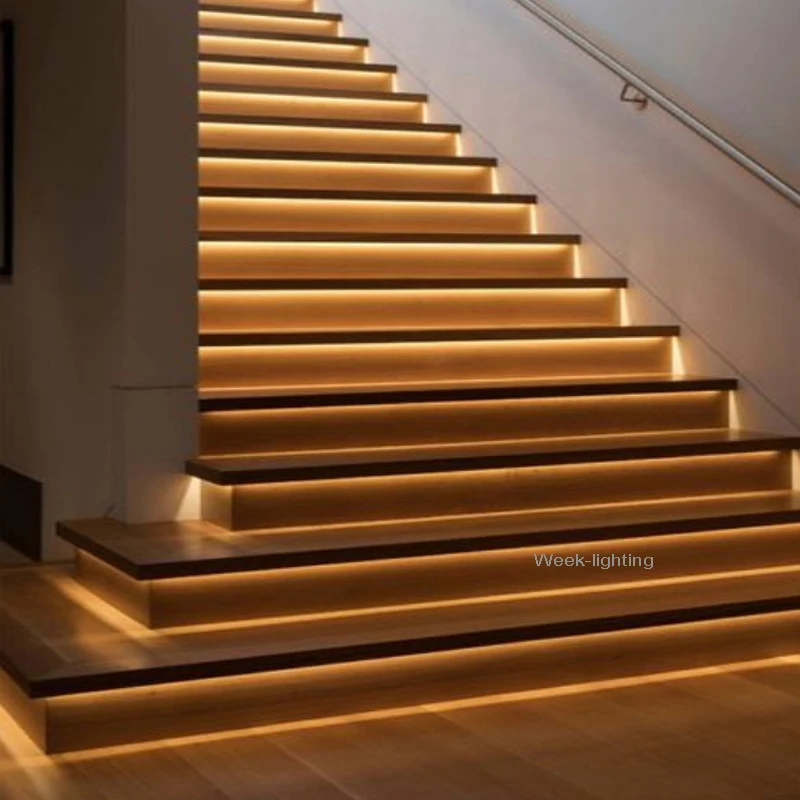

1. These motion sensor activated LED stair lights switch on automatically to light up your stairs when you reach the top or bottom step, and turns off when people leave.
2. The package contains all the parts that you need, ready for quick and easy installation, even if you are not a professional installer.

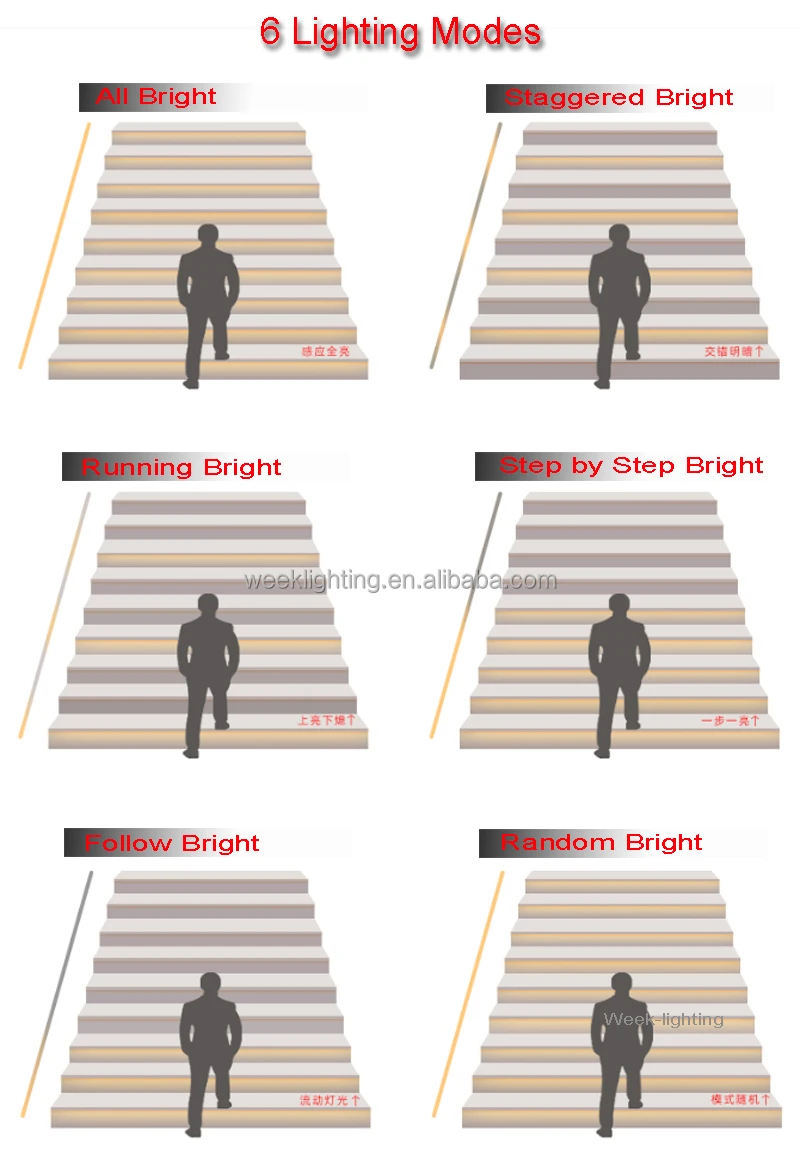

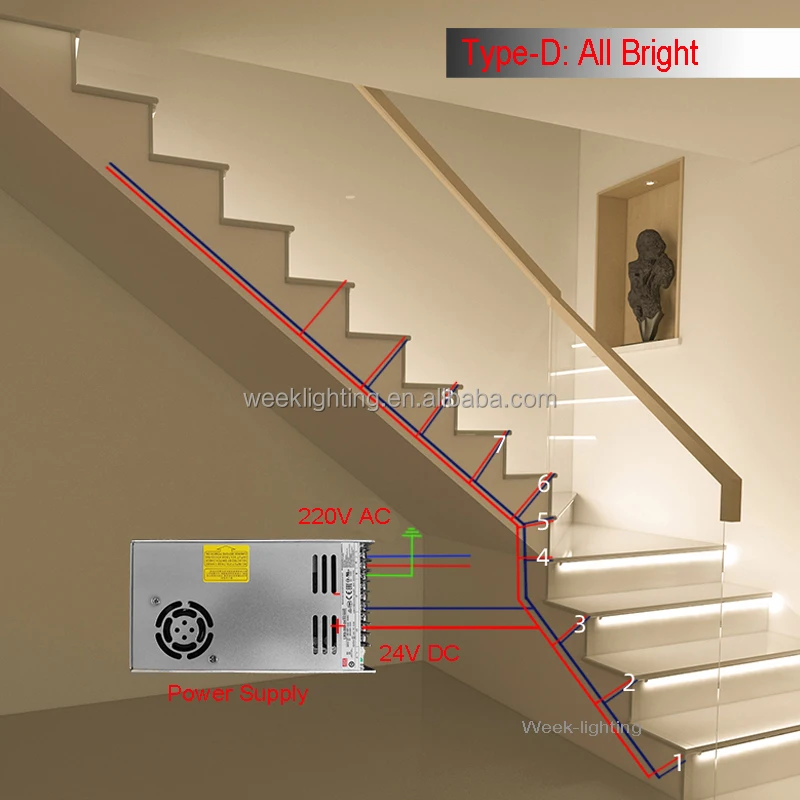

3. Many lighting modes for choice: flowing light mode, all lights turn on / off simultaneously mode, circular demo mode, light intensity adjustment,Lighting speed control,Lighting time adjustment.

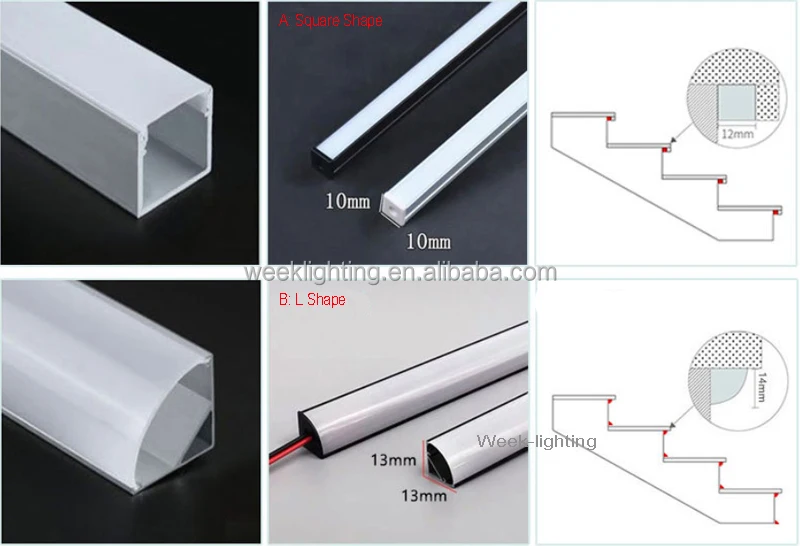

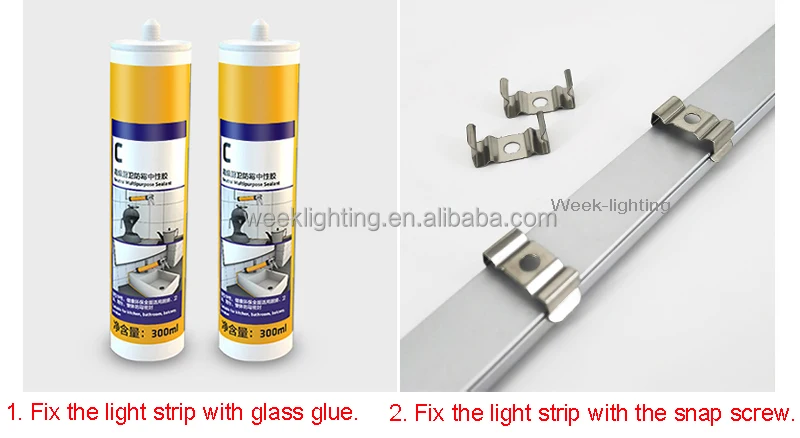

4. Warm white 3000K, cool white 6000K for your choice. It can be fixed with mounting clips or adhesive backing to the stair tread.

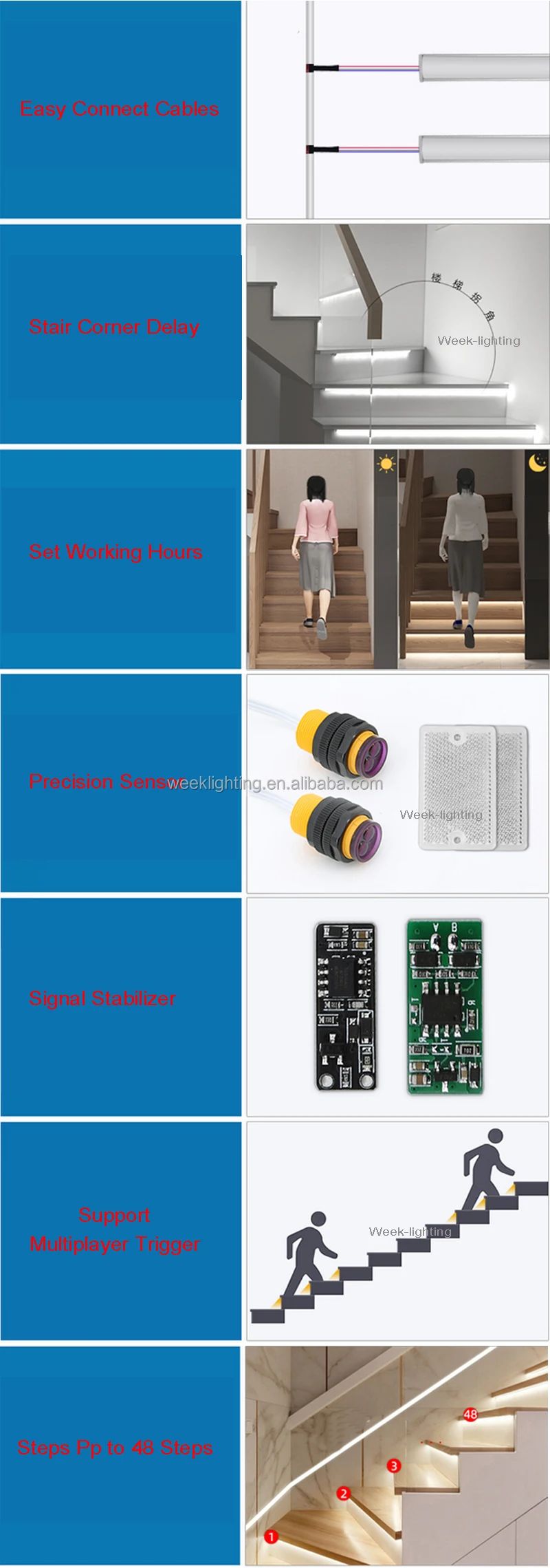

Features:
1. Human body induction, flow light effect.
2. The number of steps is adjustable.
3. Light intensity adjustment (lighter / darker).
4. Lighting time adjustment between 3-600 seconds.
5. Warm white 3000K, cool white 6000K for your choice, soft light and no light spot.



How it work?

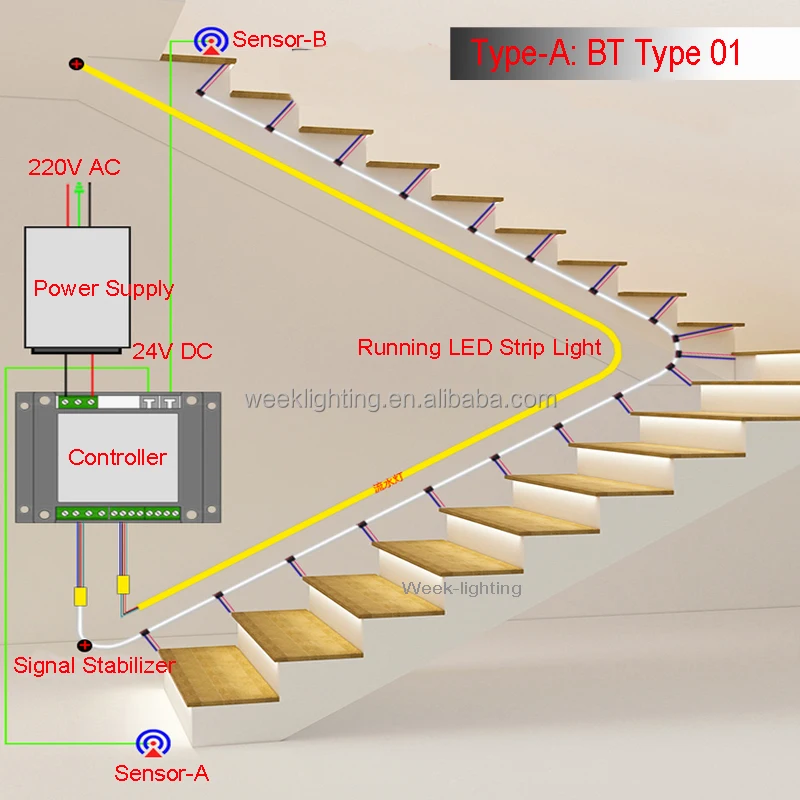

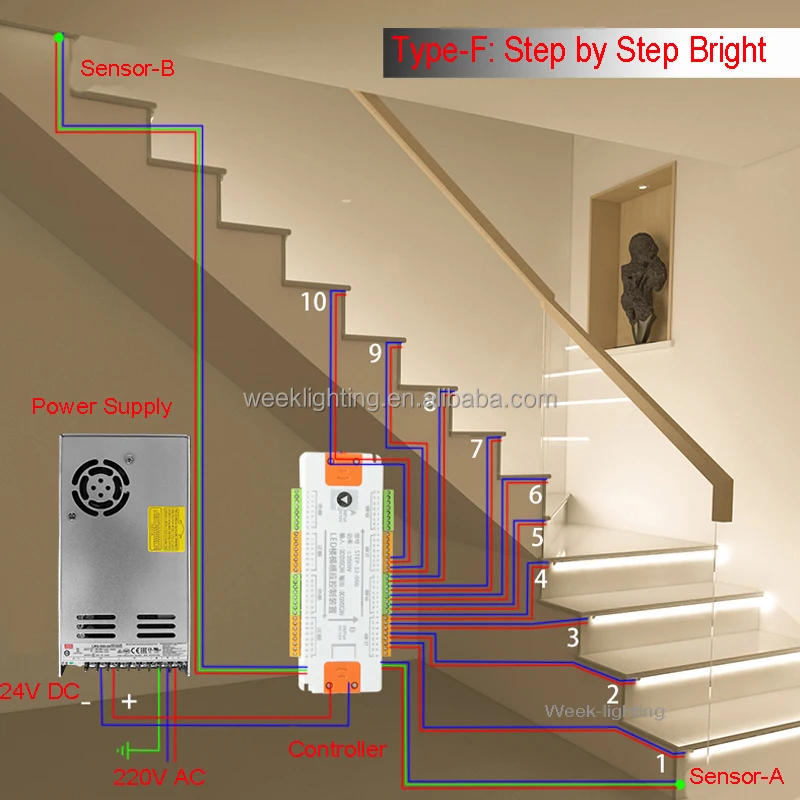

1. The controller will turn on the lighting on the stairs when one of the motion sensors is triggered. The lighting will illuminate the stairs immediately with the set programme (cascading effect - the light are lit up step by step). After a set time the lighting on the stairs will automatically fade out and turn off. The controller programs also allow you to set the step lights quantity, adjust lighting speed and brightness.
2. The motion sensors are fitted at the top and bottom of the staircase and switch the lights on when someone passes them directly. The motion sensors are designed to have a range of 1.5m-2m.
