TX7002 Intelligent 2 Loop With CanBus Network System Addressable Fire Alarm Control Panel
- Category: >>>
- Supplier: Zhongshan Huoming Technology Co. Ltd.
Share on (1600510916056):
Product Overview
Description
Product Description

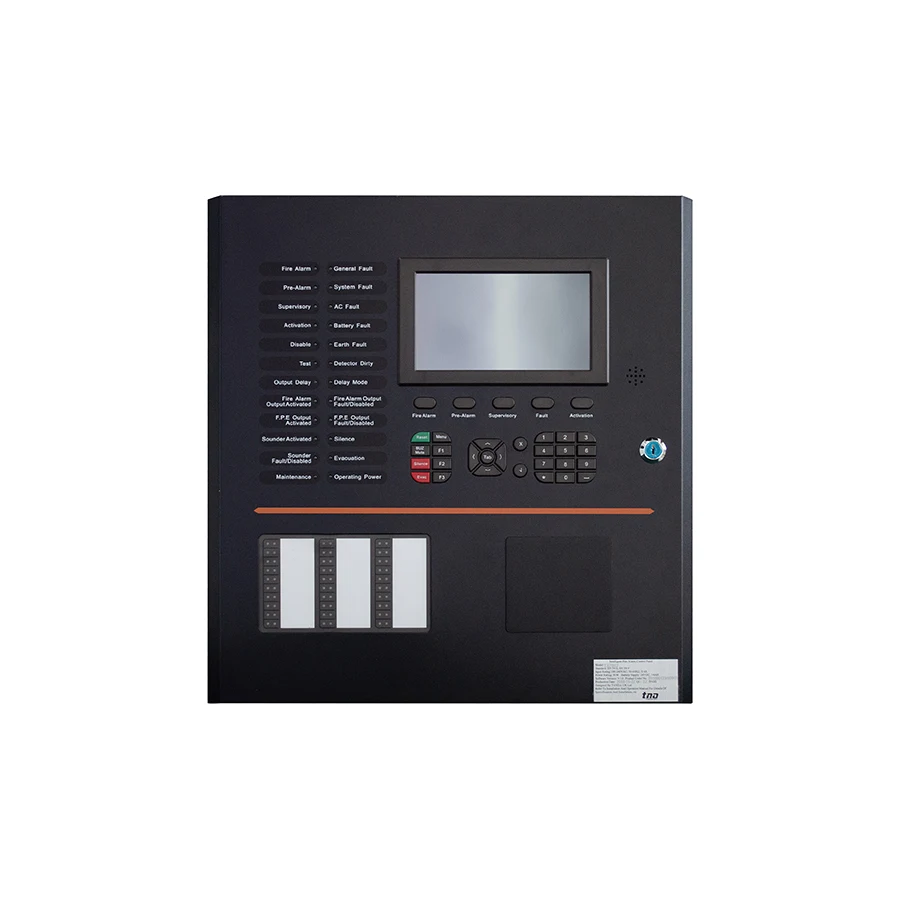

TX7002 Intelligent Addressable Fire Alarm Control Panel
• 1loop/2loops
• Support 254 Devices/One loop
• Network up to 512 Node
• Programmable Capacity
• Zones up to 3000
• Sounders Groups 1-1000
• Modules Groups 1001- 2000
• Built-in 30 LED Zones Indicator
• Support 254 Devices/One loop
• Network up to 512 Node
• Programmable Capacity
• Zones up to 3000
• Sounders Groups 1-1000
• Modules Groups 1001- 2000
• Built-in 30 LED Zones Indicator
The TX7002 intelligent addressable fire alarm control panel comprise of a range of analogue addressable, microprocessor based fire alarm control equipment to offer flexibility in both design and operation. The system is modular concept for easy tailoring of system design, to meet the full requirements of the project. The TX7002 intelligent addressable fire alarm control panel is designed and manufactured to meet the requiremen of BS EN54 Part 2&4.
The TX7002 intelligent addressable fire alarm control panel is designed to provide early warning fire detection, to quickly identify the location of fire and provide user definable text informing the occupants of the building of potential smoke spread.Simultaneously, the TX7002 intelligent addressable fire alarm control panel will alert and evacuate the occupants, and control all necessary auxiliary command functions such as elevator control, air handling shut down, gasshutoff&dampercontrol, as per the cause and effects requirements configured though Command Builder Set-up.
The TX7002 intelligent addressable fire alarm control panel is designed to provide early warning fire detection, to quickly identify the location of fire and provide user definable text informing the occupants of the building of potential smoke spread.Simultaneously, the TX7002 intelligent addressable fire alarm control panel will alert and evacuate the occupants, and control all necessary auxiliary command functions such as elevator control, air handling shut down, gasshutoff&dampercontrol, as per the cause and effects requirements configured though Command Builder Set-up.
Product Features and Advantage：
* Compliance EN54-2 & EN54-4
* Using advance microprocessor technology with Large memory capacity
* Enhance user interface combiningLCD Touch screen and keypad access
* Support real time visual algorithm
* Enhance false alarm prevention
* Keypad and PC programming
* Support Multiple interface protocol such as USB/Ethernet/CanBus/Serial/RS485/Fiber Optic
* Support Multiple interface protocol such as USB/Ethernet/CanBus/Serial/RS485/Fiber Optic
* Support Loop Powered devices for extra saving on cable cost
* Built-In Printer and 30 LED Zones Indicators
* Auto Enrolling of Devices
* Monitor device mismatch and dual address conflict
* Command Builder to create requirements for fire event scenario
* With Loop protection against power surge
* One-man test with On/Off sounder
Specification
item | value |
Brand Name | TNA |
Model Number | TX7002-2 |
No. of Loop : | 2 Loop |
Power Supply: | 240VAC +10%-15%, 50/60Hz |
Certification: | CE |
Backup Batteries: | 2 * 12V/7Ah,Rechargeable-Lead acid type battery |
Panel to panel communication: | Can Bus [loop] |
Number of Panels: | 512 |
Interface Port: | USB, RS485 Serial, RS232 Serial, Ethernet |
Connectable: | 254 devices/loop (508 ideal ) |
Memory [Non-Volatile] : | 1000 Fire Events, 10,000 General Event |
Zones: | up to 3000 programmable |
Total Group : | 3,000 programmable |
Sounder Group : | 1,000 programmable |
Common Group: | 2,000 programmable |
Protocol/Addressing : | T&A, Value range from 1 to 254 |
Protection : | Built-in 4Kv Surge protection |
Cabling : | 1.0Km Max Length/2 x 1.5mm²solid core Fire resistance |
Programmable Relays : | 2 circuits, Normally Open/Close |
Fixed Outputs (FPE/Sounder) : | 1 Circuits, 18 t0 28 VDC (Note: Current Limited) |
Indicator : | 24 LED Status/ 30 Zone Indicators |
Display : | 7” TFT Touch Screen |
Keypad : | 5 Brigade buttons and Programming Keypad |
Relative humidity: | 5 to 95%,non-condensing |
Temperature range: | -5℃~+40℃ |
Packing & Delivery
Packaging Details: | Standard safety export package / carton (Box + Foam) |
Single package size: | 535*510*240mm |
Single gross weight: | 10.5kg |
