Product Overview
Description
Product Details
1. Automatic Carton Box Unpacking Machine

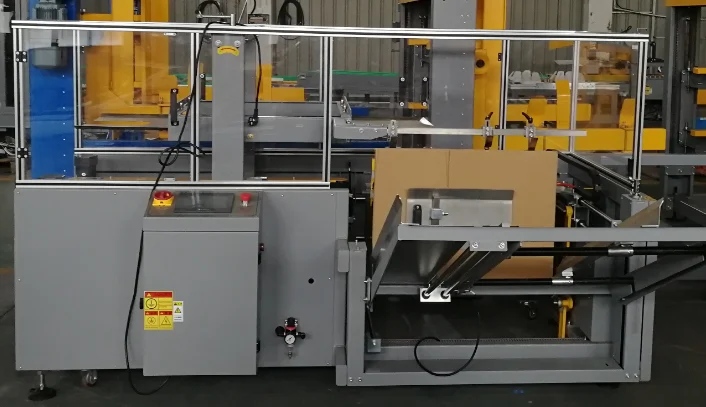

1.1. Photo
1.2. Equipment Specification
Unpacking method: vertical molding
Power supply: 220 V, 50 Hz
Power: 400W
Air pressure: 0.6MPa
Air consumption: 200L / min
Machine dimensions: l2500mm * w2080mm * h1492mm
Applicable carton specification: l200-450mm * w150-400mm * h120-350mm
Applicable tape: 48 / 60 / 75mm * 900 yards / L OPP (optional)
Unpacking speed: 9-12 cartons / min (depending on carton size)
Table height: 625mm
Environmental conditions: humidity ≤ 90%, temperature 0-40 ℃
Power supply: 220 V, 50 Hz
Power: 400W
Air pressure: 0.6MPa
Air consumption: 200L / min
Machine dimensions: l2500mm * w2080mm * h1492mm
Applicable carton specification: l200-450mm * w150-400mm * h120-350mm
Applicable tape: 48 / 60 / 75mm * 900 yards / L OPP (optional)
Unpacking speed: 9-12 cartons / min (depending on carton size)
Table height: 625mm
Environmental conditions: humidity ≤ 90%, temperature 0-40 ℃
1.3. Equipment features
① The equipment is designed and manufactured in accordance with the requirements of production line process and plane layout, with beautiful appearance and good manufacturing process;
② Low power and water consumption, simple and convenient operation, adjustment and maintenance;
③ No carton alarm function;
④ Storage mechanism: it can place about 50 unformed cartons at a time (depending on the thickness of cartons) and replenish them at any time
② Low power and water consumption, simple and convenient operation, adjustment and maintenance;
③ No carton alarm function;
④ Storage mechanism: it can place about 50 unformed cartons at a time (depending on the thickness of cartons) and replenish them at any time

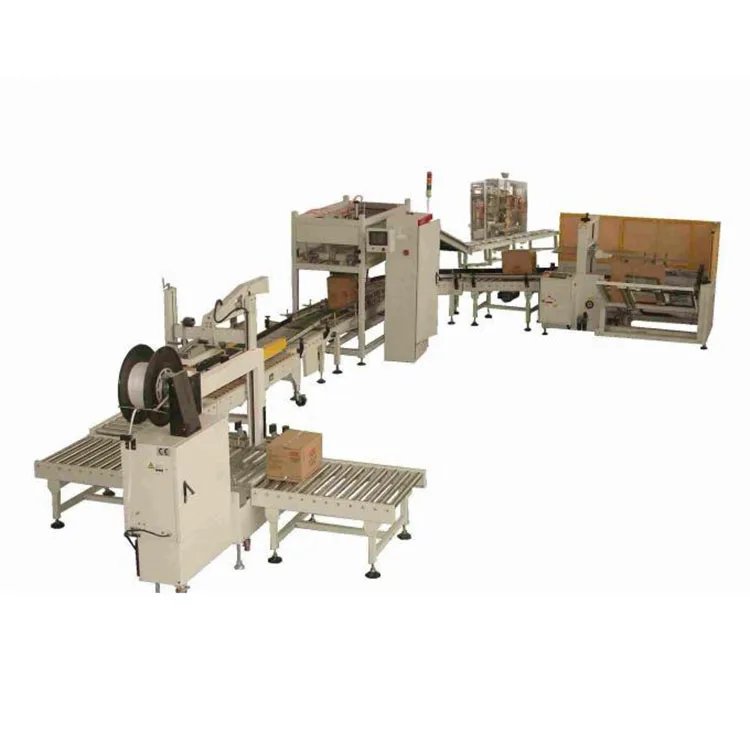

2. Full-automatic Dropping Packing Machine System (It is composed of upper whole row conveyor, main packing machine, lower carton conveyor and electric control system.)

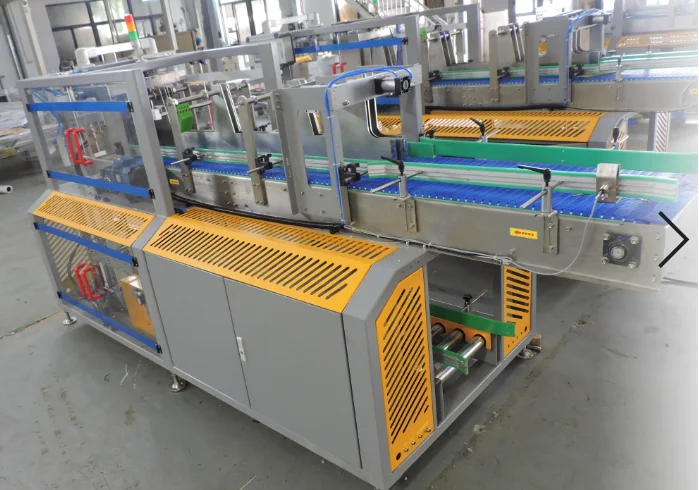

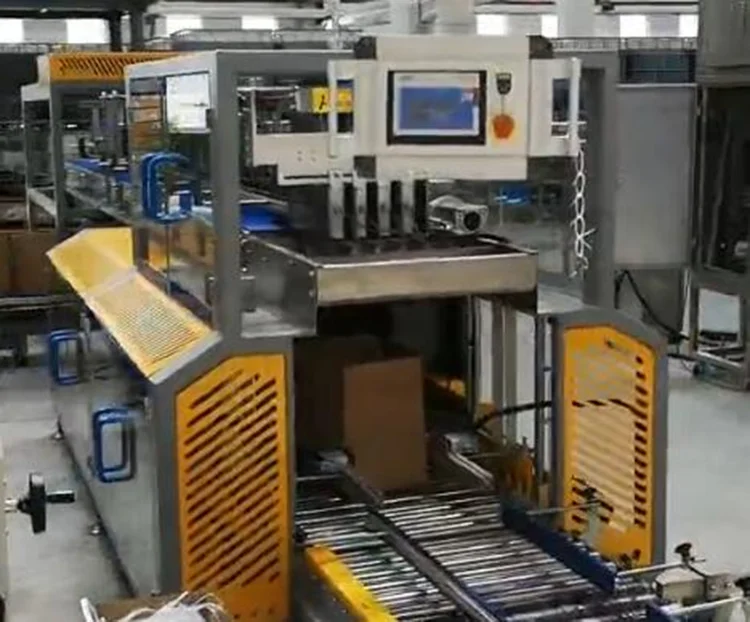

2.1. Photo
2.2. Machine Specification
Packing method: drop packing, one box at a time;
Power supply: three phase 380V, 50 Hz
Power: 4kw
Air pressure: 0.6MPa
Air consumption: 450nl / min
Packing speed: 8-10 cases / min
Body material: SUS304 stainless steel square tube welding is adopted for the main frame, and the surface is treated with wire drawing;
Power supply: three phase 380V, 50 Hz
Power: 4kw
Air pressure: 0.6MPa
Air consumption: 450nl / min
Packing speed: 8-10 cases / min
Body material: SUS304 stainless steel square tube welding is adopted for the main frame, and the surface is treated with wire drawing;
2.3. Equipment features
① Automatic packing machine is a kind of intelligent full-automatic packing machine. After loading, it will automatically sense and discharge the cartons to the sealing machine.
② This machine adopts PLC + touch screen control. It is equipped with a safety device for alarm and shutdown of bottle shortage and no packing without bottle. This assembly line is convenient to operate, manage, reduce production personnel and labor intensity.
③ According to the packing requirements, it can arrange the products automatically.
④ The design is novel and the structure is compact.
⑤ Wide range of application, can be applied to a variety of products packing.
⑥ It is especially suitable to be used with packing line, and it is easy to move.
⑦ PLC program control, simple operation and stable action.
② This machine adopts PLC + touch screen control. It is equipped with a safety device for alarm and shutdown of bottle shortage and no packing without bottle. This assembly line is convenient to operate, manage, reduce production personnel and labor intensity.
③ According to the packing requirements, it can arrange the products automatically.
④ The design is novel and the structure is compact.
⑤ Wide range of application, can be applied to a variety of products packing.
⑥ It is especially suitable to be used with packing line, and it is easy to move.
⑦ PLC program control, simple operation and stable action.

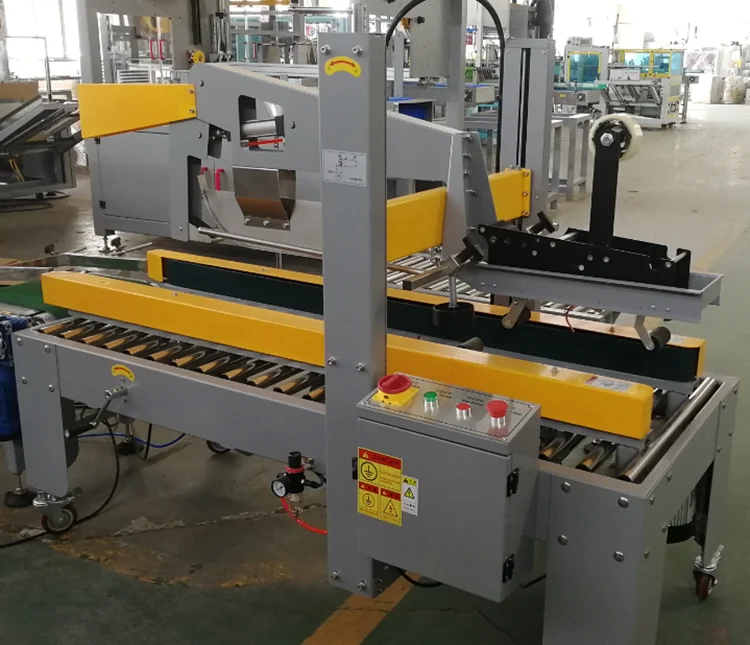

3. Automatic Box Sealing Machine
3.1. Photo
3.2. Machine Specification
Sealing method: automatic folding tape sealing
Power supply: 220 V, 50 Hz
Power: 400W
Air pressure: 0.6MPa
Air consumption: 200nl / min
Applicable carton size (L * w * H (mm): 200-500 * 150-450 * 150-450 (carton specification list is required)
Applicable tape: 48 / 60 / 75mm * 900 yards / L OPP (optional)
Belt speed: 18-20 M / min
Table height: 600-750mm
Material: carbon steel, surface spray treatment;
Environmental conditions: humidity ≤ 90%, temperature 0-40 ℃
Power supply: 220 V, 50 Hz
Power: 400W
Air pressure: 0.6MPa
Air consumption: 200nl / min
Applicable carton size (L * w * H (mm): 200-500 * 150-450 * 150-450 (carton specification list is required)
Applicable tape: 48 / 60 / 75mm * 900 yards / L OPP (optional)
Belt speed: 18-20 M / min
Table height: 600-750mm
Material: carbon steel, surface spray treatment;
Environmental conditions: humidity ≤ 90%, temperature 0-40 ℃

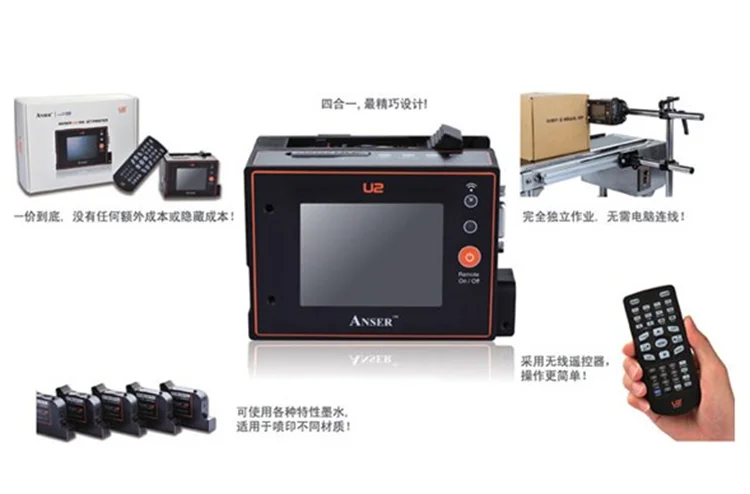

4. Carton Box Online Printing Machine
4.1. Photo
4.2. Special Features
4-in-1 compact design (controller, screen, printhead and Cartridge),
Complete stand-alone, no PC required
AUX l/O port for external encoder, photocell or alarm kit connection
Built-in SD card slot for software upgrade&data backup
Anti-shock mechanism for printer protection
Built-in photocell, no extra costs
Dual Switchable Nozzle Design (DSND)
allows you to switch nozzles when one is no performing properly
Hot-Swap: circuit safeguard for quick ink cartridge changeover
LOG report for security check
Multi-level password protection
System backup & restore to ensure your data is secured
4.3. Machine Specification
Complete stand-alone, no PC required
AUX l/O port for external encoder, photocell or alarm kit connection
Built-in SD card slot for software upgrade&data backup
Anti-shock mechanism for printer protection
Built-in photocell, no extra costs
Dual Switchable Nozzle Design (DSND)
allows you to switch nozzles when one is no performing properly
Hot-Swap: circuit safeguard for quick ink cartridge changeover
LOG report for security check
Multi-level password protection
System backup & restore to ensure your data is secured
4.3. Machine Specification
Screen | 2.8inch colored LCD screen |
LED light | 5LED light: Alarm, low ink, coding, running, controller on/off |
Language | Chinese, English, Japanese, French, German, Spanish, Russian, Portuguese |
Operate system | Digital selection menu, simple operation |
controller | Pocket IR remote control |
Cartridge | Use the newest coding technical |
Coding | Letters, numbers, graphics, date / time, period, class, ordinary counter, box / pallet counter, one-dimensional bar code |
Coding rank | Line, two lines, three lines, four lines. All characters must not exceed 12.7mm high |
Character height | Coding height: 2.7mm, 3.6mm, 5.5mm, 8mm, 10mm, 12.7mm |
Coding speed | On the level 300 DPI, can reach 76m/min |
Information storage | 2G SD can storage 999 information |
Power supply | AC 100 V - 240V, 50/60 Hz, 1.6 A, max power:60W |
Dimension | 114 x 76 x 60 mm |
weight | 0.49 Kg |
Working environments | Any usual working condition, no too much code place which let the ink frozen, temperature: 5°C-40°C (41°F-104°F) |
Ink storage and color | 42cc black, red, blue, green, yellow |

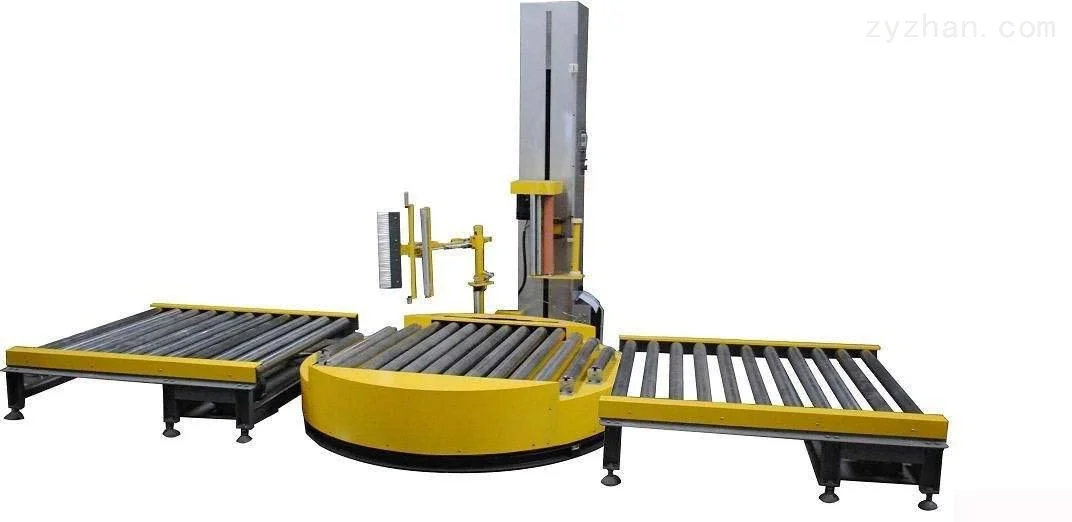

5 Automatic Pallet Wrapping Machine
5.1. Photo
5.2 General Description
1. Packaging line composition
A. 1 set of control system
B. 1 set of roller conveying stretch winding packaging machine
C. 1 set of automatic film feeding and breaking system
Package product specification: 1000 * 1000 * 1200 weight: 600kg
2. Packaging line action process
(1) The conveying line conveys the product to the winding machine position, manually thread the film and lead it out into the film feeder to clamp the film (only the first cycle requires manual film feeding, and the equipment will automatically apply the film later), set the parameters and start the winding machine for packaging.
(2) After packaging, the automatic film feeding and breaking system will automatically feed, break and brush the product, and the whole process is completed,
(3) When the roller conveying system is started, the products will be transported out automatically to complete a cycle. Repeat the above actions for continuous packaging.
(2) Equipment composition
a) Turntable components
It is composed of chassis and turntable and adopts roller to transport goods
Turntable height: 400mm (height or customized)
Turntable rotation diameter: 2000mm
Turntable speed: 0-12rpm, speed variable frequency adjustable, turntable can be accurately positioned
Roller conveying speed: 10M / min
Rotary table reducer: Power: 0.75KW, reduction ratio: 1:40
b) Lifting column:
Double chain structure, the chain adopts 08B standard roller chain
Lifting speed: 0-56mm / s, frequency conversion adjustable
Lifting reducer (turbine reducer) power: 0.37kw
c) Membrane support system
Pre stretched film frame: the stretching ratio is 1:2.5, automatic film feeding, and the film feeding speed is adjustable.
It is convenient to pull out the film, and the film breaking frame will automatically stop running.
DC film feeding motor, power: 0.23kw
d) Automatic film feeding and breaking system
Pneumatic control
e) Electric control system:,
PLC programmable control, winding layers and times are adjustable, and the height of goods is automatically sensed.
Stepless frequency conversion speed regulation is adopted for turntable rotation, roller conveying and membrane frame lifting, which is convenient to operate
Easy to control the packaging effect.
(3) Packaging material LLDPE stretch film
Thickness: 17 ~ 35 μ m
Width: 500mm
Inner core of membrane roll: 76.2mm maximum outer diameter of membrane roll: 260mm
1. Packaging line composition
A. 1 set of control system
B. 1 set of roller conveying stretch winding packaging machine
C. 1 set of automatic film feeding and breaking system
Package product specification: 1000 * 1000 * 1200 weight: 600kg
2. Packaging line action process
(1) The conveying line conveys the product to the winding machine position, manually thread the film and lead it out into the film feeder to clamp the film (only the first cycle requires manual film feeding, and the equipment will automatically apply the film later), set the parameters and start the winding machine for packaging.
(2) After packaging, the automatic film feeding and breaking system will automatically feed, break and brush the product, and the whole process is completed,
(3) When the roller conveying system is started, the products will be transported out automatically to complete a cycle. Repeat the above actions for continuous packaging.
5.3 Details
(1) Technical parameters
Wrapping specification: 1000 * 1000 * 1200mm
Packing efficiency: 20-50 Torr / h
Power / voltage: 2.3 kW / AC 220V
Bearing capacity: 600kg
Overall weight: About 800kg
Wrapping specification: 1000 * 1000 * 1200mm
Packing efficiency: 20-50 Torr / h
Power / voltage: 2.3 kW / AC 220V
Bearing capacity: 600kg
Overall weight: About 800kg
(2) Equipment composition
a) Turntable components
It is composed of chassis and turntable and adopts roller to transport goods
Turntable height: 400mm (height or customized)
Turntable rotation diameter: 2000mm
Turntable speed: 0-12rpm, speed variable frequency adjustable, turntable can be accurately positioned
Roller conveying speed: 10M / min
Rotary table reducer: Power: 0.75KW, reduction ratio: 1:40
b) Lifting column:
Double chain structure, the chain adopts 08B standard roller chain
Lifting speed: 0-56mm / s, frequency conversion adjustable
Lifting reducer (turbine reducer) power: 0.37kw
c) Membrane support system
Pre stretched film frame: the stretching ratio is 1:2.5, automatic film feeding, and the film feeding speed is adjustable.
It is convenient to pull out the film, and the film breaking frame will automatically stop running.
DC film feeding motor, power: 0.23kw
d) Automatic film feeding and breaking system
Pneumatic control
e) Electric control system:,
PLC programmable control, winding layers and times are adjustable, and the height of goods is automatically sensed.
Stepless frequency conversion speed regulation is adopted for turntable rotation, roller conveying and membrane frame lifting, which is convenient to operate
Easy to control the packaging effect.
(3) Packaging material LLDPE stretch film
Thickness: 17 ~ 35 μ m
Width: 500mm
Inner core of membrane roll: 76.2mm maximum outer diameter of membrane roll: 260mm
5.4 automatic control system
1. the host of the control system adopts programmable logic controller (PLC) to ensure reliable operation.
2. the main equipment of the control system includes: control cabinet, field control box, emergency stop button box, photoelectric switch, proximity switch, various control switches and signal lights. The main components are imported or joint venture products.
3. Corresponding console shall be set at the operation site to facilitate operation.
4. the system has operation fault alarm function; When the equipment in the conveying system fails during operation, the system will send audible and visual alarm signals to remind users.
5. other configuration standards
6. motor, cable and Bridge
7. multi core and multi strand shielded flexible cables are used for control cables, and medium-sized general rubber sheathed cables are used for power cables. Bridge, power cable and control cable shall be provided by the demander, and communication cable shall be provided by the supplier.
8. the supplier shall provide the drive and motor of all equipment and the frequency converter required by the system.
1. the host of the control system adopts programmable logic controller (PLC) to ensure reliable operation.
2. the main equipment of the control system includes: control cabinet, field control box, emergency stop button box, photoelectric switch, proximity switch, various control switches and signal lights. The main components are imported or joint venture products.
3. Corresponding console shall be set at the operation site to facilitate operation.
4. the system has operation fault alarm function; When the equipment in the conveying system fails during operation, the system will send audible and visual alarm signals to remind users.
5. other configuration standards
6. motor, cable and Bridge
7. multi core and multi strand shielded flexible cables are used for control cables, and medium-sized general rubber sheathed cables are used for power cables. Bridge, power cable and control cable shall be provided by the demander, and communication cable shall be provided by the supplier.
8. the supplier shall provide the drive and motor of all equipment and the frequency converter required by the system.
Company Profile
Certificate praise
FAQ
Q1: Are your factory or trading company?
A: We are factory trading department or factory agent.
Q2: Can you guarantee your quality?
A: Of course. We are the factory agent. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What kind of after sell service do your company have?
A: For small equipment, we have operation instructions and installation guidance video, and customers can provide video connection guidance after receiving the equipment; for large equipment, we have professional installation and debugging engineers for on-site installation and debugging and training.
Q4: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q5: How could I get the spare parts on machines?
A: We will send extra one set of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q6: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, on time shipment protection and 100% safe payment protection.
Q7: What's the payment terms and trade terms for new customers?
A: Payment terms: T/T, L/C, D/P, Western Union etc.
Q8: What's the Minimum Order Quantity and warranty?
A: MOQ:1 set
Warranty:12 months, some customized products will be 18 months.
Q9: Do I need to pay for the extra cost like tax or duty?
A: It depends on the local customs.
Q10: Can you accept OEM/ODM?
A: Yes, We can.
A: We are factory trading department or factory agent.
Q2: Can you guarantee your quality?
A: Of course. We are the factory agent. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What kind of after sell service do your company have?
A: For small equipment, we have operation instructions and installation guidance video, and customers can provide video connection guidance after receiving the equipment; for large equipment, we have professional installation and debugging engineers for on-site installation and debugging and training.
Q4: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q5: How could I get the spare parts on machines?
A: We will send extra one set of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q6: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, on time shipment protection and 100% safe payment protection.
Q7: What's the payment terms and trade terms for new customers?
A: Payment terms: T/T, L/C, D/P, Western Union etc.
Q8: What's the Minimum Order Quantity and warranty?
A: MOQ:1 set
Warranty:12 months, some customized products will be 18 months.
Q9: Do I need to pay for the extra cost like tax or duty?
A: It depends on the local customs.
Q10: Can you accept OEM/ODM?
A: Yes, We can.
We Recommend
New Arrivals
New products from manufacturers at wholesale prices
