CZJB Electric Bicycle Hub Kit 500w 750w 1000w High Power DC Motor Kit
- Category: >>>
- Supplier: Changzhou Langyan Trading Co. Ltd.
Share on (1600510930974):
Product Overview
Description
CZJB Electric Bicycle Hub Kit 500w 750w 1000w High Power DC Motor Kit
Hub Motor | 36V/48V ,800W-1000W ,45-50km/h |
E-Brake | Left Brake&Right Brake , waterproof cable 300mm(You can ask for a brake sensor instead .) |
Throttle | Full twitst, half thumb throttle,waterproof cable 300mm |
Controller | 12 mosfet sinewave controller,25A waterproof cables 110m size:110*65*35mm |
Display | Smart LCD display,waterproof cable 300mm |
PAS | 1:1PAS,separated 12 magnets waterproof cable 1000mm |
1T4 integrated cable | 1500mm waterproof cable |
Extension cable | 2 square *850mm waterproof cable |
Battery | Bottle， Down tube, Rear Rack battery |
Headlight | Optional |
Products Description

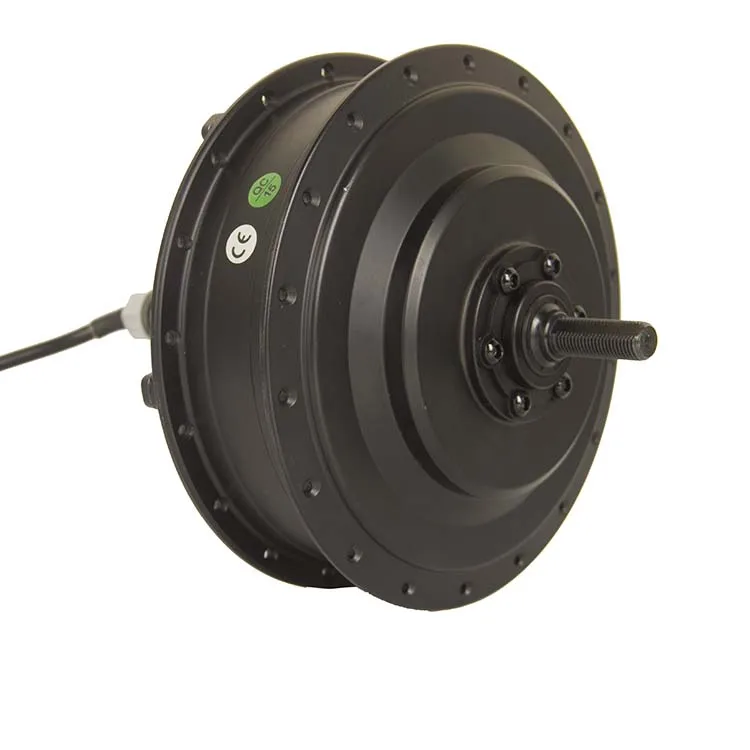

24V/36v/48v
800W-1000W
Rated Speed: 45Km/h-50Km/h
Wheel size: 16-28 inch
Dropout:135-141mm
800W-1000W
Rated Speed: 45Km/h-50Km/h
Wheel size: 16-28 inch
Dropout:135-141mm
Max torque: 95N.m
Reduction ratio:1:5.8
Cable Location: Shaft Center Left
Waterproof Grade: IP65
Cable Location: Shaft Center Left
Waterproof Grade: IP65
Rear gear motor use for electric mountain ,city ebike
use helical gear,climbing will be better
use helical gear,climbing will be better

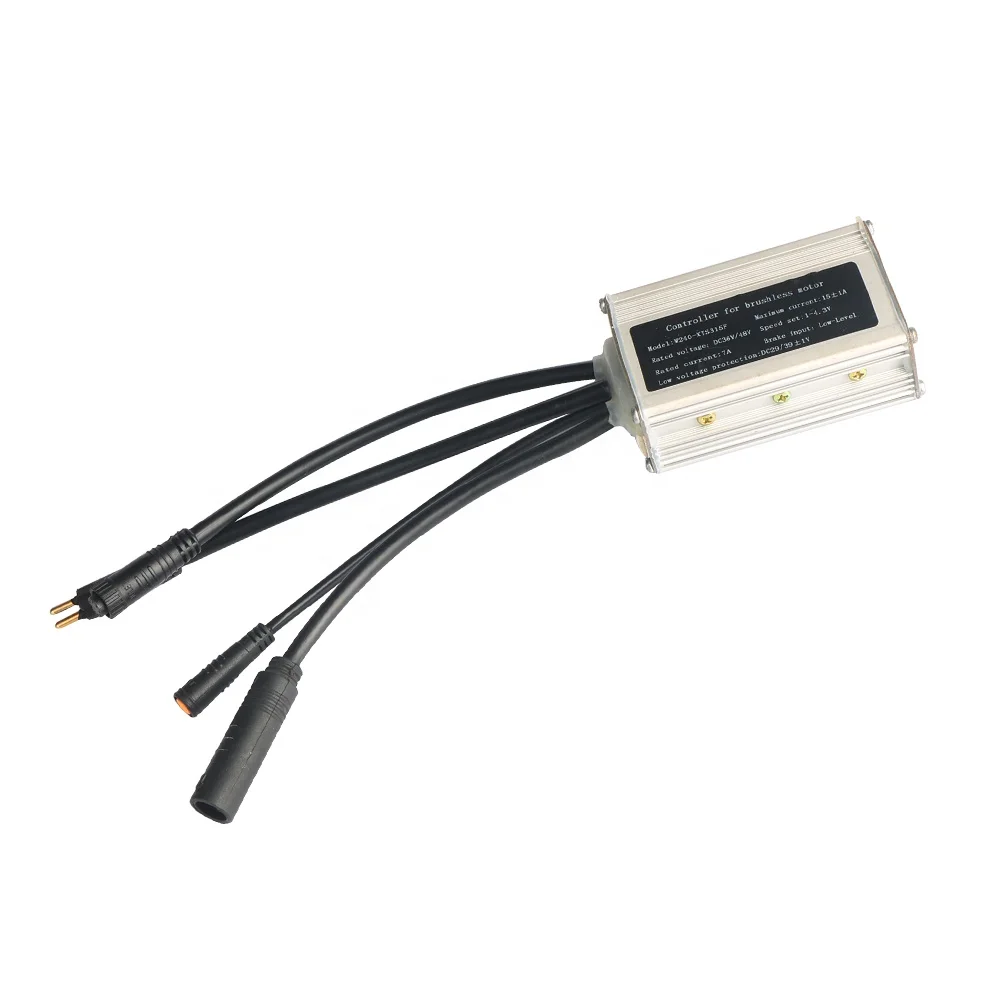

12 mosfet sinewave controller,22A
waterproof cables 110msize:110*65*35mm

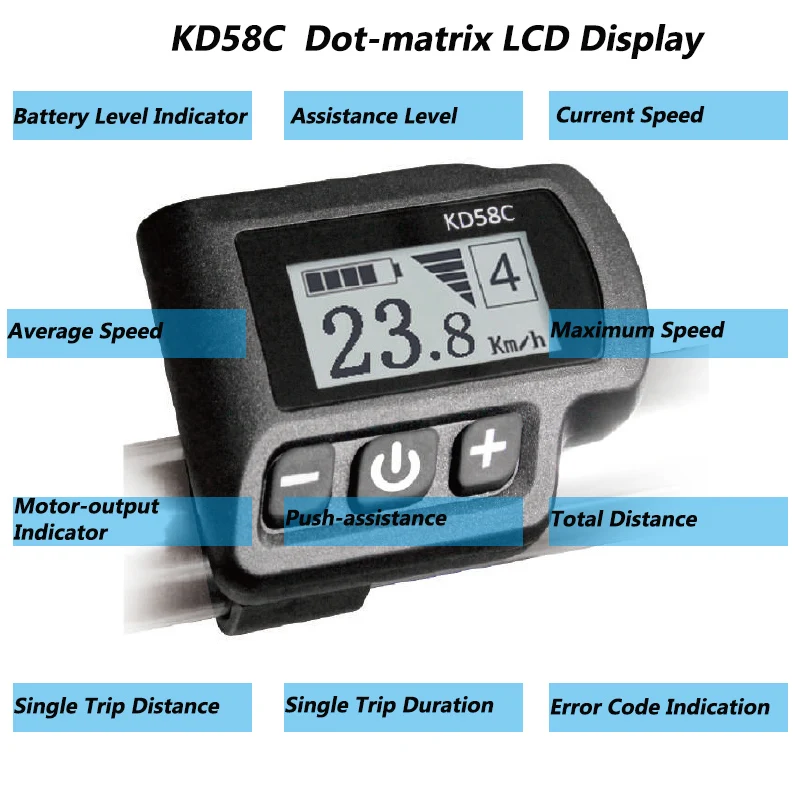

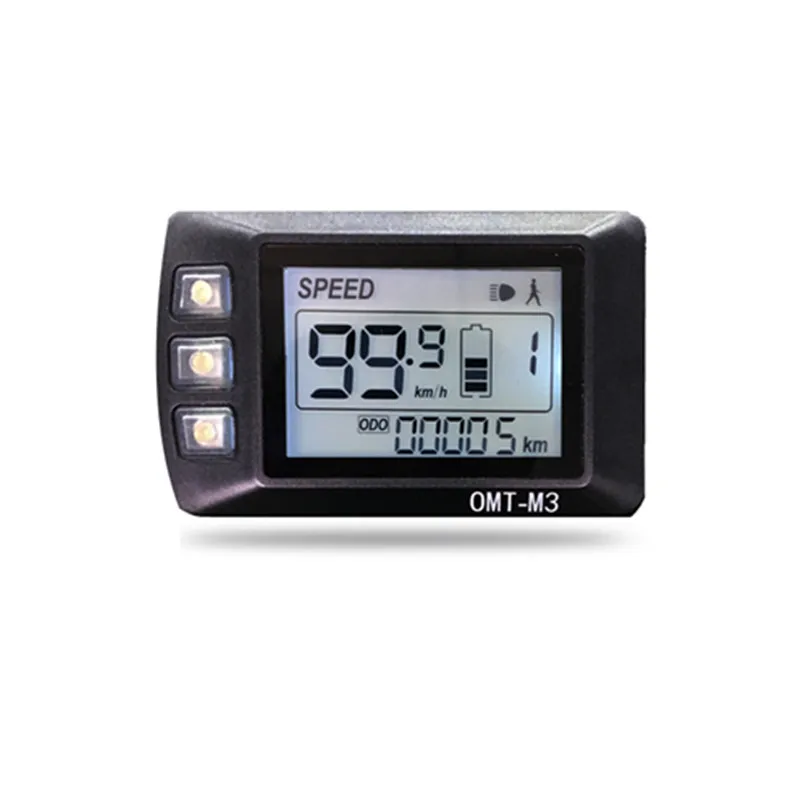

SMART LCD DISPLAY
Plug : 5 pin male connector
Color : Black
Cable Length : Waterproof 300mm cable without the connector)
Plug : 5 pin male connector
Color : Black
Cable Length : Waterproof 300mm cable without the connector)
1:1PAS,separated 12 magnets waterproof cable 1000mm

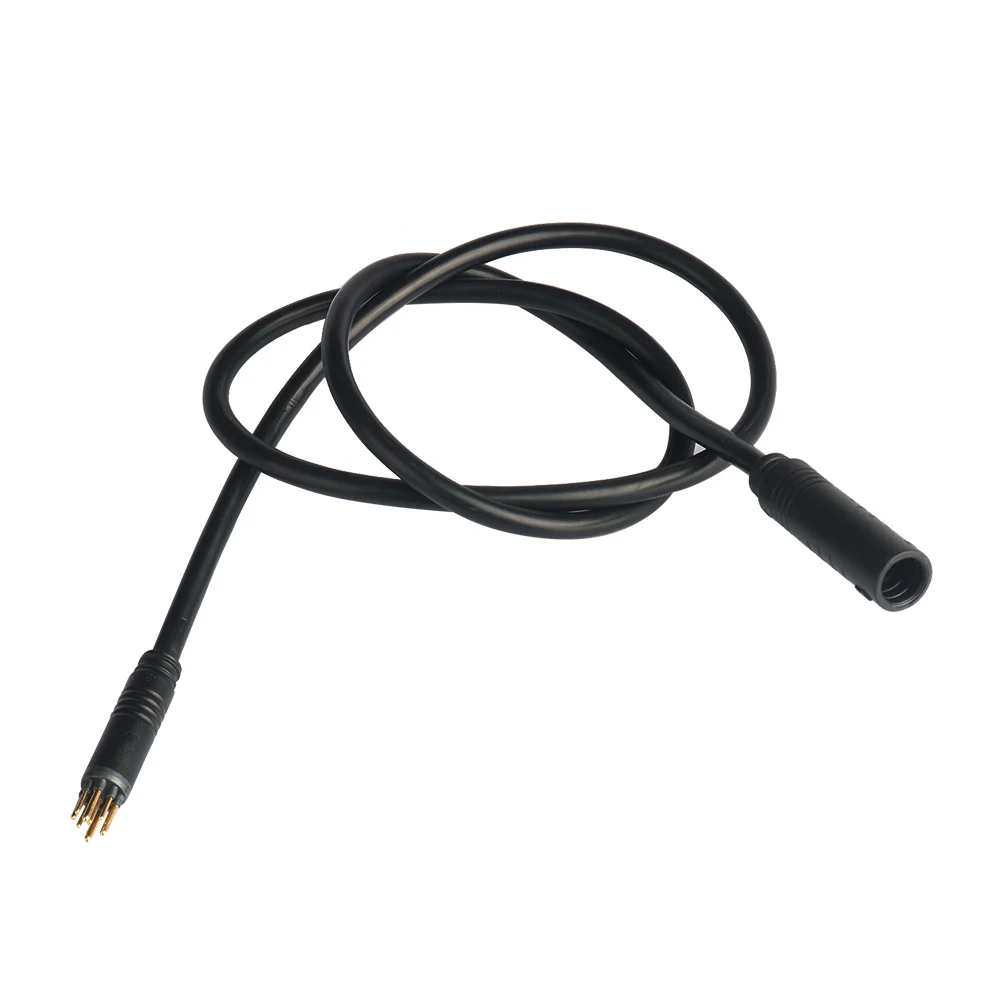

Motor extension waterproof cable 800mm
1T4 ebus waterproof
cable 1500mm
Nine pins waterproof cables(1.2 square for 250w/350w;1.5 square for 500w/750w; 2 square for 1000W)
If you need longer cables,customize is possible.We also can provide motor extension cables.
INSTALLATION SPECIFICATIONS
THROTTLE FOR OPTIONAL
Thumb throttle
Half throttle
Full twist throttle
BATTERY FOR OPTIOANL
Bottle battery
36V 8.8AH samsung cells
36V 10.4AH samsung cells
36V 11.6AH samsung cells
Down tube battery
36V 8.8AH samsung cells
36V 10.4AH samsung cells
36V 11.6AH samsung cells
Rear rack battery
36V 11.6AH samsung cells
36V 13AH samsung cells
Recommend Products
Product Application
Company Profile
LANGYAN founded in 2008, concentrates on researching and developing ebikes, lithium electric bike motors, electric bicycle conversion kits and so on. With more than 10 years experience in price and quality.
LANGYAN has its own R&D department consist of over 10 senior engineers who guarantee the products' quality and development of new products. Our products exported to many countries and regions around the world, especially America, Europe, the Middle East and South Asia. Our products enjoy good reputation among our customers.
LANGYAN, which is a factory with complete after-sale service system. We promise 2 years' warranty. First year, exchanging products for free and second year, maintence free. You only need to do is pay the freight. OEM and ODM is available.
Certifications
Product packaging
FAQ
1.A:Frame dropout?
B:rear hub motor is 135mm-141mm ,
2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.
3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.
4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.
5.A:speed?
B: 45km/h-50Km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.
6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.
7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.
8.A:ODM,OEM?
B:it is possible. We can do ODM,OEM service to you
9.A:production and delivery time?
B:if sample,motor is 10-15days, ebike kit is 25-30days; if orders,motor is 15-20days,ebike convension kit 30 days according quantities and requiremnts.
B:rear hub motor is 135mm-141mm ,
2.A:How much wheel size you need?
B:PLese tell us wheel size you need,because differernt wheel size,differernt freight cost.
We use 1.75-2.125 rim.If snow hub motor and big power hub motor for fat bike,use 4.0 rim.
You can choose single rim or doube rim.
3.A:connected cables?
B:You can choose normal or waterproof cables,waterproof cables need to pay addtional charges.
4.A:Battery connector?
B:If you buy battery from other suppliers,please note battery conntector to connected with controller.
5.A:speed?
B: 45km/h-50Km/h,if you want to other speed,if possible for hub motor,it is ok according your requirements.
6.A:sample?
B:One sample is possible,you can try to test quality.100% payment before sample production.
7.A:choose motor specifications?
B:please tell us voltage/power/speed/wheel size/colour for hub motor,spoke,rim/front or rear;
We will recommend suitable hub motors for you.
8.A:ODM,OEM?
B:it is possible. We can do ODM,OEM service to you
9.A:production and delivery time?
B:if sample,motor is 10-15days, ebike kit is 25-30days; if orders,motor is 15-20days,ebike convension kit 30 days according quantities and requiremnts.
