SMNCM H2F Banking Card IC Card Milling And Embedding And Chip Bonding Machine

Product Overview

Description

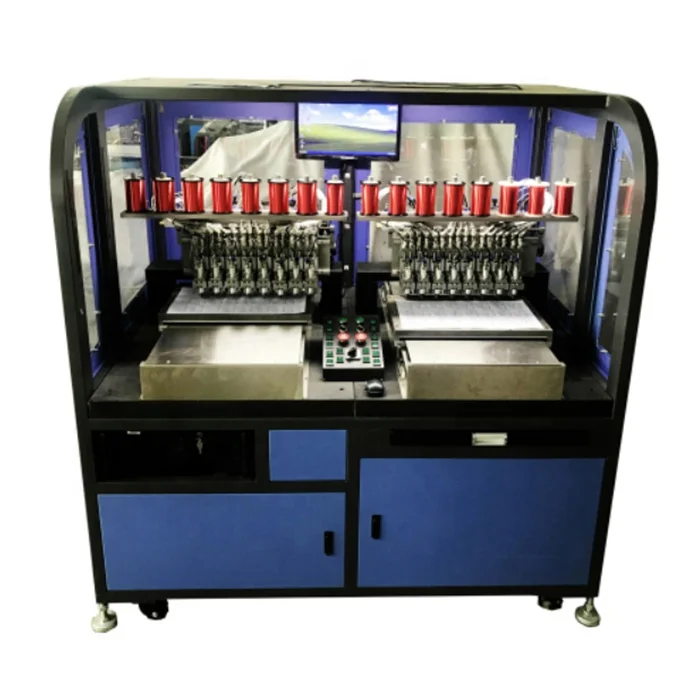

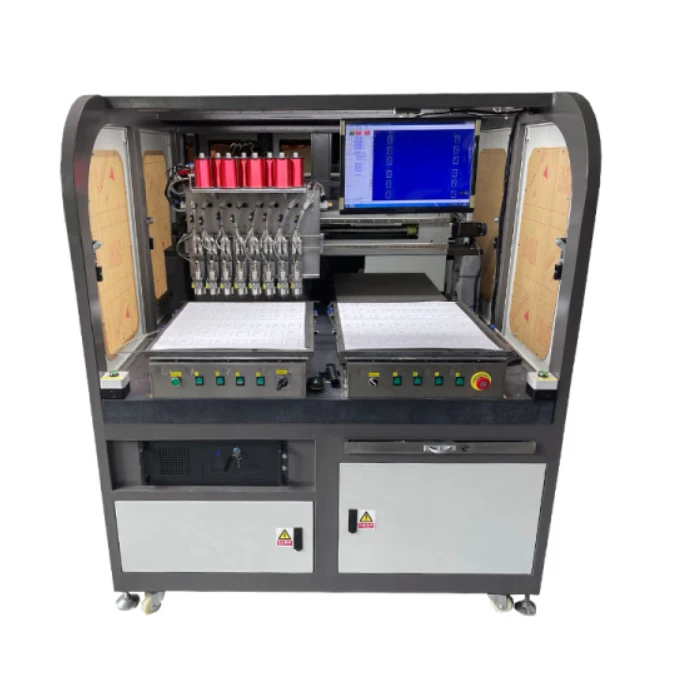

SMNCM-2D Dual Interface Card Copper Wire Embedding Machineadopts the first-class servomotor multi-axial controllers and the first-class 60KHz ultrasonic generator. It features high precision and high stability. The machine has higher productivity based on single worktable with speedy embedding heads. It is one of the fastest antenna embedding machines at present in the world. It's full automatic antenna embedding machine to apply copper wire on plastic sheet.

1. Machine runs stable, wires are well-distributed.
2. Servo motor controls the location.
3. Designed for different plastic sizes and various shapes of antenna.
4. It is easy to load plastic sheet and easy to adjust.
5. PC control with software.

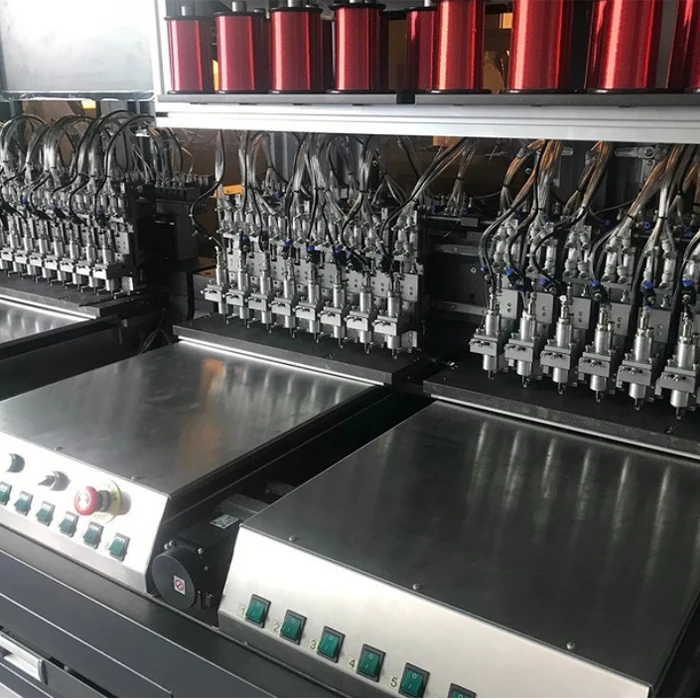

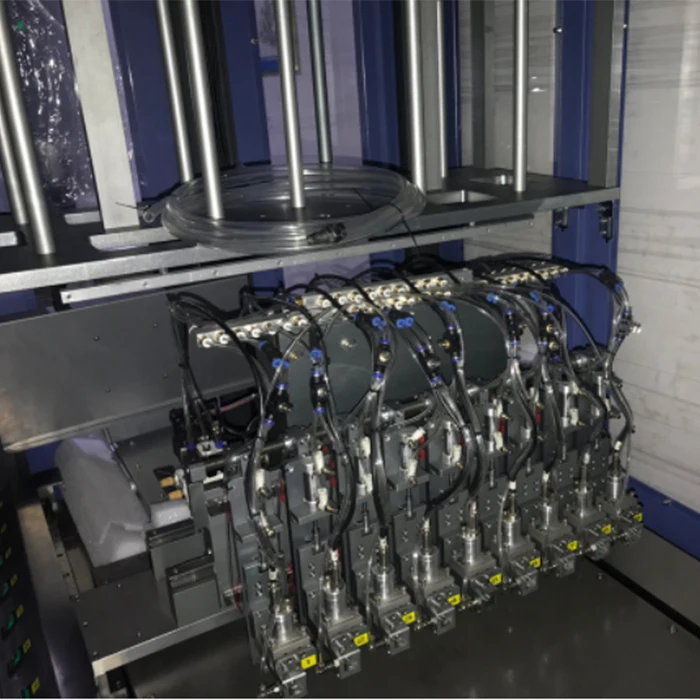

6. Machine has 8units & 8units wire embedding heads and 2 working tables, operator can set machine works for two sheets together or separatly.

Embedding Material	PVC, ABS, PET, PETG, Teslin, Polycarbonate or other mixed plastic materials
Embedding Layout	2*5, 3*7, 3*8 , 4*8, 5*5, 6*8, 7*8 or other size in your order
Embedding Copper Wire	0.1mm-0.15mm
Embedding Head  Working table	1 -16 heads  1 working table, 2 working tables, 6 working tables
Embedding Size	A4, A3, A3+ or A2
Coiling Space	minimum 0.2mm
Ultrasonic Generator	1-16units    70KHz
Embedding Efficiency	2000-6000pcs per hour depends your format and embedding heads quantity
Air Supply	0.6MPa       55Liter/minute
Control Method	PLC, Touch Screen, Servo System
Voltage	220V or 380V  50/60Hz
Power	2.5KW
Servo Precision	X   and   Y   = 0.0125mm
Packing Size	2000mm*1150mm*1750mm
Net/Gross Weight	1100KGS/1200KGS



Quality Warranty: 2years.

Delivery Time: 20days from receive advance payment.

Installation and training: we offer engineers to buyer's factory for installation and training, or buyers arrange engineers to our factory for training.

Professional vacuum packaging with standard export wooden box.



Contact Us: www.smartmanufacture.com

Shenzhen Smart Industry Co., Ltd.            ISO9001:2015 and CE certificated

Mobile number & What'sapp & Wechat: +8613088669057

Company Certificates

Question:Your company is trading company or factory?
Answer: We are factory. We have our workshop and 23 workers and professional 6 engineers just for machines installation and 1 software engineer if customers need special requirements of machine. We are Factory, so we have cost advantage than others, we can offer support on time.

Question:How do your company control the machine quality?
Answer: First we control the raw materials quality.
            Second, we control the quality of machine when we are processing.
            Third, Our installment engineers will continue test machine minimum 3days.

Question:How about payment term, payment safety and delivery time?
Answer:We accept advance deposit, balance before shipment. And Irrevocable L/C at sight.                    Anybody can come to check machines when machines ready. Delivery time is 20 to 60

           days. It is according to order quantity and if customized products.

Question: What is your company after sale service?
Answer: Our installment engineers are available. Normally it will take about 7 to 10 days for all.

             Our guarantee is 1-2 year. If there is any spare parts is broken, we can send them freely to you by our DHL or FedEx account.
