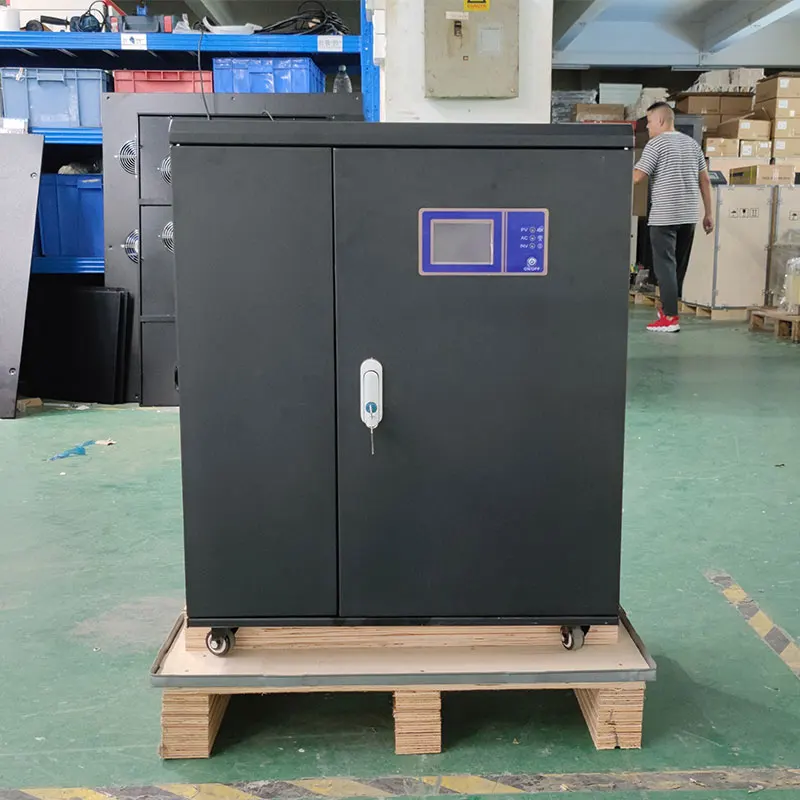

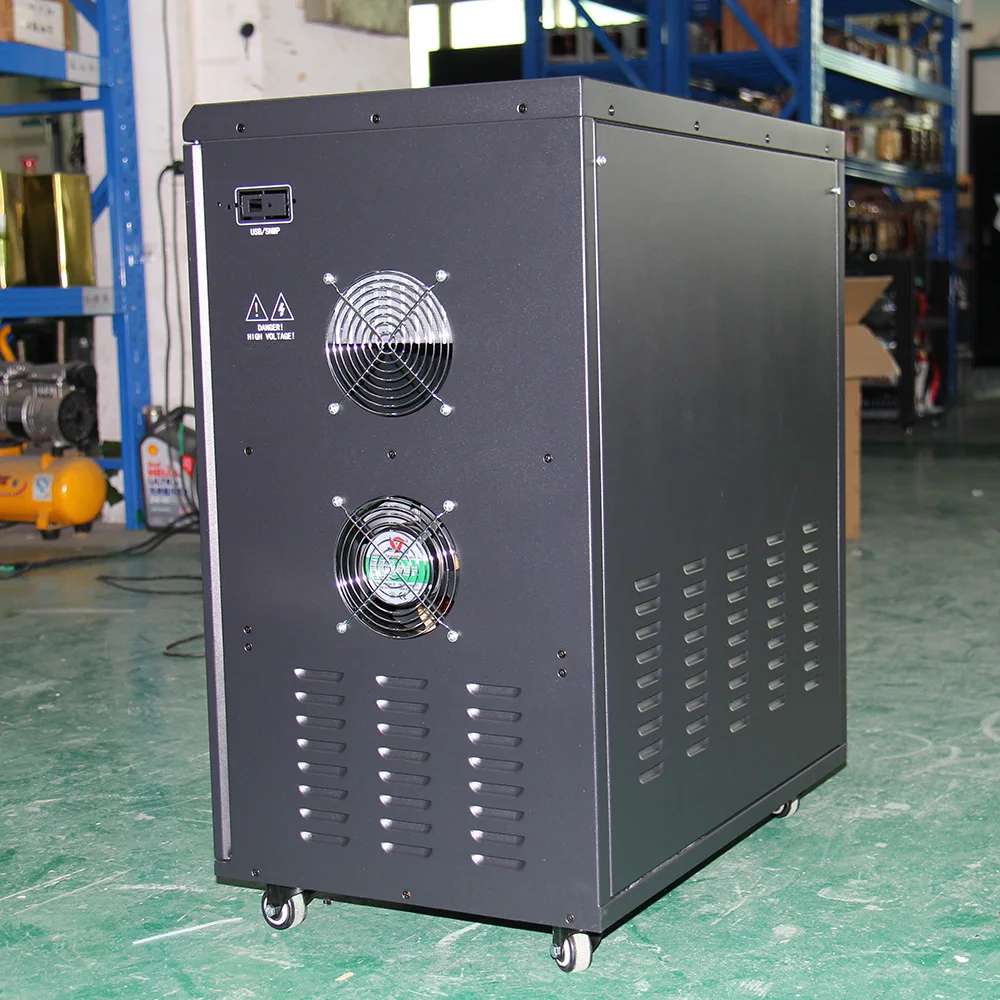

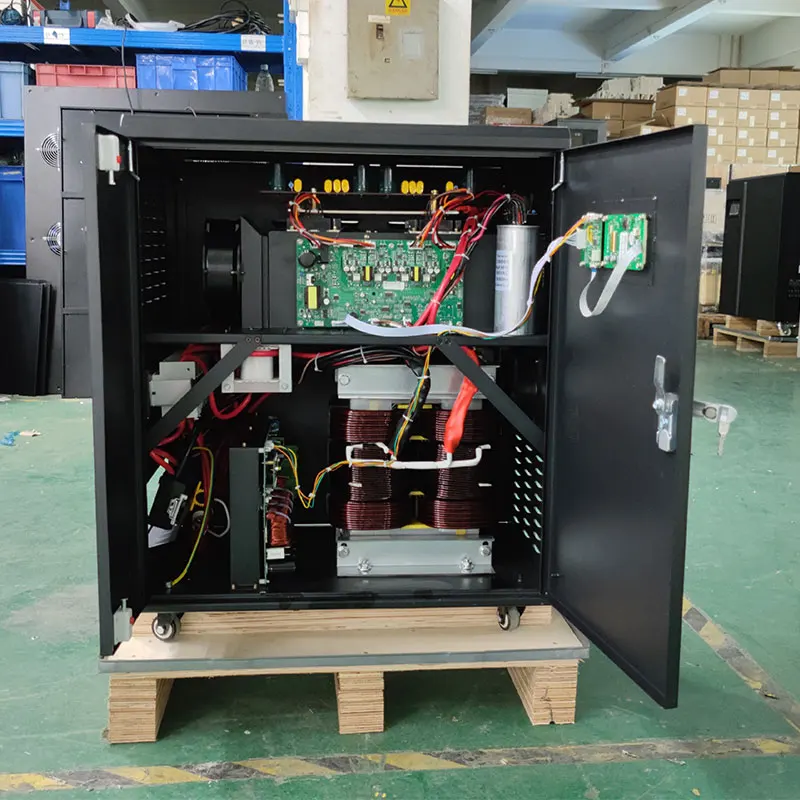

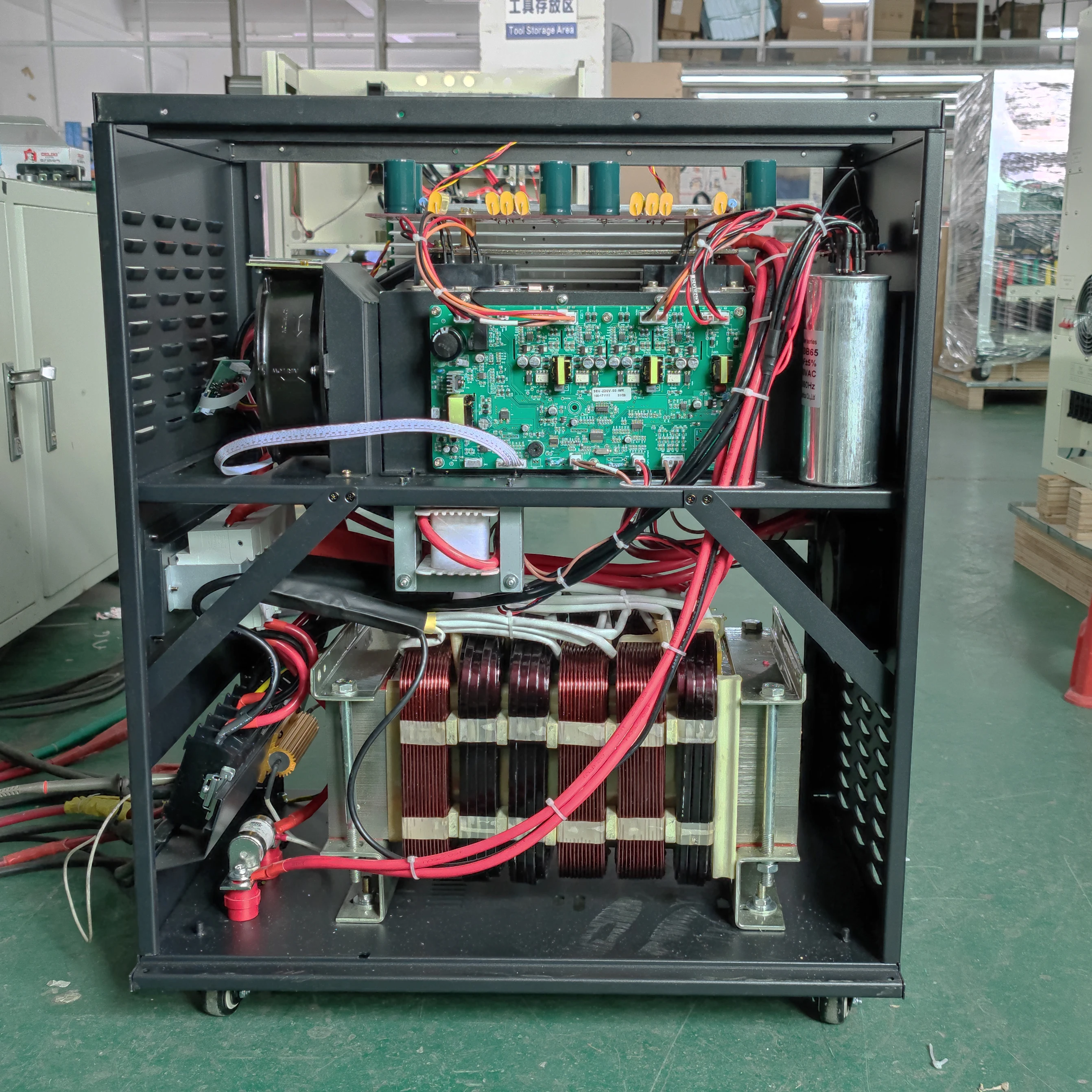

Chinese factory 10kw off grid hybrid 10kva single phase solar inverter
- Category: >>>
- Supplier: Foshan Panpower Science&technology Co. Ltd.
Share on (1600510946028):
Product Overview
Description
Main Features：
* Pure sine wave output;
* With MPPT solar charger;
* Selectable charging current based on applications
* Wind input range
* Compatible to mains voltage or generator power;
* Smart battery charger design to optimize batteryperformance;
* Communication interface: RS232/USB/SNMP/Wifi;-option
* Stable performance, safe and reliable, long service life.
* Pure sine wave output;
* With MPPT solar charger;
* Selectable charging current based on applications
* Wind input range
* Compatible to mains voltage or generator power;
* Smart battery charger design to optimize batteryperformance;
* Communication interface: RS232/USB/SNMP/Wifi;-option
* Stable performance, safe and reliable, long service life.

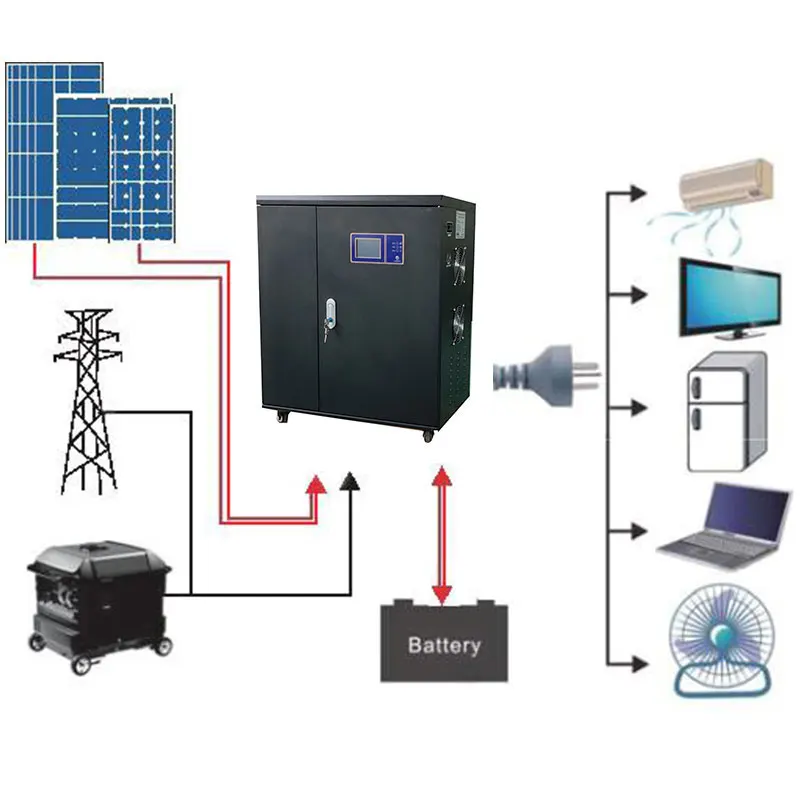

Diagram
Product Paramenters
Model | GTYT8K | GTYT10K | GTYT12K | GTYT15K | |||||
Rate Power | 8KW | 10KW | 12KW | 15KW | |||||
Instant power | 3 times | ||||||||
DC Input | Batt. Voltage | 96V | |||||||
Batt. Number | 12V：8pcs | ||||||||
Battery type | All kinds of battery | ||||||||
(optional function) | Phase | Single | |||||||
Frequency | 50/60Hz ± 10％ | ||||||||
Input voltage | 220VAC (175-255V) (L+N+G) | ||||||||
Output voltge | 220VAC directly | ||||||||
220VAC directly | Output voltage | 220VAC (L+N+G) ± 1％ | |||||||
Frequency | 50/60Hz ± 0.1％ | ||||||||
Switch time | T≤4ms | ||||||||
THD | ≤ 3％(Linear load) | ||||||||
Dynamic response | 5% (0%~100% load） | ||||||||
Crest factor（CF） | 3：1 | ||||||||
Invert efficiency | 97% | ||||||||
Rated voltage | 96VDC | ||||||||
Charge current | 100A | ||||||||
Max power | 9600W | ||||||||
Max input voltage | 230VDC | ||||||||
Optimal charging range | 140-200VDC | ||||||||
Recommend pv mppt voltage | 170V±10V | ||||||||
Protection | Over charge, over discharge, overload, low voltage, short circuit, reverse connection | ||||||||

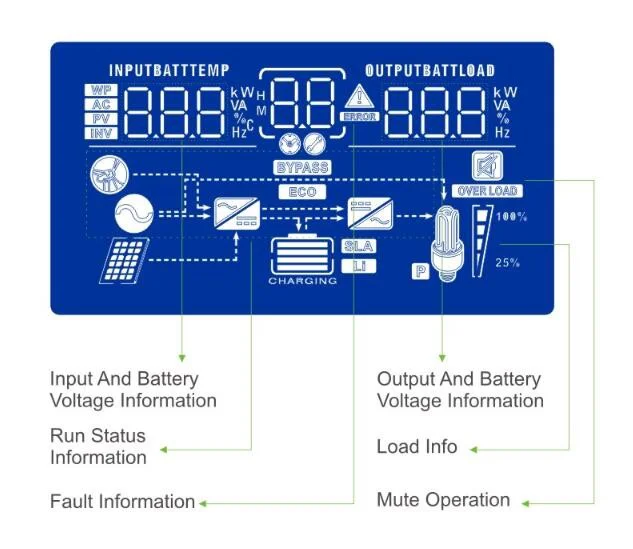

Display | LCD Touch Screen | ||||||||
Alarm | Buzzing and LCD screen flicker | ||||||||
Protection function | Ac overvoltage, under voltage, DC overvoltage, under voltage, Overload, Output short circuit | ||||||||
Overload capacity | 120% 30s, 125% 10s, 150% 0s | ||||||||
Communication interface | RS232/SNMP/Wifi (extra optional function) | ||||||||
Protection class | IP21 | ||||||||
Surge handling capability | 10/700US,5KVA;8/20US,20KA | ||||||||
Noise dB | ≤45db | ||||||||
Cooling mode | Forced ventilation | ||||||||
Ambient Temperature | Temperature 0-40℃, relative humidity 10%-90%, elevation<1000m | ||||||||
Size（L*W*H） | 400*580*720 | ||||||||
Weight(kg) | 79 | 87.5 | 94 | 118 | |||||

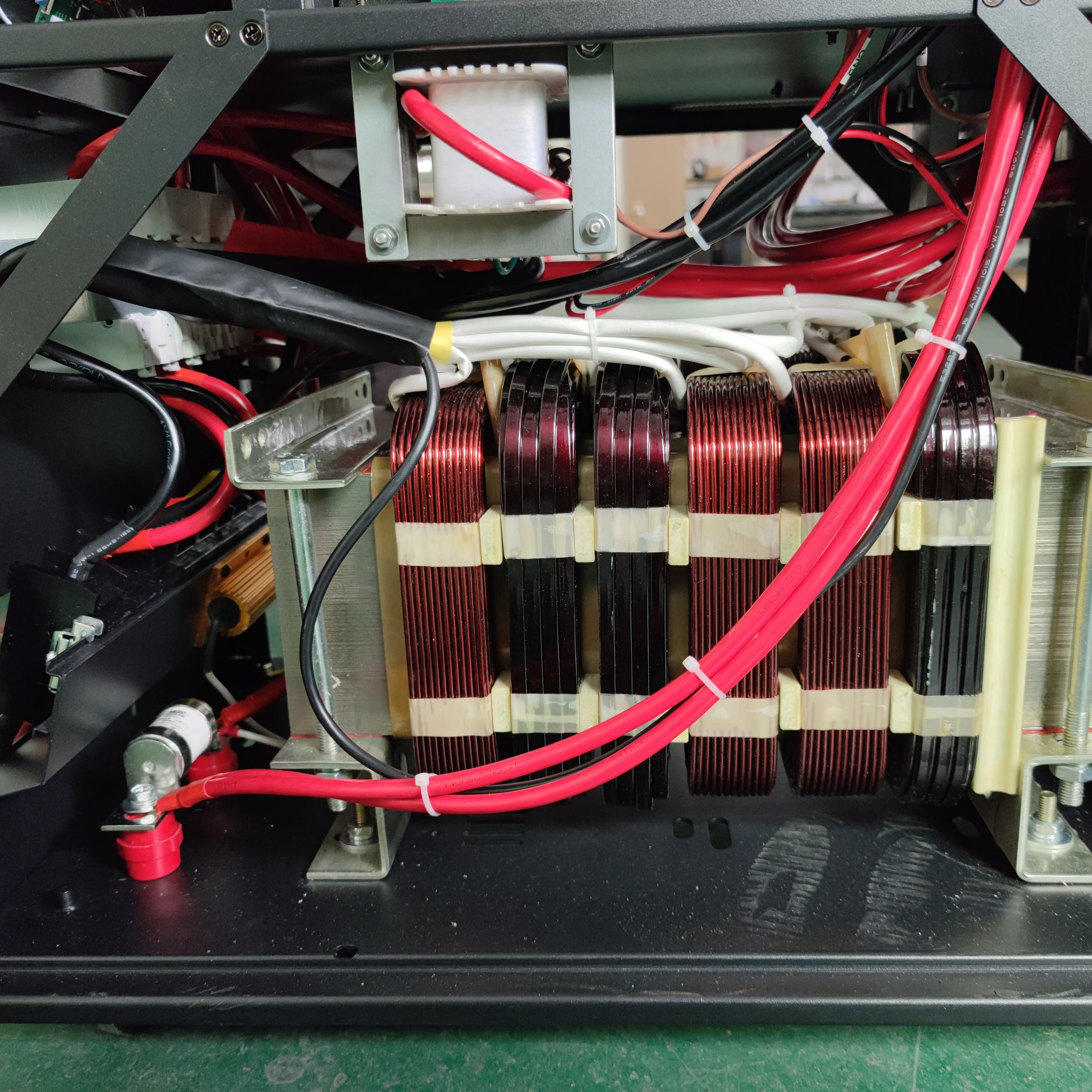

PRODUCTS DESCRIPTION
Application scenarios

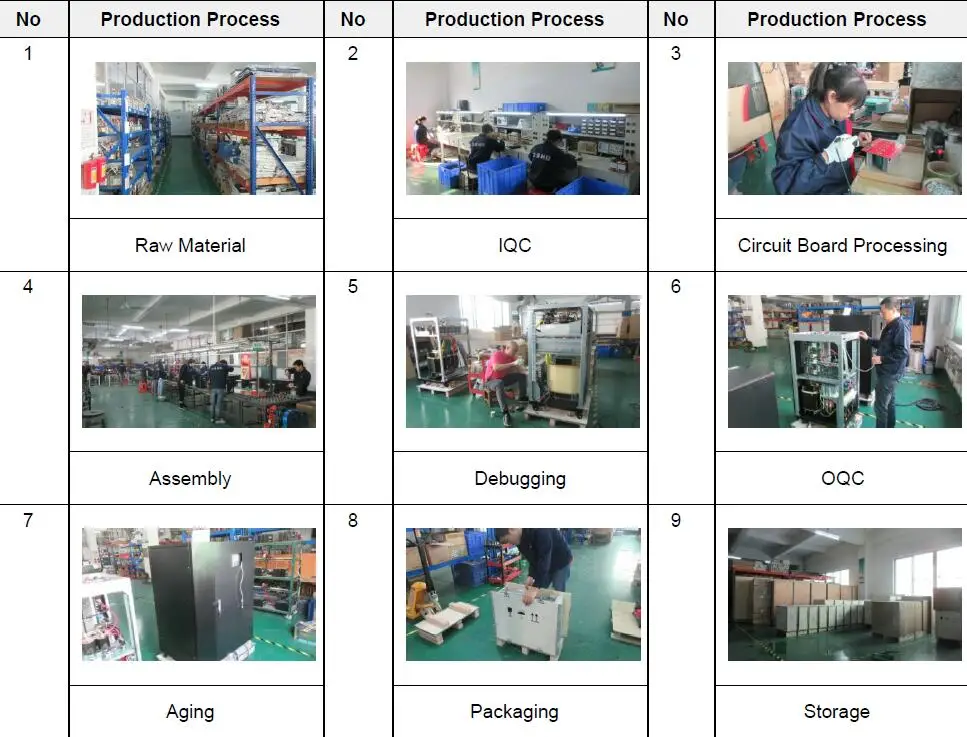

Company Profile
Foshan Panpower Science & Technology Co.,Ltd is the earliest manufacturer in China,producing power supply products. We have independent intellectual property and strong design and development capability. Our products include UPS power, kinds of inverter, EPS, voltage stabilizer, maintenance-free sealed lead acid battery. Our products are applied to many industries, such as aviation, railway, bank, security, electric power, road, national defense, insurance,electrical power and others. The customs, hospitals and governments give us a good evaluation due to our competitive price, high quality and complete service.
Certifications
1. 30 years UPS and Power Inverter export experiences
2. 18 years UPS and Power Inverter manufacturer experiences
3. 11 years of high-level OEM Experience
4. 200,000pcs Monthly Capacity
5. Hi-tech Advanced R&D Team
6. Certifications--Applied with CE, ISO 9001, ISO14001 etc
7. Quality guarantee—warranty.
8. OEM / ODM acceptable
9. 100% QC inspection and testing before shipment
2. 18 years UPS and Power Inverter manufacturer experiences
3. 11 years of high-level OEM Experience
4. 200,000pcs Monthly Capacity
5. Hi-tech Advanced R&D Team
6. Certifications--Applied with CE, ISO 9001, ISO14001 etc
7. Quality guarantee—warranty.
8. OEM / ODM acceptable
9. 100% QC inspection and testing before shipment
FAQ
Q1: Are you a factory?
A1: Yes, we are a factory specialized in inverter field over 20 years, solar controller since 2006 year.
Q2: Are you inverter pure sine wave output?
A2: Yes, all of our inverters are pure sine wave output.
Q3: What kind of output you can do?
A3: Normally, we produce inverter with 110V/120V/220V/230V/240V/380V/400V/415V, 50Hz/60Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your inverters can load?
A4: Can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
A1: Yes, we are a factory specialized in inverter field over 20 years, solar controller since 2006 year.
Q2: Are you inverter pure sine wave output?
A2: Yes, all of our inverters are pure sine wave output.
Q3: What kind of output you can do?
A3: Normally, we produce inverter with 110V/120V/220V/230V/240V/380V/400V/415V, 50Hz/60Hz.
If you have special requirements, pls tell us for engineer consulting.
Q4: What appliances your inverters can load?
A4: Can load household appliances other inductive load such as refrigerator, air condition, water pump, etc.
