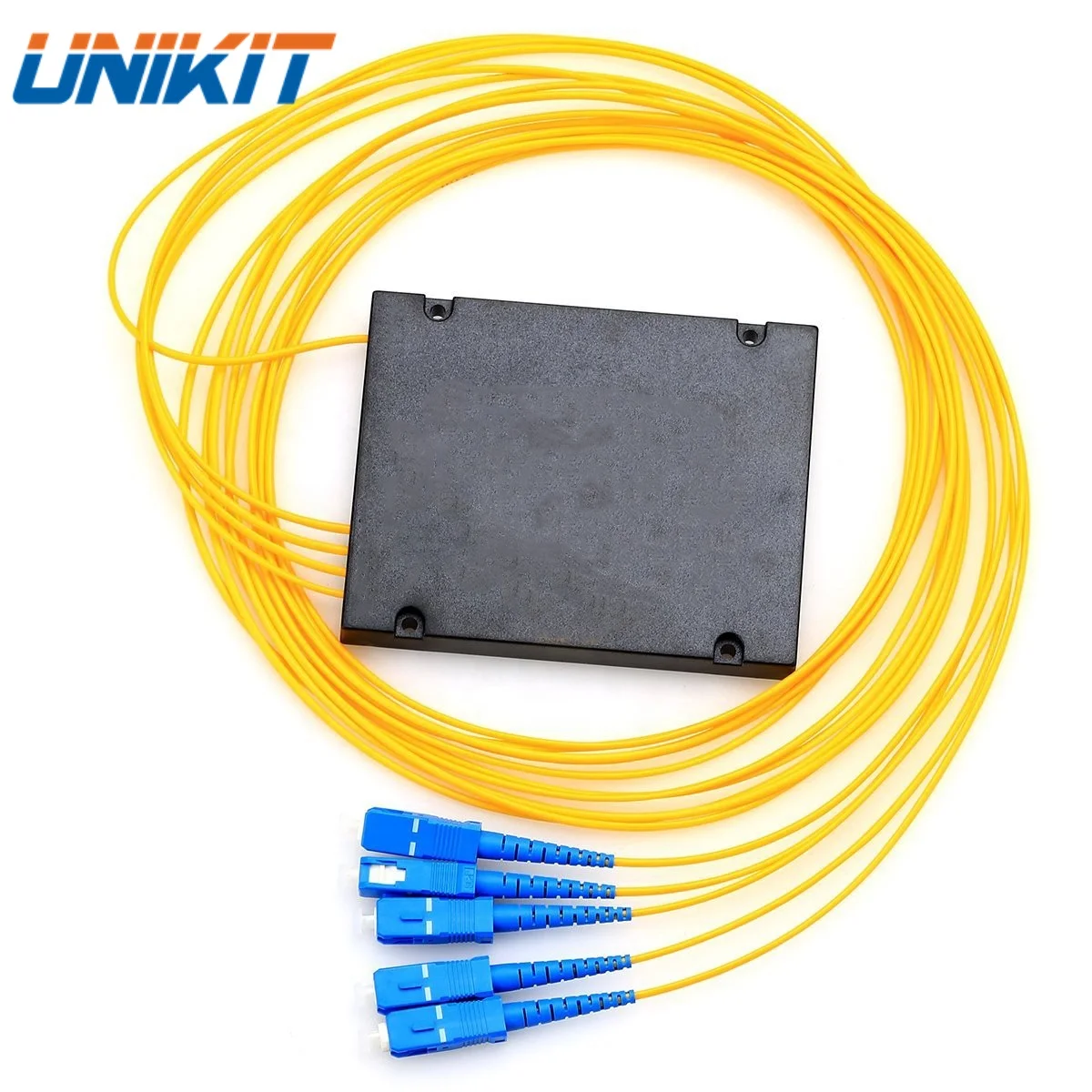

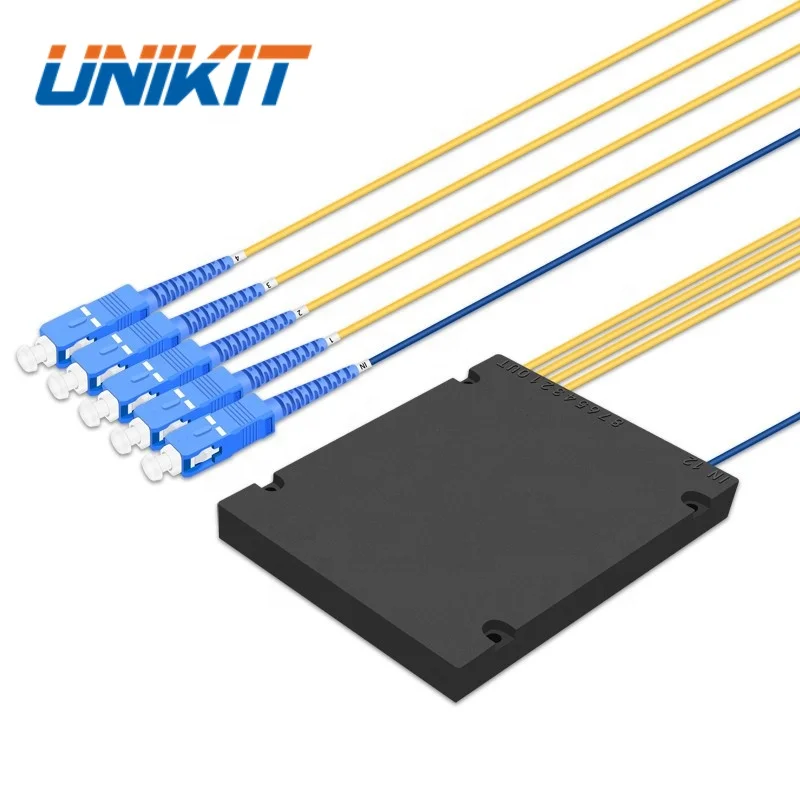

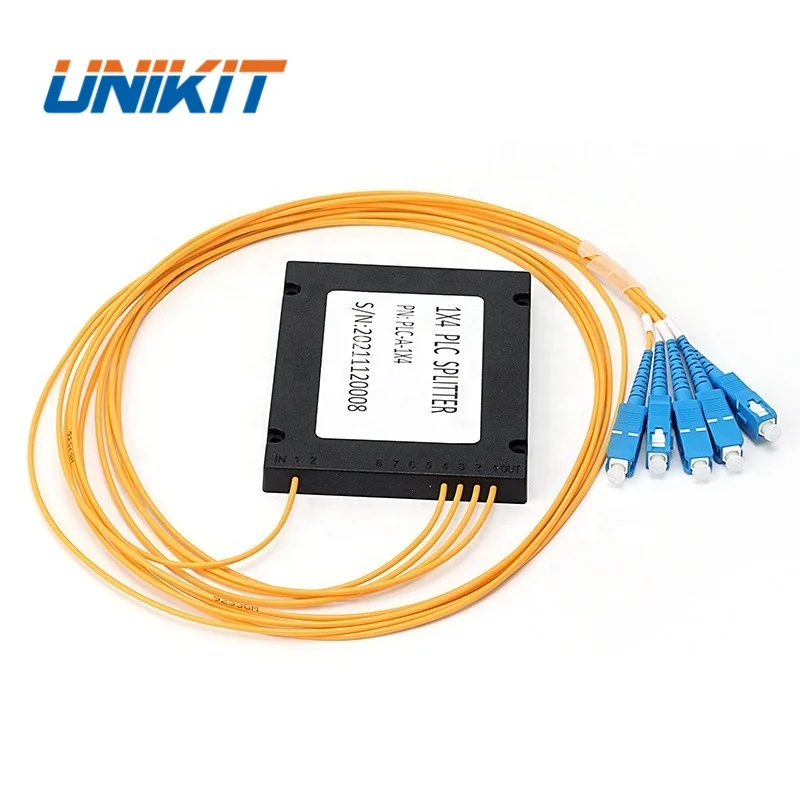

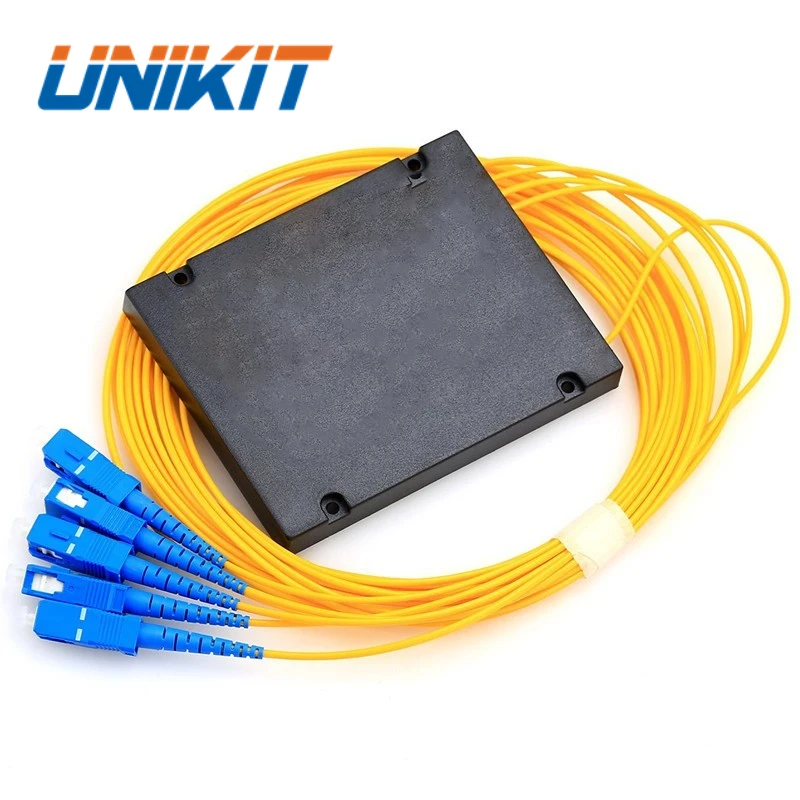

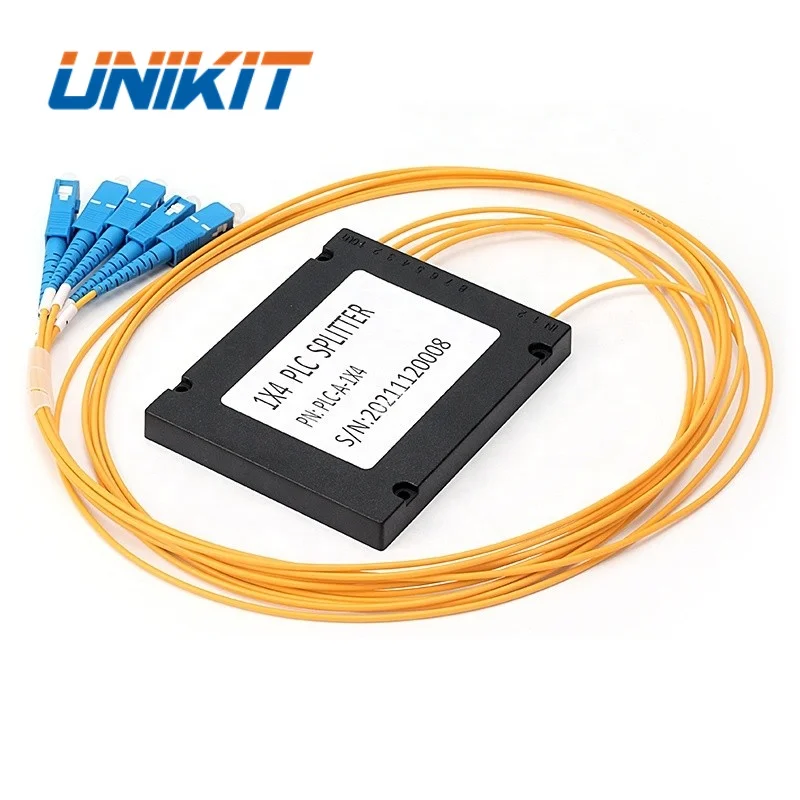

Top Quality GPON OLT ONU 2.0mm Cassette Type ABS Box 1*4 1*8 1*16 Fiber Optic PLC Splitter with SC UPC Connector PLC Splitter
- Category: >>>
- Supplier: Jiangsu Unikit Optical Technologies Co. Ltd.
Share on (1600510949971):
Product Overview
Description
Product Description
PLC splitter is based on plannar Lightwave circuit technology and precision aligning process, can divide a single/dual optical input(s) into multiple optical outputs uniformly and is denoted 1xN or 2xN. PLC splitter is applied in FTTX deployments, PON networks, CATV links and optical signal distribution currently.

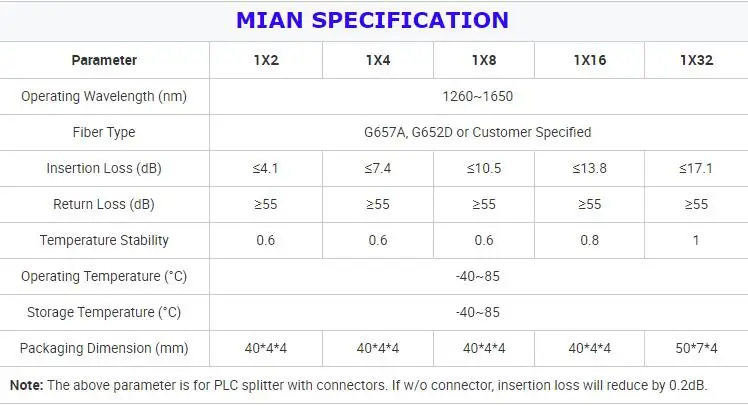

Specification
Item | Parameter |
Model Number | 1*4 SC/UPC SM ABS Box Type PLC Splitter |
Brand Name | UNIKIT/OEM |
Splitting Ratio | 1*2/1*4/1*8/1*16/1*32/1*64... |
Operating Wavelength | 1260~1650nm |
Fiber Type | G657A, G652D or Customer Specified |

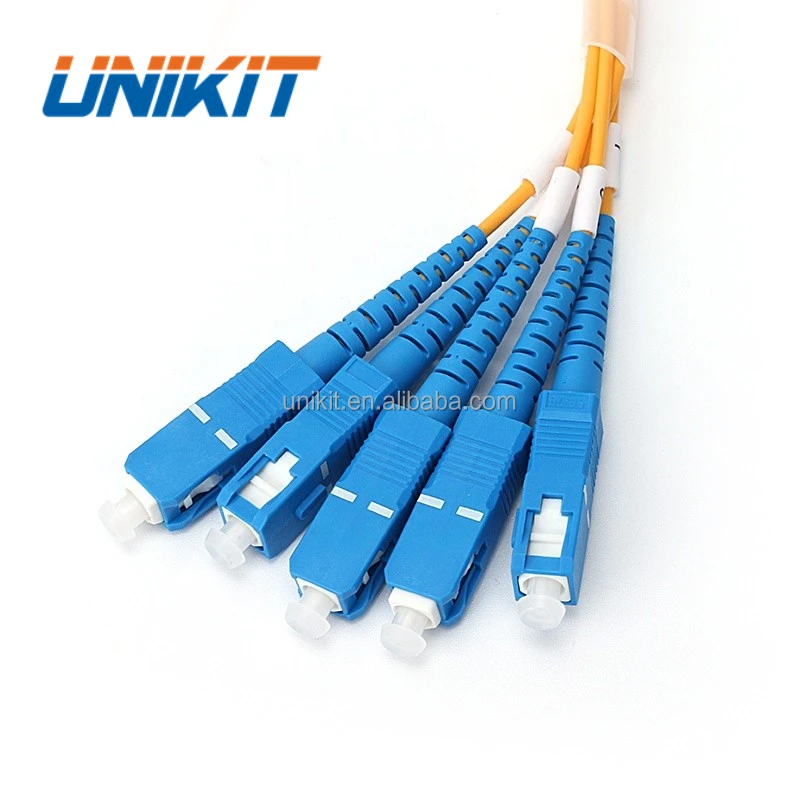

Connector Type | SC, LC, FC, ST |
Cable Diameter | 0.9/2.0/3.0mm |

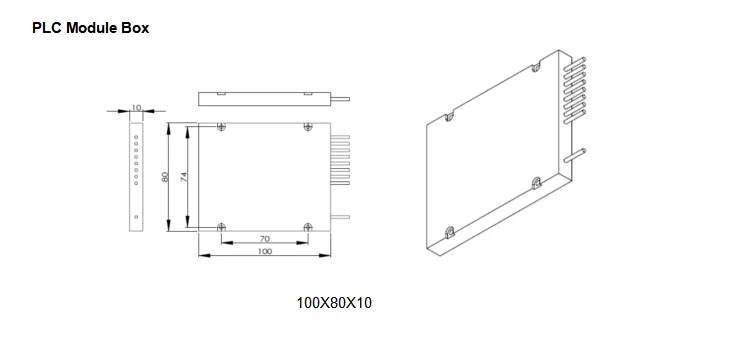

Packing Material | Cassette Box ABS |
Input/Output Length | 1m/1.5m/2m/Customized |
Ferrule Polish Endface | PC/APC/UPC |
Fiber Diameter | 250um/0.9mm |
Directivity (dB) | ≥55dB |
* Good uniformity and low insertion loss
* Low Polarization Dependent Loss
* Excellent Environmental Stability
* Excellent Mechanical
* Stability Telcordia GR-1221 and GR-1209

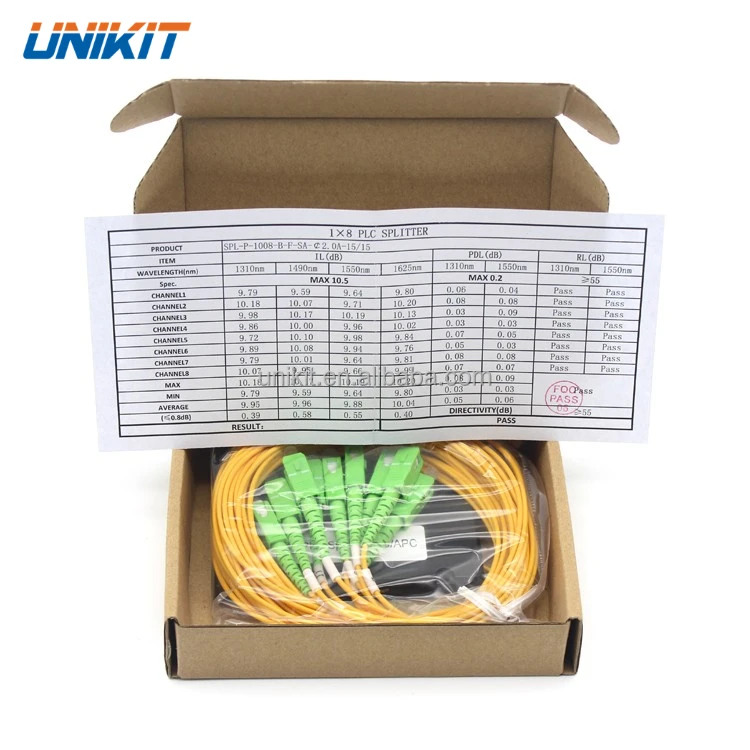

Packing & Delivery

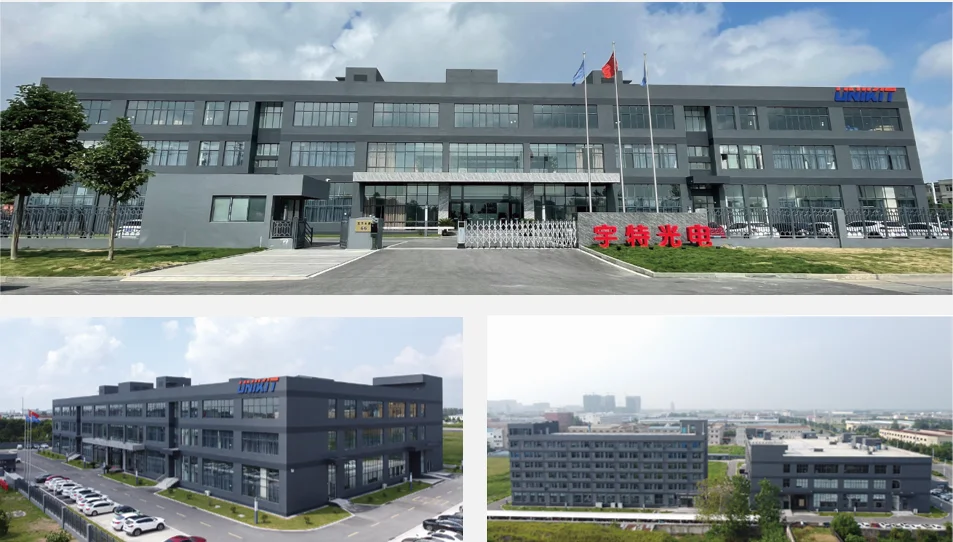

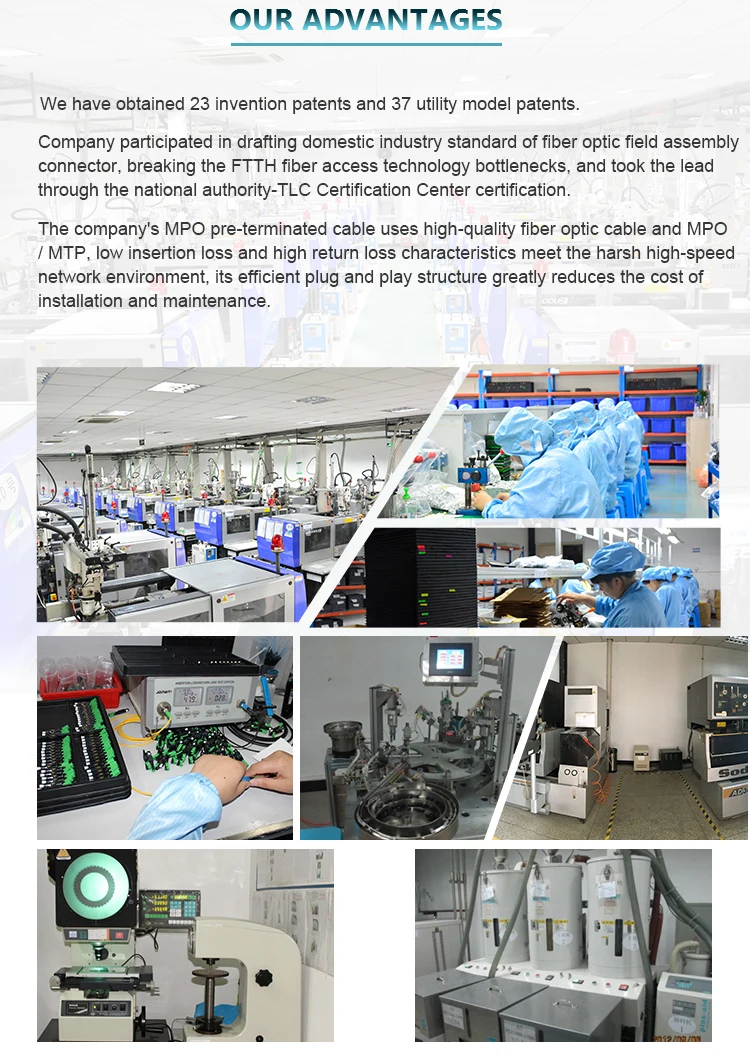

Company Profile
