DIY Homemade Design incubator eggs Fibreglass Heating Cable Wire
- Category: Other Wires, Cables & Cable Assemblies >>>
- Supplier: Hebei Naisi International Trading Ltd.
Share on (1600510958265):
Product Overview
Description
Four type heat cable
1.Single helix heating cable
2.Double helix heating cable 3.Straight wire heating cable
4.Carbon fiber heating cable

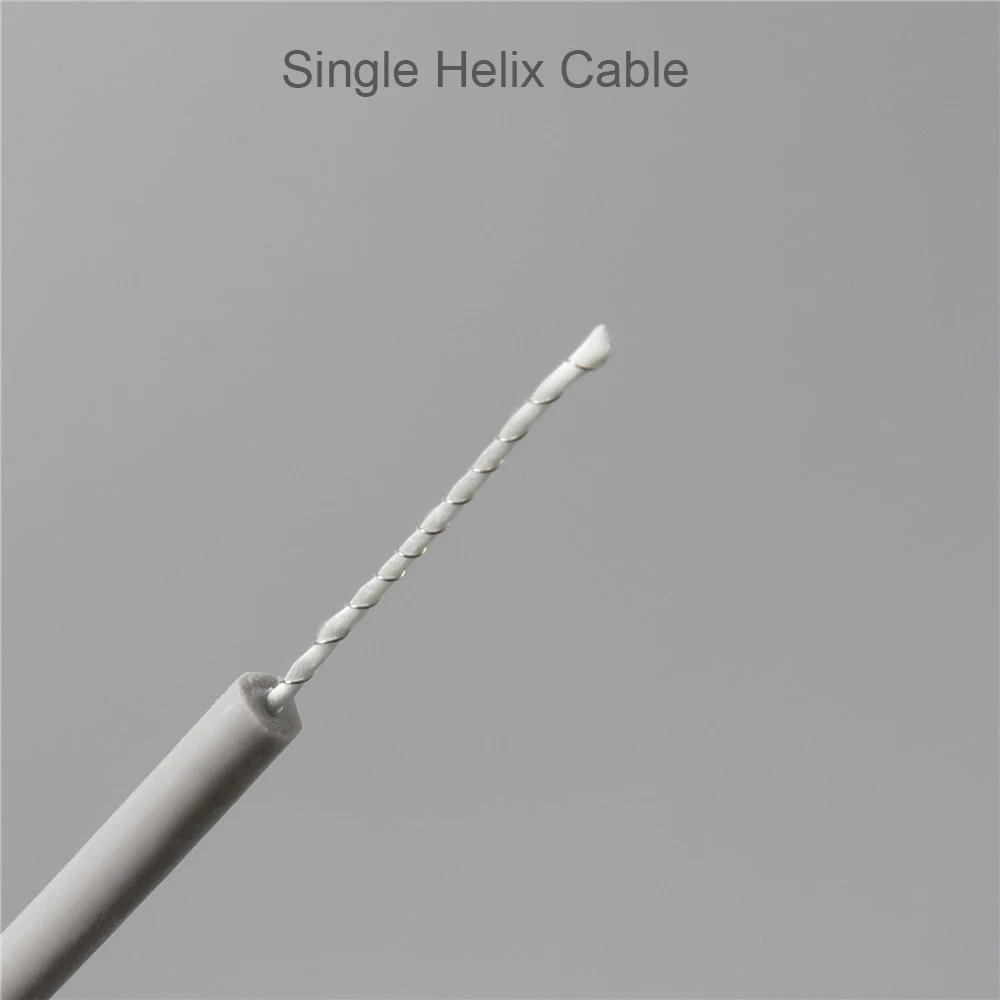

Single Helix Heating Cable

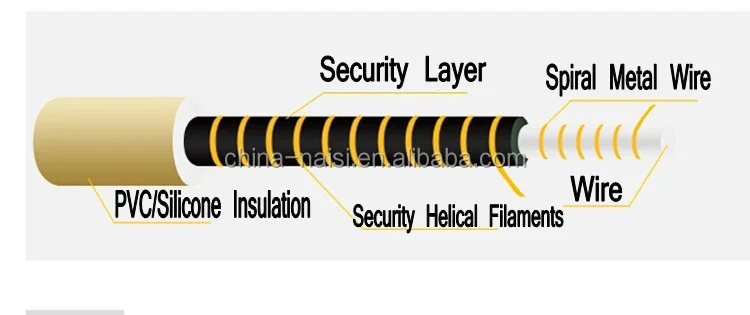

Design of single helix heating cable
The heating cable be made up of metal wire,fiberglass and insulation layer
Core of helix heating cable
Core design be made up of spiral metal wire and fiberglass
NO. | SPEC | DETAILS |
1. | Name | Single helix heating cable |
2. | Heating Conductor | Nichrome/copper alloy/stainless steel |
3. | Inside Structure | Helix |
4. | Inside Material | Fiberglass/Polyester |
5. | Insulating layer | PVC/Silicone |
6. | Voltage | 5V-350V |
7. | Resistance | 0.8-2000 Ohms/M |
8. | Cable Diameter | 1.5mm-6mm |
9. | WATT | 1-35W/M,As your demand |
10. | Temperature Resistant | PVC:105℃ Silicone:230℃ |
11. | Cable Lifespan | PVC layer cable is 36 months Silicone layer cable is 72 months |
If you need double slicone layers,we also can produce it for you
This cable cost is higher,because of the machine have to produce cable twice
Double Helix Heating Cable
NO. | SPEC | DETAILS |
1. | Cable Diameter | 2.5MM |
2. | Watt | 3.5-4.2W/M |
Straight Wire Heating Cable
This cable have a long history,but some clients still use it now
NO. | SPEC | DETAILS |
1. | Wire Material | Nichrome/Copper |
2. | Layer Material | Silicone |
3. | Diameter | 1.5-2.5mm |
Carbon Fiber Heat Cable
Introduction
This heating cable be made up of silicone layer and carbon fiber conductor.The lifespan is more than 10years,and heat efficiency is very high
Diameter
The diameter depend on resistance,big resistance have big diameter
NO. | Fiber diameter | Cable diameter | K | Ω/M |
1. | 0.15mm | 1.6mm | 1K | 440 Ω/M |
2. | 0.25mm | 1.8mm | 2K | 220 Ω/M |
3. | 0.35mm | 2.0mm | 3K | 133 Ω/M |
4. | 0.55mm | 2.2mm | 6K | 66 Ω/M |
5. | 0.65mm | 2.2mm | 9K | 45 Ω/M |
6. | 0.75mm | 2.2mm | 12K | 33 Ω/M |
7. | 0.85mm | 2.5mm | 15K | 25 Ω/M |
8. | 0.95mm | 2.5mm | 18K | 22.5 Ω/M |
9. | 1.05mm | 2.7mm | 21K | 19 Ω/M |
10. | 1.15mm | 3.0mm | 24K | 16.5 Ω/M |
11. | 1.25mm | 3.0mm | 27K | 14.7 Ω/M |
12. | 1.35mm | 3.0mm | 30K | 13.3 Ω/M |
13. | 1.45mm | 3.2mm | 33K | 12 Ω/M |
14. | 1.55mm | 3.2mm | 36K | 11 Ω/M |
15. | 1.65mm | 3.3mm | 39K | 10.2 Ω/M |
16. | 1.75mm | 3.4mm | 42K | 9.5 Ω/M |
17. | 1.85mm | 3.5mm | 45K | 8.86 Ω/M |
18. | 1.95mm | 3.6mm | 48K | 8.3 Ω/M |
Certifications
Heating Cable--LVD-CE Certificate
Heating Cable--LVD-RoHS Certificate
Workshop and Test Equipment
Application
Heating pad
Single helix silicone cable
Electric blanket
Double helix cable or single helix PVC cable
Towel heater rack
Single helix silicone cable
Heating element
Single helix silicone cable
Aluminium foil
Single helix silicone cable
Underfloor heating cable
Carbon fiber heat cable
Greenhouse for soil warm
Single helix PVC cable
Single helix silicone cable
Carbon fiber heat cable
Sheepfold
Single helix PVC cableSingle helix silicone cable
Carbon fiber heat cable
Carbon fiber heat cable
Hog lot
Single helix PVC cable
Single helix silicone cable
Carbon fiber heat cable
Carbon fiber heat cable
For soil warm cable,some clients ask us how many watt for 1sq,m,we write details here for your reference
Watt for 1 sq.m | Cable spacing |
60w/㎡ | 12.5-13.9cm |
80w/㎡ | 9.4-10.4cm |
100w/㎡ | 7.5-8.3cm |
120w/㎡ | 6.3-7.3cm |
140w/㎡ | 5.4-6.0cm |

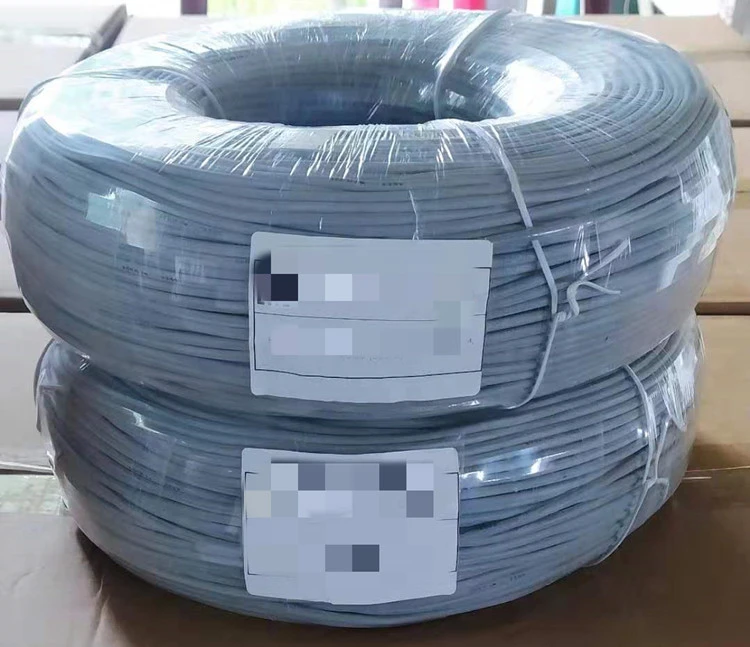

Package
