X6333A Turret Milling Machine High Quality Milling Machine
- Category: >>>
- Supplier: Tengzhou Datong Machine Tool Co. Ltd.
Share on (1600510960777):
Product Overview
Description
DTMC
Product Description
Model | unit | X6333 | X6333A | |
Worktable size | mm | 330*1370(13*54) 330*1500(13*60) | ||
Worktable longitudinal trabel | mm | 840 1000 | ||
Worktable cross travel | mm | 368 | ||
Worktable vertical travel | mm | 450 | ||
T- slot No. and size |
| 3*16 | ||
arm travle | mm | 500 | ||
Distance from spindle nose to table surface | mm | 0-450 | ||
Spindle hole taper |
| Standard:ISO40 | ||
Spindle travel | mm | 127 | ||
Spindle speed | mm/min | Standard: Step speed 16 steps: 50HZ 65-4500,60HZ 80-5440 | ||
Optional:Stepless:65-3750 | ||||
Auto. Quill feed | mm | 3 steps:0.04(0.0015)/0.08(0.003)/0.15(0.006) | ||
Spindle motor |
| 3.75kw/5hp | ||

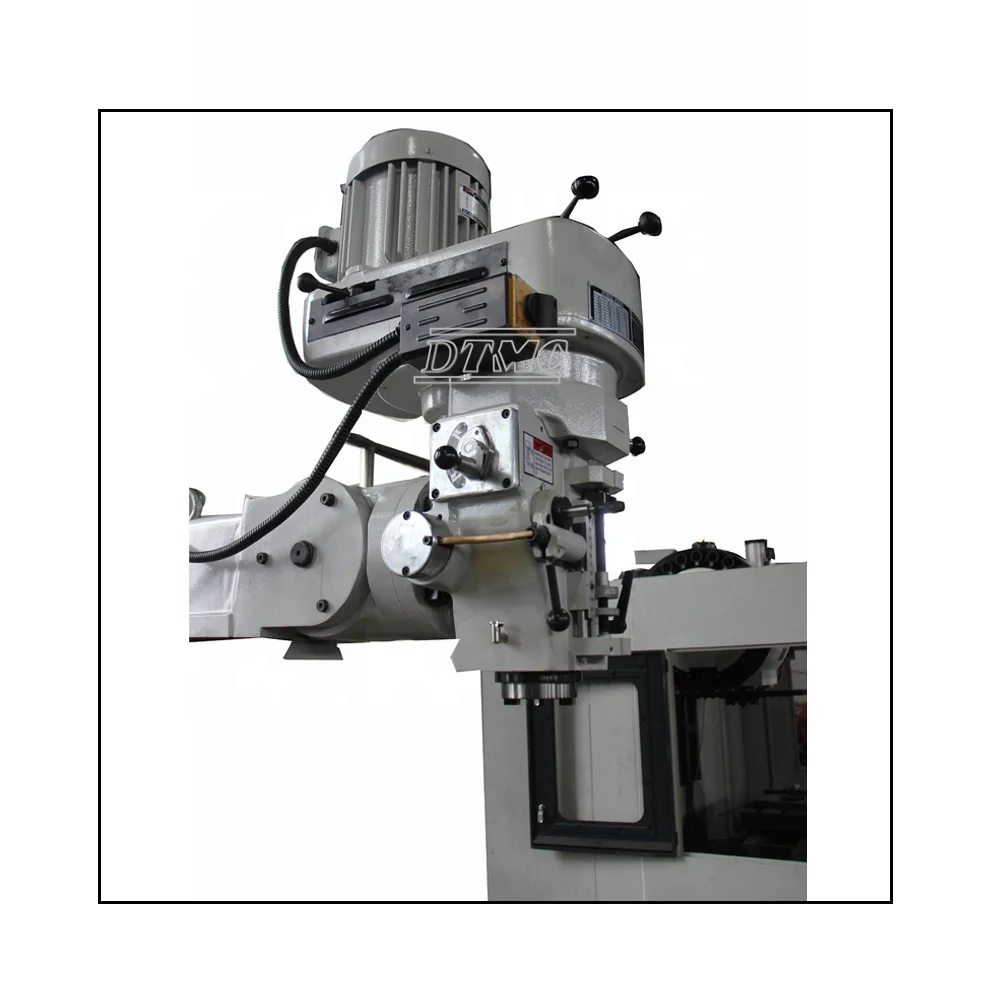

Head swivel |
| 90° | ||
Head tilting |
| 45° | Fixed type | |
Packing dimension | One miller per case | mm | 1800*2016(1650)*2180 | |
Two miller per case | mm | 1800*2200*2180 | ||
three miller per case | mm | 1650*2285*2235 | ||
G.W/SET | kgs | 2300 | 2350 | |

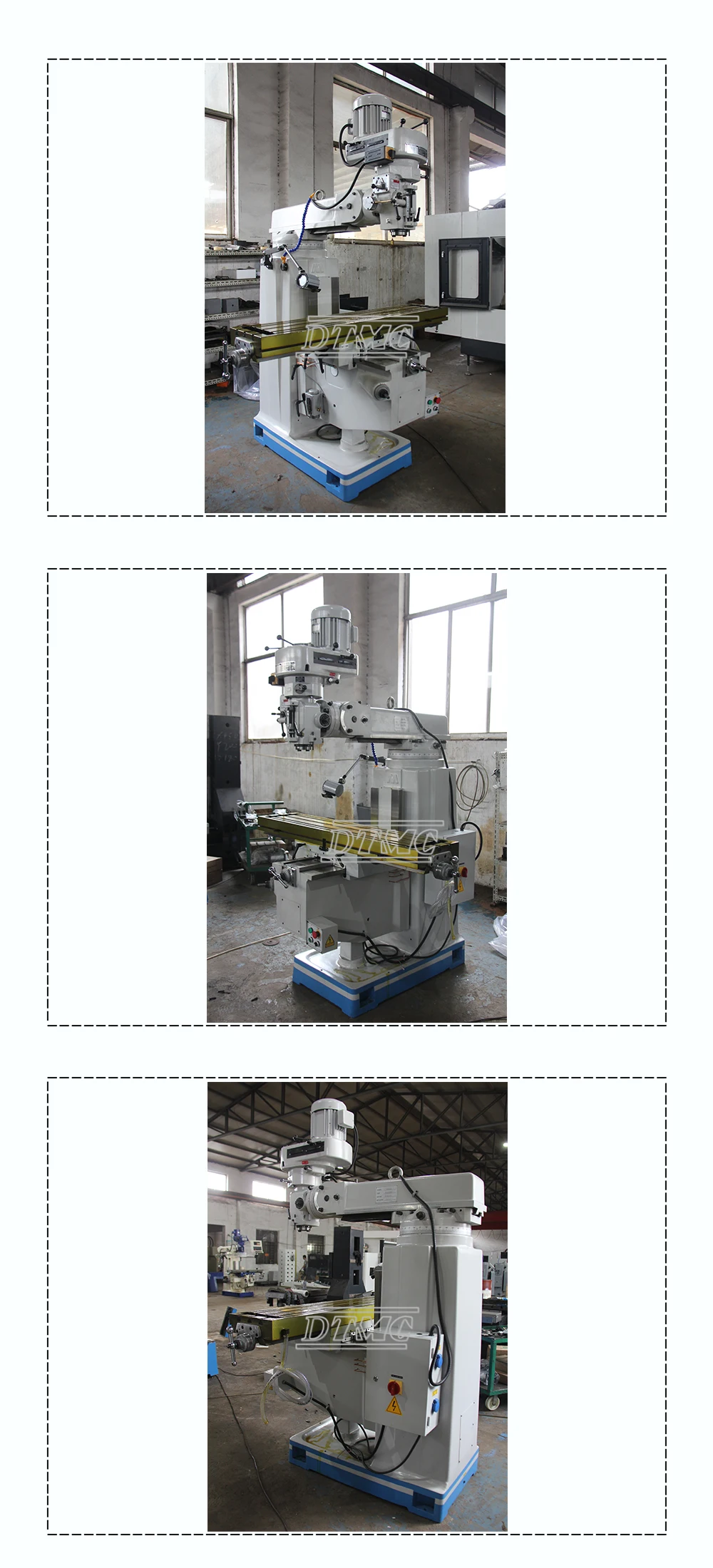

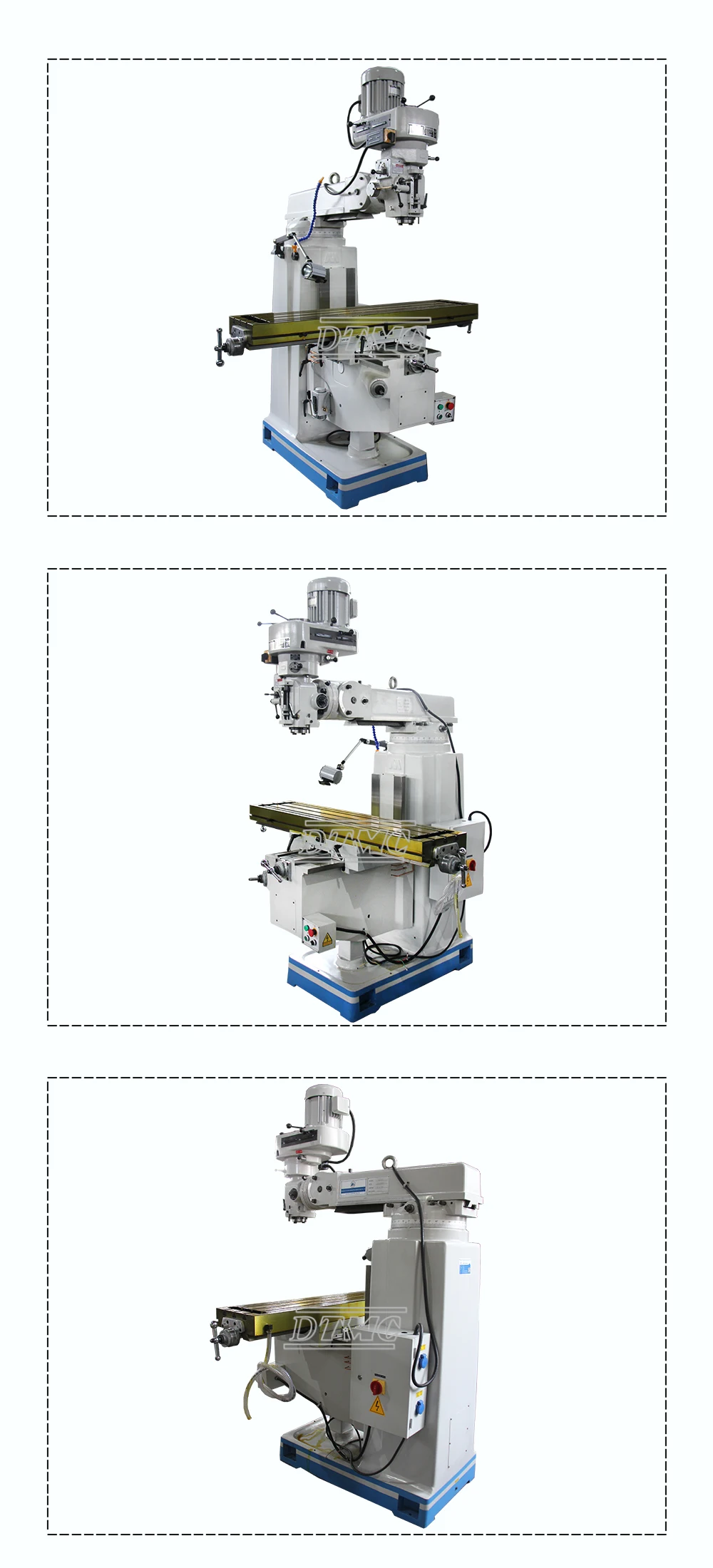

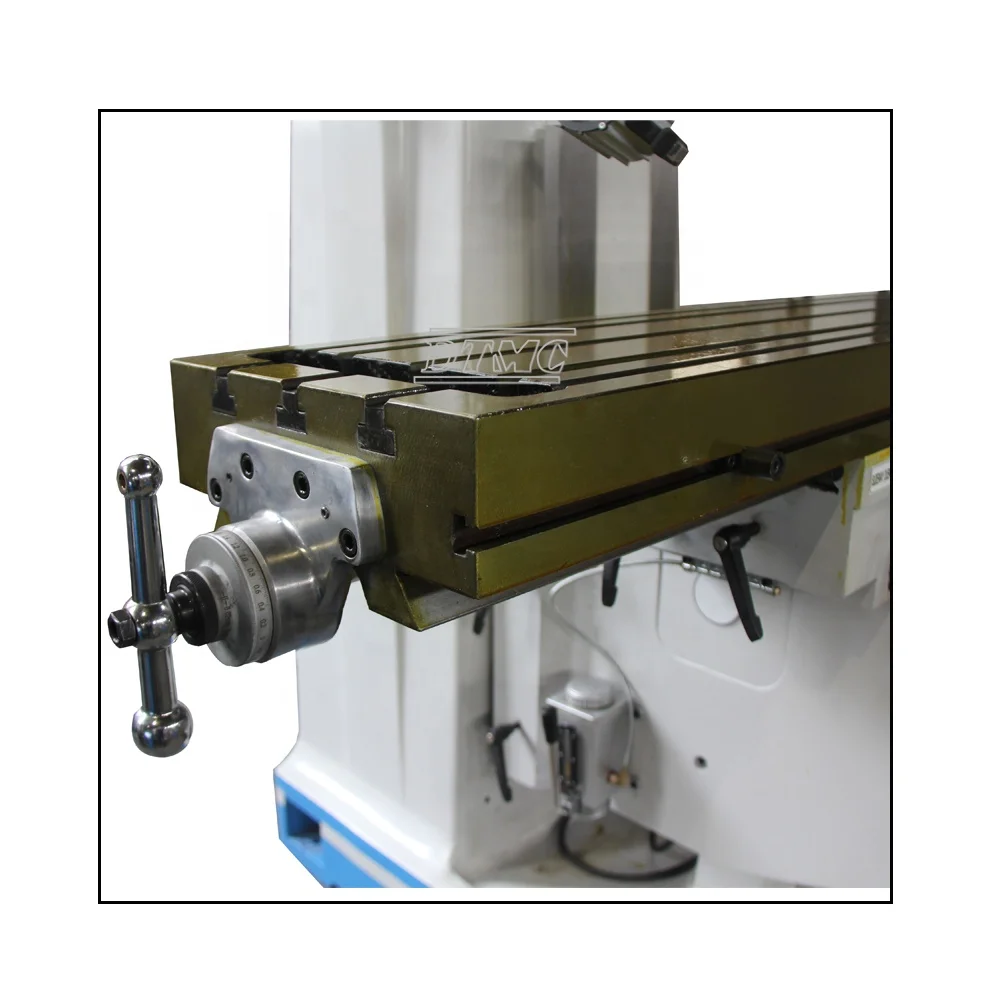

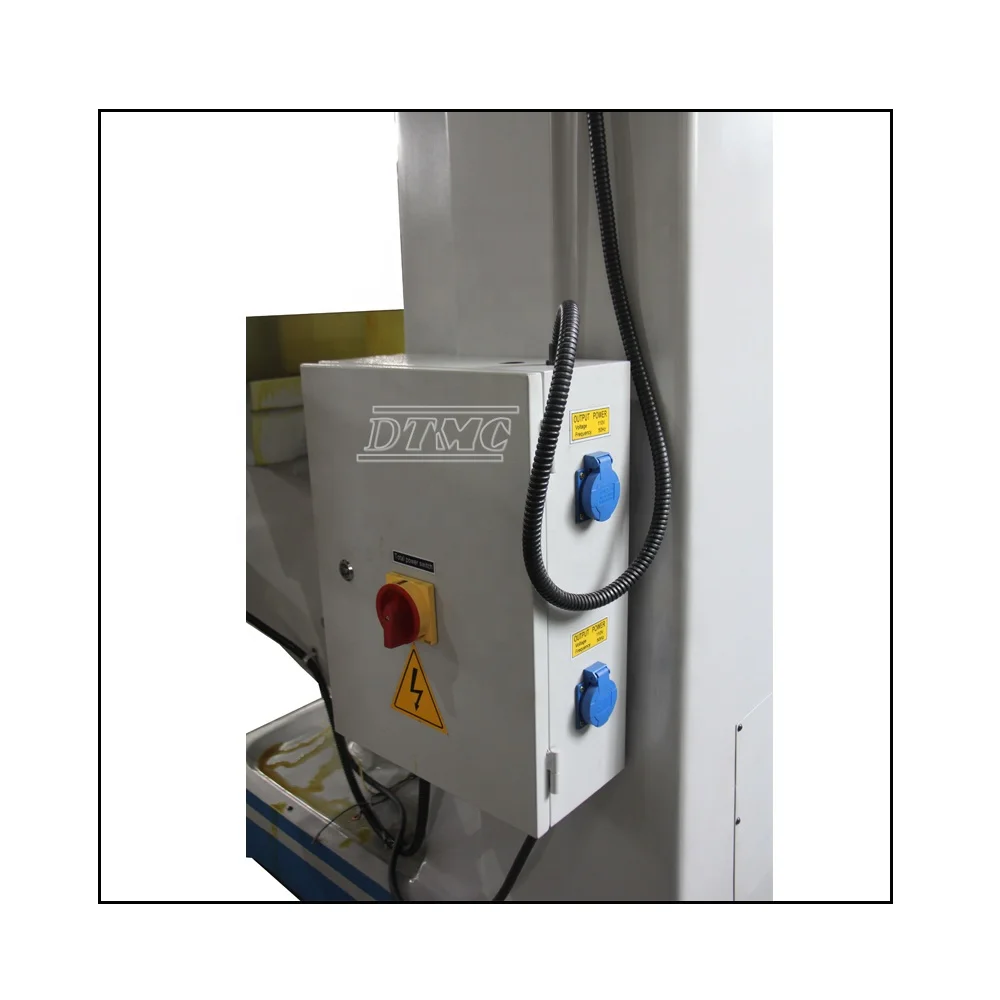

Product show
