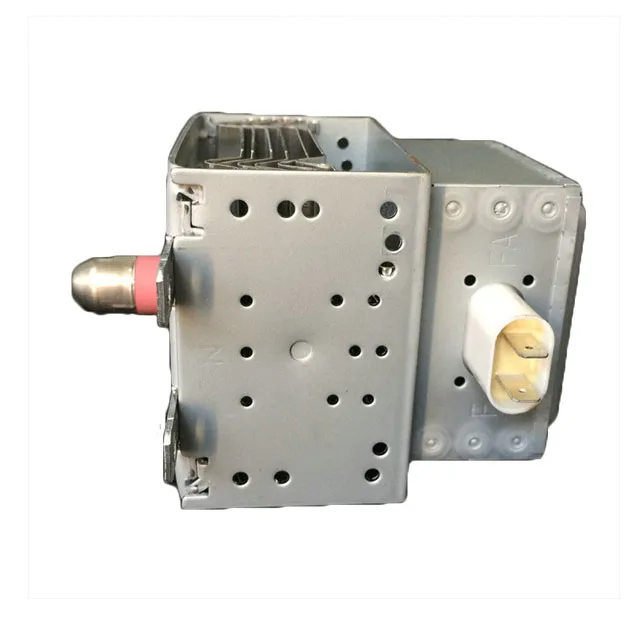

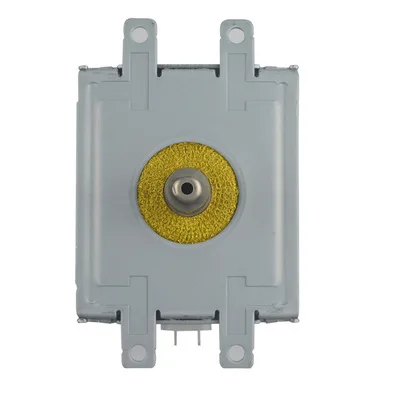

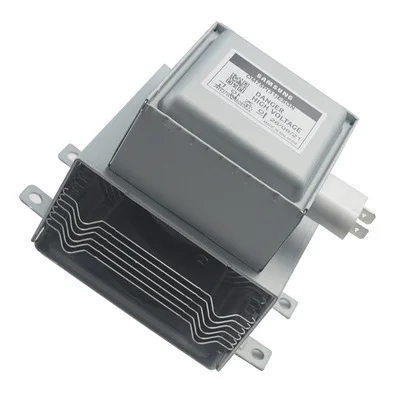

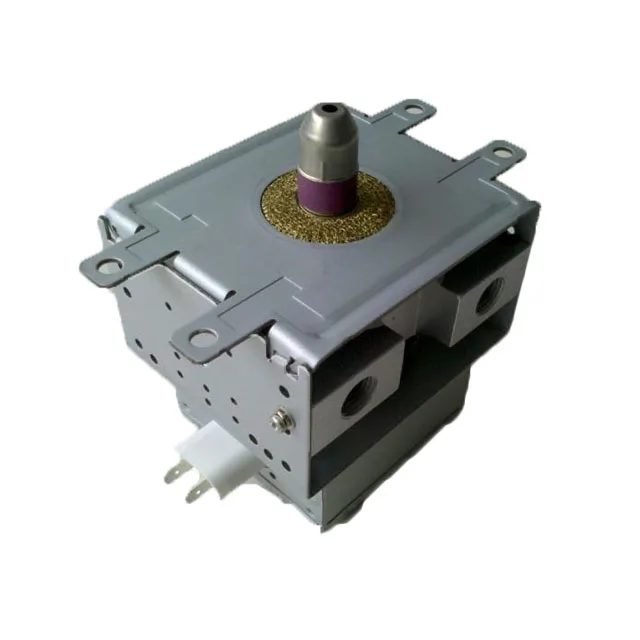

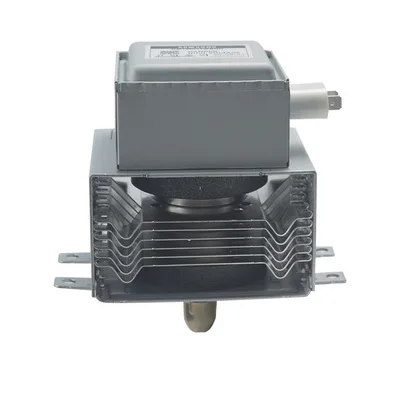

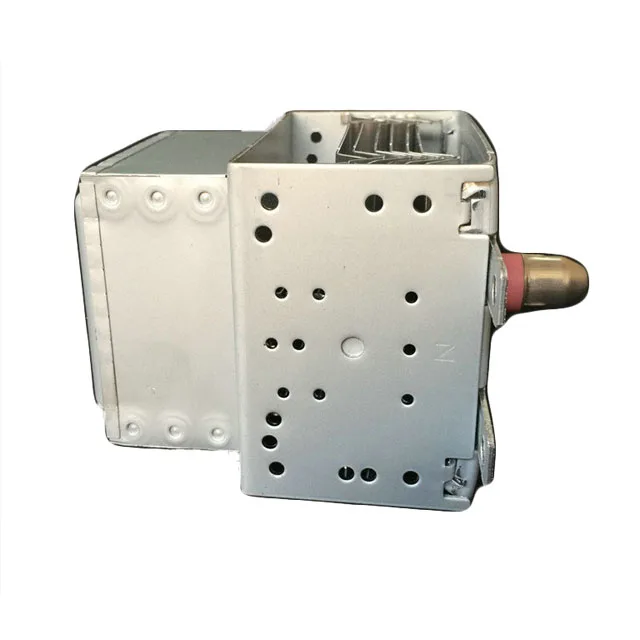

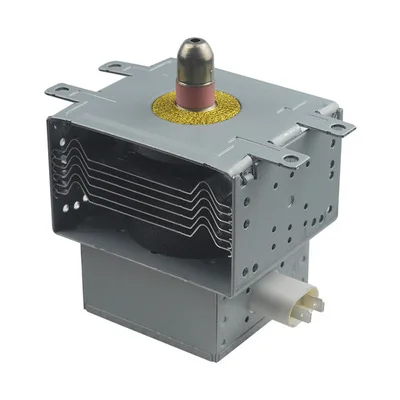

1kW 2465MHz Magnetron Microwave With Long Life Time
- Category: >>>
- Supplier: Zhuhai Pindom Technology Co. Ltd.
Share on (1600510984986):
Product Overview
Description
Specification
Item | 1kW 2465MHz Magnetron Microwave With Long Life Time |

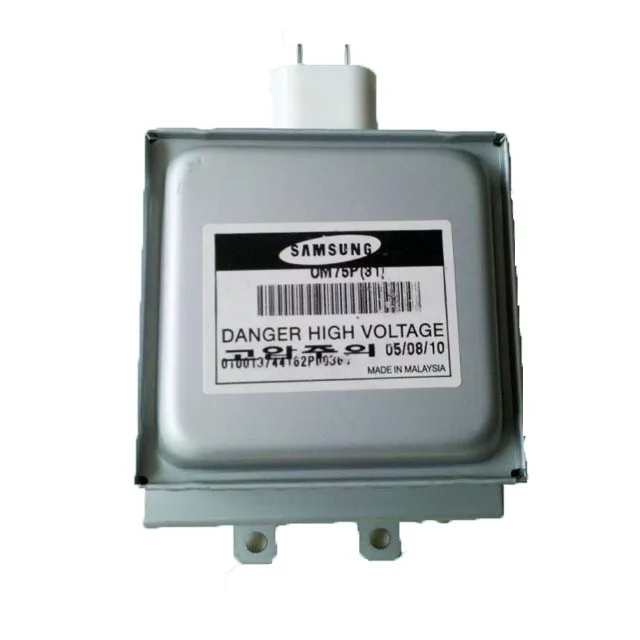

Model | OM75P(31) |
Cooling | Air cooling |
Voltage | 4.5kv |
Efficiency | 71.0% |
Storage Temperature | -35℃ to +60℃ |
R.F Coupler | WR430 system |
Cooling Water Flow | 1.40L/min |
Microwave frequency | 2465HMz |
Output Power | 1000W |
Any questions welcome to consult, we have professional engineers with you docking.
Product Description
OM75P（31） is a continuous wave magnetron with fixed frequency of 2465MHz and high efficiency.
For power supply an L.C single phase half wave doubler should be used.
- The filament voltage should be measured at tube terminals.
- The combination of transformer and capacitor should be chosen such that for normal line
- The filament voltage should be measured at tube terminals.
- The combination of transformer and capacitor should be chosen such that for normal line
voltage, Ia mean
=330mA±1% and la peak 1020 to 1050mA.
- It is recommended to use a 10-12KV avalanche diode as protection for capacitor and transformer.

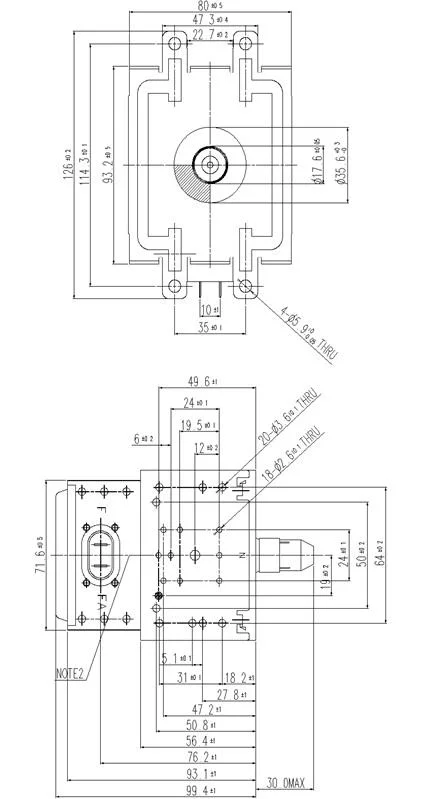

- For wave guide configuration and power supply, see page 5 and 6.
- A water load of which the V.S.W.R≤1.1 over the frequency band 2425MHz up to 2475MHz should be used.
- Unless otherwise stated, limits apply for a tube within 15 seconds after application of voltage and at 25℃.
- Before testing, the tube should be "at room temperature" for at least four hours.
- During test, the magnetron should be cooled with 1.40L/min in of forced water.
=330mA±1% and la peak 1020 to 1050mA.
- It is recommended to use a 10-12KV avalanche diode as protection for capacitor and transformer.
- For wave guide configuration and power supply, see page 5 and 6.
- A water load of which the V.S.W.R≤1.1 over the frequency band 2425MHz up to 2475MHz should be used.
- Unless otherwise stated, limits apply for a tube within 15 seconds after application of voltage and at 25℃.
- Before testing, the tube should be "at room temperature" for at least four hours.
- During test, the magnetron should be cooled with 1.40L/min in of forced water.
The efficiency of the magnetron is generally about 72%-75%, and a lot of heat will be generated during the working process, which requires supporting air cooling or water cooling to maintain stable work. Industrial microwave products generally use high-quality magnetron.
