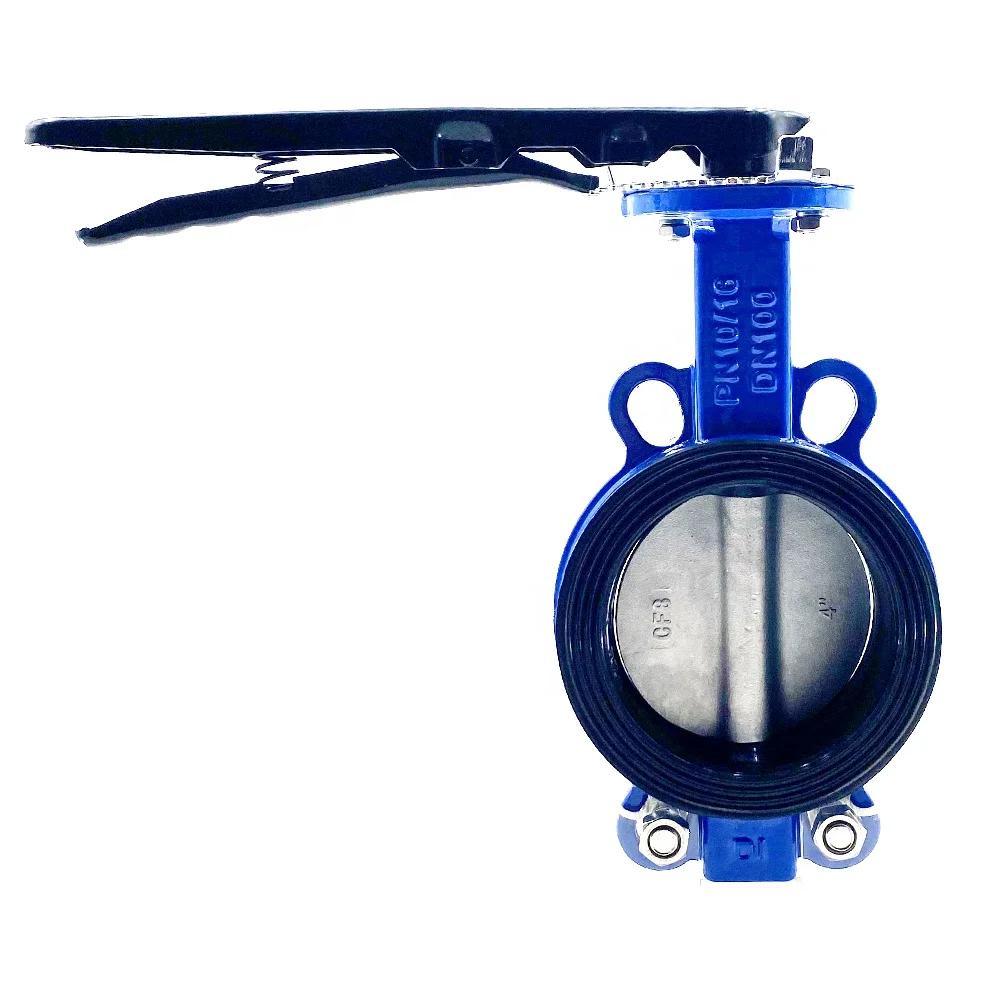

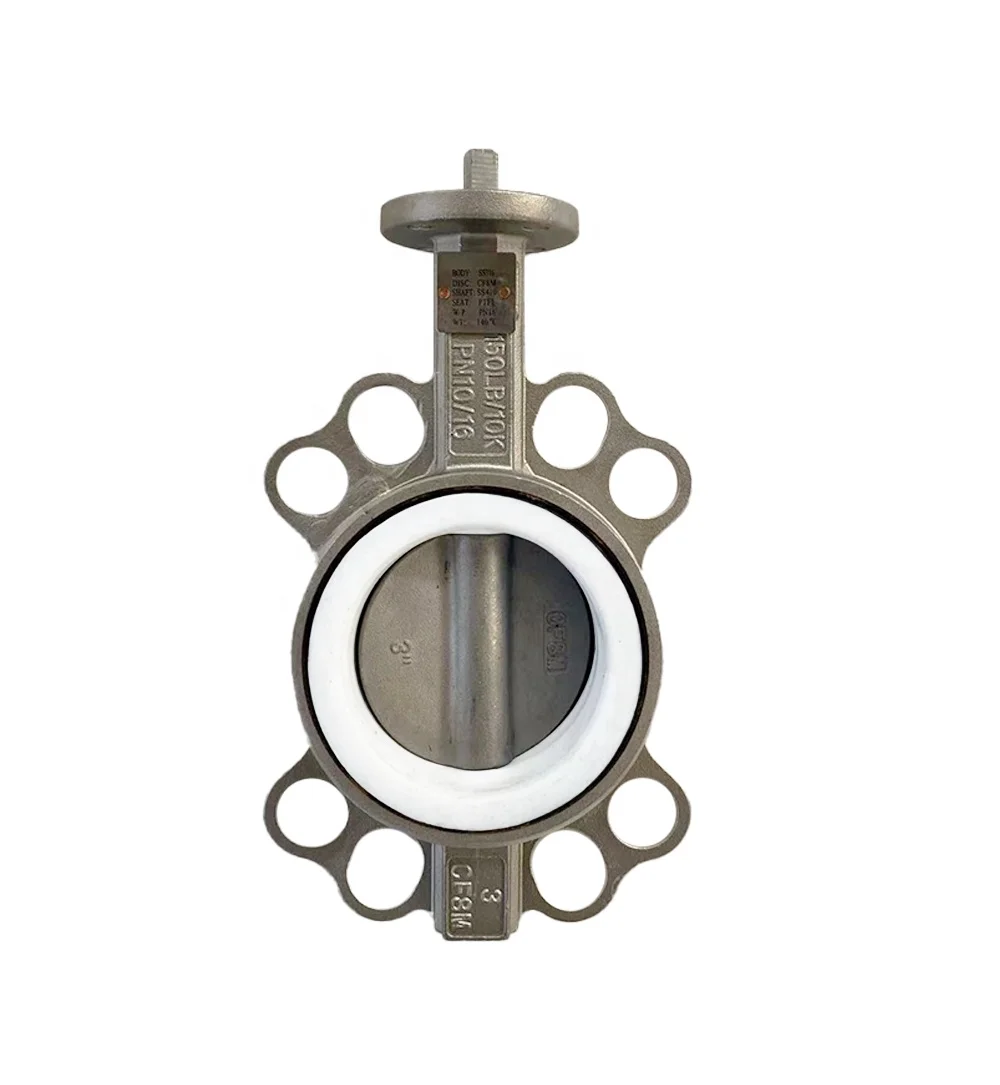

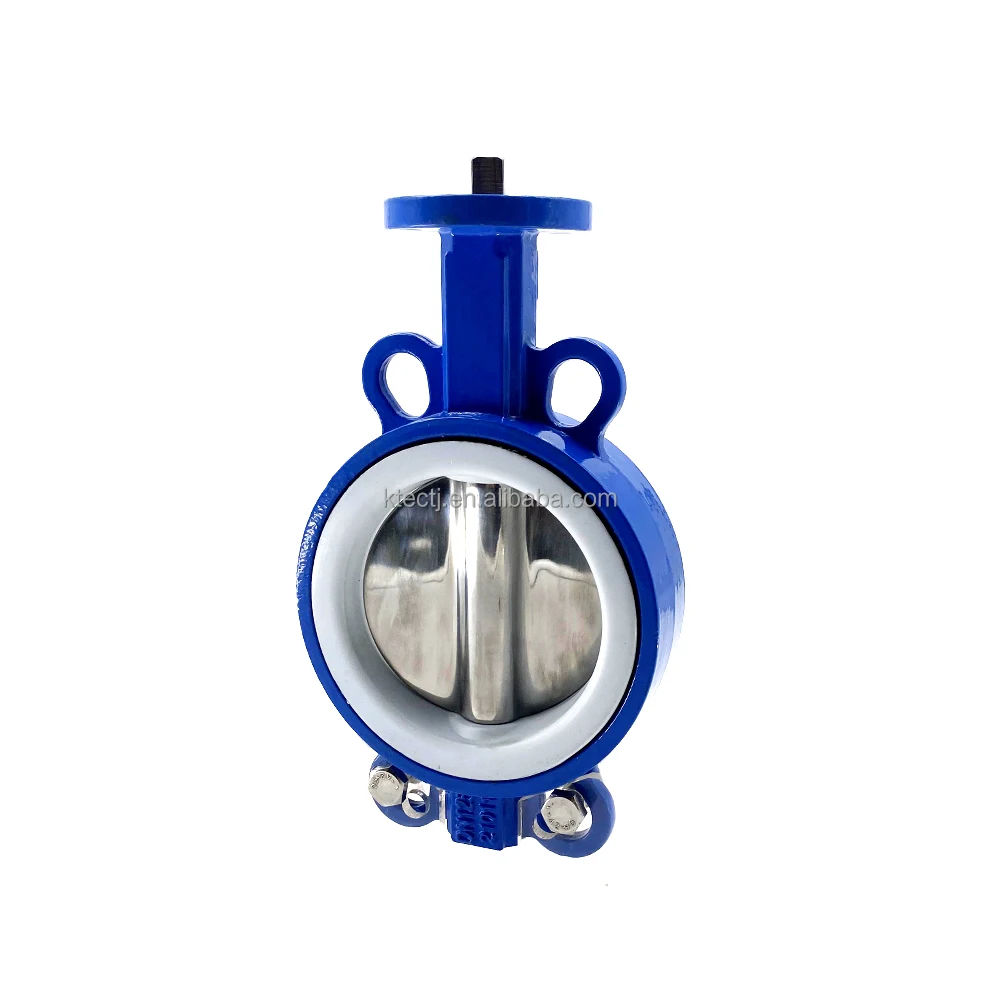

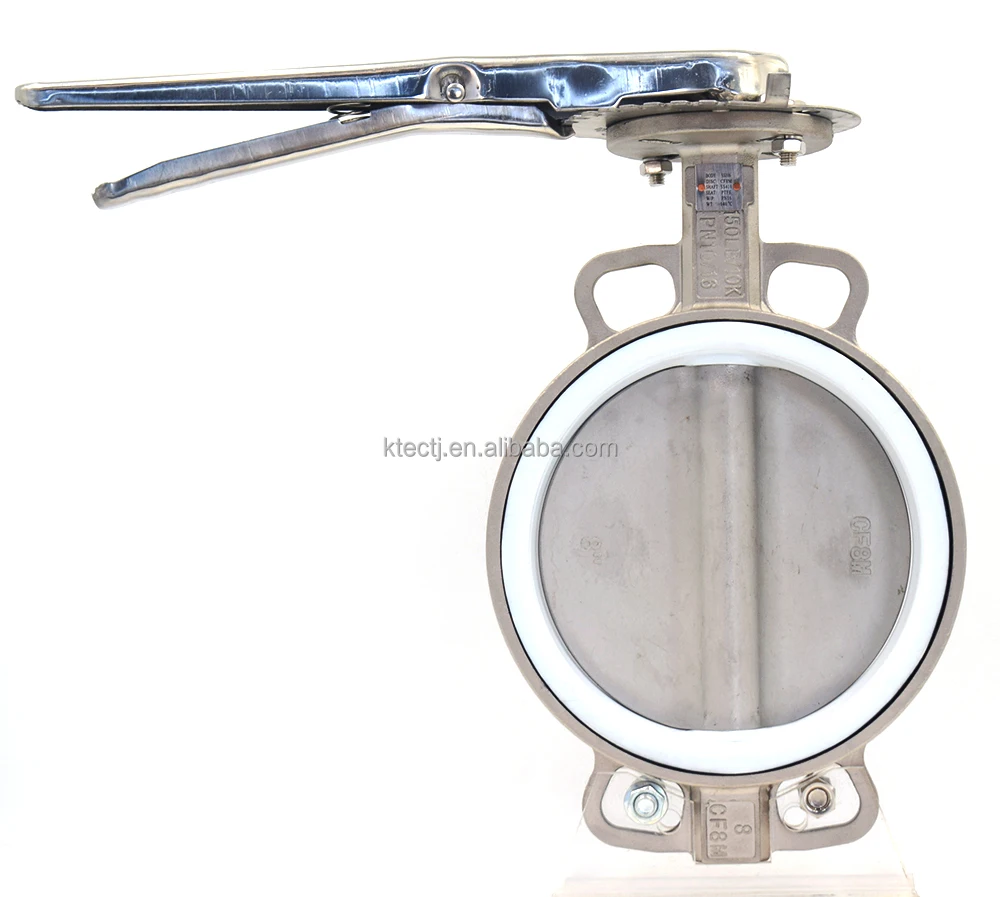

Best Selling Wafer Type PTFE Lined Cast Iron Manual Operated With PTFE Seated Industry Butterfly Valve Supplier
- Category: >>>
- Supplier: KTEC Fluid Control Equipment (Tianjin) Co. Ltd.
Share on (1600510989223):
Product Overview
Description

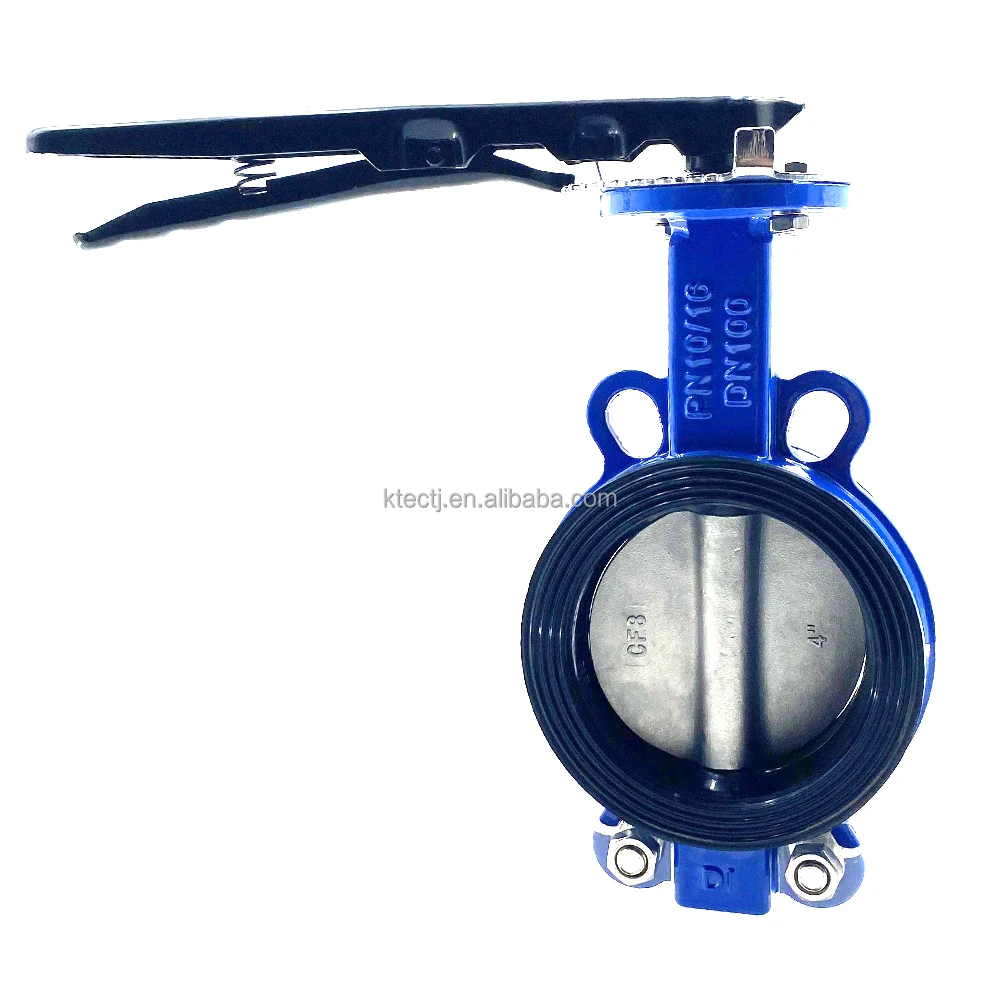

Cast Iron Butterfly ValveDescription
Features Of Electric flange Butterfly Valve:
1.Features Of Electric flange butterfly valve including easy to install, fast open/close and compact design
2. Low cost. Offering cost-effective solution for you. To help you save budget and time
3. Widely used in wastewater treatment, food and beverage, packing industry, medical industry, etc
4. Rack and pinion pneumatic actuator available in single acting and double acting
5. High output torque
6. Responsive
We are committed to be your No.1 one-stop valve solution provider to help your automation easier
Item | Price DN50/150/100 Double/Single Acting Wafer Cast Iron Flow Control Air Pneumatic Actuator Butterfly Valve |
|
|
Size Range | DN50 to DN600, 2" to 24" |
|
|
Acting Mode | Double Acting, Sping Return (Single Acting) are Available |
|
|
Air Supply Pressure | 2.5 to 8bar |
|
|
Operating Pressure | PN1.0 to 1.6MPa (145 to 232PSI) |
|
|
Output Torque | 14 to 1170Nm |
|
|
Lifespan | 1,000,000 (1 Million) Times |
|
|
Angle of Rotation | 90° ±4° |
|
|
Shell Material | Aluminum Alloy Extruded |
|
|

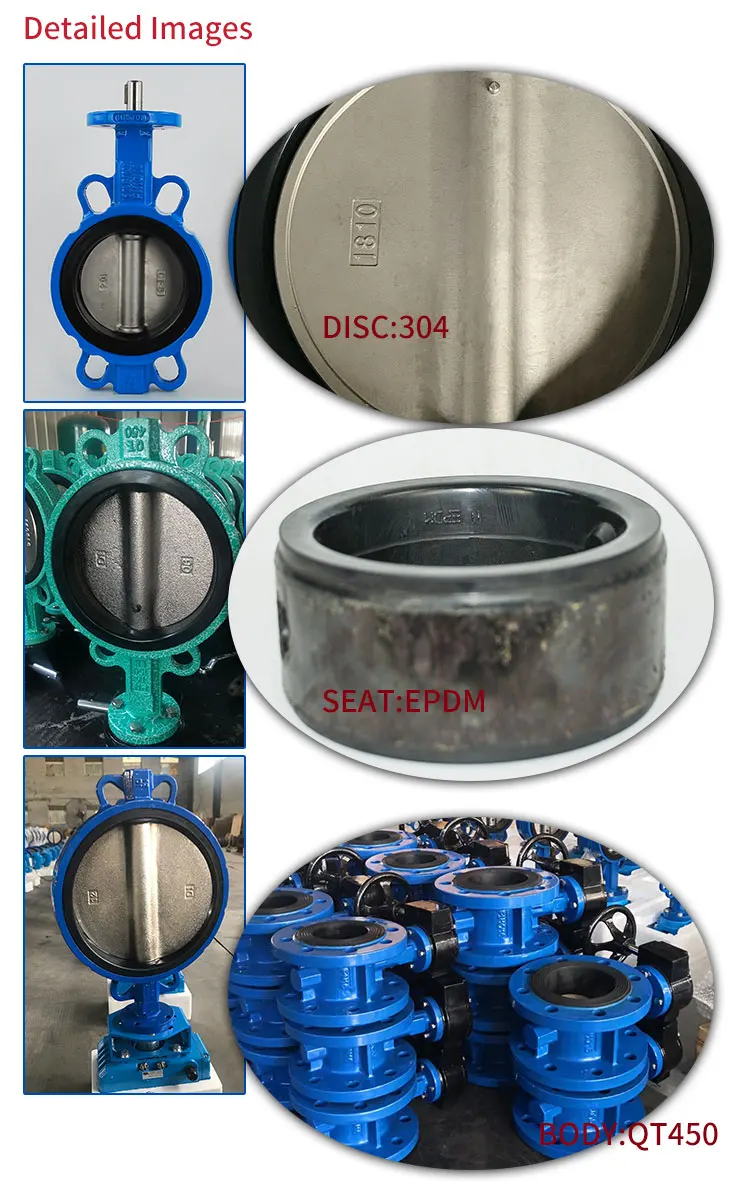

Body Material Options | Cast Iron or Stainless steel 304/316/316L |
|
|
Sealing Material | NBR, EPDM, PTFE |
|
|
Disc Material | Stainless steel |
|
|
Structure | Midline |
|
|
End Connection | Wafer |
|
|
Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam |
|
|
Temp. of Media | Range from -10 to +80°C (14 to 176°F) with NBR Sealing |
|
|
Ambient Temp. | Standard Type: -20 to +80°C (-4 to 176°F) |
|
|
Optional Accessories | Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device |
|
|
Application | Food & Beverage, Refining, Desalination, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine and Power Industries |
|
|

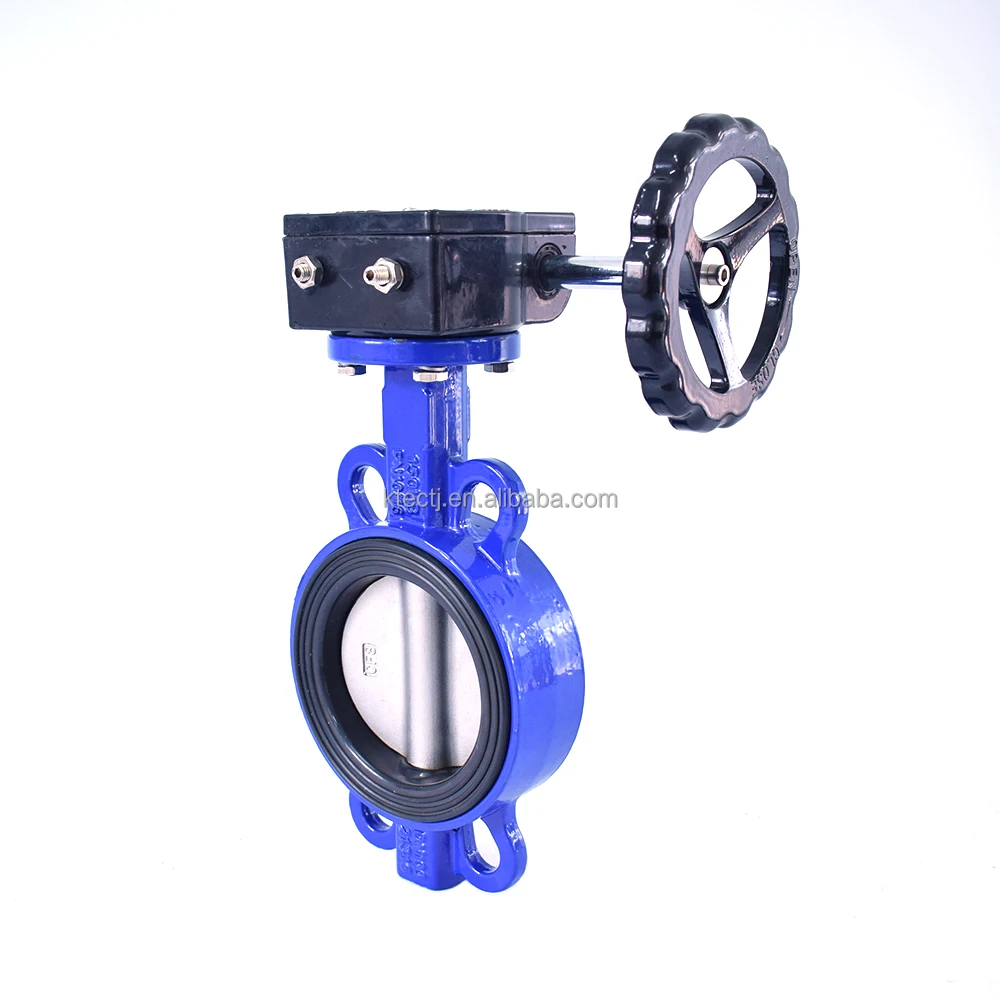

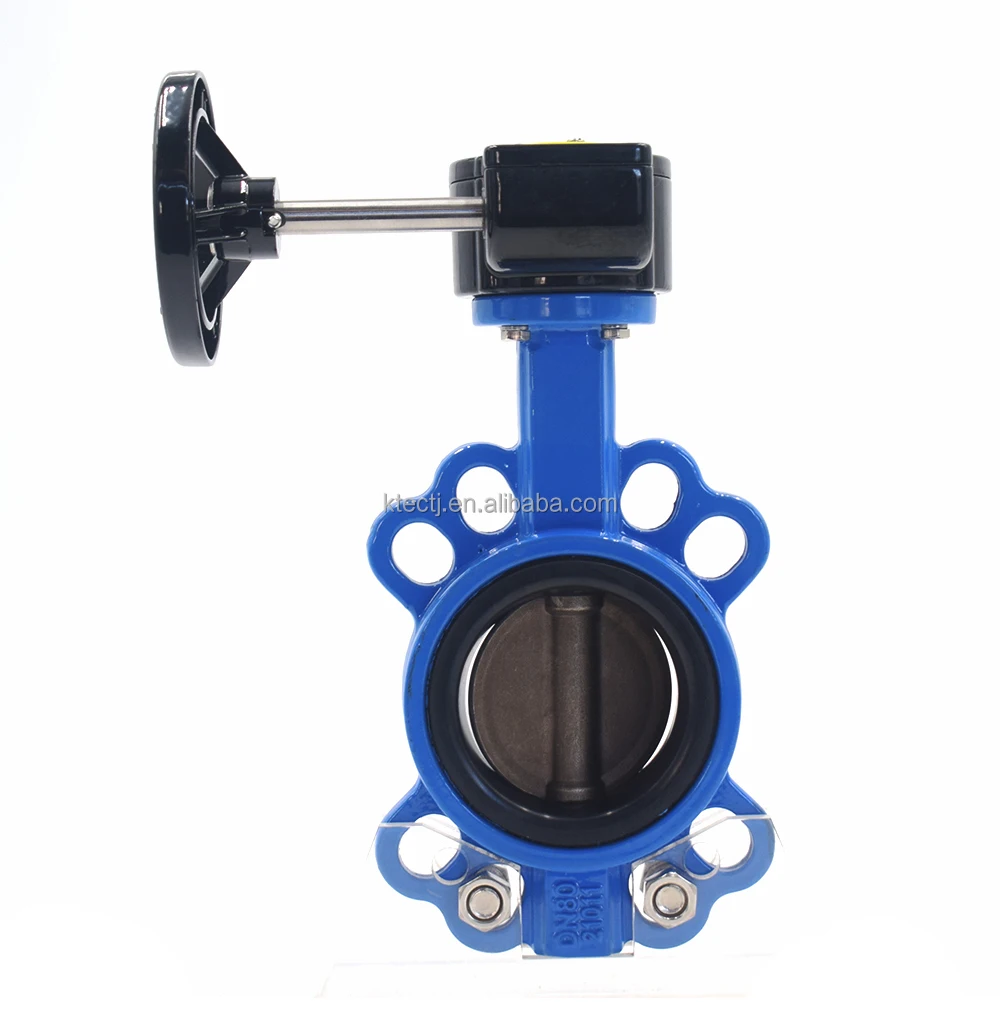

Features Of ZTVK Worm gear: |
Production Process
Features Of Pneumatic Actuator:
Rack and pinion pneumatic actuator with high output torque up to 4678Nm
High quality aluminum alloy cylinder block, well for outdoor use
Easy to repair or change the spring to ensure the toruqe
NAMUR standard and ISO5211 mounting standard
1 Million lifespan and fast open/close
Double Acting | Air to open, Air to close, air supply failure keep the current position |
Spring Return | Air to open, interrupt air to open, air failure to close |
Operating Media | Dry or lubricated air, or the non-corrosive gases. The maximum particle diameter must less than 30 um |
Air Supply Pressure | Minimum supply pressure is 2.5 bar. The maximum supply pressure is 8 bar |
Operating Pressure | Standard: -20~80°C |
Travel Adjustment | Have adjustment range of ±5° for the rotation at 0° and 90° |

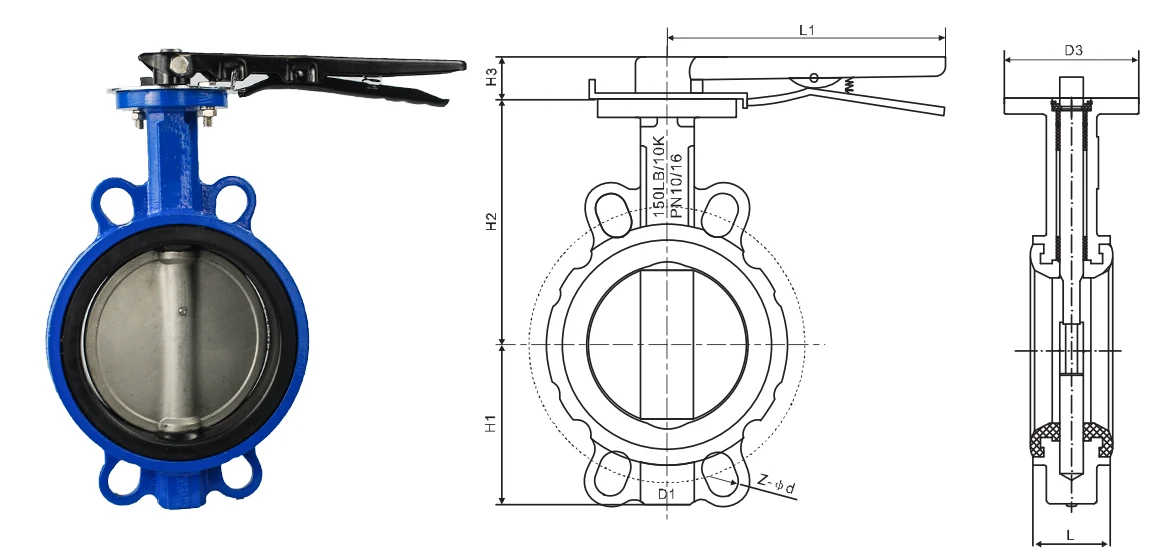

Wafers End Type Butterfly Valves Technical Parameters
About ZTVK
ZTVK from Tianjin, China is a professional manufacturer of fluid control valves provides performance, safety and long service life products which have to reliably handle the most aggressive of substances, our products stand the test of time in food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
give comprehensive service from start to finish, consultation through to after sales service, full support in every respect and ensure that you are accompanied at each stage of your project.
Together with continual feedback from our customers as well as our experience in manufacturing and quality control, ZTVK aims to provide our customers the best quality products with the most competitive pricing,on-time delivery and full warranty service
Our competitive advantage:
1.Consistent product quality and reduction of defective rate
2.Improved manufacturing process and better productivity
3.Significant cost reduction versus competitors
This is ZTVK - solve your technical questions with solid experience.
Our Service
Certifications
Ductile Iron Center Line Butterfly Valve Packing
Packing: Pneumatic valves packed with foam in carton.
Delivery Time: 15 working days after payment confirmed.
Why Choose Us
Our Advantages
Product Applications
Delivery
FAQ
Q: Can I get a sample and how do I get it?
A: Yes, the sample is available and please tell us your requirements of the sample and we will quote it for you and help you to order it.
Q: What are your main products?
A: We are a valve and actuator manufacturer with 10 years experience and we could provide ball valve, butterfly valve, check valve, gate valve, globe valve, electric actuator and pneumatic actuator for you. We committed to being your No.1 one-stop valve solution provider.
Q: Do you have any certificates?
A: Yes, we have ISO9001:2015, CE, TUV, SGS and more than 30 patents. Quality is our goal and the certificate is good proof of our quality.
Q: Can I be your distributor?
A: Yes, you can be our distributor. Details please contact us.
Q: What are your payment term and delivery time?
A: We accept TT, Paypal, Western Union, Credit card. The delivery time about 3 to 7 working days.
